630 - 4 CYL AG TRACTOR AL... 01 - ENGINE 06A02 - ENGINE ASSEMBLY I...
06A02 - ENGINE ASSEMBLY INSIDE, 134'', 172'' GASOLINE, LPG & KERO
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    EAE6375B
    SPARE PART; Flywheel Assy., 9'' Single Clutch, Prior to S/N 14257;No Longer Serviced; (Prod Date) Between 01-Jan-1953 and 31-Dec-1957
  • 1
    1
    B7P6375B
    ENGINE FLYWHEEL; Flywheel Assy., 10'' Single Clutch, Prior to S/N 14257;No Longer Serviced; (Prod Date) Between 01-Jan-1955 and 31-Dec-1957
  • 1
    1
    EAF6375D
    SPARE PART; Flywheel Assy., 9'' Double Clutch, Prior to S/N 14257;No Longer Serviced; (Prod Date) Between 01-Jan-1955 and 31-Dec-1957
  • 1
    1
    311244
    WHEEL; Flywheel Assy., 10'' Single Clutch, After S/N 14256;No Longer Serviced; (Prod Date) From 01-Jan-1958
  • 1
    1
    311428
    SENSOR; Flywheel Assy., 9'' Double Clutch, After S/N 14256;No Longer Serviced; (Prod Date) From 01-Jan-1958
  • 1
    AR
    C0NN6375D
    SPARE PART; Flywheel Assy., 10 Speed Transmission Only;No Longer Serviced; (Prod Date) From 01-Jan-1959
  • 2
    6
    43070S36
    BOLT; Screw, Cap, HH, G8, Self-Locking, 7/16''-20 x 1-5/8'', 10'' Single; (Prod Date) From 01-Jan-1953
  • 2
    6
    PL
    PROCURE LOCALLY; Bolt, HH, 9'' Double, 7/16''-20 x .80; (Prod Date) From 01-Jan-1955
  • 3
    1
    9N6384
    GEAR; Flywheel Starting Ring; (Prod Date) From 01-Jan-1953
  • 4
    1
    8MB7600
    BUSHING 0.674'' ID x 0.941'' OD x 0.505''; Bearing, Clutch Pilot, Use W/EAF6375B, NAA, NAB; (Prod Date) Between 01-Jan-1953 and 31-Dec-1954
  • 4
    1
    81805417
    BALL BEARING 17mm ID x 40mm OD x 11.9mm W; Bearing, Clutch Pilot; (Prod Date) From 01-Jan-1953
  • 5
    4
    86618939
    CONNECTING ROD; Rod Assy., Connecting; (Prod Date) From 01-Jan-1953
  • 6
    4
    EAA6207A
    BUSHING; Connecting Rod; (Prod Date) From 01-Jan-1953
  • 7
    8
    C1AE6214A
    BOLT; Connecting Rod; (Prod Date) From 01-Jan-1953
  • 8
    8
    C9AZ6212B
    NUT; Connecting Rod, Replaces P/N C1TE-6212-A; (Prod Date) From 01-Jan-1953
  • 9
    8
    312026
    CONNECTING ROD 2.449'' OD x 1.039''; Connecting Rod, Standard; (Prod Date) From 01-Jan-1953
  • 9
    8
    312101
    BEARING LINER 2.449'' OD x 1.039''; Connecting Rod Bearing, .001 U/S; (Prod Date) From 01-Jan-1953
  • 9
    8
    312102
    BEARING LINER 2.449'' OD x 1.039''; Connecting Rod Bearing, .002 U/S; (Prod Date) From 01-Jan-1953
  • 9
    8
    C0NN6211A
    BEARING LINER; Liner, Connecting Rod Bearing, .003 U/S; (Prod Date) From 01-Jan-1953
  • 9
    8
    312103
    CONNECTING ROD 2.449'' OD x 1.039''; Connecting Rod Bearing, .010 U/S; (Prod Date) From 01-Jan-1953
  • 9
    8
    312104
    CONNECTING ROD 2.1238'' OD x 1.039''; Liner, Connecting Rod Bearing, .020 U/S; (Prod Date) From 01-Jan-1953
  • 9
    8
    C0NN6211B
    BEARING LINER; Liner, Connecting Rod Bearing, .030 U/S; (Prod Date) From 01-Jan-1953
  • 9
    8
    C0NN6211C
    BEARING LINER; Liner, Connecting Rod Bearing, .040 U/S; (Prod Date) From 01-Jan-1953
  • 10
    4
    EAF6331A
    BEARING LINER 64.11mm ID x 69.01mm OD x 33.78mm W; Liner, Front & Rear Main Bearing, Standard; (Prod Date) From 01-Jan-1953
  • 10
    4
    EAF6331B
    CRANKSHAFT BEARING; Liner, Front & Rear Main Bearing, .001 U/S; (Prod Date) From 01-Jan-1953
  • 10
    4
    EAF6331C
    CRANKSHAFT BEARING; Liner, Front & Rear Main Bearing, .002 U/S; (Prod Date) From 01-Jan-1953
  • 10
    4
    C0NN6331A
    CRANKSHAFT BEARING 2.692'' OD x 1.33''; Liner, Front & Rear Main Bearing, .003 U/S; (Prod Date) From 01-Jan-1953
  • 10
    4
    EAF6331D
    CRANKSHAFT BEARING; Liner, Front & Rear Main Bearing, .010 U/S; (Prod Date) From 01-Jan-1953
  • 10
    4
    EAF6331E
    CRANKSHAFT BEARING; Liner, Front & Rear Main Bearing, .020 U/S; (Prod Date) From 01-Jan-1953
  • 10
    4
    C0NN6331E
    CRANKSHAFT BEARING 2.717'' OD x 1.33''; Liner, Front & Rear Main Bearing, .030 U/S; (Prod Date) From 01-Jan-1953
  • 10
    4
    C0NN6331F
    CRANKSHAFT BEARING 2.717'' OD x 1.33''; Liner, Front & Rear Main Bearing, .040 U/S; (Prod Date) From 01-Jan-1953
  • 11
    2
    EAF6342C
    BEARING LINER 63.73mm ID x 87.38mm OD x 44.48mm W; Liner, Center Main Bearing, Standard; (Prod Date) From 01-Jan-1953
  • 11
    2
    EAF6342D
    CRANKSHAFT BEARING; Liner, Center Main Bearing, .001 U/S; (Prod Date) From 01-Jan-1953
  • 11
    2
    EAF6342E
    CRANKSHAFT BEARING; Liner, Center Main Bearing, .002 U/S; (Prod Date) From 01-Jan-1953
  • 11
    2
    EAF6342F
    CRANKSHAFT BEARING; Liner, Center Main Bearing, .010 U/S; (Prod Date) From 01-Jan-1953
  • 11
    2
    EAF6342G
    CRANKSHAFT BEARING; Liner, Center Main Bearing, .020 U/S; (Prod Date) From 01-Jan-1953
  • 11
    2
    C0NN6342C
    CRANKSHAFT BEARING 2.702'' ID x 5.44'' OD x 1.751''; Liner, Center Main Bearing, .030 U/S; (Prod Date) From 01-Jan-1953
  • 11
    2
    C0NN6342D
    CRANKSHAFT BEARING 2.702'' ID x 5.44'' OD x 1.751''; Liner, Center Main Bearing, .040 U/S; (Prod Date) From 01-Jan-1953
  • 12
    2
    B3NN6336A
    SEAL; Seal, Crankshaft Rear Main Bearing Cap, Hard Rubber, .010 O/S;Alternate W/C0NN6336A After S/N 138246; (Prod Date) From 01-Jan-1953
  • 12
    2
    C0NN6336A
    SEAL; Seal, Crankshaft Rear Main Bearing Cap, Layed Rawhide;Alternate W/B3NN6336A After S/N 138246 on Model 601; (Prod Date) From 01-Jan-1953
  • 13
    2
    C0NN6701A
    SEAL; Seal, Crankshaft Rear Oil, Steel & Rubber, Optional W/EBU6701A; (Prod Date) From 01-Jan-1953
  • 13
    2
    EBU6701A
    SEAL PROTECTION; Seal, Crankshaft Rear Oil, Abestos & Jute, Optional W/C0NN6701A; (Prod Date) From 01-Jan-1953
  • 14
    1
    E2JL6300BA
    CRANKSHAFT; & Plug Assy., Replaces P/N D1NL6303D;No Longer Serviced; (Prod Date) From 01-Jan-1953
  • 15
    1
    EAF6306B
    GEAR; Crankshaft; (Prod Date) From 01-Jan-1953
  • 16
    1
    PL
    PROCURE LOCALLY; Key, Woodruff, 5/32'' x 5/8''; (Prod Date) From 01-Jan-1953
  • 17
    1
    86531507
    HUB; Crankshaft Pulley, Replaces C0NN6313A; (Prod Date) From 01-Jan-1953
  • 18
    AR
    PL
    PROCURE LOCALLY; Washer, Flat, 5/8''
  • 19
    1
    PL
    PROCURE LOCALLY; Bolt, HH, 5/8''-18 x 1-1/4''; (Prod Date) From 01-Jan-1953
  • 20
    1
    D7NN6A312A
    PULLEY; Crankshaft, Replaces P/N EAF6312C, NAA, NAB; (Prod Date) Between 01-Jan-1953 and 31-Dec-1954
  • 20
    1
    EAF6312D
    PULLEY; Crankshaft, L/Power Steering, Except NAA, NAB; (Prod Date) From 01-Jan-1955
  • 4
    PL
    PROCURE LOCALLY; Bolt, HH, W/Power Steering, 7/16''-14 x 3/4''; (Prod Date) From 01-Jan-1955
  • AR
    PL
    PROCURE LOCALLY; Washer, Lock, 7/16''
  • 4
    PL
    PROCURE LOCALLY; Bolt, HH, L/Power Steering, 7/16''-14 x 5/8''; (Prod Date) From 01-Jan-1953
  • 20
    1
    C0NN6351A
    PULLEY; Crankshaft, W/Power Steering, Except Heavy Duty Industrial; (Prod Date) From 01-Jan-1955
  • 20
    1
    C0NN6351B
    PULLEY; Crankshaft, Heavy Duty Industrial;No Longer Serviced; (Prod Date) From 01-Jan-1958
  • 21
    1
    EAF907A
    GEAR; Camshaft Hydraulic Pump Drive, 1/4''; (Prod Date) Between 01-Jan-1953 and 31-Dec-1955
  • 21
    1
    EAF907B
    GEAR; Camshaft Hydraulic Pump Drive, 5/16''; (Prod Date) From 01-Jan-1953
  • 22
    AR
    PL
    PROCURE LOCALLY; Washer, Lock, 1/4''
  • 23
    4
    PL
    PROCURE LOCALLY; Bolt, HH, 5/16''-18 x 3/4''; (Prod Date) Between 01-Jan-1953 and 31-Dec-1955
  • 24
    1
    C0NN6251A
    CAMSHAFT; (Prod Date) From 01-Jan-1953
  • 25
    1

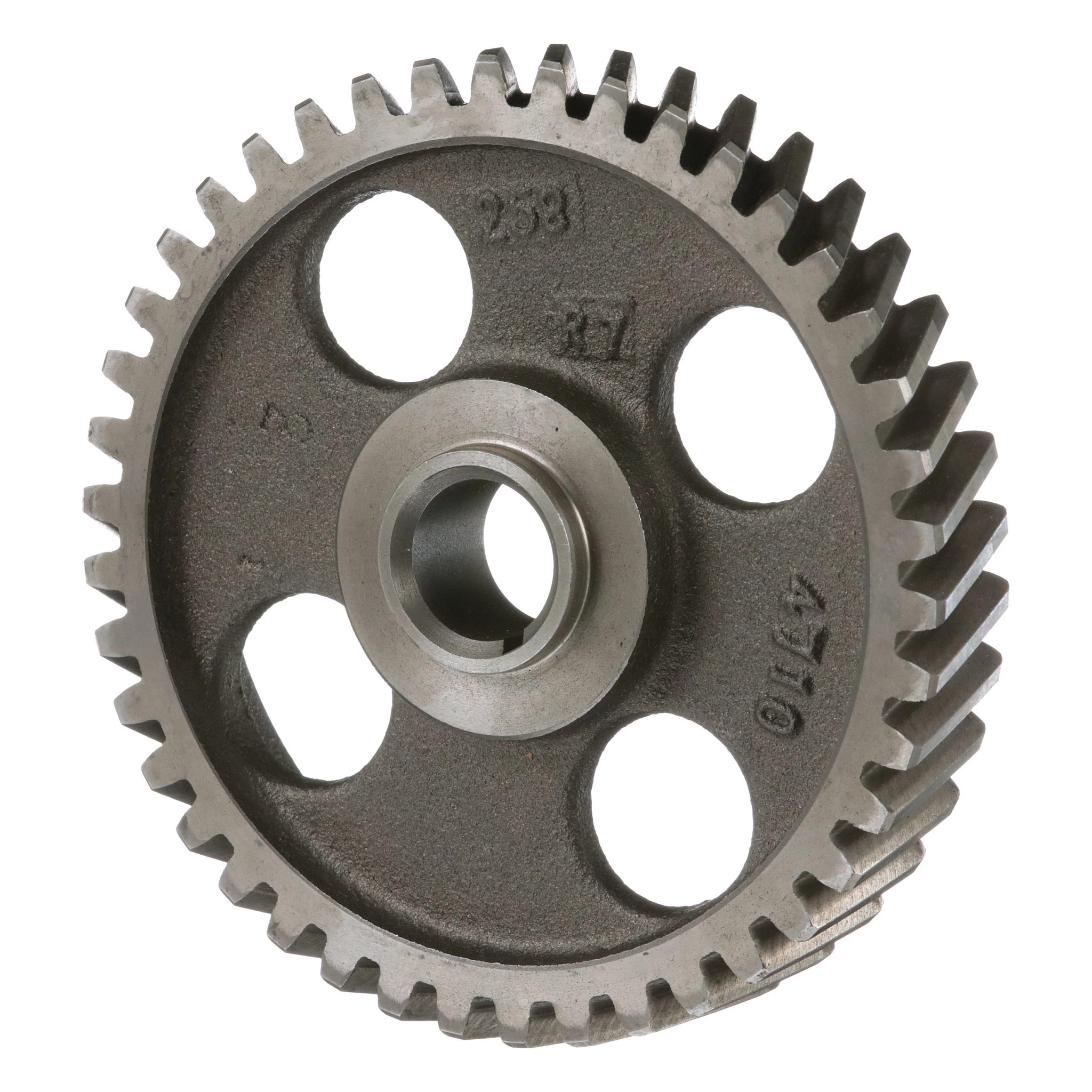

    EAF6256M
    GEAR; Assy., Camshaft, 1.0'' I.D., Standard; (Prod Date) From 01-Jan-1953
  • 25
    1
    EAF6256N
    GEAR; Assy., Camshaft, .006 O/S; (Prod Date) From 01-Jan-1953
  • 25
    1
    EAF6256R
    GEAR; Assy., Camshaft, .010 O/S;No Longer Serviced; (Prod Date) From 01-Jan-1953
  • 26
    1
    25121
    SNAP RING #100, Ext; Ring, Snap, , Gear to Camshaft #100, Ext; (Prod Date) From 01-Jan-1953
  • 27
    1
    EAA6278B
    WASHER; Camshaft Sprocket;No Longer Serviced; (Prod Date) From 01-Jan-1953
  • 28
    AR
    PL
    PROCURE LOCALLY; Washer, Lock, 7/16''
  • 29
    1
    PL
    PROCURE LOCALLY; Bolt, Hex, 7/16''-14 x 1.62; (Prod Date) From 01-Jan-1953
  • 30
    4
    C0NN6108F
    SPARE PART; Piston, Pin & Retainer Set, .001 O/S, 134'' Gas/LPG Sleeve Less;No Longer Serviced; (Prod Date) From 01-Jan-1955
  • 30
    4
    EAE6108F
    PISTON; Pin & Retainer Set, Standard, 134'' Gas/LPG; (Prod Date) From 01-Jan-1953
  • 30
    4
    EAE6108H
    PISTON; Pin & Retainer Set, .020 O/S, 134'' Gas & LPG; (Prod Date) From 01-Jan-1953
  • 30
    4
    EAE6108J
    PISTON ASSY; Piston, Pin & Retainer Set, .030 O/S, 134'' Gas & LPG; (Prod Date) From 01-Jan-1953
  • 30
    4
    EAE6108K
    PISTON ASSY; Piston, Pin & Retainer Set, .040 O/S, 134'' Gas & LPG; (Prod Date) From 01-Jan-1953
  • 30
    4
    EBD6108F
    SPARE PART; Piston, Pin & Retainer Set, Standard, 134'' Kero;No Longer Serviced; (Prod Date) Between 01-Jan-1953 and 31-Dec-1957
  • 30
    4
    C0NN6108G
    SPARE PART; Piston, Pin & Retainer Set, .001 O/S, 172'' Gas/LPG Sleeve Less;No Longer Serviced; (Prod Date) From 01-Jan-1955
  • 30
    4
    EAF6108F
    PISTON ASSY; Piston, Pin & Retainer Set, Standard, 172'' Gas & LPG; (Prod Date) From 01-Jan-1955
  • 30
    4
    EAF6108G
    PISTON ASSY; Piston, Pin & Retainer, .020 O/S, 172'' Gas & LPG; (Prod Date) From 01-Jan-1955
  • 30
    4
    EAF6108H
    PISTON ASSY; Piston, Pin & Retainer Set, .030 O/S, 172'' Gas & LPG; (Prod Date) From 01-Jan-1955
  • 30
    4
    EAF6108J
    PISTON ASSY; Piston, Pin & Retainer Set, .040 O/S, 172'' Gas & LPG; (Prod Date) From 01-Jan-1955
  • 30
    4
    EAF6108K
    SPARE PART; Piston, Pin & Retainer Set, Standard, 172'' Kero;No Longer Serviced; (Prod Date) Between 01-Jan-1955 and 31-Dec-1957
  • 31
    4
    EAE6135B
    PIN; Piston, 134''; (Prod Date) From 01-Jan-1953
  • 31
    4
    EAD6135B
    PIN; Piston, 172''; (Prod Date) From 01-Jan-1953
  • 32
    8
    EAA6140A
    RETAINER; Piston Pin; (Prod Date) From 01-Jan-1953
  • 33
    1
    86551124
    PISTON RINGS KIT; Kit, Piston Ring, Standard, 134'', Replaces P/N CPN6149B; (Prod Date) From 01-Jan-1953
  • 33
    1
    86551130
    PISTON RINGS KIT; Kit, Piston Ring, .020 O/S, 134''; (Prod Date) From 01-Jan-1953
  • 33
    1
    EAPN6149D
    PISTON RINGS KIT; Kit, Piston Ring, .030 O/S, 134''; (Prod Date) From 01-Jan-1953
  • 33
    1
    EBPN6149G
    PISTON RINGS KIT; Kit, Piston Ring, .040 O/S, 134'', Replaces CPN6149F;No Longer Serviced; (Prod Date) From 01-Jan-1953
  • 33
    1
    DJPN6149AA
    PISTON RINGS KIT; Kit, Piston Ring, .020 O/S, Chrome 134'', Replaces P/N CPN6149H;No Longer Serviced; (Prod Date) From 01-Jan-1953
  • 33
    1
    DJPN6149AB
    PISTON RINGS KIT; Kit, Piston Ring, .040 O/S, Chrome 134'', Replaces P/N CPN6149K;No Longer Serviced; (Prod Date) From 01-Jan-1953
  • 33
    1
    86539354
    KIT; Piston Ring, Standard, Chrome, 134'', Replaces EAE6149A; (Prod Date) From 01-Jan-1953
  • 33
    1
    EAE6149B
    KIT; Piston Ring, .030 O/S, Chrome 134'';No Longer Serviced; (Prod Date) From 01-Jan-1953
  • 33
    1
    86539359
    KIT; Piston Ring, Standard, Chrome 172'', Replaces EAF6149A; (Prod Date) From 01-Jan-1955
  • 33
    1
    86555848
    PISTON RINGS KIT; Kit, Piston Ring, .030 O/S, Chrome, 172''; (Prod Date) From 01-Jan-1955
  • 33
    1
    86551113
    PISTON RINGS KIT; Kit, Piston Ring, Standard, 172''; (Prod Date) From 01-Jan-1955
  • 33
    1
    86551114
    PISTON RINGS KIT; Kit, Piston Ring, .020 O/S, 172''; (Prod Date) From 01-Jan-1955
  • 33
    1
    86551119
    PISTON RINGS KIT; Kit, Piston Ring, .030 O/S, 172'', 1 kit needed per tractor.; (Prod Date) From 01-Jan-1955
  • 33
    1
    86551123
    PISTON RINGS KIT; Kit, Piston Ring, .040 O/S, 172''; (Prod Date) From 01-Jan-1955
  • 33
    1
    86555849
    PISTON RINGS KIT; Kit, Piston Ring, .020 O/S, Chrome, 172''; (Prod Date) From 01-Jan-1955
  • 33
    1
    FPN6149J
    KIT; Piston Ring, .040 O/S, Chrome, 172''; (Prod Date) From 01-Jan-1955
  • 34
    1
    C3NN6574A
    BRACKET; Valve Rocker Arm Oil Inlet Tube; (Prod Date) From 01-Jan-1953
  • 35
    2

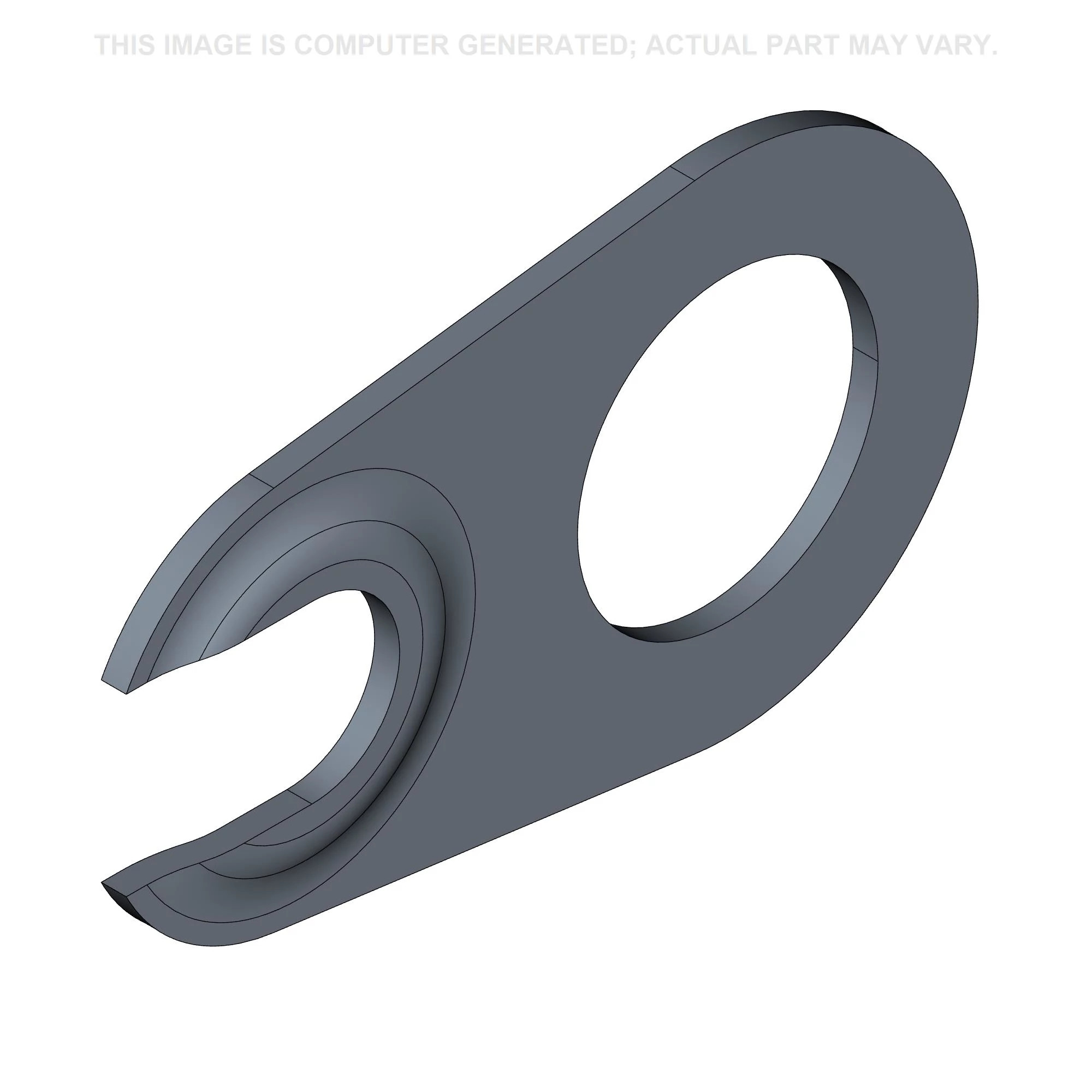

    EAA6574A
    BRACKET; Valve Rocker Arm Oil Inlet & Outer Tube; (Prod Date) From 01-Jan-1953
  • 36
    1
    86531523
    TUBE 0.25'' OD x 11.82'', 1.22'' L; Valve Rocker Arm Shaft Oil Inlet, Replaces EAF6580A; (Prod Date) From 01-Jan-1953
  • 37
    1
    EAA6594A
    SEAL; Seal, Valve Rocker Arm Oil Inlet Tube; (Prod Date) From 01-Jan-1953
  • 38
    2
    EAA6531A
    SUPPORT; Front & Rear Valve Rocker Arm Shaft; (Prod Date) From 01-Jan-1953
  • 39
    1
    EAF6563B
    SHAFT 456,7mm L; Valve Rocker Arm; (Prod Date) From 01-Jan-1953
  • 39A
    2
    PL
    PROCURE LOCALLY; Pin, Cotter, 1/8'' x 1.00; (Prod Date) From 01-Jan-1953
  • 40
    2
    EAA6532A
    SUPPORT; Intermediate Valve Rocker Arm; (Prod Date) From 01-Jan-1953
  • 41
    AR
    PL
    PROCURE LOCALLY; Washer, Lock, 7/16''
  • 42
    4
    PL
    PROCURE LOCALLY; Bolt, HH, 7/16''-15 x 3-1/4''; (Prod Date) From 01-Jan-1953
  • 43
    3
    ECG6587A
    SPRING; Valve Rocker Arm Locating; (Prod Date) From 01-Jan-1953
  • 44
    1
    EAF6588E
    HYD TUBE 0.252'' OD x 3.76, 2.1'' L; Tube, Valve Rocker Arm Shaft Oil Outlet; (Prod Date) From 01-Jan-1953
  • 45
    8
    F3JL6500AA
    TAPPET; Valve; (Prod Date) From 01-Jan-1953
  • 46
    8
    C0AE6565C
    ROD; Valve Post;If replacing a 1/4'' OD push rod, must order push rod p/n C0AE6565C, adjusting screw p/n 87801302 & tappet valve p/n F3JL6500AA. If replacing a 5/16'' OD push rod, order new push rod p/n C0AE6565C only.; (Prod Date) From 01-Jan-1953
  • 47
    8
    EBP6529A
    ARM; Assy., Valve Rocker; (Prod Date) From 01-Jan-1953
  • 48
    8
    87801302
    ADJUSTMENT SCREW; Valve Rocker Arm Adjusting, Replaces P/N B6A6549C, C2DE6549A; (Prod Date) From 01-Jan-1953
  • 49
    4
    EAA6590A
    WASHER; Valve Rocker Arm Shaft; (Prod Date) From 01-Jan-1953
  • 50
    2
    EAA6598A
    WASHER; Valve Rocker Arm Shaft Spring;No Longer Serviced; (Prod Date) From 01-Jan-1953
  • 51
    2
    EAA6572A
    PLUG; Valve Rocker Arm Shaft; (Prod Date) From 01-Jan-1953
  • 52
    4
    EAF6505D
    CONTROL VALVE; Valve, Exhaust; (Prod Date) From 01-Jan-1953
  • 52
    4
    EBU6507A
    STD INLET VALVE; Valve, Intake; (Prod Date) From 01-Jan-1953
  • 53
    8
    EAA6513A
    SPRING; Valve; (Prod Date) From 01-Jan-1953
  • 54
    4
    EAU6514A
    RETAINER; Exhaust Valve Spring; (Prod Date) From 01-Jan-1953
  • 54
    4
    EBP6514A
    RETAINER; Intake Valve Spring; (Prod Date) From 01-Jan-1953
  • 8
    501452
    SEAL; Assy., Valve Stem; (Prod Date) Between 01-Jan-1953 and 31-Dec-1964
  • 4
    C3AE6571B
    SEAL PROTECTION; Seal, Valve Stem, Replaces P/N C1AE6571H; (Prod Date) Between 01-Jan-1953 and 31-Dec-1964
  • 4
    D4AE6517AA
    SLEEVE; Valve Stem, Replaces P/N EBP6517A; (Prod Date) Between 01-Jan-1953 and 31-Dec-1964
  • 55
    8
    EAM6518A
    VALVE GUIDE; Lock, Valve Spring Seat; (Prod Date) From 01-Jan-1953
  • 55
    8
    7HA6518
    KEY; Valve Spring Retainer, Used W/Intake Valves Only; (Prod Date) From 01-Jan-1953
  • 56
    4
    8EQ6550A
    CAP; Cap, Valve Stem, Used W/Exhaust Valves Only; (Prod Date) From 01-Jan-1961
  • 57
    1
    290421
    HUB; Assy., Hydraulic Pump Drive Industrial; (Prod Date) From 01-Jan-1961
  • AR
    PL
    PROCURE LOCALLY; Washer, Lock, 7/16''
  • 1
    PL
    PROCURE LOCALLY; Bolt, HH, Industrial, 7/16''-14 x 1.38; (Prod Date) From 01-Jan-1961
  • 58
    4
    194342
    BUSHING; & Block Assy., Pump Drive Hub Industrial; (Prod Date) From 01-Jan-1961
  • 59
    4
    290422
    BLOCK; Pump Drive Hub Bushing Industrial; (Prod Date) From 01-Jan-1961
  • 60
    6
    59A6345A
    BOLT; Hex, 1/2''-13 x 2.72;No Longer Serviced; (Prod Date) From 01-Jan-1955
  • 2
    1GA6026A
    SPARE PART; Plug, Oil Line;No Longer Serviced; (Prod Date) From 01-Jan-1953
  • 4
    406057B
    INSERT; Valve Seat Exhaust; (Prod Date) From 01-Jan-1953
  • 1
    8N6087
    COVER; Timing Pin;No Longer Serviced; (Prod Date) Between 01-Jan-1953 and 31-Dec-1954
  • 1
    EAF6087A
    COVER; Timing Pin;No Longer Serviced; (Prod Date) From 01-Jan-1955
Select All

Select

Ref.

1

Qty

1

Availability

Part #

EAE6375B

Description

SPARE PART; Flywheel Assy., 9'' Single Clutch, Prior to S/N 14257;No Longer Serviced; (Prod Date) Between 01-Jan-1953 and 31-Dec-1957


Alts

Select

Ref.

1

Qty

1

Availability

Part #

B7P6375B

Description

ENGINE FLYWHEEL; Flywheel Assy., 10'' Single Clutch, Prior to S/N 14257;No Longer Serviced; (Prod Date) Between 01-Jan-1955 and 31-Dec-1957


Alts

Select

Ref.

1

Qty

1

Availability

Part #

EAF6375D

Description

SPARE PART; Flywheel Assy., 9'' Double Clutch, Prior to S/N 14257;No Longer Serviced; (Prod Date) Between 01-Jan-1955 and 31-Dec-1957


Alts

Select

Ref.

1

Qty

1

Availability

Part #

311244

Description

WHEEL; Flywheel Assy., 10'' Single Clutch, After S/N 14256;No Longer Serviced; (Prod Date) From 01-Jan-1958


Alts

Select

Ref.

1

Qty

1

Availability

Part #

311428

Description

SENSOR; Flywheel Assy., 9'' Double Clutch, After S/N 14256;No Longer Serviced; (Prod Date) From 01-Jan-1958


Alts

Select

Ref.

1

Qty

AR

Availability

Part #

C0NN6375D

Description

SPARE PART; Flywheel Assy., 10 Speed Transmission Only;No Longer Serviced; (Prod Date) From 01-Jan-1959


Alts

Select

Ref.

2

Qty

6

Availability

Part #

43070S36

Description

BOLT; Screw, Cap, HH, G8, Self-Locking, 7/16''-20 x 1-5/8'', 10'' Single; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

2

Qty

6

Availability

Part #

PL

Description

PROCURE LOCALLY; Bolt, HH, 9'' Double, 7/16''-20 x .80; (Prod Date) From 01-Jan-1955


Alts

Select

Ref.

3

Qty

1

Availability

Part #

9N6384

Description

GEAR; Flywheel Starting Ring; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

4

Qty

1

Availability

Part #

8MB7600

Description

BUSHING 0.674'' ID x 0.941'' OD x 0.505''; Bearing, Clutch Pilot, Use W/EAF6375B, NAA, NAB; (Prod Date) Between 01-Jan-1953 and 31-Dec-1954


Alts

Select

Ref.

4

Qty

1

Availability

Part #

81805417

Description

BALL BEARING 17mm ID x 40mm OD x 11.9mm W; Bearing, Clutch Pilot; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

5

Qty

4

Availability

Part #

86618939

Description

CONNECTING ROD; Rod Assy., Connecting; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

6

Qty

4

Availability

Part #

EAA6207A

Description

BUSHING; Connecting Rod; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

7

Qty

8

Availability

Part #

C1AE6214A

Description

BOLT; Connecting Rod; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

8

Qty

8

Availability

Part #

C9AZ6212B

Description

NUT; Connecting Rod, Replaces P/N C1TE-6212-A; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

9

Qty

8

Availability

Part #

312026

Description

CONNECTING ROD 2.449'' OD x 1.039''; Connecting Rod, Standard; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

9

Qty

8

Availability

Part #

312101

Description

BEARING LINER 2.449'' OD x 1.039''; Connecting Rod Bearing, .001 U/S; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

9

Qty

8

Availability

Part #

312102

Description

BEARING LINER 2.449'' OD x 1.039''; Connecting Rod Bearing, .002 U/S; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

9

Qty

8

Availability

Part #

C0NN6211A

Description

BEARING LINER; Liner, Connecting Rod Bearing, .003 U/S; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

9

Qty

8

Availability

Part #

312103

Description

CONNECTING ROD 2.449'' OD x 1.039''; Connecting Rod Bearing, .010 U/S; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

9

Qty

8

Availability

Part #

312104

Description

CONNECTING ROD 2.1238'' OD x 1.039''; Liner, Connecting Rod Bearing, .020 U/S; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

9

Qty

8

Availability

Part #

C0NN6211B

Description

BEARING LINER; Liner, Connecting Rod Bearing, .030 U/S; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

9

Qty

8

Availability

Part #

C0NN6211C

Description

BEARING LINER; Liner, Connecting Rod Bearing, .040 U/S; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

10

Qty

4

Availability

Part #

EAF6331A

Description

BEARING LINER 64.11mm ID x 69.01mm OD x 33.78mm W; Liner, Front & Rear Main Bearing, Standard; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

10

Qty

4

Availability

Part #

EAF6331B

Description

CRANKSHAFT BEARING; Liner, Front & Rear Main Bearing, .001 U/S; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

10

Qty

4

Availability

Part #

EAF6331C

Description

CRANKSHAFT BEARING; Liner, Front & Rear Main Bearing, .002 U/S; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

10

Qty

4

Availability

Part #

C0NN6331A

Description

CRANKSHAFT BEARING 2.692'' OD x 1.33''; Liner, Front & Rear Main Bearing, .003 U/S; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

10

Qty

4

Availability

Part #

EAF6331D

Description

CRANKSHAFT BEARING; Liner, Front & Rear Main Bearing, .010 U/S; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

10

Qty

4

Availability

Part #

EAF6331E

Description

CRANKSHAFT BEARING; Liner, Front & Rear Main Bearing, .020 U/S; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

10

Qty

4

Availability

Part #

C0NN6331E

Description

CRANKSHAFT BEARING 2.717'' OD x 1.33''; Liner, Front & Rear Main Bearing, .030 U/S; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

10

Qty

4

Availability

Part #

C0NN6331F

Description

CRANKSHAFT BEARING 2.717'' OD x 1.33''; Liner, Front & Rear Main Bearing, .040 U/S; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

11

Qty

2

Availability

Part #

EAF6342C

Description

BEARING LINER 63.73mm ID x 87.38mm OD x 44.48mm W; Liner, Center Main Bearing, Standard; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

11

Qty

2

Availability

Part #

EAF6342D

Description

CRANKSHAFT BEARING; Liner, Center Main Bearing, .001 U/S; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

11

Qty

2

Availability

Part #

EAF6342E

Description

CRANKSHAFT BEARING; Liner, Center Main Bearing, .002 U/S; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

11

Qty

2

Availability

Part #

EAF6342F

Description

CRANKSHAFT BEARING; Liner, Center Main Bearing, .010 U/S; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

11

Qty

2

Availability

Part #

EAF6342G

Description

CRANKSHAFT BEARING; Liner, Center Main Bearing, .020 U/S; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

11

Qty

2

Availability

Part #

C0NN6342C

Description

CRANKSHAFT BEARING 2.702'' ID x 5.44'' OD x 1.751''; Liner, Center Main Bearing, .030 U/S; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

11

Qty

2

Availability

Part #

C0NN6342D

Description

CRANKSHAFT BEARING 2.702'' ID x 5.44'' OD x 1.751''; Liner, Center Main Bearing, .040 U/S; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

12

Qty

2

Availability

Part #

B3NN6336A

Description

SEAL; Seal, Crankshaft Rear Main Bearing Cap, Hard Rubber, .010 O/S;Alternate W/C0NN6336A After S/N 138246; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

12

Qty

2

Availability

Part #

C0NN6336A

Description

SEAL; Seal, Crankshaft Rear Main Bearing Cap, Layed Rawhide;Alternate W/B3NN6336A After S/N 138246 on Model 601; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

13

Qty

2

Availability

Part #

C0NN6701A

Description

SEAL; Seal, Crankshaft Rear Oil, Steel & Rubber, Optional W/EBU6701A; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

13

Qty

2

Availability

Part #

EBU6701A

Description

SEAL PROTECTION; Seal, Crankshaft Rear Oil, Abestos & Jute, Optional W/C0NN6701A; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

14

Qty

1

Availability

Part #

E2JL6300BA

Description

CRANKSHAFT; & Plug Assy., Replaces P/N D1NL6303D;No Longer Serviced; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

15

Qty

1

Availability

Part #

EAF6306B

Description

GEAR; Crankshaft; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

16

Qty

1

Availability

Part #

PL

Description

PROCURE LOCALLY; Key, Woodruff, 5/32'' x 5/8''; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

17

Qty

1

Availability

Part #

86531507

Description

HUB; Crankshaft Pulley, Replaces C0NN6313A; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

18

Qty

AR

Availability

Part #

PL

Description

PROCURE LOCALLY; Washer, Flat, 5/8''


Alts

Select

Ref.

19

Qty

1

Availability

Part #

PL

Description

PROCURE LOCALLY; Bolt, HH, 5/8''-18 x 1-1/4''; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

20

Qty

1

Availability

Part #

D7NN6A312A

Description

PULLEY; Crankshaft, Replaces P/N EAF6312C, NAA, NAB; (Prod Date) Between 01-Jan-1953 and 31-Dec-1954


Alts

Select

Ref.

20

Qty

1

Availability

Part #

EAF6312D

Description

PULLEY; Crankshaft, L/Power Steering, Except NAA, NAB; (Prod Date) From 01-Jan-1955


Alts

Select

Ref.

Qty

4

Availability

Part #

PL

Description

PROCURE LOCALLY; Bolt, HH, W/Power Steering, 7/16''-14 x 3/4''; (Prod Date) From 01-Jan-1955


Alts

Select

Ref.

Qty

AR

Availability

Part #

PL

Description

PROCURE LOCALLY; Washer, Lock, 7/16''


Alts

Select

Ref.

Qty

4

Availability

Part #

PL

Description

PROCURE LOCALLY; Bolt, HH, L/Power Steering, 7/16''-14 x 5/8''; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

20

Qty

1

Availability

Part #

C0NN6351A

Description

PULLEY; Crankshaft, W/Power Steering, Except Heavy Duty Industrial; (Prod Date) From 01-Jan-1955


Alts

Select

Ref.

20

Qty

1

Availability

Part #

C0NN6351B

Description

PULLEY; Crankshaft, Heavy Duty Industrial;No Longer Serviced; (Prod Date) From 01-Jan-1958


Alts

Select

Ref.

21

Qty

1

Availability

Part #

EAF907A

Description

GEAR; Camshaft Hydraulic Pump Drive, 1/4''; (Prod Date) Between 01-Jan-1953 and 31-Dec-1955


Alts

Select

Ref.

21

Qty

1

Availability

Part #

EAF907B

Description

GEAR; Camshaft Hydraulic Pump Drive, 5/16''; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

22

Qty

AR

Availability

Part #

PL

Description

PROCURE LOCALLY; Washer, Lock, 1/4''


Alts

Select

Ref.

23

Qty

4

Availability

Part #

PL

Description

PROCURE LOCALLY; Bolt, HH, 5/16''-18 x 3/4''; (Prod Date) Between 01-Jan-1953 and 31-Dec-1955


Alts

Select

Ref.

24

Qty

1

Availability

Part #

C0NN6251A

Description

CAMSHAFT; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

25

Qty

1

Availability

Part #

EAF6256M

Description

GEAR; Assy., Camshaft, 1.0'' I.D., Standard; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

25

Qty

1

Availability

Part #

EAF6256N

Description

GEAR; Assy., Camshaft, .006 O/S; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

25

Qty

1

Availability

Part #

EAF6256R

Description

GEAR; Assy., Camshaft, .010 O/S;No Longer Serviced; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

26

Qty

1

Availability

Part #

25121

Description

SNAP RING #100, Ext; Ring, Snap, , Gear to Camshaft #100, Ext; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

27

Qty

1

Availability

Part #

EAA6278B

Description

WASHER; Camshaft Sprocket;No Longer Serviced; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

28

Qty

AR

Availability

Part #

PL

Description

PROCURE LOCALLY; Washer, Lock, 7/16''


Alts

Select

Ref.

29

Qty

1

Availability

Part #

PL

Description

PROCURE LOCALLY; Bolt, Hex, 7/16''-14 x 1.62; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

30

Qty

4

Availability

Part #

C0NN6108F

Description

SPARE PART; Piston, Pin & Retainer Set, .001 O/S, 134'' Gas/LPG Sleeve Less;No Longer Serviced; (Prod Date) From 01-Jan-1955


Alts

Select

Ref.

30

Qty

4

Availability

Part #

EAE6108F

Description

PISTON; Pin & Retainer Set, Standard, 134'' Gas/LPG; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

30

Qty

4

Availability

Part #

EAE6108H

Description

PISTON; Pin & Retainer Set, .020 O/S, 134'' Gas & LPG; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

30

Qty

4

Availability

Part #

EAE6108J

Description

PISTON ASSY; Piston, Pin & Retainer Set, .030 O/S, 134'' Gas & LPG; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

30

Qty

4

Availability

Part #

EAE6108K

Description

PISTON ASSY; Piston, Pin & Retainer Set, .040 O/S, 134'' Gas & LPG; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

30

Qty

4

Availability

Part #

EBD6108F

Description

SPARE PART; Piston, Pin & Retainer Set, Standard, 134'' Kero;No Longer Serviced; (Prod Date) Between 01-Jan-1953 and 31-Dec-1957


Alts

Select

Ref.

30

Qty

4

Availability

Part #

C0NN6108G

Description

SPARE PART; Piston, Pin & Retainer Set, .001 O/S, 172'' Gas/LPG Sleeve Less;No Longer Serviced; (Prod Date) From 01-Jan-1955


Alts

Select

Ref.

30

Qty

4

Availability

Part #

EAF6108F

Description

PISTON ASSY; Piston, Pin & Retainer Set, Standard, 172'' Gas & LPG; (Prod Date) From 01-Jan-1955


Alts

Select

Ref.

30

Qty

4

Availability

Part #

EAF6108G

Description

PISTON ASSY; Piston, Pin & Retainer, .020 O/S, 172'' Gas & LPG; (Prod Date) From 01-Jan-1955


Alts

Select

Ref.

30

Qty

4

Availability

Part #

EAF6108H

Description

PISTON ASSY; Piston, Pin & Retainer Set, .030 O/S, 172'' Gas & LPG; (Prod Date) From 01-Jan-1955


Alts

Select

Ref.

30

Qty

4

Availability

Part #

EAF6108J

Description

PISTON ASSY; Piston, Pin & Retainer Set, .040 O/S, 172'' Gas & LPG; (Prod Date) From 01-Jan-1955


Alts

Select

Ref.

30

Qty

4

Availability

Part #

EAF6108K

Description

SPARE PART; Piston, Pin & Retainer Set, Standard, 172'' Kero;No Longer Serviced; (Prod Date) Between 01-Jan-1955 and 31-Dec-1957


Alts

Select

Ref.

31

Qty

4

Availability

Part #

EAE6135B

Description

PIN; Piston, 134''; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

31

Qty

4

Availability

Part #

EAD6135B

Description

PIN; Piston, 172''; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

32

Qty

8

Availability

Part #

EAA6140A

Description

RETAINER; Piston Pin; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

33

Qty

1

Availability

Part #

86551124

Description

PISTON RINGS KIT; Kit, Piston Ring, Standard, 134'', Replaces P/N CPN6149B; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

33

Qty

1

Availability

Part #

86551130

Description

PISTON RINGS KIT; Kit, Piston Ring, .020 O/S, 134''; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

33

Qty

1

Availability

Part #

EAPN6149D

Description

PISTON RINGS KIT; Kit, Piston Ring, .030 O/S, 134''; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

33

Qty

1

Availability

Part #

EBPN6149G

Description

PISTON RINGS KIT; Kit, Piston Ring, .040 O/S, 134'', Replaces CPN6149F;No Longer Serviced; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

33

Qty

1

Availability

Part #

DJPN6149AA

Description

PISTON RINGS KIT; Kit, Piston Ring, .020 O/S, Chrome 134'', Replaces P/N CPN6149H;No Longer Serviced; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

33

Qty

1

Availability

Part #

DJPN6149AB

Description

PISTON RINGS KIT; Kit, Piston Ring, .040 O/S, Chrome 134'', Replaces P/N CPN6149K;No Longer Serviced; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

33

Qty

1

Availability

Part #

86539354

Description

KIT; Piston Ring, Standard, Chrome, 134'', Replaces EAE6149A; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

33

Qty

1

Availability

Part #

EAE6149B

Description

KIT; Piston Ring, .030 O/S, Chrome 134'';No Longer Serviced; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

33

Qty

1

Availability

Part #

86539359

Description

KIT; Piston Ring, Standard, Chrome 172'', Replaces EAF6149A; (Prod Date) From 01-Jan-1955


Alts

Select

Ref.

33

Qty

1

Availability

Part #

86555848

Description

PISTON RINGS KIT; Kit, Piston Ring, .030 O/S, Chrome, 172''; (Prod Date) From 01-Jan-1955


Alts

Select

Ref.

33

Qty

1

Availability

Part #

86551113

Description

PISTON RINGS KIT; Kit, Piston Ring, Standard, 172''; (Prod Date) From 01-Jan-1955


Alts

Select

Ref.

33

Qty

1

Availability

Part #

86551114

Description

PISTON RINGS KIT; Kit, Piston Ring, .020 O/S, 172''; (Prod Date) From 01-Jan-1955


Alts

Select

Ref.

33

Qty

1

Availability

Part #

86551119

Description

PISTON RINGS KIT; Kit, Piston Ring, .030 O/S, 172'', 1 kit needed per tractor.; (Prod Date) From 01-Jan-1955


Alts

Select

Ref.

33

Qty

1

Availability

Part #

86551123

Description

PISTON RINGS KIT; Kit, Piston Ring, .040 O/S, 172''; (Prod Date) From 01-Jan-1955


Alts

Select

Ref.

33

Qty

1

Availability

Part #

86555849

Description

PISTON RINGS KIT; Kit, Piston Ring, .020 O/S, Chrome, 172''; (Prod Date) From 01-Jan-1955


Alts

Select

Ref.

33

Qty

1

Availability

Part #

FPN6149J

Description

KIT; Piston Ring, .040 O/S, Chrome, 172''; (Prod Date) From 01-Jan-1955


Alts

Select

Ref.

34

Qty

1

Availability

Part #

C3NN6574A

Description

BRACKET; Valve Rocker Arm Oil Inlet Tube; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

35

Qty

2

Availability

Part #

EAA6574A

Description

BRACKET; Valve Rocker Arm Oil Inlet & Outer Tube; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

36

Qty

1

Availability

Part #

86531523

Description

TUBE 0.25'' OD x 11.82'', 1.22'' L; Valve Rocker Arm Shaft Oil Inlet, Replaces EAF6580A; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

37

Qty

1

Availability

Part #

EAA6594A

Description

SEAL; Seal, Valve Rocker Arm Oil Inlet Tube; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

38

Qty

2

Availability

Part #

EAA6531A

Description

SUPPORT; Front & Rear Valve Rocker Arm Shaft; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

39

Qty

1

Availability

Part #

EAF6563B

Description

SHAFT 456,7mm L; Valve Rocker Arm; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

39A

Qty

2

Availability

Part #

PL

Description

PROCURE LOCALLY; Pin, Cotter, 1/8'' x 1.00; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

40

Qty

2

Availability

Part #

EAA6532A

Description

SUPPORT; Intermediate Valve Rocker Arm; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

41

Qty

AR

Availability

Part #

PL

Description

PROCURE LOCALLY; Washer, Lock, 7/16''


Alts

Select

Ref.

42

Qty

4

Availability

Part #

PL

Description

PROCURE LOCALLY; Bolt, HH, 7/16''-15 x 3-1/4''; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

43

Qty

3

Availability

Part #

ECG6587A

Description

SPRING; Valve Rocker Arm Locating; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

44

Qty

1

Availability

Part #

EAF6588E

Description

HYD TUBE 0.252'' OD x 3.76, 2.1'' L; Tube, Valve Rocker Arm Shaft Oil Outlet; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

45

Qty

8

Availability

Part #

F3JL6500AA

Description

TAPPET; Valve; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

46

Qty

8

Availability

Part #

C0AE6565C

Description

ROD; Valve Post;If replacing a 1/4'' OD push rod, must order push rod p/n C0AE6565C, adjusting screw p/n 87801302 & tappet valve p/n F3JL6500AA. If replacing a 5/16'' OD push rod, order new push rod p/n C0AE6565C only.; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

47

Qty

8

Availability

Part #

EBP6529A

Description

ARM; Assy., Valve Rocker; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

48

Qty

8

Availability

Part #

87801302

Description

ADJUSTMENT SCREW; Valve Rocker Arm Adjusting, Replaces P/N B6A6549C, C2DE6549A; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

49

Qty

4

Availability

Part #

EAA6590A

Description

WASHER; Valve Rocker Arm Shaft; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

50

Qty

2

Availability

Part #

EAA6598A

Description

WASHER; Valve Rocker Arm Shaft Spring;No Longer Serviced; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

51

Qty

2

Availability

Part #

EAA6572A

Description

PLUG; Valve Rocker Arm Shaft; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

52

Qty

4

Availability

Part #

EAF6505D

Description

CONTROL VALVE; Valve, Exhaust; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

52

Qty

4

Availability

Part #

EBU6507A

Description

STD INLET VALVE; Valve, Intake; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

53

Qty

8

Availability

Part #

EAA6513A

Description

SPRING; Valve; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

54

Qty

4

Availability

Part #

EAU6514A

Description

RETAINER; Exhaust Valve Spring; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

54

Qty

4

Availability

Part #

EBP6514A

Description

RETAINER; Intake Valve Spring; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

Qty

8

Availability

Part #

501452

Description

SEAL; Assy., Valve Stem; (Prod Date) Between 01-Jan-1953 and 31-Dec-1964


Alts

Select

Ref.

Qty

4

Availability

Part #

C3AE6571B

Description

SEAL PROTECTION; Seal, Valve Stem, Replaces P/N C1AE6571H; (Prod Date) Between 01-Jan-1953 and 31-Dec-1964


Alts

Select

Ref.

Qty

4

Availability

Part #

D4AE6517AA

Description

SLEEVE; Valve Stem, Replaces P/N EBP6517A; (Prod Date) Between 01-Jan-1953 and 31-Dec-1964


Alts

Select

Ref.

55

Qty

8

Availability

Part #

EAM6518A

Description

VALVE GUIDE; Lock, Valve Spring Seat; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

55

Qty

8

Availability

Part #

7HA6518

Description

KEY; Valve Spring Retainer, Used W/Intake Valves Only; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

56

Qty

4

Availability

Part #

8EQ6550A

Description

CAP; Cap, Valve Stem, Used W/Exhaust Valves Only; (Prod Date) From 01-Jan-1961


Alts

Select

Ref.

57

Qty

1

Availability

Part #

290421

Description

HUB; Assy., Hydraulic Pump Drive Industrial; (Prod Date) From 01-Jan-1961


Alts

Select

Ref.

Qty

AR

Availability

Part #

PL

Description

PROCURE LOCALLY; Washer, Lock, 7/16''


Alts

Select

Ref.

Qty

1

Availability

Part #

PL

Description

PROCURE LOCALLY; Bolt, HH, Industrial, 7/16''-14 x 1.38; (Prod Date) From 01-Jan-1961


Alts

Select

Ref.

58

Qty

4

Availability

Part #

194342

Description

BUSHING; & Block Assy., Pump Drive Hub Industrial; (Prod Date) From 01-Jan-1961


Alts

Select

Ref.

59

Qty

4

Availability

Part #

290422

Description

BLOCK; Pump Drive Hub Bushing Industrial; (Prod Date) From 01-Jan-1961


Alts

Select

Ref.

60

Qty

6

Availability

Part #

59A6345A

Description

BOLT; Hex, 1/2''-13 x 2.72;No Longer Serviced; (Prod Date) From 01-Jan-1955


Alts

Select

Ref.

Qty

2

Availability

Part #

1GA6026A

Description

SPARE PART; Plug, Oil Line;No Longer Serviced; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

Qty

4

Availability

Part #

406057B

Description

INSERT; Valve Seat Exhaust; (Prod Date) From 01-Jan-1953


Alts

Select

Ref.

Qty

1

Availability

Part #

8N6087

Description

COVER; Timing Pin;No Longer Serviced; (Prod Date) Between 01-Jan-1953 and 31-Dec-1954


Alts

Select

Ref.

Qty

1

Availability

Part #

EAF6087A

Description

COVER; Timing Pin;No Longer Serviced; (Prod Date) From 01-Jan-1955


Alts
