038 - HYDRAULIC PUMP AND DRIVE PARTS FOR MODELS 19-22, 23, 42, 60, 61, 70 & 71
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    192504
    HYDRAULIC PUMP; Pump Assy.
  • 2
    1
    192559
    SPARE PART; Body, Pump
  • 3
    1
    41286
    BALL BEARING 17 mm ID x 40 mm OD x 12 mm; Bearing
  • 4
    1
    PL
    PROCURE LOCALLY; Washer, Spacer;192558
  • 5
    1
    C5NN983A
    SEAL; Seal, Drive Shaft Bearing
  • 6
    1
    192561
    SHAFT; Drive
  • 7
    1
    PL
    PROCURE LOCALLY; Key, Woodruff, 3/16'' x 3/4''
  • 8
    1
    27291
    BALL BEARING 20mm ID x 47mm OD x 14mm W; Bearing, Drive Shaft
  • 9
    1
    86516853
    SNAP RING 1.812'', Int, #181; Ring, Snap, 1.812'', Int, #181
  • 1
    193664
    KIT; Pump Rotor
  • 10
    1
    NLS
    NO LONGER SERVICED; Housing, Rotor;192563
  • 11
    1
    NLS
    NO LONGER SERVICED; Rotor, Pump;192564
  • 12
    1
    309512
    ADJUSTING PLATE; Kit, Vane
  • 13
    2
    510137
    O-RING 0.139'' Thk x 3.234'' ID, -236, Cl 5, 75 Duro; -236, 70 Duro, 3.234'' ID x .139'' Thk
  • 14
    1
    193333
    SPARE PART; Plate, Pressure
  • 15
    1
    192556
    SPRING;
  • 16
    2
    192591
    SPARE PART; Pin
  • 17
    1
    192560
    COVER; Pump
  • 18
    4
    PL
    PROCURE LOCALLY; Capscrew, 1/2''-13 x 2-11/16''
  • 1
    NLS
    NO LONGER SERVICED; Angle ( See Fig. 51 );192043
  • 2
    PL
    PROCURE LOCALLY; Bolt, 1/2''-13 x 1-1/2''
  • 4
    PL
    PROCURE LOCALLY; Washer, Flat, 1/2''
  • 2
    PL
    PROCURE LOCALLY; Nut, 1/2''-13
  • 19
    2
    PL
    PROCURE LOCALLY; Bolt, 1/2''-13 x 1-1/4''
  • 20
    2
    PL
    PROCURE LOCALLY; Washer, Flat, 1/2''
  • 21
    1
    192169
    COUPLING; Assy.
  • 22
    4
    PL
    PROCURE LOCALLY; Bolt, 5/16''-24 x 1-5/8''
  • 23
    4
    PL
    PROCURE LOCALLY; Nut, Lock, 5/16''-24
  • 24
    2
    192199
    FLANGE; Assy., 3-11/16'' wide, 2-1/4'' Center of hole to center of hole
  • 25
    2
    80300353
    NUT; Hex, Castle, 16mm
  • 26
    1
    194355
    SHAFT; Drive, 3/4'' x 9-3/16'', Except Models 19-22 & 23
  • 26
    1
    194354
    SHAFT; Drive, 3/4'' x 12-15/16'', Models 19-22 & 23
  • 26
    1
    194355
    SHAFT; Drive, 3/4'' x 9'', Models 19-42 & 70
  • 27
    2
    81797891
    WOODRUFF KEY; Key, Woodruff, 3/16'' x 3/4''
  • 1
    54C2055
    HUB; Assy., Models 19-60,61 & 71
  • 4
    NLS
    NO LONGER SERVICED; Block, Rubber;194343
  • 4
    194342
    BUSHING; Insert, Rubber Block
  • 4
    PL
    PROCURE LOCALLY; Bolt, 7/16''-14 x 1-1/4''
  • 4
    PL
    PROCURE LOCALLY; Lockwasher, 7/16''
  • 28
    1
    192161
    HUB; Assy., Models 19-22,23,42 & 70
  • 29
    4
    190753
    BLOCK; Rubber Grommets

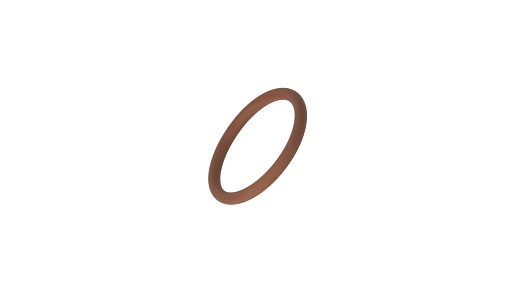

  • 52
    2
    14463681
    O-RING 31.34mm ID x 3.53'' Width; 1.234'' ID x .139'' Thk
  • 30
    4
    192164
    BUSHING; Insert, Rubber Block, Bushing
  • 31
    4
    300376S8
    CAP; Capscrew, 1/4''-28 x 1''
  • 32
    4
    PL
    PROCURE LOCALLY; Lockwasher, 1/4''
  • 33
    1
    192160
    PULLEY; Sheave, Drive
  • 1
    PL
    PROCURE LOCALLY; Pin, Dowel, 1/4'' x 3/4''
  • 34
    1
    192167
    SCREW Sl, 5/8'' - 18 x 0.88''; Capscrew, Slotted Head, 5/8''-18 x 7/8''
  • 34
    1
    194344
    SCREW; Capscrew, 5/8''-18 x 1-3/16''
  • 35
    1
    PL
    PROCURE LOCALLY; Lockwasher, 5/8''
  • 1
    PL
    PROCURE LOCALLY; Washer, Flat, 5/8''
  • 36
    1
    194241
    PLATE;
  • 36A
    1
    102230
    PLATE;
  • 37
    1
    PL
    PROCURE LOCALLY; Bolt, 5/8''-18 x 1-5/8''
  • 3
    PL
    PROCURE LOCALLY; Washer, 5/8''
  • 38
    1
    PL
    PROCURE LOCALLY; Lockwasher, 5/8''
  • 39
    1
    PL
    PROCURE LOCALLY; Nut, 5/8''-18
  • 39A
    1
    303939
    LEVER; Pin, 3/4'' x 2-1/4''
  • 1
    PL
    PROCURE LOCALLY; Pin, Cotter, 3/16'' x 1-1/4''
  • 39B
    4
    PL
    PROCURE LOCALLY; Bolt, 3/8''-16 x 1-1/4'', Models19-42 & 70
  • 39B
    2
    PL
    PROCURE LOCALLY; Bolt, 3/8''-16 x 1-1/4'', Models 19-60, 61 &71
  • 39C
    4
    PL
    PROCURE LOCALLY; Lockwasher, 3/8'', Models 19-42 & 70
  • 39C
    2
    PL
    PROCURE LOCALLY; Lockwasher, 3/8'' , Models 19-60,61 & 71
  • 39D
    4
    PL
    PROCURE LOCALLY; Nut, 3/8''-16, Models 19-42 & 70
  • 39D
    2
    PL
    PROCURE LOCALLY; Nut, 3/8''-16, Models 19-60, 61 & &1
  • 39E
    1
    86507106
    PIN 44.58mm OD x 106.68mm L; Axle
  • 1
    PL
    PROCURE LOCALLY; Bolt, 1/2''-20 x 1-1/2''
  • 1
    PL
    PROCURE LOCALLY; Lockwasher, 1/2''
  • 1
    PL
    PROCURE LOCALLY; Bolt, 5/8''-18 x 1-1/2''
  • 1
    PL
    PROCURE LOCALLY; Lockwasher, 5/8''
  • 40
    1
    190607
    BUSHING; Reducing
  • 1
    304494
    CLOTHING, OVERALLS; Elbow, Street, 3/8'' x 45 Degree
  • 41
    1
    192593
    BUSHING; Reducer, 1'' to 3/4'', NOT ON Models 19-70 & 71
  • 41A
    1
    NLS
    NO LONGER SERVICED; Pipe, 1'' x 8'', Models 19-70 & 71 ONLY;194147
  • 41B
    1
    194145
    HOSE; 1-1/4'' ID x 4-1/2'', Models 19-70 & 71 ONLY
  • 41C
    1
    NLS
    NO LONGER SERVICED; Clamp, Models 19-70 & 71 ONLY;8CM8287
  • 41D
    1
    NLS
    NO LONGER SERVICED; Nipple, 1'' x 3'', Models 19-70 & 71 ONLY;194142
  • 42
    1
    192114
    HOSE; with Male Couplings, 3/8''
  • 1
    192115
    ADAPTER; Female 3/8''
  • 43
    1
    PL
    PROCURE LOCALLY; Elbow, Street, 3/4'' x 45 Degree;304496
  • 44
    1
    190395
    HYD CONNECTOR; Nipple, Pipe, 3/4x3''
  • 45
    1
    196191
    HYDRAULIC HOSE; Hose, 1'' x 8-1/2'', Models 19-22,23 & 60
  • 45
    2
    196191
    HYDRAULIC HOSE; Hose, 1'' x 8-1/2'', Models 19-42,70,61 & 71
  • 46
    2
    PL
    PROCURE LOCALLY; Clamp;97213S8
  • 47
    1
    NLS
    NO LONGER SERVICED; Pipe;194382
  • 1
    NLS
    NO LONGER SERVICED; Pipe;193929
  • 48
    1
    304578
    WASHER, THRUST; Elbow, Pipe, 3/4'' 90 Degree
  • 49
    8
    PL
    PROCURE LOCALLY; Bolt, 5/16''-18 x 1-1/4''
  • 50
    8
    D3NNJ969A
    SEAL; Lockwasher, 5/16''
  • 51
    1
    D3NNJ969A
    SEAL; Oil
  • 53
    1
    PL
    PROCURE LOCALLY; Washer, Tension;191182
  • 54
    1
    PL
    PROCURE LOCALLY; Pin;191183
  • 55
    1
    913107
    O-RING 0.139'' Thk x 3.109'' ID, -235, Cl 5, 75 Duro; 3.109'' ID x .139'' Thk, Sealing, Cover
