TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
1ENGINE OVERHAUL KIT; Kit, Engine Overhaul, 650, 6500, Includes:; (Prod Date) Between 01-Jan-1973 and 31-Dec-1977
-
4PISTON ASSY; ., Standard
-
4PISTON RINGS KIT Std; Kit, Piston Rings, Standard
-
4BUSHING; Connecting Rod
-
4LINER, ENGINE CYLIND; Sleeve, Piston
-
4RETAINER; Valve Spring, Intake
-
4RETAINER; Valve Spring, Exhaust
-
16KEY; Valve Spring Retainer
-
1CYLINDER HEAD GASKET; Head
-
1ENGINE OIL PUMP; Rotor & Shaft, Oil Pump
-
1REMAN-ENG OIL PUMP REMAN-ENG OIL PUMP; 6500, 7500, ALL (3/73-10/75), 750 (11/75-12/77), 755 (1/78-12/83), 755A (1/84-12/86), 755B (1/87-1/93), Reman for New P/N E1NN6600DD
-
-CORE-ENGINE OIL PUMP CORE-ENGINE OIL PUMP; Return Number
-
1VALVE PRESSURE RELIE; Valve, Oil Pump 65/1-72
-
1HYDRAULIC VALVE; Valve, Oil Pump, 2-72/75
-
1SHAFT; & Gear, Oil Pump
-
1ENGINE GASKET KIT; Kit, Gasket Upper
-
1KIT; Gasket Lower
-
1ENGINE OVERHAUL KIT; Kit, Engine Overhaul, 750, 7500; (Prod Date) Between 01-Jan-1973 and 28-Feb-1979
-
4PISTON RINGS KIT; Piston Assy., Standard
-
4PISTON RINGS KIT; Kit, Piston Rings, Standard
-
4DRIVE BUSHING; Bushing, Connecting Rod
-
4RETAINER; Valve Spring, Intake
-
4RETAINER; valve Spring, Exhaust
-
16KEY; Valve Spring Retainer
-
1CYLINDER HEAD GASKET; Head
-
1ENGINE OIL PUMP; Rotor & Shaft, Oil Pump
-
1VALVE PRESSURE RELIE; Valve, Oil Pump 71/1-72
-
1HYDRAULIC VALVE; Valve, Oil Pump 2-72/75
-
1SHAFT; & Gear, Oil Pump
-
1ENGINE GASKET KIT; Kit, Gasket Upper
-
1KIT; Gasket Lower
Select All
Ref.
Qty
1Availability
Part #
DJPN6002HDescription
ENGINE OVERHAUL KIT; Kit, Engine Overhaul, 650, 6500, Includes:; (Prod Date) Between 01-Jan-1973 and 31-Dec-1977Img
Alts
Ref.
Qty
4Availability
Part #
DJPN6149WDescription
PISTON RINGS KIT Std; Kit, Piston Rings, StandardImg
Alts
Ref.
Qty
1Availability
Part #
E1NN6600DDDescription
ENGINE OIL PUMP; Rotor & Shaft, Oil PumpImg
Alts
Ref.
Qty
1Availability
Part #
81873261RDescription

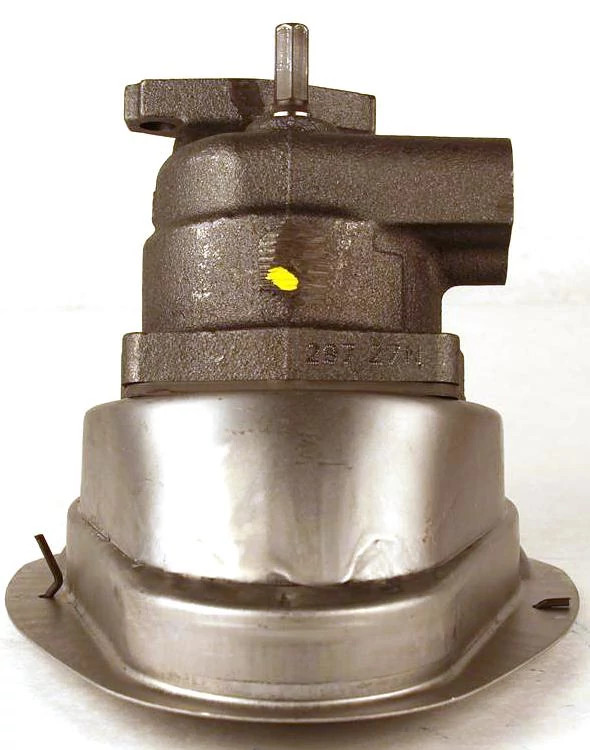

REMAN-ENG OIL PUMP REMAN-ENG OIL PUMP; 6500, 7500, ALL (3/73-10/75), 750 (11/75-12/77), 755 (1/78-12/83), 755A (1/84-12/86), 755B (1/87-1/93), Reman for New P/N E1NN6600DDImg
Alts
Ref.
Qty
-Availability
Part #
81873261CDescription
CORE-ENGINE OIL PUMP CORE-ENGINE OIL PUMP; Return NumberImg
Alts
Ref.
Qty
1Availability
Part #
C5NE6A809ADescription
VALVE PRESSURE RELIE; Valve, Oil Pump 65/1-72Img
Alts
Ref.
Qty
1Availability
Part #
D1NN6A809ADescription
HYDRAULIC VALVE; Valve, Oil Pump, 2-72/75Img
Alts
Ref.
Qty
1Availability
Part #
DJPN6002JDescription
ENGINE OVERHAUL KIT; Kit, Engine Overhaul, 750, 7500; (Prod Date) Between 01-Jan-1973 and 28-Feb-1979Img
Alts
Ref.
Qty
4Availability
Part #
D4NN6108AFDescription
PISTON RINGS KIT; Piston Assy., StandardImg
Alts
Ref.
Qty
4Availability
Part #
DAPN6149ADescription
PISTON RINGS KIT; Kit, Piston Rings, StandardImg
Alts
Ref.
Qty
4Availability
Part #
C9NN6207CDescription
DRIVE BUSHING; Bushing, Connecting RodImg
Alts
Ref.
Qty
1Availability
Part #
E1NN6600DDDescription
ENGINE OIL PUMP; Rotor & Shaft, Oil PumpImg
Alts
Ref.
Qty
1Availability
Part #
C5NE6A809ADescription
VALVE PRESSURE RELIE; Valve, Oil Pump 71/1-72Img
Alts
Ref.
Qty
1Availability
Part #
D1NN6A809ADescription
HYDRAULIC VALVE; Valve, Oil Pump 2-72/75Img
Alts
