PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11PLATE; Reinforcing;When Replacing The Reinforcing Plate, #1 On Units On & BSN 711815, In Addition To the New Style Reinforcing Plate, Part #279716, Also Order Gear Housing, Part #277855, #2.
-
21HOUSING; Gear;When Replacing The Gear Housing On Units On & BSN 711815, In Addition To The New Style Gear Housing, Part P/N 277855, Also Order Reinforcing Plate, Part #279716, #1.
-
32GASKET;
-
41COVER; End, RH
-
51COVER; End, LH
-
61VALVE PRESSURE RELIE; Valve, Pressure Relief
-
72PLATE; Wear, Rear
-
86PLATE; Wear, Low Skid Shoe, 1.44''
-
86PLATE; Wear, High Skid Shoe, 2''
-
86PLATE; Wear, Cane Shoe, 5''
-
96GUARD; Stone
-
102DISC; Outer;Used on & BSN 711815
-
101DISC; Outer, LH Requires 87mm Knives;Used On & Between S/N 711816 & 748790,When Replacing The L.H. Or R.H. Outer Disc On Units On & BSN 711816-711916, Also Order Disc Cover, Part P/N 279859, #43 Or Part #279860, #26 Respectively.
-
101DISC; Outer, RH, Requires 87mm Knives;Used On & Between S/N 711816 & 748790,When Replacing The L.H. Or R.H. Outer Disc On Units On & BSN 711816-711916, Also Order Disc Cover, Part P/N 279859, #43 Or Part #279860, #26 Respectively.
-
102FRAME; Cone Frame Weld Assy., Open Cone, Also included in Ref 58 kit;Used on & ASN 748791
-
112SUPPORT; Disc - 4 pointed star shape;Used on & BSN 748790.
-
116PLATE; Wear - 6 bolt on plates;Used on & ASN 748791
-
122HALF-DISC; Half Disc Weld Assy., Includes 2 Half Discs;Used on & ASN 748791
-
131BEARING ASSY; Housing, Bearing, LH, Requires breather, Ref. 6;Used on & ASN 711816
-
131BEARING HOUSING; Housing, Bearing, RH;Used on & ASN 711816
-
132BEARING HOUSING; Bearing, LH & RH;Used on & BSN 711815
-
131BEARING HOUSING; Bearing, RH Only, Does not have breather hole;Used on & BSN 711815
-

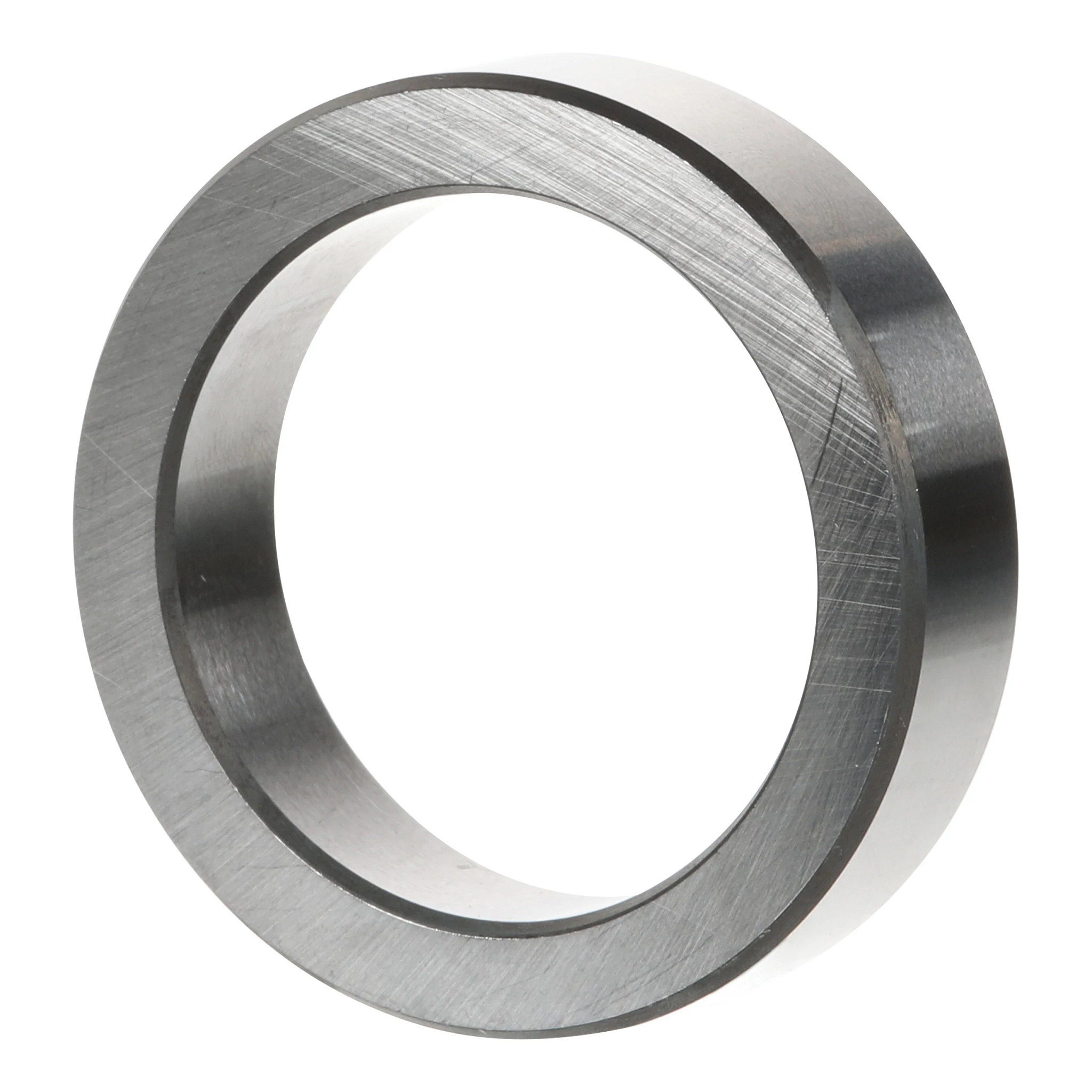

148SPACER;
-

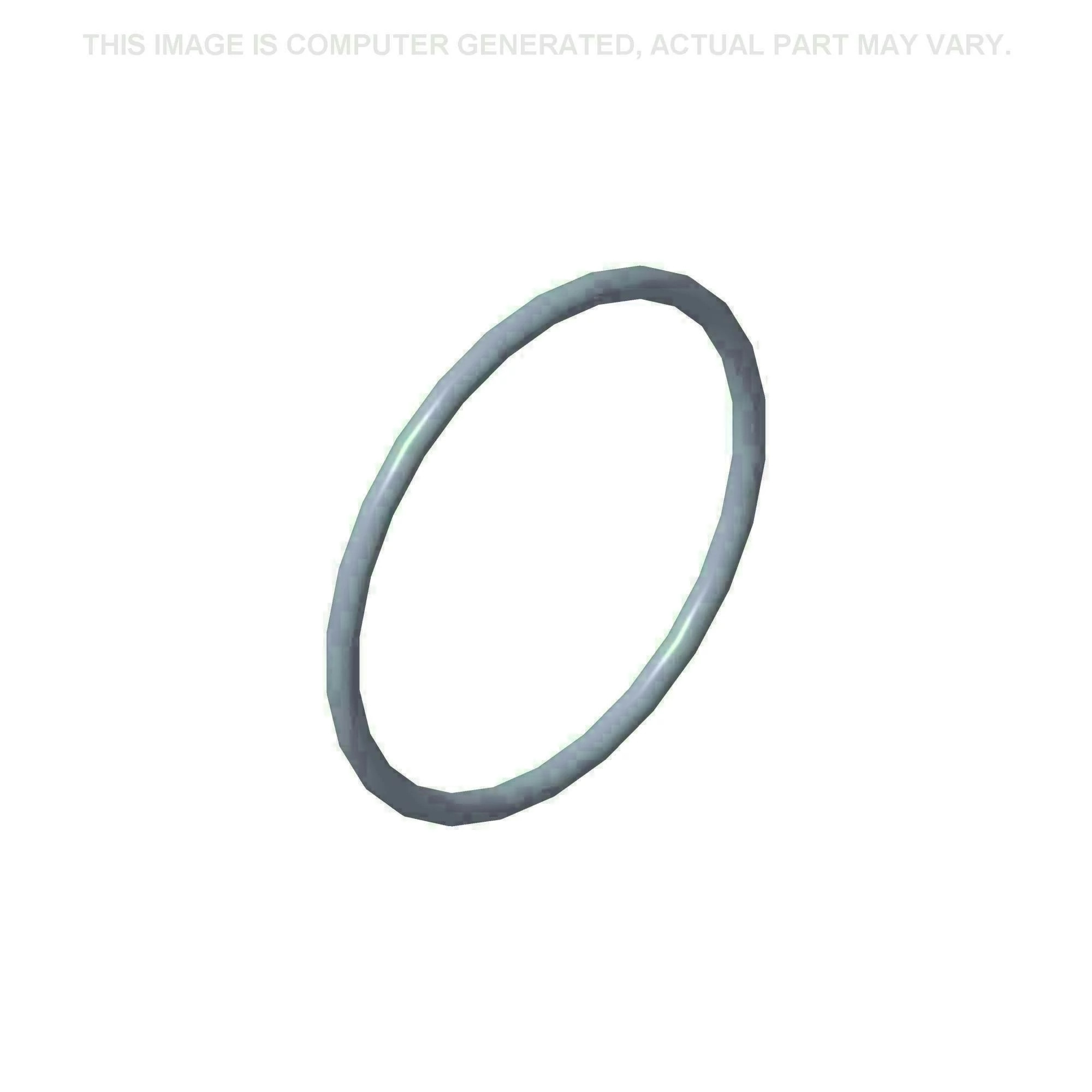

1548O-RING;
-
162GEAR; Wheel, Gear
-
173KIT; Bolt, Special & Washer Kit;M16 x 40 Bolt, M160 OD x M20 ID x M7 Thick Special Washer - Used on & BSN 711815
-
183WASHER 19.5mm ID x 160mm OD x 7mm Thk; Used on & ASN 711816
-
195BALL BEARING 45mm ID x 100mm OD x 25mm W; Bearing, Ball, 100mm OD x 45mm ID, 25mm Wide
-
202SPACER; Used on & BSN 711815
-

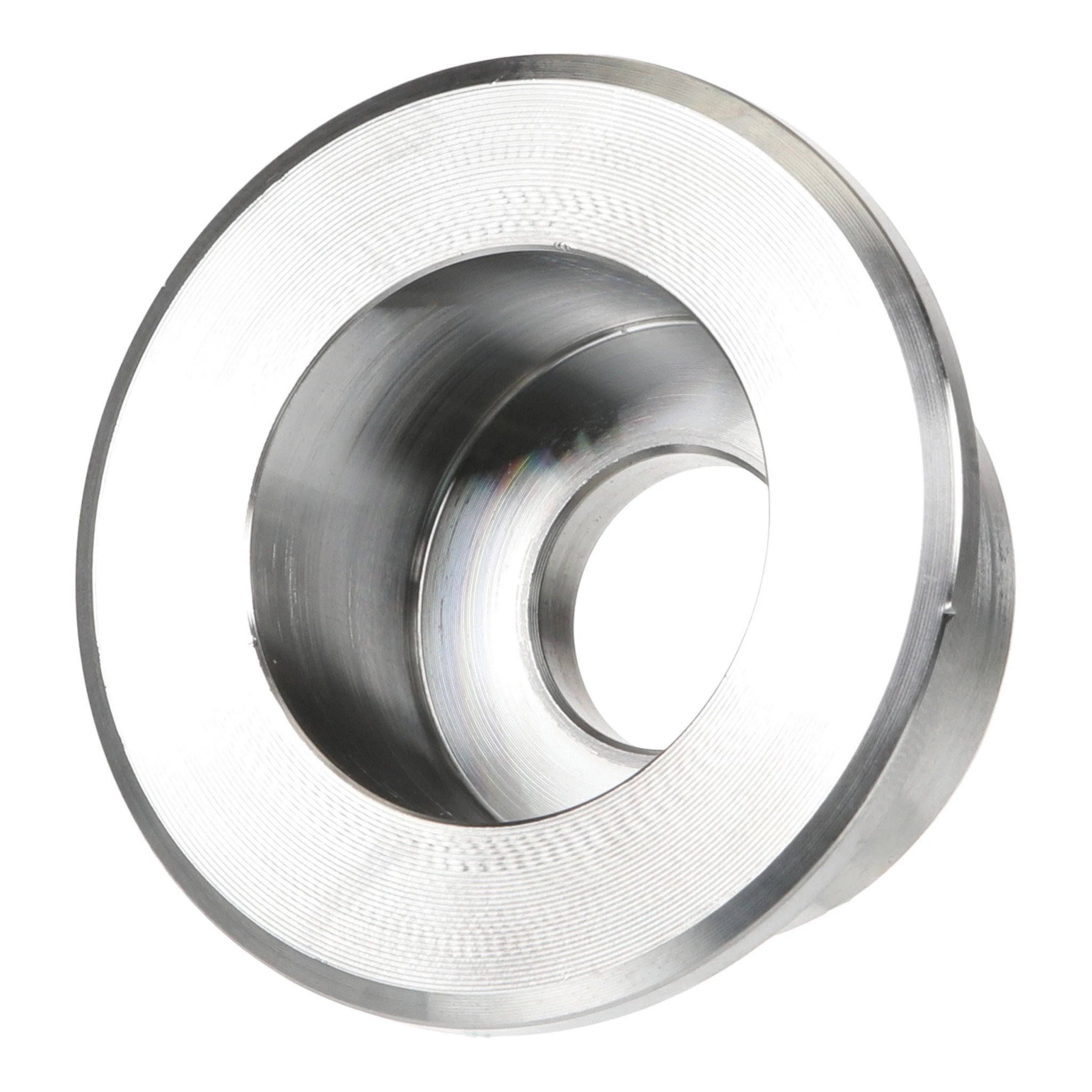

202SPACER; Used on & ASN 711816
-
216O-RING;
-

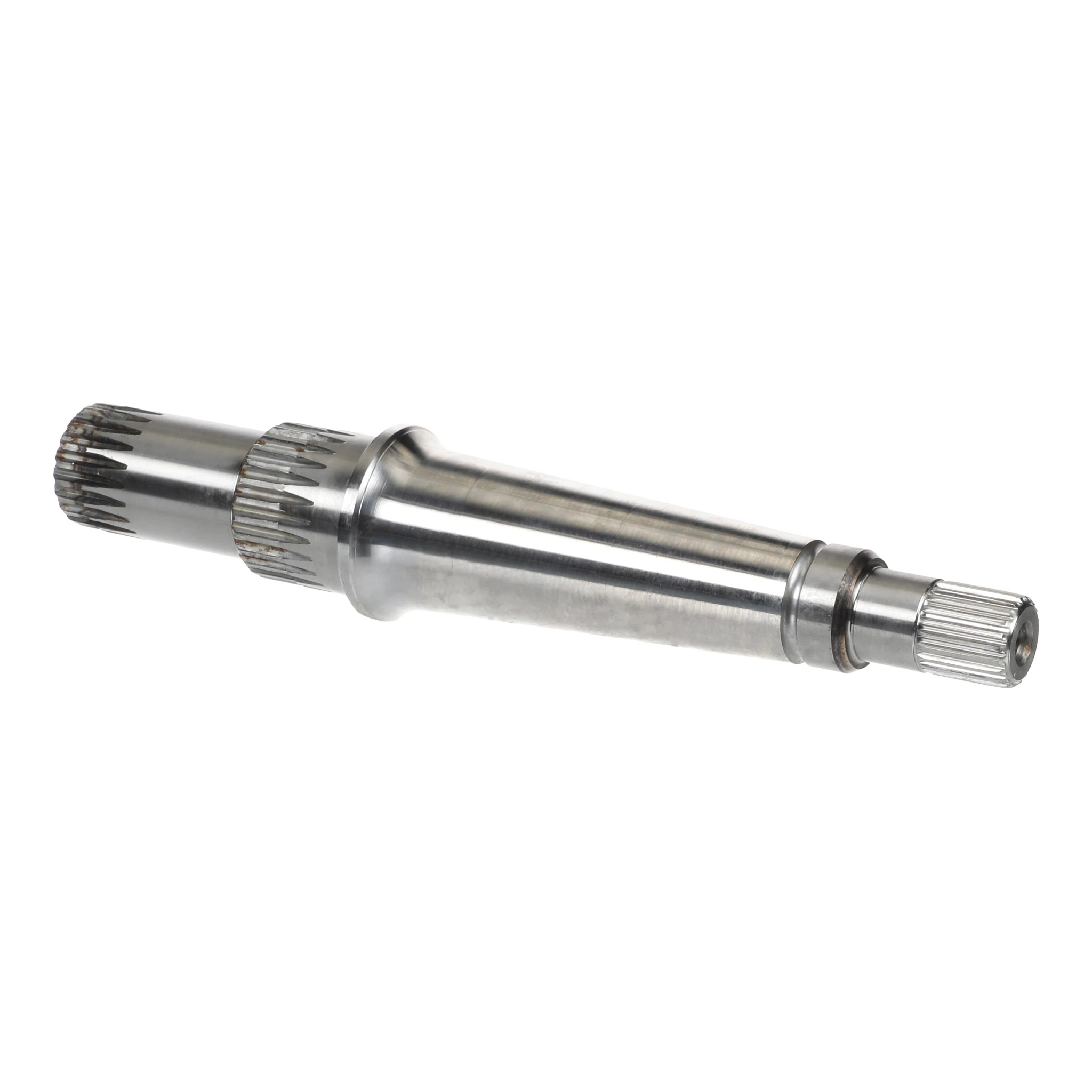

221SHAFT; Used on & ASN 711816
-
221SHAFT; Used on & BSN 711815
-
231WASHER; Used on & ASN 711816
-

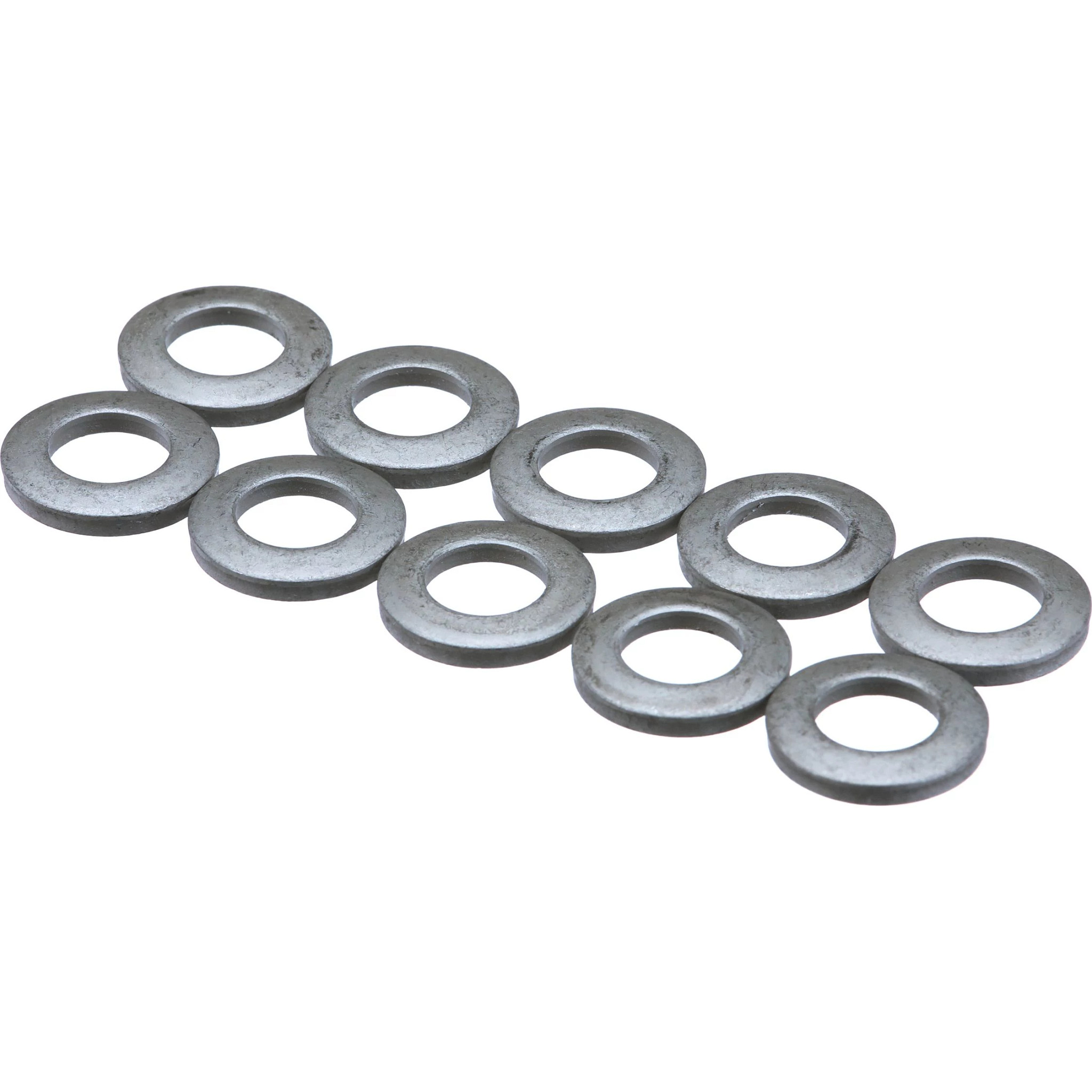

231WASHER; Used on & BSN 711815
-
241BALL BEARING 40mm ID x 90mm OD x 52mm W; Bearing. 90mm OD x 40mm ID, 52mm Wide;Used On & BSN 757722
-
251BEARING HOUSING; Bearing;Used On & BSN 757722
-
251BEARING ASSY Ball, 40mm ID x 90mm OD x 52mm W; Assy., Includes: Ref. 24;Used On & ASN 757723
-
262COVER; Disc;Used on & Between S/N 711816 & 711915
-
262COVER; Disc;Used On & Between S/N's 711816 & 870427
-
2716SPACER;
-
284GEAR; and Shaft
-
294BEARING HOUSING; Bearing
-
304BALL BEARING 35mm ID x 72mm OD x 33mm W; Bearing, Double Row, Includes Seal, 72mm OD x 35mm ID, 33mm Wide
-
314SNAP RING; Ring, Snap, Int, M72
-
324SUPPORT; Disc
-
334DISC; 420 mm Bolt Circle Dimension;Used on & BSN 711815
-
334DISC; 436 mm Bolt Circle Dimension;Used on & ASN 711816
-
344NUT; Self-Locking
-
354SPRING WASHER; Spring
-
3610GEAR; and Bearing Assy.
-
3710SUPPORT; Lower
-
3820O-RING;
-
3910SUPPORT; Upper
-
4010SCREW; Self-Lock, M12x1.5x20
-
411SNAP RING M120, Int, PHC; Ring, Snap, Int, M120
-
421BALL BEARING 55mm ID x 120mm OD x 29mm W; Bearing, Ball
-
431COVER; Disc;Used on & Between S/N 711816 & 711915
-
431COVER; Disc;Used on & BSN 711815
-
431COVER; Disc;Used on & ASN 711816
-
441TUBE;
-
451SHAFT; 858795, M16 Bolt Hole;Has 16mm Bolt Hole,Also order 858795 when replacing this Shaft - Used on & BSN 711815
-
451SHAFT; Has 18mm Bolt Hole
-
461WASHER;
-

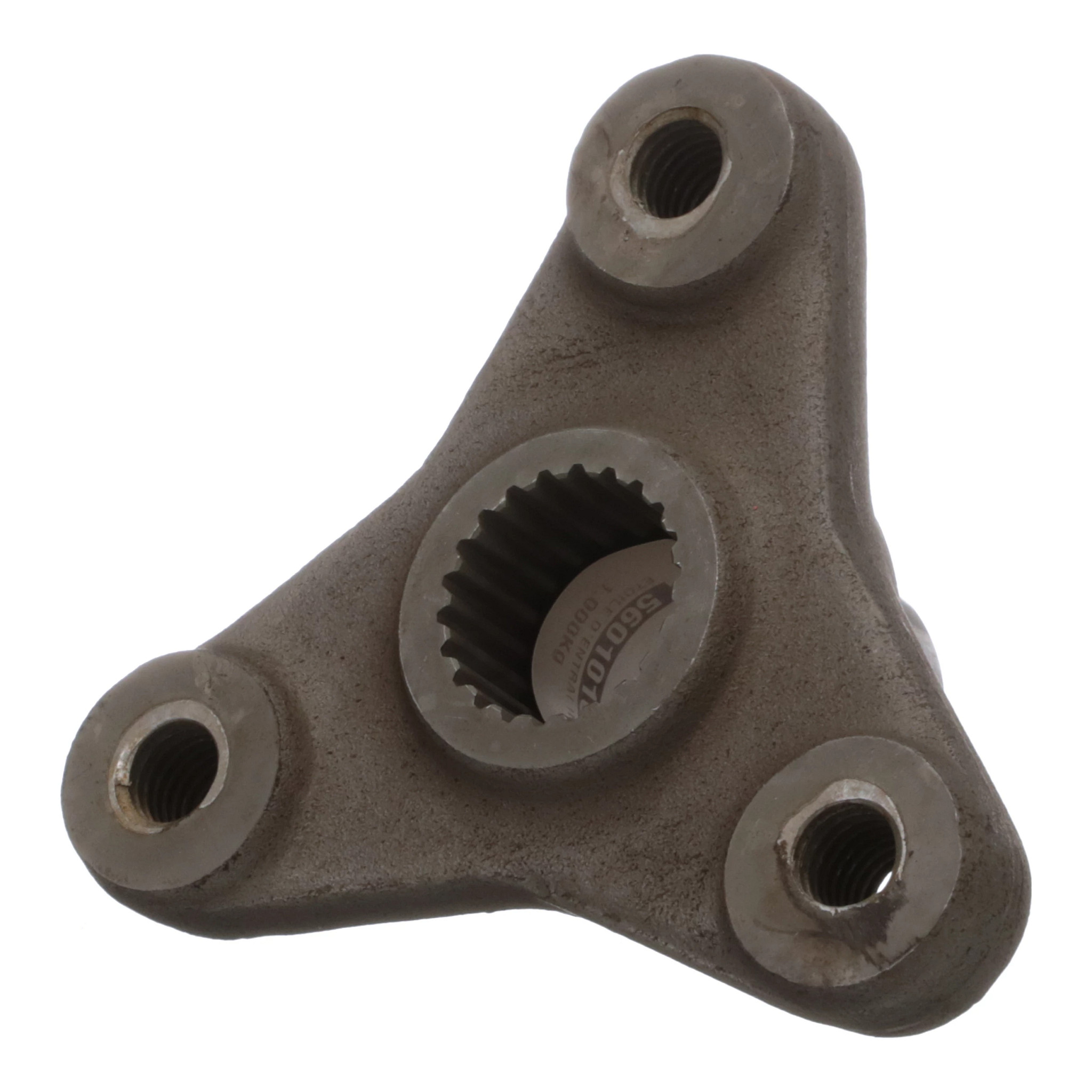

471DRIVE; Star, Drive (22 Splines)
-
481NO LONGER SERVICED; Coupling, Elastic ( 278986 Which subbed to Ref. 59)
-

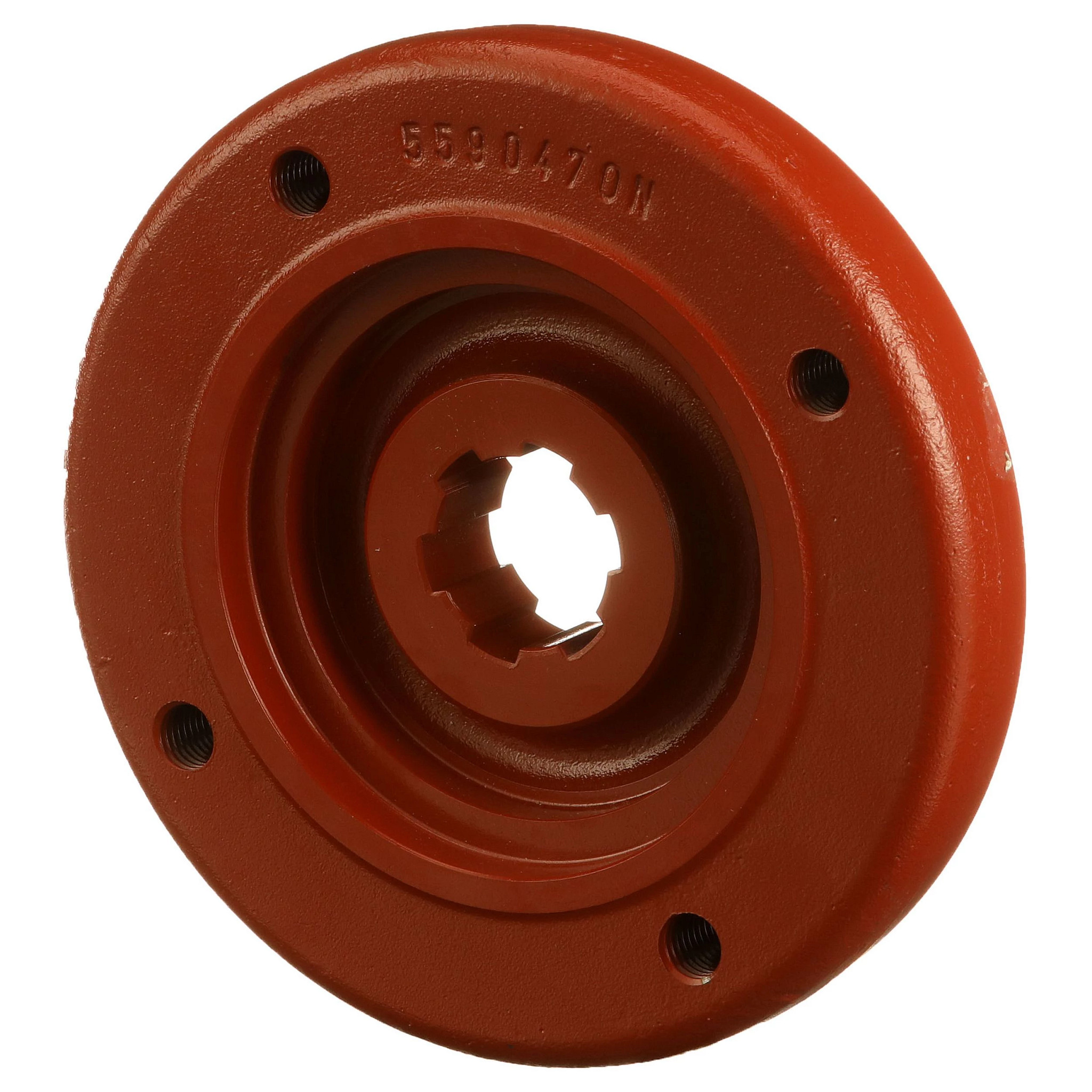

491DRIVE;
-
501SERRATED BOLT Hex Serr Flg, M10 x 30mm; Screw, Cap, Flg Hd, USR, CL 8.8, M10 x 1.5 x 30
-
511WASHER;
-
522PLUG; Magnetic
-
536KNIFE; Angled Even 95 mm, Install on Even Numbered Discs;Odd And Even Discs Are Determined By Starting With The L.H. Gearbox - Driven End Of The Cutterbar. The FirstOr #1 Disc Will Be Odd And The Next Adjacent, Or #2 Disc, Will Be Even And So On Proceeding Towards The R.H. End.,Knife Length Is Measured From Center Of Bolt Hole To Knife Tip.,Used on & BSN 711815
-
536KNIFE BLADE; Knife, Angled Odd 95 mm, Install on Odd Numbered Discs;Odd And Even Discs Are Determined By Starting With The L.H. Gearbox - Driven End Of The Cutterbar. The FirstOr #1 Disc Will Be Odd And The Next Adjacent, Or #2 Disc, Will Be Even And So On Proceeding Towards The R.H. End.,Knife Length Is Measured From Center Of Bolt Hole To Knife Tip.,Used on & BSN 711815
-
536KNIFE; Straight 87 mm
-
536KNIFE; Straight 95 mm
-
536KNIFE; Angled Odd 87 mm, Install on Odd Numbered Discs;Odd And Even Discs Are Determined By Starting With The L.H. Gearbox - Driven End Of The Cutterbar. The FirstOr #1 Disc Will Be Odd And The Next Adjacent, Or #2 Disc, Will Be Even And So On Proceeding Towards The R.H. End.,Knife Length Is Measured From Center Of Bolt Hole To Knife Tip.,Used on & ASN 711816
-
536KNIFE BLADE; Knife, Angled Even 87 mm, Install on Even Numbered Discs;Odd And Even Discs Are Determined By Starting With The L.H. Gearbox - Driven End Of The Cutterbar. The FirstOr #1 Disc Will Be Odd And The Next Adjacent, Or #2 Disc, Will Be Even And So On Proceeding Towards The R.H. End.,Knife Length Is Measured From Center Of Bolt Hole To Knife Tip.,Used on & ASN 711816
-
5412BOLT; Knife, TH, CL 12.9, M12 x 1.75 x 47.5
-
554CROP LIFTER; Lifter Weld Assy., Inner Even, 2.50'' Hole Spacing;Odd And Even Discs Are Determined By Starting With The L.H. Gearbox - Driven End Of The Cutterbar. The FirstOr #1 Disc Will Be Odd And The Next Adjacent, Or #2 Disc, Will Be Even And So On Proceeding Towards The R.H. End.,Used on & BSN 711815
-
554CROP LIFTER; Lifter Weld Assy., Inner Odd, 2.50'' Hole Spacing;Odd And Even Discs Are Determined By Starting With The L.H. Gearbox - Driven End Of The Cutterbar. The FirstOr #1 Disc Will Be Odd And The Next Adjacent, Or #2 Disc, Will Be Even And So On Proceeding Towards The R.H. End.,Used on & BSN 711815
-
552CROP LIFTER; Lifter Weld Assy., Outer Even, (RH End Cone), 1.72'' Hole Spacing;Odd And Even Discs Are Determined By Starting With The L.H. Gearbox - Driven End Of The Cutterbar. The FirstOr #1 Disc Will Be Odd And The Next Adjacent, Or #2 Disc, Will Be Even And So On Proceeding Towards The R.H. End.,Used on & BSN 711815
-
552CROP LIFTER; Lifter Weld Assy., Outer Odd, (LH End Cone), 1.72'' Hole Spacing;Odd And Even Discs Are Determined By Starting With The L.H. Gearbox - Driven End Of The Cutterbar. The FirstOr #1 Disc Will Be Odd And The Next Adjacent, Or #2 Disc, Will Be Even And So On Proceeding Towards The R.H. End.,Used on & BSN 711815
-
552CROP LIFTER; Lifter Weld Assy., Outer Odd, (LH End Cone),2'' Hole Spacing;Odd And Even Discs Are Determined By Starting With The L.H. Gearbox - Driven End Of The Cutterbar. The FirstOr #1 Disc Will Be Odd And The Next Adjacent, Or #2 Disc, Will Be Even And So On Proceeding Towards The R.H. End.,Used on & ASN 711816
-
552CROP LIFTER; Lifter Weld Assy., Outer Even, (RH End Cone), 2'' Hole Spacing;Used on & ASN 711816,Odd And Even Discs Are Determined By Starting With The L.H. Gearbox - Driven End Of The Cutterbar. The FirstOr #1 Disc Will Be Odd And The Next Adjacent, Or #2 Disc, Will Be Even And So On Proceeding Towards The R.H. End.
-
554DISC; Lifter Weld Assy., Inner Odd, 2.85'' Hole Spacing;Odd And Even Discs Are Determined By Starting With The L.H. Gearbox - Driven End Of The Cutterbar. The FirstOr #1 Disc Will Be Odd And The Next Adjacent, Or #2 Disc, Will Be Even And So On Proceeding Towards The R.H. End.,Like Design Forged Lifters must be used on individual cutterbar rotors to maintain balance,Used on & ASN 711816
-
554DISC; Lifter Weld Assy., Inner Even, 2.85'' Hole Spacing;Odd And Even Discs Are Determined By Starting With The L.H. Gearbox - Driven End Of The Cutterbar. The FirstOr #1 Disc Will Be Odd And The Next Adjacent, Or #2 Disc, Will Be Even And So On Proceeding Towards The R.H. End.,Like Design Forged Lifters must be used on individual cutterbar rotors to maintain balance,Used on & ASN 711816
-
562OIL SEAL; Oil;Used on & ASN 711816
-
571SHIELD; Use existing Gearbox hardware;Used on & ASN 818648
-
582CONE; Open Cone Assy., Includes: Ref. 10 thru 12
-
591KIT; Flex Coupler, Includes: Cap Screws & Instructions
-
601DEFLECTOR;
-
61ARSPARE PART; Lube, Gear;Gear Lube P/N 9613295 is SAE 80W-90 API-GL5 and is recommended for use in the Cutterbar and Gearboxes.
-
62ARADJUSTING WRENCH; Wrench, Box Spanner 18 mm for Servicing Knife Nuts, #54 697550
-
63ARKEY; Wrench, Allen 8 mm
-
12LOCK NUT Hex, M10 x 1.5, Cl 8, ZND; Lock, M10 x 1.5, Cl 8
-
2BELLEVILLE WASHER M12 Bolt Size x 27mm OD x 1.8mm Thk; Washer, Spring, Belleville, M12
-
4SERRATED BOLT Hex, M10 x 20mm; Flg Hd, USR, CL 8.8, M10 x 1.5 x 20
-
4SERRATED BOLT Hex, M10 x 20mm; Flg Hd, USR, CL 8.8, M10 x 1.5 x 20
-
12SERRATED BOLT Hex Serr Flg, M10 x 25mm; Flg Hd, USR, CL 8.8, M10 x 1.5 x 25
-
12SERRATED BOLT Hex Serr Flg, M12 x 30mm; Screw, Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 30;Used w/Forged Lifters
-
12SERRATED BOLT Hex Serr Flg, M12 x 30mm; Screw, Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 30;Used w/Forged Lifters
-
12SERRATED BOLT Hex Serr Flg, M12 x 30mm; Screw, Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 30;Used w/Forged Lifters
-
12SERRATED BOLT Hex Serr Flg, M12 x 30mm; Screw, Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 30;Used w/Forged Lifters
-
12SERRATED BOLT Hex Serr Flg, M12 x 30mm; Screw, Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 30;Used w/Forged Lifters
-
12SERRATED BOLT Hex Serr Flg, M12 x 30mm; Screw, Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 30;Used w/Forged Lifters
-
ARSERRATED BOLT Hex Serr Flg, M12 x 30mm; Screw, Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 30;Used w/Forged Lifters
-
12SERRATED BOLT Hex Serr Flg, M12 x 30mm; Screw, Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 30;Used w/Forged Lifters
-
2WASHER;
-
1WASHER;
-
2BOLT Flng, M18 x 55mm; Cap, Flg Hd, USR, M18 x 2.5 x 55;M18 x 55 - with Locking Patch on Threads - Used on & ASN 711816
-
10WASHER;
-
16WASHER;
-
16WASHER;
-
20WASHER; Used on & ASN 748791
-
2COVER; Disc;Used on & BSN 748790.
-
3SCREW; Self-Locking
-
3SCREW; Self-Locking
-
4BOLT; Bolt, Carriage, G10, M12 x 60mm
-
16BOLT; Bolt, Carriage, G5, M12 x 60
-
16BOLT; Bolt, Carriage CL10.9, M12 x 60
-
16BOLT Self Lock; Screw, Self-Locking, M12 (Dia. 12mm, Length 30mm)
-
16BOLT Self Lock; Screw, Self-Locking, M12 (Dia. 12mm, Length 30mm)
-
3SCREW; Hexagonal
-
3SCREW; Hexagonal
-
8BOLT; Self-Locking
-
8BOLT; Self-Locking
-
8BOLT; Self-Locking
-
8BOLT; Self-Locking
-
12WASHER;
-
12WASHER;
-
12WASHER;
-
3SPRING WASHER; Spring
-
3LOCK NUT; Self-Locking
-
12BOLT Hex, M12 x 1.75 x 25mm, Full Thd, Cl 8.8, ZND;
-
12BOLT Hex, M12 x 1.75 x 25mm, Full Thd, Cl 8.8, ZND;
-
12BOLT Hex, M12 x 1.75 x 25mm, Full Thd, Cl 8.8, ZND;
-
12CARRIAGE BOLT M10 x 1.5 x 25mm, Cl 8.8; Bolt, Carriage, Short Neck, CL 8.8, M10 x 1.5 x 25
-
12FLANGE NUT M12; Flg, USR, CL 9, M12 x 1.75
-
12FLANGE NUT M12; Flg, USR, CL 9, M12 x 1.75
-
12FLANGE NUT M12; Flg, USR, CL 9, M12 x 1.75
-
12FLANGE NUT M12; Flg, USR, CL 9, M12 x 1.75
-
12FLANGE NUT M12; Flg, USR, CL 9, M12 x 1.75
-
12FLANGE NUT M12; Flg, USR, CL 9, M12 x 1.75
-
12FLANGE NUT M12; Flg, USR, CL 9, M12 x 1.75
-
12FLANGE NUT M12; Flg, USR, CL 9, M12 x 1.75
-
2WASHER 13.1mm ID x 25.4mm OD x 3.68mm Thk; (1/2'') M13 x 25 x 3.5, HT
-
12LOCK NUT; Nut, Lock, CL 8, M12 x 1.75
-
18LOCK NUT; Nut, Lock, CL 8, M12 x 1.75
-
1DISC; Cutterbar Assy., L/Knives & Discs, Includes: 1 thru 5, 7, 14, 15, 21, 27 thru 32, 34 thru 40, 52
-
16LOCK NUT; Nut, Lock, Insert, CL10, M12 x 1.75
-
16LOCK NUT; Nut, Lock, Insert, CL10, M12 x 1.75
-
4LOCK NUT; Insert, CL10, M12 x 1.75
-
12SERRATED BOLT Hex Serr, M12 x 1.75 x 25mm; Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 25;Used with Welded Lifters
-
12SERRATED BOLT Hex Serr, M12 x 1.75 x 25mm; Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 25;Used with Welded Lifters
-
12SERRATED BOLT Hex Serr, M12 x 1.75 x 25mm; Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 25;Used with Welded Lifters
-
12SERRATED BOLT Hex Serr, M12 x 1.75 x 25mm; Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 25;Used with Welded Lifters
-
12SERRATED BOLT Hex Serr, M12 x 1.75 x 25mm; Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 25;Used with Welded Lifters
-
12SERRATED BOLT Hex Serr, M12 x 1.75 x 25mm; Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 25;Used with Welded Lifters
-
12SERRATED BOLT Hex Serr, M12 x 1.75 x 25mm; Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 25;Used with Welded Lifters
-
12SERRATED BOLT Hex Serr, M12 x 1.75 x 25mm; Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 25;Used with Welded Lifters
-
6SERRATED BOLT Hex Serr, M12 x 1.75 x 35mm; Screw, Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 35
-
20SCREW; Cap, HH, G10.9, M12 x 20;Used on & ASN 748791
-
18CARRIAGE BOLT Short NK, M12 x 25, Cl8.8, Full Thd; Bolt, Carriage, Short Neck, CL 10.9, M12 x 1.75 x 25
-
2BOLT Hex, M12 x 1.75 x 30mm, Full Thd, Cl 8.8, ZND;
-
2BOLT Hex, M12 x 1.75 x 60mm, 30mm Thread L, Cl 8.8, ZND; Screw, Cap, HH, CL 8.8, M12 x 1.75 x 60
-
3HEX SOC SCREW M14 x 2 x 30mm, Cl 12.9; Screw, Cap, HH, CL12.9, M14 x 2 x 30
Select All
Ref.
1Qty
1Availability
Part #
279716Description
PLATE; Reinforcing;When Replacing The Reinforcing Plate, #1 On Units On & BSN 711815, In Addition To the New Style Reinforcing Plate, Part #279716, Also Order Gear Housing, Part #277855, #2.Img
Alts
Ref.
2Qty
1Availability
Part #
277855Description
HOUSING; Gear;When Replacing The Gear Housing On Units On & BSN 711815, In Addition To The New Style Gear Housing, Part P/N 277855, Also Order Reinforcing Plate, Part #279716, #1.Img
Alts
Ref.
6Qty
1Availability
Part #
274105Description
VALVE PRESSURE RELIE; Valve, Pressure ReliefImg
Alts
Ref.
10Qty
1Availability
Part #
279856Description
DISC; Outer, LH Requires 87mm Knives;Used On & Between S/N 711816 & 748790,When Replacing The L.H. Or R.H. Outer Disc On Units On & BSN 711816-711916, Also Order Disc Cover, Part P/N 279859, #43 Or Part #279860, #26 Respectively.Img
Alts
Ref.
10Qty
1Availability
Part #
279857Description
DISC; Outer, RH, Requires 87mm Knives;Used On & Between S/N 711816 & 748790,When Replacing The L.H. Or R.H. Outer Disc On Units On & BSN 711816-711916, Also Order Disc Cover, Part P/N 279859, #43 Or Part #279860, #26 Respectively.Img
Alts
Ref.
10Qty
2Availability
Part #
9604293Description
FRAME; Cone Frame Weld Assy., Open Cone, Also included in Ref 58 kit;Used on & ASN 748791Img
Alts
Ref.
11Qty
2Availability
Part #
278960Description
SUPPORT; Disc - 4 pointed star shape;Used on & BSN 748790.Img
Alts
Ref.
11Qty
6Availability
Part #

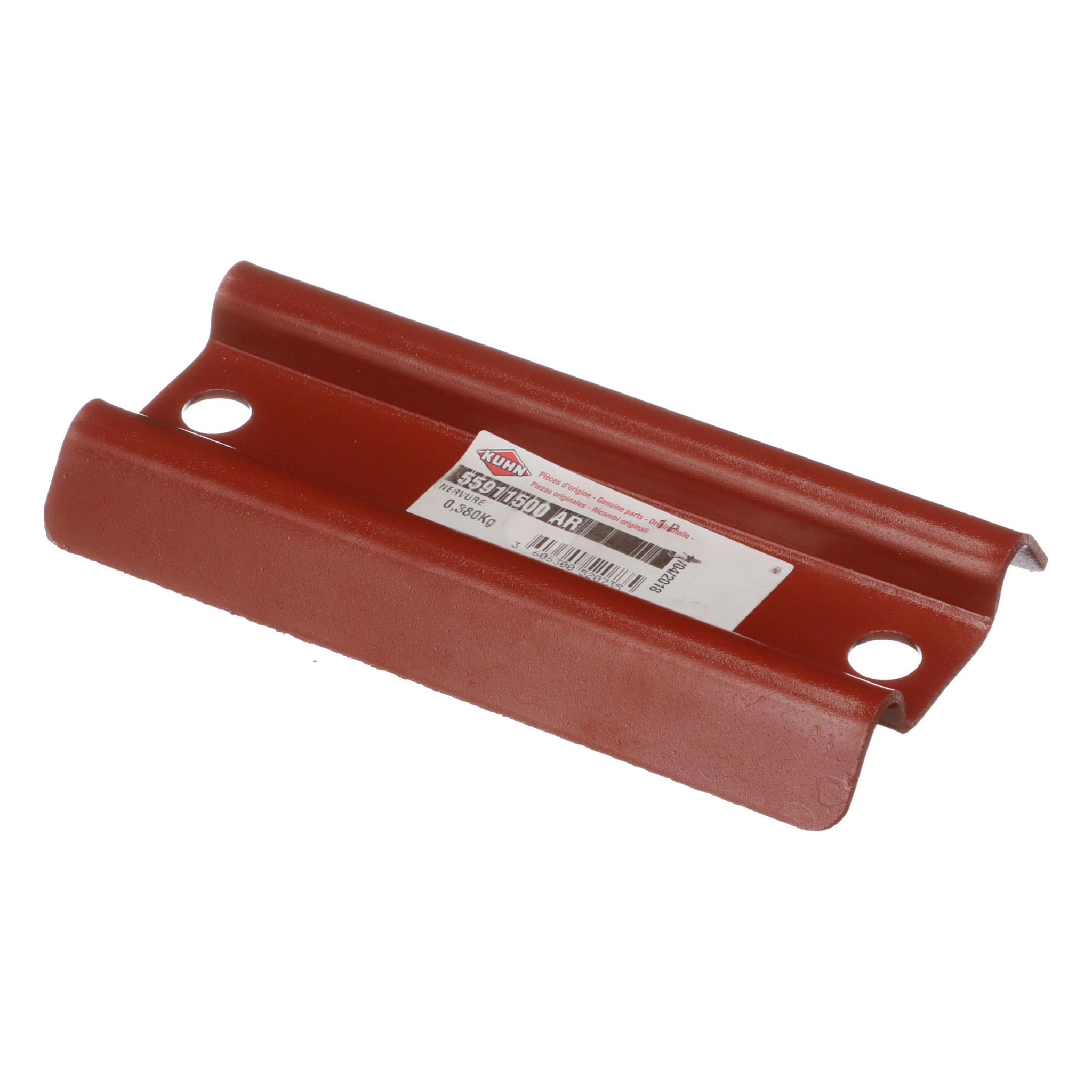

9604292Description
PLATE; Wear - 6 bolt on plates;Used on & ASN 748791Img
Alts
Ref.
12Qty
2Availability
Part #
9604294Description
HALF-DISC; Half Disc Weld Assy., Includes 2 Half Discs;Used on & ASN 748791Img
Alts
Ref.
13Qty
1Availability
Part #
277850Description
BEARING ASSY; Housing, Bearing, LH, Requires breather, Ref. 6;Used on & ASN 711816Img
Alts
Ref.
13Qty
1Availability
Part #
277852Description
BEARING HOUSING; Housing, Bearing, RH;Used on & ASN 711816Img
Alts
Ref.
13Qty
2Availability
Part #
278637Description
BEARING HOUSING; Bearing, LH & RH;Used on & BSN 711815Img
Alts
Ref.
13Qty
1Availability
Part #
278637Description
BEARING HOUSING; Bearing, RH Only, Does not have breather hole;Used on & BSN 711815Img
Alts
Ref.
17Qty
3Availability
Part #

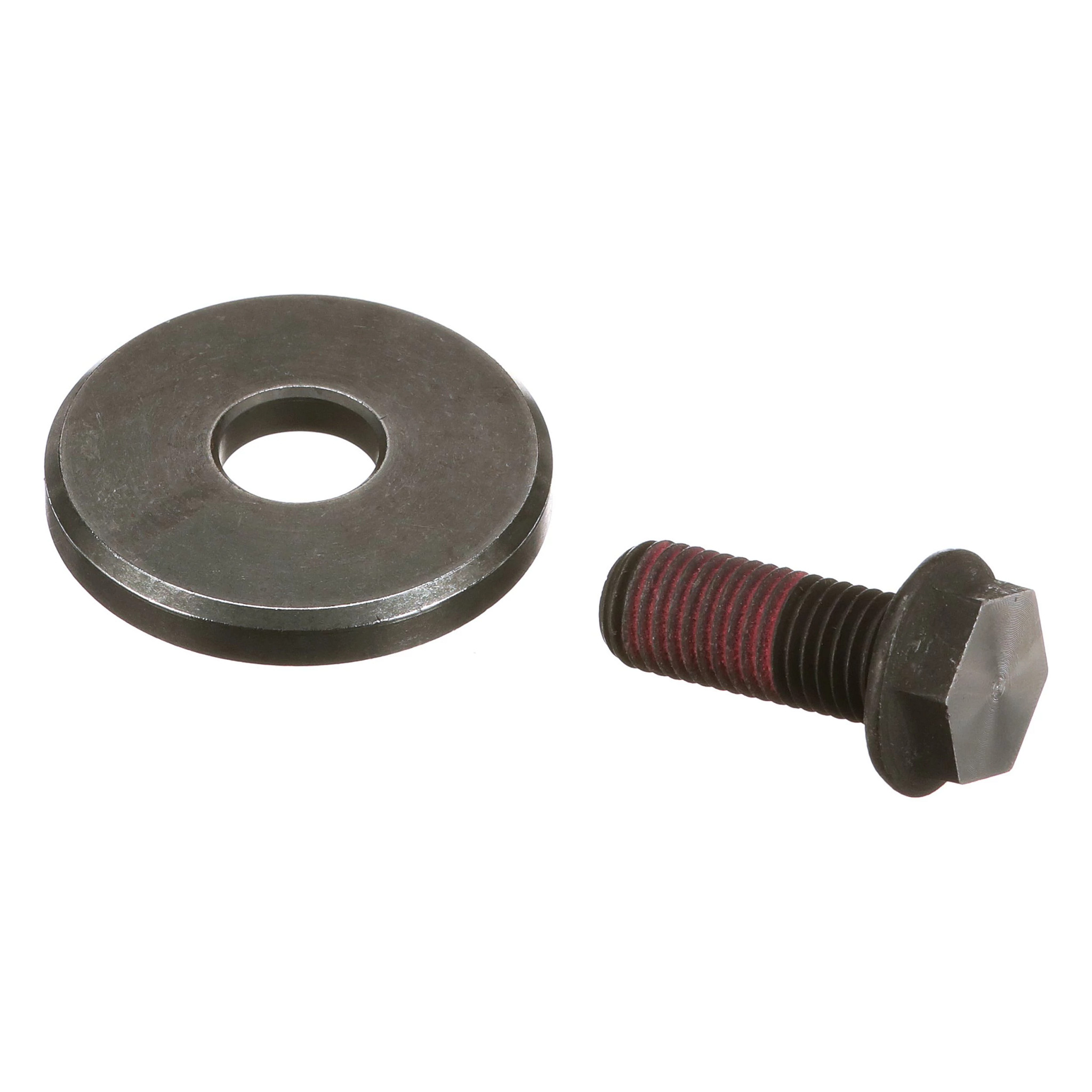

858795Description
KIT; Bolt, Special & Washer Kit;M16 x 40 Bolt, M160 OD x M20 ID x M7 Thick Special Washer - Used on & BSN 711815Img
Alts
Ref.
18Qty
3Availability
Part #
277841Description
WASHER 19.5mm ID x 160mm OD x 7mm Thk; Used on & ASN 711816Img
Alts
Ref.
19Qty
5Availability
Part #
766297Description
BALL BEARING 45mm ID x 100mm OD x 25mm W; Bearing, Ball, 100mm OD x 45mm ID, 25mm WideImg
Alts
Ref.
24Qty
1Availability
Part #
278959Description

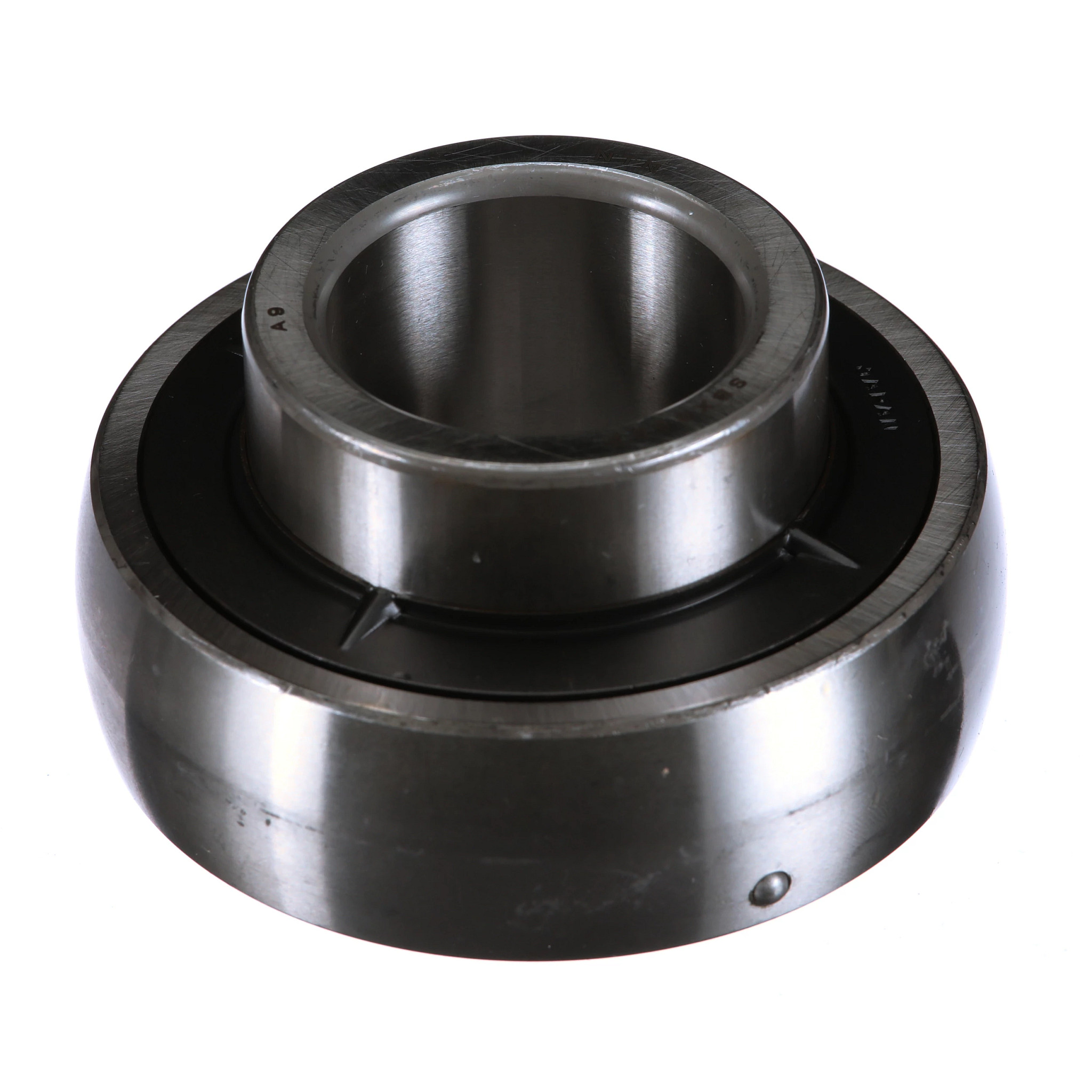

BALL BEARING 40mm ID x 90mm OD x 52mm W; Bearing. 90mm OD x 40mm ID, 52mm Wide;Used On & BSN 757722Img
Alts
Ref.
25Qty
1Availability
Part #
278958Description
BEARING HOUSING; Bearing;Used On & BSN 757722Img
Alts
Ref.
25Qty
1Availability
Part #
9617553Description
BEARING ASSY Ball, 40mm ID x 90mm OD x 52mm W; Assy., Includes: Ref. 24;Used On & ASN 757723Img
Alts
Ref.
26Qty
2Availability
Part #
277842Description
COVER; Disc;Used on & Between S/N 711816 & 711915Img
Alts
Ref.
26Qty
2Availability
Part #
279860Description
COVER; Disc;Used On & Between S/N's 711816 & 870427Img
Alts
Ref.
30Qty
4Availability
Part #
788047Description
BALL BEARING 35mm ID x 72mm OD x 33mm W; Bearing, Double Row, Includes Seal, 72mm OD x 35mm ID, 33mm WideImg
Alts
Ref.
33Qty
4Availability
Part #
278955Description
DISC; 420 mm Bolt Circle Dimension;Used on & BSN 711815Img
Alts
Ref.
33Qty
4Availability
Part #

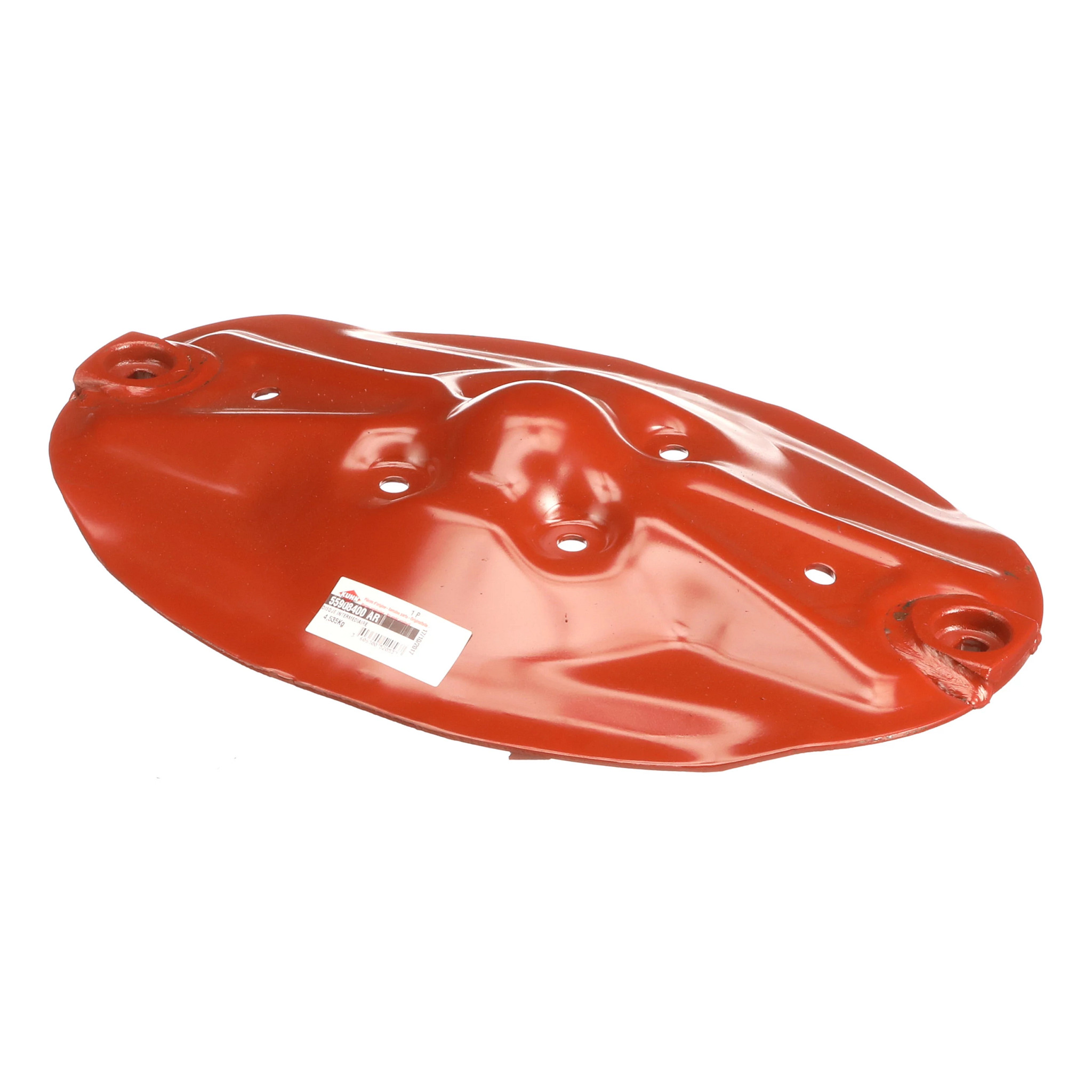

279858Description
DISC; 436 mm Bolt Circle Dimension;Used on & ASN 711816Img
Alts
Ref.
41Qty
1Availability
Part #
412270Description
SNAP RING M120, Int, PHC; Ring, Snap, Int, M120Img
Alts
Ref.
42Qty
1Availability
Part #
86516896Description
BALL BEARING 55mm ID x 120mm OD x 29mm W; Bearing, BallImg
Alts
Ref.
43Qty
1Availability
Part #
277844Description
COVER; Disc;Used on & Between S/N 711816 & 711915Img
Alts
Ref.
45Qty
1Availability
Part #
277845Description
SHAFT; 858795, M16 Bolt Hole;Has 16mm Bolt Hole,Also order 858795 when replacing this Shaft - Used on & BSN 711815Img
Alts
Ref.
48Qty
1Availability
Part #
NLSDescription
NO LONGER SERVICED; Coupling, Elastic ( 278986 Which subbed to Ref. 59)Img
Alts
Ref.
50Qty
1Availability
Part #
9840672Description
SERRATED BOLT Hex Serr Flg, M10 x 30mm; Screw, Cap, Flg Hd, USR, CL 8.8, M10 x 1.5 x 30Img
Alts
Ref.
53Qty
6Availability
Part #
785608Description
KNIFE; Angled Even 95 mm, Install on Even Numbered Discs;Odd And Even Discs Are Determined By Starting With The L.H. Gearbox - Driven End Of The Cutterbar. The FirstOr #1 Disc Will Be Odd And The Next Adjacent, Or #2 Disc, Will Be Even And So On Proceeding Towards The R.H. End.,Knife Length Is Measured From Center Of Bolt Hole To Knife Tip.,Used on & BSN 711815Img
Alts
Ref.
53Qty
6Availability
Part #
785609Description
KNIFE BLADE; Knife, Angled Odd 95 mm, Install on Odd Numbered Discs;Odd And Even Discs Are Determined By Starting With The L.H. Gearbox - Driven End Of The Cutterbar. The FirstOr #1 Disc Will Be Odd And The Next Adjacent, Or #2 Disc, Will Be Even And So On Proceeding Towards The R.H. End.,Knife Length Is Measured From Center Of Bolt Hole To Knife Tip.,Used on & BSN 711815Img
Alts
Ref.
53Qty
6Availability
Part #
853819Description
KNIFE; Angled Odd 87 mm, Install on Odd Numbered Discs;Odd And Even Discs Are Determined By Starting With The L.H. Gearbox - Driven End Of The Cutterbar. The FirstOr #1 Disc Will Be Odd And The Next Adjacent, Or #2 Disc, Will Be Even And So On Proceeding Towards The R.H. End.,Knife Length Is Measured From Center Of Bolt Hole To Knife Tip.,Used on & ASN 711816Img
Alts
Ref.
53Qty
6Availability
Part #
86837561Description
KNIFE BLADE; Knife, Angled Even 87 mm, Install on Even Numbered Discs;Odd And Even Discs Are Determined By Starting With The L.H. Gearbox - Driven End Of The Cutterbar. The FirstOr #1 Disc Will Be Odd And The Next Adjacent, Or #2 Disc, Will Be Even And So On Proceeding Towards The R.H. End.,Knife Length Is Measured From Center Of Bolt Hole To Knife Tip.,Used on & ASN 711816Img
Alts
Ref.
54Qty
12Availability
Part #
681623Description
BOLT; Knife, TH, CL 12.9, M12 x 1.75 x 47.5Img
Alts
Ref.
55Qty
4Availability
Part #
782292Description

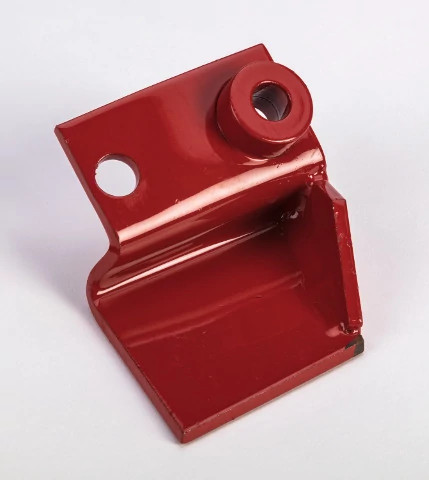

CROP LIFTER; Lifter Weld Assy., Inner Even, 2.50'' Hole Spacing;Odd And Even Discs Are Determined By Starting With The L.H. Gearbox - Driven End Of The Cutterbar. The FirstOr #1 Disc Will Be Odd And The Next Adjacent, Or #2 Disc, Will Be Even And So On Proceeding Towards The R.H. End.,Used on & BSN 711815Img
Alts
Ref.
55Qty
4Availability
Part #
782293Description
CROP LIFTER; Lifter Weld Assy., Inner Odd, 2.50'' Hole Spacing;Odd And Even Discs Are Determined By Starting With The L.H. Gearbox - Driven End Of The Cutterbar. The FirstOr #1 Disc Will Be Odd And The Next Adjacent, Or #2 Disc, Will Be Even And So On Proceeding Towards The R.H. End.,Used on & BSN 711815Img
Alts
Ref.
55Qty
2Availability
Part #
782294Description
CROP LIFTER; Lifter Weld Assy., Outer Even, (RH End Cone), 1.72'' Hole Spacing;Odd And Even Discs Are Determined By Starting With The L.H. Gearbox - Driven End Of The Cutterbar. The FirstOr #1 Disc Will Be Odd And The Next Adjacent, Or #2 Disc, Will Be Even And So On Proceeding Towards The R.H. End.,Used on & BSN 711815Img
Alts
Ref.
55Qty
2Availability
Part #
782295Description
CROP LIFTER; Lifter Weld Assy., Outer Odd, (LH End Cone), 1.72'' Hole Spacing;Odd And Even Discs Are Determined By Starting With The L.H. Gearbox - Driven End Of The Cutterbar. The FirstOr #1 Disc Will Be Odd And The Next Adjacent, Or #2 Disc, Will Be Even And So On Proceeding Towards The R.H. End.,Used on & BSN 711815Img
Alts
Ref.
55Qty
2Availability
Part #
851569Description

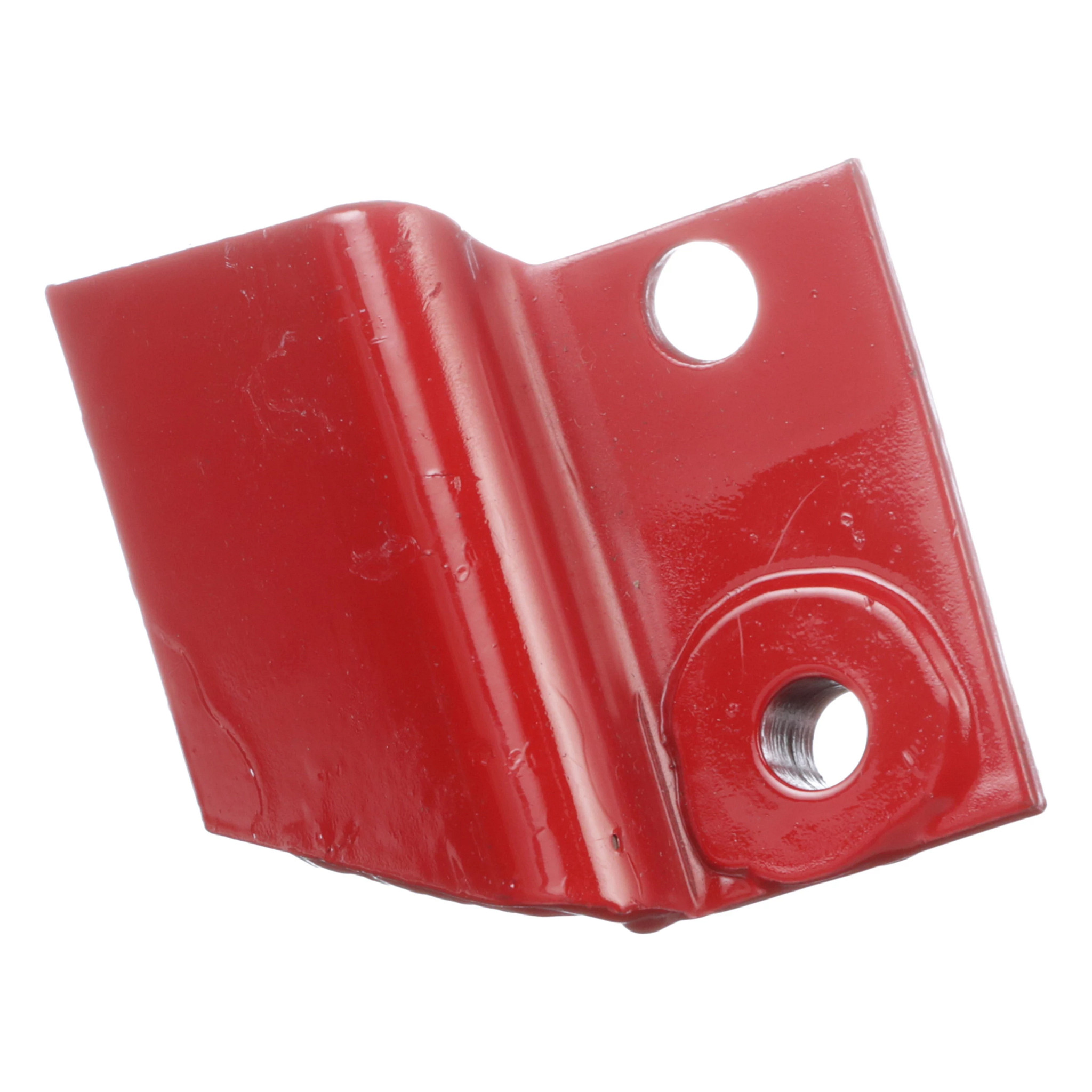

CROP LIFTER; Lifter Weld Assy., Outer Odd, (LH End Cone),2'' Hole Spacing;Odd And Even Discs Are Determined By Starting With The L.H. Gearbox - Driven End Of The Cutterbar. The FirstOr #1 Disc Will Be Odd And The Next Adjacent, Or #2 Disc, Will Be Even And So On Proceeding Towards The R.H. End.,Used on & ASN 711816Img
Alts
Ref.
55Qty
2Availability
Part #
851572Description
CROP LIFTER; Lifter Weld Assy., Outer Even, (RH End Cone), 2'' Hole Spacing;Used on & ASN 711816,Odd And Even Discs Are Determined By Starting With The L.H. Gearbox - Driven End Of The Cutterbar. The FirstOr #1 Disc Will Be Odd And The Next Adjacent, Or #2 Disc, Will Be Even And So On Proceeding Towards The R.H. End.Img
Alts
Ref.
55Qty
4Availability
Part #
86502841Description
DISC; Lifter Weld Assy., Inner Odd, 2.85'' Hole Spacing;Odd And Even Discs Are Determined By Starting With The L.H. Gearbox - Driven End Of The Cutterbar. The FirstOr #1 Disc Will Be Odd And The Next Adjacent, Or #2 Disc, Will Be Even And So On Proceeding Towards The R.H. End.,Like Design Forged Lifters must be used on individual cutterbar rotors to maintain balance,Used on & ASN 711816Img
Alts
Ref.
55Qty
4Availability
Part #
86502842Description

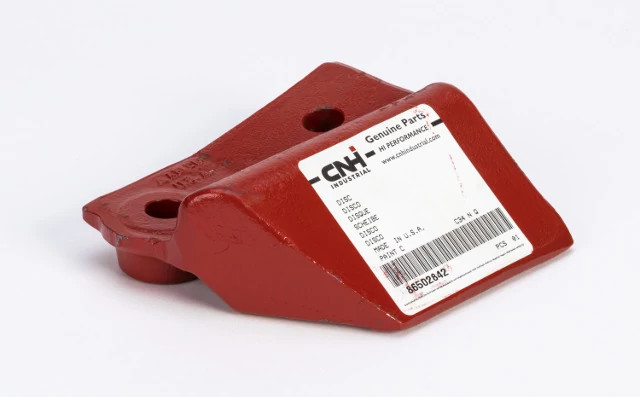

DISC; Lifter Weld Assy., Inner Even, 2.85'' Hole Spacing;Odd And Even Discs Are Determined By Starting With The L.H. Gearbox - Driven End Of The Cutterbar. The FirstOr #1 Disc Will Be Odd And The Next Adjacent, Or #2 Disc, Will Be Even And So On Proceeding Towards The R.H. End.,Like Design Forged Lifters must be used on individual cutterbar rotors to maintain balance,Used on & ASN 711816Img
Alts
Ref.
57Qty
1Availability
Part #
9801355Description
SHIELD; Use existing Gearbox hardware;Used on & ASN 818648Img
Alts
Ref.
58Qty
2Availability
Part #
9614573Description
CONE; Open Cone Assy., Includes: Ref. 10 thru 12Img
Alts
Ref.
59Qty
1Availability
Part #
9843933Description

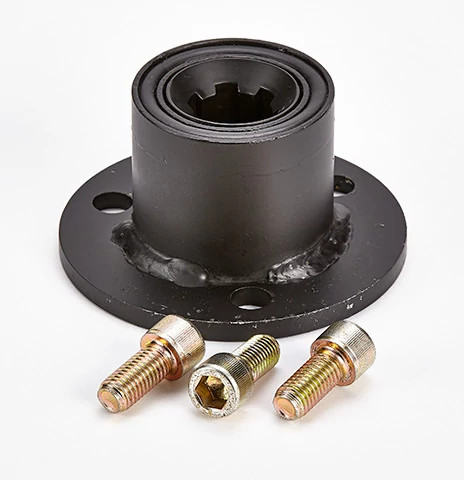

KIT; Flex Coupler, Includes: Cap Screws & InstructionsImg
Alts
Ref.
61Qty
ARAvailability
Part #
854976Description
SPARE PART; Lube, Gear;Gear Lube P/N 9613295 is SAE 80W-90 API-GL5 and is recommended for use in the Cutterbar and Gearboxes.Img
Alts
Ref.
62Qty
ARAvailability
Part #
9622270Description
ADJUSTING WRENCH; Wrench, Box Spanner 18 mm for Servicing Knife Nuts, #54 697550Img
Alts
Ref.
Qty
12Availability
Part #
100037Description
LOCK NUT Hex, M10 x 1.5, Cl 8, ZND; Lock, M10 x 1.5, Cl 8Img
Alts
Ref.
Qty
2Availability
Part #
140046Description
BELLEVILLE WASHER M12 Bolt Size x 27mm OD x 1.8mm Thk; Washer, Spring, Belleville, M12Img
Alts
Ref.
Qty
4Availability
Part #
274249Description
SERRATED BOLT Hex, M10 x 20mm; Flg Hd, USR, CL 8.8, M10 x 1.5 x 20Img
Alts
Ref.
Qty
4Availability
Part #
274249Description
SERRATED BOLT Hex, M10 x 20mm; Flg Hd, USR, CL 8.8, M10 x 1.5 x 20Img
Alts
Ref.
Qty
12Availability
Part #
274251Description
SERRATED BOLT Hex Serr Flg, M10 x 25mm; Flg Hd, USR, CL 8.8, M10 x 1.5 x 25Img
Alts
Ref.
Qty
12Availability
Part #
274255Description
SERRATED BOLT Hex Serr Flg, M12 x 30mm; Screw, Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 30;Used w/Forged LiftersImg
Alts
Ref.
Qty
12Availability
Part #
274255Description
SERRATED BOLT Hex Serr Flg, M12 x 30mm; Screw, Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 30;Used w/Forged LiftersImg
Alts
Ref.
Qty
12Availability
Part #
274255Description
SERRATED BOLT Hex Serr Flg, M12 x 30mm; Screw, Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 30;Used w/Forged LiftersImg
Alts
Ref.
Qty
12Availability
Part #
274255Description
SERRATED BOLT Hex Serr Flg, M12 x 30mm; Screw, Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 30;Used w/Forged LiftersImg
Alts
Ref.
Qty
12Availability
Part #
274255Description
SERRATED BOLT Hex Serr Flg, M12 x 30mm; Screw, Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 30;Used w/Forged LiftersImg
Alts
Ref.
Qty
12Availability
Part #
274255Description
SERRATED BOLT Hex Serr Flg, M12 x 30mm; Screw, Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 30;Used w/Forged LiftersImg
Alts
Ref.
Qty
ARAvailability
Part #
274255Description
SERRATED BOLT Hex Serr Flg, M12 x 30mm; Screw, Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 30;Used w/Forged LiftersImg
Alts
Ref.
Qty
12Availability
Part #
274255Description
SERRATED BOLT Hex Serr Flg, M12 x 30mm; Screw, Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 30;Used w/Forged LiftersImg
Alts
Ref.
Qty
2Availability
Part #
277843Description
BOLT Flng, M18 x 55mm; Cap, Flg Hd, USR, M18 x 2.5 x 55;M18 x 55 - with Locking Patch on Threads - Used on & ASN 711816Img
Alts
Ref.
Qty
16Availability
Part #
278997Description
BOLT Self Lock; Screw, Self-Locking, M12 (Dia. 12mm, Length 30mm)Img
Alts
Ref.
Qty
16Availability
Part #
278997Description
BOLT Self Lock; Screw, Self-Locking, M12 (Dia. 12mm, Length 30mm)Img
Alts
Ref.
Qty
12Availability
Part #
300388Description
BOLT Hex, M12 x 1.75 x 25mm, Full Thd, Cl 8.8, ZND;Img
Alts
Ref.
Qty
12Availability
Part #
300388Description
BOLT Hex, M12 x 1.75 x 25mm, Full Thd, Cl 8.8, ZND;Img
Alts
Ref.
Qty
12Availability
Part #
300388Description
BOLT Hex, M12 x 1.75 x 25mm, Full Thd, Cl 8.8, ZND;Img
Alts
Ref.
Qty
12Availability
Part #
338949Description
CARRIAGE BOLT M10 x 1.5 x 25mm, Cl 8.8; Bolt, Carriage, Short Neck, CL 8.8, M10 x 1.5 x 25Img
Alts
Ref.
Qty
12Availability
Part #
43436Description
FLANGE NUT M12; Flg, USR, CL 9, M12 x 1.75Img
Alts
Ref.
Qty
12Availability
Part #
43436Description
FLANGE NUT M12; Flg, USR, CL 9, M12 x 1.75Img
Alts
Ref.
Qty
12Availability
Part #
43436Description
FLANGE NUT M12; Flg, USR, CL 9, M12 x 1.75Img
Alts
Ref.
Qty
12Availability
Part #
43436Description
FLANGE NUT M12; Flg, USR, CL 9, M12 x 1.75Img
Alts
Ref.
Qty
12Availability
Part #
43436Description
FLANGE NUT M12; Flg, USR, CL 9, M12 x 1.75Img
Alts
Ref.
Qty
12Availability
Part #
43436Description
FLANGE NUT M12; Flg, USR, CL 9, M12 x 1.75Img
Alts
Ref.
Qty
12Availability
Part #
43436Description
FLANGE NUT M12; Flg, USR, CL 9, M12 x 1.75Img
Alts
Ref.
Qty
12Availability
Part #
43436Description
FLANGE NUT M12; Flg, USR, CL 9, M12 x 1.75Img
Alts
Ref.
Qty
2Availability
Part #
65319Description
WASHER 13.1mm ID x 25.4mm OD x 3.68mm Thk; (1/2'') M13 x 25 x 3.5, HTImg
Alts
Ref.
Qty
1Availability
Part #
857763Description
DISC; Cutterbar Assy., L/Knives & Discs, Includes: 1 thru 5, 7, 14, 15, 21, 27 thru 32, 34 thru 40, 52Img
Alts
Ref.
Qty
16Availability
Part #
86012006Description
LOCK NUT; Nut, Lock, Insert, CL10, M12 x 1.75Img
Alts
Ref.
Qty
16Availability
Part #
86012006Description
LOCK NUT; Nut, Lock, Insert, CL10, M12 x 1.75Img
Alts
Ref.
Qty
12Availability
Part #
86512258Description
SERRATED BOLT Hex Serr, M12 x 1.75 x 25mm; Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 25;Used with Welded LiftersImg
Alts
Ref.
Qty
12Availability
Part #
86512258Description
SERRATED BOLT Hex Serr, M12 x 1.75 x 25mm; Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 25;Used with Welded LiftersImg
Alts
Ref.
Qty
12Availability
Part #
86512258Description
SERRATED BOLT Hex Serr, M12 x 1.75 x 25mm; Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 25;Used with Welded LiftersImg
Alts
Ref.
Qty
12Availability
Part #
86512258Description
SERRATED BOLT Hex Serr, M12 x 1.75 x 25mm; Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 25;Used with Welded LiftersImg
Alts
Ref.
Qty
12Availability
Part #
86512258Description
SERRATED BOLT Hex Serr, M12 x 1.75 x 25mm; Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 25;Used with Welded LiftersImg
Alts
Ref.
Qty
12Availability
Part #
86512258Description
SERRATED BOLT Hex Serr, M12 x 1.75 x 25mm; Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 25;Used with Welded LiftersImg
Alts
Ref.
Qty
12Availability
Part #
86512258Description
SERRATED BOLT Hex Serr, M12 x 1.75 x 25mm; Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 25;Used with Welded LiftersImg
Alts
Ref.
Qty
12Availability
Part #
86512258Description
SERRATED BOLT Hex Serr, M12 x 1.75 x 25mm; Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 25;Used with Welded LiftersImg
Alts
Ref.
Qty
6Availability
Part #
86512259Description
SERRATED BOLT Hex Serr, M12 x 1.75 x 35mm; Screw, Cap, Flg Hd, USR, CL 8.8, M12 x 1.75 x 35Img
Alts
Ref.
Qty
20Availability
Part #
89503840Description
SCREW; Cap, HH, G10.9, M12 x 20;Used on & ASN 748791Img
Alts
Ref.
Qty
18Availability
Part #
9503839Description
CARRIAGE BOLT Short NK, M12 x 25, Cl8.8, Full Thd; Bolt, Carriage, Short Neck, CL 10.9, M12 x 1.75 x 25Img
Alts
Ref.
Qty
2Availability
Part #
9706687Description
BOLT Hex, M12 x 1.75 x 30mm, Full Thd, Cl 8.8, ZND;Img
Alts
Ref.
Qty
2Availability
Part #
9706693Description
BOLT Hex, M12 x 1.75 x 60mm, 30mm Thread L, Cl 8.8, ZND; Screw, Cap, HH, CL 8.8, M12 x 1.75 x 60Img
Alts
Ref.
Qty
3Availability
Part #
9826210Description
HEX SOC SCREW M14 x 2 x 30mm, Cl 12.9; Screw, Cap, HH, CL12.9, M14 x 2 x 30Img
Alts
