00.00CR206[01] - MAINTENANCE PARTS, GRAIN ELEVATOR AND ''BUBBLE-UP'' CHAINS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    84431346
    CHAIN Roller, 67 Links x 15.88mm = 1063.6mm; ''Bubble-Up'' drive, (2, 3);FOR CR9070 AND CR9080 ONLY; (SN Break) Up to C659
  • 1
    1
    87757537
    CHAIN RC60, 76 Links x 19.05mm = 1447.8mm; ''Bubble-Up'' drive; (SN Break) From D660
  • 1
    1
    84431346
    CHAIN Roller, 67 Links x 15.88mm = 1063.6mm; ''Bubble-Up'' drive, (2, 3);FOR CR9060 ONLY; (SN Break) Up to C626
  • 1
    1
    87757537
    CHAIN RC60, 76 Links x 19.05mm = 1447.8mm; ''Bubble-Up'' drive;FOR CR9060 ONLY; (SN Break) From D627
  • 2
    3
    25816
    OFFSET LINK; FOR CR9060, CR9070 AND CR9080 ONLY
  • 3
    1
    25194

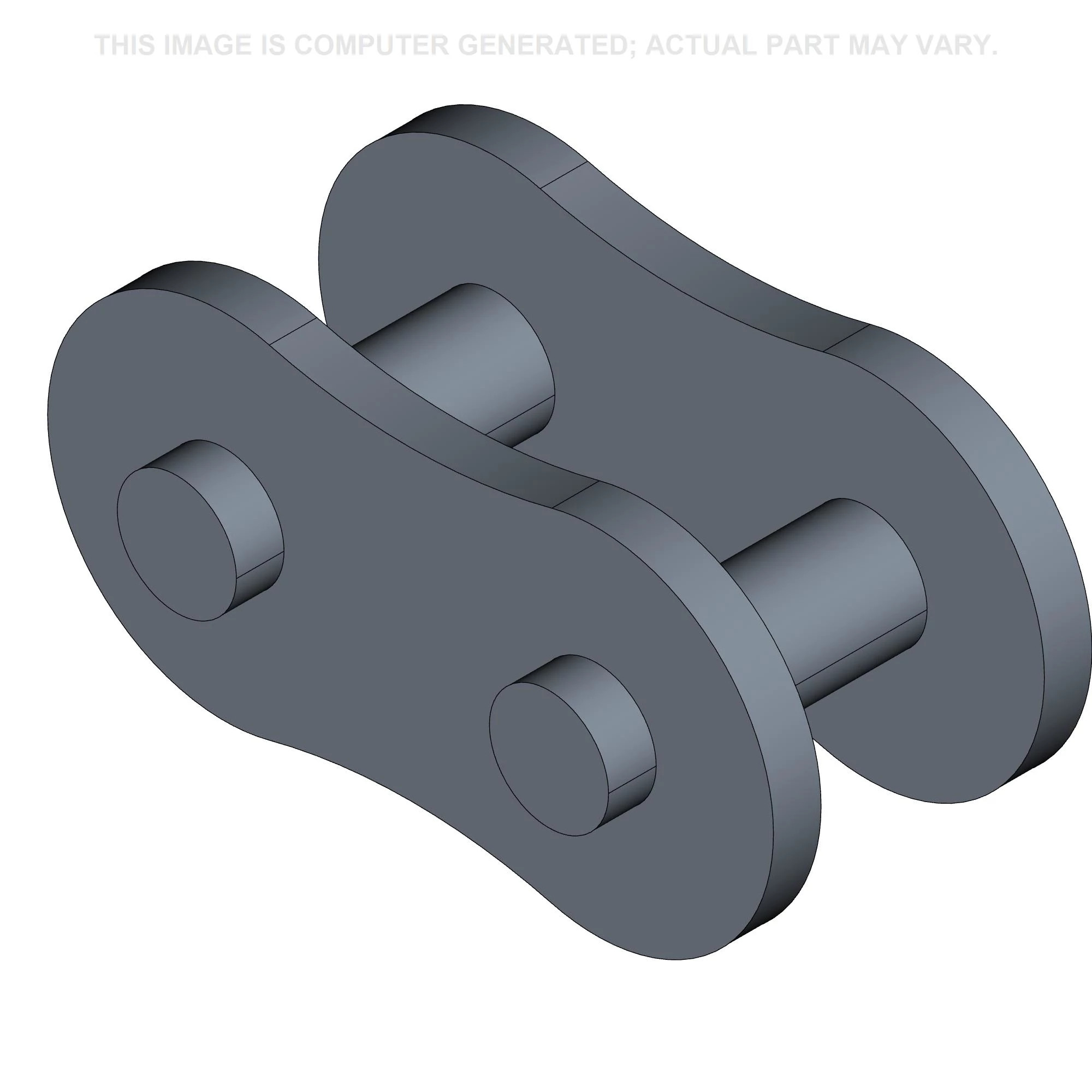

    CONNECTING LINK; FOR CR9060, CR9070 AND CR9080 ONLY
  • 4
    1
    84075110

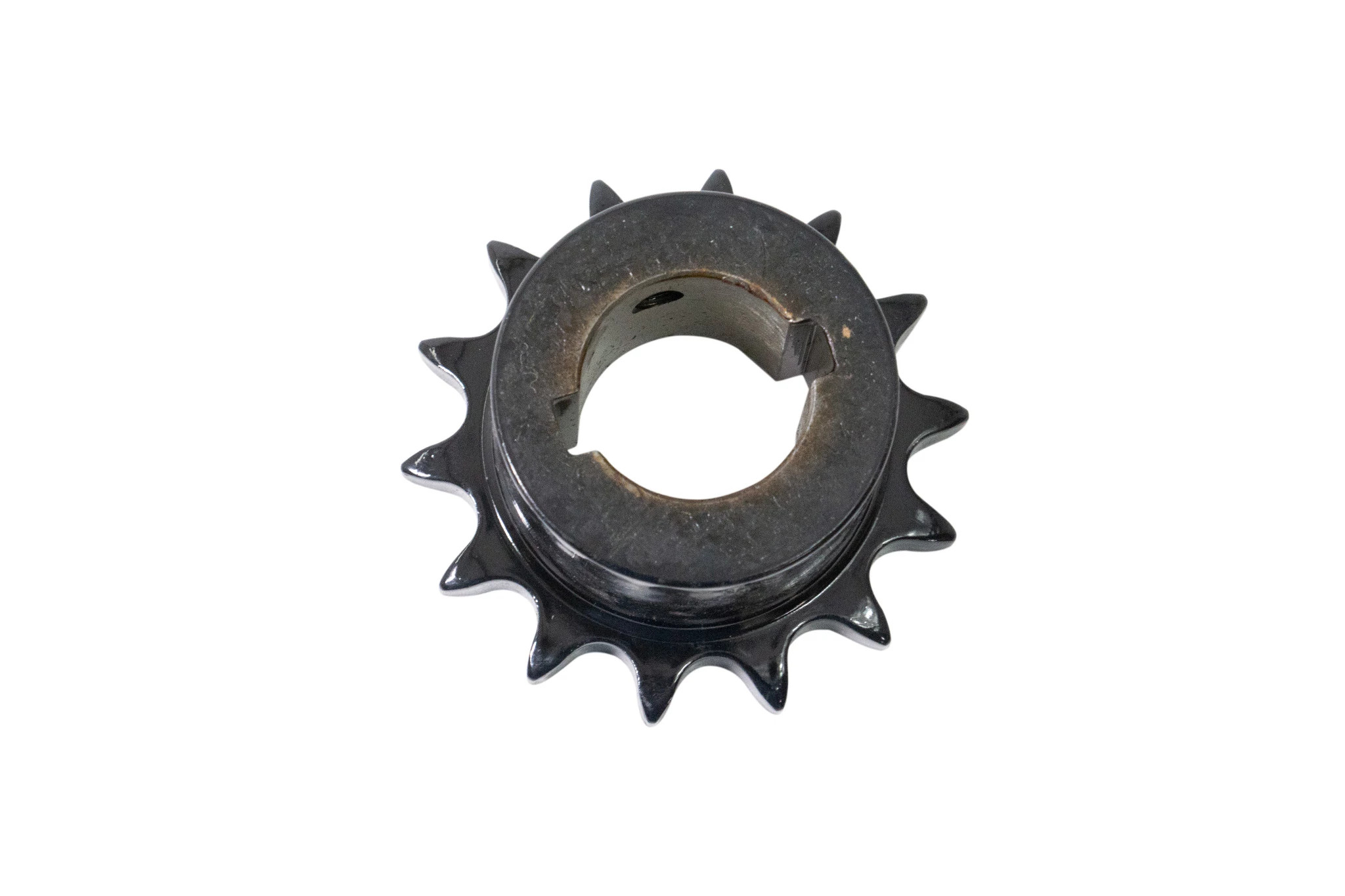

    SPROCKET; ,;FOR CR9070 AND CR9080 ONLY; (SN Break) Up to C659
  • 4
    1
    84075110
    SPROCKET; ,;FOR CR9060 ONLY; (SN Break) Up to C626
  • 4
    1
    87750657
    SPROCKET; ,;FOR CR9060 ONLY; (SN Break) From D627
  • 4
    1
    87750657
    SPROCKET; ,; (SN Break) From D660
  • 5
    1
    86595373
    SPROCKET; ,; (SN Break) Up to C659
  • 5
    1
    87750653
    SPROCKET; ,;FOR CR9060, CR9070 AND CR9080 ONLY; (SN Break) From D660
  • 6
    AR
    333960
    LOCK PIN 6mm OD x 50mm L, Slotted;
  • 7
    1
    84443831
    CHAIN #60, 92 Links x 19.05mm = 1752.6mm; Grain elevator chain drive, (8);FOR CR9060, CR9070 AND CR9080 ONLY
  • 7
    1
    84443831
    CHAIN #60, 92 Links x 19.05mm = 1752.6mm; Grain elevator chain drive, (8);FOR CR9090 ONLY; (SN Break) Up to C719
  • 7
    1
    87757533
    CHAIN RC60, 98 Links x 19.05mm = 1866.9mm; Grain elevator chain drive;FOR CR9090 ONLY; (SN Break) From D720
  • 8
    2
    165590
    CONNECTING LINK;
  • 9
    2
    84980926
    SPROCKET;
  • 9
    1
    84980926
    SPROCKET; ''Bubble-Up'' drive; (SN Break) From D720
  • 10
    2
    84334697
    BUSHING 17mm ID x 32mm OD x 18.8mm L;
  • 11
    1
    84441122
    SPROCKET;
  • 12
    1
    84442293
    SPROCKET;
  • 13
    1
    87538988
    CHAIN; Grain elevator chain (14 to 20)
  • 14
    37
    87373432
    PADDLE; Grain elevator chain
  • 15
    36
    87373430
    PLATE, SUPPORT; PLATE,SUPPORT
  • 16
    1
    87373429
    PLATE;
  • 17
    1
    87373426

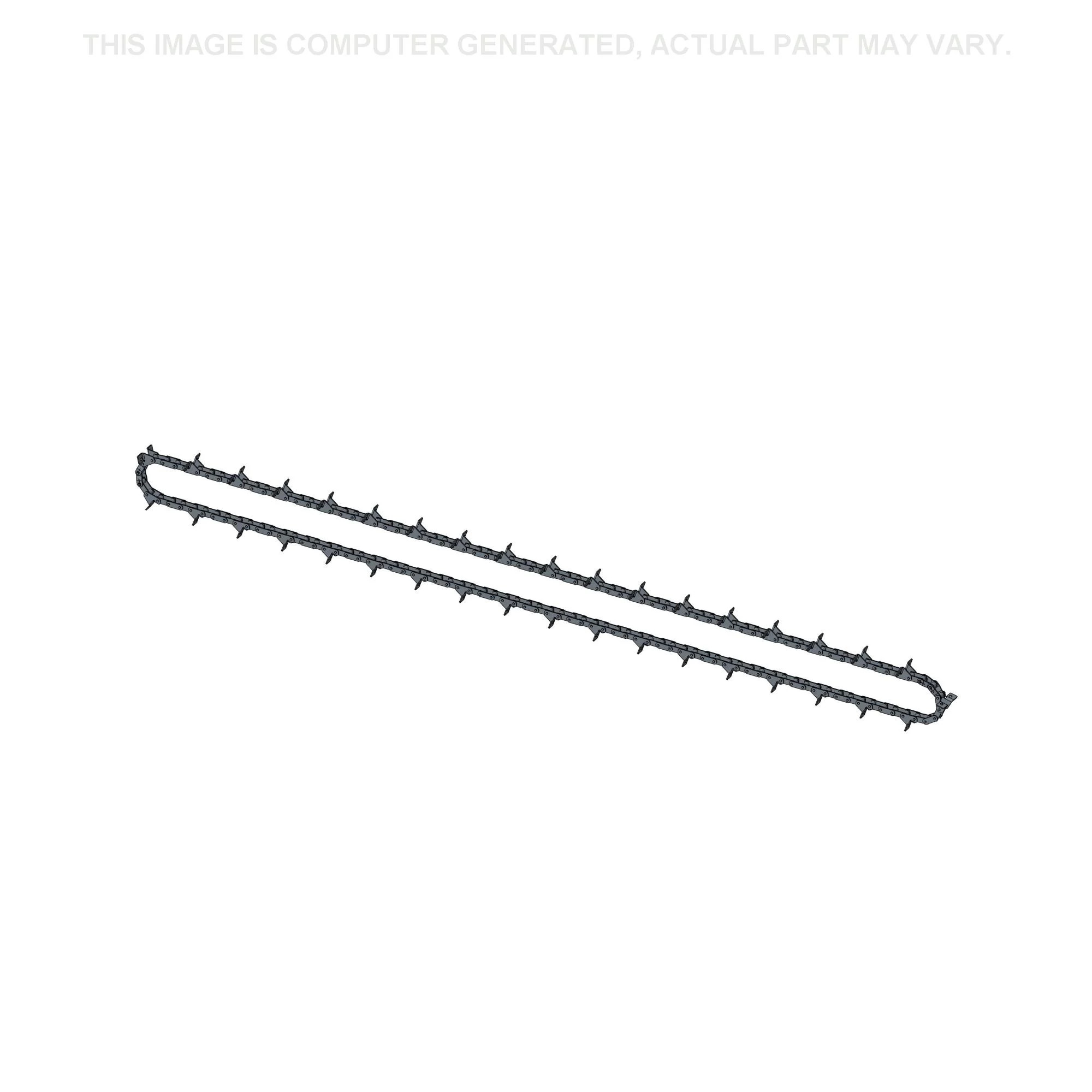

    CHAIN CA550SP, 148 Links x 41.4mm = 6127.2mm; Grain elevator chain (18 to 21)
  • 18
    72
    43278
    LINK CHAIN Hex, M16 x 70mm, Cl 10.9;
  • 19
    37
    87534282
    CONNECTING LINK;
  • 20
    35
    87534086
    LINK CHAIN;
  • 21
    4
    40242
    LINK 41.4mm Pitch;
  • 22
    AR
    84437648
    SPROCKET;
Select All

Select

Ref.

1

Qty

1

Availability

Part #

84431346

Description

CHAIN Roller, 67 Links x 15.88mm = 1063.6mm; ''Bubble-Up'' drive, (2, 3);FOR CR9070 AND CR9080 ONLY; (SN Break) Up to C659


Alts

Select

Ref.

1

Qty

1

Availability

Part #

87757537

Description

CHAIN RC60, 76 Links x 19.05mm = 1447.8mm; ''Bubble-Up'' drive; (SN Break) From D660


Alts

Select

Ref.

1

Qty

1

Availability

Part #

84431346

Description

CHAIN Roller, 67 Links x 15.88mm = 1063.6mm; ''Bubble-Up'' drive, (2, 3);FOR CR9060 ONLY; (SN Break) Up to C626


Alts

Select

Ref.

1

Qty

1

Availability

Part #

87757537

Description

CHAIN RC60, 76 Links x 19.05mm = 1447.8mm; ''Bubble-Up'' drive;FOR CR9060 ONLY; (SN Break) From D627


Alts

Select

Ref.

2

Qty

3

Availability

Part #

25816

Description

OFFSET LINK; FOR CR9060, CR9070 AND CR9080 ONLY


Alts

Select

Ref.

3

Qty

1

Availability

Part #

25194

Description

CONNECTING LINK; FOR CR9060, CR9070 AND CR9080 ONLY


Alts

Select

Ref.

4

Qty

1

Availability

Part #

84075110

Description

SPROCKET; ,;FOR CR9070 AND CR9080 ONLY; (SN Break) Up to C659


Alts

Select

Ref.

4

Qty

1

Availability

Part #

84075110

Description

SPROCKET; ,;FOR CR9060 ONLY; (SN Break) Up to C626


Alts

Select

Ref.

4

Qty

1

Availability

Part #

87750657

Description

SPROCKET; ,;FOR CR9060 ONLY; (SN Break) From D627


Alts

Select

Ref.

4

Qty

1

Availability

Part #

87750657

Description

SPROCKET; ,; (SN Break) From D660


Alts

Select

Ref.

5

Qty

1

Availability

Part #

86595373

Description

SPROCKET; ,; (SN Break) Up to C659


Alts

Select

Ref.

5

Qty

1

Availability

Part #

87750653

Description

SPROCKET; ,;FOR CR9060, CR9070 AND CR9080 ONLY; (SN Break) From D660


Alts

Select

Ref.

6

Qty

AR

Availability

Part #

333960

Description

LOCK PIN 6mm OD x 50mm L, Slotted;


Alts

Select

Ref.

7

Qty

1

Availability

Part #

84443831

Description

CHAIN #60, 92 Links x 19.05mm = 1752.6mm; Grain elevator chain drive, (8);FOR CR9060, CR9070 AND CR9080 ONLY


Alts

Select

Ref.

7

Qty

1

Availability

Part #

84443831

Description

CHAIN #60, 92 Links x 19.05mm = 1752.6mm; Grain elevator chain drive, (8);FOR CR9090 ONLY; (SN Break) Up to C719


Alts

Select

Ref.

7

Qty

1

Availability

Part #

87757533

Description

CHAIN RC60, 98 Links x 19.05mm = 1866.9mm; Grain elevator chain drive;FOR CR9090 ONLY; (SN Break) From D720


Alts

Select

Ref.

8

Qty

2

Availability

Part #

165590

Description

CONNECTING LINK;


Alts

Select

Ref.

9

Qty

2

Availability

Part #

84980926

Description

SPROCKET;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

84980926

Description

SPROCKET; ''Bubble-Up'' drive; (SN Break) From D720


Alts

Select

Ref.

10

Qty

2

Availability

Part #

84334697

Description

BUSHING 17mm ID x 32mm OD x 18.8mm L;


Alts

Select

Ref.

11

Qty

1

Availability

Part #

84441122

Description

SPROCKET;


Alts

Select

Ref.

12

Qty

1

Availability

Part #

84442293

Description

SPROCKET;


Alts

Select

Ref.

13

Qty

1

Availability

Part #

87538988

Description

CHAIN; Grain elevator chain (14 to 20)


Alts

Select

Ref.

14

Qty

37

Availability

Part #

87373432

Description

PADDLE; Grain elevator chain


Alts

Select

Ref.

15

Qty

36

Availability

Part #

87373430

Description

PLATE, SUPPORT; PLATE,SUPPORT


Alts

Select

Ref.

16

Qty

1

Availability

Part #

87373429

Description

PLATE;


Alts

Select

Ref.

17

Qty

1

Availability

Part #

87373426

Description

CHAIN CA550SP, 148 Links x 41.4mm = 6127.2mm; Grain elevator chain (18 to 21)


Alts

Select

Ref.

18

Qty

72

Availability

Part #

43278

Description

LINK CHAIN Hex, M16 x 70mm, Cl 10.9;


Alts

Select

Ref.

19

Qty

37

Availability

Part #

87534282

Description

CONNECTING LINK;


Alts

Select

Ref.

20

Qty

35

Availability

Part #

87534086

Description

LINK CHAIN;


Alts

Select

Ref.

21

Qty

4

Availability

Part #

40242

Description

LINK 41.4mm Pitch;


Alts

Select

Ref.

22

Qty

AR

Availability

Part #

84437648

Description

SPROCKET;


Alts
