00.00CX306[01] - MAINTENANCE PARTS, THRESHING, DRUMS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    5
    84081337
    RASP BAR SET; FOR CX720, CX740, CX760 AND CX780 ONLY
  • 1
    5
    84081336
    RASP BAR SET; FOR CX820, CX840, CX860 AND CX880 ONLY
  • 2
    AR
    385376
    BOLT Hex, M12 x 1.75 x 30mm, Cl 8.8;
  • 3
    AR
    481491
    SHIM 28mm OD x 0.91mm Thk; 1 MM
  • 4
    AR
    86625256
    WASHER 13.3mm ID x 28.5mm OD x 4mm Thk, HTS, ZND;
  • 5
    AR
    9706685
    NUT Hex, M12 x 1.75, Cl 8, ZND;
  • 6
    1
    84076928

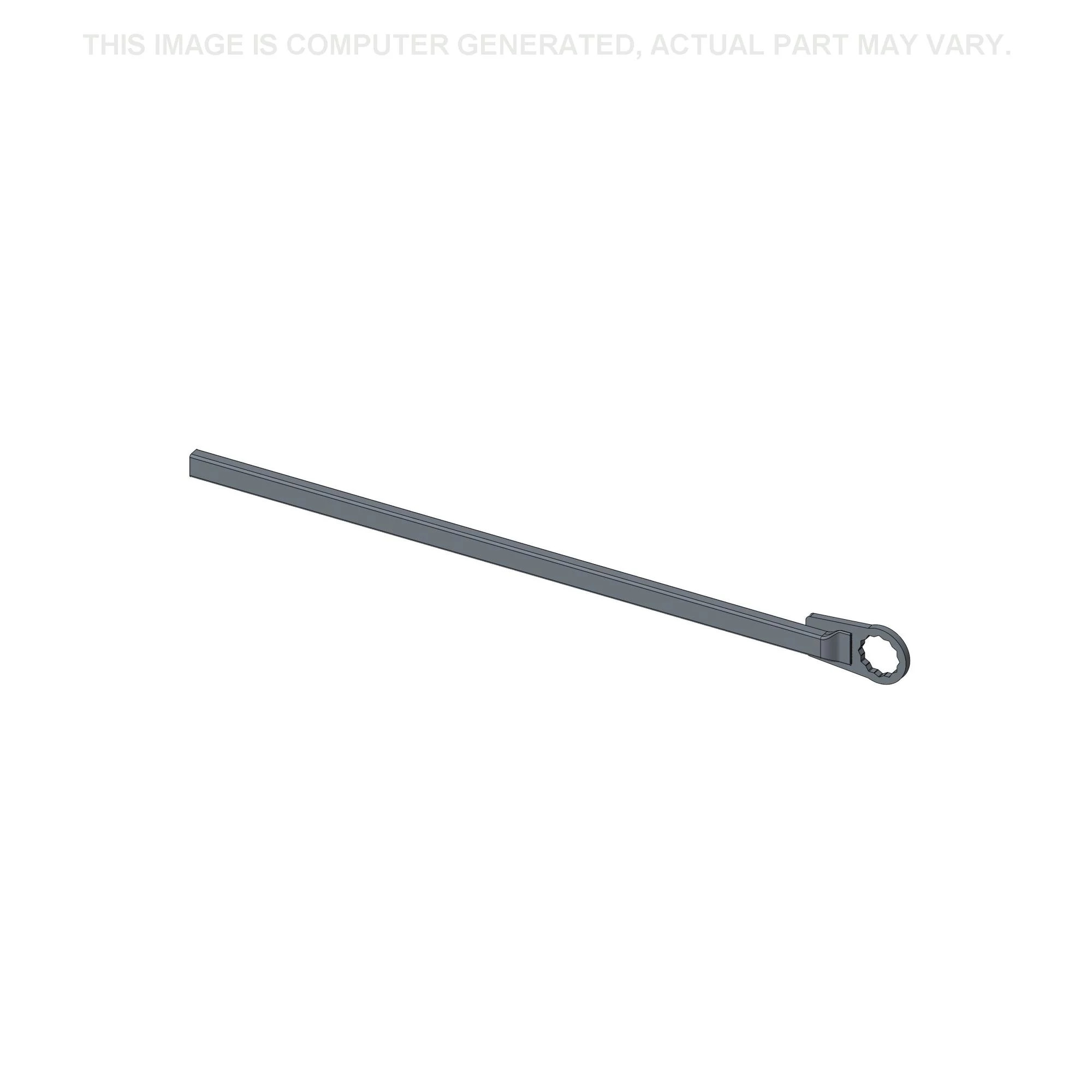

    ARM;
