092 - KNIFE GROUP, USED ON ASN 125601 ON 880R2, 110974 ON 880N2
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    248755
    KNIFE; Assy., R2 Complete, Replaces P/N 169268;Customer might have to remove part of a Gusset to install a new knife on early machines.
  • 1
    248756
    KNIFE; Assy., N2 Complete, Replaces P/N 174590;Customer might have to remove part of a Gusset to install a new knife on early machines.
  • 1
    86509454
    BOLT Hex, 1/2'' - 20 x 3 1/4'', Gr 5; Screw, Cap, HH, 1/2'' x 3-1/4'' UNF, for 169268, 174590 knifes
  • 1
    280114
    BOLT Hex, 1/2'' - 20 x 4'', Gr 5; Screw, Cap, HH, G5, 1/2''-20 x 4'', for 248755, 248756 knifes
  • 2
    1
    254132

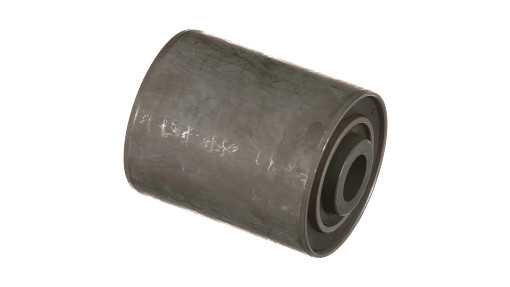

    BUSHING 12.7mm ID x 46.15mm OD x 58.98mm L; Rubber, 2.322'' (60mm) long center, for 248755, 248756 knifes
  • 1
    134182

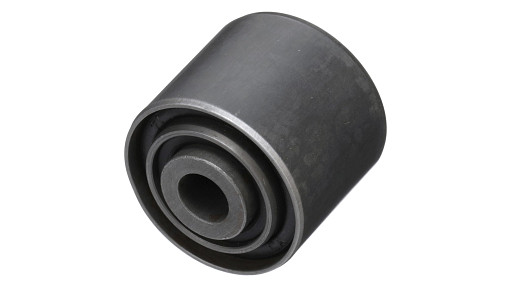

    BUSHING 12.7mm ID x 46.15mm OD x 43.1mm L; Rubber, 1.697'' (43mm) long center, for 169268, 174590 knifes
  • 1
    87936
    BOLT Hex, 3/8'' - 16 x 2-1/2'', Gr 5; Hex, 3/8''-16 x 2-1/2'', G5
  • 2
    285072
    WASHER 10.3mm ID x 22.2mm OD x 2.7mm Thk, HTS, ZND; (3/8'') M10 x 22.2 x 2.87 Thk, HT
  • 3
    4
    174689
    KNIFE SECTION; Blank Section
  • 16
    81194
    RIVET FH, 1/4'' x 3/4''; Flat Hd., 1/4'' x 3/4''
  • 4
    2
    171381
    KNIFE SECTION; Sickle
  • 5
    AR
    174690
    SPACER;
  • 8
    81194
    RIVET FH, 1/4'' x 3/4''; Flat Hd., 1/4'' x 3/4''
  • 6
    2
    138715
    KNIFE; Side, L.H.
  • 2
    280762

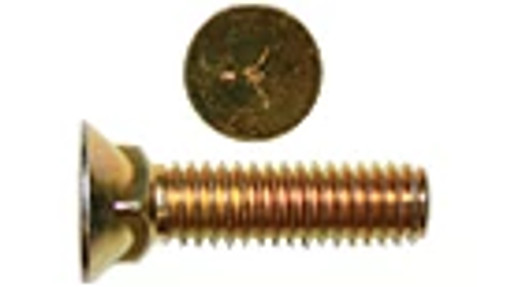

    PLOW BOLT #3, 5/16'' - 18 x 1'', Gr 5, Full Thd; Bolt, Plow, G5, 5/16''-18 x 1''
  • 2
    88011
    BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5;
  • 2
    80702
    WASHER 0.44'' ID x 1'' OD x 0.08'' Thk;
  • 2
    80681
    LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''
  • 2
    80680

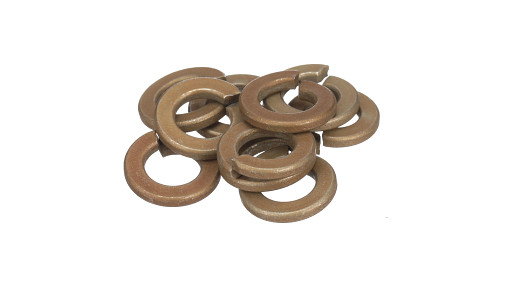

    LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
  • 2
    9635082

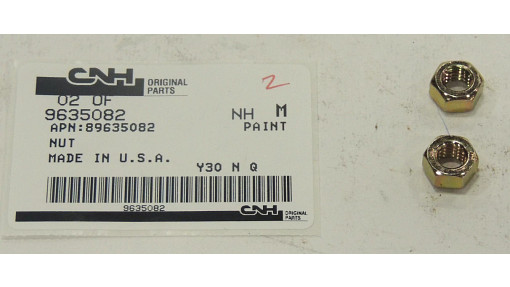

    NUT 5/16'' - 18, Gr 5; G5, 5/16''-18
  • 2
    9628503
    NUT 3/8'' - 16, Gr 5; G5, 3/8''-16
  • 7
    2
    138716
    KNIFE; Side, R.H.
  • 2
    280762
    PLOW BOLT #3, 5/16'' - 18 x 1'', Gr 5, Full Thd; Bolt, Plow, G5, 5/16''-18 x 1''
  • 2
    88011
    BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5;
  • 2
    80702
    WASHER 0.44'' ID x 1'' OD x 0.08'' Thk;
  • 2
    80681
    LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''
  • 2
    80680
    LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
  • 2
    9635082
    NUT 5/16'' - 18, Gr 5; G5, 5/16''-18
  • 2
    9628503
    NUT 3/8'' - 16, Gr 5; G5, 3/8''-16
  • 8
    AR
    138717
    SHIM .015'' Thk;
  • 9
    AR
    138718
    SHIM .036'' Thk;
  • 10
    AR
    138719
    SHIM .060'' Thk;
  • 11
    2
    187429
    KNIFE; Side, Top, L.H.
  • 4
    88044
    BOLT Hex, 3/8'' - 16 x 1-1/2'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 1-1/2''
  • 4
    80680
    LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
  • 4
    9628503
    NUT 3/8'' - 16, Gr 5; G5, 3/8''-16
  • 12
    2
    188771
    KNIFE; Side, Top, R.H.
  • 4
    88044
    BOLT Hex, 3/8'' - 16 x 1-1/2'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 1-1/2''
  • 4
    80680
    LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
  • 4
    9628503
    NUT 3/8'' - 16, Gr 5; G5, 3/8''-16
  • 13
    AR
    187427
    SHIM .015'' Thk; U-Type, (Not Shown) .015'' Thk
  • 14
    4
    187428
    SHIM .135'' Thk;
  • 15
    1
    169145
    SUPPORT; Includes: Ref. 16
  • 2
    87972

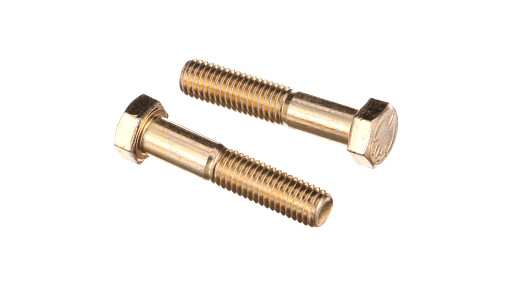

    BOLT Hex, 1/2'' - 13 x 2 1/2'', Gr 5; Screw, Cap, HH, G5, 1/2''-13 x 2-1/2''
  • 2
    280431
    NUT 1/2''-13, G5;
  • 16
    2
    134182
    BUSHING 12.7mm ID x 46.15mm OD x 43.1mm L; Rubber
  • 17
    2
    224511
    SPACER;
  • 18
    AR
    130881
    SHIM .015'' Thk;
  • 19
    2
    130878
    WEAR STRIP; Plate, Wear
  • 2
    80702
    WASHER 0.44'' ID x 1'' OD x 0.08'' Thk;
  • 2
    80680
    LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
  • 2
    9628503
    NUT 3/8'' - 16, Gr 5; G5, 3/8''-16
  • 20
    1
    130880
    SPACER;
  • 21
    4
    143585
    SPACER;
  • 22
    AR
    36823
    SHIM .015'' Thk;
  • AR
    64263

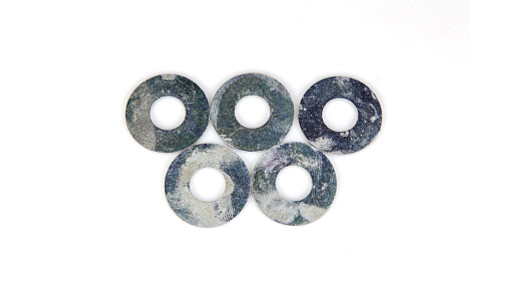

    WASHER 13.49mm ID x 31.8mm OD x 1.5mm Thk; 1-1/4''OD x 17/32''ID x .060'' Thk
