Ref.
Qty
Part #
Alts
Description
-
11DRIVEN PULLEY; Pitman Drive Sheave Assy., Includes: Ref. 2 thru 4
-
1LUBE NIPPLE 1/8'' - 27 Dryseal PTF; NIPPLE, LUBE, 1/8''-27 x .66 lg
-
22BEARING ASSY; Bearing, Needle
-

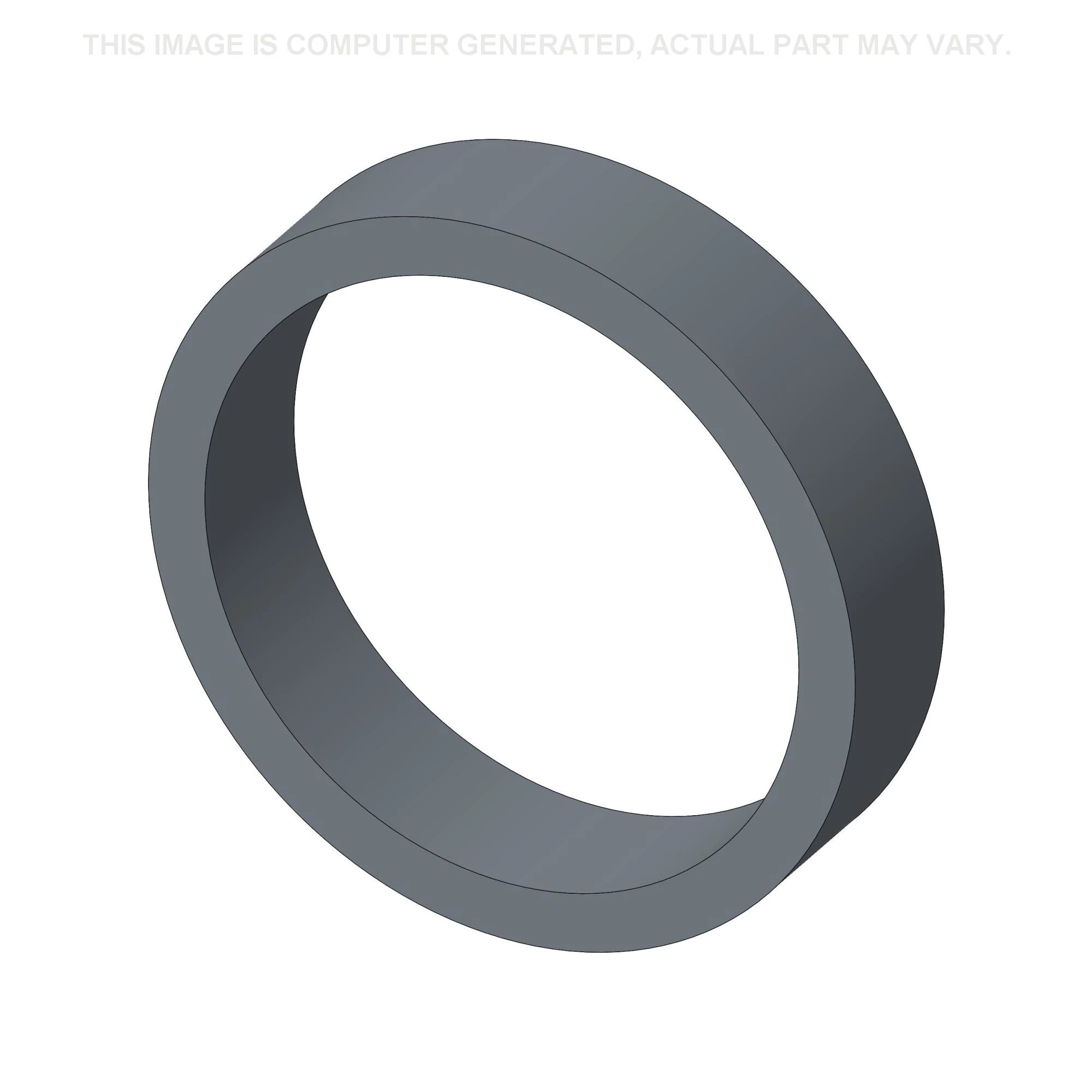

41SPACER;
-
51WOOD BLOCK; Pitman Wood Assy., Includes: Ref. 6 thru 12
-
5A1SPARE PART; Pitman Wood Assy., Includes: Ref. 6, 7, 8A & 9 thru 12
-
61HYD CONNECTOR; Connector, Pitman Box;Used on & ASN 4445, 841
-
61HOSE CLAMP #20, 0.81'' - 1.75'', Type F Worm; Connector, Pitman Box;Used on & ASN 4631, 842
-
6A1HYD CONNECTOR; Connecotr, Pitman Box;Used on & ASN 4445, 841
-
6A1HYD CONNECTOR; Connector, Pitman Box;Used on & BSN 4630, 842
-
72WASHER; Pitman Plate
-
4CARRIAGE BOLT Sq Nk, 5/16'' - 18 x 1 1/2'', Gr 5; Bolt, Carriage 5/16''-18 x 1-1/2''
-
4LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''
-
4LOCK NUT 5/16'' - 18, Gr C; NUT, LOCK, 5/16''-18, GC
-
81WOOD BLOCK; Wood, Pitman
-
8A1SPARE PART; Wood, Pitman
-
1PROCURE LOCALLY; Rivet, Truss Hd., 5/16'' x 1 7/8''
-
1WASHER 0.38'' ID x 0.88'' OD x 0.08'' Thk;
-
91STRAP; Plain, Pitman Strap
-
1LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28
-
3SCREW Hex, 5/16'' x 2'', Gr 5; Cap, HH, 5/16'' x 2''
-
1BOLT 5/16'' - 18 x 2-1/4'', Gr 5; Screw, Cap, G5, 5/16''-18 x 2-1/4''
-
4LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''
-
4LOCK NUT 5/16'' - 18, Gr C; NUT, LOCK, 5/16''-18, GC
-
101STRAP; Pitman, Horn Type
-
111SPRING; Pitman
-
121PLUNGER; Pitman Latch Plunger Assy.
-
131PLUNGER; Pitman
-
141FORK; Pitman Latch
-
1PIN HD Coiled Spring, 3/16'' x 1/2'';
-
151BOX; Pitman, W/Bearing
-
1LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28
-
4BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5; Screw, Cap, HH, 5/16'' x 3/4''
-
4LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''
-
4NUT 5/16'' - 18, Gr 5; G5, 5/16''-18
-
161NEEDLE BEARING Needle, 25.4mm ID x 33.34mm OD x 38.1mm W; Bearing, Needle
-
171BEARING COVER; Front
-
1BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 3/4''
-
1LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
-
181SHAFT; Pulley
-
191BOLT; Step Bolt Weld Assy.
-
1LUBE NIPPLE 90 Degree, 1/4'' NPT x 3/4'' L, Drive; NIPPLE, LUBE, 90?, 1/4'' NPT x .75'' lg, Drive
-
201WASHER;
-
211THRUST WASHER; Washer, Thrust
-
222THRUST WASHER 35.31mm ID x 60.3mm OD x 1.5mm Thk;
-
231RIVET Rd Hd, M4 x 10; Bearing, Flange
-
3BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 3/4''
-
3LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
-
3NUT 3/8'' - 16, Gr 5; G5, 3/8''-16
-
241ANCHOR; Weld Assy.
-
2SET SCREW 3/8'' - 16 x 3/4''; Screw, Set, Sq Hd, Cup Pt, 3/8''-16 x 3/4''
-
2JAM NUT 3/8''-16, G2; Nut, Hex, Jam, 3/8''
-
251SLEEVE; Pivot Sleeve Weld Assy.
-
1LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28
-
3BOLT Hex, 3/8'' - 16 x 1'', Gr 5;
-
3LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
-
3NUT 3/8'' - 16, Gr 5; G5, 3/8''-16
-
261OIL SEAL; Idler
-
271BEARING; Idler
-
1BOLT Hex, 1/2'' - 13 x 3'', Gr 5; Screw, Cap, HH, 1/2'' x 3''
-
2WASHER 0.56'' ID x 1.38'' OD x 0.11'' Thk;
-
1LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''
-
1JAM NUT 1/2'' - 13, Gr 2; 1/2''
-
281BELT;
-
293WASHER 13.49mm ID x 38.1mm OD x 6.35mm Thk; 1/2''
Select All
Ref.
1Qty
1Availability
Part #
35280Description
DRIVEN PULLEY; Pitman Drive Sheave Assy., Includes: Ref. 2 thru 4Img
Alts
Ref.
Qty
1Availability
Part #
80710Description
LUBE NIPPLE 1/8'' - 27 Dryseal PTF; NIPPLE, LUBE, 1/8''-27 x .66 lgImg
Alts
Ref.
5Qty
1Availability
Part #
64516Description
WOOD BLOCK; Pitman Wood Assy., Includes: Ref. 6 thru 12Img
Alts
Ref.
5AQty
1Availability
Part #
64518Description
SPARE PART; Pitman Wood Assy., Includes: Ref. 6, 7, 8A & 9 thru 12Img
Alts
Ref.
6Qty
1Availability
Part #
49765Description
HYD CONNECTOR; Connector, Pitman Box;Used on & ASN 4445, 841Img
Alts
Ref.
6Qty
1Availability
Part #
214-1420Description
HOSE CLAMP #20, 0.81'' - 1.75'', Type F Worm; Connector, Pitman Box;Used on & ASN 4631, 842Img
Alts
Ref.
6AQty
1Availability
Part #
32423Description
HYD CONNECTOR; Connecotr, Pitman Box;Used on & ASN 4445, 841Img
Alts
Ref.
6AQty
1Availability
Part #
32423Description
HYD CONNECTOR; Connector, Pitman Box;Used on & BSN 4630, 842Img
Alts
Ref.
Qty
4Availability
Part #
280562Description
CARRIAGE BOLT Sq Nk, 5/16'' - 18 x 1 1/2'', Gr 5; Bolt, Carriage 5/16''-18 x 1-1/2''Img
Alts
Ref.
Qty
4Availability
Part #
80681Description
LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''Img
Alts
Ref.
Qty
4Availability
Part #
280736Description
LOCK NUT 5/16'' - 18, Gr C; NUT, LOCK, 5/16''-18, GCImg
Alts
Ref.
Qty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Rivet, Truss Hd., 5/16'' x 1 7/8''Img
Alts
Ref.
Qty
1Availability
Part #
80693Description
WASHER 0.38'' ID x 0.88'' OD x 0.08'' Thk;Img
Alts
Ref.
Qty
1Availability
Part #
87414Description
LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28Img
Alts
Ref.
Qty
3Availability
Part #
88544Description
SCREW Hex, 5/16'' x 2'', Gr 5; Cap, HH, 5/16'' x 2''Img
Alts
Ref.
Qty
1Availability
Part #
86505972Description
BOLT 5/16'' - 18 x 2-1/4'', Gr 5; Screw, Cap, G5, 5/16''-18 x 2-1/4''Img
Alts
Ref.
Qty
4Availability
Part #
80681Description
LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''Img
Alts
Ref.
Qty
4Availability
Part #
280736Description
LOCK NUT 5/16'' - 18, Gr C; NUT, LOCK, 5/16''-18, GCImg
Alts
Ref.
Qty
1Availability
Part #
87414Description
LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28Img
Alts
Ref.
Qty
4Availability
Part #
87872Description
BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5; Screw, Cap, HH, 5/16'' x 3/4''Img
Alts
Ref.
Qty
4Availability
Part #
80681Description
LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''Img
Alts
Ref.
16Qty
1Availability
Part #
13818Description
NEEDLE BEARING Needle, 25.4mm ID x 33.34mm OD x 38.1mm W; Bearing, NeedleImg
Alts
Ref.
Qty
1Availability
Part #
88434Description
BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 3/4''Img
Alts
Ref.
Qty
1Availability
Part #
80680Description
LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''Img
Alts
Ref.
Qty
1Availability
Part #
87415Description
LUBE NIPPLE 90 Degree, 1/4'' NPT x 3/4'' L, Drive; NIPPLE, LUBE, 90?, 1/4'' NPT x .75'' lg, DriveImg
Alts
Ref.
22Qty
2Availability
Part #
36276Description
THRUST WASHER 35.31mm ID x 60.3mm OD x 1.5mm Thk;Img
Alts
Ref.
Qty
3Availability
Part #
88434Description
BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 3/4''Img
Alts
Ref.
Qty
3Availability
Part #
80680Description
LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''Img
Alts
Ref.
Qty
2Availability
Part #
87616Description
SET SCREW 3/8'' - 16 x 3/4''; Screw, Set, Sq Hd, Cup Pt, 3/8''-16 x 3/4''Img
Alts
Ref.
Qty
2Availability
Part #
86509499Description
JAM NUT 3/8''-16, G2; Nut, Hex, Jam, 3/8''Img
Alts
Ref.
Qty
1Availability
Part #
87414Description
LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28Img
Alts
Ref.
Qty
3Availability
Part #
80680Description
LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''Img
Alts
Ref.
Qty
1Availability
Part #
87339Description
BOLT Hex, 1/2'' - 13 x 3'', Gr 5; Screw, Cap, HH, 1/2'' x 3''Img
Alts
Ref.
Qty
2Availability
Part #
80700Description
WASHER 0.56'' ID x 1.38'' OD x 0.11'' Thk;Img
Alts
Ref.
Qty
1Availability
Part #
80679Description
LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''Img
Alts
Ref.
29Qty
3Availability
Part #
39856Description
WASHER 13.49mm ID x 38.1mm OD x 6.35mm Thk; 1/2''Img
Alts
