TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11NUT; Jam, 3/4''-16; (Prod Date) From 01-Jan-1994
-
21WASHER 0.81'' ID x 1.47'' OD x 0.13'' Thk; SAE, 3/4''; (Prod Date) From 01-Jan-1994
-
31KIT; Blade, Set of (3); (Prod Date) From 01-Jan-1994
-
41WASHER; (Prod Date) From 01-Jan-1994
-
51SHAFT; Spindle; (Prod Date) From 01-Jan-1994
-
61PROCURE LOCALLY; Fitting, Grease; (Prod Date) From 01-Jan-1994
-
71CUP; Spindle; (Prod Date) From 01-Jan-1994
-
81SPACER; (Prod Date) From 01-Jan-1994
-
91SNAP RING 1.562'', Int, #156; Ring, Snap, 1.562'', Int, #156; (Prod Date) From 01-Jan-1994
-
102BALL BEARING 17mm ID x 40mm OD x 12mm W; Bearing; (Prod Date) From 01-Jan-1994
-
111BELT V-Belt, 0.5in W x 132.09in L; V-Belt, 132.09'' Long;92-6991; (Prod Date) From 01-Jan-1994
-
121NUT; Jam, 5/8''-18; (Prod Date) From 01-Jan-1994
-
131PROCURE LOCALLY; Washer, Lock, 5/8''; (Prod Date) From 01-Jan-1994
-
141O-RING 14mm ID x 1.78mm Thk, HNBR; 90 Duro, .551'' ID x .070'' Thk; (Prod Date) From 01-Jan-1994
-
151PULLEY; Spindle; (Prod Date) From 01-Jan-1994
-
164SCREW; Cap, HH; (Prod Date) From 01-Jan-1994
-
171HOUSING; Spindle; (Prod Date) From 01-Jan-1994
-
181TUBE; Spacer; (Prod Date) From 01-Jan-1994
Select All
Ref.
1Qty
1Availability
Part #
TR3220D7Description
NUT; Jam, 3/4''-16; (Prod Date) From 01-Jan-1994Img
Alts
Ref.
2Qty
1Availability
Part #
87381Description
WASHER 0.81'' ID x 1.47'' OD x 0.13'' Thk; SAE, 3/4''; (Prod Date) From 01-Jan-1994Img
Alts
Ref.
3Qty
1Availability
Part #
TR106636Description

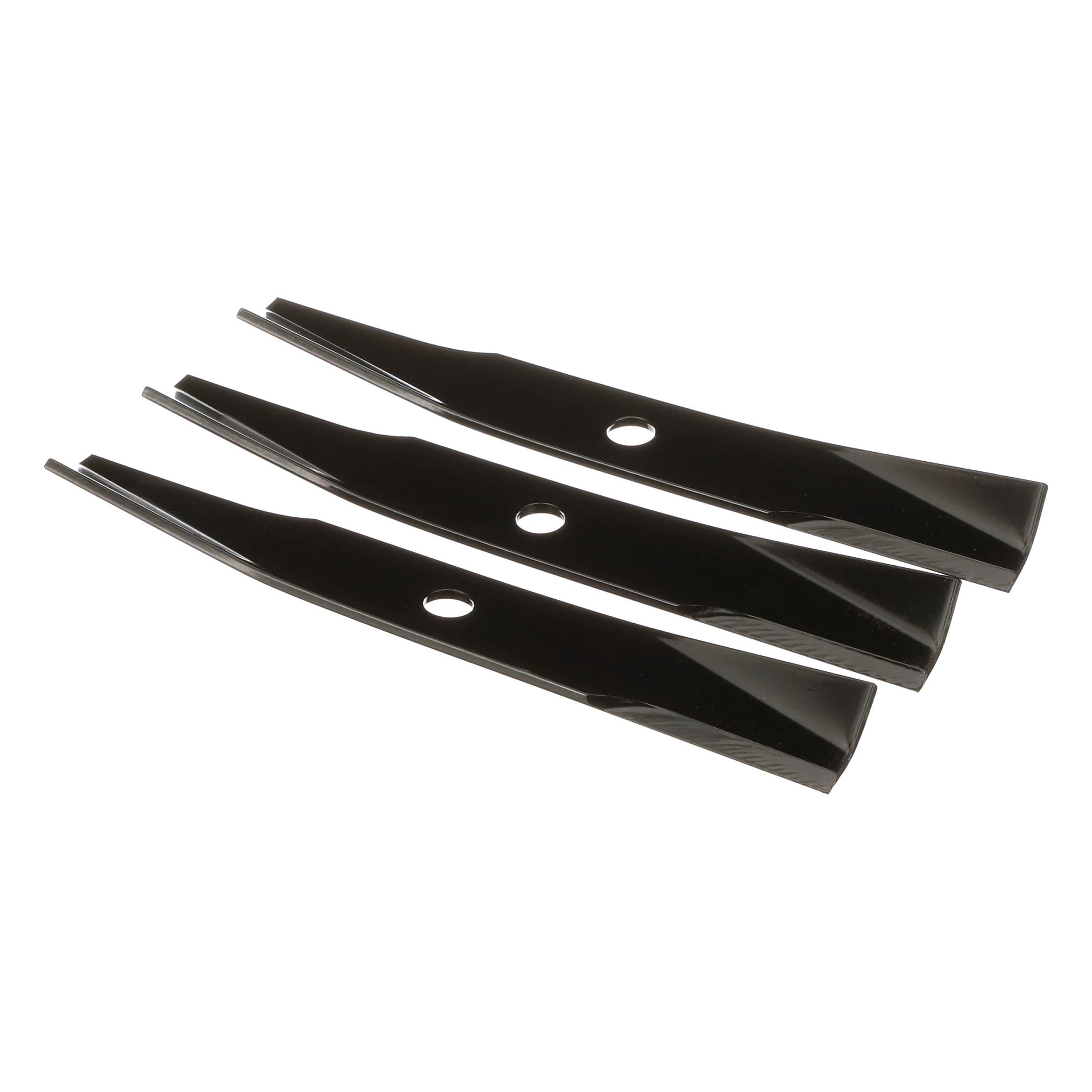

KIT; Blade, Set of (3); (Prod Date) From 01-Jan-1994Img
Alts
Ref.
4Qty
1Availability
Part #
TR9202574Description
WASHER; (Prod Date) From 01-Jan-1994Img
Alts
Ref.
5Qty
1Availability
Part #
TR78D6710Description

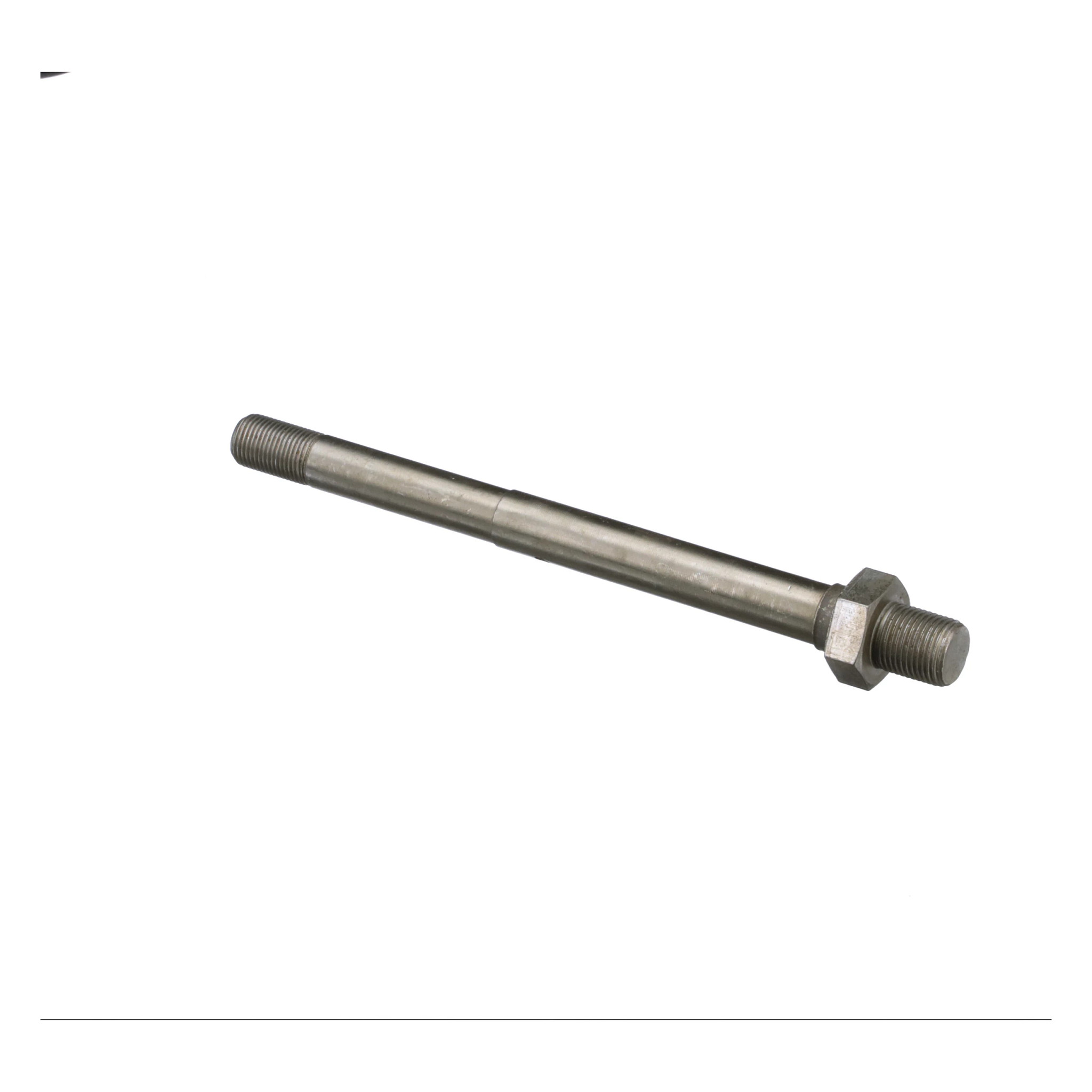

SHAFT; Spindle; (Prod Date) From 01-Jan-1994Img
Alts
Ref.
6Qty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Fitting, Grease; (Prod Date) From 01-Jan-1994Img
Alts
Ref.
7Qty
1Availability
Part #
TR106067Description
CUP; Spindle; (Prod Date) From 01-Jan-1994Img
Alts
Ref.
9Qty
1Availability
Part #
9635563Description
SNAP RING 1.562'', Int, #156; Ring, Snap, 1.562'', Int, #156; (Prod Date) From 01-Jan-1994Img
Alts
Ref.
10Qty
2Availability
Part #
TR109966Description
BALL BEARING 17mm ID x 40mm OD x 12mm W; Bearing; (Prod Date) From 01-Jan-1994Img
Alts
Ref.
11Qty
1Availability
Part #
84214743Description
BELT V-Belt, 0.5in W x 132.09in L; V-Belt, 132.09'' Long;92-6991; (Prod Date) From 01-Jan-1994Img
Alts
Ref.
12Qty
1Availability
Part #
TR3220D6Description
NUT; Jam, 5/8''-18; (Prod Date) From 01-Jan-1994Img
Alts
Ref.
13Qty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Washer, Lock, 5/8''; (Prod Date) From 01-Jan-1994Img
Alts
Ref.
14Qty
1Availability
Part #
165212Description
O-RING 14mm ID x 1.78mm Thk, HNBR; 90 Duro, .551'' ID x .070'' Thk; (Prod Date) From 01-Jan-1994Img
Alts
Ref.
15Qty
1Availability
Part #
TR92D7080Description
PULLEY; Spindle; (Prod Date) From 01-Jan-1994Img
Alts
Ref.
16Qty
4Availability
Part #
TR9080326Description
SCREW; Cap, HH; (Prod Date) From 01-Jan-1994Img
Alts
Ref.
17Qty
1Availability
Part #
TR114568Description

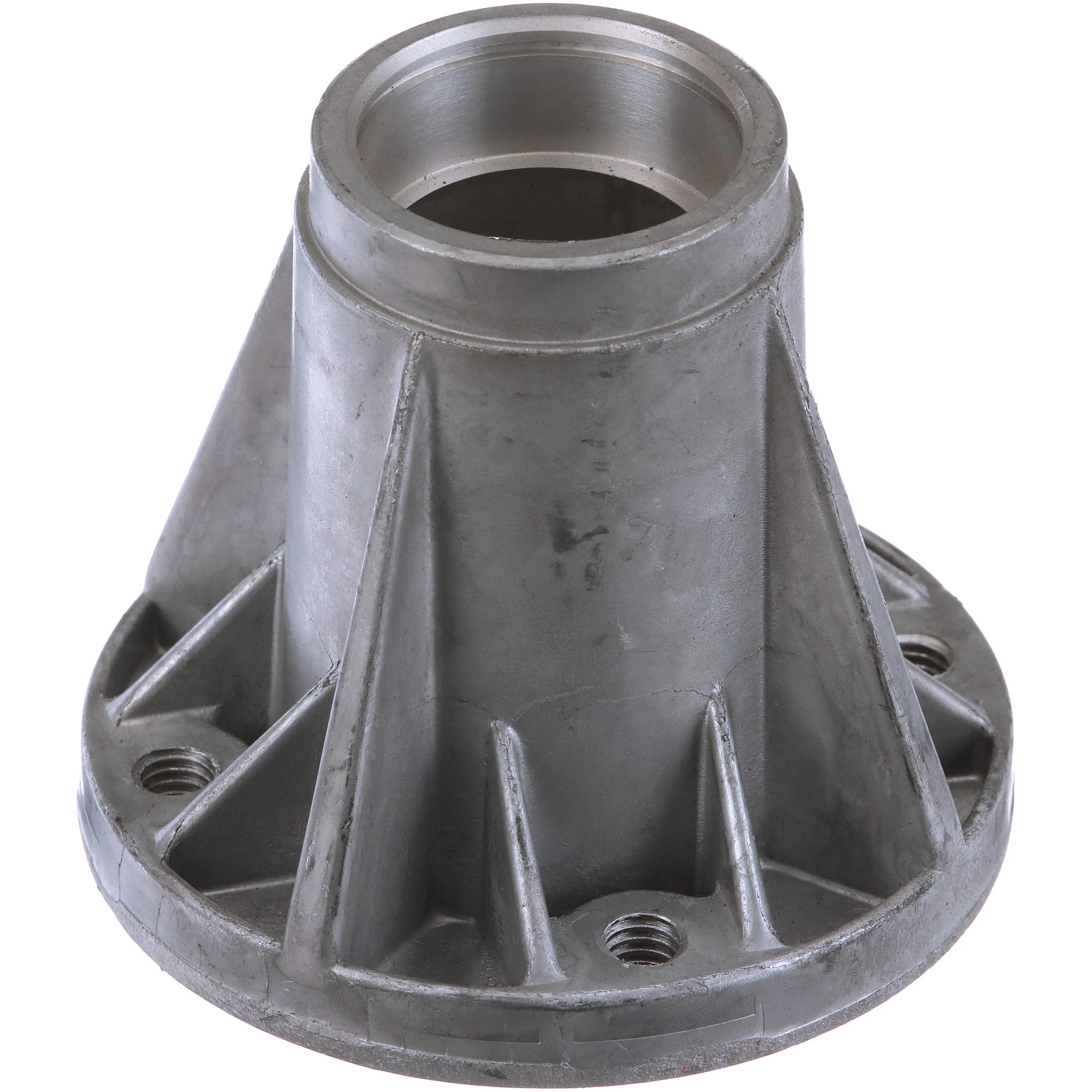

HOUSING; Spindle; (Prod Date) From 01-Jan-1994Img
Alts
Ref.
18Qty
1Availability
Part #
TR116085Description

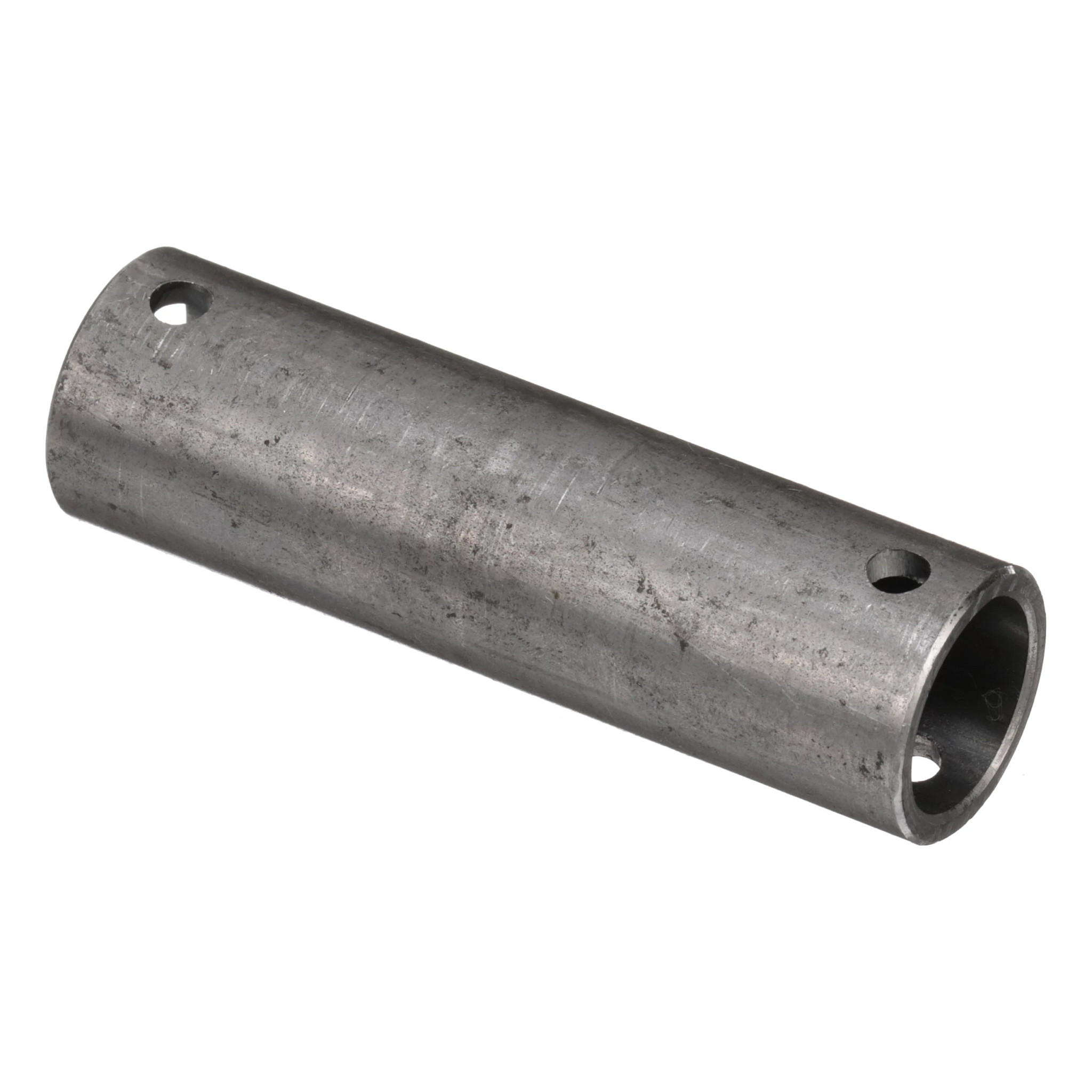

TUBE; Spacer; (Prod Date) From 01-Jan-1994Img
Alts
