050 - HYDRAULIC PUMPS, #703197 & 703198
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    NSS
    NOT SOLD SEPARAT; Hydraulic Pump, Vickers VTM-42-10-NO-AJ-07-R1-14-S73;Model 703197
  • 1
    NSS
    NOT SOLD SEPARAT; Hydraulic Pump, Vickers VTM-42-10-NO-AJ-11-R1-14-S73;Model 703198
  • 1
    1
    128621
    SHAFT;
  • 1
    88406
    WOODRUFF KEY #61, 3/16'' x 5/8''; Key, Woodruff # 61, 3/16'' x 5/8''
  • 2
    1
    9635563
    SNAP RING 1.562'', Int, #156; Ring, Snap, 1.562'', Int, #156
  • 3
    1
    86629493
    BALL BEARING 17mm ID x 40mm OD x 12mm W; Bearing
  • 4
    1
    41329
    SNAP RING #66, Ext; Ring, Snap, #66, Ext
  • 5
    1
    128619
    SEAL KIT; Seal and Gasket Kit, Includes Ref. 5A thru 5F
  • 6
    1
    127468
    NEEDLE BEARING; Bearing, Needle
  • 7
    1
    273366
    BODY; Sub-Assy.
  • 8
    1
    273367
    KIT; Cartridge Kit, Includes Vanes, Rotor and Ring
  • 9
    2
    127469
    PIN; 3/16'' x 1-1/16''
  • 10
    1
    128623
    SUPPORT; Plate, Pressure
  • 11
    1
    128624
    SPRING;
  • 12
    1
    273353
    COVER; Sub-Assy.
  • 4
    280161
    BOLT Hex, 3/8'' - 16 x 3'', Gr 5;
  • 13
    1
    273365
    VALVE SEAT; Seat
  • 14
    1
    709186
    HYDRAULIC VALVE; Poppet
  • 15
    1
    273363
    PIN; Grooved, C Type, 3/32'' x 1-1/4''
  • 16
    1
    86629497
    WASHER; Stop
  • 17
    1
    9600755

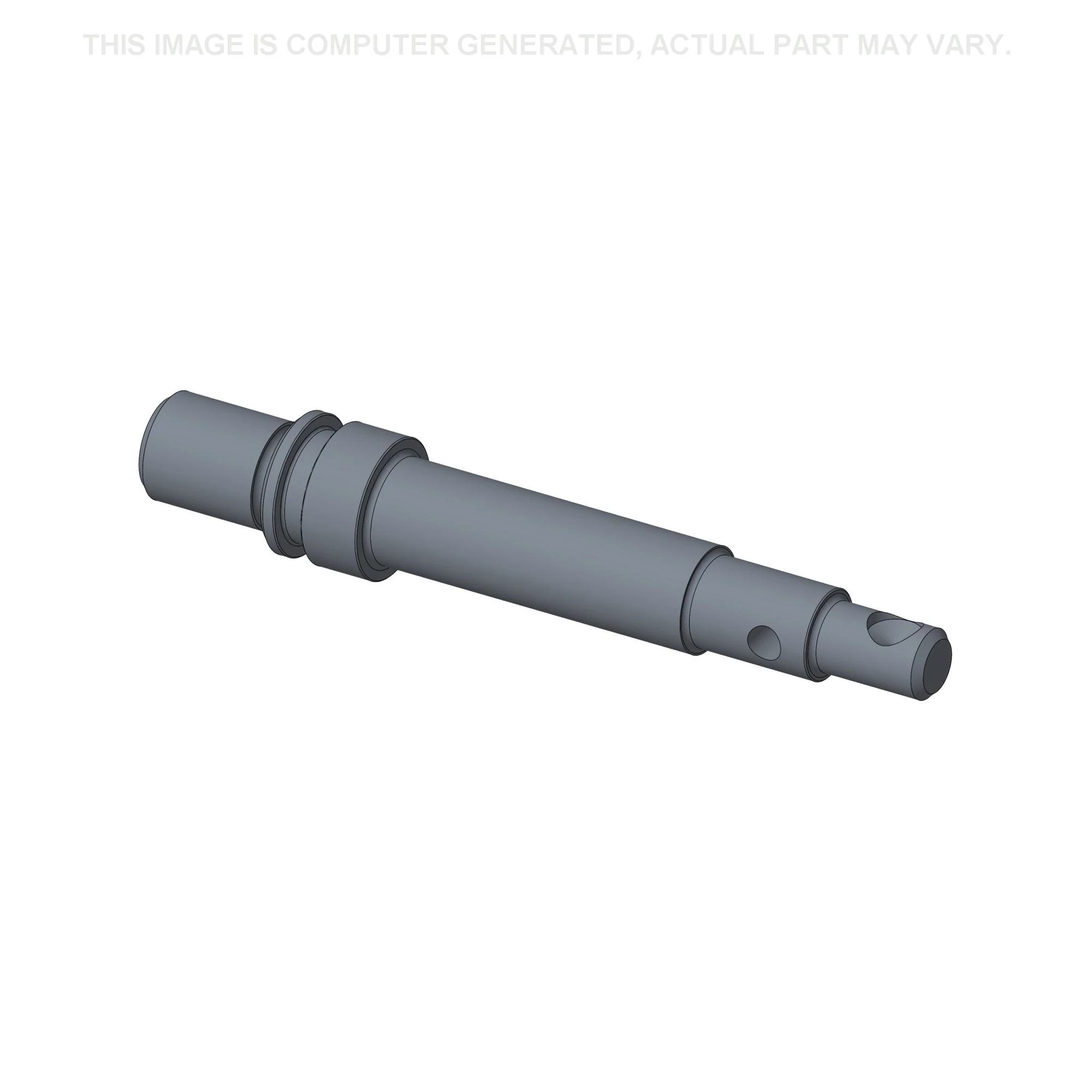

    SCREW 3/8'' - 24 x 2 15/16'';
  • 1
    80855
    LOCK NUT Hex, 3/8'' - 24; Nut, Lock, GC, 3/8''-24
  • 18
    1
    127462
    HALF-FLANGE; Baffle
  • 2
    88542
    BOLT Hex, 1/4''-20 x 1/2'', Gr 5; Screw, Cap, HH, G5, 1/4''-20 x 1/2''
  • 2
    80682
    LOCK WASHER 1/4''; Washer, Lock, 1/4''
  • 19
    1
    126127
    PLATE; Reservoir;Model 703197
  • 19A
    1
    273373
    INSULATOR; Baffle;Model 703198
  • 20
    1
    128625
    TANK; Model 703197
  • 20
    1
    197084
    TANK; Model 703198
  • 21
    1
    136077
    STUD; Model 703197
  • 21
    1
    197085
    STUD; Model 703198
  • 1
    7770
    NUT Hex, 1/4 - 20, Gr 5; 1/4''-20, G5
  • 22
    1
    136076

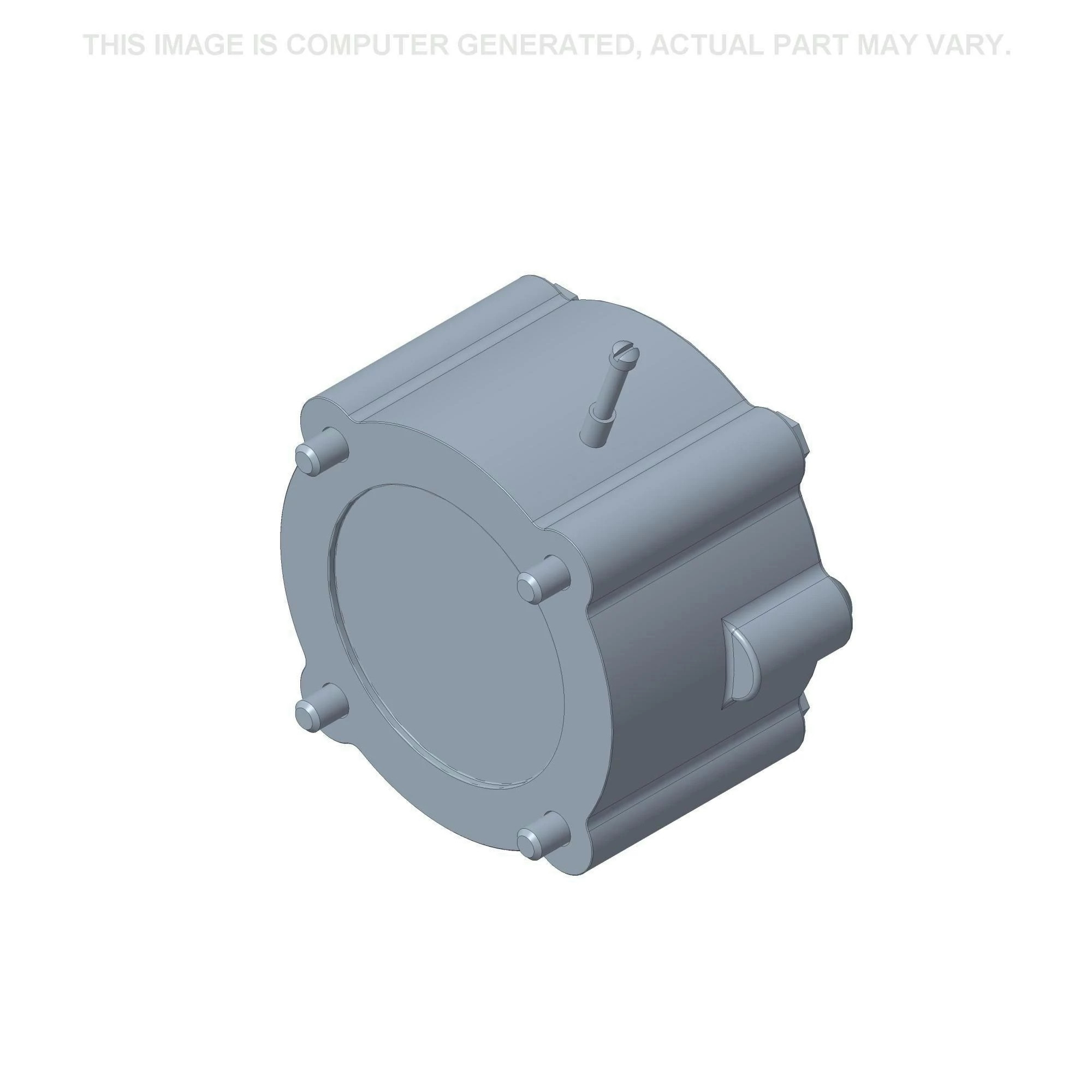

    COVER; and Gasket Assy., Includes Ref. 23;Model 703197
  • 22
    1
    524330
    COVER; and Gasket Assy., Includes Ref. 23;Model 703198
  • 23
    1
    136082
    GASKET; Model 703197
  • 23
    1
    197086
    GASKET; Model 703198
  • 24
    1
    134256
    SHIELD; Cover, Rain Shield
  • 25
    1
    86627130
    WING NUT 1/4''-20; Nut, Wing, 1/4''-20
  • 1
    80682
    LOCK WASHER 1/4''; Washer, Lock, 1/4''
  • -
    277203
    REPAIR KIT; Kit, Repair, Includes Ref. 13 thru 17
