35.359.AJ[01] - 3 SPOOL VALVE LOADER CONTROL
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    87593382
    HYDRAULIC VALVE; Three Spool Loader, Used On Models Without Pilot Controls, Incl 2 - 20
  • 2
    1
    NSS
    NOT SOLD SEPARAT; Housing
  • 3
    1
    NSS
    NOT SOLD SEPARAT; Spool Bucket
  • 4
    1
    NSS
    NOT SOLD SEPARAT; Spool Lift
  • 5
    1
    NSS
    NOT SOLD SEPARAT; Spool Clam
  • 6
    1
    NSS
    NOT SOLD SEPARAT; Spool
  • 7
    6
    87426233
    PLUG 7/8'' Male; 7/8 - 14 Incl 87455974 O-Ring

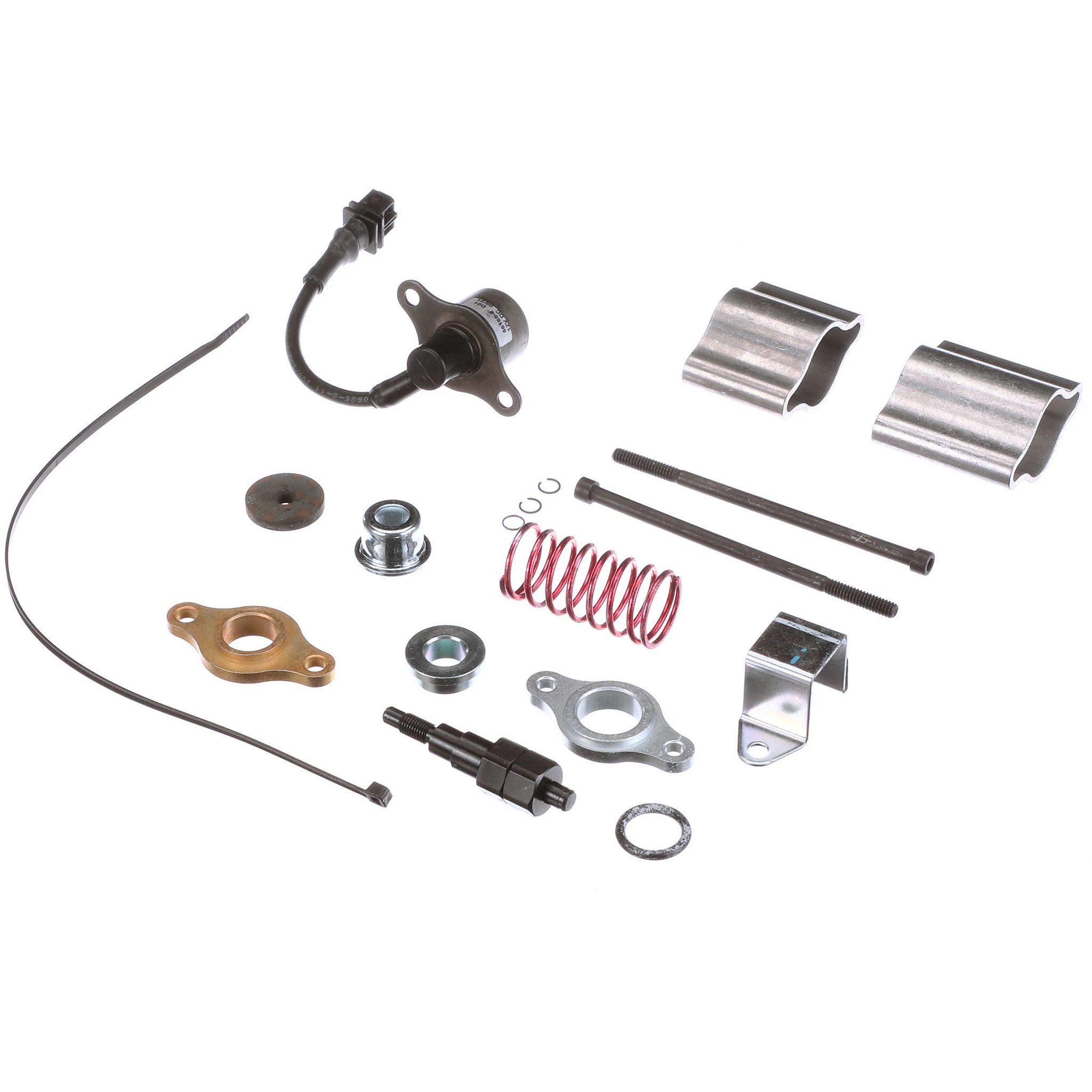

  • 8
    1
    84124604
    KIT; (Return to Dig) Incl (1) 87454547 O-Ring, (1) 87515957 Magnet, (2) 87310278 Screw, Replaces 87515955
  • 9
    2
    87450978
    VALVE PRESSURE RELIE; Incl 87455549 Seal Kit
  • 10
    2
    81868381
    CHECK VALVE 1-1/16'' - 12; Load, Anti-Void, Incl 87455580 Seal Kit
  • 11
    1
    87426227
    DETENT; Manual, Lift Incl (1) 87454547 O-Ring, (2) 87310275 Screw, (4) 87310276 Ball Bearing

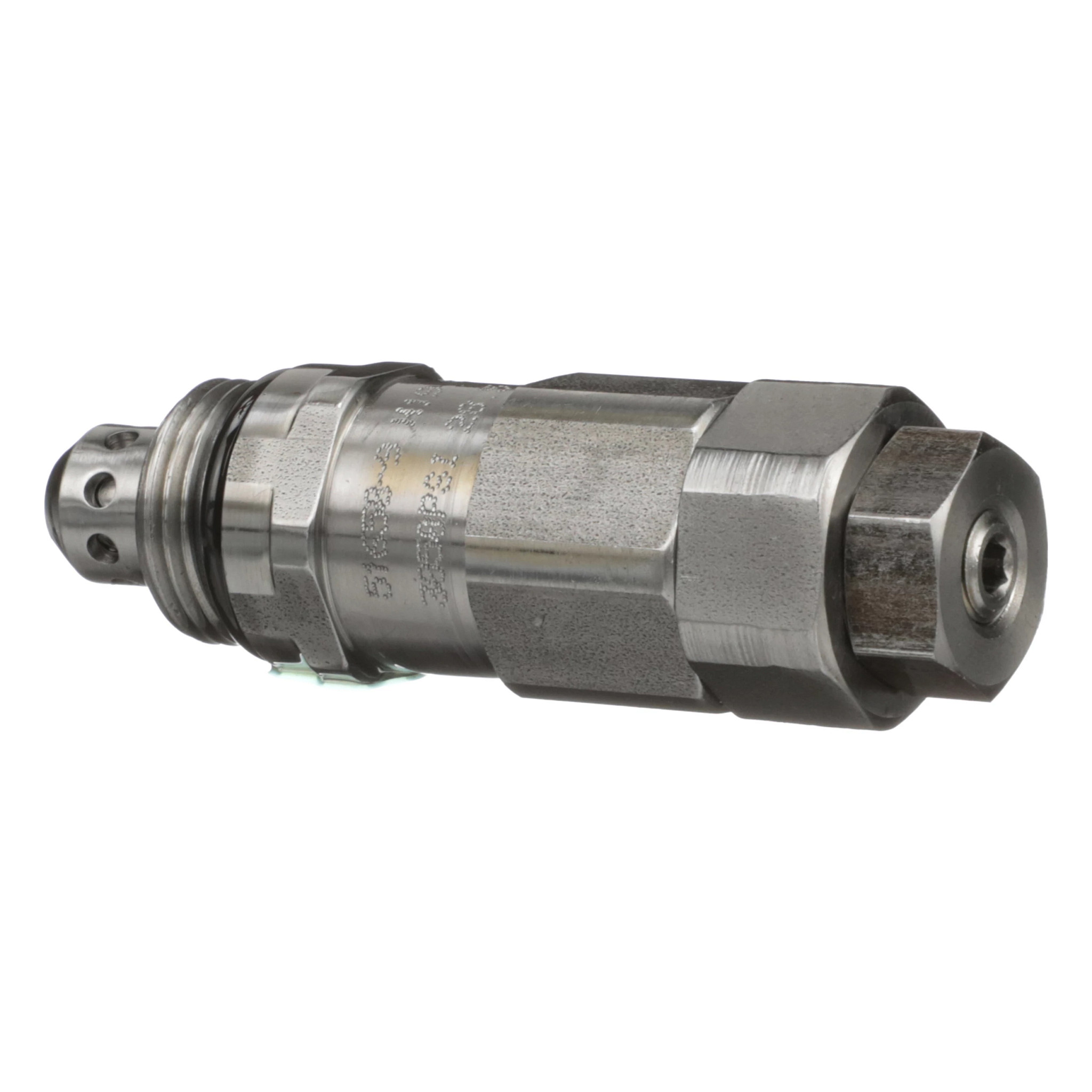

  • 12
    1
    87426717
    VALVE PRESSURE RELIE; Incl 87455551 Seal Kit
  • 13
    1
    87426235
    VALVE PRESSURE RELIE; Main, Two Stage Incl 87455550 Seal Kit

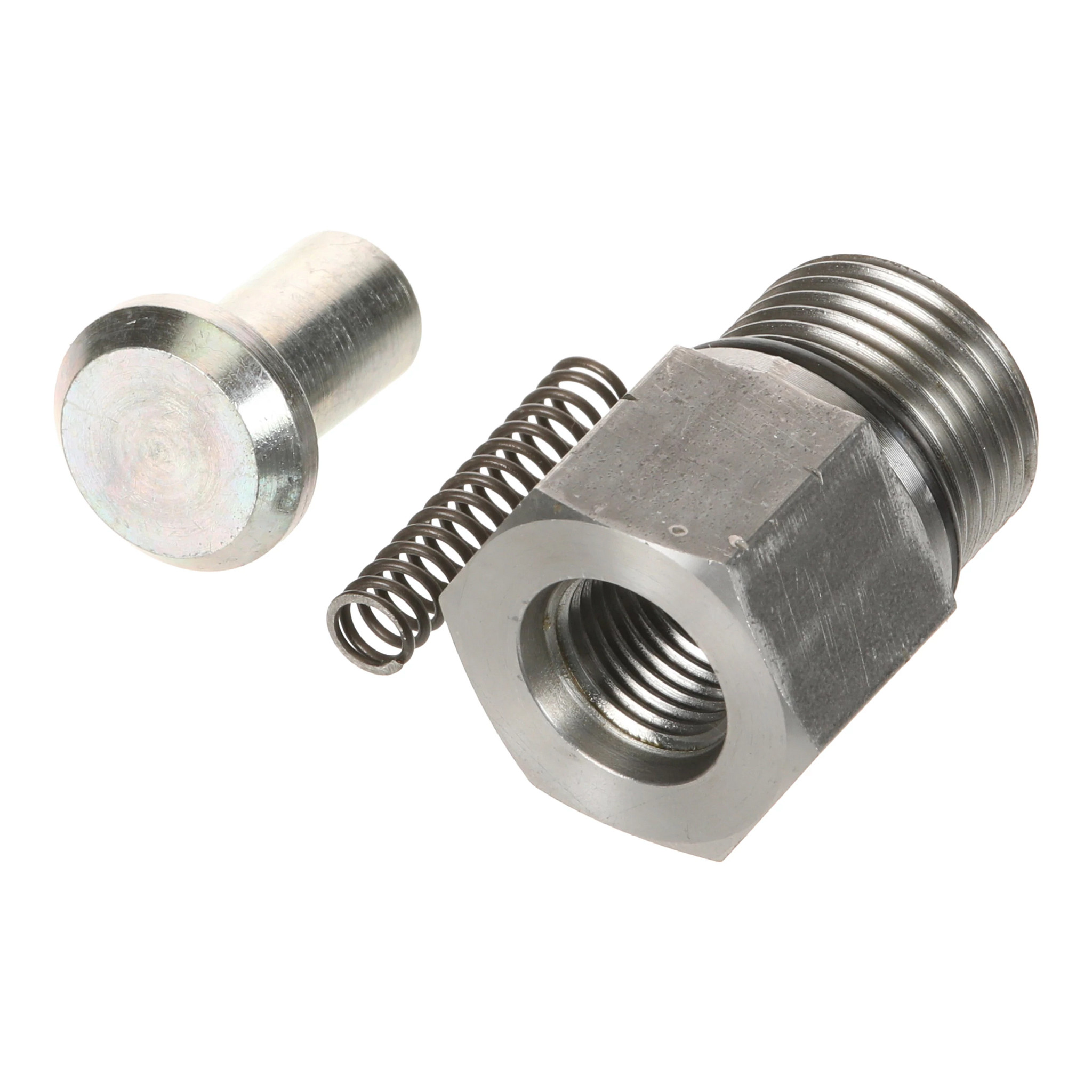

  • 14
    1
    87426716
    VALVE, CHECK; Incl (1) 87455974 O-Ring, (1) 87309001 O-Ring, (1) 87446002 Poppet, (1) 87446003 Spring
  • 15
    1
    87440815
    PLATE; Lift Spool and Seal Assembly Incl (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87455538 O-Ring, (2) 87455534 Screw, (1) 87455536 Seal Plate, (1) 87455539 Spacer
  • 15
    2
    87455534
    HEX SOC SCREW;
  • 15
    1
    87455536
    RETAINING PLATE;
  • 15
    1
    87455538
    O-RING 0.125'' Thk x 1'' ID, -214, 70 Duro;
  • 15
    1
    87455539
    SPACER;
  • 15
    1
    87454547
    O-RING;

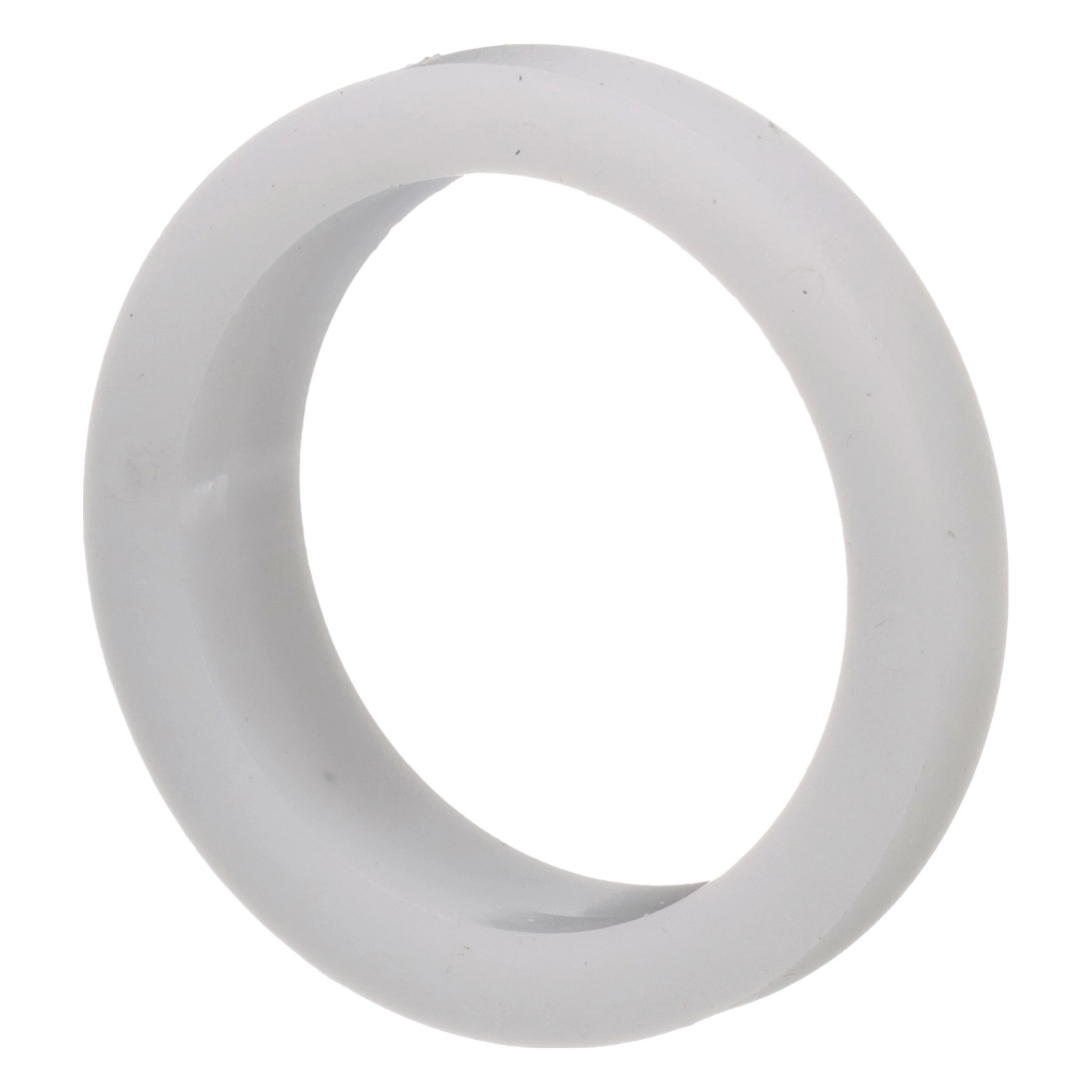

  • 15
    1
    87454548
    WIPER SEAL;

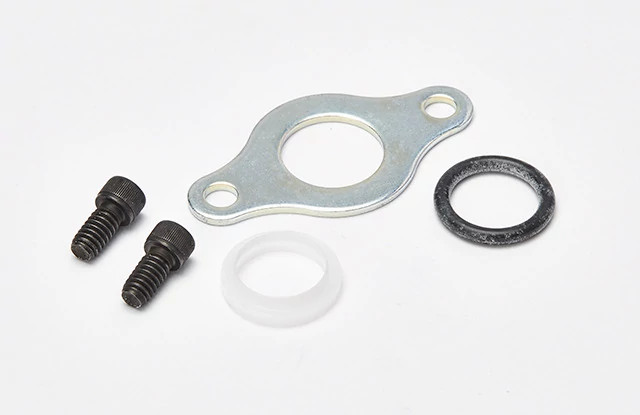

  • 16
    1
    87440814
    KIT; Bucket and Clam Spool and Seal Assembly Incl (1) 87454547 O-Ring, (1) 87454548 Seal, (2) 87455540 Screw, (1) 87455536 Seal Plate
  • 16
    1
    87455536
    RETAINING PLATE;
  • 16
    1
    87454547
    O-RING;
  • 16
    1
    87454548
    WIPER SEAL;
  • 16
    -
    87455540
    HEX SOC SCREW;
  • 17
    3
    87426238
    VALVE, CHECK; Incl 87455975 O-Ring
  • 18
    1
    87757931
    END; Cap Clam Spool
  • 19
    1
    87757932
    END; Cap Clam Spool
  • 20
    2
    83981068
    STOP PLUG Hex, 1/16 - 12 UN; Shut-Off, Incl Seal
