I23[01] - THRESHING DRUM AND CONCAVE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    80335988
    CONCAVE; Cold countries - Incl. fig. 1A
  • 1A
    62
    80335987
    RETAINING WIRE; From 2801001 until 2803999
  • 1A
    62
    323913
    RETAINING WIRE; From 2804001
  • 2
    1
    80366050
    CONCAVE; Warm countries - Incl. fig. 2A
  • 2A
    88
    323913
    RETAINING WIRE;
  • 3
    1
    321529
    STRIP;
  • 4
    38
    15896221
    NUT Hex, M6 x 1, Cl 10, ZND;
  • 5
    38
    322357
    BELLEVILLE WASHER M6 Bolt Size x 14mm OD x 1.3mm Thk;
  • 6
    20
    120100
    BOLT Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8, ZND;
  • 7
    8
    140040
    WASHER 6.6mm ID x 22mm OD x 2mm Thk, CST, ZND;
  • 8
    1
    333222
    ANGLE BAR; Right-hand
  • 9
    1
    335307
    ANGLE BAR; Left-hand
  • 10
    1
    333087
    HUB;
  • 11
    1
    370007
    CIRCLIP M45, Ext, PHC;
  • 12
    2

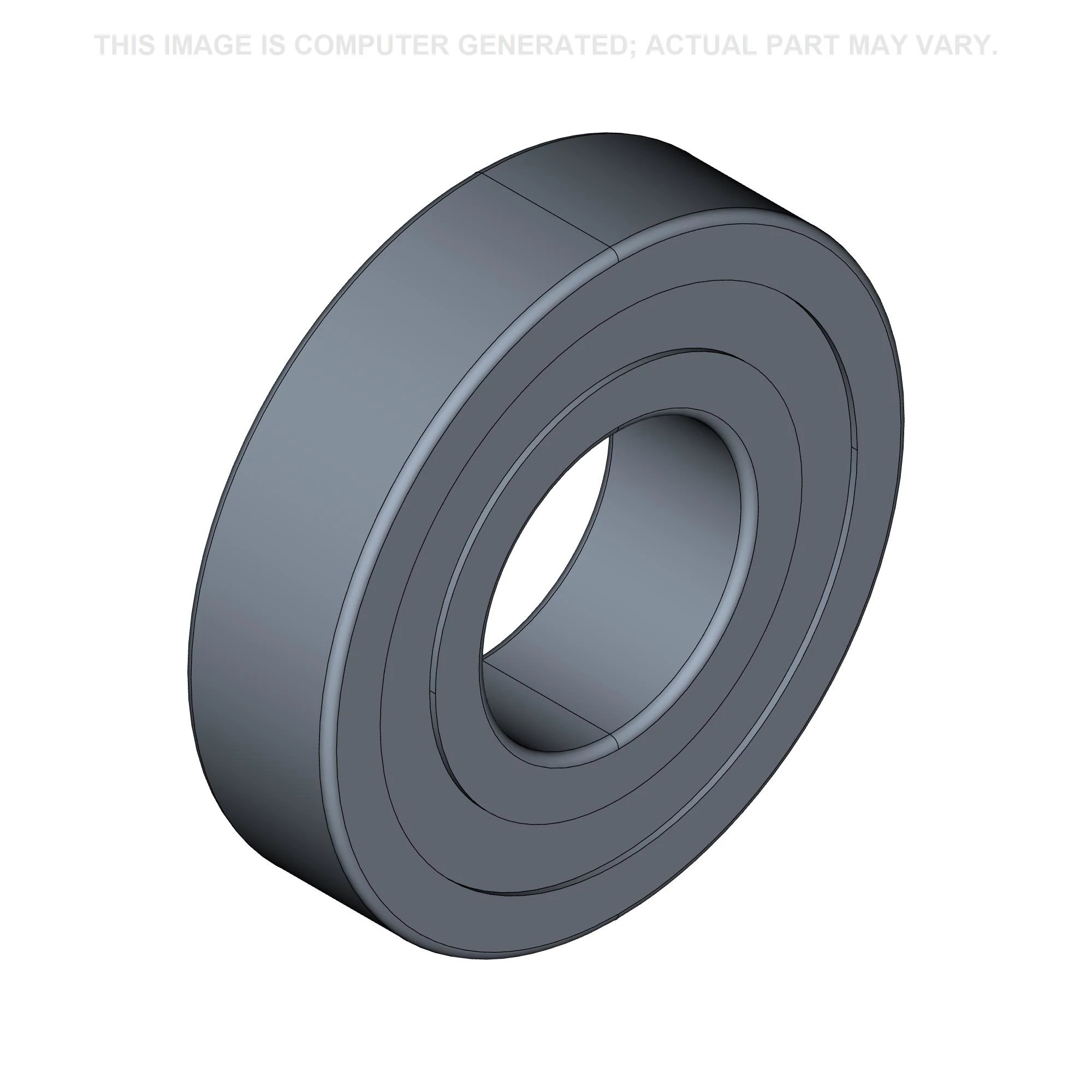

    210086
    BALL BEARING 45mm ID x 100mm OD x 25mm W;
  • 13
    2
    333086
    BEARING HOUSING;
  • 14
    2

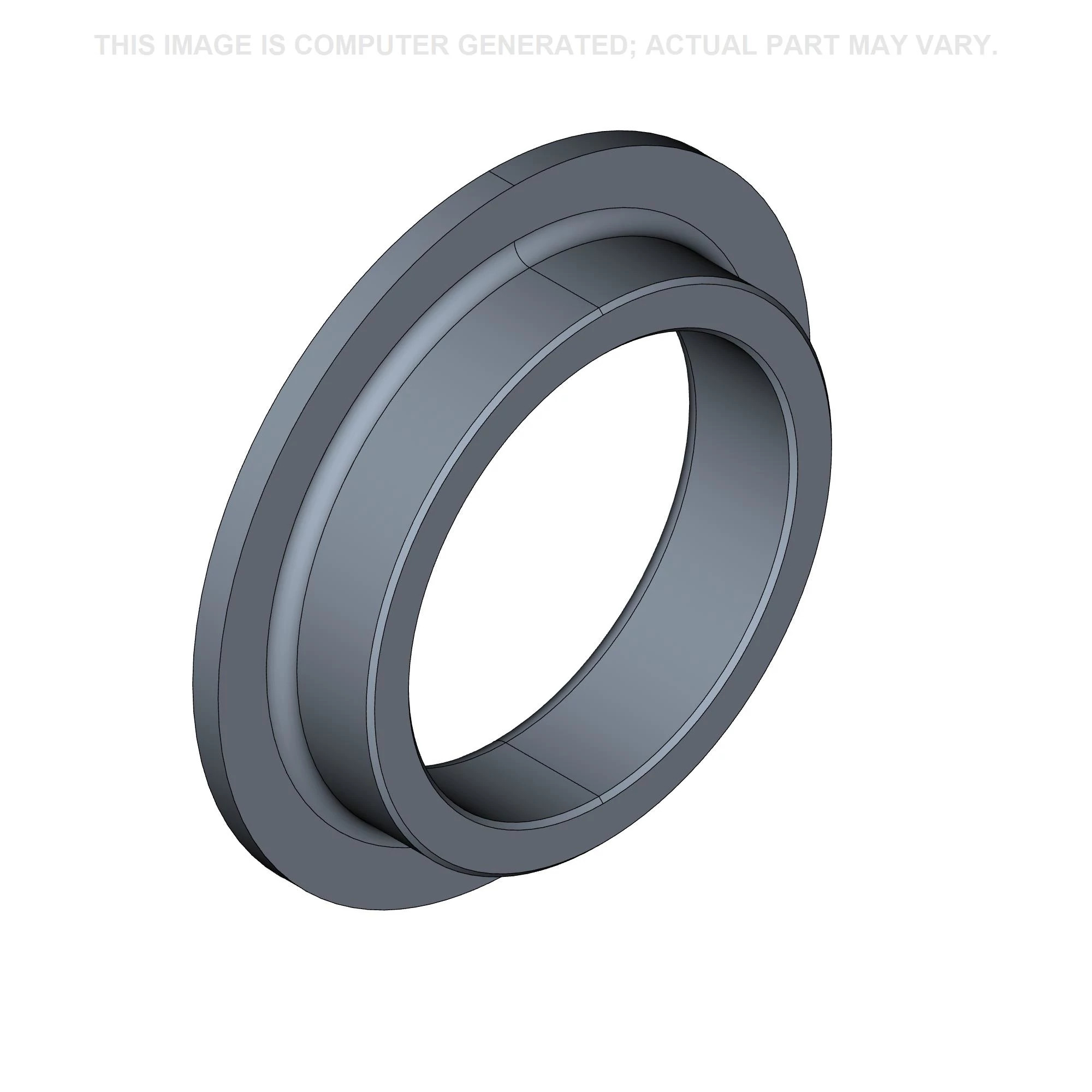

    200291
    RING; From 2801001 until 2804999
  • 15
    1
    80333085
    CONTROL SHAFT; From 2801001 until 2803999
  • 15
    1
    80373106
    SHAFT; From 2804001 until 2807999
  • 15
    1
    382261
    SHAFT; From 2808001
  • 16
    2
    80308899
    RASP BAR SET; 2 rasp bars grooved left-handed;From 2801001 until 2803999
  • 16
    2
    376726
    SET OF 2 BARS; 2 rasp bars grooved left-handed;From 2804001
  • 17
    2
    80308900
    RASP BAR SET; 2 rasp bars grooved right-handed;From 2801001 until 2803999
  • 17
    2
    376725
    SET OF 2 BARS; 2 rasp bars grooved right-handed;From 2804001
  • 18
    1
    80333225
    DISC; Right-hand;From 2801001 until 2803999
  • 18
    1
    80375419
    DISC; From 2804001
  • 19
    2
    80353252
    DISC; Middle;From 2801001 until 2803999
  • 19
    2
    375421
    DISC; From 2804001
  • 20
    1
    80333223
    DISC; Left-hand;From 2801001 until 2803999
  • 20
    1
    375418
    DISC; From 2804001
  • 21
    3
    170029
    KEY;
  • 22
    AR
    481494
    PLATE;
  • 23
    8
    80120105
    SCREW;
  • 24
    8
    140016
    WASHER M8 x 16mm OD x 1.6mm Thk;
  • 25
    8
    322358
    BELLEVILLE WASHER M8 Bolt Size x 18mm OD x 1.4mm Thk;
  • 26
    8
    9706690
    NUT Hex, M8 x 1.25, Cl 8, ZND;
  • 27
    6
    100016
    NUT Hex, M10 x 1.5, Cl 8, ZND;
  • 28
    6
    140045
    BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk;
  • 29
    3
    378244
    WASHER 10.5mm ID x 24mm OD x 2mm Thk;
  • 30
    3
    43140
    BOLT Hex, M10 x 1.5 x 30mm, Full Thd, Cl 8.8, ZND;
  • 31
    3
    120112
    BOLT Hex, M10 x 1.5 x 40mm, Full Thd, Cl 8.8, ZND;
  • 32
    AR
    481489
    ADJUSTING PLATE; Thk.:0.5 mm
  • 32
    AR
    481490
    PLATE; Thk.:0.8 mm
  • 33
    32
    120140
    BOLT; From 2801001 until 2803999
  • 34
    74
    337475
    NUT Hex, M12 x 1.75, Cl 10, ZND;
  • 35
    42
    378246
    WASHER 17mm ID x 34mm OD x 3mm Thk;
  • 36
    2
    335749
    HINGE;
  • 37
    4
    332393
    HINGE;
  • 38
    1
    335756
    ROD;
  • 39
    1
    332189
    RETAINING PLATE;
  • 40
    1
    80335760
    SUPPORT; From 2802001 until 2807999
  • 40
    1
    381334
    BAR PLATE; From 2808001
  • 41
    2
    335890
    CARRIAGE BOLT Sq Nk, M12 x 1.75 x 30mm, Cl 8.8, Full Thd;
  • 42
    2
    80335750
    LEVER;
  • 43
    2
    140046
    BELLEVILLE WASHER M12 Bolt Size x 27mm OD x 1.8mm Thk;
  • 44
    2
    335752
    LINK;
  • 45
    4
    130006
    COTTER PIN M4 x 20;
  • 46
    19
    332415
    LUG;
  • 47
    17
    80300379
    BOLT;
  • 48
    1
    335759
    COVER;
  • 49
    1

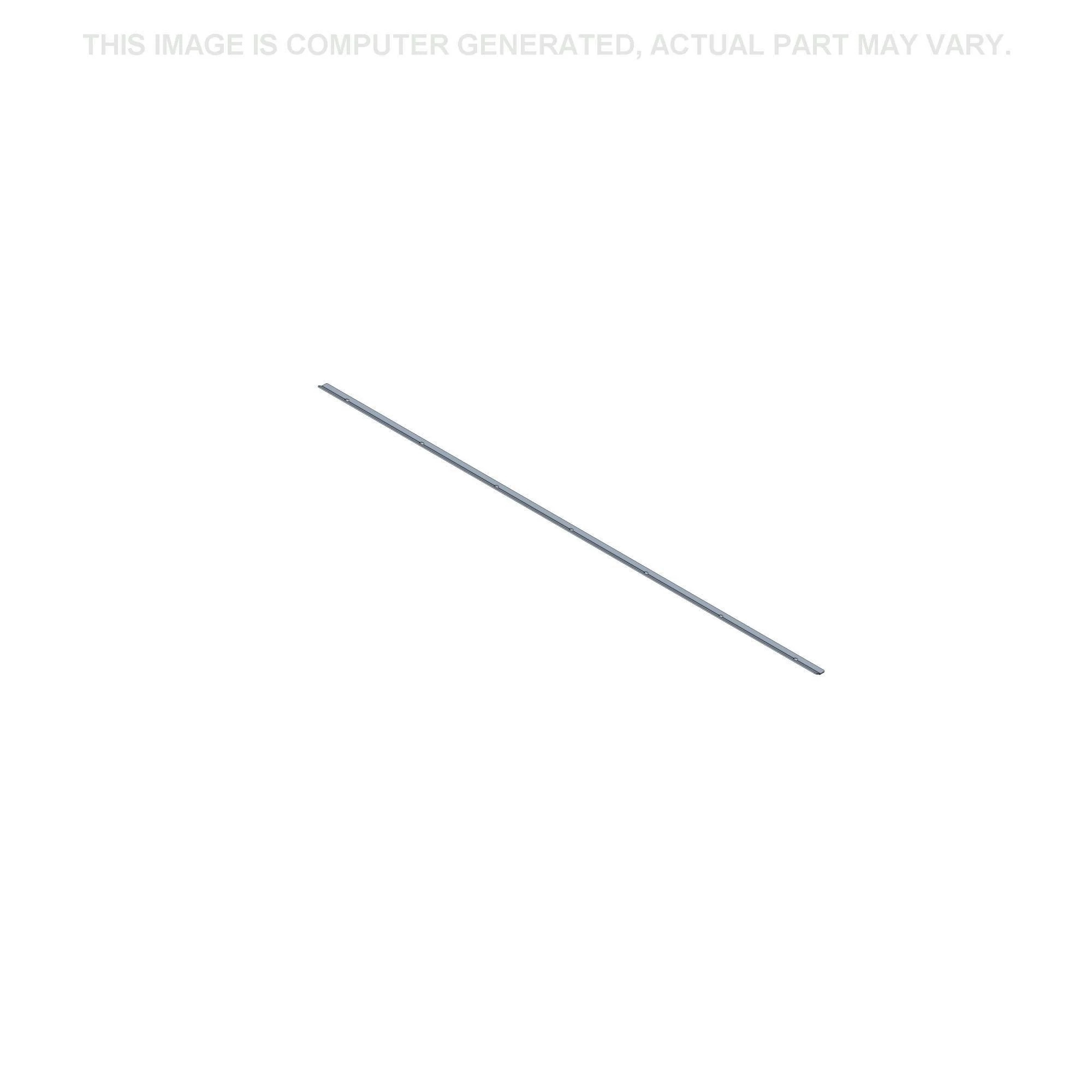

    484192
    PLATE;
  • 50
    1
    80190034
    CANVAS;
  • 51
    1
    80338132
    STEEL PLATE; Special equipment
  • 52
    2
    16043224
    BOLT Hex, M8 x 1.25 x 16mm, Full Thd, Cl 8.8, DAC;
  • 53
    2
    140041
    WASHER M8 x 28mm OD x 3mm Thk;
  • 54
    32
    300389
    BOLT Hex, M12 x 1.75 x 35mm, Full Thd, Cl 8.8, ZND; From 2804001 until 2812999
  • 54
    32
    385376
    BOLT Hex, M12 x 1.75 x 30mm, Cl 8.8; From 2813001
  • 55
    1
    337520
    CABLE;
  • 56
    2
    323500
    SLEEVE 9 mm ID, 30 mm Length; From 2804001
  • 57
    2
    330005
    CLAMP; From 2804001
  • 58
    1
    379258
    RING; From 2805001
  • 59
    1
    200291
    RING; From 2805001 until 2807999
  • 59
    1
    382258
    HOSE CLIP; From 2808001
  • 60
    1
    362298
    WASHER 12mm ID x 25mm OD x 3mm Thk; From 2808001
