TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
21SHAFT;
-

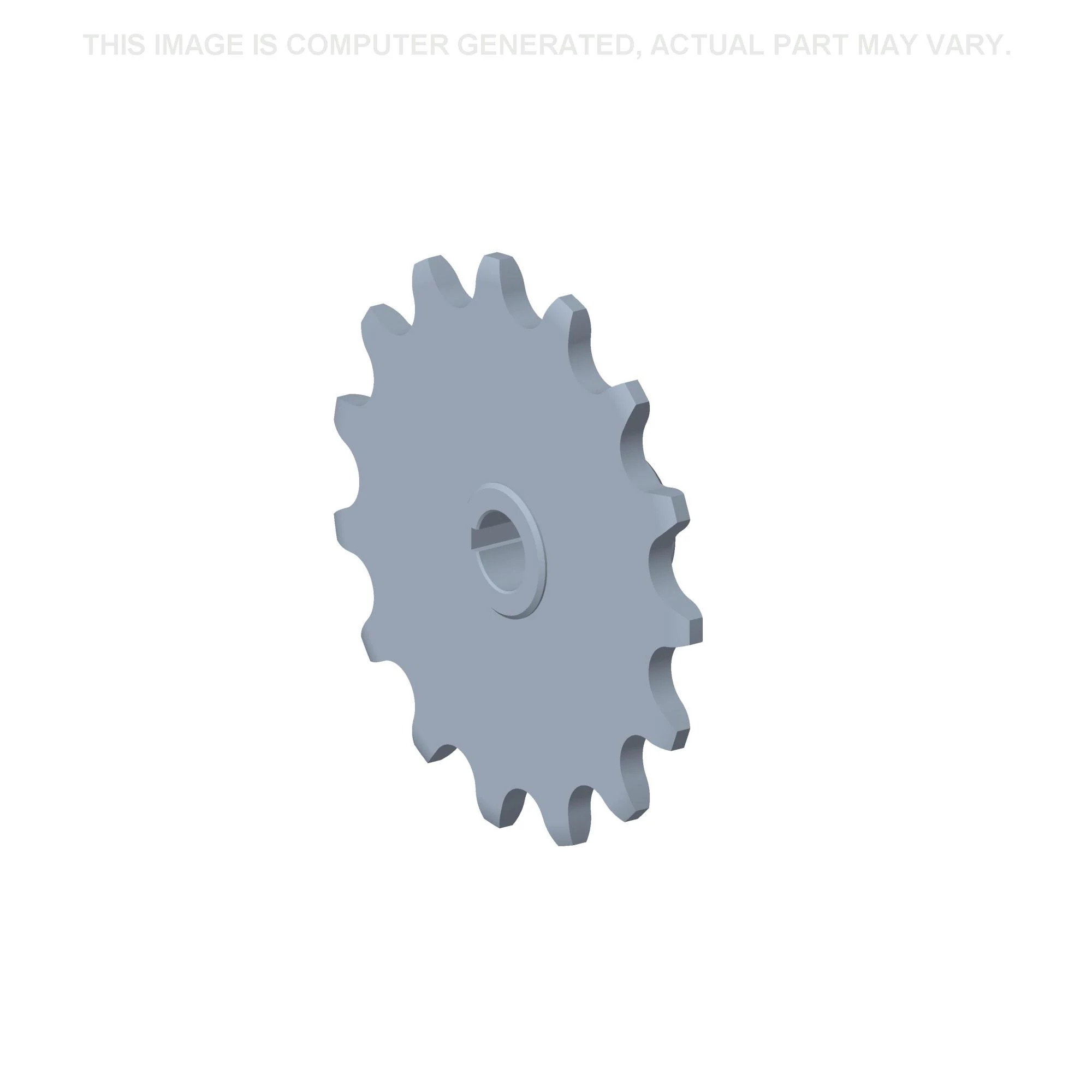

31SPROCKET;
-
41SPROCKET;
-
54SCREW;
-
62KEY;
-
81SHAFT;
-
92DRIVEN SPROCKET;
-
104SCREW;
-
122SUPPORT;
-

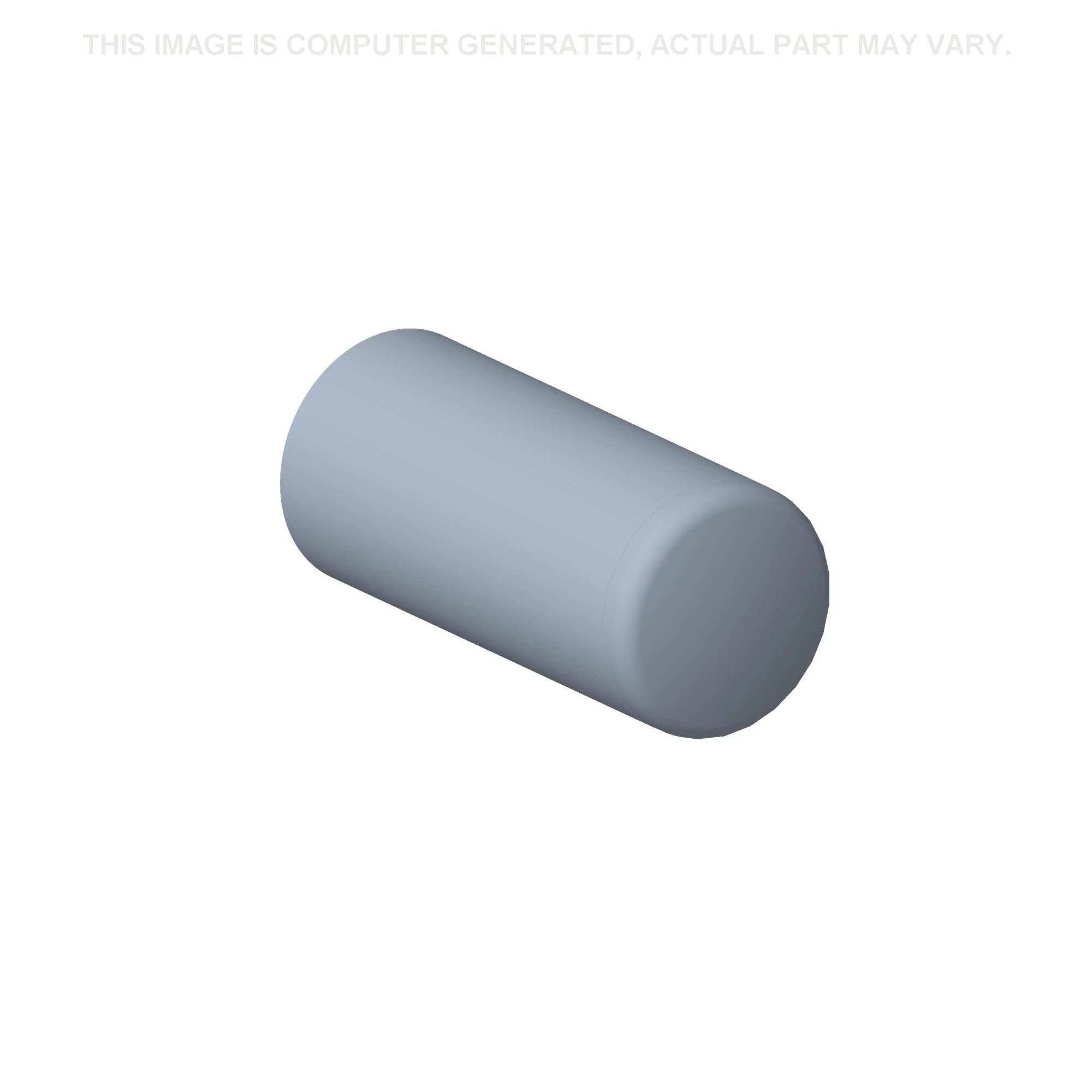

134ROLLER;
-
144BALL BEARING;
-
154SNAP RING;
-
168SNAP RING;
-
173BALL BEARING 35mm ID x 72mm OD x 51.1mm W;
-
183BEARING HOUSING;
-
196WASHER 13mm ID x 24mm OD x 2.5mm Thk; M12x40
-
206WASHER; 12MM
-
213LUBE NIPPLE Straight Con. Head, M6 x 1.0 x 16mm L;
-

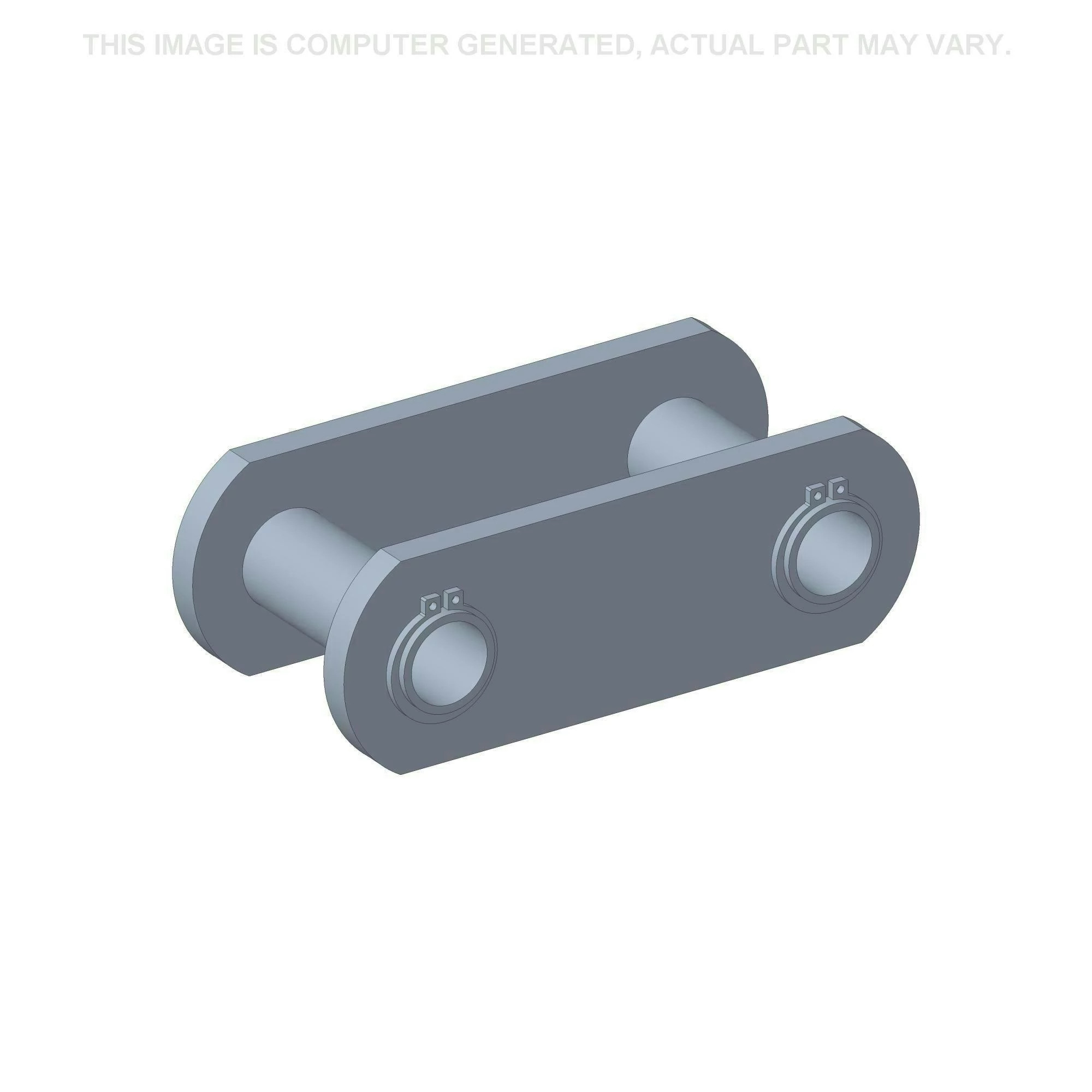

222LINK Chain;
-
232SCREW M10 x 25mm; M10x25
-
242BOLT M10 x 25mm;
-
252WASHER; 10MM
-
261SUPPORT;
-
271PLATE;
-
282SCREW; M12x30
-
2910WASHER; 12MM
-
302CHAIN 60 Links x 50.8mm = 3048mm; (22)
-
3115SUPPORT;
-
3260SCREW; M10x50
-
338SCREW M12 x 25mm; M12x25
-
342KEY;
-
351HYDRAULIC MOTOR;
Select All
Ref.
17Qty
3Availability
Part #
84814912Description
BALL BEARING 35mm ID x 72mm OD x 51.1mm W;Img
Alts
Ref.
19Qty
6Availability
Part #
86511324Description
WASHER 13mm ID x 24mm OD x 2.5mm Thk; M12x40Img
Alts
Ref.
21Qty
3Availability
Part #
321204Description
LUBE NIPPLE Straight Con. Head, M6 x 1.0 x 16mm L;Img
Alts
Ref.
30Qty
2Availability
Part #
84821093Description
CHAIN 60 Links x 50.8mm = 3048mm; (22)Img
Alts
