01.011.3 - Frame Assembly (1110 Model) (2nd Serial No. Range) - Part 2 of 2
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 2
    1
    GD-955
    FORK; CASTER WHEEL;Refer to Front Caster Wheel Assembly (2nd Serial No. Range) page for details
  • 5
    1
    3570
    TUBE 0.50'' ID x 144.00'', SAE 100R17; 1/2'' mpt x 1/2'' mpt
  • 13
    1
    GD-622
    WASHER; safety chain
  • 14
    1
    GD-432
    BOX; COLLECTOR, PRODUCT SAMPLE
  • 20
    1
    GD-298
    CLAMP; FLAT, HYDRAULIC LINE
  • 23
    1
    4727
    TUBE; HYDRAULIC, .625 IN OD X 112 IN
  • 26
    1
    9356
    HYDRAULIC HOSE 485.00'' mm, 0.50'', SAE J517;
  • 29
    1
    3666

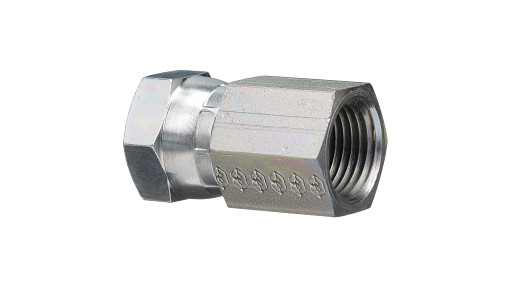

    FITTING; hydraulic - swivel connector, 1/2'' fpt x 1/2'' fpt
  • 31
    1
    4732
    ELBOW; FITTING, HYDRAULIC - 30 DEGREE CHAMFER ADAPTER
  • 40
    1
    4689
    BOLT; 1 X 2 GR5 YZD
  • 41
    1
    1298
    LUBE NIPPLE 1/4''-28 NPT x .54'' lg;
  • 48
    1
    1556
    LOCK WASHER 1'';
  • 49
    1
    4319
    BOLT Hex, 7/16''-14 x 1 1/4'', G5;
  • 56
    1
    1551
    LOCK NUT;
  • 66
    1
    4299
    LINING; FLEXI-COIL
  • 67
    1
    GD-300.01
    DECAL; MAINTENANCE
  • 68
    1
    GD-500.72
    CAUTION DECAL;
  • 76
    1
    2509
    BOLT Hex, 3/8''-16 x 2'', G5;
  • 77
    1
    1549
    LOCK NUT 3/8''-16, GB;
  • 78
    1
    5780
    STRAP; 2 IN X 32 IN
  • 79
    1
    2364
    BOLT Hex, 1/2''-13 x 3 1/4'', G5;
  • 86
    1
    GD-500.77
    CAUTION DECAL; hydraulics
  • 88
    1
    1551
    LOCK NUT;
  • 89
    1
    1517
    BOLT Hex, 1/2''-13 x 4'', G5;
  • 90
    1
    GD-507
    CAP; CASTER WHEEL
  • 91
    1
    1315
    WASHER; 2.5 ID 10GA YZD
  • 91
    1
    4305
    WASHER;
  • 92
    1
    GD-531
    HOUSING; PIVOT WEAR
  • 93
    1
    5030
    WASHER; 2.563'' id x 5'' od x .188 Thick
  • 94
    1
    GD-956
    COVER; CASTER PIVOT 4.375 IN
