55.100.DO[01] - FUSE BOX, CAB
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    47533459
    WIRE HARNESS; Main Cab, Incl 2 - 16, Also Incl Fig 55.510.BP[02], 55.510.BP[03], and 55.510.BP[04]
  • 2
    1
    84539290
    RELAY 12V, 50A; Maxi, SPST, Cab Power
  • 3
    22
    84543528
    RELAY 12V, 20A, Micro; Micro, SPDT
  • 4
    12
    832-10405
    LOCK NUT M5 x .8, Cl 8;
  • 5
    12
    86588450
    WASHER 6.6mm ID x 12mm OD x 1.6mm Thk;
  • 6
    14
    NSS
    NOT SOLD SEPARAT; STUD M5 Blind Rivet Type, Hex Body, Incl in 1
  • 7
    1
    47399173
    BRACKET; Cab Relay Mount
  • 8
    9
    87689644
    FUSE 30A, Blade/Uni; 30A
  • 9
    1
    84253577
    FUSE 60A, Maxi, Blue; 60A, Implement High Power
  • 10
    3
    84199546
    TOOL; Fuse Extractor
  • 11
    8
    84153830
    FUSE 5A, Mini, Beige; 5A Mini, Beige
  • 12
    3
    84147087

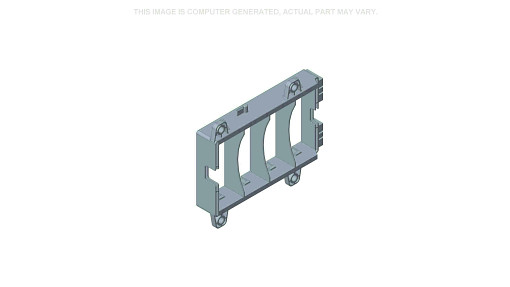

    FUSE HOLDER; Frame, Fuse/Relay
  • 13
    17
    84127704
    FUSE 20A, Mini, Yellow; 20A Mini, Yellow
  • 14
    13
    84127703
    FUSE 15A, Mini, Blue; 15A Mini, Blue
  • 15
    28
    84127702
    FUSE 10A, Mini, Red; 10A Mini, Red
  • 16
    2
    82012388
    FUSE 30A, Maxival, Green; 30A Maxi, Green
  • 17
    1
    84539290
    RELAY 12V, 50A; Maxi, SPST, Implement High Power, Optional
  • 18
    1
    84543666
    RELAY 12V, 40A, Mini; Mini, SPDT, Implement Low Power, Optional
Select All

Select

Ref.

1

Qty

1

Availability

Part #

47533459

Description

WIRE HARNESS; Main Cab, Incl 2 - 16, Also Incl Fig 55.510.BP[02], 55.510.BP[03], and 55.510.BP[04]


Alts

Select

Ref.

2

Qty

1

Availability

Part #

84539290

Description

RELAY 12V, 50A; Maxi, SPST, Cab Power


Alts

Select

Ref.

3

Qty

22

Availability

Part #

84543528

Description

RELAY 12V, 20A, Micro; Micro, SPDT


Alts

Select

Ref.

4

Qty

12

Availability

Part #

832-10405

Description

LOCK NUT M5 x .8, Cl 8;


Alts

Select

Ref.

5

Qty

12

Availability

Part #

86588450

Description

WASHER 6.6mm ID x 12mm OD x 1.6mm Thk;


Alts

Select

Ref.

6

Qty

14

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; STUD M5 Blind Rivet Type, Hex Body, Incl in 1


Alts

Select

Ref.

7

Qty

1

Availability

Part #

47399173

Description

BRACKET; Cab Relay Mount


Alts

Select

Ref.

8

Qty

9

Availability

Part #

87689644

Description

FUSE 30A, Blade/Uni; 30A


Alts

Select

Ref.

9

Qty

1

Availability

Part #

84253577

Description

FUSE 60A, Maxi, Blue; 60A, Implement High Power


Alts

Select

Ref.

10

Qty

3

Availability

Part #

84199546

Description

TOOL; Fuse Extractor


Alts

Select

Ref.

11

Qty

8

Availability

Part #

84153830

Description

FUSE 5A, Mini, Beige; 5A Mini, Beige


Alts

Select

Ref.

12

Qty

3

Availability

Part #

84147087

Description

FUSE HOLDER; Frame, Fuse/Relay


Alts

Select

Ref.

13

Qty

17

Availability

Part #

84127704

Description

FUSE 20A, Mini, Yellow; 20A Mini, Yellow


Alts

Select

Ref.

14

Qty

13

Availability

Part #

84127703

Description

FUSE 15A, Mini, Blue; 15A Mini, Blue


Alts

Select

Ref.

15

Qty

28

Availability

Part #

84127702

Description

FUSE 10A, Mini, Red; 10A Mini, Red


Alts

Select

Ref.

16

Qty

2

Availability

Part #

82012388

Description

FUSE 30A, Maxival, Green; 30A Maxi, Green


Alts

Select

Ref.

17

Qty

1

Availability

Part #

84539290

Description

RELAY 12V, 50A; Maxi, SPST, Implement High Power, Optional


Alts

Select

Ref.

18

Qty

1

Availability

Part #

84543666

Description

RELAY 12V, 40A, Mini; Mini, SPDT, Implement Low Power, Optional


Alts
