TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
21LOCK VALVE; VALVE ASSY, power steering pilot, for components see list of parts under details of power steering pilot valve
-
3BOLT Hex, 3/8'' - 16 x 2 1/2'', Gr 5;
-
3LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
-
31O-RING 0.924'' ID x 0.103'' Width; 15/16 x 1-1/8 x 3/32, pilot valve large
-
41O-RING 0.103'' Thk x 0.799'' ID, -117, Cl 5, 75 Duro; 13/16 x 1 x 3/32, pilot valve small
-
51PUMP; hydrostatic power steering hand, for components see list of parts under details of hydrostatic power steering hand pump
-
4BOLT Hex, 5/16'' - 18 x 1 1/4'', Gr 5;
-
4LOCK WASHER Int Tooth, 5/16''; WASHER, LOCK, Int Tooth, 5/16''
-
65O-RING 0.087'' Thk x 0.644'' ID, -908, Cl 6, 90 Duro; .644 x .818 x .087
-
71HYDRAULIC HOSE; & HOSE ASSY, hand pump RH
-
81HYD TUBE; PIPE & HOSE ASSY, hand pump LH
-
92ELBOW 90 Degree, 3/4''-16, 37 Degree x 3/4''-16, O-Ring; 3/4-16 37 deg flared tube adj str thd 90 deg
-
101TUBE; ASSY, valve to bolster frt port center
-
121TUBE; PIPE ASSY, valve to bolster, rear port rear
-
131TUBE; ASSY, valve to bolster frt port frt section
-
141HYD CONNECTOR 9/16''-18, 37 Degree x 9/16''-18, O-Ring; CONNECTOR, 9/16-18 37 deg hyd flared tube short swivel
-
151ELBOW 90 Degree, 9/16''-18, 37 Degree x 9/16''-18, O-Ring; 9/16-18 37 deg hyd flared tube adj str thd 90 deg
-
162O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro; 6-1, 90 Duro, .468'' ID x .078'' Thk, 3/8 OD tube, connector
-
171TUBE; ASSY, valve to bolster, frt port rear
-
192CLAMP; hyd tube
-
2NUT 1/4''-20, G5;
-
2LOCK WASHER 1/4''; WASHER, LOCK, 1/4''
-
2BOLT Hex, 1/4'' - 20 x 1'', Gr 5;
-
201SEAL; power steering hand pump shaft
-
211TUBE; ASSY, valve to bolster rear port frt section
-
221TUBE 0.375'' OD, 58.4, 9.8'' Length; ASSY, valve to bolster rear port center
-
234O-RING 0.07'' Thk x 0.489'' ID, -14, Cl 6, 90 Duro; 1/2 x 5/8 x 1/16 pressure tube union
-
242SCREW Hex, 7/16'' - 20 x 1''; pressure tube union
-
2WASHER; 15/32 x 3/4 x 22 ga
-
252HOSE CLAMP #10, 0.56/1.06 Type F Worm; CLAMP, hyd return hose
-
262O-RING 0.103'' Thk x 2.987'' ID, -151, Cl 5, 75 Duro; 3 x 3-3/16 x 3/32, rack seal
-
271MANIFOLD; ASSY, oil cooler return
-
3LEVER;
-
291CLAMP; ASSY, oil cooler & p/s tube center
-
1LOCK WASHER 1/4''; WASHER, LOCK, 1/4''
-
1BOLT Hex, 1/4'' - 20 x 3/4'', Gr 5; SCREW, 1/4-20 3/4 hex-hd cap
-
1BOLT Hex, 1/4'' - 20 x 1'', Gr 5;
-
302HOSE CLAMP #06, .44/.78 Type F Worm; p/s to reservoir #06, .44/.78 Type F Worm
-
321O-RING 0.139'' Thk x 3.734'' ID, -240, Cl 6, 90 Duro; 3-3/4 x 4 x 1/8, cyl sleeve adapter
-
331PISTON; power steering
-
361TUBE; ASSY
-
381O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro; 6-1, 90 Duro, .468'' ID x .078'' Thk, connector
-
391HOUSING; COVER, housing end
-
4BOLT; SCREW, 7/16-14 x 1-7/8 hex-hd cap
-
4WASHER; 15/32 x 7/8 x 1/8 hardened
-
402SEALING RING; RING, rack piston
-
411CAP; steering wheel
-
421O-RING 0.103'' Thk x 2.8'' ID, -149, Cl 5, 75 Duro; 2-13/16 x 3 x 3/32, steering wheel cap
-
431STEERING WHEEL; WHEEL, 16 in. dia steering
-
431STEERING WHEEL; Value, Steering Wheel
-
441SLEEVE CYLINDER; SLEEVE, steering cyl
-
453O-RING 0.21'' Thk x 3.85'' ID, -344, Cl 5, 75 Duro; 3-7/8 x 4-1/4 x 3/16, steering cyl sleeve
Select All
Select
Ref.
2Qty
1Availability
Part #
527492R91Description
LOCK VALVE; VALVE ASSY, power steering pilot, for components see list of parts under details of power steering pilot valveImg
Alts
Select
Ref.
Qty
3Availability
Part #
179849Description
BOLT Hex, 3/8'' - 16 x 2 1/2'', Gr 5;Img
Alts
Select
Ref.
Qty
3Availability
Part #
103321Description
LOCK WASHER 3/8''; WASHER, LOCK, 3/8''Img
Alts
Select
Ref.
3Qty
1Availability
Part #
362796R1Description
O-RING 0.924'' ID x 0.103'' Width; 15/16 x 1-1/8 x 3/32, pilot valve largeImg
Alts
Select
Ref.
4Qty
1Availability
Part #
369908R1Description
O-RING 0.103'' Thk x 0.799'' ID, -117, Cl 5, 75 Duro; 13/16 x 1 x 3/32, pilot valve smallImg
Alts
Select
Ref.
5Qty
1Availability
Part #
388407R95Description
PUMP; hydrostatic power steering hand, for components see list of parts under details of hydrostatic power steering hand pumpImg
Alts
Select
Ref.
Qty
4Availability
Part #
179820Description
BOLT Hex, 5/16'' - 18 x 1 1/4'', Gr 5;Img
Alts
Select
Ref.
Qty
4Availability
Part #
115548Description
LOCK WASHER Int Tooth, 5/16''; WASHER, LOCK, Int Tooth, 5/16''Img
Alts
Select
Ref.
6Qty
5Availability
Part #
570828R1Description
O-RING 0.087'' Thk x 0.644'' ID, -908, Cl 6, 90 Duro; .644 x .818 x .087Img
Alts
Select
Ref.
7Qty
1Availability
Part #
388408R91Description

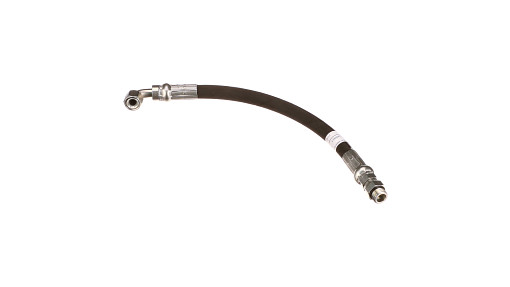

HYDRAULIC HOSE; & HOSE ASSY, hand pump RHImg
Alts
Select
Ref.
8Qty
1Availability
Part #
388409R91Description

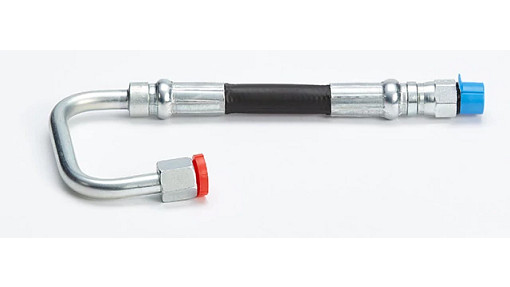

HYD TUBE; PIPE & HOSE ASSY, hand pump LHImg
Alts
Select
Ref.
9Qty
2Availability
Part #
9410977Description
ELBOW 90 Degree, 3/4''-16, 37 Degree x 3/4''-16, O-Ring; 3/4-16 37 deg flared tube adj str thd 90 degImg
Alts
Select
Ref.
10Qty
1Availability
Part #
66139C1Description
TUBE; ASSY, valve to bolster frt port centerImg
Alts
Select
Ref.
12Qty
1Availability
Part #
390951R11Description
TUBE; PIPE ASSY, valve to bolster, rear port rearImg
Alts
Select
Ref.
13Qty
1Availability
Part #
388414R11Description
TUBE; ASSY, valve to bolster frt port frt sectionImg
Alts
Select
Ref.
14Qty
1Availability
Part #
9410202Description
HYD CONNECTOR 9/16''-18, 37 Degree x 9/16''-18, O-Ring; CONNECTOR, 9/16-18 37 deg hyd flared tube short swivelImg
Alts
Select
Ref.
15Qty
1Availability
Part #
9410976Description
ELBOW 90 Degree, 9/16''-18, 37 Degree x 9/16''-18, O-Ring; 9/16-18 37 deg hyd flared tube adj str thd 90 degImg
Alts
Select
Ref.
16Qty
2Availability
Part #
364839R1Description
O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro; 6-1, 90 Duro, .468'' ID x .078'' Thk, 3/8 OD tube, connectorImg
Alts
Select
Ref.
17Qty
1Availability
Part #
66141C1Description
TUBE; ASSY, valve to bolster, frt port rearImg
Alts
Select
Ref.
Qty
2Availability
Part #
103319Description
LOCK WASHER 1/4''; WASHER, LOCK, 1/4''Img
Alts
Select
Ref.
20Qty
1Availability
Part #
382587R1Description
SEAL; power steering hand pump shaftImg
Alts
Select
Ref.
21Qty
1Availability
Part #
388415R11Description
TUBE; ASSY, valve to bolster rear port frt sectionImg
Alts
Select
Ref.
22Qty
1Availability
Part #
66142C1Description
TUBE 0.375'' OD, 58.4, 9.8'' Length; ASSY, valve to bolster rear port centerImg
Alts
Select
Ref.
23Qty
4Availability
Part #
382997R1Description
O-RING 0.07'' Thk x 0.489'' ID, -14, Cl 6, 90 Duro; 1/2 x 5/8 x 1/16 pressure tube unionImg
Alts
Select
Ref.
24Qty
2Availability
Part #
370922R1Description

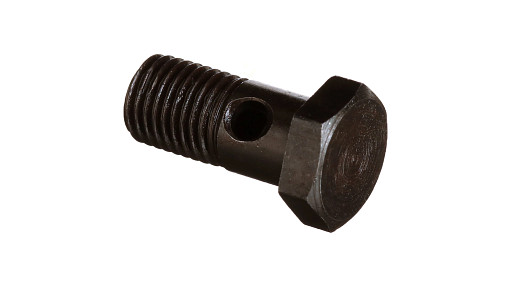

SCREW Hex, 7/16'' - 20 x 1''; pressure tube unionImg
Alts
Select
Ref.
25Qty
2Availability
Part #
274085R91Description
HOSE CLAMP #10, 0.56/1.06 Type F Worm; CLAMP, hyd return hoseImg
Alts
Select
Ref.
26Qty
2Availability
Part #
380910R1Description
O-RING 0.103'' Thk x 2.987'' ID, -151, Cl 5, 75 Duro; 3 x 3-3/16 x 3/32, rack sealImg
Alts
Select
Ref.
27Qty
1Availability
Part #
539551R1Description
MANIFOLD; ASSY, oil cooler returnImg
Alts
Select
Ref.
29Qty
1Availability
Part #
384891R11Description
CLAMP; ASSY, oil cooler & p/s tube centerImg
Alts
Select
Ref.
Qty
1Availability
Part #
103319Description
LOCK WASHER 1/4''; WASHER, LOCK, 1/4''Img
Alts
Select
Ref.
Qty
1Availability
Part #
413-412Description
BOLT Hex, 1/4'' - 20 x 3/4'', Gr 5; SCREW, 1/4-20 3/4 hex-hd capImg
Alts
Select
Ref.
Qty
1Availability
Part #
86505867Description
BOLT Hex, 1/4'' - 20 x 1'', Gr 5;Img
Alts
Select
Ref.
30Qty
2Availability
Part #
279025R91Description
HOSE CLAMP #06, .44/.78 Type F Worm; p/s to reservoir #06, .44/.78 Type F WormImg
Alts
Select
Ref.
32Qty
1Availability
Part #
384349R1Description
O-RING 0.139'' Thk x 3.734'' ID, -240, Cl 6, 90 Duro; 3-3/4 x 4 x 1/8, cyl sleeve adapterImg
Alts
Select
Ref.
38Qty
1Availability
Part #
364839R1Description
O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro; 6-1, 90 Duro, .468'' ID x .078'' Thk, connectorImg
Alts
Select
Ref.
Qty
4Availability
Part #
327202R1Description
BOLT; SCREW, 7/16-14 x 1-7/8 hex-hd capImg
Alts
Select
Ref.
Qty
4Availability
Part #
183544R1Description
WASHER; 15/32 x 7/8 x 1/8 hardenedImg
Alts
Select
Ref.
40Qty
2Availability
Part #
378651R1Description

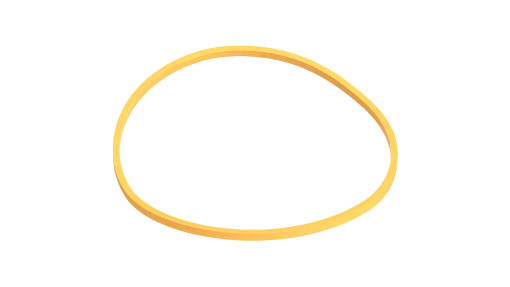

SEALING RING; RING, rack pistonImg
Alts
Select
Ref.
42Qty
1Availability
Part #
295204R1Description
O-RING 0.103'' Thk x 2.8'' ID, -149, Cl 5, 75 Duro; 2-13/16 x 3 x 3/32, steering wheel capImg
Alts
Select
Ref.
43Qty
1Availability
Part #
385156R1Description
STEERING WHEEL; WHEEL, 16 in. dia steeringImg
Alts
Select
Ref.
43Qty
1Availability
Part #
385156R1GVDescription

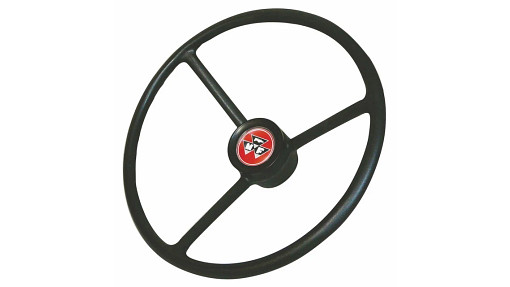

STEERING WHEEL; Value, Steering WheelImg
Alts
Select
Ref.
44Qty
1Availability
Part #
367805R2Description
SLEEVE CYLINDER; SLEEVE, steering cylImg
Alts
Select
Ref.
45Qty
3Availability
Part #
254688R1Description
O-RING 0.21'' Thk x 3.85'' ID, -344, Cl 5, 75 Duro; 3-7/8 x 4-1/4 x 3/16, steering cyl sleeveImg
Alts
