14 - SWING POST & SWING CYLINDERS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    2
    CSE47463
    HYDRAULIC CYLINDER 227.84mm Stroke; Swing
  • 2
    2
    SML47879
    REDUCER; Restrictor, .093''
  • 3
    1
    CSE48146
    FRAME; Spring

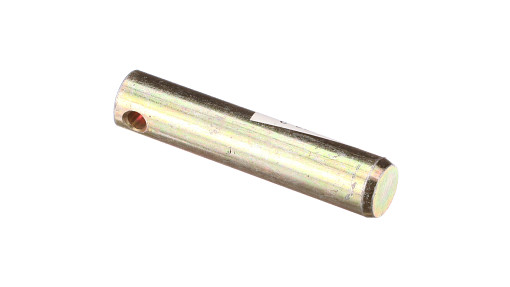

  • 4
    2
    SML466322
    PIN; Swing Cylinder, 1x4-3/4''
  • 5
    8
    SML45098
    WASHER; Bushing, Machine, 1-3/4'' I.D.
  • 6
    2
    280649
    BOLT Tap, Hex, 5/6'' - 18 x 2'', Gr 5; Screw, Cap, HH, G5, 5/16''-18 x 2''
  • 7
    6
    86629544
    LOCK NUT 5/16'' - 18, GR B; NUT LOCK, 5/16''-18, GB
  • 8
    2
    SML48212
    PIN 44.45mm OD x 127mm L; Swing Post, 1-3/4x5''
  • 9
    1
    SML44813
    U-BOLT; Clamp, U-Bolt, 5/16''
  • 10
    2
    9637692
    NUT 3/8'' - 16, Gr B; NUT, LOCK, GC, 3/8''-16
  • 11
    2
    87414
    LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; NIPPLE, LUBE, 1/4''-28 x .56'' lg, Drive
  • 12
    1
    CSE48211
    LOCKING PLATE; Lock, Boom
  • 13
    4
    86582378
    WASHER 25.4mm ID x 38.1mm OD x 1.98mm Thk; Machine, 1'' I.D.
  • 14
    1
    PL
    PROCURE LOCALLY; Screw, Cap, HH, 3/8''-16 x 2-3/4'', Grade 8
  • 15
    1
    SML3636815
    PIN; Boom Cylinder Rod, 1-1/4x7-13/16''
  • 16
    3
    87339
    BOLT Hex, 1/2'' - 13 x 3'', Gr 5; Screw, Cap, HH, G5, 1/2''-13 x 3''
  • 17
    1
    SML48213
    PIN; 1-1/2 x 8.06''
  • 18
    3
    PL
    PROCURE LOCALLY; Fitting, Grease, 1/8'' NPT
  • 19
    1
    SML44909
    DECAL; Swing Lock
  • 20
    1
    SML4190217
    CLEVIS PIN; Pin, Swing Lock, 1 x 3.25''
  • 21
    1
    86627125
    COTTER PIN 0.148'' OD x 2.75'' OAL, Internal; PIN, SPLIT (COTTER), , Hair Int, 7/32'' x 2.75'' x 0.148''
  • 22
    2
    SML474621
    BUSHING; 1'' I.D. x 1.25'' O.D.
  • 23
    3
    9636698
    NUT 1/2'' - 13, Gr B; NUT, LOCK, GC, 1/2''-13
