07-035 - SPEED TRANSMISSION, IN-CLUTCH HOUSING
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    66014C1
    SNAP RING; FRONT NEEDLE BRG INT
  • 2
    1
    613639C91
    NEEDLE BEARING 38.1mm ID x 47.65mm OD x 25.4mm W; MAIN SHAFT NEEDLE
  • 3
    1
    65258C1
    SHAFT; MAIN, SYNCHROMESH DRIVE
  • 3
    1
    3118323R1
    SHAFT; MAIN, TORQUE AMPLIFIER
  • 4
    1
    398334R1
    SNAP RING; MAIN SHAFT BRG RETAINER INNER
  • 5
    1
    67322C91
    BEARING, BALL 50 mm ID x 90 mm OD x 20 mm; MAIN SHAFT
  • 5
    1
    10690V
    BEARING, BALL; MAIN SHAFT
  • 5
    1
    140639R91
    BEARING, BALL; MAIN SHAFT
  • 5
    1

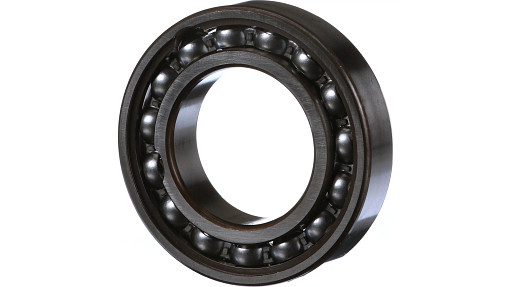

    ST278
    BEARING, BALL 49.99mm ID x 90mm OD x 20mm W; MAIN SHAFT
  • 5
    1
    67651C91
    BEARING, BALL; MAIN SHAFT
  • 5
    1
    67652C91
    BEARING, BALL; MAIN SHAFT
  • 5
    1
    67656C91
    BEARING, BALL 50 mm ID x 90 mm OD x 20 mm; MAIN SHAFT
  • 5
    1
    272566R91
    BEARING, BALL; MAIN SHAFT
  • 5
    1
    302175R91
    BEARING, BALL; MAIN SHAF, OPTIONAL
  • 6
    1
    327068R1
    SNAP RING; RING SNAP MAIN SHAFT BRG RETAINER OUTER
  • 7
    4
    534411R1
    BEARING ASSY; CAGE ASSY, MAIN SHAFT BRG, INCLUDES SCREWS
  • 4
    413-616
    BOLT Hex, 3/8'' - 16 x 1'', Gr 5;
  • 8
    2
    404281R1
    RING Locking, 46.08mm ID x 50.8mm OD x 2.37mm Thk; MAINSHAFT LUB LINE SEAL
  • 9
    1
    398332R1
    WASHER; RING
  • 10
    1
    66153C2
    PINION; GEAR, 1ST SPEED DRIVEN -45T, SLOW SPEED TRAIN TYPE D
  • 10
    1
    398331R2
    PINION; GEAR, 1ST SPEED DRIVEN -41T, FAST SPEED TRAIN TYPE B
  • 10
    1
    398269R2
    GEAR; GEAR, 1ST SPEED DRIVEN -44T, SPEED TRAIN TYPE A
  • 11
    1
    398325R1
    HUB; 1ST AND 2ND SPEED SHIFT
  • 12
    1
    65793C2
    SYNCHRONIZER; PACKAGE, SERVICE
  • 13
    1
    66155C3
    GEAR; 2ND SPEED DRIVEN -41T, FAST SPEED TRAIN TYPE B
  • 13
    1
    398330R3
    PINION; GEAR, 2ND SPEED DRIVEN -33T
  • 14
    2
    398328R2
    THRUST WASHER; MAIN SHAFT
  • 15
    1
    398329R1
    CIRCLIP; SYNCHRONIZER
  • 16
    1
    398330R3
    PINION; GEAR, 3RD SPEED DRIVEN -33T, SLOW SPEED TRAIN TYPE D
  • 16
    1
    398327R3
    PINION; GEAR, 4TH SPEED DRIVEN -24T, FAST SPEED TRAIN TYPE B
  • 16
    1
    398330R3
    PINION; GEAR, 3RD SPEED DRIVEN -33T, SPEED TRAIN TYPE A
  • 17
    1
    398325R1
    HUB; 3RD AND 4TH SPEED SHIFT
  • 18
    1
    65793C2
    SYNCHRONIZER; PACKAGE, SERVICE
  • 19
    1
    531168R91
    BEARING, NEEDLE Needle, 34.91mm ID x 44.44mm OD x 15.88mm W; CLUTCH SHAFT
  • 20
    1
    379511R1
    SNAP RING #177, 1.657'', Ext; IPTO DRIVE SHAFT BRG RETAINER
  • 21
    1
    ST42
    BEARING; SPARE PART IPTO DRIVE SHAFT BALL
  • 21
    1
    65354C91
    BALL BEARING; IPTO DRIVE SHAFT
  • 21
    1
    67653
    BALL BEARING; IPTO DRIVE SHAFT, OPTIONAL
  • 22
    1
    71230C2
    SHAFT; IPTO DRIVE
  • 23
    1
    376930R91
    OIL SEAL 39.24mm ID x 57.35mm OD x 8mm Thk; IPTO DRIVE SHAFT OIL
  • 24
    1
    3125797R1
    OIL SEAL; CLUTCH SHAFT
  • 25
    1
    355740R1
    O-RING 0.139'' Thk x 3.734'' ID, -240, Cl 5, 75 Duro; 3-3/4 X 4 X 1/8
  • 27
    1
    26969R1
    O-RING 0.139'' Thk x 5.234'' ID, -252, Cl 6, 90 Duro; 5-1/4 X 5-5/8 X 1/8 BRG CAGE
  • 28
    1

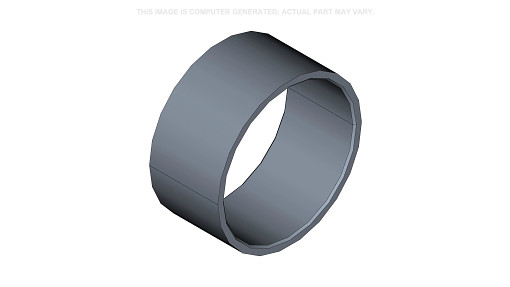

    398319R1
    BUSHING 30.05mm ID x 33.48mm OD x 15.88mm L; CLUTCH SHAFT
  • 29
    1
    398323R91
    BALL BEARING; CLUTCH SHAFT
  • 29
    1
    70126C91
    BALL BEARING; CLUTCH SHAFT
  • 29
    1
    ST243
    BEARING, BALL 45 mm ID x 85 mm OD x 19 mm; CLUTCH SHAFT
  • 29
    1
    42347D
    BALL BEARING; CLUTCH SHAFT
  • 29
    1
    3066862R91
    BALL BEARING; CLUTCH SHAFT
  • 29
    1
    3066860R91
    BALL BEARING; CLUTCH SHAFT
  • 29
    1
    3067617R91
    BEARING, BALL; CLUTCH SHAFT, OPTIONAL
  • 30
    1
    1502168C1
    SHAFT; CLUTCH
  • 31
    1
    574964R1
    SNAP RING; RING SNAP COUNTERSHAFT BRG
  • 32
    1
    379511R1
    SNAP RING #177, 1.657'', Ext; COUNTERSHAFT BRG
  • 33
    1
    452883R91
    BALL BEARING; COUNTERSHAFT
  • 33
    1
    13176D
    BALL BEARING 2.257'' ID x 3.3465'' OD x 0.748''; COUNTERSHAFT
  • 33
    1

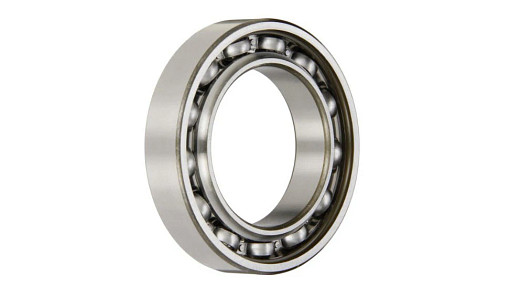

    ST201
    BALL BEARING 45mm ID x 85mm OD x 19mm W; COUNTERSHAFT
  • 33
    1
    67646C91
    BALL BEARING; COUNTERSHAFT
  • 33
    1
    114577C91
    BEARING, BALL 44.994 mm ID x 84.9925 mm OD x 18.94 mm; COUNTERSHAFT, OPTIONAL
  • 34
    1
    398268R1
    BUSHING; RING SPACER, UP TO S/N 685/11024, 268/813 AND H85/3024
  • 34
    1
    398264R1
    SNAP RING #215, 2.026'', Ext; RETAINING, 1ST SPEED DRIVE GEAR, FAST AND/OR SLOW, S/N 685/11025, 268/814 AND H85/3025 UP
  • 35
    1
    404089R2
    SHAFT; SPEED TRASMISSION
  • 36
    1
    66152C1
    PINION; GEAR, 1ST SPEED DRIVE -22T, SLOW SPEED TRAIN TYPE D
  • 36
    1
    404093R1
    GEAR; GEAR, 1ST SPEED DRIVE -26T, FAST SPEED TRAIN TYPE B
  • 36
    1
    404095R1
    GEAR; 1ST SPEED DRIVE -23T, SPEED TRAIN TYPE A
  • 37
    1
    404093R1
    GEAR; GEAR, 2ND SPEED DRIVE -26T, SLOW SPEED TRAIN TYPE D
  • 37
    1
    404092R1
    PINION; GEAR, 2ND SPEED DRIVE -34T, FAST SPEED TRAIN TYPE B
  • 37
    1
    404094R1
    PINION; GEAR, 2ND SPEED DRIVE -28T, SPEED TRAIN TYPE A
  • 38
    1
    404092R1
    PINION; GEAR, 3RD SPEED DRIVE -34T, SLOW SPEED TRAIN TYPE D
  • 38
    1
    404091R1
    PINION; GEAR, 3RD SPEED DRIVE -43T, FAST SPEED TRAIN TYPE B
  • 38
    1
    404092R1
    PINION; GEAR, 3RD SPEED DRIVE -34T, SPEED TRAIN TYPE A
  • 39
    1
    404090R1
    PINION; GEAR, CONSTANT MESH DRIVEN -39T
  • 40
    1
    398264R1
    SNAP RING #215, 2.026'', Ext; CONSTANT MESH DRIVEN GEAR RETAINING
  • 41
    1

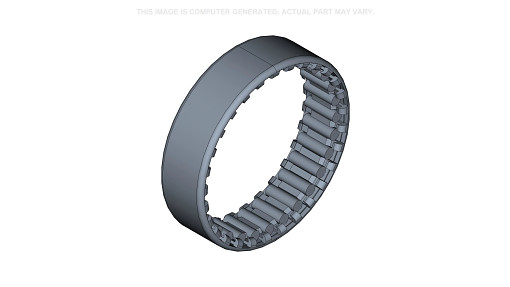

    399820R91
    NEEDLE BEARING Needle, 47.61mm ID x 57.16mm OD x 15.88mm W; COUNTERSHAFT FRONT
  • 41
    1
    527746R91
    NEEDLE BEARING; COUNTERSHAFT FRONT, OPTIONAL
  • 42
    1
    398259R1
    PLATE; PLATE, LARGE RETAINER, IPTO DRIVEN SHAFT FRONT BRG CAP, INCLUDES SCREWS
  • 3
    179838
    BOLT Hex, 3/8'' - 16 x 7/8'', Gr 5, Full Thd;
  • 43
    1
    398260R2
    GASKET; IPTO DRIVEN SHAFT FRONT BRG RETAINER
  • 44
    1
    555601R1
    SNAP RING; RING SNAP IPTO DRIVEN SHAFT FRONT BRG RETAINER
  • 45
    1
    69384C91
    BALL BEARING; IPTO DRIVEN SHAFT FRONT
  • 45
    1
    65353C91
    BALL BEARING; IPTO DRIVEN SHAFT FRONT
  • 45
    1
    ST367
    BEARING, BALL 25 mm ID x 62 mm OD x 17 mm; IPTO DRIVEN SHAFT FRONT
  • 46
    1
    404214R1
    GEAR; IPTO DRIVEN -46T, TRACTORS W/DUAL SPEED IPTO, UP TO 4242, 6597 UP
  • 46
    1
    527770R1
    GEAR; IPTO DRIVEN 46T AND TA DRIVE 33T, TRACTOR W/TORQUE AMPLIFIER FITTED W/DE-LUXE CAB, 4243 UP, UP TO 6596
  • 47
    1
    399837R1
    SNAP RING #118, 1.121'', Ext; IPTO DRIVEN GEAR RETAINER
  • 48
    1
    536748R1
    SHAFT; IPTO DRIVEN
  • -
    1502169C91
    FIP KIT; PACKAGE, FIELD IMPROVEMENT, AS REQUIRED, NOT ILLUSTRATED, CONSISTS OF
  • 1
    398318R31
    CAGE; ASSY, NOT ILLUSTRATED
  • 1
    1502168C1
    SHAFT; CLUTCH, NOT ILLUSTRATED
  • 1
    71230C2
    SHAFT; CLUTCH, NOT ILLUSTRATED
Select All

Select

Ref.

1

Qty

1

Availability

Part #

66014C1

Description

SNAP RING; FRONT NEEDLE BRG INT


Alts

Select

Ref.

2

Qty

1

Availability

Part #

613639C91

Description

NEEDLE BEARING 38.1mm ID x 47.65mm OD x 25.4mm W; MAIN SHAFT NEEDLE


Alts

Select

Ref.

3

Qty

1

Availability

Part #

65258C1

Description

SHAFT; MAIN, SYNCHROMESH DRIVE


Alts

Select

Ref.

3

Qty

1

Availability

Part #

3118323R1

Description

SHAFT; MAIN, TORQUE AMPLIFIER


Alts

Select

Ref.

4

Qty

1

Availability

Part #

398334R1

Description

SNAP RING; MAIN SHAFT BRG RETAINER INNER


Alts

Select

Ref.

5

Qty

1

Availability

Part #

67322C91

Description

BEARING, BALL 50 mm ID x 90 mm OD x 20 mm; MAIN SHAFT


Alts

Select

Ref.

5

Qty

1

Availability

Part #

10690V

Description

BEARING, BALL; MAIN SHAFT


Alts

Select

Ref.

5

Qty

1

Availability

Part #

140639R91

Description

BEARING, BALL; MAIN SHAFT


Alts

Select

Ref.

5

Qty

1

Availability

Part #

ST278

Description

BEARING, BALL 49.99mm ID x 90mm OD x 20mm W; MAIN SHAFT


Alts

Select

Ref.

5

Qty

1

Availability

Part #

67651C91

Description

BEARING, BALL; MAIN SHAFT


Alts

Select

Ref.

5

Qty

1

Availability

Part #

67652C91

Description

BEARING, BALL; MAIN SHAFT


Alts

Select

Ref.

5

Qty

1

Availability

Part #

67656C91

Description

BEARING, BALL 50 mm ID x 90 mm OD x 20 mm; MAIN SHAFT


Alts

Select

Ref.

5

Qty

1

Availability

Part #

272566R91

Description

BEARING, BALL; MAIN SHAFT


Alts

Select

Ref.

5

Qty

1

Availability

Part #

302175R91

Description

BEARING, BALL; MAIN SHAF, OPTIONAL


Alts

Select

Ref.

6

Qty

1

Availability

Part #

327068R1

Description

SNAP RING; RING SNAP MAIN SHAFT BRG RETAINER OUTER


Alts

Select

Ref.

7

Qty

4

Availability

Part #

534411R1

Description

BEARING ASSY; CAGE ASSY, MAIN SHAFT BRG, INCLUDES SCREWS


Alts

Select

Ref.

Qty

4

Availability

Part #

413-616

Description

BOLT Hex, 3/8'' - 16 x 1'', Gr 5;


Alts

Select

Ref.

8

Qty

2

Availability

Part #

404281R1

Description

RING Locking, 46.08mm ID x 50.8mm OD x 2.37mm Thk; MAINSHAFT LUB LINE SEAL


Alts

Select

Ref.

9

Qty

1

Availability

Part #

398332R1

Description

WASHER; RING


Alts

Select

Ref.

10

Qty

1

Availability

Part #

66153C2

Description

PINION; GEAR, 1ST SPEED DRIVEN -45T, SLOW SPEED TRAIN TYPE D


Alts

Select

Ref.

10

Qty

1

Availability

Part #

398331R2

Description

PINION; GEAR, 1ST SPEED DRIVEN -41T, FAST SPEED TRAIN TYPE B


Alts

Select

Ref.

10

Qty

1

Availability

Part #

398269R2

Description

GEAR; GEAR, 1ST SPEED DRIVEN -44T, SPEED TRAIN TYPE A


Alts

Select

Ref.

11

Qty

1

Availability

Part #

398325R1

Description

HUB; 1ST AND 2ND SPEED SHIFT


Alts

Select

Ref.

12

Qty

1

Availability

Part #

65793C2

Description

SYNCHRONIZER; PACKAGE, SERVICE


Alts

Select

Ref.

13

Qty

1

Availability

Part #

66155C3

Description

GEAR; 2ND SPEED DRIVEN -41T, FAST SPEED TRAIN TYPE B


Alts

Select

Ref.

13

Qty

1

Availability

Part #

398330R3

Description

PINION; GEAR, 2ND SPEED DRIVEN -33T


Alts

Select

Ref.

14

Qty

2

Availability

Part #

398328R2

Description

THRUST WASHER; MAIN SHAFT


Alts

Select

Ref.

15

Qty

1

Availability

Part #

398329R1

Description

CIRCLIP; SYNCHRONIZER


Alts

Select

Ref.

16

Qty

1

Availability

Part #

398330R3

Description

PINION; GEAR, 3RD SPEED DRIVEN -33T, SLOW SPEED TRAIN TYPE D


Alts

Select

Ref.

16

Qty

1

Availability

Part #

398327R3

Description

PINION; GEAR, 4TH SPEED DRIVEN -24T, FAST SPEED TRAIN TYPE B


Alts

Select

Ref.

16

Qty

1

Availability

Part #

398330R3

Description

PINION; GEAR, 3RD SPEED DRIVEN -33T, SPEED TRAIN TYPE A


Alts

Select

Ref.

17

Qty

1

Availability

Part #

398325R1

Description

HUB; 3RD AND 4TH SPEED SHIFT


Alts

Select

Ref.

18

Qty

1

Availability

Part #

65793C2

Description

SYNCHRONIZER; PACKAGE, SERVICE


Alts

Select

Ref.

19

Qty

1

Availability

Part #

531168R91

Description

BEARING, NEEDLE Needle, 34.91mm ID x 44.44mm OD x 15.88mm W; CLUTCH SHAFT


Alts

Select

Ref.

20

Qty

1

Availability

Part #

379511R1

Description

SNAP RING #177, 1.657'', Ext; IPTO DRIVE SHAFT BRG RETAINER


Alts

Select

Ref.

21

Qty

1

Availability

Part #

ST42

Description

BEARING; SPARE PART IPTO DRIVE SHAFT BALL


Alts

Select

Ref.

21

Qty

1

Availability

Part #

65354C91

Description

BALL BEARING; IPTO DRIVE SHAFT


Alts

Select

Ref.

21

Qty

1

Availability

Part #

67653

Description

BALL BEARING; IPTO DRIVE SHAFT, OPTIONAL


Alts

Select

Ref.

22

Qty

1

Availability

Part #

71230C2

Description

SHAFT; IPTO DRIVE


Alts

Select

Ref.

23

Qty

1

Availability

Part #

376930R91

Description

OIL SEAL 39.24mm ID x 57.35mm OD x 8mm Thk; IPTO DRIVE SHAFT OIL


Alts

Select

Ref.

24

Qty

1

Availability

Part #

3125797R1

Description

OIL SEAL; CLUTCH SHAFT


Alts

Select

Ref.

25

Qty

1

Availability

Part #

355740R1

Description

O-RING 0.139'' Thk x 3.734'' ID, -240, Cl 5, 75 Duro; 3-3/4 X 4 X 1/8


Alts

Select

Ref.

27

Qty

1

Availability

Part #

26969R1

Description

O-RING 0.139'' Thk x 5.234'' ID, -252, Cl 6, 90 Duro; 5-1/4 X 5-5/8 X 1/8 BRG CAGE


Alts

Select

Ref.

28

Qty

1

Availability

Part #

398319R1

Description

BUSHING 30.05mm ID x 33.48mm OD x 15.88mm L; CLUTCH SHAFT


Alts

Select

Ref.

29

Qty

1

Availability

Part #

398323R91

Description

BALL BEARING; CLUTCH SHAFT


Alts

Select

Ref.

29

Qty

1

Availability

Part #

70126C91

Description

BALL BEARING; CLUTCH SHAFT


Alts

Select

Ref.

29

Qty

1

Availability

Part #

ST243

Description

BEARING, BALL 45 mm ID x 85 mm OD x 19 mm; CLUTCH SHAFT


Alts

Select

Ref.

29

Qty

1

Availability

Part #

42347D

Description

BALL BEARING; CLUTCH SHAFT


Alts

Select

Ref.

29

Qty

1

Availability

Part #

3066862R91

Description

BALL BEARING; CLUTCH SHAFT


Alts

Select

Ref.

29

Qty

1

Availability

Part #

3066860R91

Description

BALL BEARING; CLUTCH SHAFT


Alts

Select

Ref.

29

Qty

1

Availability

Part #

3067617R91

Description

BEARING, BALL; CLUTCH SHAFT, OPTIONAL


Alts

Select

Ref.

30

Qty

1

Availability

Part #

1502168C1

Description

SHAFT; CLUTCH


Alts

Select

Ref.

31

Qty

1

Availability

Part #

574964R1

Description

SNAP RING; RING SNAP COUNTERSHAFT BRG


Alts

Select

Ref.

32

Qty

1

Availability

Part #

379511R1

Description

SNAP RING #177, 1.657'', Ext; COUNTERSHAFT BRG


Alts

Select

Ref.

33

Qty

1

Availability

Part #

452883R91

Description

BALL BEARING; COUNTERSHAFT


Alts

Select

Ref.

33

Qty

1

Availability

Part #

13176D

Description

BALL BEARING 2.257'' ID x 3.3465'' OD x 0.748''; COUNTERSHAFT


Alts

Select

Ref.

33

Qty

1

Availability

Part #

ST201

Description

BALL BEARING 45mm ID x 85mm OD x 19mm W; COUNTERSHAFT


Alts

Select

Ref.

33

Qty

1

Availability

Part #

67646C91

Description

BALL BEARING; COUNTERSHAFT


Alts

Select

Ref.

33

Qty

1

Availability

Part #

114577C91

Description

BEARING, BALL 44.994 mm ID x 84.9925 mm OD x 18.94 mm; COUNTERSHAFT, OPTIONAL


Alts

Select

Ref.

34

Qty

1

Availability

Part #

398268R1

Description

BUSHING; RING SPACER, UP TO S/N 685/11024, 268/813 AND H85/3024


Alts

Select

Ref.

34

Qty

1

Availability

Part #

398264R1

Description

SNAP RING #215, 2.026'', Ext; RETAINING, 1ST SPEED DRIVE GEAR, FAST AND/OR SLOW, S/N 685/11025, 268/814 AND H85/3025 UP


Alts

Select

Ref.

35

Qty

1

Availability

Part #

404089R2

Description

SHAFT; SPEED TRASMISSION


Alts

Select

Ref.

36

Qty

1

Availability

Part #

66152C1

Description

PINION; GEAR, 1ST SPEED DRIVE -22T, SLOW SPEED TRAIN TYPE D


Alts

Select

Ref.

36

Qty

1

Availability

Part #

404093R1

Description

GEAR; GEAR, 1ST SPEED DRIVE -26T, FAST SPEED TRAIN TYPE B


Alts

Select

Ref.

36

Qty

1

Availability

Part #

404095R1

Description

GEAR; 1ST SPEED DRIVE -23T, SPEED TRAIN TYPE A


Alts

Select

Ref.

37

Qty

1

Availability

Part #

404093R1

Description

GEAR; GEAR, 2ND SPEED DRIVE -26T, SLOW SPEED TRAIN TYPE D


Alts

Select

Ref.

37

Qty

1

Availability

Part #

404092R1

Description

PINION; GEAR, 2ND SPEED DRIVE -34T, FAST SPEED TRAIN TYPE B


Alts

Select

Ref.

37

Qty

1

Availability

Part #

404094R1

Description

PINION; GEAR, 2ND SPEED DRIVE -28T, SPEED TRAIN TYPE A


Alts

Select

Ref.

38

Qty

1

Availability

Part #

404092R1

Description

PINION; GEAR, 3RD SPEED DRIVE -34T, SLOW SPEED TRAIN TYPE D


Alts

Select

Ref.

38

Qty

1

Availability

Part #

404091R1

Description

PINION; GEAR, 3RD SPEED DRIVE -43T, FAST SPEED TRAIN TYPE B


Alts

Select

Ref.

38

Qty

1

Availability

Part #

404092R1

Description

PINION; GEAR, 3RD SPEED DRIVE -34T, SPEED TRAIN TYPE A


Alts

Select

Ref.

39

Qty

1

Availability

Part #

404090R1

Description

PINION; GEAR, CONSTANT MESH DRIVEN -39T


Alts

Select

Ref.

40

Qty

1

Availability

Part #

398264R1

Description

SNAP RING #215, 2.026'', Ext; CONSTANT MESH DRIVEN GEAR RETAINING


Alts

Select

Ref.

41

Qty

1

Availability

Part #

399820R91

Description

NEEDLE BEARING Needle, 47.61mm ID x 57.16mm OD x 15.88mm W; COUNTERSHAFT FRONT


Alts

Select

Ref.

41

Qty

1

Availability

Part #

527746R91

Description

NEEDLE BEARING; COUNTERSHAFT FRONT, OPTIONAL


Alts

Select

Ref.

42

Qty

1

Availability

Part #

398259R1

Description

PLATE; PLATE, LARGE RETAINER, IPTO DRIVEN SHAFT FRONT BRG CAP, INCLUDES SCREWS


Alts

Select

Ref.

Qty

3

Availability

Part #

179838

Description

BOLT Hex, 3/8'' - 16 x 7/8'', Gr 5, Full Thd;


Alts

Select

Ref.

43

Qty

1

Availability

Part #

398260R2

Description

GASKET; IPTO DRIVEN SHAFT FRONT BRG RETAINER


Alts

Select

Ref.

44

Qty

1

Availability

Part #

555601R1

Description

SNAP RING; RING SNAP IPTO DRIVEN SHAFT FRONT BRG RETAINER


Alts

Select

Ref.

45

Qty

1

Availability

Part #

69384C91

Description

BALL BEARING; IPTO DRIVEN SHAFT FRONT


Alts

Select

Ref.

45

Qty

1

Availability

Part #

65353C91

Description

BALL BEARING; IPTO DRIVEN SHAFT FRONT


Alts

Select

Ref.

45

Qty

1

Availability

Part #

ST367

Description

BEARING, BALL 25 mm ID x 62 mm OD x 17 mm; IPTO DRIVEN SHAFT FRONT


Alts

Select

Ref.

46

Qty

1

Availability

Part #

404214R1

Description

GEAR; IPTO DRIVEN -46T, TRACTORS W/DUAL SPEED IPTO, UP TO 4242, 6597 UP


Alts

Select

Ref.

46

Qty

1

Availability

Part #

527770R1

Description

GEAR; IPTO DRIVEN 46T AND TA DRIVE 33T, TRACTOR W/TORQUE AMPLIFIER FITTED W/DE-LUXE CAB, 4243 UP, UP TO 6596


Alts

Select

Ref.

47

Qty

1

Availability

Part #

399837R1

Description

SNAP RING #118, 1.121'', Ext; IPTO DRIVEN GEAR RETAINER


Alts

Select

Ref.

48

Qty

1

Availability

Part #

536748R1

Description

SHAFT; IPTO DRIVEN


Alts

Select

Ref.

Qty

-

Availability

Part #

1502169C91

Description

FIP KIT; PACKAGE, FIELD IMPROVEMENT, AS REQUIRED, NOT ILLUSTRATED, CONSISTS OF


Alts

Select

Ref.

Qty

1

Availability

Part #

398318R31

Description

CAGE; ASSY, NOT ILLUSTRATED


Alts

Select

Ref.

Qty

1

Availability

Part #

1502168C1

Description

SHAFT; CLUTCH, NOT ILLUSTRATED


Alts

Select

Ref.

Qty

1

Availability

Part #

71230C2

Description

SHAFT; CLUTCH, NOT ILLUSTRATED


Alts
