E-11 - CUTTER BARS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    458966R1
    SOLE; inner shoe, divider type, for Farmall tractors
  • 1
    1
    462743R1
    SOLE; inner shoe, stub type, for International tractors
  • 1
    15041R1
    CARRIAGE BOLT Short Sq Nk, 1/2'' - 13 x 1 1/2''; BOLT, 1/2 x 1-1/2 sq-nk crg
  • 1
    103323
    LOCK WASHER 1/2''; WASHER, LOCK, 1/2''
  • 1
    102637
    NUT 1/2''-13, G5;
  • 2
    1
    463404R1
    ROD; inner shoe upper grass, for divider sole
  • 2
    1
    463405R1
    ROD; inner shoe upper grass, for stub sole
  • 3
    1
    461281R1
    ROD; inner shoe lower grass
  • 1
    88530
    CARRIAGE BOLT Sq Nk, 1/2'' - 13 x 1 3/4'', Gr 5; BOLT, 1/2 x 1-3/4 sq-nk crg thru sole-shoe & rod
  • 1
    76730H
    WASHER; 17/32 x 1-1/2 x 11 ga
  • 1
    103323
    LOCK WASHER 1/2''; WASHER, LOCK, 1/2''
  • 1
    102637
    NUT 1/2''-13, G5;
  • 4
    1
    458965R1

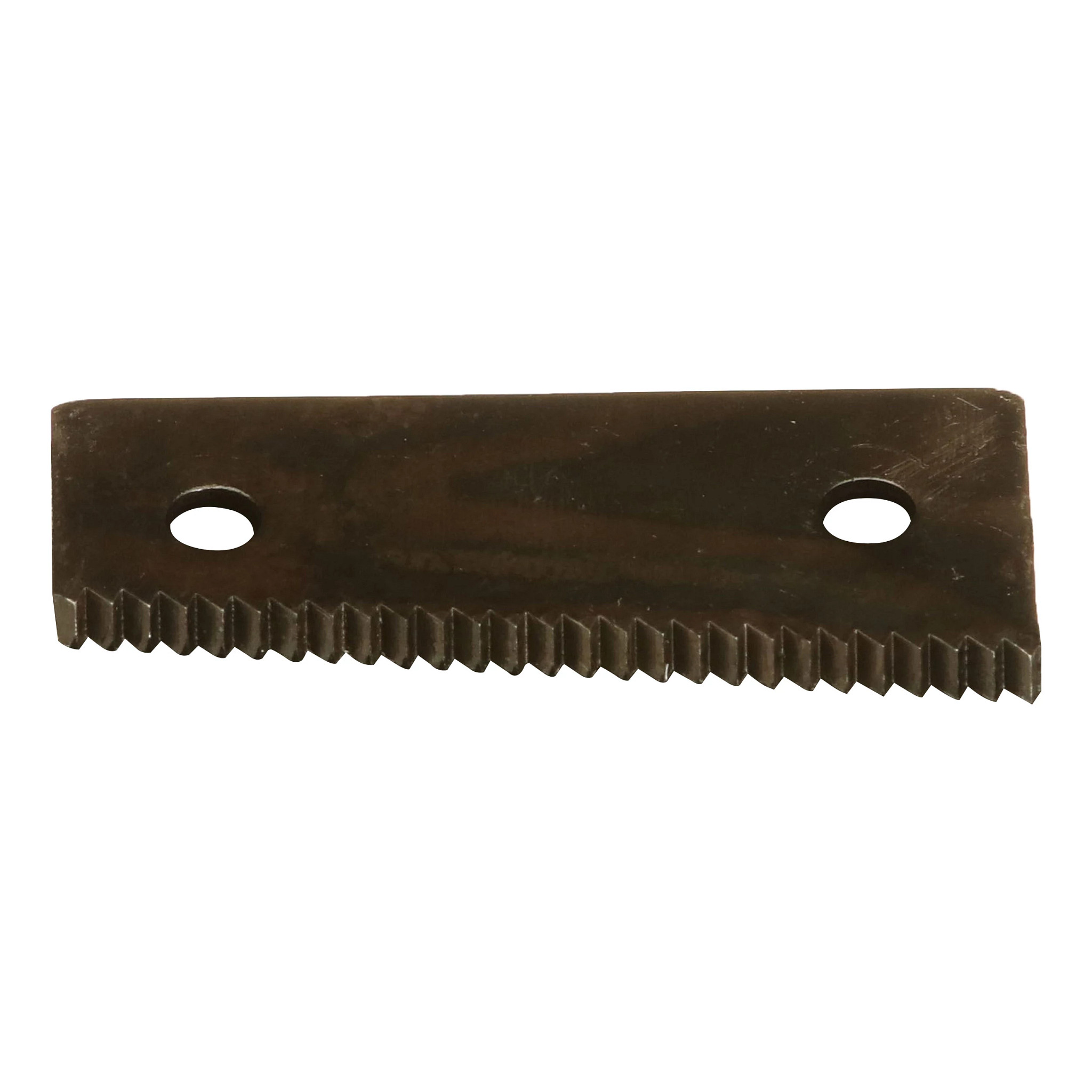

    PLATE; LEDGER PLATE, inner shoe
  • 5
    1
    486934R91
    SHOE; ASSEMBLY, inner, will work for 458962R11
  • 1
    21371R1
    SCREW; W/NYLON PELLET INSERT, 5/8-11 x 2 hex-hd cap
  • 2
    21398R1
    SCREW; W/NYLON PELLET INSERT, 5/8-11 x 2-1/4 hex-hd cap
  • 3
    486707R1
    WASHER;
  • 6
    1
    458942R1
    BAR; SPACER, cutter bar, used with 7 ft bar
  • 7
    1
    455634R1
    PLATE; LEDGER PLATE, plain serrated, 25 for 7 ft., 33 for 9 ft.
  • 7
    1
    457608R1
    CUTTER BAR; LEDGER PLATE, cr-pltd serrated, 25 for 7 ft. only
  • AR
    407039R91
    RIVET Countersunk, 4.76mm OD x 25.4mm L; 3/16 x 1 74 deg csk-hd tubular, one pound package
  • 8
    1
    MC2041Z
    GUARD; GUARD W/PLAIN LEDGER PLATE, heavy, 24 for 7 ft., 32 for 9 ft.
  • 8
    1
    457676R21
    GUARD; W/PLAIN LEDGER PLATE, forged, 24 for 7 ft. only
  • 8
    1
    457743R92
    GUARD; W/CR-PLTD LEDGER PLATE, heavy, 24 for 7 ft. only
  • 8
    1
    459184R91
    GUARD; W/CR-PLTD LEDGER PLATE, forged, 24 for 7 ft. only
  • 8
    1
    484000R11
    GUARD; W/PLAIN SERRATED LEDGER PLATE, 455634R1, knife, for cutter bar w/3 in. row spacing
  • 9
    1
    MA812
    SUPPORT; HOLDER, low arch knife, 6 for 7 ft., 8 for 9 ft.
  • 10
    1
    MC2043Z
    GUARD; W/PLAIN LEDGER PLATE, HV outer
  • 10
    1
    457745R92
    GUARD; W/CR-PLTD LEDGER PLATE, outer
  • 10
    1
    459186R91
    GUARD; W/CR-PLTD LEDGER PLATE, outer forged
  • 11
    1
    MA330
    PLATE; LEDGER PLATE, outer shoe serrated
  • 2
    M805X
    BOLT AND NUT; BOLT W/NUT
  • 2
    103322
    LOCK WASHER 7/16''; WASHER, LOCK, 7/16''
  • 2
    NLS
    NO LONGER SERVICED; 7/16-14 hex.
  • 12
    1
    MF729X
    SHOE; W/SERRATED LEDGER PLATE, outer
  • 2
    M805X
    BOLT AND NUT; BOLT W/NUT, outer shoe
  • 2
    NLS
    NO LONGER SERVICED; 7/16-14 hex.
  • 2
    103322
    LOCK WASHER 7/16''; WASHER, LOCK, 7/16''
  • 13
    1
    M1015
    COMPRESSION SPRING; grass rod tension
  • 1
    13416R1
    BOLT; 1/2 x 3 sq-hd mach
  • 1
    455388R1
    NUT; 1/2-13 hex. lock
  • 1
    12026R1
    WASHER; 17/32 x 1-1/4 x 16 ga
  • 14
    1
    M259X
    SOLE; W/BRACKET, outer shoe
  • 15
    1
    D266X
    BOLT AND NUT; W/NUT, outer shoe sole
  • 1
    102637
    NUT 1/2''-13, G5;
  • 16
    1
    MB812
    CLAMP; HOLDER, high arch knife
  • 17
    1
    MC468
    PLATE ASSY.; PLATE, wearing, 7 for 7 ft., 9 for 9 ft.
  • 18
    1
    826723C1
    KNIFE SECTION; SECTION, regular underserrated, 27 for 7 ft., 35 for 9 ft., replaces ME333
  • 1
    990817R91
    RIVET; no. 6 x 17/32 pln o/hds, 47 for 7 ft., 63 for 9 ft., one pound package
  • 18
    1
    826724C1
    KNIFE SECTION; SECTION, smooth heavy knife, 27 for 7 ft., 35 for 9 ft., replaces M3331/2
  • 18
    1
    826722C1
    KNIFE SECTION; SECTION, underserrated heavy knife, 27 for 7 ft., 35 for 9 ft., replaces M22831
  • 18
    1
    457604R2
    ASSEMBLY; SECTION, regular smooth cr-pltd knife, 27 for 7 ft., 35 for 9 ft.
  • 18
    1
    457605R2
    KNIFE SECTION; SECTION, smooth heavy cr-pltd knife, 27 for 7 ft., 35 for 9 ft.
  • 18
    1
    457606R2
    KNIFE SECTION; SECTION, regular underserrated cr-pltd knife, 27 for 7 ft. only
  • 18
    1
    457607R2
    KNIFE SECTION; SECTION, heavy underserrated cr-pltd, 27 for 7 ft., 35 for 9 ft.
  • 1
    991059R91
    RIVET; no. 6 x 5/8 pln o/hd, 47 for 7 ft., 63 for 9 ft., two pound package
  • 19
    1
    458968R92
    KNIFE ASSY; KNIFE W/REGULAR UNDERSERRATED SECTIONS, 7 ft.
  • 19
    1
    460937R92
    KNIFE; W/CR-PLTD REGULAR UNDERSERRATED SECTIONS, 7 ft.
  • 19
    1
    462380R92
    KNIFE ASSY; KNIFE W/HV UNDERSERRATED SECTION, 7 ft.
  • 19
    1
    467749R91
    KNIFE; W/HV SERRATED SECTION, 7 ft.
  • 19
    1
    462381R92
    KNIFE; W/HEAVY SMOOTH SECTION, 7 ft.
  • 19
    1
    463159R92
    KNIFE; W/UNDERSERRATED SECTION, 9 ft.
  • 19
    1
    463180R92
    KNIFE; W/REGULAR UNDERSERRATED SECTION, 9 ft.
  • 19
    1
    463182R92
    KNIFE; W/HEAVY SMOOTH SECTION, 9 ft.
  • 19
    1
    467748R91
    KNIFE; W/CR-PLTD SMOOTH SECTION, 7 ft.
  • 19
    1
    472088R91
    KNIFE ASSY; KNIFE W/REGULAR SMOOTH CR-PLTD SECTION, 7 ft.
  • 19
    1
    472089R91
    KNIFE; W/REGULAR CR-PLTD SECTION, 9 ft.
  • 19
    1
    472090R91
    KNIFE; W/HV SMOOTH CR-PLTD SECTION, 9 ft.
  • 19
    1
    472091R91
    KNIFE; W/HEAVY UNDERSERRATED CR-PLTD SECTION, 9 ft.
  • AR
    14763R1
    RIVET Oval Hd, .203'' x 7/8''; no. 6 x 7/8 small ov-hd
  • 20
    1
    458974R1
    BAR; 7 ft. cutter
  • 1
    M805X
    BOLT AND NUT; BOLT W/NUT, short guard, 13 for 7 ft., 17 for 9 ft.
  • 1
    NLS
    NO LONGER SERVICED; 7/16-14 hex., 13 for 7 ft., 17 for 9 ft.
  • 1
    Q3596
    PLOW BOLT 7/16'' - 14 x 1 5/8'', Gr 5; BOLT, long guard, 14 for 7 ft., 18 for 9 ft.
  • 1
    NLS
    NO LONGER SERVICED; 7/16-14 hex., 14 for 7 ft., 18 for 9 ft.
  • 21
    1
    458971R1
    BRONZE BUSHING 25.43mm ID x 28.63mm OD x 35.18mm L; BUSHING, knife head
  • 22
    1
    458972R1
    PLUG; knife head
  • 23
    1
    56692C91
    PITMAN; HEAD ASSY, knife, replaces 462378R11 and 458969R11
  • 24
    AR
    458941R1
    SHIM; cutter bar tilting
  • 25
    1
    461383R1
    CLAMP; CLIP, upper grass rod
  • 26
    1
    467455R11
    VALVE; SECTION, cr-pltd heavy smooth triplet end
  • 26
    1
    467456R11
    KNIFE SECTION; SECTION, cr-pltd heavy unserrated triplet end
  • 26
    1
    467457R11
    KNIFE SECTION; SECTION W/RIVET, cr-pltd regular smooth triplet end
  • 26
    1
    467458R11
    KNIFE SECTION; SECTION W/RIVETS, cr-pltd regular underserrated triplet end
  • 2
    MB133
    RIVET; no. 5-1/2 x 5/8 cd-pltd small ov-hd, one pound package
  • 27
    1
    469975R3
    GAUGE; LEDGER PLATE GAUGE & KNIFE PEN TOOL
  • 28
    1
    471475R1
    BRACKET; CLAMP, outer shoe grass rod
  • 29
    1
    471479R1
    CHANNEL; CLIP, outer shoe grass rod
  • 2
    664646R1
    LOCK NUT 7/16''-14, GB; NUT, 7/16-14 hex. lock
  • 1
    17448R1
    BOLT (SPREADER); BOLT, 1/2 x 1-1/4 hex-hd mach sole to inner shoe
  • 1
    103323
    LOCK WASHER 1/2''; WASHER, LOCK, 1/2''
  • 1
    102637
    NUT 1/2''-13, G5;
  • 32
    1
    471478R1
    ROD; outer shoe grass lower
  • 33
    1
    472720R1
    HOLDER; double forged guard knife, 6 for 7 ft., 8 for 9 ft., 1965
  • 34
    1
    613838R2
    GUARD; double steel forged knife, 12 used for 7 ft., 16 used 9 ft., 1965;REF: #34 - 613838R2 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187350A1.
  • 34
    1
    483500R3
    GUARD; forged steel double knife, 12 used for 7 ft., 16 used 9 ft., 1966 and since;REF: #34A - 483500R3 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187346A1.
  • 35
    1
    472717R2
    GUARD; single steel stub, 27 for 7 ft., 3 for 7 ft. w/double guard and 3 for 9 ft., 2 used with MC2041Z and 484000R11 guard
  • 36
    1
    486708R1
    SHIELD; inner shoe
  • 1
    15016R1
    CARRIAGE BOLT Short Sq Nk, 7/16'' - 14 x 1 1/8'' , Gr 2; BOLT, 7/16 x 1-1/4 sq-nk crg
  • 1
    664646R1
    LOCK NUT 7/16''-14, GB; NUT, 7/16-14 hex. lock
  • 1
    Q5028
    WASHER; 15/32 x 1 x 11 ga
  • 37
    1
    488411R1
    SHIM; spacer
