1688 - CASE IH AXIAL-FLOW... 06 - ELECTRICAL 4-06 - CONSOLE HARNESS, R...
4-06 - CONSOLE HARNESS, RIGHT HAND CONSOLE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    1994820C1
    WIRE HARNESS; console to JJC0119985
    WIRE HARNESS - 1994820C1
  • 1A
    1
    114976A2
    WIRE HARNESS; console; (SN Break) From JJC0119985
    WIRE HARNESS - 114976A2
  • 2
    10
    281-6456
    SELF-TAP SCREW Hex Wash Hd, #10 x 3/8''; self-tapping, hex washer head, No. 10 NF x 3/4 inch
    SELF-TAP SCREW Hex Wash Hd, #10 x 3/8'' - 281-6456
  • 2
    2
    261-13512
    SELF-TAP SCREW Cross Pan Hd, #10 x 3/4''; self-tapping, pan Phillips, No. 10 NC x 3/4 inch
    SELF-TAP SCREW Cross Pan Hd, #10 x 3/4'' - 261-13512
  • 3
    1
    1252476C1
    SWITCH; ignition
    SWITCH - 1252476C1
  • 4
    1
    131313C1
    IGNITION KEY; ignition
    IGNITION KEY - 131313C1
  • 5
    1
    245219C1
    SWITCH; rotor speed to JJC0119985
    SWITCH - 245219C1
  • 5A
    1
    113971A1
    SWITCH; rotor speed; (SN Break) From JJC0119985
    SWITCH - 113971A1
  • 6
    1
    375431R1
    LOCK WASHER; flat, special
    LOCK WASHER - 375431R1
  • 7
    1
    365502R1
    NUT; flat hex, special
    NUT - 365502R1
  • 10
    1
    1546441C1
    BUZZER; ALARM audible
    BUZZER - 1546441C1
  • 11
    1
    1301175C1
    SWITCH; reel lift control
    SWITCH - 1301175C1
  • 12
    2
    342-10610
    SCREW Cross Oval Hd, #6-32 x 5/8''; machine, oval Phillips, No. 6 NC x 5/8 inch
    SCREW Cross Oval Hd, #6-32 x 5/8'' - 342-10610
  • 13
    1
    453453C1
    SWITCH; push button
    SWITCH - 453453C1
  • 14
    7
    1983394C2
    RELAY; electrical
    RELAY - 1983394C2
  • 16
    UAR
    281-1476
    SELF-TAP SCREW Hex Washer, 1/4'' - 20 x 3/8''; self-tapping, hex washer head, 1/4 NC x 3/8 inch
    SELF-TAP SCREW Hex Washer, 1/4'' - 20 x 3/8'' - 281-1476
  • 17
    2
    363444R1
    CLAMP J, 9/16'' Insul, 3/8'' Bolt; retaining
    CLAMP J, 9/16'' Insul, 3/8'' Bolt - 363444R1
  • 19
    2
    281-6456
    SELF-TAP SCREW Hex Wash Hd, #10 x 3/8''; self-tapping, hex washer head, No. 10 NF x 3/4 inch
    SELF-TAP SCREW Hex Wash Hd, #10 x 3/8'' - 281-6456
  • 20
    1
    1994871C1
    GOVERNOR; RECTIFIER central load dump
    GOVERNOR - 1994871C1
  • 23
    1
    1964919C1
    IGNITION SWITCH; feeder clutch to JJC0119985
    IGNITION SWITCH - 1964919C1
  • 23A
    1
    122332A1
    SWITCH; feeder clutch; (SN Break) From JJC0119985
    SWITCH - 122332A1
  • 24
    1
    245632C2

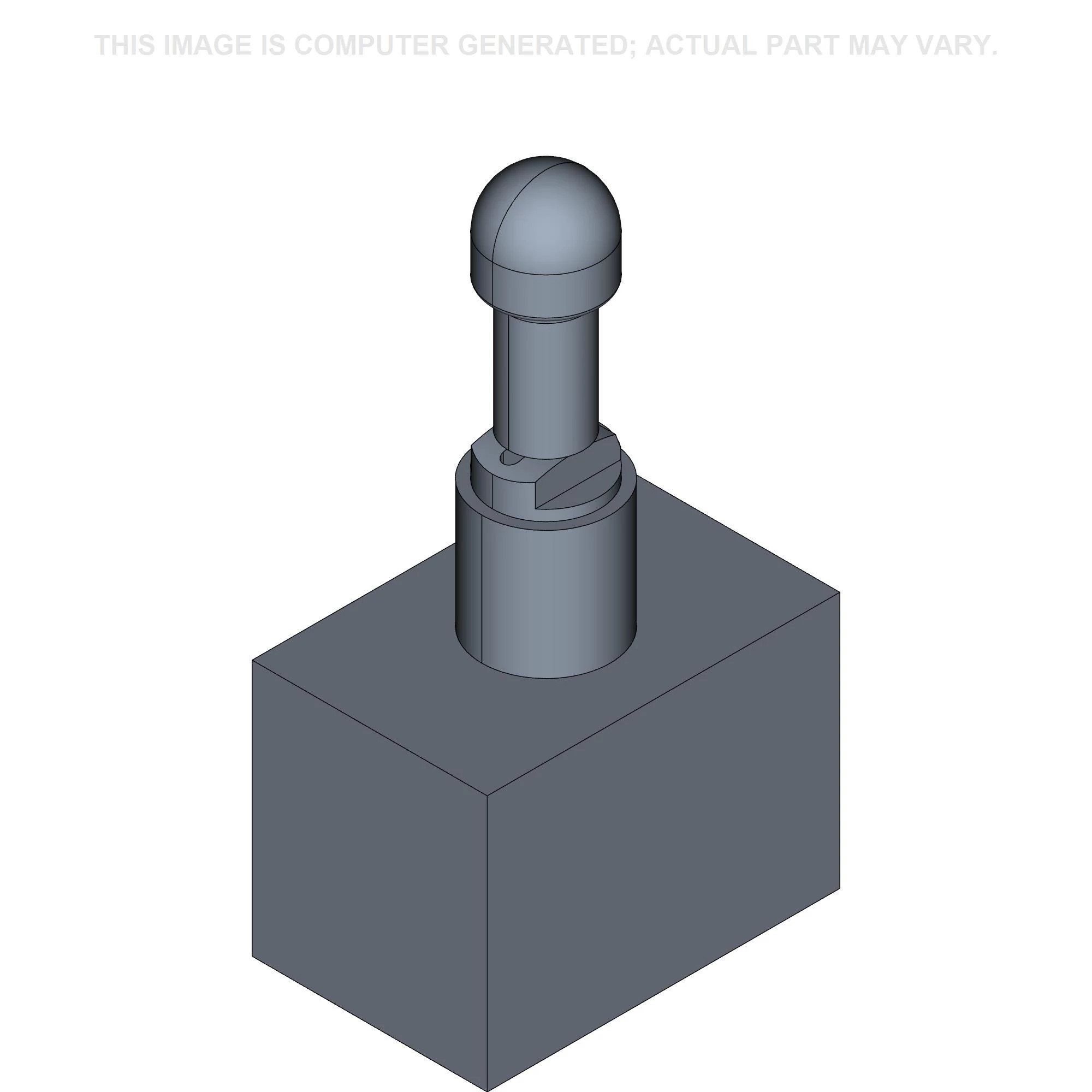

    SWITCH; toggle, separator clutch
    SWITCH - 245632C2
  • 25
    1
    245435C1
    FUSE HOLDER; BLOCK parts list Figure 4-41A for terminals and fuses
    FUSE HOLDER - 245435C1
  • 28
    1
    NSS
    NOT SOLD SEPARAT; BRACKET feedback module mounting, order 1994820C1 harness
    NOT SOLD SEPARAT - NSS
  • 29
    1
    107655C1
    SWITCH; SWITCH magnetic, Includes: Ref. 30 - 33
    SWITCH - 107655C1
  • 30
    1
    225-14210
    NUT #10-32;
    NUT #10-32 - 225-14210
  • 31
    1
    492-11010
    LOCK WASHER #10;
    LOCK WASHER #10 - 492-11010
  • 32
    2
    425-105
    NUT 5/16''-18 NC, G5;
    NUT 5/16''-18 NC, G5 - 425-105
  • 33
    2
    492-11031
    LOCK WASHER 5/16'';
    LOCK WASHER 5/16'' - 492-11031
  • 34
    2
    399470R1
    BOOT; cable
    BOOT - 399470R1
  • 35
    1
    1994819C1
    RELAY; time delay
    RELAY - 1994819C1
  • 37
    1
    453453C1
    SWITCH; push button, ether
    SWITCH - 453453C1
  • 38
    1
    245012C1
    SWITCH; rocker
    SWITCH - 245012C1
  • 39
    1
    245012C1
    CONTACTEUR; rocker
    CONTACTEUR - 245012C1
  • 40
    1
    245219C1
    CONTACTEUR; rotor fan, speed to JJC0119985
    CONTACTEUR - 245219C1
  • 40A
    1
    245336C1
    CONTACTEUR; fan speed; (SN Break) From JJC0119985
    CONTACTEUR - 245336C1
  • 41
    2
    260-1448

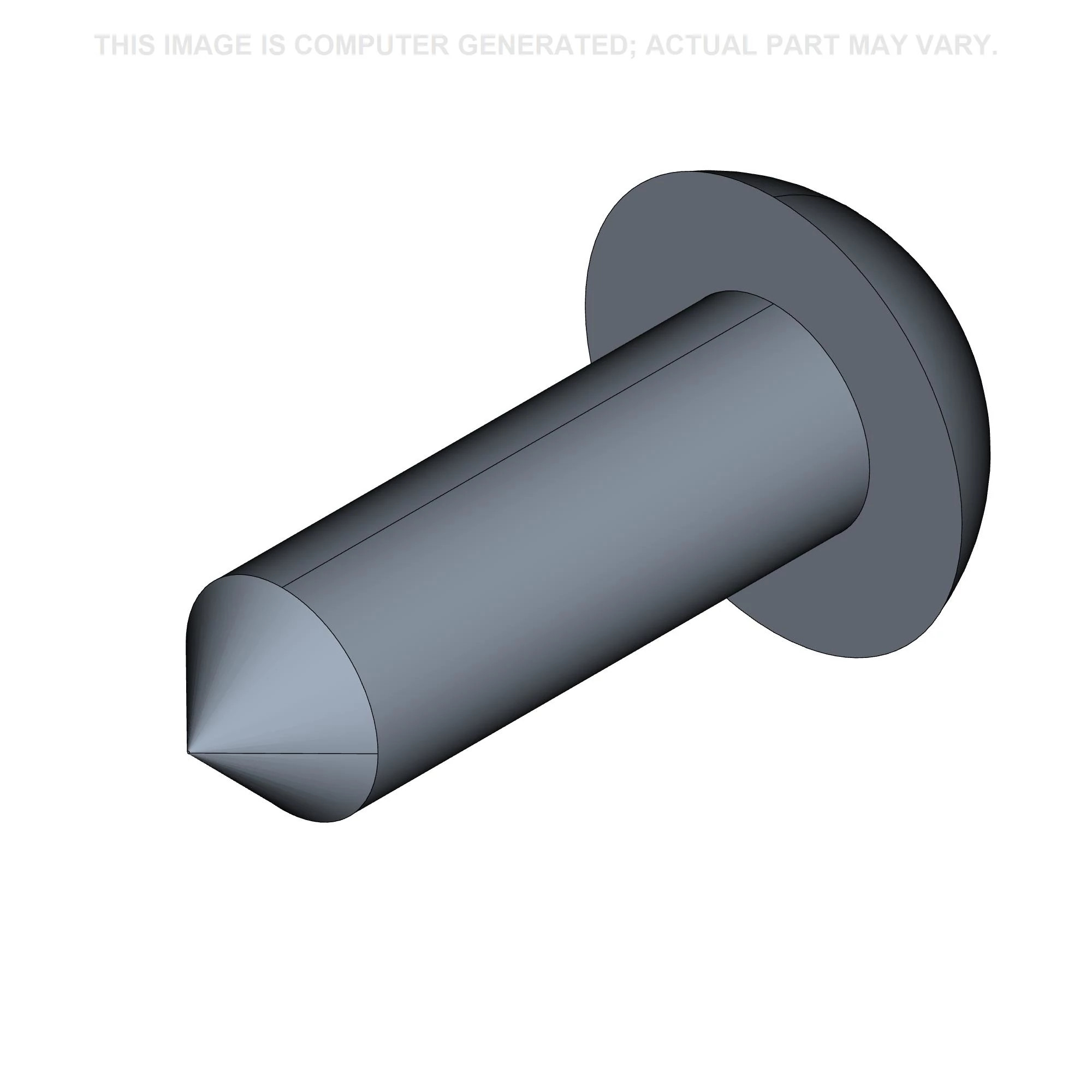

    SELF-TAP SCREW Cross Pan Hd, #8 x 1/2''; self-tapping, pan Phillips, No. 8-18 x 1/2 inch
    SELF-TAP SCREW Cross Pan Hd, #8 x 1/2'' - 260-1448
  • 42
    1
    245334C1
    PLUG; panel switch cover
    PLUG - 245334C1
  • 43
    1
    245653C2
    SWITCH; reel speed manual
    SWITCH - 245653C2
  • 44
    1
    1345235C1
    BUTTON; KNOB control, reel speed switch
    BUTTON - 1345235C1
  • 45
    1
    245509C1
    SWITCH; reel, fore and aft
    SWITCH - 245509C1
  • 46
    1
    245871C1
    BRACKET; circuit breaker
    BRACKET - 245871C1
  • 47
    2
    245765C1
    CIRCUIT-BREAKER 30A; 30 ampere, work lamp and blower
    CIRCUIT-BREAKER 30A - 245765C1
  • 48
    2
    276-1458
    SELF-TAP SCREW Hex Hd, #10 x 1/2'';
    SELF-TAP SCREW Hex Hd, #10 x 1/2'' - 276-1458
  • 49
    2
    245763C1
    CIRCUIT-BREAKER 20A; 20 ampere
    CIRCUIT-BREAKER 20A - 245763C1
  • 50
    2
    245860C1
    BAR; circuit breaker
    BAR - 245860C1
  • 51
    1
    107200C2
    LIGHT SWITCH; lamp
    LIGHT SWITCH - 107200C2
  • 52
    8
    492-11010
    RONDELLE FREIN #10;
    RONDELLE FREIN #10 - 492-11010
  • 53
    1
    363660R1
    COLLIER; CLAMP twisted, console harness
    COLLIER - 363660R1
  • 54
    1
    135270
    SERRATED SCREW 5/16'' - 18 x 3/4''; slotted truss head, 5/16 NC x 3/4 inch
    SERRATED SCREW 5/16'' - 18 x 3/4'' - 135270
  • 55
    8
    225-14210
    NUT #10-32;
    NUT #10-32 - 225-14210
  • 56
    1
    92065C1
    GROMMET; rubber, console harness
    GROMMET - 92065C1
  • 57
    UAR
    937059R1
    SCREW Serr, M10 x 70mm, Cl 10.9; slotted truss head, 1/4 NC x 1/2 inch
    SCREW Serr, M10 x 70mm, Cl 10.9 - 937059R1
  • 58
    UAR
    231-5144
    SERRATED NUT Flg, USR, 1/4''-20;
    SERRATED NUT Flg, USR, 1/4''-20 - 231-5144
  • 59
    1
    121770C2
    TRANSMITTER; MODULE low coolant
    TRANSMITTER - 121770C2
  • 63
    1
    1345209C1
    WIRE HARNESS; seat switch
    WIRE HARNESS - 1345209C1
  • 64
    1
    195804C1
    GROMMET; 1/2 inch
    GROMMET - 195804C1
  • 65
    1
    1983395C1
    COMMUTATEUR DEMARAGE; seat
    COMMUTATEUR DEMARAGE - 1983395C1
  • 66
    2
    440-1258
    VIS Cross Pan Hd, 1/4''-20 x 1/2'';
    VIS Cross Pan Hd, 1/4''-20 x 1/2'' - 440-1258
  • 67
    1
    231-5145
    ECROU STRIE Flg, USR, 5/16''-18;
    ECROU STRIE Flg, USR, 5/16''-18 - 231-5145
  • 79
    1
    1983568C1
    AVERTISSEUR SONORE; ALARM grain tank level
    AVERTISSEUR SONORE - 1983568C1
