TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
1ALTERNATOR; ALTERNATOR ASSY. - (Prestolite #ALK-7314) (Production Only - includes pulley & regulator) (Order 1-A42776, 1-A42777 & 1-A42098)
-
1CORE-ALTERNATOR ALTERNATOR; SPARE PART ALTERNATOR - 12 Volt 35 AMP
-
1ALTERNATOR; SPARE PART ALTERNATOR - 12 Volt 35 AMP
-
1ALTERNATOR; SPARE PART ALTERNATOR - 12 Volt 35 AMP
-
1CORE-ALTERNATOR ALTERNATOR; 201 Gas Power Unit
-
1REMAN-ALTERNATOR; 201 Gas Power Unit
-
1CORE-ALTERNATOR; Return Part Number
-
1REMAN-ALTERNATOR; Remanufactured 12 VOLT, 35 AMP Alternator
-
1CORE-ALTERNATOR; Return Part Number , 12 VOLT, 35 AMP Alternator
-
1ALTERNATOR; ALTERNATOR ASSY. - (Prestolite # ALK-6314-S) (Service Only - w/o pulley or regulator)
-
11KIT; PACKAGE - nut & washer, rotor shaft
-
21FAN; FAN - ventilating
-
31BUSHING; SPACER - rotor shaft
-
61HEAD; SPARE PART HEAD ASSY. - drive end
-
71BALL; BEARING - ball
-
81NOT SOLD SEPARAT; RING - snap, bearing retaining
-
91KIT; PACKAGE - retainer & seal
-
101NOT SOLD SEPARAT; RETAINER - seal
-
111NOT SOLD SEPARAT; SEAL - felt
-
121NOT SOLD SEPARAT; RETAINER - felt seal
-
141KIT; ROTOR ASSY
-
161BALL BEARING 0.3937'' ID x 1.1811'' OD x 0.3543''; BEARING - ball, rotor shaft (sealed)
-
171WOODRUFF KEY #6, 5/32'' x 5/8'', HT; WOODRUFF KEY, #6, 5/32'' x 5/8'', HT
-
181STATOR; STATOR ASSY
-
1STUD; PACKAGE - terminal stud
-
231NOT SOLD SEPARAT; STUD - battery terminal
-
241NOT SOLD SEPARAT; STUD - auxiliary terminal
-
251NOT SOLD SEPARAT; BUSHING - insulation, battery terminal
-
261NOT SOLD SEPARAT; BUSHING - insulation, auxiliary terminal
-
271NOT SOLD SEPARAT; WASHER - insulating, battery terminal
-
281NOT SOLD SEPARAT; WASHER - battery terminal,plain
-
291NOT SOLD SEPARAT; WASHER - insulating, auxiliary terminal
-
301NOT SOLD SEPARAT; WASHER - auxiliary terminal, plain
-
311HEAD (CYLINDER); PLATE ASSY. - rectifier
-
323DIODE; DIODE - positive
-
361O-RING 0.07'' Thk x 1.176'' ID, -25, Cl 5, 75 Duro; ''O'' RING - sealing
-
374DIODE; DIODE - negative
-
38UARKIT; PACKAGE - plugs (Set of 10)
-
391HOLDER; HOLDER ASSY. - brush
-
401BRUSH, COMMUTATOR; BRUSH BRUSH SET - (Set of 2)
-
411VALVE SPRING; SPRING - brush set (Set of 2)
-
422NOT SOLD SEPARAT; SCREW - brush retainer
-
431NOT SOLD SEPARAT; CLIP - brush holder
-
441COVER; INSULATION - brush holder cover
-
452SELF-TAP SCREW Slotted Pan Hd, #10 x 3/8''; SCREW -#10 x 3/8'' rd. hd.
-
468LOCK WASHER #10; WASHER, LOCK, #10
-
472NUT #10-32, LH; NUT - #10 N.F. hex., jam
-
482LOCK WASHER 1/4''; WASHER, LOCK, 1/4''
-
492NUT 1/4''-28; NUT - 1/4'' N.C. hex.
-
551VALVE; REGULATOR ASSY. - voltage
-
562NOT SOLD SEPARAT; SCREW - regulator mounting
-
572NOT SOLD SEPARAT; WASHER - lock, mtg. screws
-
582NOT SOLD SEPARAT; WASHER - plain, mtg. screws
-
591PULLEY; PULLEY - drive, alternator
Select All
Select
Ref.
Qty
1Availability
Part #
A38815Description
ALTERNATOR; ALTERNATOR ASSY. - (Prestolite #ALK-7314) (Production Only - includes pulley & regulator) (Order 1-A42776, 1-A42777 & 1-A42098)Img
Alts
Select
Ref.
Qty
1Availability
Part #
A47439Description
CORE-ALTERNATOR ALTERNATOR; SPARE PART ALTERNATOR - 12 Volt 35 AMPImg
Alts
Select
Ref.
Qty
1Availability
Part #
A45324Description
ALTERNATOR; SPARE PART ALTERNATOR - 12 Volt 35 AMPImg
Alts
Select
Ref.
Qty
1Availability
Part #
A47438Description
ALTERNATOR; SPARE PART ALTERNATOR - 12 Volt 35 AMPImg
Alts
Select
Ref.
Qty
1Availability
Part #
A47439Description
CORE-ALTERNATOR ALTERNATOR; 201 Gas Power UnitImg
Alts
Select
Ref.
Qty
1Availability
Part #
87746858Description
REMAN-ALTERNATOR; 201 Gas Power UnitImg
Alts
Select
Ref.
Qty
1Availability
Part #
104025A1CDescription
CORE-ALTERNATOR; Return Part NumberImg
Alts
Select
Ref.
Qty
1Availability
Part #
104025A1RDescription
REMAN-ALTERNATOR; Remanufactured 12 VOLT, 35 AMP AlternatorImg
Alts
Select
Ref.
Qty
1Availability
Part #
104025A1CDescription
CORE-ALTERNATOR; Return Part Number , 12 VOLT, 35 AMP AlternatorImg
Alts
Select
Ref.
Qty
1Availability
Part #
A42776Description
ALTERNATOR; ALTERNATOR ASSY. - (Prestolite # ALK-6314-S) (Service Only - w/o pulley or regulator)Img
Alts
Select
Ref.
1Qty
1Availability
Part #
A40581Description
KIT; PACKAGE - nut & washer, rotor shaftImg
Alts
Select
Ref.
6Qty
1Availability
Part #
A42262Description
HEAD; SPARE PART HEAD ASSY. - drive endImg
Alts
Select
Ref.
8Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; RING - snap, bearing retainingImg
Alts
Select
Ref.
12Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; RETAINER - felt sealImg
Alts
Select
Ref.
16Qty
1Availability
Part #
A41077Description
BALL BEARING 0.3937'' ID x 1.1811'' OD x 0.3543''; BEARING - ball, rotor shaft (sealed)Img
Alts
Select
Ref.
17Qty
1Availability
Part #
126-112Description

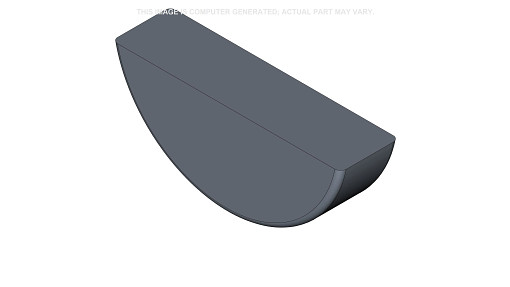

WOODRUFF KEY #6, 5/32'' x 5/8'', HT; WOODRUFF KEY, #6, 5/32'' x 5/8'', HTImg
Alts
Select
Ref.
23Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; STUD - battery terminalImg
Alts
Select
Ref.
24Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; STUD - auxiliary terminalImg
Alts
Select
Ref.
25Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; BUSHING - insulation, battery terminalImg
Alts
Select
Ref.
26Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; BUSHING - insulation, auxiliary terminalImg
Alts
Select
Ref.
27Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; WASHER - insulating, battery terminalImg
Alts
Select
Ref.
28Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; WASHER - battery terminal,plainImg
Alts
Select
Ref.
29Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; WASHER - insulating, auxiliary terminalImg
Alts
Select
Ref.
30Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; WASHER - auxiliary terminal, plainImg
Alts
Select
Ref.
31Qty
1Availability
Part #
A42773Description
HEAD (CYLINDER); PLATE ASSY. - rectifierImg
Alts
Select
Ref.
36Qty
1Availability
Part #
A41072Description
O-RING 0.07'' Thk x 1.176'' ID, -25, Cl 5, 75 Duro; ''O'' RING - sealingImg
Alts
Select
Ref.
38Qty
UARAvailability
Part #
A42266Description
KIT; PACKAGE - plugs (Set of 10)Img
Alts
Select
Ref.
40Qty
1Availability
Part #
A41063Description
BRUSH, COMMUTATOR; BRUSH BRUSH SET - (Set of 2)Img
Alts
Select
Ref.
41Qty
1Availability
Part #
A41064Description
VALVE SPRING; SPRING - brush set (Set of 2)Img
Alts
Select
Ref.
42Qty
2Availability
Part #
NSSDescription
NOT SOLD SEPARAT; SCREW - brush retainerImg
Alts
Select
Ref.
43Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; CLIP - brush holderImg
Alts
Select
Ref.
44Qty
1Availability
Part #
A41073Description
COVER; INSULATION - brush holder coverImg
Alts
Select
Ref.
45Qty
2Availability
Part #
187-1012Description
SELF-TAP SCREW Slotted Pan Hd, #10 x 3/8''; SCREW -#10 x 3/8'' rd. hd.Img
Alts
Select
Ref.
46Qty
8Availability
Part #
92-3Description
LOCK WASHER #10; WASHER, LOCK, #10Img
Alts
Select
Ref.
47Qty
2Availability
Part #
129-667Description
NUT #10-32, LH; NUT - #10 N.F. hex., jamImg
Alts
Select
Ref.
48Qty
2Availability
Part #
92-4Description
LOCK WASHER 1/4''; WASHER, LOCK, 1/4''Img
Alts
Select
Ref.
49Qty
2Availability
Part #
131-902Description
NUT 1/4''-28; NUT - 1/4'' N.C. hex.Img
Alts
Select
Ref.
55Qty
1Availability
Part #
A42098Description
VALVE; REGULATOR ASSY. - voltageImg
Alts
Select
Ref.
56Qty
2Availability
Part #
NSSDescription
NOT SOLD SEPARAT; SCREW - regulator mountingImg
Alts
Select
Ref.
57Qty
2Availability
Part #
NSSDescription
NOT SOLD SEPARAT; WASHER - lock, mtg. screwsImg
Alts
Select
Ref.
58Qty
2Availability
Part #
NSSDescription
NOT SOLD SEPARAT; WASHER - plain, mtg. screwsImg
Alts
Select
Ref.
59Qty
1Availability
Part #
A42777Description
PULLEY; PULLEY - drive, alternatorImg
Alts
