092 - ENGINE ASSEMBLY, 6-590, 6T-590 AND 6TA-590 ENGINE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • -
    A174317
    ENGINE ASSEMBLY; ENGINE ASSY ENGINE ASSEMBLY - complete new 6-590 (Includes all parts except starter, alternator, fan, fan belt, air cleaner
  • -
    A174318
    ENGINE ASSEMBLY; ENGINE ASSY ENGINE ASSEMBLY - complete new 6T-590 (Includes all parts except starter, alternator, fan, fan belt, air cleaner
  • -
    A174319
    ENGINE ASSEMBLY; ENGINE ASSY ENGINE ASSEMBLY - complete new 6TA-590 (Includes all parts except starter, alternator, fan, fan belt, air cleaner
  • 1
    1
    REF
    INSTRUCTION; BLOCK ASSEMBLY - engine (See page 95,97 or 99)
  • 2
    4
    J900267
    SEAL; SEAL ASSEMBLY - cover bolt
  • 3
    4

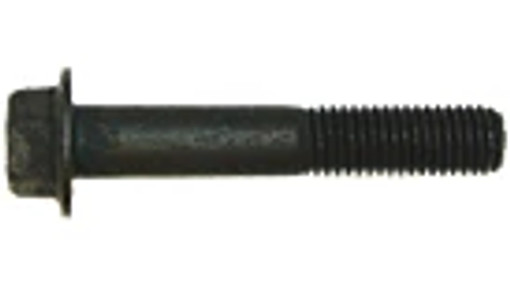

    845-8016
    BOLT Hvy Hex, M8 x 16mm, Cl 8.8; BOLT - hex flange, 8 mm - 1.25 x 16 mm
  • 4
    1
    J911822
    COVER; COVER - tappet
  • 5
    1
    J907586
    BAFFLE; BAFFLE - tappet cover
  • 6
    1
    J904776
    GASKET; GASKET - tappet cover
  • 7
    1
    J906593
    HOSE; Breather
  • 8
    1
    J904230
    CLAMP 25.4mm; CLAMP - spring, hose
  • 9
    1
    J909670
    CLIP; CLIP - retaining, P style
  • 10
    1
    J903102
    CONNECTION; CONNECTION - water inlet
  • 11
    6
    J900965
    PLUG; PLUG - expansion, 58 mm OD
  • 12
    1

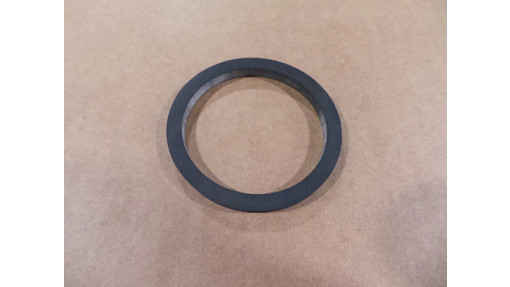

    J906697
    SEAL Square, 5.16mm Thk x 50.17mm ID; O-RING - water inlet
  • 13
    3
    854-10075
    BOLT Hvy Hex, M10 x 75mm, Cl 10.9; BOLT - hex flange, 10 mm - 1.50 x 75 mm, Grade 10.9
  • 14
    1
    A77429
    PLUG PT 1/2''; PLUG - hex socket pipe, 1/2-18 PT
  • 15
    1
    J905440
    TUBE; TUBE - oil fill
  • 16
    1

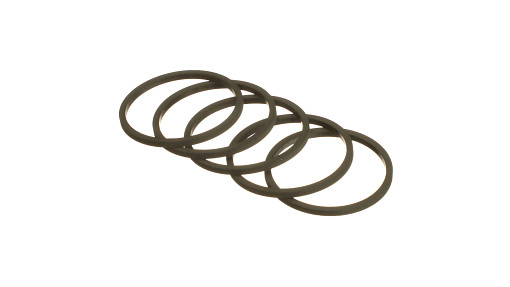

    J906696
    SEAL 41mm ID x 43mm OD x 2.5mm H; RING - sealing
  • 17
    1

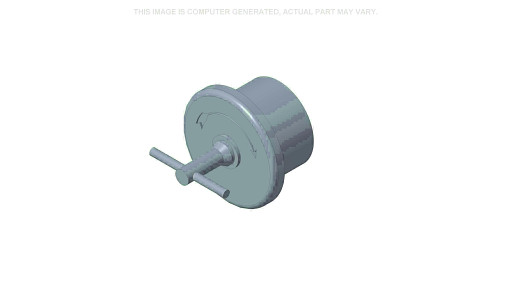

    A77424
    FILLER CAP; CAP ASSEMBLY - fill, oil
  • 20
    2

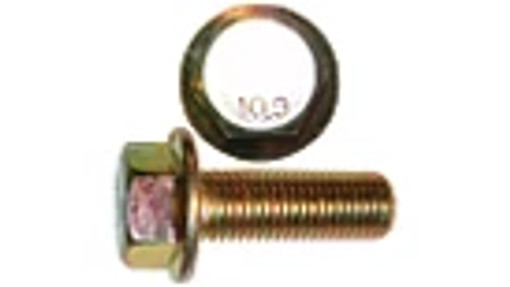

    854-12055
    BOLT Hvy Hex, M12 x 55mm, Cl 10.9; BOLT - hex flange, 12 - 1.75 x 55 mm class 10.9
  • 21
    1

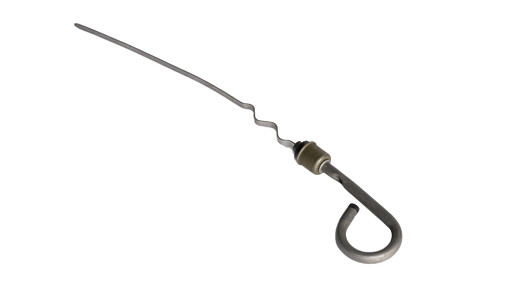

    J905786
    DIPSTICK; DIPSTICK ASSEMBLY - engine oil
  • 22
    1
    J905425
    TUBE 9.52 mm OD x 93 mm L; TUBE - dipstick, oil
  • 23
    1
    J903744
    PIPE FITTING 22.42 mm ID x 28 mm OD x 90.2, 64 mm L; TUBE - drain, turbocharger (6T-590 and 6TA-590 Engine)
  • 1
    A77634
    KIT; HEATER KIT - engine block;REF-BLOCK HEATER A77634 IS A 120VOLT 7/25/96
  • 25
    1
    NSS
    NOT SOLD SEPARAT; ELEMENT - heater (Order a77634)
  • 26
    1
    J905113
    CABLE; CABLE - heater, engine
  • 27
    1

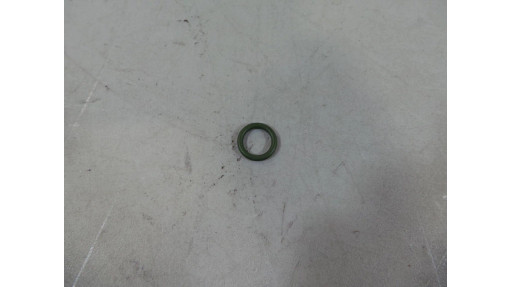

    J910517
    O-RING; O-RING - heater sealing
Select All

Select

Ref.

Qty

-

Availability

Part #
