TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
1REMAN-WATER PUMP; Also Order Hub PN 341105R1 , Key 142435 , and Nut 332310R1
-
1CORE-WATER PUMP; Return Part Number
-
11V-BELT 11/16'' W x 66.50'' L; Alternator-generator and water pump 0.597'' W 66.50'' L
-
21FAN; BLADE - fan (Replaces blade 391929R92)
-
3BOLT Hex, 3/8'' - 16 x 1'', Gr 5; - hex, 3/8 NC x 1 inch
-
3LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
-
3BOLT Hex, 3/8'' - 16 x 1-1/2'', Gr 5; - hex, 3/8 NC x 1-1/2 inch, use with spacer 395479R1
-
1KIT; HOUSING ASSEMBLY - water pump bearing, no longer available, order remanufactured pump 749551C91, Includes: 425-116, 92-11038 & Ref. 3 - 18
-
4NUT 3/8'' - 24, Gr 5; - hex, 3/8 inch NF
-
4LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
-
31PACKING RING; SEAT - water pump seal, no longer available, order kit 687161C92;Part of water pump service kit P/N 609459C92
-
41LOCK NUT 7/8''-14; NUT - stop, 7/8 inch NF (Replaces nut 18501R1);Part of water pump service kit P/N 701335C91;Part of water pump service kit P/N 345082R91
-
61HUB; - fan pulley
-
71SPACER; - water pump;Part of water pump service kit P/N 701335C91
-
81SEAL; - oil, water pump shaft;Part of water pump service kit P/N 701335C91
-
91SNAP RING 2.062'', Int, #206; Ring, Snap, , Brg (Replaces 456736R1) 2.062'', Int, #206;Part of water pump service kit P/N 609459C92;Part of water pump service kit P/N 701335C91;Part of water pump service kit P/N 345082R91
-
101BEARING; - ball, water pump shaft front;Part of water pump service kit P/N 609459C92;Part of water pump service kit P/N 701335C91;Part of water pump service kit P/N 345082R91
-
111WOODRUFF KEY #9, 3/16'' x 3/4'', HT; (Replaces key 124549) #9, 3/16'' x 3/4'', HT;Part of water pump service kit P/N 609459C92;Part of water pump service kit P/N 701335C91;Part of water pump service kit P/N 345082R91
-
121SHAFT; - water pump;Part of water pump service kit P/N 701335C91
-
131BALL BEARING Ball, 0.7874 ID x 1.8504 OD x 0.5512; - water pump shaft rear (Replaces bearing ST441);Part of water pump service kit P/N 701335C91
-
151CAGE; HOUSING - bearing;Part of water pump service kit P/N 701335C91
-
161PLUG Hex Soc, 3/8'' - 18 NPTF; - hex socket, 3/8 inch PT
-
171SEAL; - water pump, order kit 687161C92;Part of water pump service kit P/N 701335C91
-
181IMPELLER; - water pump
-
191O-RING 139.3mm ID x 3.53mm Thk, NBR; (Replaces O-ring 285253R1) -254, 70 Duro, 5.484'' ID x .139'' Thk;Part of water pump service kit P/N 701335C91
-
201PULLEY; - fan;Part of water pump service kit P/N 701335C91
-
3BOLT Hex, 3/8'' - 16 x 1'', Gr 5; - hex, 3/8 NC x 1 inch
-
3LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
-
214STUD; - water pump body
-
1BODY; ASSEMBLY - water pump (Replaces body assembly 607387C91), Includes: Ref. 22 & 22A
-
221NOT SOLD SEPARAT; BODY - water pump, order body assembly
-
22A1HOSE 1.50'' ID x 4.65'', SAE 20R4 Class SC or IH; Thermostat By-Pass 1.50'' ID x 4.65'', SAE 20R4 Class SC or IH
-
231HOSE; - Thermostat by-pass (Replaces hose 607259C1)
-
1BOLT Hex, 1/2'' - 13 x 1-7/8'', Gr 5; - hex, 1/2 NC x 1-7/8 inch
-
3BOLT Hex, 1/2'' - 13 x 2-1/4'', Gr 5; - hex, 1/2 NC x 2-1/4 inch
-
1WASHER; - copper, 17/32 x 1-1/16 inch
-
242HOSE CLAMP #24, 1.06'' - 2'', Type F Worm; CLAMP, HOSE, , Adjustable #24, 1.06/2.00 Type F Worm
-
25A1PIN 1/4'' x 1/2'', Coiled; thermostat housing (replaces pin 19407R1), not illustrated 1/4'' x 1/2'', Coiled
-
25B1PLUG Hex Soc, 3/8'' - 18 NPTF; - thermostat housing, hex socket headless, 3/8 inch PT, not illustrated
-
1PLUG Hex Soc, 3/8'' - 18 NPTF; - hex socket headless, 3/8 inch PT
-
4BOLT Hex, 3/8'' - 16 x 2-3/4'', Gr 5; - hex, 3/8 NC x 2-3/4 inch
-
4LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
-
1KIT; - water pump seal
-
1SERVICE KIT; KIT - water pump service, includes ref. nos. 3, 9, 10, 11, 14, no longer available as a kit, order components
-
261GASKET; - thermostat housing
-
271SEAL; - thermostat, no longer available, order seal 615175C91
-
271SEAL; - thermostat
-
281THERMOSTAT; - housing, 175 to 190 degree Fahrenheit (Replaces thermostats 326978R91 and 702346C1)
-
281THERMOSTAT; - housing, 170 to 192 degree Fahrenheit, no longer available, order thermostat 619736C2 above
-
291ELBOW UNION; ELBOW ASSEMBLY - thermostat housing mounting, no longer available, Includes: Ref. 29A
-
29A2PLUG 3/4'' - 14; - hex socket headless, 3/4 inch PT (Replaces plug 444751), not illustrated
-
1BOLT Hex, 3/8'' - 16 x 3-1/4'', Gr 5; - hex, 3/8 NC x 3-1/4 inch
-
4LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
-
302GASKET; - elbow
-
311GASKET; - water pump
-
321HOSE CLAMP #28, 1.31'' - 2.25'', Type F Worm; CLAMP, HOSE, , Adjustable (Replaces clamp 274087R91) #28, 1.31/2.25 Type F Worm
-
331HOSE; - 3 foot long, cut from bulk hose S118571 below
-
7BOLT Hex, 5/16'' - 18 x 2-1/4'', Gr 5; - hex, 5/16 NC x 2-1/4 inch
-
1BOLT Hex, 5/16'' - 18 x 4'', Gr 5; - hex, 5/16 NC x 4 inch
-
1BOLT Hex, 3/8'' - 16 x 1-3/4'', Gr 5; - hex, 3/8 NC x 1-3/4 inch
-
1BOLT Hex, 3/8'' - 16 x 3-1/4'', Gr 5; - hex, 3/8 NC x 1-5/8 inch
-
8LOCK WASHER 5/16''; WASHER, LOCK, 5/16''
-
2LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
-
351GASKET; - oil; (SN Break) Between cooler and header
-
1KIT; KIT - water pump bearing housing, includes items 4, 7 - 15, 17, 19 and 20, no longer available, order remanufactured assembly 749551C91
-
UARHOSE 1.75'' ID x 120.00'', SAE 20R1; - Bulk 1.75'' ID x 120.00'', SAE 20R1
Select All
Ref.
Qty
1Availability
Part #
749551C91Description
REMAN-WATER PUMP; Also Order Hub PN 341105R1 , Key 142435 , and Nut 332310R1Img
Alts
Ref.
1Qty
1Availability
Part #
385120R2Description
V-BELT 11/16'' W x 66.50'' L; Alternator-generator and water pump 0.597'' W 66.50'' LImg
Alts
Ref.
2Qty
1Availability
Part #
A173732Description
FAN; BLADE - fan (Replaces blade 391929R92)Img
Alts
Ref.
Qty
3Availability
Part #
413-616Description
BOLT Hex, 3/8'' - 16 x 1'', Gr 5; - hex, 3/8 NC x 1 inchImg
Alts
Ref.
Qty
3Availability
Part #
413-624Description
BOLT Hex, 3/8'' - 16 x 1-1/2'', Gr 5; - hex, 3/8 NC x 1-1/2 inch, use with spacer 395479R1Img
Alts
Ref.
Qty
1Availability
Part #
341528R94Description
KIT; HOUSING ASSEMBLY - water pump bearing, no longer available, order remanufactured pump 749551C91, Includes: 425-116, 92-11038 & Ref. 3 - 18Img
Alts
Ref.
Qty
4Availability
Part #
425-116Description
NUT 3/8'' - 24, Gr 5; - hex, 3/8 inch NFImg
Alts
Ref.
3Qty
1Availability
Part #
265164C91Description
PACKING RING; SEAT - water pump seal, no longer available, order kit 687161C92;Part of water pump service kit P/N 609459C92Img
Alts
Ref.
4Qty
1Availability
Part #
19687R1Description
LOCK NUT 7/8''-14; NUT - stop, 7/8 inch NF (Replaces nut 18501R1);Part of water pump service kit P/N 701335C91;Part of water pump service kit P/N 345082R91Img
Alts
Ref.
7Qty
1Availability
Part #
326721R1Description
SPACER; - water pump;Part of water pump service kit P/N 701335C91Img
Alts
Ref.
8Qty
1Availability
Part #
333794R91Description
SEAL; - oil, water pump shaft;Part of water pump service kit P/N 701335C91Img
Alts
Ref.
9Qty
1Availability
Part #
100-21206Description
SNAP RING 2.062'', Int, #206; Ring, Snap, , Brg (Replaces 456736R1) 2.062'', Int, #206;Part of water pump service kit P/N 609459C92;Part of water pump service kit P/N 701335C91;Part of water pump service kit P/N 345082R91Img
Alts
Ref.
10Qty
1Availability
Part #
ST715Description
BEARING; - ball, water pump shaft front;Part of water pump service kit P/N 609459C92;Part of water pump service kit P/N 701335C91;Part of water pump service kit P/N 345082R91Img
Alts
Ref.
11Qty
1Availability
Part #
126-116Description
WOODRUFF KEY #9, 3/16'' x 3/4'', HT; (Replaces key 124549) #9, 3/16'' x 3/4'', HT;Part of water pump service kit P/N 609459C92;Part of water pump service kit P/N 701335C91;Part of water pump service kit P/N 345082R91Img
Alts
Ref.
12Qty
1Availability
Part #
345081R1Description
SHAFT; - water pump;Part of water pump service kit P/N 701335C91Img
Alts
Ref.
13Qty
1Availability
Part #
L31005Description
BALL BEARING Ball, 0.7874 ID x 1.8504 OD x 0.5512; - water pump shaft rear (Replaces bearing ST441);Part of water pump service kit P/N 701335C91Img
Alts
Ref.
15Qty
1Availability
Part #
328889R1Description
CAGE; HOUSING - bearing;Part of water pump service kit P/N 701335C91Img
Alts
Ref.
16Qty
1Availability
Part #
217-436Description
PLUG Hex Soc, 3/8'' - 18 NPTF; - hex socket, 3/8 inch PTImg
Alts
Ref.
17Qty
1Availability
Part #
701331C91Description
SEAL; - water pump, order kit 687161C92;Part of water pump service kit P/N 701335C91Img
Alts
Ref.
19Qty
1Availability
Part #
238-5254Description

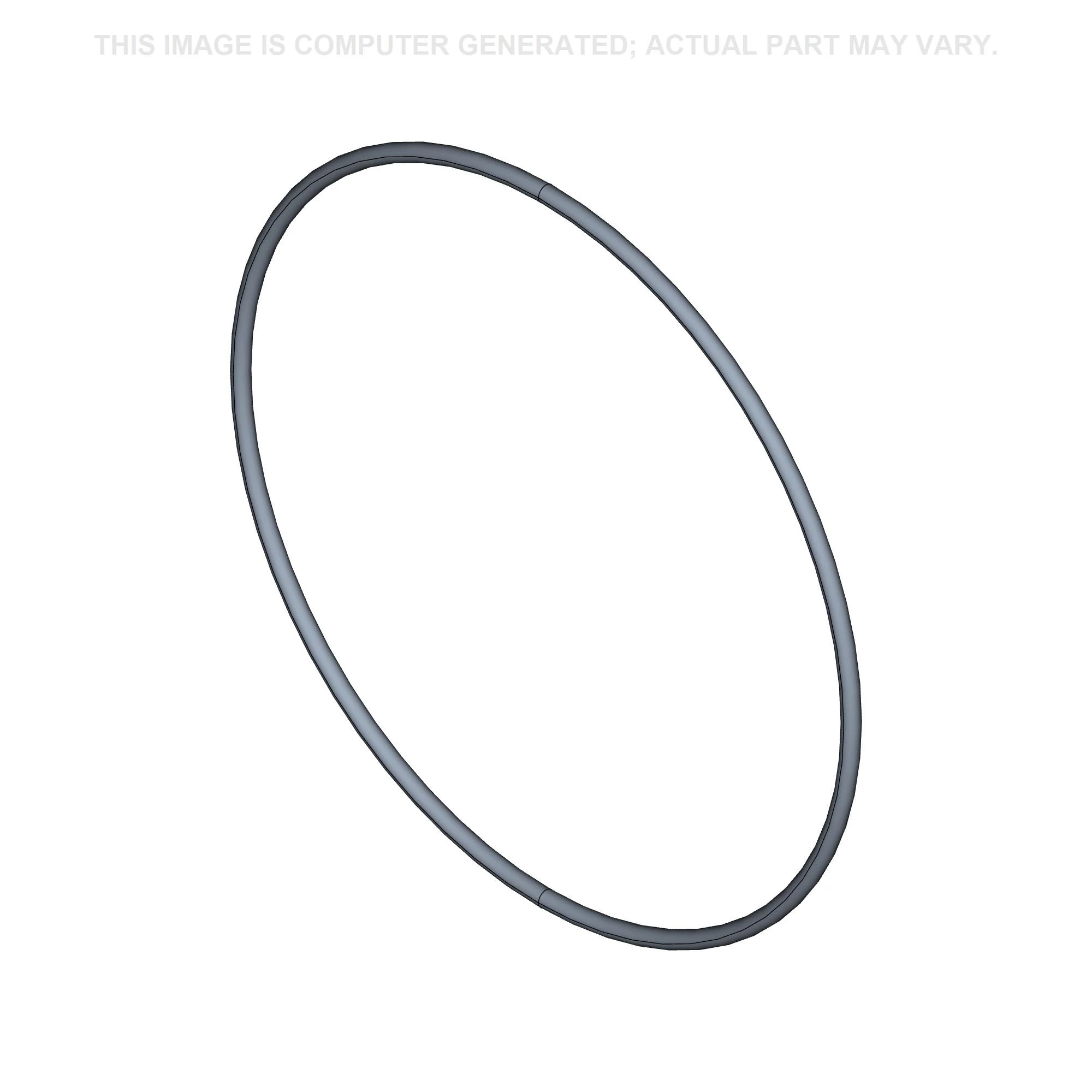

O-RING 139.3mm ID x 3.53mm Thk, NBR; (Replaces O-ring 285253R1) -254, 70 Duro, 5.484'' ID x .139'' Thk;Part of water pump service kit P/N 701335C91Img
Alts
Ref.
20Qty
1Availability
Part #
341013R1Description
PULLEY; - fan;Part of water pump service kit P/N 701335C91Img
Alts
Ref.
Qty
3Availability
Part #
413-616Description
BOLT Hex, 3/8'' - 16 x 1'', Gr 5; - hex, 3/8 NC x 1 inchImg
Alts
Ref.
Qty
1Availability
Part #
607253C11Description
BODY; ASSEMBLY - water pump (Replaces body assembly 607387C91), Includes: Ref. 22 & 22AImg
Alts
Ref.
22Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; BODY - water pump, order body assemblyImg
Alts
Ref.
22AQty
1Availability
Part #
607255C1Description
HOSE 1.50'' ID x 4.65'', SAE 20R4 Class SC or IH; Thermostat By-Pass 1.50'' ID x 4.65'', SAE 20R4 Class SC or IHImg
Alts
Ref.
23Qty
1Availability
Part #
609000C1Description
HOSE; - Thermostat by-pass (Replaces hose 607259C1)Img
Alts
Ref.
Qty
1Availability
Part #
413-830Description
BOLT Hex, 1/2'' - 13 x 1-7/8'', Gr 5; - hex, 1/2 NC x 1-7/8 inchImg
Alts
Ref.
Qty
3Availability
Part #
413-836Description
BOLT Hex, 1/2'' - 13 x 2-1/4'', Gr 5; - hex, 1/2 NC x 2-1/4 inchImg
Alts
Ref.
24Qty
2Availability
Part #
214-1424Description
HOSE CLAMP #24, 1.06'' - 2'', Type F Worm; CLAMP, HOSE, , Adjustable #24, 1.06/2.00 Type F WormImg
Alts
Ref.
25AQty
1Availability
Part #
19955R1Description
PIN 1/4'' x 1/2'', Coiled; thermostat housing (replaces pin 19407R1), not illustrated 1/4'' x 1/2'', CoiledImg
Alts
Ref.
25BQty
1Availability
Part #
217-436Description
PLUG Hex Soc, 3/8'' - 18 NPTF; - thermostat housing, hex socket headless, 3/8 inch PT, not illustratedImg
Alts
Ref.
Qty
1Availability
Part #
217-436Description
PLUG Hex Soc, 3/8'' - 18 NPTF; - hex socket headless, 3/8 inch PTImg
Alts
Ref.
Qty
4Availability
Part #
413-644Description
BOLT Hex, 3/8'' - 16 x 2-3/4'', Gr 5; - hex, 3/8 NC x 2-3/4 inchImg
Alts
Ref.
Qty
1Availability
Part #
609459C92Description
SERVICE KIT; KIT - water pump service, includes ref. nos. 3, 9, 10, 11, 14, no longer available as a kit, order componentsImg
Alts
Ref.
27Qty
1Availability
Part #
347497R91Description
SEAL; - thermostat, no longer available, order seal 615175C91Img
Alts
Ref.
28Qty
1Availability
Part #
619736C2Description
THERMOSTAT; - housing, 175 to 190 degree Fahrenheit (Replaces thermostats 326978R91 and 702346C1)Img
Alts
Ref.
28Qty
1Availability
Part #
702346C1Description
THERMOSTAT; - housing, 170 to 192 degree Fahrenheit, no longer available, order thermostat 619736C2 aboveImg
Alts
Ref.
29Qty
1Availability
Part #
607257C11Description
ELBOW UNION; ELBOW ASSEMBLY - thermostat housing mounting, no longer available, Includes: Ref. 29AImg
Alts
Ref.
29AQty
2Availability
Part #
217-442Description
PLUG 3/4'' - 14; - hex socket headless, 3/4 inch PT (Replaces plug 444751), not illustratedImg
Alts
Ref.
Qty
1Availability
Part #
413-652Description
BOLT Hex, 3/8'' - 16 x 3-1/4'', Gr 5; - hex, 3/8 NC x 3-1/4 inchImg
Alts
Ref.
32Qty
1Availability
Part #
214-1428Description
HOSE CLAMP #28, 1.31'' - 2.25'', Type F Worm; CLAMP, HOSE, , Adjustable (Replaces clamp 274087R91) #28, 1.31/2.25 Type F WormImg
Alts
Ref.
33Qty
1Availability
Part #
407006R1Description
HOSE; - 3 foot long, cut from bulk hose S118571 belowImg
Alts
Ref.
Qty
7Availability
Part #
413-536Description
BOLT Hex, 5/16'' - 18 x 2-1/4'', Gr 5; - hex, 5/16 NC x 2-1/4 inchImg
Alts
Ref.
Qty
1Availability
Part #
413-564Description
BOLT Hex, 5/16'' - 18 x 4'', Gr 5; - hex, 5/16 NC x 4 inchImg
Alts
Ref.
Qty
1Availability
Part #
413-628Description
BOLT Hex, 3/8'' - 16 x 1-3/4'', Gr 5; - hex, 3/8 NC x 1-3/4 inchImg
Alts
Ref.
Qty
1Availability
Part #
413-652Description
BOLT Hex, 3/8'' - 16 x 3-1/4'', Gr 5; - hex, 3/8 NC x 1-5/8 inchImg
Alts
Ref.
Qty
8Availability
Part #
492-11031Description
LOCK WASHER 5/16''; WASHER, LOCK, 5/16''Img
Alts
Ref.
35Qty
1Availability
Part #
337242R1Description
GASKET; - oil; (SN Break) Between cooler and headerImg
Alts
Ref.
Qty
1Availability
Part #
701335C91Description
KIT; KIT - water pump bearing housing, includes items 4, 7 - 15, 17, 19 and 20, no longer available, order remanufactured assembly 749551C91Img
Alts
Ref.
Qty
UARAvailability
Part #
S118571Description
HOSE 1.75'' ID x 120.00'', SAE 20R1; - Bulk 1.75'' ID x 120.00'', SAE 20R1Img
Alts
