11-093 - INJECTION PUMP, NATURALLY ASPIRATED ENGINE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

Qty

1

Availability

Part #

3144832R91

Description

PUMP, FUEL INJECTION; SPARE PART D-155 : (433+V+E) - 3 CYLINDER


Alts

Select

Ref.

Qty

1

Availability

Part #

3144270R91

Description

PUMP; INJECTION - D-155 : (533+V+E, SU-533) - 3 CYLINDER


Alts

Select

Ref.

Qty

1

Availability

Part #

3144222R93

Description

POMPE INJECT. CARBUR; PUMP, INJECTION D-179 : 633+V+E, SU-633 HD+GD) - 3 CYLINDER


Alts

Select

Ref.

Qty

1

Availability

Part #

3144402R91

Description

POMPE; INJECTION - D-179 : (248, 484) - UP TO S/N XXX- 3 CYLINDER - EP/VA3 100H 1100 CR-62


Alts

Select

Ref.

Qty

1

Availability

Part #

3144122R93

Description

PACKAGE, REPAIR; PUMP, INJECTION - D-179 : (248, 484) - S/N XXX UP - 3 CYLINDER - EP/VA3 100H 1090 CR43-3


Alts

Select

Ref.

Qty

1

Availability

Part #

3218973R91

Description

PUMPE; INJECTION - D-179 : (2530TC) - 3 CYLINDER


Alts

Select

Ref.

Qty

1

Availability

Part #

3144247R91

Description

PUMPE; INJECTION - D-206 : (733+V+E) - 4 CYLINDER


Alts

Select

Ref.

Qty

1

Availability

Part #

3218604R91

Description

PUMPE; INJECTION - D-206 : (258, 584, 585XL) - 4 CYLINDER


Alts

Select

Ref.

Qty

1

Availability

Part #

3144511R91

Description

PUMP, FUEL INJECTION; PUMP, INJECTION D-239 : (743+XL) - 4 CYLINDER


Alts

Select

Ref.

Qty

1

Availability

Part #

3228166R91

Description

PUMP, FUEL INJECTION; PUMP, INJECTION D-239 : (745S, 745XL) - 4 CYLINDER


Alts

Select

Ref.

Qty

1

Availability

Part #

3144310R91

Description

PUMP; INJECTION - D-239 : (SU-644) - 4 CYLINDER


Alts

Select

Ref.

Qty

1

Availability

Part #

3228101R91

Description

PUMP; INJECTION - D-239 : (262 F.A.I.) - 4 CYLINDER


Alts

Select

Ref.

Qty

1

Availability

Part #

3144902R92

Description

PUMP; INJECTION - D-239 : (269, 684, 685XL) - 4 CYLINDER


Alts

Select

Ref.

Qty

1

Availability

Part #

3218488R91

Description

PUMP; INJECTION - D-246 : (H84, 268HD, 278, 784, 785XL) - 4 CYLINDER


Alts

Select

Ref.

Qty

1

Availability

Part #

3144890R91

Description

PUMP, FUEL INJECTION; PUMP, INJECTION D-268 : (844S, 844XL, 845+XL) - 4 CYLINDER


Alts

Select

Ref.

Qty

1

Availability

Part #

3228395R91

Description

PUMP; INJECTION - D-268 : (884, 885XL) - 4 CYLINDER


Alts

Select

Ref.

Qty

1

Availability

Part #

3218097R91

Description

PUMPE; INJECTION - D-310 : (955) - 6 CYLINDER


Alts

Select

Ref.

Qty

1

Availability

Part #

3228093R91

Description

PUMPE; INJECTION - D-358 : (955, 955S, 955XL, 956+XL) - 6 CYLINDER


Alts

Select

Ref.

Qty

1

Availability

Part #

3228098R91

Description

KRAFTSTOFFEINPRITZPU; D-358 : (1055+XL) - 6 CYLINDER


Alts

Select

Ref.

Qty

1

Availability

Part #

3228155R91

Description

PUMPE; INJECTION - D-358 : (923) - 6 CYLINDER


Alts

Select

Ref.

Qty

1

Availability

Part #

3218857R91

Description

KRAFTSTOFFEINPRITZPU; PUMP, INJECTION D-358 : (933) - 6 CYLINDER


Alts

Select

Ref.

1

Qty

1

Availability

Part #

3078598R91

Description

GEHÄUSE; D-155 D-206 : 733 D-239 : 685, 743, 745 - 3 & 4 CYLINDER


Alts

Select

Ref.

1

Qty

1

Availability

Part #

3078572R91

Description

GEHÄUSE; D-179 : 633, 248, 484 - 3 CYLINDER


Alts

Select

Ref.

1

Qty

1

Availability

Part #

3078694R91

Description

HOUSING; SPARE PART D-179 : 633 EP/VA3 --- CR 11-2 (UP TO S/N XXX) - 3 CYLINDER


Alts

Select

Ref.

1

Qty

1

Availability

Part #

3079099R91

Description

HOUSING; D-179 : 2530TC - 3 CYLINDER


Alts

Select

Ref.

1

Qty

1

Availability

Part #

3078472R91

Description

HOUSING; SPARE PART D-206 : 258, 584, 585XL - 4 CYLINDER


Alts

Select

Ref.

1

Qty

1

Availability

Part #

3078472R91

Description

HOUSING; SPARE PART D-239 : 262 F.A.I. - 4 CYLINDER


Alts

Select

Ref.

1

Qty

1

Availability

Part #

3078564R91

Description

HOUSING; D-268 : 844S, 844XL, 845+XL - 4 CYLINDER


Alts

Select

Ref.

1

Qty

1

Availability

Part #

3078572R91

Description

HOUSING; D-246 : H84, 785XL D-239 : SU-644 - 4 CYLINDER


Alts

Select

Ref.

1

Qty

1

Availability

Part #

3078572R91

Description

HOUSING; D-310 : 955 D-358 : 923, 933 - 6 CYLINDER


Alts

Select

Ref.

1

Qty

1

Availability

Part #

3078694R91

Description

HOUSING; SPARE PART D-358 : 955, 955S, 955XL, 956+XL 10055+XL - 6 CYLINDER


Alts

Select

Ref.

2

Qty

1

Availability

Part #

3078355R2

Description

OIL SEAL; OIL


Alts

Select

Ref.

3

Qty

1

Availability

Part #

3078473R1

Description

EJE; DRIVE


Alts

Select

Ref.

4

Qty

1

Availability

Part #

3078474R1

Description

ANILLO; RETAINING


Alts

Select

Ref.

5

Qty

1

Availability

Part #

3132395R1

Description

LLAVE;


Alts

Select

Ref.

6

Qty

1

Availability

Part #

3078475R91

Description

BOMBA; CHARGE


Alts

Select

Ref.

7

Qty

1

Availability

Part #

3078476R1

Description

ANILLO; SEALING


Alts

Select

Ref.

8

Qty

2

Availability

Part #

3078477R1

Description

PERNO CSK;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

3078478R91

Description

RETENEUR; RING, ROLLER - 4 CYLINDER


Alts

Select

Ref.

9

Qty

1

Availability

Part #

3078550R91

Description

POMPE; SPARE PART RING, ROLLER - 3 & 6 CYLINDER


Alts

Select

Ref.

10

Qty

1

Availability

Part #

3078479R1

Description

ANNEAU DE BUTEE;


Alts

Select

Ref.

11

Qty

1

Availability

Part #

3059007R1

Description

DISQUE; CROSS-TYPE


Alts

Select

Ref.

12

Qty

1

Availability

Part #

3078480R1

Description

CAM; FACE - 4 CYLINDER


Alts

Select

Ref.

12

Qty

1

Availability

Part #

3078696R1

Description

CAM; FACE - 3 CYLINDER


Alts

Select

Ref.

12

Qty

1

Availability

Part #

3078703R1

Description

CAM; FACE (D-179 : 633) (EP/VA3 --- CR 11-2) - 3 CYLINDER


Alts

Select

Ref.

12

Qty

1

Availability

Part #

3078551R1

Description

CAM; FACE (D-310 : 955) - 6 CYLINDER


Alts

Select

Ref.

12

Qty

1

Availability

Part #

3078695R1

Description

CAM; SPARE PART FACE D-358 : 955-1055XL) - 6 CYLINDER


Alts

Select

Ref.

12

Qty

1

Availability

Part #

3078551R1

Description

CAM; FACE (D-358 : 923, 933) - 6 CYLINDER


Alts

Select

Ref.

13

Qty

1

Availability

Part #

3078481R1

Description

PIN; ACTUATING


Alts

Select

Ref.

14

Qty

1

Availability

Part #

3078482R1

Description

SLIDE; ROLL, SLIDING


Alts

Select

Ref.

15

Qty

1

Availability

Part #

3078483R1

Description

O-RING 2.5mm Thk x 15mm ID;


Alts

Select

Ref.

16

Qty

1

Availability

Part #

3078484R1

Description

VALVE; OVERFLOW


Alts

Select

Ref.

17

Qty

1

Availability

Part #

3059086R1

Description

BANJO BOLT; SCREW, HOLLOW M12


Alts

Select

Ref.

18

Qty

1

Availability

Part #

3132598R1

Description

INDICATOR; POINTER, TIMING


Alts

Select

Ref.

19

Qty

1

Availability

Part #

933982R1

Description

WAVE WASHER M4.3 ID x 9 OD x .5 Thk; 4 MM


Alts

Select

Ref.

20

Qty

1

Availability

Part #

931326R1

Description

VITE Slotted Cheese , M4 x 0.7 x 5mm, Cl 8.8; M4 X 5 MM


Alts

Select

Ref.

21

Qty

1

Availability

Part #

3078485R1

Description

RING;


Alts

Select

Ref.

22

Qty

1

Availability

Part #

3078486R1

Description

COVER;


Alts

Select

Ref.

23

Qty

2

Availability

Part #

931330R1

Description

SCREW M6 x 1 x 12mm, Cl 8.8;


Alts

Select

Ref.

24

Qty

1

Availability

Part #

3078486R1

Description

COUVERCLE;


Alts

Select

Ref.

25

Qty

2

Availability

Part #

3078488R1

Description

ANNEAU;


Alts

Select

Ref.

26

Qty

AR

Availability

Part #

931585R1

Description

BOLT M6 x 15mm, Cl 10.9; M6 X 16 MM


Alts

Select

Ref.

26

Qty

AR

Availability

Part #

439189C1

Description

SCREW; M6 X 15 MM - OPTIONAL


Alts

Select

Ref.

27

Qty

1

Availability

Part #

3078489R1

Description

COVER;


Alts

Select

Ref.

28

Qty

1

Availability

Part #

3078602R1

Description

COMPRESSION SPRING; (D-155 : 433-533) - 3 CYLINDER


Alts

Select

Ref.

28

Qty

1

Availability

Part #

3078608R1

Description

RESSORT; (D-179 : 248, 484) EP/VA3 --- CR 62 (UP TO S/N XXX) - 3 CYLINDER


Alts

Select

Ref.

28

Qty

1

Availability

Part #

3078490R1

Description

RESSORT; (D-179 : 633) EP/VA3 --- CR 11-2 (UP TO S/N XXX) - 3 CYLINDER


Alts

Select

Ref.

28

Qty

1

Availability

Part #

3079106R1

Description

RESSORT DE SOUPAPE; (D-179 : 2530TC) - 3 CYLINDER


Alts

Select

Ref.

28

Qty

1

Availability

Part #

3078608R1

Description

SPRING; (D-206 : 733) - 4 CYLINDER


Alts

Select

Ref.

28

Qty

1

Availability

Part #

3078759R1

Description

COMPRESSION SPRING; (D-239 : 743-745XL) - 4 CYLINDER


Alts

Select

Ref.

28

Qty

1

Availability

Part #

3078490R1

Description

SPRING; (D-268 : 844S-845XL) - 4 CYLINDER


Alts

Select

Ref.

28

Qty

1

Availability

Part #

3078573R1

Description

SPRING; (D-239 : SU-644) - 4 CYLINDER


Alts

Select

Ref.

28

Qty

1

Availability

Part #

3078552R1

Description

SPRING; (D-206 : 258-585XL) - 4 CYLINDER


Alts

Select

Ref.

28

Qty

1

Availability

Part #

3078759R1

Description

COMPRESSION SPRING; (D-239 : 268-685XL) - 4 CYLINDER


Alts

Select

Ref.

28

Qty

1

Availability

Part #

3079106R1

Description

VENTILFEDER; (D-246 : H84-785XL) - 4 CYLINDER


Alts

Select

Ref.

28

Qty

1

Availability

Part #

3078573R1

Description

FEDER; (D-310 : 955) - 6 CYLINDER


Alts

Select

Ref.

28

Qty

-

Availability

Part #

3078565R1

Description

DRUCKFEDER; (D-358 : 955-1055XL)


Alts

Select

Ref.

28

Qty

1

Availability

Part #

3079106R1

Description

VENTILFEDER; (D-358 : 923) - 6 CYLINDER


Alts

Select

Ref.

28

Qty

1

Availability

Part #

3078613R1

Description

FEDER; (D-358 : 933) (D-239 : 262 F.A.I.) - 4 & 6 CYLINDER


Alts

Select

Ref.

29

Qty

AR

Availability

Part #

3078528R1

Description

DRUCKSCHEIBE; 0.6 MM


Alts

Select

Ref.

29

Qty

AR

Availability

Part #

3078529R1

Description

RONDELLA REGGISPINTA; 0.8 MM


Alts

Select

Ref.

29

Qty

AR

Availability

Part #

3078530R1

Description

RONDELLA REGGISPINTA; 1.0 MM


Alts

Select

Ref.

29

Qty

AR

Availability

Part #

3078531R1

Description

THRUST WASHER; 1.2 MM


Alts

Select

Ref.

29

Qty

AR

Availability

Part #

3078532R1

Description

THRUST WASHER; 1.4 MM


Alts

Select

Ref.

29

Qty

AR

Availability

Part #

3078533R1

Description

THRUST WASHER; 3.0 MM


Alts

Select

Ref.

30

Qty

1

Availability

Part #

3078646R91

Description

VALVE; RELIEF D-155, D-179 : 433-633 D-179 : 248, 484 - 3 CYLINDER


Alts

Select

Ref.

30

Qty

1

Availability

Part #

3078698R1

Description

SOUPAPE; RELIEF D-179 : 248, 484 EP/VA3 --- CR 62 (UP TO S/N XXX) - 3 CYLINDER


Alts

Select

Ref.

30

Qty

1

Availability

Part #

3078614R91

Description

SOUPAPE; RELIEF D-179 : 633 EP/VA3 --- CR 11-2 (UP TO S/N XXX) - 3 CYLINDER


Alts

Select

Ref.

30

Qty

1

Availability

Part #

3078614R91

Description

SOUPAPE; RELIEF D-239 : 743-745XL D-239 : 268-685XL, 262 F.A.I. D-310 : 955 D-358 : 933 D-179 : 2530TC


Alts

Select

Ref.

30

Qty

1

Availability

Part #

3078824R1

Description

SOUPAPE; RELIEF D-239 : SU-644 - 4 CYLINDER


Alts

Select

Ref.

30

Qty

1

Availability

Part #

3078534R91

Description

VALVE; RELIEF D-268 : 844S-845XL D-246 : H84-785XL D-358 : 955-1055XL - 4 & 6 CYLINDER


Alts

Select

Ref.

30

Qty

1

Availability

Part #

3078615R91

Description

VALVE; RELIEF D-358 : 923 - 6 CYLINDER


Alts

Select

Ref.

31

Qty

1

Availability

Part #

3078358R1

Description

O-RING;


Alts

Select

Ref.

32

Qty

1

Availability

Part #

3078535R1

Description

O-RING;


Alts

Select

Ref.

33

Qty

1

Availability

Part #

3078701R91

Description

HEAD; DISTRIBUTOR D-155 : 433 D-179 : 248, 484 D-179 : 633 - 3 CYLINDER


Alts

Select

Ref.

33

Qty

1

Availability

Part #

3078702R91

Description

CABEÇA; DISTRIBUTOR D-155 : 533 - 3 CYLINDER


Alts

Select

Ref.

33

Qty

1

Availability

Part #

3078817R91

Description

CABEÇA; SPARE PART DISTRIBUTOR D-179 : 633 EP/VA3 --- CR 11-2 (UP TO S/N XXX) - 3 CYLINDER


Alts

Select

Ref.

33

Qty

1

Availability

Part #

3078770R91

Description

CABEÇA; SPARE PART DISTRIBUTOR D-179 : 248, 484 EP/VA3 --- CR 62 (UP TO S/N XXX) - 3 CYLINDER


Alts

Select

Ref.

33

Qty

1

Availability

Part #

3079463R91

Description

CABEÇA; DISTRIBUTOR D-179 : 2530TC - 3 CYLINDER


Alts

Select

Ref.

33

Qty

1

Availability

Part #

3078704R91

Description

HEAD; DISTRIBUTOUR D-206 : 733 - 4 CYLINDER


Alts

Select

Ref.

33

Qty

1

Availability

Part #

3079014R91

Description

HEAD; DISTRIBUTOR D-239 : 743-745XL D-239 : 268-685XL - 4 CYLINDER


Alts

Select

Ref.

33

Qty

1

Availability

Part #

3079042R91

Description

HEAD; DISTRIBUTOR D-268 : 844S-845XL - 4 CYLINDER


Alts

Select

Ref.

33

Qty

1

Availability

Part #

3078818R91

Description

HEAD; SPARE PART DISTRIBUTOR D-206 : 258-585XL - 4 CYLINDER


Alts

Select

Ref.

33

Qty

1

Availability

Part #

3079094R91

Description

HEAD; DISTRIBUTOR D-239 : 262 F.A.I. - 4 CYLINDER


Alts

Select

Ref.

33

Qty

1

Availability

Part #

3078912R91

Description

HEAD; DISTRIBUTOR D-246 : H84-785XL - 4 CYLINDER


Alts

Select

Ref.

33

Qty

1

Availability

Part #

3078825R91

Description

HEAD; DISTRIBUTOR D-239 : SU-644 - 4 CYLINDER


Alts

Select

Ref.

33

Qty

1

Availability

Part #

3079146R91

Description

HEAD; DISTRIBUTOR D-310 : 955 - 6 CYLINDER


Alts

Select

Ref.

33

Qty

1

Availability

Part #

3079118R91

Description

HEAD; DISTRIBUTOR D-358 : 955-1055XL - 6 CYLINDER


Alts

Select

Ref.

33

Qty

1

Availability

Part #

3079547R91

Description

HEAD; DISTRIBUTOR D-358 : 923 - 6 CYLINDER


Alts

Select

Ref.

33

Qty

1

Availability

Part #

3079399R91

Description

HEAD; DISTRIBUTOR D-358 : 933 - 6 CYLINDER


Alts

Select

Ref.

34

Qty

1

Availability

Part #

3078515R1

Description

SPRING;


Alts

Select

Ref.

35

Qty

1

Availability

Part #

3078516R1

Description

SEAT; CUP, SPRING


Alts

Select

Ref.

36

Qty

AR

Availability

Part #

3078537R1

Description

WASHER; 1.65 MM


Alts

Select

Ref.

36

Qty

AR

Availability

Part #

3078571R1

Description

WASHER; 2.35 MM


Alts

Select

Ref.

37

Qty

AR

Availability

Part #

3078540R1

Description

WASHER; 1.35 MM


Alts

Select

Ref.

37

Qty

AR

Availability

Part #

3078541R1

Description

RONDELLE; 1.60 MM


Alts

Select

Ref.

37

Qty

AR

Availability

Part #

3078542R1

Description

WASHER; 1.85 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079423R1

Description

WASHER; 1.78 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078761R2

Description

WASHER; 1.80 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079425R1

Description

RONDELLE; 1.82 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078763R2

Description

WASHER; 1.84 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079427R1

Description

WASHER; 1.86 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078765R2

Description

WASHER; 1.88 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078213R2

Description

WASHER; 1.90 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078767R2

Description

WASHER; 1.92 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079214R2

Description

WASHER; 1.94 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078769R2

Description

WASHER; 1.96 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079215R2

Description

WASHER; 1.98 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078771R2

Description

WASHER; 2.00 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079216R2

Description

WASHER; 2.02 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078773R2

Description

WASHER; 2.04 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079217R2

Description

WASHER; 2.06 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078775R2

Description

WASHER; 2.08 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079218R2

Description

WASHER; 2.10 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078777R2

Description

WASHER; 2.12 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079219R2

Description

WASHER; 2.14 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078779R2

Description

WASHER; 2.16 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079220R2

Description

WASHER; 2.18 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078781R2

Description

WASHER; 2.20 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079221R2

Description

WASHER; 2.22 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078783R2

Description

WASHER; 2.24 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079222R2

Description

WASHER; 2.26 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078785R2

Description

WASHER; 2.28 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079223R2

Description

WASHER; 2.30 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078787R2

Description

WASHER; 2.32 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079224R2

Description

WASHER; 2.34 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078789R2

Description

WASHER; 2.36 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079225R2

Description

WASHER; 2.38 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078791R2

Description

WASHER; 2.40 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079226R2

Description

WASHER; 2.42 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078793R2

Description

WASHER; 2.44 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079227R2

Description

WASHER; 2.46 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078795R2

Description

WASHER; 2.48 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079228R2

Description

WASHER; 2.50 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078797R2

Description

WASHER; 2.52 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079229R2

Description

WASHER; 2.54 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078799R2

Description

WASHER; 2.56 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079230R2

Description

WASHER; 2.58 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078801R2

Description

WASHER; 2.60 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079231R2

Description

WASHER; 2.62 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078803R2

Description

WASHER; 2.64 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079232R2

Description

WASHER; 2.66 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078805R2

Description

WASHER; 2.68 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079233R2

Description

WASHER; 2.70 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078807R2

Description

RONDELLA; 2.72 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079234R2

Description

RONDELLA; 2.74 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078809R2

Description

WASHER; 2.76 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079235R2

Description

WASHER; 2.78 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078811R2

Description

WASHER; 2.80 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079350R2

Description

WASHER; 2.82 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078813R2

Description

WASHER; 2.84 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079236R2

Description

WASHER; 2.86 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3078815R2

Description

WASHER; 2.88 MM


Alts

Select

Ref.

38

Qty

AR

Availability

Part #

3079237R2

Description

WASHER; 2.90 MM


Alts

Select

Ref.

39

Qty

1

Availability

Part #

3078576R1

Description

SPRING WASHER; SPRING


Alts

Select

Ref.

40

Qty

1

Availability

Part #

3078578R1

Description

FILTER, FUEL; SCREEN


Alts

Select

Ref.

41

Qty

1

Availability

Part #

3078487R1

Description

O-RING;


Alts

Select

Ref.

42

Qty

1

Availability

Part #

3078366R1

Description

O-RING;


Alts

Select

Ref.

43

Qty

1

Availability

Part #

3078514R1

Description

PLUG;


Alts

Select

Ref.

43

Qty

1

Availability

Part #

3078914R1

Description

PLUG; D-246+D-268 ONLY - 4 CYLINDER


Alts

Select

Ref.

44

Qty

1

Availability

Part #

3132407R1

Description

O-RING; PACKING


Alts

Select

Ref.

44

Qty

1

Availability

Part #

3078915R1

Description

RING; PACKING D-246 + D-268 ONLY, D-179 : 2530TC - 3 & 4 CYLINDER


Alts

Select

Ref.

45

Qty

4

Availability

Part #

3059067R1

Description

HOLDER; UNION


Alts

Select

Ref.

46

Qty

3

Availability

Part #

3132408R1

Description

COMPRESSION SPRING; 3 CYLINDER - D-155 : 433, 533 D-179 : 633, 2530TC, 248, 484


Alts

Select

Ref.

46

Qty

4

Availability

Part #

3132408R1

Description

COMPRESSION SPRING; 4 CYLINDER - D-206 : 258-585XL D-268 : 844S-845XL : D-239 : 262 F.A.I.


Alts

Select

Ref.

46

Qty

6

Availability

Part #

3132408R1

Description

COMPRESSION SPRING; 6 CYLINDER - D-358 : 955-1055XL


Alts

Select

Ref.

46

Qty

3

Availability

Part #

3132382R1

Description

SPRING; (D-179 : 633) - 3 CYLINDER - EP/VA3 --- CR 11-2 (UP TO S/N XXX)


Alts

Select

Ref.

46

Qty

4

Availability

Part #

3132382R1

Description

SPRING; 4 CYLINDER - D-206 : 733 D-246 : H84-785XL D-310 : 955


Alts

Select

Ref.

46

Qty

6

Availability

Part #

3132382R1

Description

SPRING; 6 CYLINDER - D-358 : 923 D-239 : SU-644


Alts

Select

Ref.

46

Qty

4

Availability

Part #

3078790R1

Description

SPRING; 4 CYLINDER - D-239 : 743-745XL, 268-685XL


Alts

Select

Ref.

47

Qty

3

Availability

Part #

3059066R1

Description

WASHER 2.5mm ID x 7.3mm OD x 1.5mm Thk; 3 CYLINDER


Alts

Select

Ref.

47

Qty

4

Availability

Part #

3059066R1

Description

WASHER 2.5mm ID x 7.3mm OD x 1.5mm Thk; 4 CYLINDER


Alts

Select

Ref.

47

Qty

6

Availability

Part #

3059066R1

Description

WASHER 2.5mm ID x 7.3mm OD x 1.5mm Thk; 6 CYLINDER


Alts

Select

Ref.

48

Qty

3

Availability

Part #

3136144R1

Description

VALVE; 3 CYLINDER - D-155 : 433, 533


Alts

Select

Ref.

48

Qty

4

Availability

Part #

3136144R1

Description

VALVE; 4 CYLINDER - D-239 : 743+XL


Alts

Select

Ref.

48

Qty

4

Availability

Part #

3136357R1

Description

VALVE; 4 CYLINDER - D-239 : 262 F.A.I.


Alts

Select

Ref.

48

Qty

3

Availability

Part #

3059064R1

Description

VALVE; 3 CYLINDER - D-179 : 633, 248, 484


Alts

Select

Ref.

48

Qty

3

Availability

Part #

3136120R1

Description

VALVE; 3 CYLINDER - D-179 : 248, 484 EP/VA3 --- CR 62 ( UP TO S/N XXX)


Alts

Select

Ref.

48

Qty

4

Availability

Part #

3136088R1

Description

VALVE; SPARE PART 4 CYLINDER - D-206 : 733


Alts

Select

Ref.

48

Qty

3

Availability

Part #

3078780R1

Description

VALVE; 3 CYLINDER - D-239 : 743-745XL


Alts

Select

Ref.

48

Qty

4

Availability

Part #

3078780R1

Description

VALVE; 4 CYLINDER - D-310 : 955


Alts

Select

Ref.

48

Qty

4

Availability

Part #

3133379R1

Description

VALVE; 4 CYLINDER - D-239 : SU-644


Alts

Select

Ref.

48

Qty

4

Availability

Part #

3136104R1

Description

VALVE; 4 CYLINDER - D-268 : 844S-845XL


Alts

Select

Ref.

48

Qty

4

Availability

Part #

3079145R1

Description

VALVE; 4 CYLINDER - D-206 : 258-585XL


Alts

Select

Ref.

48

Qty

4

Availability

Part #

3078823R1

Description

VALVE; 4 CYLINDER - D-239 : 268-685XL


Alts

Select

Ref.

48

Qty

4

Availability

Part #

3079142R1

Description

VALVE; SPARE PART 4 CYLINDER - D-246 : H84-785XL


Alts

Select

Ref.

48

Qty

6

Availability

Part #

3078792R1

Description

VALVE; 6 CYLINDER - D-358 : 955-955XL, 956+XL


Alts

Select

Ref.

48

Qty

6

Availability

Part #

3132804R1

Description

SOUPAPE; 6 CYLINDER - D-358 : 1055-1055XL, 933


Alts

Select

Ref.

48

Qty

6

Availability

Part #

3078577R1

Description

SOUPAPE; 6 CYLINDER - D-358 : 923


Alts

Select

Ref.

49

Qty

3

Availability

Part #

3079378R1

Description

ARRUELA PLANA; 3 CYLINDER


Alts

Select

Ref.

49

Qty

4

Availability

Part #

3079378R1

Description

ARRUELA PLANA; 4 CYLINDER


Alts

Select

Ref.

49

Qty

6

Availability

Part #

3079378R1

Description

ARRUELA PLANA; 6 CYLINDER


Alts

Select

Ref.

50

Qty

4

Availability

Part #

3078600R1

Description

PARAFUSO;


Alts

Select

Ref.

52

Qty

AR

Availability

Part #

3078549R1

Description

SUPORTE; 3 CYLINDER


Alts

Select

Ref.

52

Qty

1

Availability

Part #

3078549R1

Description

SUPPORT; 4 & 6 CYLINDER


Alts

Select

Ref.

53

Qty

1

Availability

Part #

3078517R1

Description

SHAFT; LEVER THROTTLE


Alts

Select

Ref.

53

Qty

1

Availability

Part #

3078605R1

Description

ALBERO; LEVER THROTTLE - 6 CYLINDER - D-358 : 923, 933 ONLY


Alts

Select

Ref.

54

Qty

1

Availability

Part #

3078555R1

Description

MOLLA;


Alts

Select

Ref.

54

Qty

1

Availability

Part #

3079095R1

Description

MOLLA; SPARE PART 3 & 4 CYLINDER : 2530TC, 262 F.A.I.


Alts

Select

Ref.

55

Qty

1

Availability

Part #

3078519R1

Description

RONDELLA;


Alts

Select

Ref.

56

Qty

1

Availability

Part #

3078354R1

Description

ANELLO TOROIDALE 2mm Thk x 6.5mm ID;


Alts

Select

Ref.

57

Qty

1

Availability

Part #

3078556R1

Description

BAGUE; GUIDE


Alts

Select

Ref.

58

Qty

2

Availability

Part #

785602R1

Description

JOINT TORIQUE;


Alts

Select

Ref.

59

Qty

1

Availability

Part #

3078521R1

Description

ARBRE; PLUNGER CONTROL


Alts

Select

Ref.

60

Qty

1

Availability

Part #

3078700R91

Description

KIT; SPARE PART SPRING, 3 CYLINDER - D-155 : 433 D-179 : 2530TC


Alts

Select

Ref.

60

Qty

1

Availability

Part #

3078610R91

Description

KIT; SPRING, 3 & 6 CYLINDER - D-155 : 533 D-179 : 633, 248, 484 D-206 : 733 D-310 : 955


Alts

Select

Ref.

60

Qty

1

Availability

Part #

3078563R91

Description

KIT; SPRING, 3 CYLINDER - D-179 : 633 EP/VA3 --- CR 11-2 (UP TO S/N XXX)


Alts

Select

Ref.

60

Qty

1

Availability

Part #

3078772R91

Description

PACKAGE; SPRING, 3 CYLINDER - D-179 : 633 EP/VA3 --- CR 62 (UP TO S/N XXX)


Alts

Select

Ref.

60

Qty

1

Availability

Part #

3078563R91

Description

KIT; SPRING, 4 & 6 CYLINDER - D-239 : 743, 743XL, 268-685XL D-358 : 955-1055XL, D-239 : SU-644


Alts

Select

Ref.

60

Qty

1

Availability

Part #

3078522R91

Description

KIT; SPRING, 4 CYLINDER - D-239 : 745S-745XL, 262 F.A.I.


Alts

Select

Ref.

60

Qty

1

Availability

Part #

3079144R91

Description

CONJUNTO; SPRING, 4 CYLINDER - D-206 : 258-585XL


Alts

Select

Ref.

60

Qty

1

Availability

Part #

3079143R91

Description

CONJUNTO; SPRING, 4 CYLINDER - D-246 : H84-785XL


Alts

Select

Ref.

60

Qty

1

Availability

Part #

3078522R91

Description

CONJUNTO; SPRING, 6 CYLINDER - D-358 : 923, 933


Alts

Select

Ref.

61

Qty

1

Availability

Part #

3078523R1

Description

ARRUELA PLANA;


Alts

Select

Ref.

62

Qty

1

Availability

Part #

3078363R1

Description

O-RING;


Alts

Select

Ref.

63

Qty

1

Availability

Part #

3078524R1

Description

BUCHA; GUIDE


Alts

Select

Ref.

64

Qty

1

Availability

Part #

3079183R1

Description

PLATE; SPARE PART STOP - 6 CYLINDER - D-358 : 923, 933 ONLY


Alts

Select

Ref.

65

Qty

1

Availability

Part #

3132251R1

Description

STOP LOCK; STOP - 6 CYLINDER - D-358 : 923, 933 ONLY


Alts

Select

Ref.

66

Qty

1

Availability

Part #

3078557R1

Description

PLATE; STOP


Alts

Select

Ref.

66

Qty

1

Availability

Part #

3078525R1

Description

PLATE; STOP - 3 & 4 CYLINDER - 262 F.A.I., 2530TC


Alts

Select

Ref.

67

Qty

4

Availability

Part #

931320R1

Description

SCREW M6 x 12mm, Cl 8.8; M6 X 12 MM


Alts

Select

Ref.

68

Qty

1

Availability

Part #

3136136R1

Description

SCREW; STOP


Alts

Select

Ref.

68

Qty

1

Availability

Part #

3079404R1

Description

VIS; STOP - 4 CYLINDER - D-206 : 585XL ONLY


Alts

Select

Ref.

69

Qty

1

Availability

Part #

3132885R1

Description

VIS; STOP


Alts

Select

Ref.

70

Qty

1

Availability

Part #

3132251R1

Description

BUTEE; STOP


Alts

Select

Ref.

71

Qty

1

Availability

Part #

3059074R1

Description

VIS; STOP


Alts

Select

Ref.

72

Qty

3

Availability

Part #

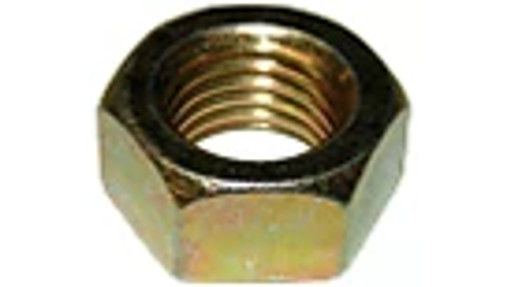

86500688

Description

ECROU Hex, M6 x 1, Cl 10, ZND;


Alts

Select

Ref.

73

Qty

1

Availability

Part #

3079141R1

Description

NUT;


Alts

Select

Ref.

74

Qty

1

Availability

Part #

3132588R1

Description

FEDER;


Alts

Select

Ref.

75

Qty

1

Availability

Part #

3132589R1

Description

FEDER;


Alts

Select

Ref.

76

Qty

1

Availability

Part #

3059076R1

Description

UNTERLEGSCHEIBE;


Alts

Select

Ref.

77

Qty

AR

Availability

Part #

3079400R1

Description

HEBEL; 6 CYLINDER : D-358 : 923, 933 ONLY


Alts

Select

Ref.

77

Qty

AR

Availability

Part #

3079401R1

Description

HEBEL; 6 CYLINDER : D-358 : 923, 933 ONLY - SERRATION OFFSET


Alts

Select

Ref.

78

Qty

AR

Availability

Part #

3136134R1

Description

HEBEL; SPARE PART 6 CYLINDER : D-358 : 923, 933 ONLY


Alts

Select

Ref.

78

Qty

AR

Availability

Part #

3136135R1

Description

HEFBOOM; SPARE PART 6 CYLINDER - D-358 : 923, 933 ONLY - SERRATION OFFSET


Alts

Select

Ref.

79

Qty

AR

Availability

Part #

3136270R1

Description

HEFBOOM; 6 CYLINDER - D-310/D-358 : 955-1055XL ONLY


Alts

Select

Ref.

79

Qty

AR

Availability

Part #

3136271R1

Description

HEFBOOM; 6 CYLINDER - D-310/D-358 : 955-1055XL ONLY - SERRATION OFFSET


Alts

Select

Ref.

80

Qty

1

Availability

Part #

3059077R1

Description

HEFBOOM;


Alts

Select

Ref.

80

Qty

1

Availability

Part #

3059078R1

Description

LEVER; SERRATION OFFSET


Alts

Select

Ref.

81

Qty

1

Availability

Part #

3132590R1

Description

LEVER;


Alts

Select

Ref.

81

Qty

1

Availability

Part #

3132591R1

Description

ALAVANCA; SERRATION OFFSET


Alts

Select

Ref.

82

Qty

2

Availability

Part #

847239R1

Description

ANILHA DE RETENÇÃO; 6 MM


Alts

Select

Ref.

82

Qty

2

Availability

Part #

933987R1

Description

ANILHA DE RETENÇÃO M6; 6 MM - OPTIONAL


Alts

Select

Ref.

83

Qty

2

Availability

Part #

86500688

Description

NUT Hex, M6 x 1, Cl 10, ZND;


Alts

Select

Ref.

84

Qty

1

Availability

Part #

3079101R1

Description

WOODRUFF KEY;


Alts

Select

Ref.

85

Qty

1

Availability

Part #

3078913R1

Description

BOLT; 4 CYLINDER - D-206/D-268 ONLY


Alts

Select

Ref.

86

Qty

1

Availability

Part #

933696R1

Description

SEALING RING M6 x 10 x 1; Packing - 4 CYLINDER - D-206/D-268 ONLY


Alts

Select

Ref.

87

Qty

1

Availability

Part #

3136399R1

Description

LEVER; 6 CYLINDER - D-358 : 923, 933 ONLY


Alts

Select

Ref.

88

Qty

1

Availability

Part #

3136262R1

Description

THRUST WASHER; 6 CYLINDER - D-358 : 923, 933 ONLY


Alts

Select

Ref.

89

Qty

1

Availability

Part #

3136260R1

Description

SPRING; 6 CYLINDER - D-358 : 923, 933 ONLY


Alts

Select

Ref.

90

Qty

1

Availability

Part #

3136261R1

Description

NUT; 6 CYLINDER - D-358 : 923, 933 ONLY


Alts

Select

Ref.

91

Qty

1

Availability

Part #

3078527R1

Description

IGNITION SWITCH; MAGNETO - 3 & 4 CYLINDER - D-179 : 2530TC D-239 : 262 F.A.I.


Alts

Select

Ref.

92

Qty

1

Availability

Part #

3078559R1

Description

RING; 3 & 4 CYLINDER - D-179 : 2530TC D-239 : 262 F.A.I.


Alts

Select

Ref.

93

Qty

4

Availability

Part #

931327R1

Description

BOLT M6 x 10mm, Cl 8.8; 3 & 4 CYLINDER - D-179 : 2530TC D-239 : 262 F.A.I.


Alts

Select

Ref.

94

Qty

AR

Availability

Part #

3079098R1

Description

DISC; 3 CYLINDER - D-179 : 2530TC


Alts

Select

Ref.

94

Qty

1

Availability

Part #

3079098R1

Description

DISC; 4 CYLINDER - D-239 : 262 F.A.I.


Alts

Select

Ref.

94

Qty

AR

Availability

Part #

934160R1

Description

WASHER; 3 & 4 CYLINDER - D-279 : 2530TC D-239 : 262 F.A.I.


Alts

Select

Ref.

Qty

AR

Availability

Part #

3078526R91

Description

GASKET KIT; CONSISTS OF ITEMS 21, 25, 31, 32, 41, 42, 56, 58, 62 AND 92 (NOT ILLUSTRATED)


Alts
