TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11SUPPORT; STANDARD, bearing, stamped type, 18 for units A & B, 20 for units G & H, 24 for units C, D, J & K, 26 for units C, D, J & K, 26 for units E and F
-
1BOLT Hex, 1/2''-13 x 1 1/4'', G2; 1/2 x 1-1/4 znd hex-hd mach, 3 per standard
-
1WASHER 1/2''; LOCK, , 3 per standard 1/2''
-
1NUT Hex, 1/2'' - 13, Gr 5; NUT, , 3 per standard 1/2''-13, G5
-
21BOLT U, 3/4'' - 10 x 4.4''; U-BOLT, 3/4 in., 1 per standard, machines built 1973 to 1975, machines w/2 x 1-1/2 in. angles
-
2LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4''
-
2NUT 3/4'' - 10, Gr 5;
-
31BRACKET; scraper LH, machines built 1973 to 1975, 1 per standard LH side
-
31BRACKET; scraper RH, machines built 1973 to 1975, 1 per standard RH side
-
1STUD Hex, 5/8'' - 11 x 1 1/2'', Gr 5; SCREW, 5/8-11 x 1-1/2 znd hex-hd cap, 2 per bracket
-
41BEARING ASSY; disc gang ball sealed, 1 per standard
-
41BEARING ASSY; Value, 1-3/4 In. Round Bore Bearing Assy
-
41BALL BEARING 45mm ID; BEARING, ball w/lub fitting, regreasable, 1 per standard
-
51BOLT 1 1/8''-7 x 39.8''; front wing arbor, 39.8 in., 2 for unit H
-
51BOLT 1 1/8''-7 x 48.8''; wing arbor, 48.8 in., 4 for unit G, 2 for unit H
-
51BOLT Rnd Cor Sq Hd, 1 1/8'' - 7 x 67.4''; arbor, 67.4 in., 2 for units D, F and H, 4 for units B and K
-
51BOLT 1 1/8''-7 x 71.9''; arbor, 71.9 in., 4 for units C, E and G, 8 for units A and J
-
51BOLT 1 1/8''-7 x 76.7''; BOLT, arbor, 76.4 in., 2 for units D, F and H, 4 for units B and K
-
51BOLT 1 1/8''-7 x 85.4''; front wing arbor, 85.4 in., 2 for unit D
-
51BOLT 1 1/8''-7 x 94.6''; wing arbor, 94.4 in., 4 for unit C, 2 for unit D
-
51BOLT Rnd Cor Sq Hd, 1 1/8'' - 7 x 112.70mm; wing arbor, 112.4 in., 2 for unit F
-
51SPECIAL BOLT Rnd Cor Sq Hd, 1 1/8'' - 7 x 117.60mm; BOLT, wing arbor, 116.9 in., 4 for unit E
-
51BOLT Rnd Cor Sq Hd, 1 1/8'' - 7 x 121.80mm; wing arbor, 121.4 in., 2 for unit F
-
61DISK HARROW; DISK, 20 in. x 8 ga solid, standard equipment
-
61DISK HARROW; DISK, 18 in. x 8 ga solid
-
61DISC; DISK, 18 in. x 9 ga solid
-
61DISC; DISK, 20 in. x 7 ga solid
-
61PLOW DISC; DISK, 22 in. x 6 ga solid
-
61DISC; DISK, 22 in. x 7 ga solid
-
61DISK HARROW; DISK, 18 in. x 8 ga notched
-
61DISK HARROW; DISK, 18 in. x 9 ga notched
-
61DISC; DISK, 20 in. x 7 ga notched
-
61DISC; DISK, 20 in. x 8 ga HV notched
-
61DISK HARROW; DISK, 22 in. x 6 ga notched
-
61DISC; DISK, 22 in. x 7 ga notched
-
1SQ HOLE WASHER; take-up washer for 8 ga disks
-
78SUPPORT ASSY.; STRIP, arbor bolt
-
8LOCK WASHER 1 1/8''; 1-1/8 znd reg lock
-
8NUT 1 1/8''-7, G5; 1-1/8-7 znd hex.
-
84WASHER; head
-
92WASHER; furrow filler, replaces 466950R2
-
108WASHER; nut, 8 for units A and B, 4 for units G & H
-
101WASHER; nut, 4 for units G & H, 8 for units C, D, E, F, J and K
-
112SQ HOLE WASHER; bumper
-
121BUSHING 38.91mm ID x 44.45mm OD x 128.6mm L; support, 7-1/2 in., for use w/spools w/sqw ctr holes, 1 per standard on units A, C, E, G and J
-
121BUSHING 38.91mm ID x 44.45mm OD x 183mm L; support, 7-1/2 in., for use w/spools w/rd ctr holes, 1 per standard on units A, C, E, G and J
-
121BUSHING 38.91mm ID x 44.45mm OD x 154mm L; support, 9 in., for use w/spools w/sq ctr holes, 1 per standard on units B, D, F, H and K
-
121TUBE Bushing, 220 MM; BUSHING, support, 9 in., for use w/spools w/rd ctr holes, 1 per standard on units B, D, F, H and K
-
131SPOOL; 7-1/2 in. spacing, 42 used unit G, 54 used units A and J, 62 used on unit C, 72 used on unit E
-
131SPOOL; 9 in. spacing, 30 used on unit H, 42 used on units B and K, 46 used on unit D, 56 used on unit F
-
141BUSHING 1.796'' ID x 2.4'' OD x 4.052''; W/SQ CENTER HOLE, brg 4 in.
-
141SPACER SPOOL, spacer, 7-1/2'' And 9''; W/RD CENTER HOLE, brg 4 in. 1 per standard
-
151SPOOL; W/SQ CENTER HOLE, brg 1-1/2 in.
-
151SPOOL Half Spacer 7-1/2''; W/RD CENTER HOLE, brg 1-1/2 in., 1 per standard on units A, C, E, G and J
-
151SPOOL; W/SQ CENTER HOLE, brg 3 in.
-
151SPOOL Bearing, Short; W/RD CENTER HOLE, brg 3 in., 1 per standard on units B, D, F, H and K
-
161BAR; replaces u-bolt, 56996C1, by also ordering attaching hardware, 1 per standard, machines built 1973 to 1975, machines w/2 x 1-1/2 in. angles
-
162BAR; units C, D, G through K, machines built 1976 and since, machines w/2 x 2 in angles
-
1BOLT Hex, 3/4'' - 10 x 5'', Gr 5; SCREW, 3/4-10 x 5 znd hex-hd cap, 2 per bar , Course threads
-
1LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4'', 1 per screw
-
1NUT 3/4'' - 10, Gr 5; 1 per screw 3/4''-10, G5
-
171SUPPORT; BRACKET, scraper angle, machines w/serial no. 9816 to 166677, machines w/2 and 2 in. angles, 14 for G and H, 18 for C, D, J and 5, 22 for E and f
-
1BOLT Hex, 3/4'' - 10 x 5'', Gr 5; SCREW, 3/4-10 x 5 znd hex-hd cap, 2 per bracket , Course threads
-
1LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4'', 1 per screw
-
1NUT 3/4'' - 10, Gr 5; 1 per screw 3/4''-10, G5
-
171BRACKET; scraper RH, machines w/serial no. 9815 & below
-
181SUPPORT; bearing standard, mashines w/serial no. 9816 to 16677, 1 per standard
-
1NO LONGER SERVICED; SCREW, 5/8-11 x 1-1/2 znd hex-hd cap, 2 per support
-
1LOCK NUT 5/8''-11, GB; NUT, 5/8-11 znd hex. lock, 2 per support
Select All
Ref.
1Qty
1Availability
Part #
56995C1Description
SUPPORT; STANDARD, bearing, stamped type, 18 for units A & B, 20 for units G & H, 24 for units C, D, J & K, 26 for units C, D, J & K, 26 for units E and FImg
Alts
Ref.
Qty
1Availability
Part #
17452R1Description
BOLT Hex, 1/2''-13 x 1 1/4'', G2; 1/2 x 1-1/4 znd hex-hd mach, 3 per standardImg
Alts
Ref.
Qty
1Availability
Part #
120384Description
WASHER 1/2''; LOCK, , 3 per standard 1/2''Img
Alts
Ref.
Qty
1Availability
Part #
120378Description
NUT Hex, 1/2'' - 13, Gr 5; NUT, , 3 per standard 1/2''-13, G5Img
Alts
Ref.
2Qty
1Availability
Part #
56996C1Description
BOLT U, 3/4'' - 10 x 4.4''; U-BOLT, 3/4 in., 1 per standard, machines built 1973 to 1975, machines w/2 x 1-1/2 in. anglesImg
Alts
Ref.
Qty
2Availability
Part #
87340Description
LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4''Img
Alts
Ref.
3Qty
1Availability
Part #
56997C3Description
BRACKET; scraper LH, machines built 1973 to 1975, 1 per standard LH sideImg
Alts
Ref.
3Qty
1Availability
Part #
56998C3Description
BRACKET; scraper RH, machines built 1973 to 1975, 1 per standard RH sideImg
Alts
Ref.
Qty
1Availability
Part #
271547Description
STUD Hex, 5/8'' - 11 x 1 1/2'', Gr 5; SCREW, 5/8-11 x 1-1/2 znd hex-hd cap, 2 per bracketImg
Alts
Ref.
4Qty
1Availability
Part #
ST490ADescription
BEARING ASSY; disc gang ball sealed, 1 per standardImg
Alts
Ref.
4Qty
1Availability
Part #
ST491A-IMPGVDescription
BEARING ASSY; Value, 1-3/4 In. Round Bore Bearing AssyImg
Alts
Ref.
4Qty
1Availability
Part #
ST491ADescription
BALL BEARING 45mm ID; BEARING, ball w/lub fitting, regreasable, 1 per standardImg
Alts
Ref.
5Qty
1Availability
Part #
468607R1Description
BOLT 1 1/8''-7 x 39.8''; front wing arbor, 39.8 in., 2 for unit HImg
Alts
Ref.
5Qty
1Availability
Part #
471014R1Description
BOLT 1 1/8''-7 x 48.8''; wing arbor, 48.8 in., 4 for unit G, 2 for unit HImg
Alts
Ref.
5Qty
1Availability
Part #
652939R2Description
BOLT Rnd Cor Sq Hd, 1 1/8'' - 7 x 67.4''; arbor, 67.4 in., 2 for units D, F and H, 4 for units B and KImg
Alts
Ref.
5Qty
1Availability
Part #
472586R2Description
BOLT 1 1/8''-7 x 71.9''; arbor, 71.9 in., 4 for units C, E and G, 8 for units A and JImg
Alts
Ref.
5Qty
1Availability
Part #
468582R2Description

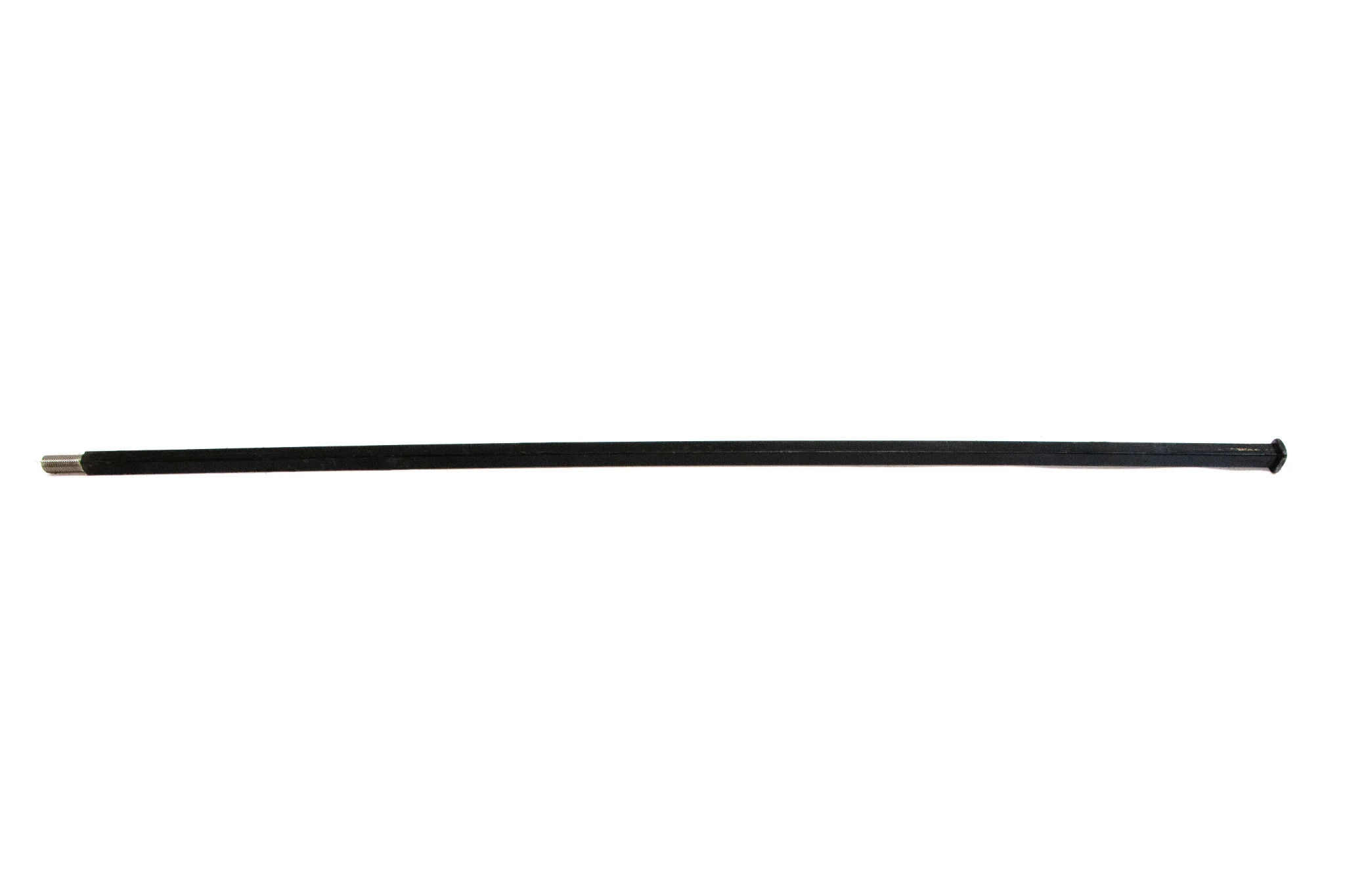

BOLT 1 1/8''-7 x 76.7''; BOLT, arbor, 76.4 in., 2 for units D, F and H, 4 for units B and KImg
Alts
Ref.
5Qty
1Availability
Part #
481844R1Description
BOLT 1 1/8''-7 x 85.4''; front wing arbor, 85.4 in., 2 for unit DImg
Alts
Ref.
5Qty
1Availability
Part #
487168R1Description
BOLT 1 1/8''-7 x 94.6''; wing arbor, 94.4 in., 4 for unit C, 2 for unit DImg
Alts
Ref.
5Qty
1Availability
Part #
546831R1Description
BOLT Rnd Cor Sq Hd, 1 1/8'' - 7 x 112.70mm; wing arbor, 112.4 in., 2 for unit FImg
Alts
Ref.
5Qty
1Availability
Part #
56999C1Description
SPECIAL BOLT Rnd Cor Sq Hd, 1 1/8'' - 7 x 117.60mm; BOLT, wing arbor, 116.9 in., 4 for unit EImg
Alts
Ref.
5Qty
1Availability
Part #
57000C1Description
BOLT Rnd Cor Sq Hd, 1 1/8'' - 7 x 121.80mm; wing arbor, 121.4 in., 2 for unit FImg
Alts
Ref.
6Qty
1Availability
Part #
472217R1Description
DISK HARROW; DISK, 20 in. x 8 ga solid, standard equipmentImg
Alts
Ref.
6Qty
1Availability
Part #
482986R2Description
DISK HARROW; DISK, 18 in. x 8 ga solidImg
Alts
Ref.
6Qty
1Availability
Part #
482987R2Description
DISK HARROW; DISK, 18 in. x 8 ga notchedImg
Alts
Ref.
6Qty
1Availability
Part #
651200R1Description
DISK HARROW; DISK, 18 in. x 9 ga notchedImg
Alts
Ref.
6Qty
1Availability
Part #
482976R1Description
DISK HARROW; DISK, 22 in. x 6 ga notchedImg
Alts
Ref.
Qty
1Availability
Part #
59749C1Description
SQ HOLE WASHER; take-up washer for 8 ga disksImg
Alts
Ref.
Qty
8Availability
Part #
492-11112Description
LOCK WASHER 1 1/8''; 1-1/8 znd reg lockImg
Alts
Ref.
9Qty
2Availability
Part #
100696C1Description

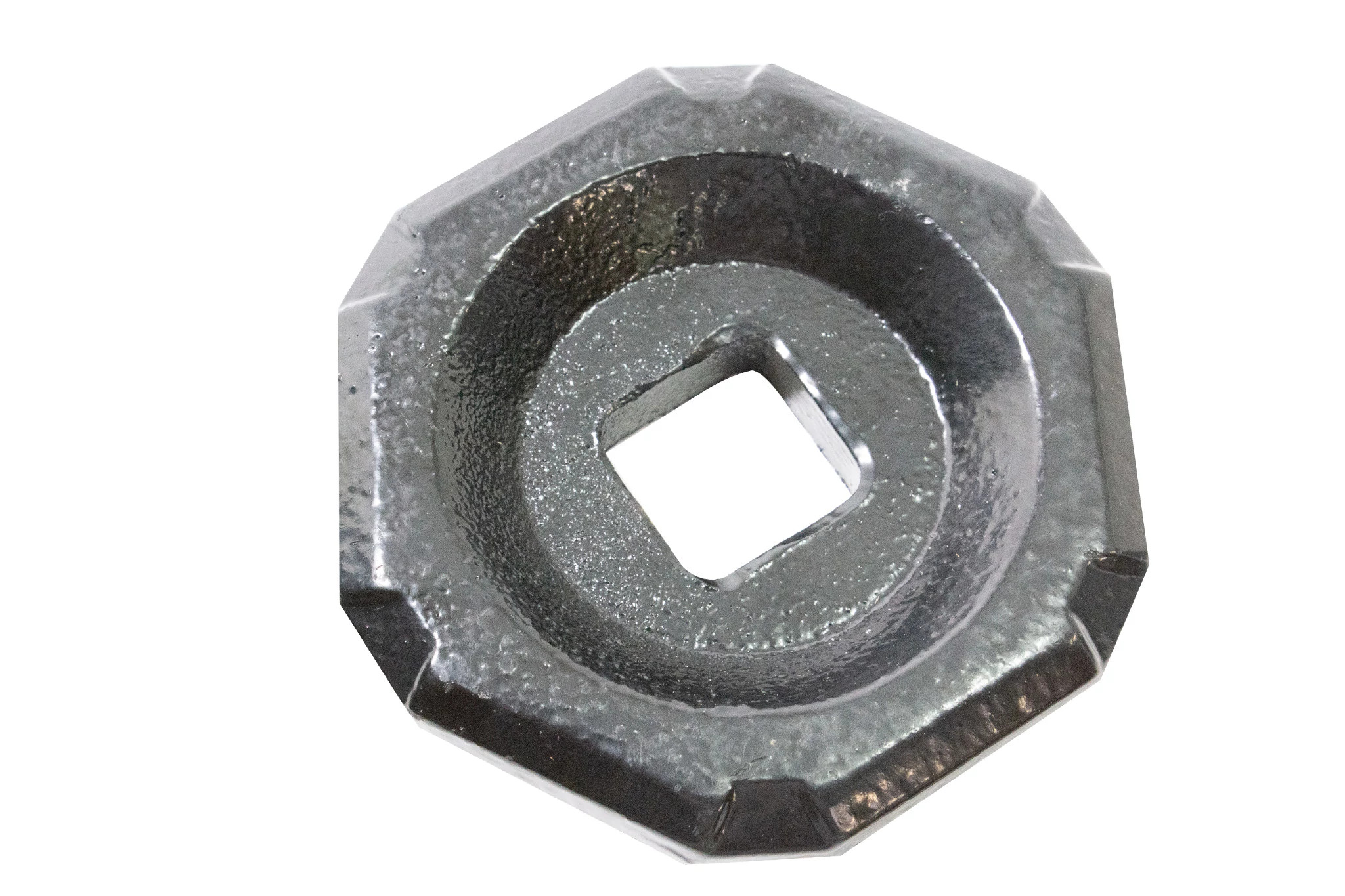

WASHER; furrow filler, replaces 466950R2Img
Alts
Ref.
10Qty
8Availability
Part #
PA4167Description
WASHER; nut, 8 for units A and B, 4 for units G & HImg
Alts
Ref.
10Qty
1Availability
Part #
481611R1Description
WASHER; nut, 4 for units G & H, 8 for units C, D, E, F, J and KImg
Alts
Ref.
12Qty
1Availability
Part #
652383R1Description
BUSHING 38.91mm ID x 44.45mm OD x 128.6mm L; support, 7-1/2 in., for use w/spools w/sqw ctr holes, 1 per standard on units A, C, E, G and JImg
Alts
Ref.
12Qty
1Availability
Part #
112769C1Description
BUSHING 38.91mm ID x 44.45mm OD x 183mm L; support, 7-1/2 in., for use w/spools w/rd ctr holes, 1 per standard on units A, C, E, G and JImg
Alts
Ref.
12Qty
1Availability
Part #
472594R1Description

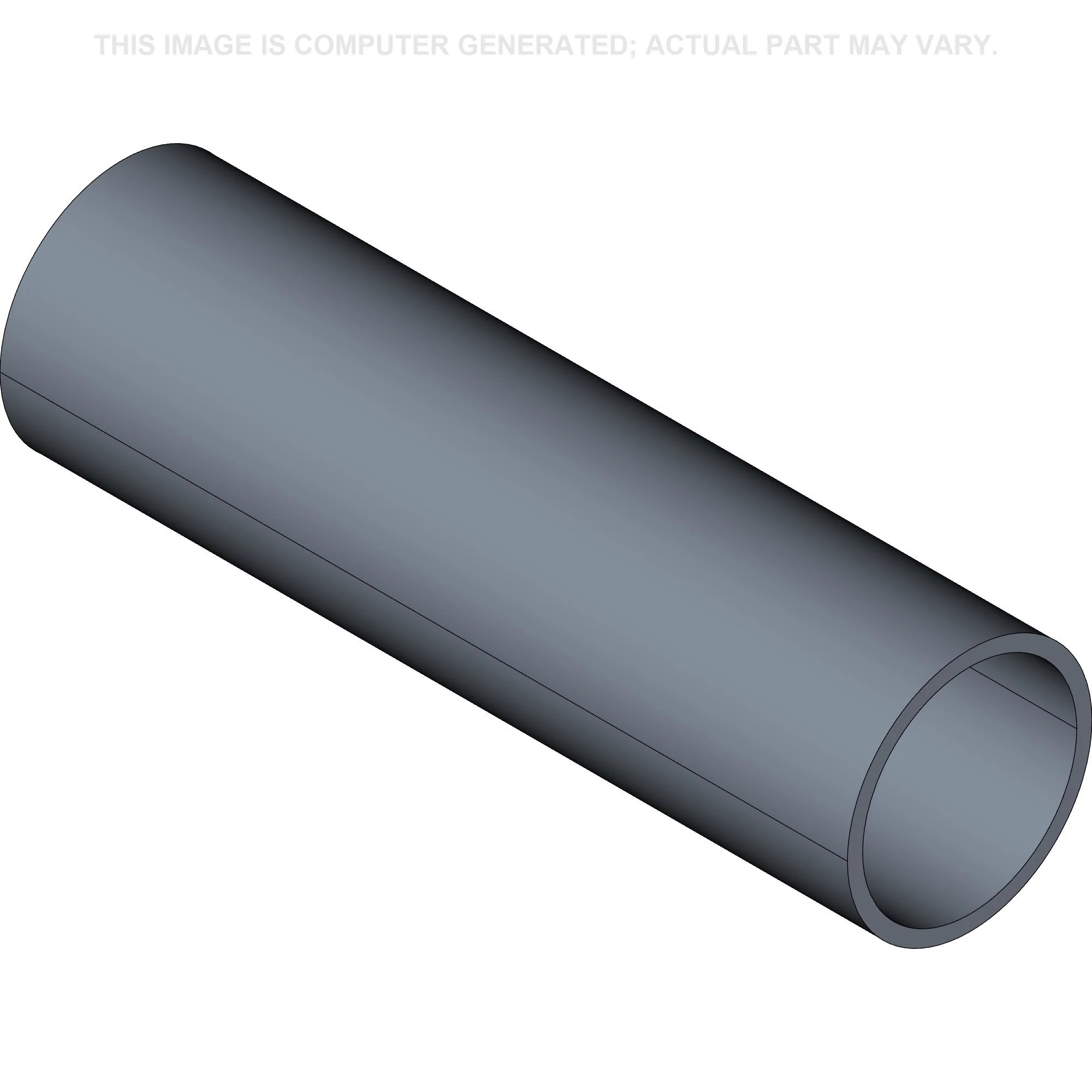

BUSHING 38.91mm ID x 44.45mm OD x 154mm L; support, 9 in., for use w/spools w/sq ctr holes, 1 per standard on units B, D, F, H and KImg
Alts
Ref.
12Qty
1Availability
Part #
112410C1Description
TUBE Bushing, 220 MM; BUSHING, support, 9 in., for use w/spools w/rd ctr holes, 1 per standard on units B, D, F, H and KImg
Alts
Ref.
13Qty
1Availability
Part #
481416R1Description
SPOOL; 7-1/2 in. spacing, 42 used unit G, 54 used units A and J, 62 used on unit C, 72 used on unit EImg
Alts
Ref.
13Qty
1Availability
Part #
481417R1Description

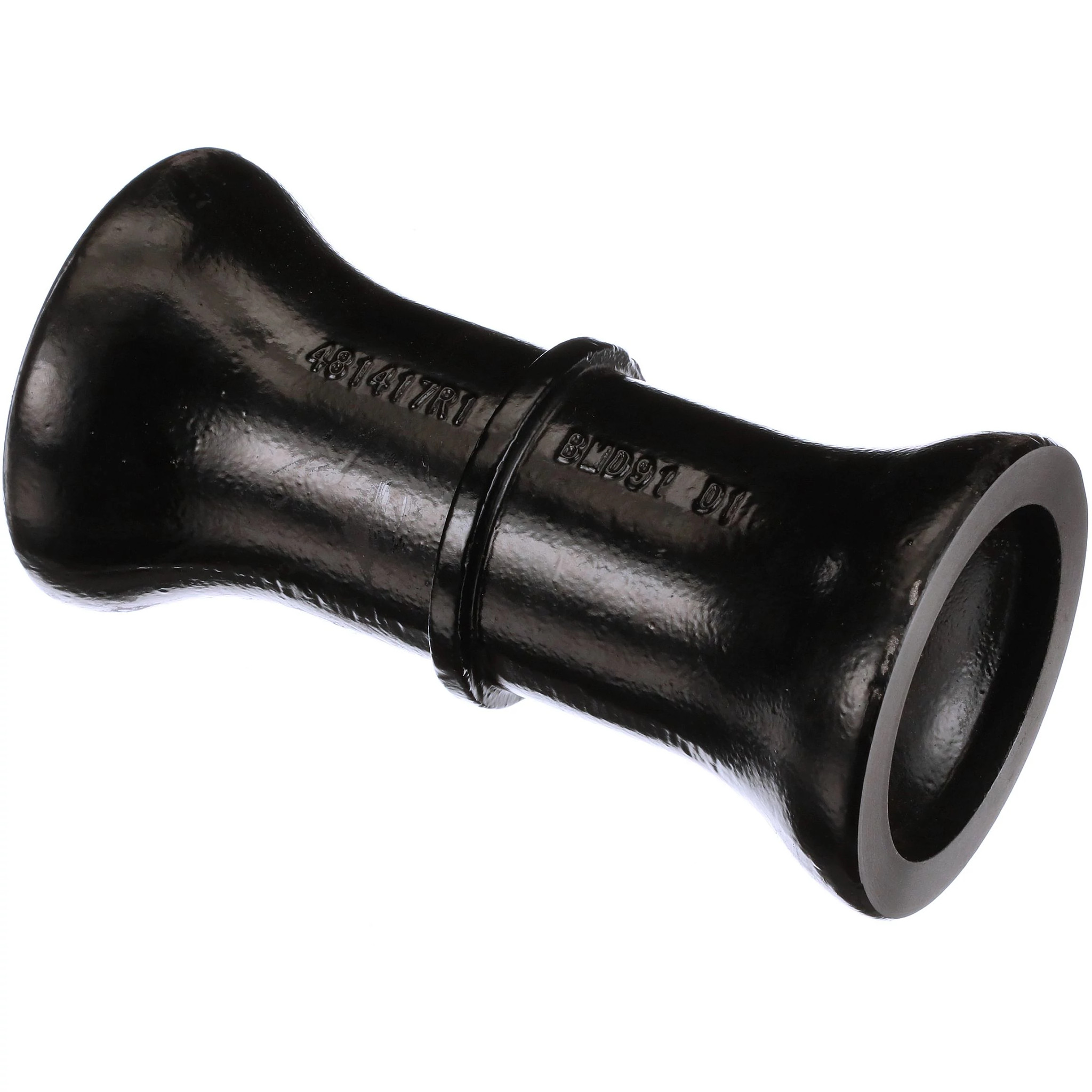

SPOOL; 9 in. spacing, 30 used on unit H, 42 used on units B and K, 46 used on unit D, 56 used on unit FImg
Alts
Ref.
14Qty
1Availability
Part #
472591R3Description
BUSHING 1.796'' ID x 2.4'' OD x 4.052''; W/SQ CENTER HOLE, brg 4 in.Img
Alts
Ref.
14Qty
1Availability
Part #
101191C1Description
SPACER SPOOL, spacer, 7-1/2'' And 9''; W/RD CENTER HOLE, brg 4 in. 1 per standardImg
Alts
Ref.
15Qty
1Availability
Part #
472592R3Description

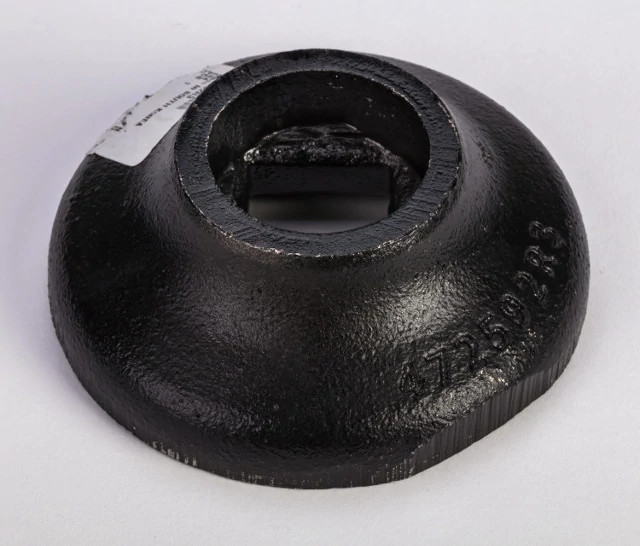

SPOOL; W/SQ CENTER HOLE, brg 1-1/2 in.Img
Alts
Ref.
15Qty
1Availability
Part #
101189C1Description
SPOOL Half Spacer 7-1/2''; W/RD CENTER HOLE, brg 1-1/2 in., 1 per standard on units A, C, E, G and JImg
Alts
Ref.
15Qty
1Availability
Part #
101190C1Description
SPOOL Bearing, Short; W/RD CENTER HOLE, brg 3 in., 1 per standard on units B, D, F, H and KImg
Alts
Ref.
16Qty
1Availability
Part #
112448C2Description
BAR; replaces u-bolt, 56996C1, by also ordering attaching hardware, 1 per standard, machines built 1973 to 1975, machines w/2 x 1-1/2 in. anglesImg
Alts
Ref.
16Qty
2Availability
Part #
112448C2Description
BAR; units C, D, G through K, machines built 1976 and since, machines w/2 x 2 in anglesImg
Alts
Ref.
Qty
1Availability
Part #
413-1280Description

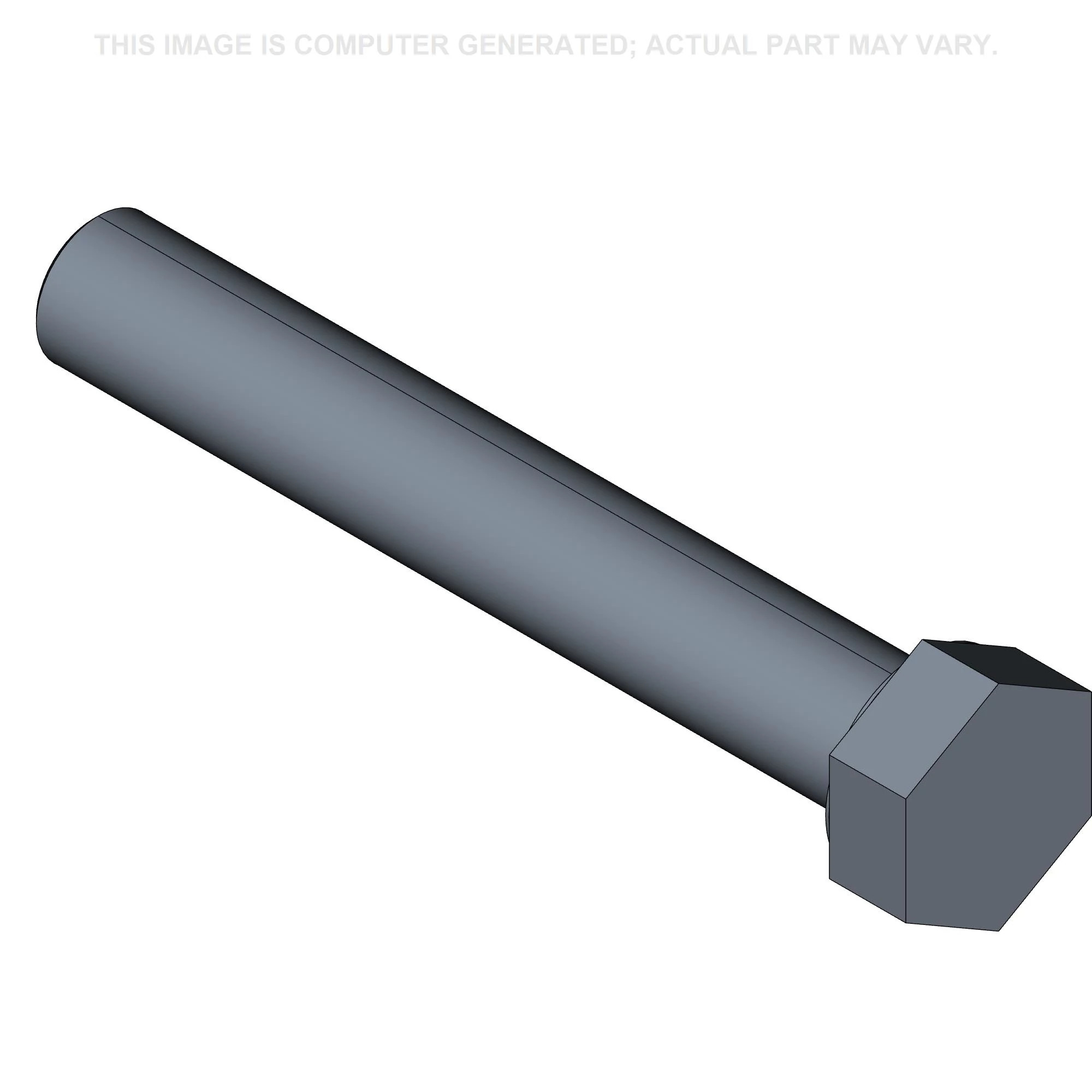

BOLT Hex, 3/4'' - 10 x 5'', Gr 5; SCREW, 3/4-10 x 5 znd hex-hd cap, 2 per bar , Course threadsImg
Alts
Ref.
Qty
1Availability
Part #
87340Description
LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4'', 1 per screwImg
Alts
Ref.
Qty
1Availability
Part #
280954Description
NUT 3/4'' - 10, Gr 5; 1 per screw 3/4''-10, G5Img
Alts
Ref.
17Qty
1Availability
Part #
121167C1Description
SUPPORT; BRACKET, scraper angle, machines w/serial no. 9816 to 166677, machines w/2 and 2 in. angles, 14 for G and H, 18 for C, D, J and 5, 22 for E and fImg
Alts
Ref.
Qty
1Availability
Part #
413-1280Description
BOLT Hex, 3/4'' - 10 x 5'', Gr 5; SCREW, 3/4-10 x 5 znd hex-hd cap, 2 per bracket , Course threadsImg
Alts
Ref.
Qty
1Availability
Part #
87340Description
LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4'', 1 per screwImg
Alts
Ref.
Qty
1Availability
Part #
280954Description
NUT 3/4'' - 10, Gr 5; 1 per screw 3/4''-10, G5Img
Alts
Ref.
17Qty
1Availability
Part #
112918C1Description
BRACKET; scraper RH, machines w/serial no. 9815 & belowImg
Alts
Ref.
18Qty
1Availability
Part #
121207C1Description
SUPPORT; bearing standard, mashines w/serial no. 9816 to 16677, 1 per standardImg
Alts
Ref.
Qty
1Availability
Part #
NLSDescription
NO LONGER SERVICED; SCREW, 5/8-11 x 1-1/2 znd hex-hd cap, 2 per supportImg
Alts
Ref.
Qty
1Availability
Part #
473211R1Description
LOCK NUT 5/8''-11, GB; NUT, 5/8-11 znd hex. lock, 2 per supportImg
Alts
