Ref.
Qty
Part #
Alts
Description
-
11PLATE; SLAT ASSY, no. 1, right hand, includes 2, 3
-
11SUPPORT; SLAT ASSY, no. 1, left hand, includes 2, 3, not illustrated
-

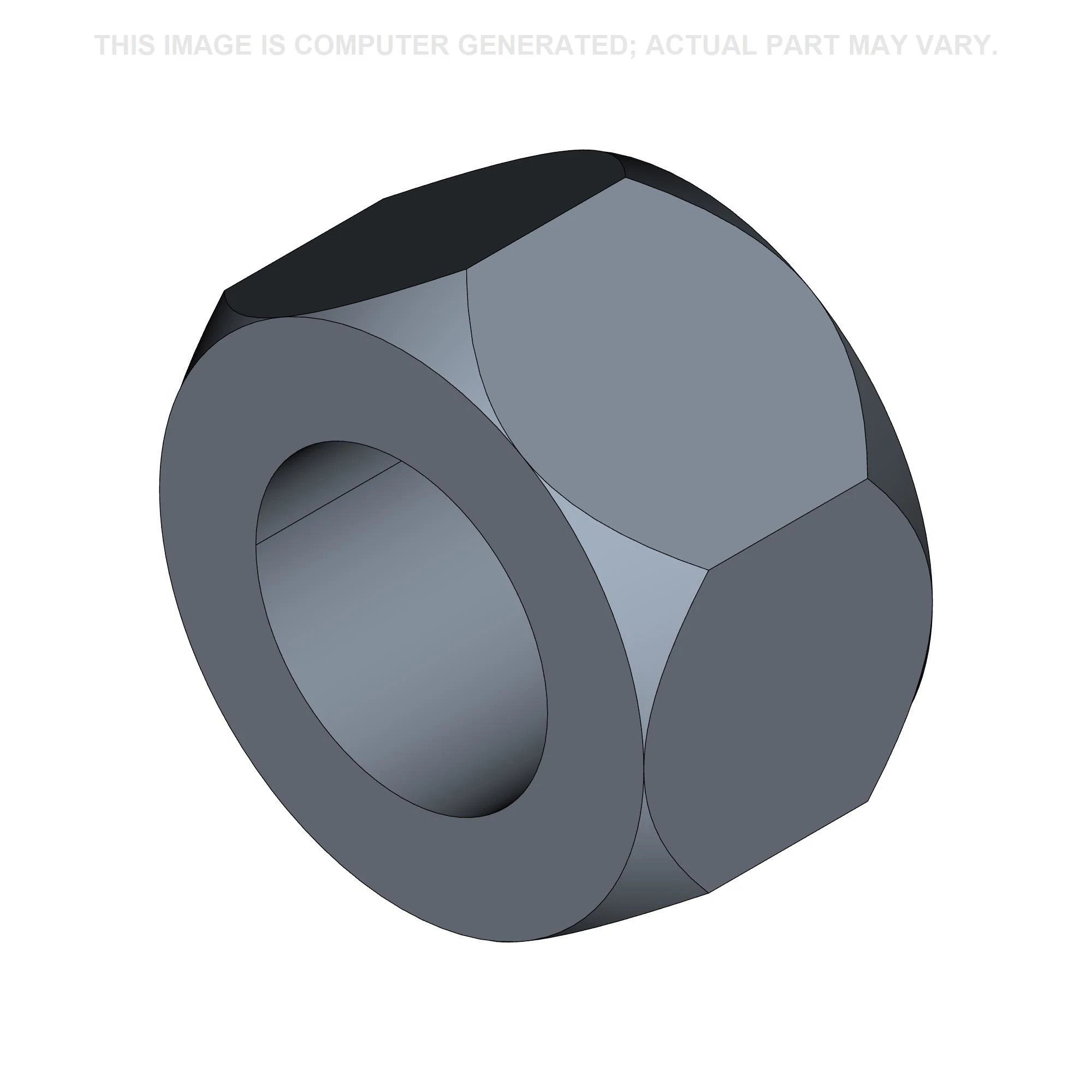

32NUT 7/16'' - 14, G8;
-
41PLATE; SLAT ASSY, no. 2, right hand, includes 5, 6
-
41SUPPORT; SLAT ASSY, no. 2, left hand, includes 5, 6, not illustrated
-
52BOLT #3, 7/16'' - 14 x 1 1/4'', Gr 8; BOLT, plow, 7/16 x 1-1/4, 8
-
62NUT 7/16'' - 14, G8;
-
71PLATE; SLAT ASSY, no. 3, right hand, includes 8 - 10
-
71SUPPORT; SLAT ASSY, no. 3, left hand, includes 8 - 10, not illustrated
-
81BOLT #3, 7/16'' - 14 x 1 1/4'', Gr 8; BOLT, plow, 7/16 x 1-1/4, 8
-
91PLOW BOLT; BOLT, plow, 7/16 x 2-1/8, 8
-
102NUT 7/16'' - 14, G8;
-
111PLATE; SHIN ASSY, moldboard, right hand, includes 12 - 14
-
111EXTENSION; SHIN ASSY, moldboard, left hand, includes 12 - 14, not illustrated
-
121BOLT #3, 7/16'' - 14 x 1 1/4'', Gr 8; BOLT, plow, 7/16 x 1-1/4, 8
-
132PLOW BOLT; BOLT, plow, 7/16 x 2-1/8, 8
-
143NUT 7/16'' - 14, G8;
-
151FROG, SADDLE FROG; FROG ASSY, right hand, includes 16 - 19
-
151FROG, SADDLE FROG; FROG ASSY, left hand, includes 16 - 19, not illustrated
-
162BOLT Hex, 7/16'' - 14 x 1-1/2'', Gr 8; 7/16 x 1-1/2, 8
-
172LOCK WASHER 7/16''; WASHER, LOCK, 7/16''
-
183NUT 5/8''-18, G8;
-
191BOLT Hex, 5/8'' - 18 x 3'', Gr 8; 5/8 NF x 3, 8
-
20XBLOCK; SHIM
-
211BOLT Hex, 5/8'' - 11 x 3-1/2'', Gr 8; 5/8 x 3-1/2, 8
-
223NUT; flange, special, 5/8, 8
-
232WASHER 16.6mm ID x 33.5mm OD x 3.8mm Thk; 21/32 x 1-5/16 x 5/32
-
241SUPPORT; slat, right hand
-
241SUPPORT; slat, left hand, not illustrated
-
251INSTRUCTION; BRACKET, trash plate, see page 9-52
-
262CARRIAGE BOLT #3, 3/8'' - 16 x 1 1/2'', Gr 2; BOLT, plow, 3/8 x 1-1/2
-
272WASHER 10.31mm ID x 25.4mm OD x 3.81mm Thk; 13/32 x 1 x 7/64
-
292NUT 3/8''-16, Cl 5;
-
30XINSTRUCTION; PLATE, trash, right hand, see page 9-52
-
311INSTRUCTION; SHARE, moldboard, see pages 9-56 - 9-66
-
341INSTRUCTION; LANDSIDE, standard, right hand, see pages 9-72 - 9-76
-
352INSTRUCTION; PAD, wear, landside, see page 9-82
-
362PLOW BOLT Spcl Hd, 7/16'' - 14 x 28mm; BOLT, special, 7/16 x 1-3/32
-
371PLOW BOLT; BOLT, special, 7/16 x 2
-
383NUT 7/16'' - 14, G8;
-
391PLATE,SMALL SQUARE; BLOCK, landside stop
-
401BOLT Hex, 5/8'' - 11 x 4'', Gr 8;
-
411NUT; flange, special, 5/8, 8
-
421WASHER;
Select All
Ref.
1Qty
1Availability
Part #
488429R11Description
PLATE; SLAT ASSY, no. 1, right hand, includes 2, 3Img
Alts
Ref.
1Qty
1Availability
Part #
541897R11Description
SUPPORT; SLAT ASSY, no. 1, left hand, includes 2, 3, not illustratedImg
Alts
Ref.
4Qty
1Availability
Part #
488430R11Description
PLATE; SLAT ASSY, no. 2, right hand, includes 5, 6Img
Alts
Ref.
4Qty
1Availability
Part #
541898R11Description
SUPPORT; SLAT ASSY, no. 2, left hand, includes 5, 6, not illustratedImg
Alts
Ref.
5Qty
2Availability
Part #
420-3720Description
BOLT #3, 7/16'' - 14 x 1 1/4'', Gr 8; BOLT, plow, 7/16 x 1-1/4, 8Img
Alts
Ref.
7Qty
1Availability
Part #
488431R11Description
PLATE; SLAT ASSY, no. 3, right hand, includes 8 - 10Img
Alts
Ref.
7Qty
1Availability
Part #
541899R11Description
SUPPORT; SLAT ASSY, no. 3, left hand, includes 8 - 10, not illustratedImg
Alts
Ref.
8Qty
1Availability
Part #
420-3720Description
BOLT #3, 7/16'' - 14 x 1 1/4'', Gr 8; BOLT, plow, 7/16 x 1-1/4, 8Img
Alts
Ref.
9Qty
1Availability
Part #
62179C1Description
PLOW BOLT; BOLT, plow, 7/16 x 2-1/8, 8Img
Alts
Ref.
11Qty
1Availability
Part #
488428R11Description
PLATE; SHIN ASSY, moldboard, right hand, includes 12 - 14Img
Alts
Ref.
11Qty
1Availability
Part #
541896R11Description
EXTENSION; SHIN ASSY, moldboard, left hand, includes 12 - 14, not illustratedImg
Alts
Ref.
12Qty
1Availability
Part #
420-3720Description
BOLT #3, 7/16'' - 14 x 1 1/4'', Gr 8; BOLT, plow, 7/16 x 1-1/4, 8Img
Alts
Ref.
13Qty
2Availability
Part #
62179C1Description
PLOW BOLT; BOLT, plow, 7/16 x 2-1/8, 8Img
Alts
Ref.
15Qty
1Availability
Part #
488424R1Description
FROG, SADDLE FROG; FROG ASSY, right hand, includes 16 - 19Img
Alts
Ref.
15Qty
1Availability
Part #
541906R1Description
FROG, SADDLE FROG; FROG ASSY, left hand, includes 16 - 19, not illustratedImg
Alts
Ref.
16Qty
2Availability
Part #
426-724Description
BOLT Hex, 7/16'' - 14 x 1-1/2'', Gr 8; 7/16 x 1-1/2, 8Img
Alts
Ref.
17Qty
2Availability
Part #
492-11044Description
LOCK WASHER 7/16''; WASHER, LOCK, 7/16''Img
Alts
Ref.
19Qty
1Availability
Part #
428-1048Description
BOLT Hex, 5/8'' - 18 x 3'', Gr 8; 5/8 NF x 3, 8Img
Alts
Ref.
21Qty
1Availability
Part #
426-1056Description
BOLT Hex, 5/8'' - 11 x 3-1/2'', Gr 8; 5/8 x 3-1/2, 8Img
Alts
Ref.
23Qty
2Availability
Part #
496-21066Description
WASHER 16.6mm ID x 33.5mm OD x 3.8mm Thk; 21/32 x 1-5/16 x 5/32Img
Alts
Ref.
24Qty
1Availability
Part #
541909R1Description
SUPPORT; slat, left hand, not illustratedImg
Alts
Ref.
25Qty
1Availability
Part #
REFDescription
INSTRUCTION; BRACKET, trash plate, see page 9-52Img
Alts
Ref.
26Qty
2Availability
Part #
418-3624Description
CARRIAGE BOLT #3, 3/8'' - 16 x 1 1/2'', Gr 2; BOLT, plow, 3/8 x 1-1/2Img
Alts
Ref.
27Qty
2Availability
Part #
495-81136Description
WASHER 10.31mm ID x 25.4mm OD x 3.81mm Thk; 13/32 x 1 x 7/64Img
Alts
Ref.
30Qty
XAvailability
Part #
REFDescription
INSTRUCTION; PLATE, trash, right hand, see page 9-52Img
Alts
Ref.
31Qty
1Availability
Part #
REFDescription
INSTRUCTION; SHARE, moldboard, see pages 9-56 - 9-66Img
Alts
Ref.
34Qty
1Availability
Part #
REFDescription
INSTRUCTION; LANDSIDE, standard, right hand, see pages 9-72 - 9-76Img
Alts
Ref.
35Qty
2Availability
Part #
REFDescription
INSTRUCTION; PAD, wear, landside, see page 9-82Img
Alts
Ref.
36Qty
2Availability
Part #
59055C3Description
PLOW BOLT Spcl Hd, 7/16'' - 14 x 28mm; BOLT, special, 7/16 x 1-3/32Img
Alts
Ref.
39Qty
1Availability
Part #
58994C1Description
PLATE,SMALL SQUARE; BLOCK, landside stopImg
Alts
