Ref.
Qty
Part #
Alts
Description
-
14BAR; STANDARD, brg, units A, B and C
-
21TUBE; main gang 71.5 in., 4 for unit A, 2 for rear gangs on units D and E
-
21TUBE; gang 79.5 in., 4 for unit B, 4 for wing gangs on unit E
-
21TUBE; main gang 87.5 in., 4 for unit C
-
21TUBE 4'' OD, 50.1'' Length; wing gang 50.1 in., 4 for gangs on unit D
-
21TUBE 4'' OD, 59.5'' Length; main gang 59.5 in., 2 for frt gangs on units D and E
-
32SPACER; arbor
-
41SPACER; arbor, 4 for units A, B and C, 12 for units D and E
-
52BOLT; main arbor 158.4 in. 2 for gangs on unit A, 1 for rear gangs on units D and E, also order, washers and nuts
-
52BOLT; main arbor 174 in., 2 for gangs on unit B, also order, washers and nuts
-
52BOLT; main arbor 190 in., 2 for gangs on unit C, also order washers and nuts
-
52SQUARE BOLT Arbor, Rnd Corner Sq, 1 1/8'' - 7 x 134.60mm; main arbor 134.6 in, 1 for frt gangs on units D and E, also order washers and nuts
-
52BOLT; wing arbor 89.9 in., 4 for gangs on unit E, also order washers and nuts
-
1LOCK WASHER 1 1/8''; WASHER, 1-1/8 znd reg lock, 2 per bolt
-
1NUT 1 1/8''-7, G5; 1-1/8 znd hex., 2 per bolt
-
62SUPPORT; axle, 8 for units A, B and C, 16 for units D and E
-
1BOLT Hex, 1/2'' - 13 x 4 1/2'', Gr 5; 1/2 x 4-1/2 type 5, 1 per clamp
-
1WASHER 1/2''; LOCK, , 1 per clamp 1/2''
-
1NUT Hex, 1/2'' - 13, Gr 5; NUT, , 1 per clamp 1/2''-13, G5
-
71WASHER; axle, 8 for units A, B, and C, 16 for units D & E
-
81BALL BEARING 45mm ID; BEARING, w/lub fitting, self aligning ball, 5 in. sq., 6 for A, B and C, 12 for D and E
-
81BEARING ASSY; Value, 1-3/4 In. Round Bore Bearing Assy
-
81BEARING; ball 5-1/2 in. sq., 2 for units D and E
-
1BOLT Hex, 1/2''-13 x 1 1/2'', G2; 1/2 x 1-1/2 znd hex-hd mach, 3 per bearing
-
1WASHER 1/2''; LOCK, , 3 per bearing 1/2''
-
1NUT Hex, 1/2'' - 13, Gr 5; NUT, , 3 per bearing 1/2''-13, G5
-
91SQ HOLE WASHER; end, 4 for A, B and C, 12 for D and E
-
10UARWHEEL 370.84mm OD x 106.68mm W; packer, front or rear
-
11UARWHEEL 416.56mm OD; crowfoot, front or rear
-
12UARTUBE; gang spacer, front or rear
Select All
Select
Ref.
1Qty
4Availability
Part #
540349R2Description
BAR; STANDARD, brg, units A, B and CImg
Alts
Select
Ref.
2Qty
1Availability
Part #
540352R2Description
TUBE; main gang 71.5 in., 4 for unit A, 2 for rear gangs on units D and EImg
Alts
Select
Ref.
2Qty
1Availability
Part #
540351R2Description
TUBE; gang 79.5 in., 4 for unit B, 4 for wing gangs on unit EImg
Alts
Select
Ref.
2Qty
1Availability
Part #
540350R2Description
TUBE; main gang 87.5 in., 4 for unit CImg
Alts
Select
Ref.
2Qty
1Availability
Part #
63531C1Description
TUBE 4'' OD, 50.1'' Length; wing gang 50.1 in., 4 for gangs on unit DImg
Alts
Select
Ref.
2Qty
1Availability
Part #
60025C1Description
TUBE 4'' OD, 59.5'' Length; main gang 59.5 in., 2 for frt gangs on units D and EImg
Alts
Select
Ref.
4Qty
1Availability
Part #
540354R1Description

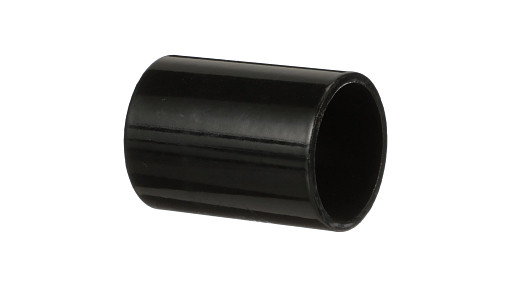

SPACER; arbor, 4 for units A, B and C, 12 for units D and EImg
Alts
Select
Ref.
5Qty
2Availability
Part #
112790C2Description
BOLT; main arbor 158.4 in. 2 for gangs on unit A, 1 for rear gangs on units D and E, also order, washers and nutsImg
Alts
Select
Ref.
5Qty
2Availability
Part #
112791C1Description
BOLT; main arbor 174 in., 2 for gangs on unit B, also order, washers and nutsImg
Alts
Select
Ref.
5Qty
2Availability
Part #
112792C1Description
BOLT; main arbor 190 in., 2 for gangs on unit C, also order washers and nutsImg
Alts
Select
Ref.
5Qty
2Availability
Part #
121053C1Description
SQUARE BOLT Arbor, Rnd Corner Sq, 1 1/8'' - 7 x 134.60mm; main arbor 134.6 in, 1 for frt gangs on units D and E, also order washers and nutsImg
Alts
Select
Ref.
5Qty
2Availability
Part #
112594C1Description
BOLT; wing arbor 89.9 in., 4 for gangs on unit E, also order washers and nutsImg
Alts
Select
Ref.
Qty
1Availability
Part #
492-11112Description
LOCK WASHER 1 1/8''; WASHER, 1-1/8 znd reg lock, 2 per boltImg
Alts
Select
Ref.
Qty
1Availability
Part #
220094Description
NUT 1 1/8''-7, G5; 1-1/8 znd hex., 2 per boltImg
Alts
Select
Ref.
6Qty
2Availability
Part #
540358R1Description
SUPPORT; axle, 8 for units A, B and C, 16 for units D and EImg
Alts
Select
Ref.
Qty
1Availability
Part #
433156Description
BOLT Hex, 1/2'' - 13 x 4 1/2'', Gr 5; 1/2 x 4-1/2 type 5, 1 per clampImg
Alts
Select
Ref.
Qty
1Availability
Part #
120384Description
WASHER 1/2''; LOCK, , 1 per clamp 1/2''Img
Alts
Select
Ref.
Qty
1Availability
Part #
120378Description
NUT Hex, 1/2'' - 13, Gr 5; NUT, , 1 per clamp 1/2''-13, G5Img
Alts
Select
Ref.
7Qty
1Availability
Part #
540359R2Description

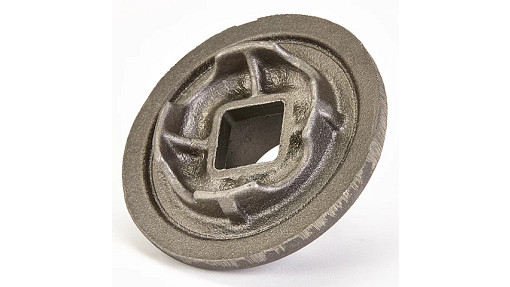

WASHER; axle, 8 for units A, B, and C, 16 for units D & EImg
Alts
Select
Ref.
8Qty
1Availability
Part #
ST491ADescription

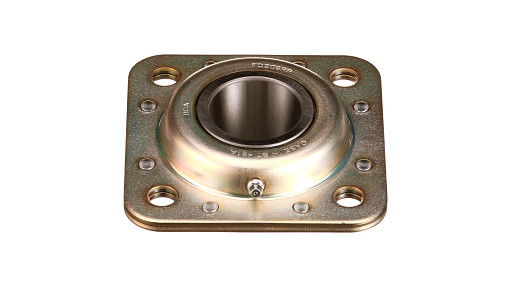

BALL BEARING 45mm ID; BEARING, w/lub fitting, self aligning ball, 5 in. sq., 6 for A, B and C, 12 for D and EImg
Alts
Select
Ref.
8Qty
1Availability
Part #
ST491A-IMPGVDescription
BEARING ASSY; Value, 1-3/4 In. Round Bore Bearing AssyImg
Alts
Select
Ref.
8Qty
1Availability
Part #
ST3018Description
BEARING; ball 5-1/2 in. sq., 2 for units D and EImg
Alts
Select
Ref.
Qty
1Availability
Part #
18496R1Description
BOLT Hex, 1/2''-13 x 1 1/2'', G2; 1/2 x 1-1/2 znd hex-hd mach, 3 per bearingImg
Alts
Select
Ref.
Qty
1Availability
Part #
120384Description
WASHER 1/2''; LOCK, , 3 per bearing 1/2''Img
Alts
Select
Ref.
Qty
1Availability
Part #
120378Description
NUT Hex, 1/2'' - 13, Gr 5; NUT, , 3 per bearing 1/2''-13, G5Img
Alts
Select
Ref.
9Qty
1Availability
Part #
547255R2Description
SQ HOLE WASHER; end, 4 for A, B and C, 12 for D and EImg
Alts
Select
Ref.
10Qty
UARAvailability
Part #
540360R2Description
WHEEL 370.84mm OD x 106.68mm W; packer, front or rearImg
Alts
Select
Ref.
11Qty
UARAvailability
Part #
540419R1Description
WHEEL 416.56mm OD; crowfoot, front or rearImg
Alts
Select
Ref.
12Qty
UARAvailability
Part #
540420R3Description
TUBE; gang spacer, front or rearImg
Alts
