SPX3310 - SPRAYER (11/04 ... 01 - ENGINE 03-021 - FRONT GEAR TRAIN...
03-021 - FRONT GEAR TRAIN ACCESSORY DRIVE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    NSS
    NOT SOLD SEPARAT; DRIVE HYDRAULIC PUMP; (SN Break) Up to 46083090
  • 1
    1
    J923237
    ADAPTER; HYDRAULIC PUMP; (SN Break) Up to 46083090
  • 2
    1
    J902601
    BEARING, ROLLER, CYL 35mm ID x 64mm OD x 37mm W; (SN Break) Up to 46083090
  • 3
    1
    J923242
    SHAFT; ACCESSORY DRIVE; (SN Break) Up to 46083090
  • 4
    1
    J931338

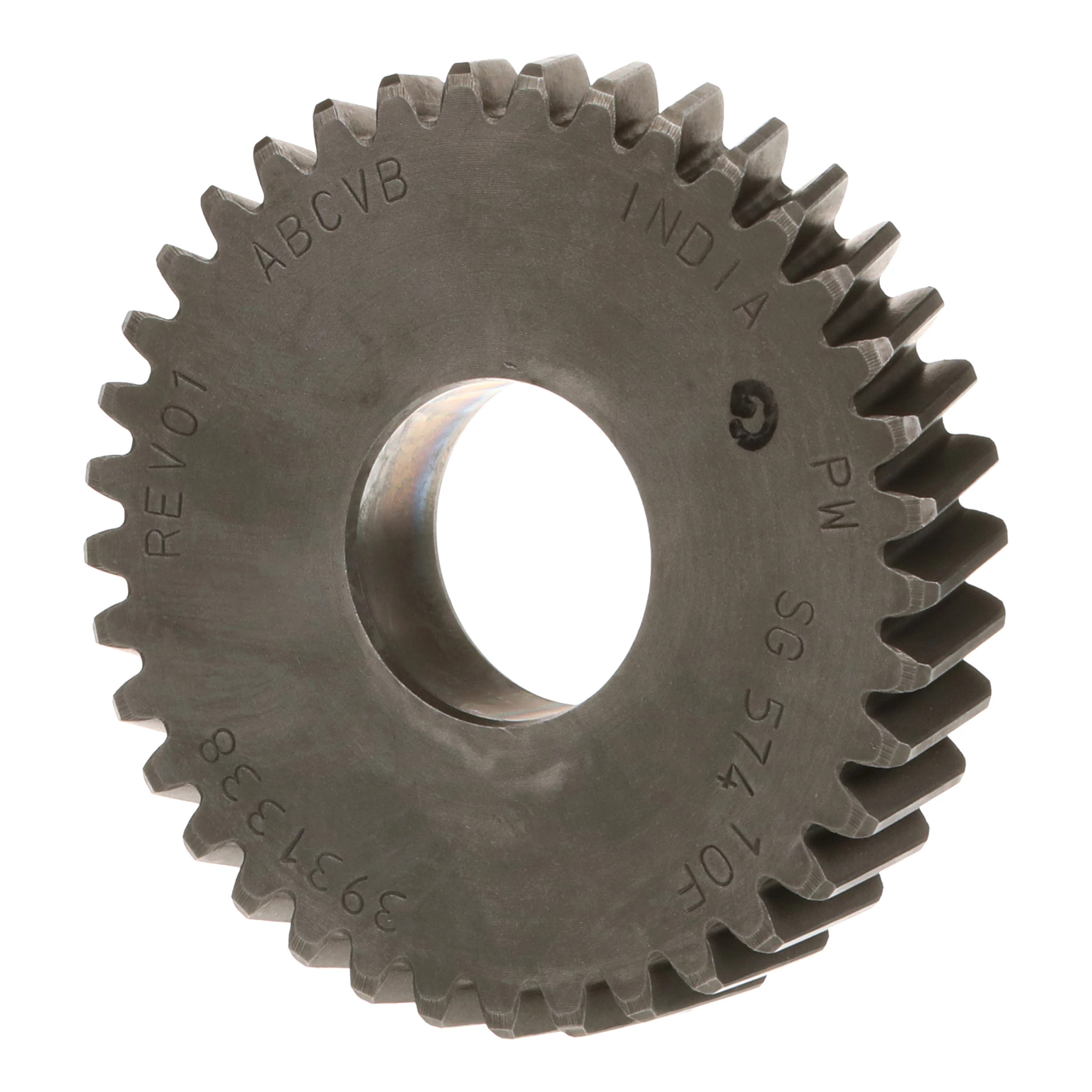

    GEAR; ACCESSORY DRIVE; (SN Break) Up to 46083090
  • 5
    1
    J929751
    GASKET; ACC DRIVE COVER; (SN Break) Up to 46083090
  • 6
    1
    J914868

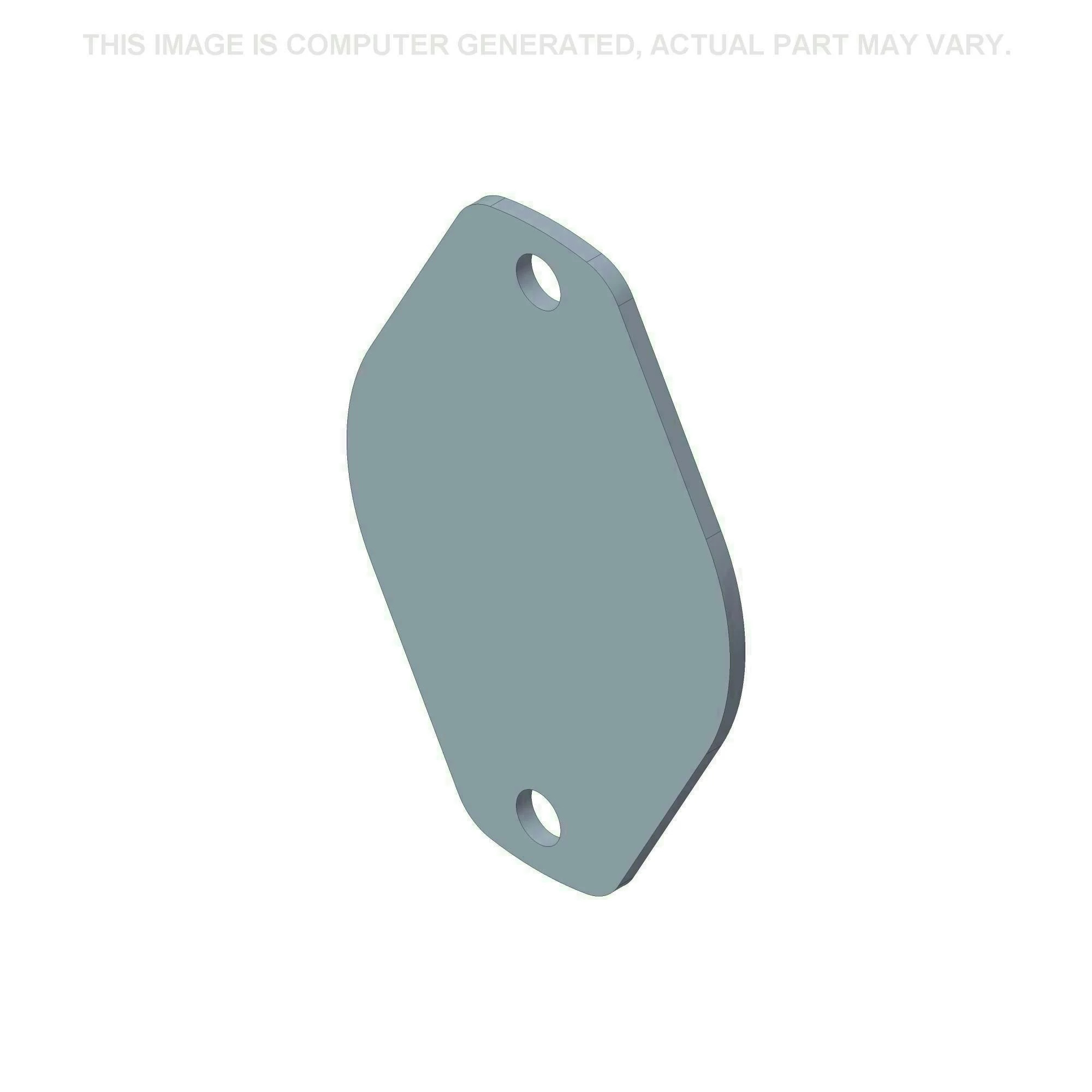

    COVER; plate, access, flat; (SN Break) Up to 46083090
  • 7
    1
    J931996
    SPACER; MOUNTING; (SN Break) Up to 46083090
  • 8
    1
    9804266
    FLANGE BOLT Hex, M12 x 25mm, Cl 8.8, Full Thd; (SN Break) Up to 46083090
  • 9
    2
    854-12065
    BOLT Hvy Hex, M12 x 65mm, Cl 10.9; (SN Break) Up to 46083090
  • 10
    2
    87015908
    FLANGE BOLT Hvy Hex, M12 x 60mm, Cl 10.9; (SN Break) Up to 46083090
  • 11
    1
    J931825
    BRACKET; HYDRAULIC PUMP; (SN Break) Up to 46083090
  • AR
    J936222
    DRIVE; HYDRAULIC PUMP; (SN Break) From 46083090
  • 1
    1
    J936129
    FLANGE; HYDRAULIC PUMP; (SN Break) From 46083090
  • 2
    1
    J935644
    BEARING, ROLLER; (SN Break) From 46083090
  • 3
    1
    J935645
    SHAFT; ACCESSORY DRIVE; (SN Break) From 46083090
  • 4
    1
    84153358
    DRIVING GEAR; ACCESSORY; (SN Break) From 46083090
  • 5
    2
    J938655
    GASKET 1.27mm Thk; ACC DRIVE COVER; (SN Break) From 46083090
  • 6
    1
    J914868
    COVER; plate, access, flat; (SN Break) From 46083090
  • 7
    1
    J931996
    SPACER; MOUNTING; (SN Break) From 46083090
  • 8
    1
    9804266
    FLANGE BOLT Hex, M12 x 25mm, Cl 8.8, Full Thd; (SN Break) From 46083090
  • 9
    2

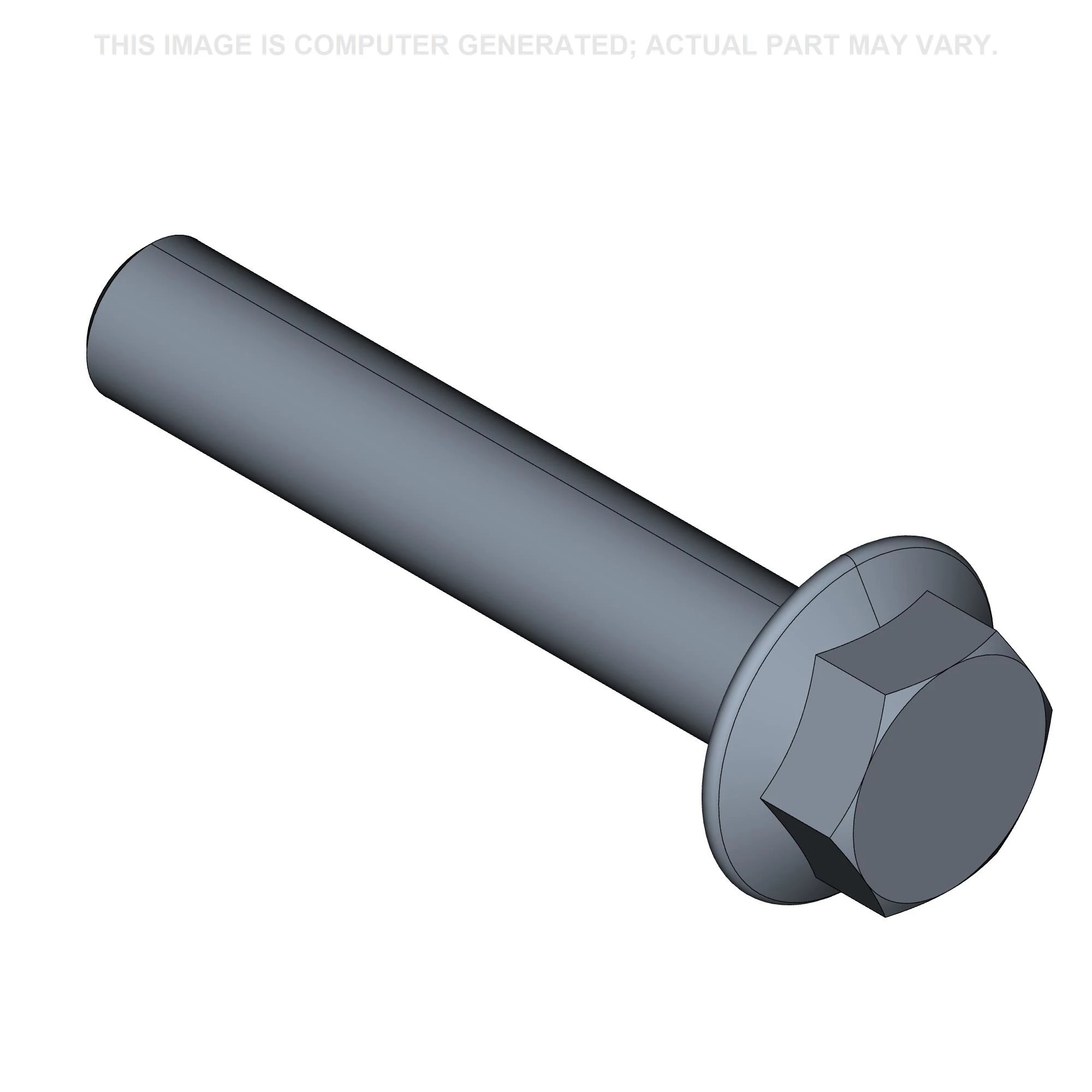

    854-12065
    BOLT Hvy Hex, M12 x 65mm, Cl 10.9; (SN Break) From 46083090
  • 10
    2
    87015908
    FLANGE BOLT Hvy Hex, M12 x 60mm, Cl 10.9; (SN Break) From 46083090
  • 11
    1
    J931825
    BRACKET; HYDRAULIC PUMP; (SN Break) From 46083090
  • 12
    1
    J939694
    ELBOW; (SN Break) From 46083090
  • 13
    1
    J924867
    HOSE; Flexible; (SN Break) From 46083090
