5100 - CASE IH END WHEEL ... 00 - COMPLETE MACHINE 118 - DOUBLE DISC FURROW ...
118 - DOUBLE DISC FURROW OPENER
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    819820C1
    BAR; DRAWBAR - furrow opener, front
  • 2
    1
    819821C1
    BAR; DRAWBAR - furrow opener, rear
  • 3
    1
    819349C1

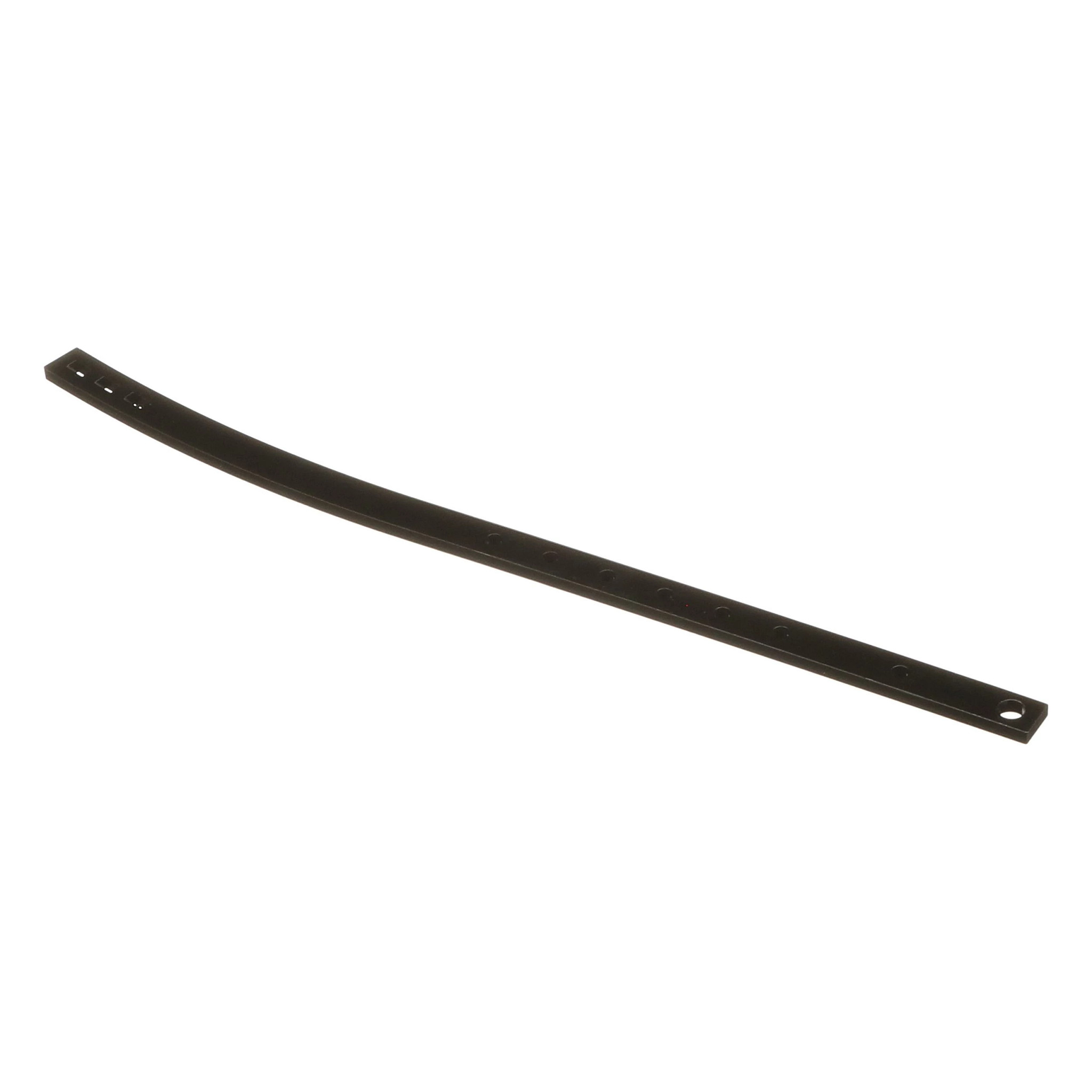

    BAR; - pressure spring front, rank
  • 4
    1
    6626-1

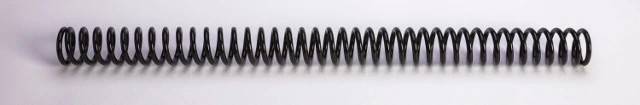

    SPRING; - pressure
  • 5
    1
    F6366
    LOCK; - pressure spring
  • 6
    1
    605964R1

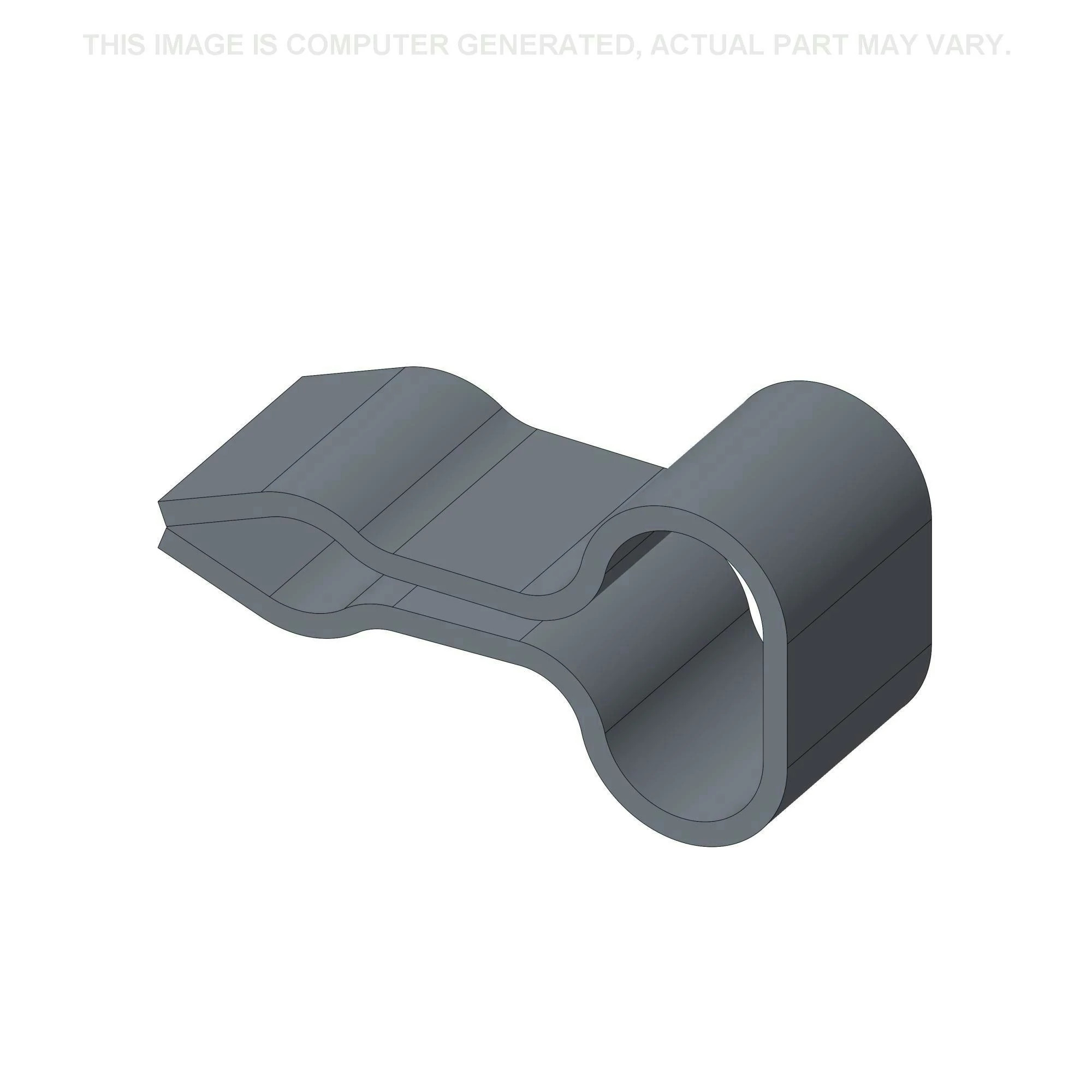

    CLIP; - special
  • 7
    1
    J623
    HEADED PIN 9.53mm OD x 88.9mm L; PIN - c1evis
  • 8
    1
    648002
    KNIFE; PIN SPLIT (COTTER), 1/8'' x 3/4''
  • 9
    1
    819347C1
    BAR; - pressure spring rear, rank
  • 12
    2
    1263794C1
    SPACER; Drawbar
  • 13
    2
    113-411
    BOLT Hex, 1/2'' - 13 x 4-1/2'', Gr 5;
  • 14
    2
    192-23
    LOCK WASHER 1/2''; WASHER, LOCK, 1/2''
  • 15
    2
    129-105
    NUT Hex, 1/2'' - 13, Gr 5;
  • 16
    2
    364811R1
    SPACER 10.7mm ID x 17.14mm OD x 27mm L; - 3/8 x 1-1/16 inch
  • 2
    603020R92
    DISK HARROW; OPENER ASSY, IH GRAIN DRILL, 13-7/8'' DIA
  • 18
    2
    603013R2
    PLOW DISC; DISC - furrow opener
  • 19
    1
    602992R1
    GASKET; - disc
  • 20
    1
    602994R1
    FLANGE; - seal
  • 21
    1
    465004R91

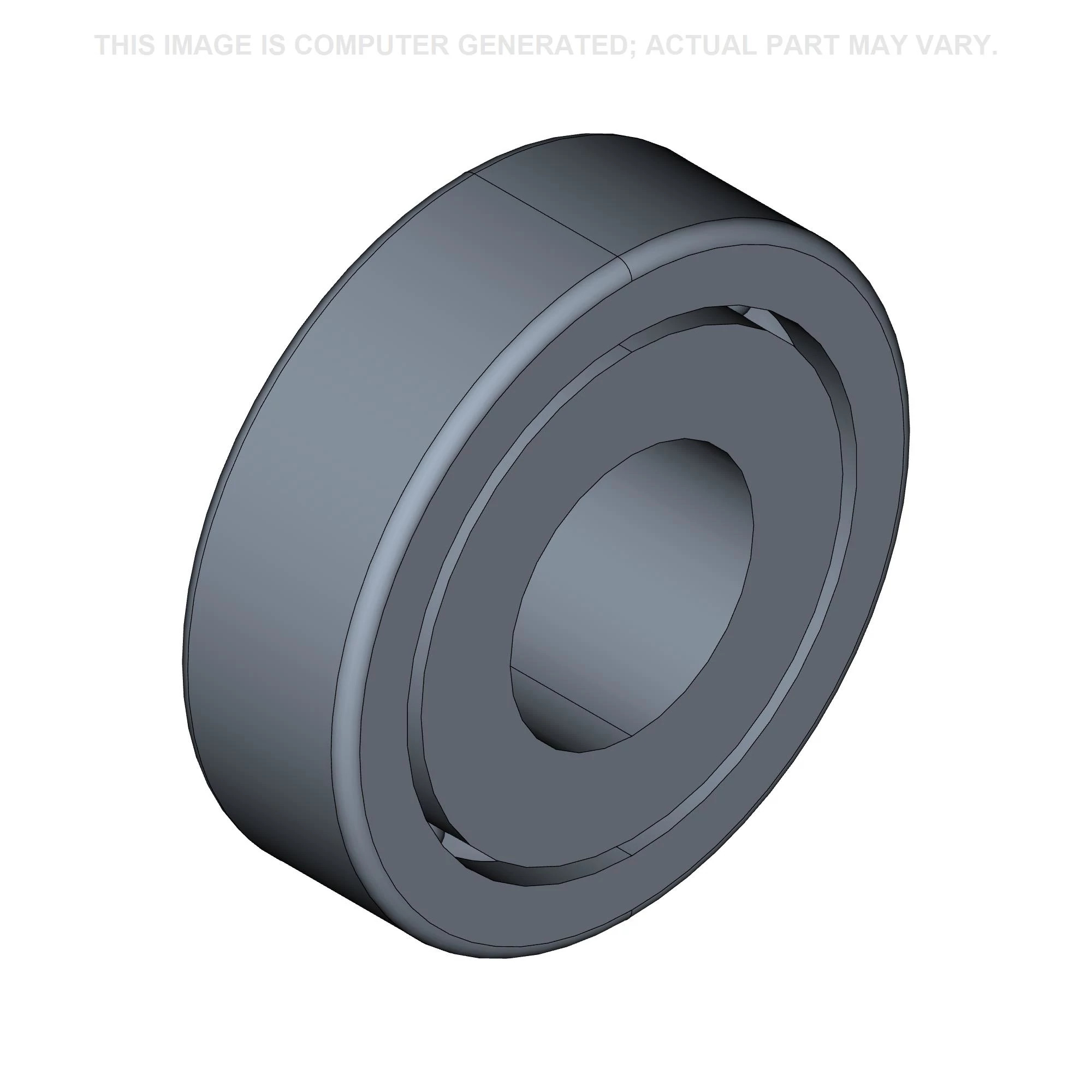

    BEARING ASSY 0.6693'' ID x 1.5748'' OD x 0.4724''; - disc
  • 22
    1
    602989R1
    FLANGE 1.41'' ID x 3.25'' OD x 0.63''; - bearing
  • 23
    6
    104081
    RIVET But Hd, 1/4'' x 1/2''; - 1/4x 1/2 inch
  • 26
    2
    603012R1
    DUST CAP; CAP - dust
  • 27
    1
    603010R1
    BOLT (SPREADER); BOLT - disc retaining, left
  • 27
    1
    603011R1
    BOLT (SPREADER); BOLT - disc retaining, right (Shown)
  • 28
    2
    141706
    WASHER; - internal shakeproof, 11/16 inch
  • 29
    2
    602988R1
    SPACER; - seal retainer
  • 30
    2
    464628R1
    SEAL; - dirt
  • 32
    1
    819280C2
    BOOT; - disc
  • 33
    2
    27569R1
    SELF-TAP SCREW Hex Washer, 5/16'' - 18 x 1''; BOLT - hex washer head, 5/16 NC x 1 inch
  • 34
    1
    819281C2

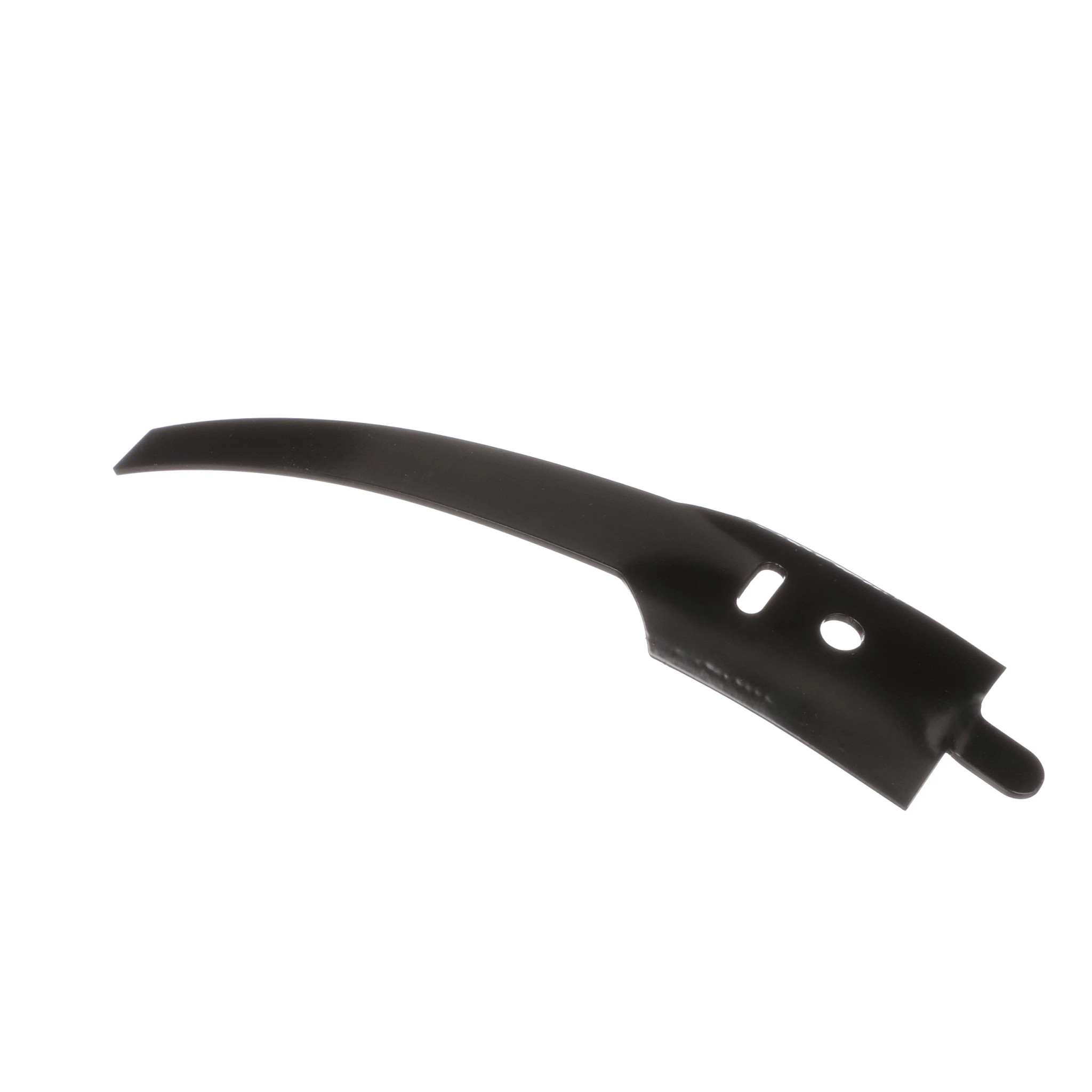

    GUARD ASSY.; GUARD - boot
  • 35
    1
    113-102
    BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5; Hex, 5/16''-18 x 3/4'', G5, Full Thd
  • 36
    1
    192-20
    LOCK WASHER Helical Spring, 0.318'' ID, CST, ZND; WASHER, LOCK, 5/16''
  • 37
    1
    120376
    NUT 5/16''-18, G5;
