H-19 - 5000 VIBRA CHISEL, 31-1/2 FOOT WING, SLOW MOVING VEHICLE EMBLEM
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    407220R1
    PRODUCT GRAPHIC; PACKAGE, SMV emblem, steel, replaces 407218R1
  • 2
    1
    407263R1
    PRODUCT GRAPHIC SMV Triangle Yellow Orange; PACKAGE, SMV emblem film kit
  • 3
    1
    398976R1

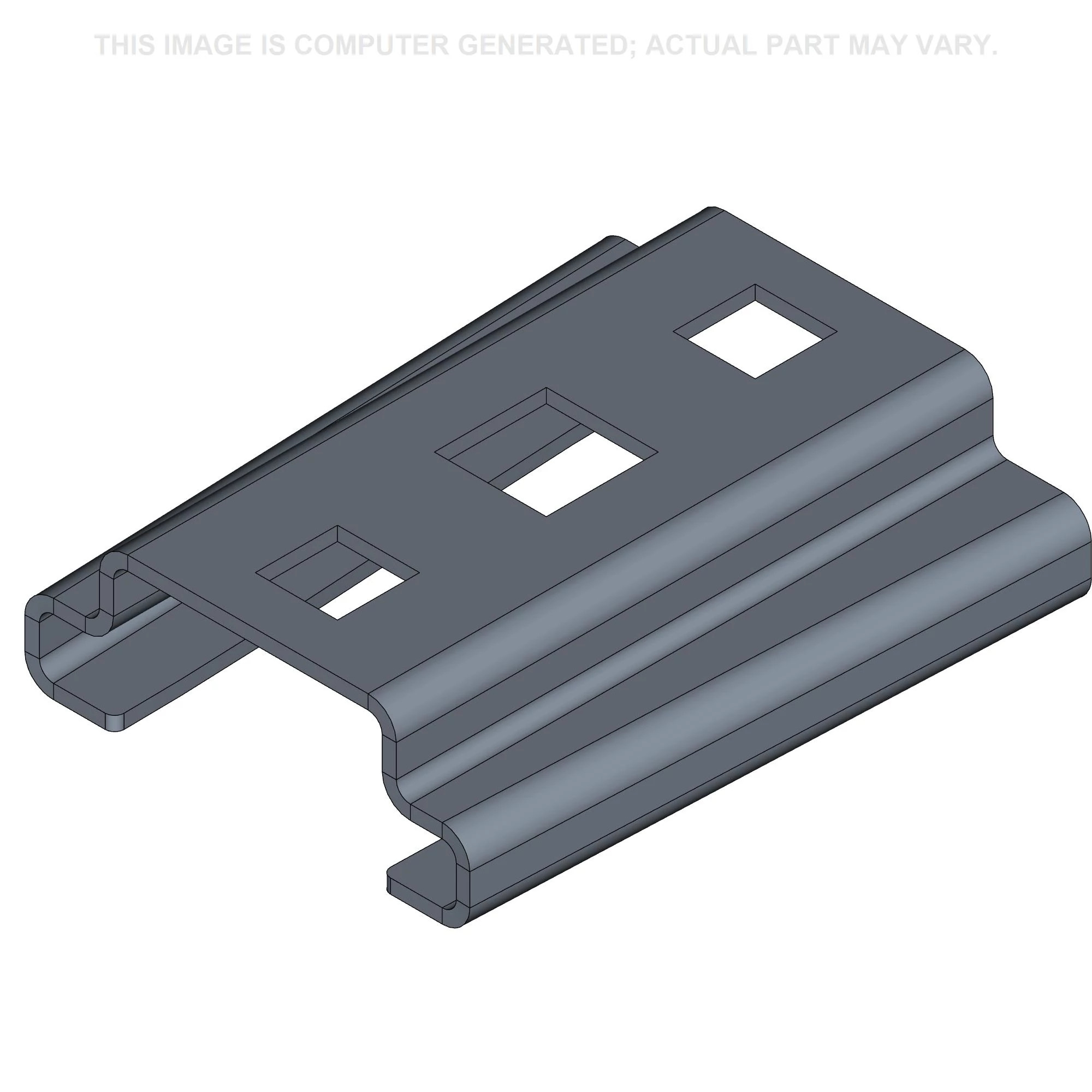

    BRACKET; SMV mounting
  • 2
    598802R1
    CARRIAGE BOLT Short NK, 5/16''-18 x 3/4'', G5, Full Thd; BOLT, 5/16 x 3/4 CRG type 5
  • 2
    120376
    NUT 5/16''-18, G5;
  • 2
    80681
    LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; WASHER, LOCK, 5/16''
  • 4
    1
    811324C1
    SUPPORT; ANGLE, SMV emblem mounting
