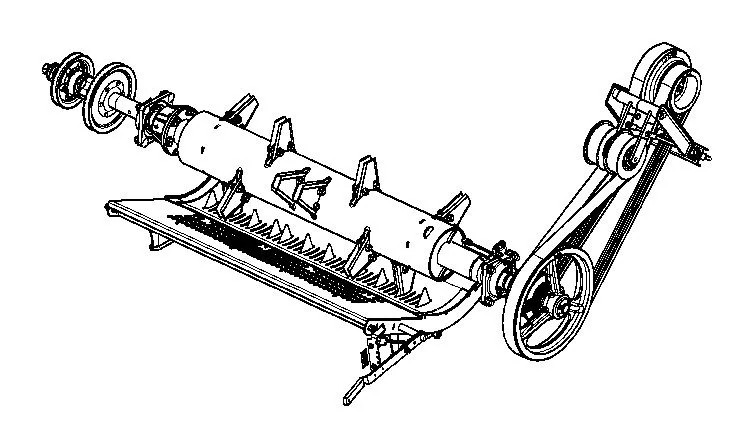

48012356 - Straw Chopper Conversion Kit - CASE IH

This Kit includes the following parts:

• Part Number
  140048
  Description
  Belleville Washer - 32 mm OD x 2.8 mm Thk.
  Quantity
  1
• Part Number
  140045
  Description
  Belleville Lock Washer - 10mm ID x 22mm OD x 1.6mm Thick.
  Quantity
  12
• Part Number
  14304324
  Description
  Hex Socket Screw - Cl 8.8 - Full Thread - M5 x 20.
  Quantity
  4
• Part Number
  16690924
  Description
  SCREW.
  Quantity
  4
• Part Number
  100016
  Description
  Hex Nut - M10 x 1.5.
  Quantity
  12
• Part Number
  120093
  Description
  Hex Screw - Cl 8.8 - M16.
  Quantity
  1
• Part Number
  12578015
  Description
  NUT.
  Quantity
  4
• Part Number
  130003
  Description
  Cotter Pin - 3 mm OD x 20 mm L.
  Quantity
  1
• Part Number
  130004
  Description
  Contrapino - 3,2 mm DE x 25 mm C.
  Quantity
  4
• Part Number
  84299070
  Description
  ACOPLAMENTO ESTRIADO.
  Quantity
  1
• Part Number
  86507066
  Description
  M8 Porca de flange.
  Quantity
  2
• Part Number
  322357
  Description
  Anilha Belleville - 14 mm DE x 1,3 mm Esp.
  Quantity
  4
• Part Number
  86560521
  Description
  Pivô.
  Quantity
  1
• Part Number
  33915
  Description
  Anel elástico - 2,32" DE x 0,081" Esp.
  Quantity
  2
• Part Number
  86592700
  Description
  Anilha - Aço endurecido - 10,5 mm DI x 28 mm DE x 4 mm Esp.
  Quantity
  4
• Part Number
  86596885
  Description
  INDICADOR.
  Quantity
  1
• Part Number
  47577188
  Description
  Colar.
  Quantity
  1
• Part Number
  48107505
  Description
  AJUSTADOR.
  Quantity
  1
• Part Number
  357545
  Description
  Manípulo de alça.
  Quantity
  1
• Part Number
  84385788
  Description
  Lâmina de Aço.
  Quantity
  24
• Part Number
  86633356
  Description
  PARAFUSO.
  Quantity
  12
• Part Number
  86639110
  Description
  Cupilha.
  Quantity
  1
• Part Number
  48147139
  Description
  MANILHA.
  Quantity
  1
• Part Number
  86975966
  Description
  Haste do Esticador da Correia.
  Quantity
  1
• Part Number
  87578082
  Description
  Barra de facas.
  Quantity
  1
• Part Number
  87578084
  Description
  SUPORTE.
  Quantity
  3
• Part Number
  47661876
  Description
  Rolamento.
  Quantity
  1
• Part Number
  86997386
  Description
  Casquilho - 11 mm DI x 22 mm DE.
  Quantity
  4
• Part Number
  87016581
  Description
  Porca sextavada com flange - CI 10 - M16 x 2.
  Quantity
  24
• Part Number
  84449503
  Description
  Mola.
  Quantity
  1
• Part Number
  47705826
  Description
  Correia em V do picador de palha.
  Quantity
  1
• Part Number
  412126
  Description
  Porca trava sextavada - M12 x 1.75.
  Quantity
  1
• Part Number
  84057817
  Description
  Casquilho - 32 mm DE x 16 mm DI x 53 mm C.
  Quantity
  1
• Part Number
  87633175
  Description
  Knife Retainer.
  Quantity
  6
• Part Number
  87106692
  Description
  Straw Chopper Stationary Knife.
  Quantity
  12
• Part Number
  84072441
  Description
  Idler.
  Quantity
  1
• Part Number
  87280049
  Description
  Chopper Knives Decal.
  Quantity
  1
• Part Number
  87282824
  Description
  Link.
  Quantity
  2
• Part Number
  87283587
  Description
  Splined Ring Gear - 36 Teeth.
  Quantity
  1
• Part Number
  87664050
  Description
  WASHER.
  Quantity
  1
• Part Number
  87670411
  Description
  Pivot Bar.
  Quantity
  1
• Part Number
  87670419
  Description
  ARM.
  Quantity
  2
• Part Number
  87675531
  Description
  FLANGE BOLT.
  Quantity
  2
• Part Number
  87681210
  Description
  Hex Flange Nut - Cl 10 - M8 x 1.25.
  Quantity
  4
• Part Number
  87682383
  Description
  CARRIAGE BOLT.
  Quantity
  2
• Part Number
  87682391
  Description
  CARRIAGE BOLT.
  Quantity
  1
• Part Number
  443898
  Description
  Ball Bearing - ISO 6205 LLU.
  Quantity
  2
• Part Number
  87325137
  Description
  PLATE.
  Quantity
  1
• Part Number
  87698763
  Description
  FLANGE BOLT.
  Quantity
  4
• Part Number
  87698837
  Description
  Heavy Hex Flange Bolt - Cl 10.9 - Full Thread - M10 x 30.
  Quantity
  4
• Part Number
  87698849
  Description
  Heavy Hex Flange Bolt - Cl 10.9 - M16 x 50.
  Quantity
  24
• Part Number
  87343550
  Description
  FLANGE BOLT.
  Quantity
  6
• Part Number
  51429236
  Description
  Collar Assembly.
  Quantity
  1
• Part Number
  87364
  Description
  Washer.
  Quantity
  5
• Part Number
  84223290
  Description
  SPACER.
  Quantity
  1
• Part Number
  51475511
  Description
  Switch.
  Quantity
  2
• Part Number
  51496865
  Description
  SUPPORT.
  Quantity
  1
• Part Number
  87391950
  Description
  U-BOLT.
  Quantity
  9
• Part Number
  87398361
  Description
  Idler Level Assembly - Painted.
  Quantity
  1
• Part Number
  86050279
  Description
  Hex Flange Nut - Cl 10 - M10 x 1.5.
  Quantity
  5
• Part Number
  86050300
  Description
  FLANGE NUT.
  Quantity
  2
• Part Number
  86505868
  Description
  Hex Serrated Flange Nut - Cl 8 - M8 x 1.25.
  Quantity
  18
• Part Number
  51601757
  Description
  Knife Guide.
  Quantity
  1
• Part Number
  47846383
  Description
  INSTRUCTION.
  Quantity
  1
• Part Number
  47573415
  Description
  INSTRUCTION.
  Quantity
  1
