00.100.02 - INITIAL STOCKING LIST (ISL) 6088, 7088
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    87755884
    V-BELT Flat, 2005mm L; Engine Fan
  • 2
    1

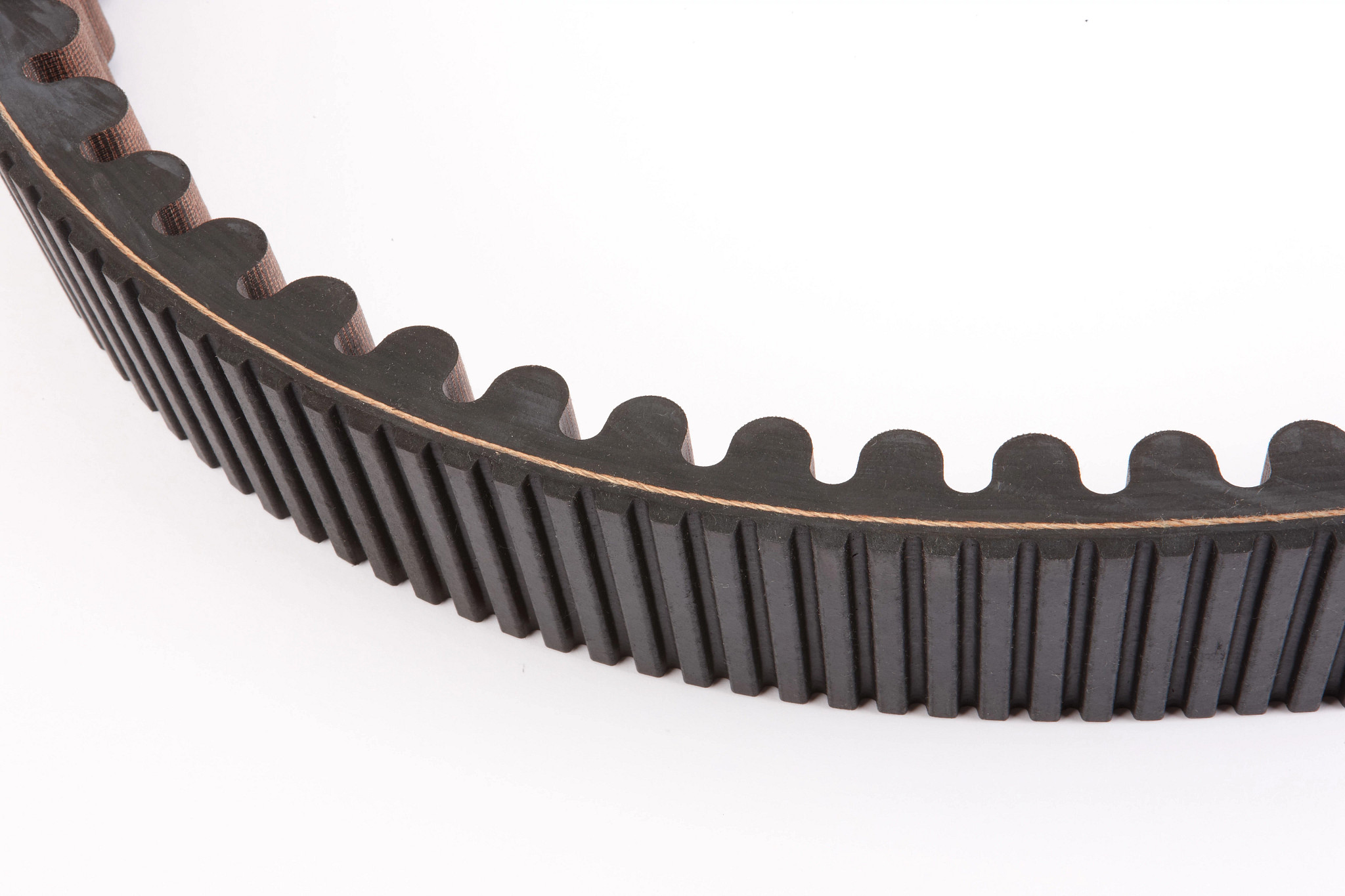

    87615553
    V-BELT 76.20 mm W x 2790.00 mm L HQ sec; Rotor Drive
  • 4
    1
    84137716
    V-BELT 22.225 mm W x 3863.00 mm L; Separator Drive
  • 5
    1
    87642957
    V-BELT V-Belt, 22.23 mm W x 3238 mm L; Cleaning Fan JKSF
  • 6
    1
    301146A1
    V-BELT V-Belt, 31.8mm W x 1847.9mm L; Cleaning Fan
  • 7
    1
    87476486
    V-BELT Timing, 22.33mm W x 5105.4mm L; Cleaning system w/ chopper
  • 8
    1
    87476487
    V-BELT Timing, 22.33mm W x 6502.4mm L; Cleaning system w/ beater
  • 9
    1
    87330903
    V-BELT V-Belt, 16.2mm W x 2748mm L, 2 Ribs; Chopper Drive Std Cut, Fine Cut
  • 10
    1
    84163222
    V-BELT V-Belt, 6367 mm L; Spreader Drive
  • 11
    1
    87317615
    BELT TENSIONER; Engine
  • 12
    1
    87311867
    V-BELT V-Belt, 12.7mm W x 940mm L; AC
  • 13
    1
    366700A1
    ENGINE OIL FILTER;
  • 14
    1
    87307432
    FUEL FILTER; w/WIF Sensor
  • 15
    1
    87360565
    FUEL FILTER; Secondary Engine
  • 16
    1
    J100304
    FILTER; Engine, Water
  • 17
    1
    86998333
    AIR FILTER Primary, 172.3mm ID x 332.4mm OD x 555.2mm L, Pleatloc; Engine, Primary
  • 18
    1
    86998332
    AIR FILTER Secondary, 133.1mm ID x 175.1mm OD x 541.7mm L, Pleatloc; Engine, Secondary
  • 19
    1
    84217229
    AIR FILTER PRIMARY 91mm ID x 164.5mm OD x 347mm L; Cab, Intake
  • 20
    1
    87392235
    SENSOR; Unloader In
  • 21
    1

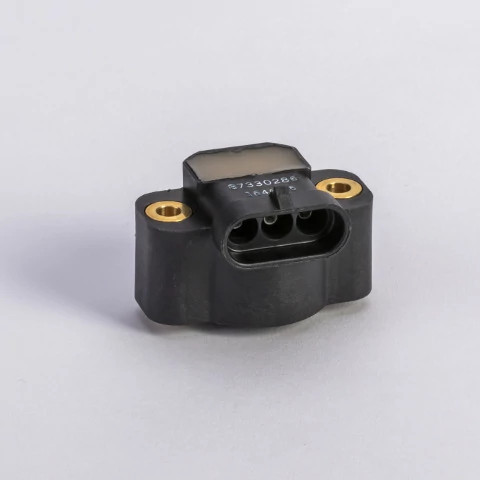

    87330286
    SENSOR; Feeder Height & Tilt
  • 22
    1
    1329214C1
    HYDRAULIC OIL FILTER;
  • 23
    AR
    84346812
    FUEL SYSTEM INJECTOR; (New - Chromed Ball Seat, Production Available 30May06)
  • 23
    AR
    87356218C
    CORE-FUEL INJECTOR FUEL INJECTOR; (New - Chromed Ball Seat, Production Available 30May06)
  • 23
    AR
    84346812C
    CORE-FUEL INJECTOR FUEL INJECTOR; (New - Chromed Ball Seat, Production Available 30May06)
  • 23
    AR
    84346812R
    REMAN-FUEL INJECTOR FUEL INJECTOR; (New - Chromed Ball Seat, Production Available 30May06)
  • 23
    AR
    87538119C
    CORE-FUEL INJECTOR FUEL INJECTOR; (New - Chromed Ball Seat, Production Available 30May06)
  • 23
    AR
    87538122C
    CORE-FUEL INJECTOR FUEL INJECTOR; (New - Chromed Ball Seat, Production Available 30May06)
  • 24
    AR
    87348301
    FITTING; Fuel Connectors (W/ O-Ring, Service With Injectors)
  • 25
    1
    87368468
    SENSOR; Rotary Positi
  • 26
    1
    86525899
    HYDRAULIC OIL FILTER 60mm OD x 140mm L, 1 3/16IN - 12 UNF; Screen Hyd In-Line
  • 27
    1
    87347281C
    CORE-ELECTRIC ACTUATOR; Sieve Adjust
  • 27
    1
    87347281R
    REMAN-ELECTRIC ACTUATOR; Sieve Adjust
  • 27
    1
    87347281
    ACTUATOR; Sieve Adjust
  • 28
    1
    84075179
    COMPRESSION SPRING Compression, 43.5mm OD x 105.5mm L; Feed Conveyor Tension
  • 29
    AR
    87623435
    PACKAGE,SERVICE; Blades(8) Chopper Rotor (Fine Cut)
  • 30
    AR
    1322233C2
    KNIFE 168.5mm L x 40mm W x 3mm Thk; Blade Chopper Stationary (Fine)
  • 31
    AR
    87327478
    BOLT Flange, M22 x 75mm, Cl 12.9; M22X1.5X75 12.9 Wheel
  • 32
    AR
    87340028
    BOLT Hex, M22 x 1.5 x 55mm, Cl 10.9; M22X1.5X55 12.9 Wheel
  • 33
    AR
    87367550
    FLANGE BOLT Hex, M22 x 1.5 x 95mm, Cl 12.9; M22X1.5X95 12.9 Wheel
  • 34
    AR
    84062511
    WHEEL NUT M20; X1.5 M20
  • 35
    AR
    84207204
    SERVICE KIT; Slat Feeder LH
  • 36
    AR
    84207203
    SERVICE KIT; Slat Feeder RH
  • 37
    1
    87620467
    BALL BEARING 46mm ID x 100mm OD x 42.86mm W; Feed Conveyor & RT
  • 38
    1
    121602
    BALL BEARING 28.6mm Hex x 72mm OD x 37.7mm W; Feeder Drum
  • 39
    1
    694444
    BALL BEARING 34.95mm Hex x 80mm OD x 36.51mm W; Bubbler Auger
  • 40
    1
    664073R92
    BALL BEARING 38.1mm ID x 80mm OD x 21mm W; Grain Elevator Head & Trough, Was 52443
  • 41
    AR
    87283349
    LINK 41.4mm Pitch; Feed Conv
  • 42
    1
    141655A1
    SWITCH; Back-Up Alarm
  • 43
    AR

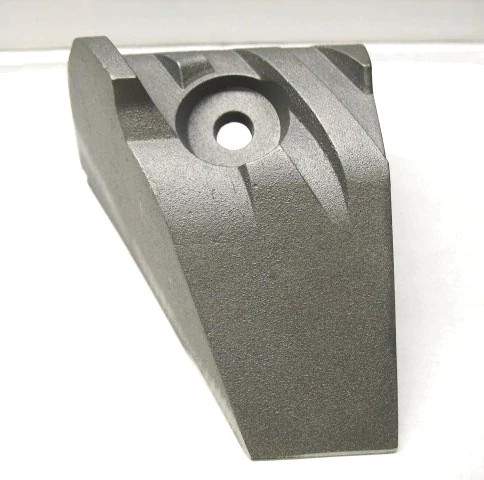

    87368806
    RASP BAR; W/Spikes
  • 44
    AR
    86981487
    FLANGE BOLT Flange, M12 x 35mm, Full, Cl 10.9 DOR;
  • 45
    AR
    84164540
    RASP BAR; W/O Spikes, Std Wear
  • 46
    AR
    278821A3
    RASP BAR; W/O Spikes, Ext Wear
  • 47
    AR
    1347001C1
    FAN BLADE; Blade, Crossflow Fan
  • 48
    AR
    87315088
    FAN BLADE; Chopper
Select All

Select

Ref.

1

Qty

1

Availability

Part #

87755884

Description

V-BELT Flat, 2005mm L; Engine Fan


Alts

Select

Ref.

2

Qty

1

Availability

Part #

87615553

Description

V-BELT 76.20 mm W x 2790.00 mm L HQ sec; Rotor Drive


Alts

Select

Ref.

4

Qty

1

Availability

Part #

84137716

Description

V-BELT 22.225 mm W x 3863.00 mm L; Separator Drive


Alts

Select

Ref.

5

Qty

1

Availability

Part #

87642957

Description

V-BELT V-Belt, 22.23 mm W x 3238 mm L; Cleaning Fan JKSF


Alts

Select

Ref.

6

Qty

1

Availability

Part #

301146A1

Description

V-BELT V-Belt, 31.8mm W x 1847.9mm L; Cleaning Fan


Alts

Select

Ref.

7

Qty

1

Availability

Part #

87476486

Description

V-BELT Timing, 22.33mm W x 5105.4mm L; Cleaning system w/ chopper


Alts

Select

Ref.

8

Qty

1

Availability

Part #

87476487

Description

V-BELT Timing, 22.33mm W x 6502.4mm L; Cleaning system w/ beater


Alts

Select

Ref.

9

Qty

1

Availability

Part #

87330903

Description

V-BELT V-Belt, 16.2mm W x 2748mm L, 2 Ribs; Chopper Drive Std Cut, Fine Cut


Alts

Select

Ref.

10

Qty

1

Availability

Part #

84163222

Description

V-BELT V-Belt, 6367 mm L; Spreader Drive


Alts

Select

Ref.

11

Qty

1

Availability

Part #

87317615

Description

BELT TENSIONER; Engine


Alts

Select

Ref.

12

Qty

1

Availability

Part #

87311867

Description

V-BELT V-Belt, 12.7mm W x 940mm L; AC


Alts

Select

Ref.

13

Qty

1

Availability

Part #

366700A1

Description

ENGINE OIL FILTER;


Alts

Select

Ref.

14

Qty

1

Availability

Part #

87307432

Description

FUEL FILTER; w/WIF Sensor


Alts

Select

Ref.

15

Qty

1

Availability

Part #

87360565

Description

FUEL FILTER; Secondary Engine


Alts

Select

Ref.

16

Qty

1

Availability

Part #

J100304

Description

FILTER; Engine, Water


Alts

Select

Ref.

17

Qty

1

Availability

Part #

86998333

Description

AIR FILTER Primary, 172.3mm ID x 332.4mm OD x 555.2mm L, Pleatloc; Engine, Primary


Alts

Select

Ref.

18

Qty

1

Availability

Part #

86998332

Description

AIR FILTER Secondary, 133.1mm ID x 175.1mm OD x 541.7mm L, Pleatloc; Engine, Secondary


Alts

Select

Ref.

19

Qty

1

Availability

Part #

84217229

Description

AIR FILTER PRIMARY 91mm ID x 164.5mm OD x 347mm L; Cab, Intake


Alts

Select

Ref.

20

Qty

1

Availability

Part #

87392235

Description

SENSOR; Unloader In


Alts

Select

Ref.

21

Qty

1

Availability

Part #

87330286

Description

SENSOR; Feeder Height & Tilt


Alts

Select

Ref.

22

Qty

1

Availability

Part #

1329214C1

Description

HYDRAULIC OIL FILTER;


Alts

Select

Ref.

23

Qty

AR

Availability

Part #

84346812

Description

FUEL SYSTEM INJECTOR; (New - Chromed Ball Seat, Production Available 30May06)


Alts

Select

Ref.

23

Qty

AR

Availability

Part #

87356218C

Description

CORE-FUEL INJECTOR FUEL INJECTOR; (New - Chromed Ball Seat, Production Available 30May06)


Alts

Select

Ref.

23

Qty

AR

Availability

Part #

84346812C

Description

CORE-FUEL INJECTOR FUEL INJECTOR; (New - Chromed Ball Seat, Production Available 30May06)


Alts

Select

Ref.

23

Qty

AR

Availability

Part #

84346812R

Description

REMAN-FUEL INJECTOR FUEL INJECTOR; (New - Chromed Ball Seat, Production Available 30May06)


Alts

Select

Ref.

23

Qty

AR

Availability

Part #

87538119C

Description

CORE-FUEL INJECTOR FUEL INJECTOR; (New - Chromed Ball Seat, Production Available 30May06)


Alts

Select

Ref.

23

Qty

AR

Availability

Part #

87538122C

Description

CORE-FUEL INJECTOR FUEL INJECTOR; (New - Chromed Ball Seat, Production Available 30May06)


Alts

Select

Ref.

24

Qty

AR

Availability

Part #

87348301

Description

FITTING; Fuel Connectors (W/ O-Ring, Service With Injectors)


Alts

Select

Ref.

25

Qty

1

Availability

Part #

87368468

Description

SENSOR; Rotary Positi


Alts

Select

Ref.

26

Qty

1

Availability

Part #

86525899

Description

HYDRAULIC OIL FILTER 60mm OD x 140mm L, 1 3/16IN - 12 UNF; Screen Hyd In-Line


Alts

Select

Ref.

27

Qty

1

Availability

Part #

87347281C

Description

CORE-ELECTRIC ACTUATOR; Sieve Adjust


Alts

Select

Ref.

27

Qty

1

Availability

Part #

87347281R

Description

REMAN-ELECTRIC ACTUATOR; Sieve Adjust


Alts

Select

Ref.

27

Qty

1

Availability

Part #

87347281

Description

ACTUATOR; Sieve Adjust


Alts

Select

Ref.

28

Qty

1

Availability

Part #

84075179

Description

COMPRESSION SPRING Compression, 43.5mm OD x 105.5mm L; Feed Conveyor Tension


Alts

Select

Ref.

29

Qty

AR

Availability

Part #

87623435

Description

PACKAGE,SERVICE; Blades(8) Chopper Rotor (Fine Cut)


Alts

Select

Ref.

30

Qty

AR

Availability

Part #

1322233C2

Description

KNIFE 168.5mm L x 40mm W x 3mm Thk; Blade Chopper Stationary (Fine)


Alts

Select

Ref.

31

Qty

AR

Availability

Part #

87327478

Description

BOLT Flange, M22 x 75mm, Cl 12.9; M22X1.5X75 12.9 Wheel


Alts

Select

Ref.

32

Qty

AR

Availability

Part #

87340028

Description

BOLT Hex, M22 x 1.5 x 55mm, Cl 10.9; M22X1.5X55 12.9 Wheel


Alts

Select

Ref.

33

Qty

AR

Availability

Part #

87367550

Description

FLANGE BOLT Hex, M22 x 1.5 x 95mm, Cl 12.9; M22X1.5X95 12.9 Wheel


Alts

Select

Ref.

34

Qty

AR

Availability

Part #

84062511

Description

WHEEL NUT M20; X1.5 M20


Alts

Select

Ref.

35

Qty

AR

Availability

Part #

84207204

Description

SERVICE KIT; Slat Feeder LH


Alts

Select

Ref.

36

Qty

AR

Availability

Part #

84207203

Description

SERVICE KIT; Slat Feeder RH


Alts

Select

Ref.

37

Qty

1

Availability

Part #

87620467

Description

BALL BEARING 46mm ID x 100mm OD x 42.86mm W; Feed Conveyor & RT


Alts

Select

Ref.

38

Qty

1

Availability

Part #

121602

Description

BALL BEARING 28.6mm Hex x 72mm OD x 37.7mm W; Feeder Drum


Alts

Select

Ref.

39

Qty

1

Availability

Part #

694444

Description

BALL BEARING 34.95mm Hex x 80mm OD x 36.51mm W; Bubbler Auger


Alts

Select

Ref.

40

Qty

1

Availability

Part #

664073R92

Description

BALL BEARING 38.1mm ID x 80mm OD x 21mm W; Grain Elevator Head & Trough, Was 52443


Alts

Select

Ref.

41

Qty

AR

Availability

Part #

87283349

Description

LINK 41.4mm Pitch; Feed Conv


Alts

Select

Ref.

42

Qty

1

Availability

Part #

141655A1

Description

SWITCH; Back-Up Alarm


Alts

Select

Ref.

43

Qty

AR

Availability

Part #

87368806

Description

RASP BAR; W/Spikes


Alts

Select

Ref.

44

Qty

AR

Availability

Part #

86981487

Description

FLANGE BOLT Flange, M12 x 35mm, Full, Cl 10.9 DOR;


Alts

Select

Ref.

45

Qty

AR

Availability

Part #

84164540

Description

RASP BAR; W/O Spikes, Std Wear


Alts

Select

Ref.

46

Qty

AR

Availability

Part #

278821A3

Description

RASP BAR; W/O Spikes, Ext Wear


Alts

Select

Ref.

47

Qty

AR

Availability

Part #

1347001C1

Description

FAN BLADE; Blade, Crossflow Fan


Alts

Select

Ref.

48

Qty

AR

Availability

Part #

87315088

Description

FAN BLADE; Chopper


Alts
