3201.012 - WATER PUMP
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    504216828R

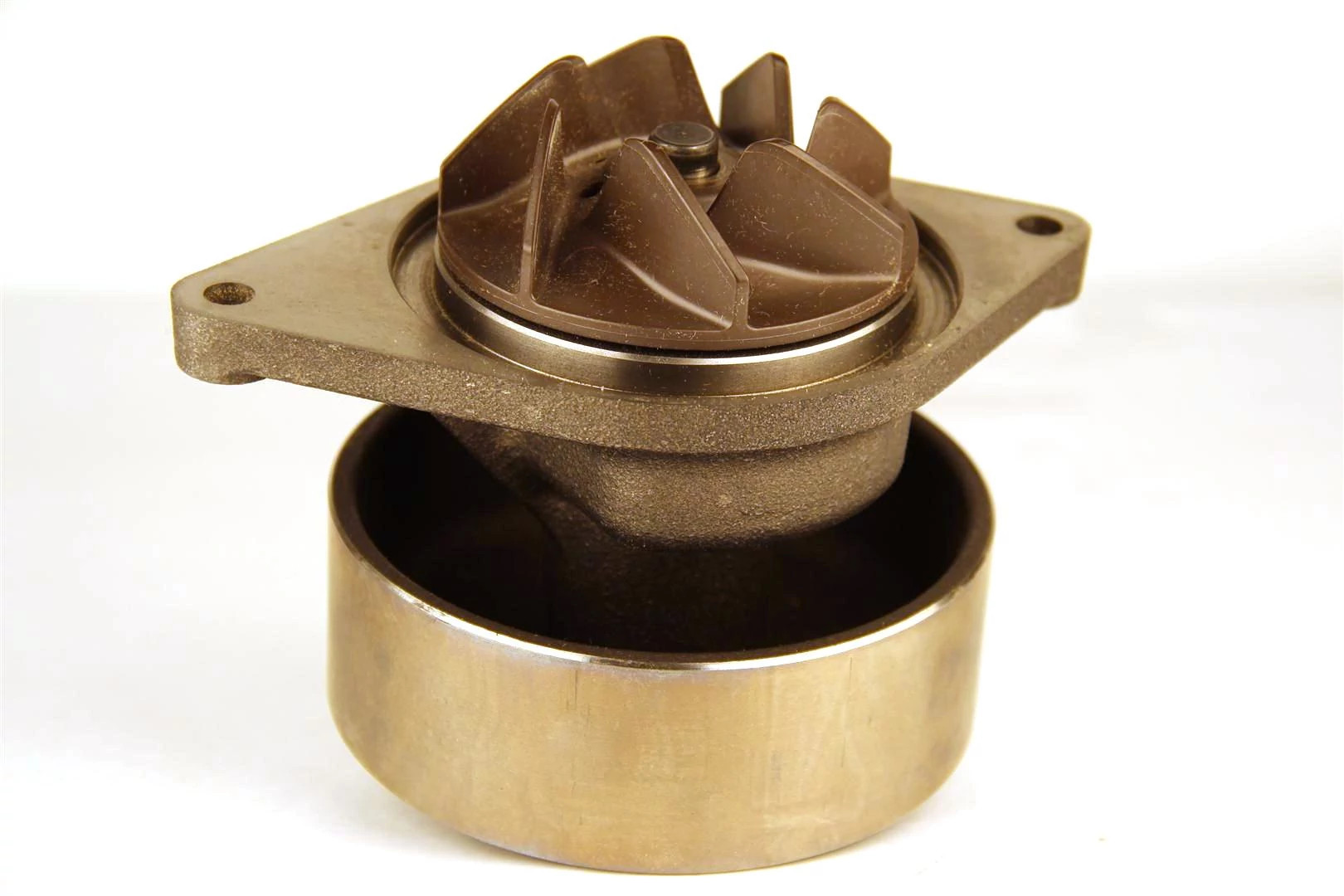

    REMAN-WATER PUMP REMAN-WATER PUMP; WATER PUMP
  • 1
    1
    504216828C
    CORE-WATER PUMP CORE-WATER PUMP; WATER PUMP
  • 1
    1
    504216828
    WATER PUMP; WATER PUMP
  • 2
    1
    504264335
    WATER PUMP; WATER PUMP
  • 3
    1
    2852047

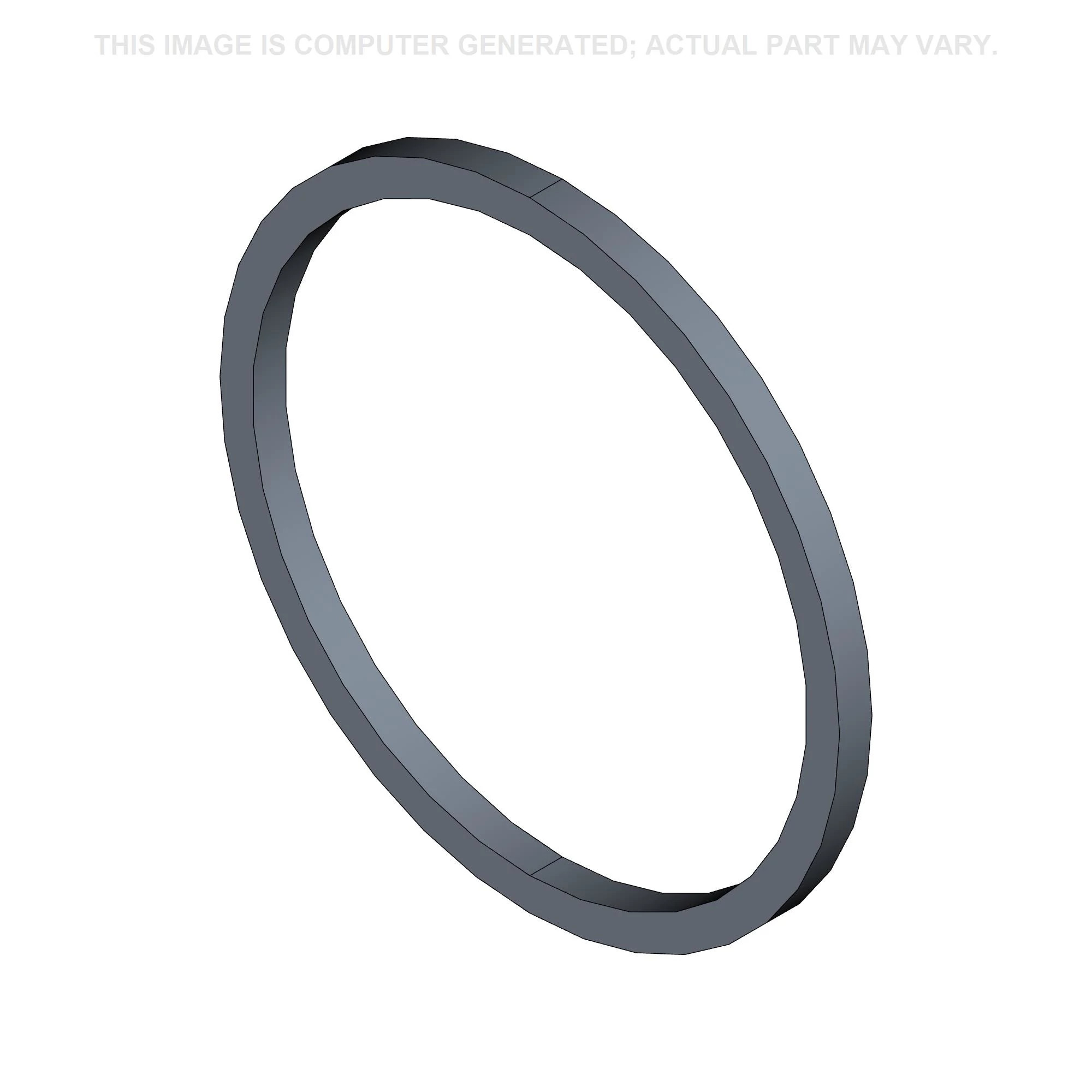

    SEALING RING Square, 5.16mm Thk x 88.27mm ID; RUBBER GASKET
  • 4
    2
    16586424
    SCREW M8 x 25mm; HEXAGON BOLT, M8X25 MM
