9C-36 - FUEL INJECTION PUMP
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    681228C92
    PUMP, FUEL INJECTION; PUMP ASSEMBLY - fuel injection, 10 mm remanufactured (North America only) 2400 RPM, Replaces pump assembly 631553C91;On orders for injection pump, also order fuel return elbow 217-21 and fuel return orifice 687426C1.;Used with 966 tractors with gear drive and engine serial numbers prior to 17000. Component parts do not apply to the remanufactured assembly
  • 1
    631573C92
    REMAN-FUEL INJ PUMP; Pump Assembly - fuel injection, 10 mm, remanufactured, 2600 RPM, used with 966 tractors with engine serial number 17000 and after, component parts do not apply to the remanufactured assembly
  • 1
    1934071C1
    CORE-INJECTION PUMP; Return Part Number - use this part number to return pump core for credit when using a remanufactured assembly
  • 1
    631555C91
    REMAN-INJECTION PUMP; Pump Assembly - fuel injection, 10 mm, remanufactured for pump 681229C92, used with 966 hydro tractors, component parts do not apply to the remanufactured assembly
  • 1
    1934085C1
    CORE-INJECTION PUMP; Pump Assembly - fuel injection, 10 mm, remanufactured, 2400 RPM, 1066 tractors with engine serial numbers prior to 23000, component parts do not apply to the remanufactured assembly
  • 1
    631558C91
    REMAN-FUEL INJ PUMP; Pump Assembly - fuel injection, 10 mm, remanufactured, 2400 RPM, 1066 tractors with engine serial numbers prior to 23000, component parts do not apply to the remanufactured assembly
  • 1
    1934061C1
    CORE-INJECTION PUMP; Return Part Number - use this part number to return pump core for credit when using a remanufactured assembly

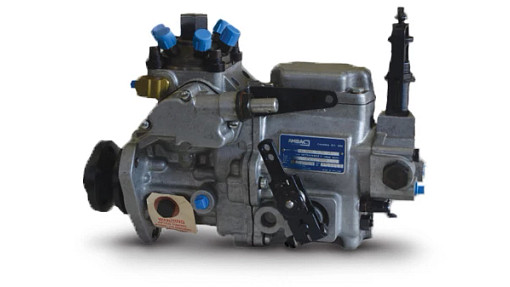

  • 1
    631574C91
    REMAN-FUEL INJ PUMP; Pump Assembly - fuel injection, 10 mm, remanufactured, 2600 RPM, used with 1066 tractors having gear drive with engine serial number 23000 and after, component parts do not apply to the remanufactured assembly
  • 1
    1934061C1
    CORE-INJECTION PUMP; Return Part Number - use this part number to return pump core for credit when using a remanufactured assembly

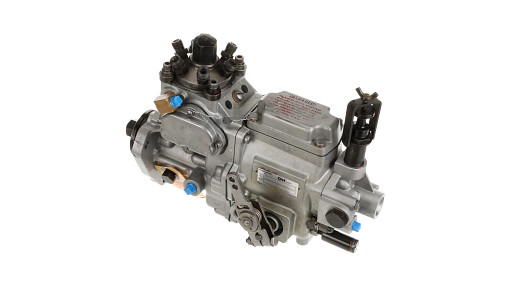

  • 1
    749580C91
    REMAN-FUEL INJ PUMP; Pump Assembly - fuel injection, 10 mm, remanufactured, 1086 tractors with engine serial numbers prior to 140024, component parts do not apply to the remanufactured assembly
  • 1
    1934081C1
    CORE-INJECTION PUMP; Return Part Number - use this part number to return pump core for credit when using a remanufactured assembly
  • 1
    749992C91
    REMAN-FUEL INJ PUMP; Pump Assembly - fuel injection, remanufactured, 1086 tractors with engine serial number 140024 and after, component parts do not apply to the remanufactured assembly
  • 1
    1934081C1
    CORE-INJECTION PUMP; Return Part Number - use this part number to return pump core for credit when using a remanufactured assembly
  • 1
    687475C91
    PUMP; ASSEMBLY - fuel injection, new, used with 1086 tractors with engine serial number 140024 and after, no longer available, order remanufactured pump assembly 749992C91, Includes: Ref. 1 - 164;On orders for injection pump, also order fuel return elbow 217-21 and fuel return orifice 687426C1.
  • 1
    1
    129-551
    SPECIAL NUT 9/16''-18, G8; - drive hub, no longer used
  • 2
    1
    674751C1
    WASHER; - lock, drive hub nut
  • 3
    1
    676925C1
    HUB; - drive (Replaces hub 674752C1)
  • 4
    1
    676926C1
    PLATE; - drive hub back (Replaces plate 674753C1)
  • 5
    1
    674754C1
    GASKET; GASKET - injection pump mounting
  • 6
    4
    674755C1
    SCREW; - retainer plate
  • 7
    4
    492-11025
    LOCK WASHER 1/4''; WASHER, LOCK, , Retainer plate (Replaces washer 131200) 1/4''
  • 8
    1
    674757C1
    PLATE; - retainer, no longer available
  • 9
    1
    674758C1
    WASHER; - thrust
  • 10
    1
    674761C1
    SHIM; - retainer plate, 0.002 inch
  • 10
    1
    674759C1
    SHIM; - retainer plate, 0.004 inch
  • 10
    1
    674760C1
    SHIM; - retainer plate, 0.008 inch
  • 11
    1
    680442C2
    HOUSING; ASSEMBLY - pump, Includes: Ref. 11A
  • 11A
    1
    681438C1
    INDICATOR; POINTER - timing
  • 12
    1
    221-841
    PLUG; - hex socket, 1/4 inch PT (Replaces plug 444655)
  • 13
    1
    217-21
    ELBOW 90 Degree, 1/4''-18 NPTF, Fem x 1/4''-18 NPTF Male; - fuel inlet, street, 90 degree x 1/4 inch PT x female PT
  • 14
    1
    217-21
    ELBOW 90 Degree, 1/4''-18 NPTF, Fem x 1/4''-18 NPTF Male; - street, 90 degree x 1/4 inch PT x female PT, fuel return, also furnish fuel return orifice 687426C1 (Replaces valve 680313C1 and elbow 444040)
  • 15
    1
    674769C1
    ROLLER; - tappet
  • 16
    1
    674770C1
    GUIDE; - tappet
  • 1
    674839C94
    HEAD; ASSEMBLY - hydraulic, Includes: Ref. 18 - 37A
  • 18
    1
    674786C2
    NUT 3/4'' - 20; - cap, delivery valve
  • 1
    684934C93
    PACKAGE, REPAIR; KIT - delivery valve service, Includes: Ref. 19 - 23
  • 19
    1
    674785C1
    GASKET; - cap nut
  • 20
    1
    NSS
    NOT SOLD SEPARAT; HOLDER - delivery valve, order kit 684934C93
  • 21
    1
    674801C1
    COMPRESSION SPRING; - delivery valve
  • 22
    1
    674789C1
    GUIDE; - delivery valve spring, 0.056 inch, yellow
  • 22
    1
    674790C1
    GUIDE; - delivery valve spring, 0.066 inch, red
  • 22
    1
    674791C1
    GUIDE; - delivery valve spring, 0.076 inch, blue
  • 22
    1
    674792C1
    GUIDE; - delivery valve spring, 0.086 inch, black
  • 22
    1
    674793C1
    GUIDE; - delivery valve spring, 0.096 inch, white
  • 23
    1
    NSS
    NOT SOLD SEPARAT; VALVE - delivery, order kit 684934C93
  • 25
    1
    238-5144
    O-RING 0.103'' Thk x 2.487'' ID, -144, Cl 5, 75 Duro; - charge pump, 2-1/2 ID x 3/32 inch wide
  • 26
    1
    NSS
    NOT SOLD SEPARAT; HEAD - hydraulic, order head assembly 674839C94
  • 27
    1
    674772C1
    GASKET; - O-ring lower
  • 28
    1
    681426C1
    GUIDE; - plunger drive
  • 29
    1
    681496C1
    RETAINER; - face gear
  • 30
    1
    674798C2
    THRUST WASHER; - thrust
  • 31
    1
    674804C1
    WASHER; - plunger spring
  • 32
    1
    674802C1
    SPRING; - plunger
  • 33
    1
    684310C1
    SEAT; - lower spring
  • 34
    2
    674797C1
    RING; - lower spring seat split
  • 35
    1
    674800C1
    SCREW; - set, no longer available
  • 36
    1
    211-1006
    BALL 3/16'' Dia, Gr 24; - sealing, chrome alloy steel, 3/16 inch, grade 24
  • 37
    6
    684399C1
    FITTING; - discharge
  • 37A
    1
    681439C91
    GEAR; ASSEMBLY - face, Includes: Gear, Hub and Thrust Washer Listed Below
  • 1
    1802397C1
    GEAR; - face
  • 1
    1802399C1
    HUB; - face gear
  • 1
    674798C2
    THRUST WASHER; - thrust
  • 38
    1
    674949C2
    VALVE; BUTTON - plunger letter A, 0.1071 inch
  • 38
    1
    674925C2
    VALVE; BUTTON - plunger letter B, 0.1091 inch
  • 38
    1
    674926C2
    VALVE; BUTTON - plunger letter C, 0.1110 inch
  • 38
    1
    674948C2
    VALVE; BUTTON - plunger letter D, 0.1130 inch
  • 38
    1
    674775C2
    VALVE; BUTTON - plunger letter E, 0.1150 inch
  • 38
    1
    674776C2
    VALVE; BUTTON - plunger letter F, 0.1169 inch
  • 38
    1
    674777C2
    VALVE; BUTTON - plunger letter G, 0.1189 inch
  • 38
    1
    674778C2
    VALVE; BUTTON - plunger letter H, 0.1209 inch
  • 38
    1
    674779C2
    VALVE; BUTTON - plunger letter J, 0.1228 inch
  • 38
    1
    674780C2
    VALVE; BUTTON - plunger letter K, 0.1248 inch
  • 38
    1
    674781C2
    VALVE; BUTTON - plunger letter L, 0.1268 inch
  • 38
    1
    674782C2
    VALVE; BUTTON - plunger letter M, 0.1287 inch
  • 39
    1
    674783C1
    RING; - retainer plunger button
  • 41
    4
    674805C1
    CLAMP; - hydraulic head retainer
  • 42
    4
    684306C1
    SCREW; O-RING - hydraulic head retainer
  • 43
    1
    674807C1
    GASKET; - hydraulic head locating plate, used with plate housing 680442C1 only
  • 44
    1
    674808C1
    PLATE; - head locating, used with pump housing 680442C1 only
  • 45
    1
    257161R1
    GASKET; - head locating plate screw, used with pump housing 680442C1 only
  • 46
    1
    674810C1
    PLUG; SCREW - hydraulic head locating plate, used with pump housing 680442C1 only
  • 47
    1
    674811C1
    GASKET; - pump housing to governor housing
  • 48
    1
    674812C1
    GASKET; GASKET - excess fuel device tubing
  • 49
    1
    674813C1
    TUBE; TUBING - excess fuel device
  • 50
    1
    238-5012
    O-RING 0.07'' Thk x 0.364'' ID, -12, Cl 5, 75 Duro; -012, 70 Duro, .364'' ID x .070'' Thk, Control unit (Replaces O-ring 355967R1)
  • 51
    1
    674704C91
    LEVER; UNIT - control, standard
  • 52
    2
    674709C1
    SPACER; - control unit plate
  • 53
    1
    674938C1
    PLATE; - control unit, identification no. 1
  • 53
    1
    674939C1
    PLATE; - control unit, identification no. 2
  • 53
    1
    674940C1
    PLATE; - control unit, identification no. 3
  • 54
    6
    674710C1
    SCREW; - control unit plate and cover, includes washer
  • 55
    1
    263213R1
    ELECTRICAL WIRE; WIRE - lock, control unit plate
  • 56
    1
    681263C1
    GASKET; - control unit cover
  • 57
    1
    674705C1
    COVER; - control unit
  • 58
    1
    126-112
    WOODRUFF KEY #6, 5/32'' x 5/8'', HT; (Replaces key 124546) #6, 5/32'' x 5/8'', HT
  • 59
    1
    REF
    INSTRUCTION; CAMSHAFT ASSEMBLY - intravance, parts list Figure 9C-60
  • 62
    4
    492-11025
    LOCK WASHER 1/4''; WASHER, LOCK, , Retaining screw (Replaces washer 131200) 1/4''
  • 63
    4
    674755C1
    SCREW; - retaining
  • 64
    1
    674850C1
    PIN; SPRING - lubrication, includes pin
  • 1
    1802672C91
    GOVERNOR; SHAFT ASSEMBLY - governor, includes weights, also order sleeve assembly 1802673C1 (Replaces shaft assembly 674853C92), Includes: Ref. 65A - 77
  • 65A
    -
    1802673C1
    SLEEVE; - governor (Replaces sleeve 674877C1)
  • 1
    1802353C1
    BUSHING; - bearing
  • 2
    1802351C1
    SEAT; - spring
  • 1
    1802671C1
    SHAFT; - drive
  • 2
    1802350C1
    SPRING; - governor weight
  • 2
    1802352C1
    SUPPORT; - spring seat
  • 66
    1
    681444C1
    NUT; - drive gear
  • 67
    1
    681445C1
    CUP; - drive gear lock
  • 68
    1
    681446C1
    GEAR; - drive
  • 69
    1
    681447C1
    PLATE; - bearing support, no longer available
  • 70
    1
    681448C1
    BALL BEARING; - ball
  • 71
    1
    681449C1
    BUSHING; - bearing
  • 72
    1
    1802349C1
    WEIGHT; KIT - governor weight (Replaces weight assembly 681450C2)
  • 73
    1
    681451C1
    SPACER; - shaft, 0.005 inch
  • 73
    1
    681452C1
    SPACER; - shaft, 0.010 inch
  • 73
    1
    681453C1
    SPACER; - shaft, 0.015 inch
  • 73
    1
    681454C1
    SPACER; - shaft, 0.020 inch
  • 73
    1
    681455C1
    SPACER; - shaft, 0.035 inch
  • 73
    1
    681456C1
    SPACER; - shaft, 0.002 inch
  • 74
    1
    681457C2
    DISC; - inner spring
  • 75
    14
    681454C1
    SPACER; - spring disc
  • 76
    1
    681458C1
    DISC; - outer spring
  • 77
    1
    1802671C1
    SHAFT; - governor drive, also order sleeve 1802673C1
  • 78
    3
    492-11025
    LOCK WASHER 1/4''; WASHER, LOCK, , Support plate screw (Replaces washer 131200) 1/4''
  • 79
    3
    326-412
    BOLT Hex, 1/4'' - 20 x 3/4'', Gr 8; (Replaces screw 25481R1) Hex, 1/4''-20 x 3/4'', G8, Full Thd
  • 80
    2
    674875C1
    WASHER; - thrust, governor sleeve
  • 81
    1
    674876C91
    THRUST BEARING; - thrust, governor sleeve
  • 83
    2
    238-5111
    O-RING 0.103'' Thk x 0.424'' ID, -111, Cl 5, 75 Duro; Governor shaft short and operating shaft (Replaces O-ring 355966R1) -111, 70 Duro, .424'' ID x .103'' Thk
  • 86
    1
    684047C91
    SPRING; PLATE ASSEMBLY - governor operating shaft, Includes: Ref. 86A & 86B
  • 86A
    1
    1802449C1
    PLATE; - spring, not illustrated
  • 86B
    1
    1802448C1
    SPRING; - operating lever, not illustrated
  • 87
    2
    674885C1
    SCREW; - set, spring plate
  • 87A
    1
    674886C2
    LEVER; - governor stop
  • 1
    674887C91
    LEVER; AND ROD ASSEMBLY - fulcrum, no longer available, Includes: Ref. 89 - 101
  • 89
    1
    674891C1
    PIN; - fulcrum lever
  • 89A
    1
    674882C1
    BRACKET; - fulcrum, no longer available
  • 90
    2
    674892C1
    RING; - pin retaining
  • 91
    1
    681461C91
    LEVER; ASSEMBLY - fulcrum, Includes: Ref. 91A
  • 91A
    2
    1802427C1
    PIN; - pivot, not illustrated
  • 92
    1
    143415
    NUT 1/4''-20, G5, Hvy; - cam
  • 93
    1
    492-11025
    LOCK WASHER 1/4''; WASHER, LOCK, , Cam (Replaces washer 131200) 1/4''
  • 94
    1
    62270D
    CAM; - torque
  • 95
    1
    681464C1
    SCREW; - square head
  • 96
    1
    131-63
    LOCK NUT 1/4''-28, G8; NUT - light hex, self-locking, 1/4 inch NF, adjusting spring
  • 97
    1
    681466C1
    WASHER; - adjusting nut
  • 98
    1
    681467C1
    SPRING; - adjusting, no longer available
  • 99
    1
    681468C1
    ROD; - control
  • 100
    1
    681469C1
    WASHER; - control rod
  • 101
    1
    681470C1
    PIN; - cotter
  • 102
    1
    674902C1
    SCREW; - droop
  • 103
    1
    131-63
    LOCK NUT 1/4''-28, G8; NUT - light hex, self-locking, 1/4 inch NF
  • 105
    4
    674924C1
    SCREW; - cover mounting, drilled head
  • 106
    4
    67870D
    GASKET; - cover screw
  • 107
    1
    674921C1
    COVER; - governor top
  • 108
    1
    684684C1
    GASKET; - governor top
  • 109
    2
    674919C1
    SCREW; - fuel device mounting, no longer available
  • 110
    2
    492-11025
    LOCK WASHER 1/4''; WASHER, LOCK, , Fuel device mounting screw (Replaces washer 131200) 1/4''
  • 111
    1
    674915C92
    ANEROID PUMP; DEVICE ASSEMBLY - excess fuel, new, Includes: Ref. 112 - 114
  • 111
    1
    735303C91
    REMAN-ANEROID; Device Assembly - excess fuel, remanufactured, component parts do not apply to the remanufactured assembly, no longer available
  • 111
    1
    1934169C1
    CORE-ANEROID; Return Part Number - use this part number to return device for credit when using a remanufactured assembly
  • 111
    1
    735304C91
    REMAN-ANEROID; Device Assembly - excess fuel, remanufactured, component parts do not apply to the remanufactured assembly, no longer available
  • 111
    1
    1934171C1
    CORE-ANEROID; Return Part Number - use this part number to return device for credit when using a remanufactured assembly
  • 112
    1
    674903C91
    HOUSING; ASSEMBLY - governor, Includes: Ref. 112A
  • 112
    1
    735309C91
    REMAN-ANEROID; ASSEMBLY - governor, Includes: Ref. 112A
  • 112
    1
    1934177C1
    CORE-ANEROID; ASSEMBLY - governor, Includes: Ref. 112A
  • 112A
    2
    1802447C1
    PIN; - dowel, no longer used, not illustrated
  • 113
    1
    674917C1
    WASHER; - tab
  • 114
    1
    425-114
    NUT 1/4''-28, G5; Stop plate (Replaces nut 691001C1) 1/4''-28, G5
  • 115
    1
    681258C1
    PLATE; ASSEMBLY - stop, used with pump assemblies 631553C91, 631555C91 and 631573C91
  • 115
    1
    674916C1
    PLATE; ASSEMBLY - stop, used with pump assemblies 631558C91 and 631574C91
  • 115
    1
    687118C1
    PLATE; ASSEMBLY - stop, used with pump assemblies 749580C91 and 749992C91
  • 116
    1
    674929C1
    SPRING; - governor inner, used with pump assemblies 631553C91, 631555C91 and 631558C91
  • 116
    1
    681415C1
    SPRING; - governor inner, used with pump assemblies 631573C91 and 631574C91
  • 116
    1
    681413C1
    SPRING; - governor inner, used with pump assembly 749580C91
  • 117
    6
    492-11025
    LOCK WASHER 1/4''; WASHER, LOCK, , Governor housing screw (Replaces washer 131200) 1/4''
  • 118
    6
    674906C1
    SCREW; - governor housing to pump housing
  • 119
    1
    681471C91
    SHAFT; ASSEMBLY - governor operating, Includes: Ref. 119 & 120
  • 119
    1
    1802444C1
    SHAFT; - governor short, no longer available
  • 119
    1
    1802445C1
    SHAFT; - govenor operating, no longer available
  • 120
    1
    680400C1
    SPRING; - idle return
  • 121
    1
    684323C2
    PRODUCT GRAPHIC; NAMEPLATE - governor housing
  • 122
    2
    125622
    SCREW Type U Drive, Rnd Hd, #0 x 0.188''; - nameplate drive
  • 123
    1
    181069
    SCREW Hex, 1/4'' x 1 1/2''; - operating lever, no longer used
  • 125
    1
    674909C1
    WASHER; - operating shaft
  • 127
    1
    492-11025
    LOCK WASHER 1/4''; WASHER, LOCK, , Lever screw (Replaces washer 131200) 1/4''
  • 128
    1
    674908C92
    LEVER; ASSEMBLY - operating, Includes: Ref. 128A
  • 128A
    1
    687108C1
    SPACER; - operating lever, not illustrated
  • 129
    1
    557109R1
    WASHER; - flat, lever screw, no longer used
  • 130
    1
    684282C91
    SCREW; ASSEMBLY - high idle, Includes: Set Screw & Ref. 130 - 132
  • 1
    1802438C1
    SET SCREW Sl Hdls, 1/4'' - 28 x 2'', Oval Pt; - set
  • 130
    1
    425-114
    NUT 1/4''-28, G5; High idle screw (Replaces nut 691001C1) 1/4''-28, G5
  • 131
    1
    67870D
    GASKET; - high idle screw
  • 132
    1
    1802437C1
    NUT; - cap, high idle screw
  • 133
    1
    62637D
    SPACER; - governor spring inner, 0.020 inch
  • 133
    1
    62638D
    SHIM; SPACER - governor spring inner, 0.042 inch
  • 133
    1
    62639D
    SHIM; SPACER - governor spring inner, 0.058 inch
  • 133
    1
    62640D
    SHIM; SPACER - governor spring inner, 0.083 inch
  • 133
    1
    674934C1
    SPACER; - governor spring inner, 0.177 inch
  • 133
    1
    674935C1
    SPACER; - governor spring inner, 0.276 inch
  • 133
    1
    674936C1
    SPACER; - governor spring inner, 0.010 inch
  • 134
    1
    674937C1
    SEAT; - governor spring inner
  • 135
    1
    62641D
    SPACER; - governor spring outer, 0.020 inch
  • 135
    1
    62642D
    SHIM; SPACER - governor spring outer, 0.042 inch
  • 135
    1
    62643D
    SHIM; SPACER - governor spring outer, 0.058 inch
  • 135
    1
    62644D
    SHIM; SPACER - governor spring outer, 0.083 inch
  • 135
    1
    674942C1
    SPACER; - governor spring outer, 0.156 inch
  • 135
    1
    674943C1
    SPACER; - governor spring outer, 0.030 inch
  • 135
    1
    674944C1
    SPACER; - governor spring outer, 0.010 inch
  • 136
    1
    674945C1
    SPRING; - governor outer
  • 137
    1
    674946C1
    DRIVER SEAT; - governor spring outer
  • 138
    1
    681292C1
    SEAL; - governor shaft
  • 1
    680312C92
    PUMP, FUEL INJECTION; PUMP ASSEMBLY - supply, new, Includes: Ref. 139 - 146
  • 1
    735310C91
    REMAN-INJECTION PUMP; Pump Assembly - supply, remanufactured, component parts do not apply to the remanufactured assembly, no longer available
  • 1
    1934179C1
    CORE-INJECTION PUMP; Return Part Number - use this part number to return pump core for credit when using a remanufactured assembly, no longer used
  • 139
    1
    681293C1
    GASKET; GASKET - O-ring
  • 140
    5
    1802431C1
    SCREW Pozidriv Fil Hd, #10 - 24 x 0.86'', Gr 8, w/ LW; - insert
  • 141
    1
    1802428C91
    INSERT; - supply pump
  • 143
    1
    681294C1
    GASKET; - supply pump
  • 143
    1
    1802429C91
    COVER; ASSEMBLY - supply pump, Includes: Ref. 144 - 146
  • 144
    1
    1802432C1
    VALVE; - check, at upper part of cover
  • 144
    1
    1802433C1
    VALVE; - check, at lower part of cover
  • 145
    1
    674972C1
    VALVE; - regulating
  • 145
    1
    680441C1
    SPRING; - regulating valve
  • 146
    1
    674974C1
    SCREW; - spring retaining
  • 147
    1
    680391C91
    PUMP; PRIMER ASSEMBLY - hand, Includes: Ref. 147 - 148E
  • 147
    1
    681298C1
    GASKET; - hand primer
  • 148
    1
    681299C1
    RETAINER; BAIL - hand primer
  • 148A
    1
    1802434C1
    CYLINDER; BARREL - hand primer, not illustrated
  • 148B
    1
    1802465C1
    GASKET; - plunger square ring, not illustrated
  • 148C
    1
    1802435C1
    KNOB; - hand primer, not illustrated
  • 148D
    1
    238-5113
    O-RING 0.103'' Thk x 0.549'' ID, -113, Cl 5, 75 Duro; (Replaces seal 352221R1), Not illustrated -113, 70 Duro, .549'' ID x .103'' Thk
  • 148E
    1
    1802436C1
    PLUNGER; - hand primer, not illustrated
  • 149
    3
    492-11025
    LOCK WASHER 1/4''; WASHER, LOCK, , Pump mounting screw (Replaces washer 131200) 1/4''
  • 149
    1
    579788
    SHIELD; - supply pump mounting long, no longer used
  • 150
    2
    62204D
    BOLT Eye, M12 x 125mm; SCREW - pump mounting, drilled head
  • 158
    1
    681291C93
    SCREW; - low idle
  • 1
    100-3321
    SNAP RING #X21, .185'' Dia, E-Type; Ring, Retaining, , Low idle screw #X21, .185'' Dia, E-Type
  • 159
    1
    238-5011
    O-RING 0.07'' Thk x 0.301'' ID, -11, Cl 5, 75 Duro; -011, 70 Duro, .301'' ID x .070'' Thk
  • 160
    1
    674878C1
    NUT; - low idle screw
  • 161
    4
    684307C1
    WASHER; - retaining, upper hydraulic head
  • 162
    4
    684308C1
    WASHER; - retaining, lower hydraulic head
  • 163
    1
    678026C1
    ELECTRICAL WIRE; WIRE - seal, not illustrated
  • 164
    1
    687459C1
    ELECTRICAL WIRE; SEAL - lock wire, not illustrated

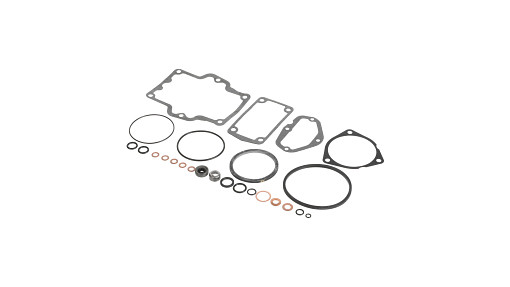

  • 1
    684079C92
    GASKET; KIT - injection pump gasket
Select All

Select

Ref.

Qty

1

Availability

Part #

681228C92

Description

PUMP, FUEL INJECTION; PUMP ASSEMBLY - fuel injection, 10 mm remanufactured (North America only) 2400 RPM, Replaces pump assembly 631553C91;On orders for injection pump, also order fuel return elbow 217-21 and fuel return orifice 687426C1.;Used with 966 tractors with gear drive and engine serial numbers prior to 17000. Component parts do not apply to the remanufactured assembly


Alts

Select

Ref.

Qty

1

Availability

Part #

631573C92

Description

REMAN-FUEL INJ PUMP; Pump Assembly - fuel injection, 10 mm, remanufactured, 2600 RPM, used with 966 tractors with engine serial number 17000 and after, component parts do not apply to the remanufactured assembly


Alts

Select

Ref.

Qty

1

Availability

Part #

1934071C1

Description

CORE-INJECTION PUMP; Return Part Number - use this part number to return pump core for credit when using a remanufactured assembly


Alts

Select

Ref.

Qty

1

Availability

Part #

631555C91

Description

REMAN-INJECTION PUMP; Pump Assembly - fuel injection, 10 mm, remanufactured for pump 681229C92, used with 966 hydro tractors, component parts do not apply to the remanufactured assembly


Alts

Select

Ref.

Qty

1

Availability

Part #

1934085C1

Description

CORE-INJECTION PUMP; Pump Assembly - fuel injection, 10 mm, remanufactured, 2400 RPM, 1066 tractors with engine serial numbers prior to 23000, component parts do not apply to the remanufactured assembly


Alts

Select

Ref.

Qty

1

Availability

Part #

631558C91

Description

REMAN-FUEL INJ PUMP; Pump Assembly - fuel injection, 10 mm, remanufactured, 2400 RPM, 1066 tractors with engine serial numbers prior to 23000, component parts do not apply to the remanufactured assembly


Alts

Select

Ref.

Qty

1

Availability

Part #

1934061C1

Description

CORE-INJECTION PUMP; Return Part Number - use this part number to return pump core for credit when using a remanufactured assembly


Alts

Select

Ref.

Qty

1

Availability

Part #

631574C91

Description

REMAN-FUEL INJ PUMP; Pump Assembly - fuel injection, 10 mm, remanufactured, 2600 RPM, used with 1066 tractors having gear drive with engine serial number 23000 and after, component parts do not apply to the remanufactured assembly


Alts

Select

Ref.

Qty

1

Availability

Part #

1934061C1

Description

CORE-INJECTION PUMP; Return Part Number - use this part number to return pump core for credit when using a remanufactured assembly


Alts

Select

Ref.

Qty

1

Availability

Part #

749580C91

Description

REMAN-FUEL INJ PUMP; Pump Assembly - fuel injection, 10 mm, remanufactured, 1086 tractors with engine serial numbers prior to 140024, component parts do not apply to the remanufactured assembly


Alts

Select

Ref.

Qty

1

Availability

Part #

1934081C1

Description

CORE-INJECTION PUMP; Return Part Number - use this part number to return pump core for credit when using a remanufactured assembly


Alts

Select

Ref.

Qty

1

Availability

Part #

749992C91

Description

REMAN-FUEL INJ PUMP; Pump Assembly - fuel injection, remanufactured, 1086 tractors with engine serial number 140024 and after, component parts do not apply to the remanufactured assembly


Alts

Select

Ref.

Qty

1

Availability

Part #

1934081C1

Description

CORE-INJECTION PUMP; Return Part Number - use this part number to return pump core for credit when using a remanufactured assembly


Alts

Select

Ref.

Qty

1

Availability

Part #

687475C91

Description

PUMP; ASSEMBLY - fuel injection, new, used with 1086 tractors with engine serial number 140024 and after, no longer available, order remanufactured pump assembly 749992C91, Includes: Ref. 1 - 164;On orders for injection pump, also order fuel return elbow 217-21 and fuel return orifice 687426C1.


Alts

Select

Ref.

1

Qty

1

Availability

Part #

129-551

Description

SPECIAL NUT 9/16''-18, G8; - drive hub, no longer used


Alts

Select

Ref.

2

Qty

1

Availability

Part #

674751C1

Description

WASHER; - lock, drive hub nut


Alts

Select

Ref.

3

Qty

1

Availability

Part #

676925C1

Description

HUB; - drive (Replaces hub 674752C1)


Alts

Select

Ref.

4

Qty

1

Availability

Part #

676926C1

Description

PLATE; - drive hub back (Replaces plate 674753C1)


Alts

Select

Ref.

5

Qty

1

Availability

Part #

674754C1

Description

GASKET; GASKET - injection pump mounting


Alts

Select

Ref.

6

Qty

4

Availability

Part #

674755C1

Description

SCREW; - retainer plate


Alts

Select

Ref.

7

Qty

4

Availability

Part #

492-11025

Description

LOCK WASHER 1/4''; WASHER, LOCK, , Retainer plate (Replaces washer 131200) 1/4''


Alts

Select

Ref.

8

Qty

1

Availability

Part #

674757C1

Description

PLATE; - retainer, no longer available


Alts

Select

Ref.

9

Qty

1

Availability

Part #

674758C1

Description

WASHER; - thrust


Alts

Select

Ref.

10

Qty

1

Availability

Part #

674761C1

Description

SHIM; - retainer plate, 0.002 inch


Alts

Select

Ref.

10

Qty

1

Availability

Part #

674759C1

Description

SHIM; - retainer plate, 0.004 inch


Alts

Select

Ref.

10

Qty

1

Availability

Part #

674760C1

Description

SHIM; - retainer plate, 0.008 inch


Alts

Select

Ref.

11

Qty

1

Availability

Part #

680442C2

Description

HOUSING; ASSEMBLY - pump, Includes: Ref. 11A


Alts

Select

Ref.

11A

Qty

1

Availability

Part #

681438C1

Description

INDICATOR; POINTER - timing


Alts

Select

Ref.

12

Qty

1

Availability

Part #

221-841

Description

PLUG; - hex socket, 1/4 inch PT (Replaces plug 444655)


Alts

Select

Ref.

13

Qty

1

Availability

Part #

217-21

Description

ELBOW 90 Degree, 1/4''-18 NPTF, Fem x 1/4''-18 NPTF Male; - fuel inlet, street, 90 degree x 1/4 inch PT x female PT


Alts

Select

Ref.

14

Qty

1

Availability

Part #

217-21

Description

ELBOW 90 Degree, 1/4''-18 NPTF, Fem x 1/4''-18 NPTF Male; - street, 90 degree x 1/4 inch PT x female PT, fuel return, also furnish fuel return orifice 687426C1 (Replaces valve 680313C1 and elbow 444040)


Alts

Select

Ref.

15

Qty

1

Availability

Part #

674769C1

Description

ROLLER; - tappet


Alts

Select

Ref.

16

Qty

1

Availability

Part #

674770C1

Description

GUIDE; - tappet


Alts

Select

Ref.

Qty

1

Availability

Part #

674839C94

Description

HEAD; ASSEMBLY - hydraulic, Includes: Ref. 18 - 37A


Alts

Select

Ref.

18

Qty

1

Availability

Part #

674786C2

Description

NUT 3/4'' - 20; - cap, delivery valve


Alts

Select

Ref.

Qty

1

Availability

Part #

684934C93

Description

PACKAGE, REPAIR; KIT - delivery valve service, Includes: Ref. 19 - 23


Alts

Select

Ref.

19

Qty

1

Availability

Part #

674785C1

Description

GASKET; - cap nut


Alts

Select

Ref.

20

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; HOLDER - delivery valve, order kit 684934C93


Alts

Select

Ref.

21

Qty

1

Availability

Part #

674801C1

Description

COMPRESSION SPRING; - delivery valve


Alts

Select

Ref.

22

Qty

1

Availability

Part #

674789C1

Description

GUIDE; - delivery valve spring, 0.056 inch, yellow


Alts

Select

Ref.

22

Qty

1

Availability

Part #

674790C1

Description

GUIDE; - delivery valve spring, 0.066 inch, red


Alts

Select

Ref.

22

Qty

1

Availability

Part #

674791C1

Description

GUIDE; - delivery valve spring, 0.076 inch, blue


Alts

Select

Ref.

22

Qty

1

Availability

Part #

674792C1

Description

GUIDE; - delivery valve spring, 0.086 inch, black


Alts

Select

Ref.

22

Qty

1

Availability

Part #

674793C1

Description

GUIDE; - delivery valve spring, 0.096 inch, white


Alts

Select

Ref.

23

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; VALVE - delivery, order kit 684934C93


Alts

Select

Ref.

25

Qty

1

Availability

Part #

238-5144

Description

O-RING 0.103'' Thk x 2.487'' ID, -144, Cl 5, 75 Duro; - charge pump, 2-1/2 ID x 3/32 inch wide


Alts

Select

Ref.

26

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; HEAD - hydraulic, order head assembly 674839C94


Alts

Select

Ref.

27

Qty

1

Availability

Part #

674772C1

Description

GASKET; - O-ring lower


Alts

Select

Ref.

28

Qty

1

Availability

Part #

681426C1

Description

GUIDE; - plunger drive


Alts

Select

Ref.

29

Qty

1

Availability

Part #

681496C1

Description

RETAINER; - face gear


Alts

Select

Ref.

30

Qty

1

Availability

Part #

674798C2

Description

THRUST WASHER; - thrust


Alts

Select

Ref.

31

Qty

1

Availability

Part #

674804C1

Description

WASHER; - plunger spring


Alts

Select

Ref.

32

Qty

1

Availability

Part #

674802C1

Description

SPRING; - plunger


Alts

Select

Ref.

33

Qty

1

Availability

Part #

684310C1

Description

SEAT; - lower spring


Alts

Select

Ref.

34

Qty

2

Availability

Part #

674797C1

Description

RING; - lower spring seat split


Alts

Select

Ref.

35

Qty

1

Availability

Part #

674800C1

Description

SCREW; - set, no longer available


Alts

Select

Ref.

36

Qty

1

Availability

Part #

211-1006

Description

BALL 3/16'' Dia, Gr 24; - sealing, chrome alloy steel, 3/16 inch, grade 24


Alts

Select

Ref.

37

Qty

6

Availability

Part #

684399C1

Description

FITTING; - discharge


Alts

Select

Ref.

37A

Qty

1

Availability

Part #

681439C91

Description

GEAR; ASSEMBLY - face, Includes: Gear, Hub and Thrust Washer Listed Below


Alts

Select

Ref.

Qty

1

Availability

Part #

1802397C1

Description

GEAR; - face


Alts

Select

Ref.

Qty

1

Availability

Part #

1802399C1

Description

HUB; - face gear


Alts

Select

Ref.

Qty

1

Availability

Part #

674798C2

Description

THRUST WASHER; - thrust


Alts

Select

Ref.

38

Qty

1

Availability

Part #

674949C2

Description

VALVE; BUTTON - plunger letter A, 0.1071 inch


Alts

Select

Ref.

38

Qty

1

Availability

Part #

674925C2

Description

VALVE; BUTTON - plunger letter B, 0.1091 inch


Alts

Select

Ref.

38

Qty

1

Availability

Part #

674926C2

Description

VALVE; BUTTON - plunger letter C, 0.1110 inch


Alts

Select

Ref.

38

Qty

1

Availability

Part #

674948C2

Description

VALVE; BUTTON - plunger letter D, 0.1130 inch


Alts

Select

Ref.

38

Qty

1

Availability

Part #

674775C2

Description

VALVE; BUTTON - plunger letter E, 0.1150 inch


Alts

Select

Ref.

38

Qty

1

Availability

Part #

674776C2

Description

VALVE; BUTTON - plunger letter F, 0.1169 inch


Alts

Select

Ref.

38

Qty

1

Availability

Part #

674777C2

Description

VALVE; BUTTON - plunger letter G, 0.1189 inch


Alts

Select

Ref.

38

Qty

1

Availability

Part #

674778C2

Description

VALVE; BUTTON - plunger letter H, 0.1209 inch


Alts

Select

Ref.

38

Qty

1

Availability

Part #

674779C2

Description

VALVE; BUTTON - plunger letter J, 0.1228 inch


Alts

Select

Ref.

38

Qty

1

Availability

Part #

674780C2

Description

VALVE; BUTTON - plunger letter K, 0.1248 inch


Alts

Select

Ref.

38

Qty

1

Availability

Part #

674781C2

Description

VALVE; BUTTON - plunger letter L, 0.1268 inch


Alts

Select

Ref.

38

Qty

1

Availability

Part #

674782C2

Description

VALVE; BUTTON - plunger letter M, 0.1287 inch


Alts

Select

Ref.

39

Qty

1

Availability

Part #

674783C1

Description

RING; - retainer plunger button


Alts

Select

Ref.

41

Qty

4

Availability

Part #

674805C1

Description

CLAMP; - hydraulic head retainer


Alts

Select

Ref.

42

Qty

4

Availability

Part #

684306C1

Description

SCREW; O-RING - hydraulic head retainer


Alts

Select

Ref.

43

Qty

1

Availability

Part #

674807C1

Description

GASKET; - hydraulic head locating plate, used with plate housing 680442C1 only


Alts

Select

Ref.

44

Qty

1

Availability

Part #

674808C1

Description

PLATE; - head locating, used with pump housing 680442C1 only


Alts

Select

Ref.

45

Qty

1

Availability

Part #

257161R1

Description

GASKET; - head locating plate screw, used with pump housing 680442C1 only


Alts

Select

Ref.

46

Qty

1

Availability

Part #

674810C1

Description

PLUG; SCREW - hydraulic head locating plate, used with pump housing 680442C1 only


Alts

Select

Ref.

47

Qty

1

Availability

Part #

674811C1

Description

GASKET; - pump housing to governor housing


Alts

Select

Ref.

48

Qty

1

Availability

Part #

674812C1

Description

GASKET; GASKET - excess fuel device tubing


Alts

Select

Ref.

49

Qty

1

Availability

Part #

674813C1

Description

TUBE; TUBING - excess fuel device


Alts

Select

Ref.

50

Qty

1

Availability

Part #

238-5012

Description

O-RING 0.07'' Thk x 0.364'' ID, -12, Cl 5, 75 Duro; -012, 70 Duro, .364'' ID x .070'' Thk, Control unit (Replaces O-ring 355967R1)


Alts

Select

Ref.

51

Qty

1

Availability

Part #

674704C91

Description

LEVER; UNIT - control, standard


Alts

Select

Ref.

52

Qty

2

Availability

Part #

674709C1

Description

SPACER; - control unit plate


Alts

Select

Ref.

53

Qty

1

Availability

Part #

674938C1

Description

PLATE; - control unit, identification no. 1


Alts

Select

Ref.

53

Qty

1

Availability

Part #

674939C1

Description

PLATE; - control unit, identification no. 2


Alts

Select

Ref.

53

Qty

1

Availability

Part #

674940C1

Description

PLATE; - control unit, identification no. 3


Alts

Select

Ref.

54

Qty

6

Availability

Part #

674710C1

Description

SCREW; - control unit plate and cover, includes washer


Alts

Select

Ref.

55

Qty

1

Availability

Part #

263213R1

Description

ELECTRICAL WIRE; WIRE - lock, control unit plate


Alts

Select

Ref.

56

Qty

1

Availability

Part #

681263C1

Description

GASKET; - control unit cover


Alts

Select

Ref.

57

Qty

1

Availability

Part #

674705C1

Description

COVER; - control unit


Alts

Select

Ref.

58

Qty

1

Availability

Part #

126-112

Description

WOODRUFF KEY #6, 5/32'' x 5/8'', HT; (Replaces key 124546) #6, 5/32'' x 5/8'', HT


Alts

Select

Ref.

59

Qty

1

Availability

Part #

REF

Description

INSTRUCTION; CAMSHAFT ASSEMBLY - intravance, parts list Figure 9C-60


Alts

Select

Ref.

62

Qty

4

Availability

Part #

492-11025

Description

LOCK WASHER 1/4''; WASHER, LOCK, , Retaining screw (Replaces washer 131200) 1/4''


Alts

Select

Ref.

63

Qty

4

Availability

Part #

674755C1

Description

SCREW; - retaining


Alts

Select

Ref.

64

Qty

1

Availability

Part #

674850C1

Description

PIN; SPRING - lubrication, includes pin


Alts

Select

Ref.

Qty

1

Availability

Part #

1802672C91

Description

GOVERNOR; SHAFT ASSEMBLY - governor, includes weights, also order sleeve assembly 1802673C1 (Replaces shaft assembly 674853C92), Includes: Ref. 65A - 77


Alts

Select

Ref.

65A

Qty

-

Availability

Part #

1802673C1

Description

SLEEVE; - governor (Replaces sleeve 674877C1)


Alts

Select

Ref.

Qty

1

Availability

Part #

1802353C1

Description

BUSHING; - bearing


Alts

Select

Ref.

Qty

2

Availability

Part #

1802351C1

Description

SEAT; - spring


Alts

Select

Ref.

Qty

1

Availability

Part #

1802671C1

Description

SHAFT; - drive


Alts

Select

Ref.

Qty

2

Availability

Part #

1802350C1

Description

SPRING; - governor weight


Alts

Select

Ref.

Qty

2

Availability

Part #

1802352C1

Description

SUPPORT; - spring seat


Alts

Select

Ref.

66

Qty

1

Availability

Part #

681444C1

Description

NUT; - drive gear


Alts

Select

Ref.

67

Qty

1

Availability

Part #

681445C1

Description

CUP; - drive gear lock


Alts

Select

Ref.

68

Qty

1

Availability

Part #

681446C1

Description

GEAR; - drive


Alts

Select

Ref.

69

Qty

1

Availability

Part #

681447C1

Description

PLATE; - bearing support, no longer available


Alts

Select

Ref.

70

Qty

1

Availability

Part #

681448C1

Description

BALL BEARING; - ball


Alts

Select

Ref.

71

Qty

1

Availability

Part #

681449C1

Description

BUSHING; - bearing


Alts

Select

Ref.

72

Qty

1

Availability

Part #

1802349C1

Description

WEIGHT; KIT - governor weight (Replaces weight assembly 681450C2)


Alts

Select

Ref.

73

Qty

1

Availability

Part #

681451C1

Description

SPACER; - shaft, 0.005 inch


Alts

Select

Ref.

73

Qty

1

Availability

Part #

681452C1

Description

SPACER; - shaft, 0.010 inch


Alts

Select

Ref.

73

Qty

1

Availability

Part #

681453C1

Description

SPACER; - shaft, 0.015 inch


Alts

Select

Ref.

73

Qty

1

Availability

Part #

681454C1

Description

SPACER; - shaft, 0.020 inch


Alts

Select

Ref.

73

Qty

1

Availability

Part #

681455C1

Description

SPACER; - shaft, 0.035 inch


Alts

Select

Ref.

73

Qty

1

Availability

Part #

681456C1

Description

SPACER; - shaft, 0.002 inch


Alts

Select

Ref.

74

Qty

1

Availability

Part #

681457C2

Description

DISC; - inner spring


Alts

Select

Ref.

75

Qty

14

Availability

Part #

681454C1

Description

SPACER; - spring disc


Alts

Select

Ref.

76

Qty

1

Availability

Part #

681458C1

Description

DISC; - outer spring


Alts

Select

Ref.

77

Qty

1

Availability

Part #

1802671C1

Description

SHAFT; - governor drive, also order sleeve 1802673C1


Alts

Select

Ref.

78

Qty

3

Availability

Part #

492-11025

Description

LOCK WASHER 1/4''; WASHER, LOCK, , Support plate screw (Replaces washer 131200) 1/4''


Alts

Select

Ref.

79

Qty

3

Availability

Part #

326-412

Description

BOLT Hex, 1/4'' - 20 x 3/4'', Gr 8; (Replaces screw 25481R1) Hex, 1/4''-20 x 3/4'', G8, Full Thd


Alts

Select

Ref.

80

Qty

2

Availability

Part #

674875C1

Description

WASHER; - thrust, governor sleeve


Alts

Select

Ref.

81

Qty

1

Availability

Part #

674876C91

Description

THRUST BEARING; - thrust, governor sleeve


Alts

Select

Ref.

83

Qty

2

Availability

Part #

238-5111

Description

O-RING 0.103'' Thk x 0.424'' ID, -111, Cl 5, 75 Duro; Governor shaft short and operating shaft (Replaces O-ring 355966R1) -111, 70 Duro, .424'' ID x .103'' Thk


Alts

Select

Ref.

86

Qty

1

Availability

Part #

684047C91

Description

SPRING; PLATE ASSEMBLY - governor operating shaft, Includes: Ref. 86A & 86B


Alts

Select

Ref.

86A

Qty

1

Availability

Part #

1802449C1

Description

PLATE; - spring, not illustrated


Alts

Select

Ref.

86B

Qty

1

Availability

Part #

1802448C1

Description

SPRING; - operating lever, not illustrated


Alts

Select

Ref.

87

Qty

2

Availability

Part #

674885C1

Description

SCREW; - set, spring plate


Alts

Select

Ref.

87A

Qty

1

Availability

Part #

674886C2

Description

LEVER; - governor stop


Alts

Select

Ref.

Qty

1

Availability

Part #

674887C91

Description

LEVER; AND ROD ASSEMBLY - fulcrum, no longer available, Includes: Ref. 89 - 101


Alts

Select

Ref.

89

Qty

1

Availability

Part #

674891C1

Description

PIN; - fulcrum lever


Alts

Select

Ref.

89A

Qty

1

Availability

Part #

674882C1

Description

BRACKET; - fulcrum, no longer available


Alts

Select

Ref.

90

Qty

2

Availability

Part #

674892C1

Description

RING; - pin retaining


Alts

Select

Ref.

91

Qty

1

Availability

Part #

681461C91

Description

LEVER; ASSEMBLY - fulcrum, Includes: Ref. 91A


Alts

Select

Ref.

91A

Qty

2

Availability

Part #

1802427C1

Description

PIN; - pivot, not illustrated


Alts

Select

Ref.

92

Qty

1

Availability

Part #

143415

Description

NUT 1/4''-20, G5, Hvy; - cam


Alts

Select

Ref.

93

Qty

1

Availability

Part #

492-11025

Description

LOCK WASHER 1/4''; WASHER, LOCK, , Cam (Replaces washer 131200) 1/4''


Alts

Select

Ref.

94

Qty

1

Availability

Part #

62270D

Description

CAM; - torque


Alts

Select

Ref.

95

Qty

1

Availability

Part #

681464C1

Description

SCREW; - square head


Alts

Select

Ref.

96

Qty

1

Availability

Part #

131-63

Description

LOCK NUT 1/4''-28, G8; NUT - light hex, self-locking, 1/4 inch NF, adjusting spring


Alts

Select

Ref.

97

Qty

1

Availability

Part #

681466C1

Description

WASHER; - adjusting nut


Alts

Select

Ref.

98

Qty

1

Availability

Part #

681467C1

Description

SPRING; - adjusting, no longer available


Alts

Select

Ref.

99

Qty

1

Availability

Part #

681468C1

Description

ROD; - control


Alts

Select

Ref.

100

Qty

1

Availability

Part #

681469C1

Description

WASHER; - control rod


Alts

Select

Ref.

101

Qty

1

Availability

Part #

681470C1

Description

PIN; - cotter


Alts

Select

Ref.

102

Qty

1

Availability

Part #

674902C1

Description

SCREW; - droop


Alts

Select

Ref.

103

Qty

1

Availability

Part #

131-63

Description

LOCK NUT 1/4''-28, G8; NUT - light hex, self-locking, 1/4 inch NF


Alts

Select

Ref.

105

Qty

4

Availability

Part #

674924C1

Description

SCREW; - cover mounting, drilled head


Alts

Select

Ref.

106

Qty

4

Availability

Part #

67870D

Description

GASKET; - cover screw


Alts

Select

Ref.

107

Qty

1

Availability

Part #

674921C1

Description

COVER; - governor top


Alts

Select

Ref.

108

Qty

1

Availability

Part #

684684C1

Description

GASKET; - governor top


Alts

Select

Ref.

109

Qty

2

Availability

Part #

674919C1

Description

SCREW; - fuel device mounting, no longer available


Alts

Select

Ref.

110

Qty

2

Availability

Part #

492-11025

Description

LOCK WASHER 1/4''; WASHER, LOCK, , Fuel device mounting screw (Replaces washer 131200) 1/4''


Alts

Select

Ref.

111

Qty

1

Availability

Part #

674915C92

Description

ANEROID PUMP; DEVICE ASSEMBLY - excess fuel, new, Includes: Ref. 112 - 114


Alts

Select

Ref.

111

Qty

1

Availability

Part #

735303C91

Description

REMAN-ANEROID; Device Assembly - excess fuel, remanufactured, component parts do not apply to the remanufactured assembly, no longer available


Alts

Select

Ref.

111

Qty

1

Availability

Part #

1934169C1

Description

CORE-ANEROID; Return Part Number - use this part number to return device for credit when using a remanufactured assembly


Alts

Select

Ref.

111

Qty

1

Availability

Part #

735304C91

Description

REMAN-ANEROID; Device Assembly - excess fuel, remanufactured, component parts do not apply to the remanufactured assembly, no longer available


Alts

Select

Ref.

111

Qty

1

Availability

Part #

1934171C1

Description

CORE-ANEROID; Return Part Number - use this part number to return device for credit when using a remanufactured assembly


Alts

Select

Ref.

112

Qty

1

Availability

Part #

674903C91

Description

HOUSING; ASSEMBLY - governor, Includes: Ref. 112A


Alts

Select

Ref.

112

Qty

1

Availability

Part #

735309C91

Description

REMAN-ANEROID; ASSEMBLY - governor, Includes: Ref. 112A


Alts

Select

Ref.

112

Qty

1

Availability

Part #

1934177C1

Description

CORE-ANEROID; ASSEMBLY - governor, Includes: Ref. 112A


Alts

Select

Ref.

112A

Qty

2

Availability

Part #

1802447C1

Description

PIN; - dowel, no longer used, not illustrated


Alts

Select

Ref.

113

Qty

1

Availability

Part #

674917C1

Description

WASHER; - tab


Alts

Select

Ref.

114

Qty

1

Availability

Part #

425-114

Description

NUT 1/4''-28, G5; Stop plate (Replaces nut 691001C1) 1/4''-28, G5


Alts

Select

Ref.

115

Qty

1

Availability

Part #

681258C1

Description

PLATE; ASSEMBLY - stop, used with pump assemblies 631553C91, 631555C91 and 631573C91


Alts

Select

Ref.

115

Qty

1

Availability

Part #

674916C1

Description

PLATE; ASSEMBLY - stop, used with pump assemblies 631558C91 and 631574C91


Alts

Select

Ref.

115

Qty

1

Availability

Part #

687118C1

Description

PLATE; ASSEMBLY - stop, used with pump assemblies 749580C91 and 749992C91


Alts

Select

Ref.

116

Qty

1

Availability

Part #

674929C1

Description

SPRING; - governor inner, used with pump assemblies 631553C91, 631555C91 and 631558C91


Alts

Select

Ref.

116

Qty

1

Availability

Part #

681415C1

Description

SPRING; - governor inner, used with pump assemblies 631573C91 and 631574C91


Alts

Select

Ref.

116

Qty

1

Availability

Part #

681413C1

Description

SPRING; - governor inner, used with pump assembly 749580C91


Alts

Select

Ref.

117

Qty

6

Availability

Part #

492-11025

Description

LOCK WASHER 1/4''; WASHER, LOCK, , Governor housing screw (Replaces washer 131200) 1/4''


Alts

Select

Ref.

118

Qty

6

Availability

Part #

674906C1

Description

SCREW; - governor housing to pump housing


Alts

Select

Ref.

119

Qty

1

Availability

Part #

681471C91

Description

SHAFT; ASSEMBLY - governor operating, Includes: Ref. 119 & 120


Alts

Select

Ref.

119

Qty

1

Availability

Part #

1802444C1

Description

SHAFT; - governor short, no longer available


Alts

Select

Ref.

119

Qty

1

Availability

Part #

1802445C1

Description

SHAFT; - govenor operating, no longer available


Alts

Select

Ref.

120

Qty

1

Availability

Part #

680400C1

Description

SPRING; - idle return


Alts

Select

Ref.

121

Qty

1

Availability

Part #

684323C2

Description

PRODUCT GRAPHIC; NAMEPLATE - governor housing


Alts

Select

Ref.

122

Qty

2

Availability

Part #

125622

Description

SCREW Type U Drive, Rnd Hd, #0 x 0.188''; - nameplate drive


Alts

Select

Ref.

123

Qty

1

Availability

Part #

181069

Description

SCREW Hex, 1/4'' x 1 1/2''; - operating lever, no longer used


Alts

Select

Ref.

125

Qty

1

Availability

Part #

674909C1

Description

WASHER; - operating shaft


Alts

Select

Ref.

127

Qty

1

Availability

Part #

492-11025

Description

LOCK WASHER 1/4''; WASHER, LOCK, , Lever screw (Replaces washer 131200) 1/4''


Alts

Select

Ref.

128

Qty

1

Availability

Part #

674908C92

Description

LEVER; ASSEMBLY - operating, Includes: Ref. 128A


Alts

Select

Ref.

128A

Qty

1

Availability

Part #

687108C1

Description

SPACER; - operating lever, not illustrated


Alts

Select

Ref.

129

Qty

1

Availability

Part #

557109R1

Description

WASHER; - flat, lever screw, no longer used


Alts

Select

Ref.

130

Qty

1

Availability

Part #

684282C91

Description

SCREW; ASSEMBLY - high idle, Includes: Set Screw & Ref. 130 - 132


Alts

Select

Ref.

Qty

1

Availability

Part #

1802438C1

Description

SET SCREW Sl Hdls, 1/4'' - 28 x 2'', Oval Pt; - set


Alts

Select

Ref.

130

Qty

1

Availability

Part #

425-114

Description

NUT 1/4''-28, G5; High idle screw (Replaces nut 691001C1) 1/4''-28, G5


Alts

Select

Ref.

131

Qty

1

Availability

Part #

67870D

Description

GASKET; - high idle screw


Alts

Select

Ref.

132

Qty

1

Availability

Part #

1802437C1

Description

NUT; - cap, high idle screw


Alts

Select

Ref.

133

Qty

1

Availability

Part #

62637D

Description

SPACER; - governor spring inner, 0.020 inch


Alts

Select

Ref.

133

Qty

1

Availability

Part #

62638D

Description

SHIM; SPACER - governor spring inner, 0.042 inch


Alts

Select

Ref.

133

Qty

1

Availability

Part #

62639D

Description

SHIM; SPACER - governor spring inner, 0.058 inch


Alts

Select

Ref.

133

Qty

1

Availability

Part #

62640D

Description

SHIM; SPACER - governor spring inner, 0.083 inch


Alts

Select

Ref.

133

Qty

1

Availability

Part #

674934C1

Description

SPACER; - governor spring inner, 0.177 inch


Alts

Select

Ref.

133

Qty

1

Availability

Part #

674935C1

Description

SPACER; - governor spring inner, 0.276 inch


Alts

Select

Ref.

133

Qty

1

Availability

Part #

674936C1

Description

SPACER; - governor spring inner, 0.010 inch


Alts

Select

Ref.

134

Qty

1

Availability

Part #

674937C1

Description

SEAT; - governor spring inner


Alts

Select

Ref.

135

Qty

1

Availability

Part #

62641D

Description

SPACER; - governor spring outer, 0.020 inch


Alts

Select

Ref.

135

Qty

1

Availability

Part #

62642D

Description

SHIM; SPACER - governor spring outer, 0.042 inch


Alts

Select

Ref.

135

Qty

1

Availability

Part #

62643D

Description

SHIM; SPACER - governor spring outer, 0.058 inch


Alts

Select

Ref.

135

Qty

1

Availability

Part #

62644D

Description

SHIM; SPACER - governor spring outer, 0.083 inch


Alts

Select

Ref.

135

Qty

1

Availability

Part #

674942C1

Description

SPACER; - governor spring outer, 0.156 inch


Alts

Select

Ref.

135

Qty

1

Availability

Part #

674943C1

Description

SPACER; - governor spring outer, 0.030 inch


Alts

Select

Ref.

135

Qty

1

Availability

Part #

674944C1

Description

SPACER; - governor spring outer, 0.010 inch


Alts

Select

Ref.

136

Qty

1

Availability

Part #

674945C1

Description

SPRING; - governor outer


Alts

Select

Ref.

137

Qty

1

Availability

Part #

674946C1

Description

DRIVER SEAT; - governor spring outer


Alts

Select

Ref.

138

Qty

1

Availability

Part #

681292C1

Description

SEAL; - governor shaft


Alts

Select

Ref.

Qty

1

Availability

Part #

680312C92

Description

PUMP, FUEL INJECTION; PUMP ASSEMBLY - supply, new, Includes: Ref. 139 - 146


Alts

Select

Ref.

Qty

1

Availability

Part #

735310C91

Description

REMAN-INJECTION PUMP; Pump Assembly - supply, remanufactured, component parts do not apply to the remanufactured assembly, no longer available


Alts

Select

Ref.

Qty

1

Availability

Part #

1934179C1

Description

CORE-INJECTION PUMP; Return Part Number - use this part number to return pump core for credit when using a remanufactured assembly, no longer used


Alts

Select

Ref.

139

Qty

1

Availability

Part #

681293C1

Description

GASKET; GASKET - O-ring


Alts

Select

Ref.

140

Qty

5

Availability

Part #

1802431C1

Description

SCREW Pozidriv Fil Hd, #10 - 24 x 0.86'', Gr 8, w/ LW; - insert


Alts

Select

Ref.

141

Qty

1

Availability

Part #

1802428C91

Description

INSERT; - supply pump


Alts

Select

Ref.

143

Qty

1

Availability

Part #

681294C1

Description

GASKET; - supply pump


Alts

Select

Ref.

143

Qty

1

Availability

Part #

1802429C91

Description

COVER; ASSEMBLY - supply pump, Includes: Ref. 144 - 146


Alts

Select

Ref.

144

Qty

1

Availability

Part #

1802432C1

Description

VALVE; - check, at upper part of cover


Alts

Select

Ref.

144

Qty

1

Availability

Part #

1802433C1

Description

VALVE; - check, at lower part of cover


Alts

Select

Ref.

145

Qty

1

Availability

Part #

674972C1

Description

VALVE; - regulating


Alts

Select

Ref.

145

Qty

1

Availability

Part #

680441C1

Description

SPRING; - regulating valve


Alts

Select

Ref.

146

Qty

1

Availability

Part #

674974C1

Description

SCREW; - spring retaining


Alts

Select

Ref.

147

Qty

1

Availability

Part #

680391C91

Description

PUMP; PRIMER ASSEMBLY - hand, Includes: Ref. 147 - 148E


Alts

Select

Ref.

147

Qty

1

Availability

Part #

681298C1

Description

GASKET; - hand primer


Alts

Select

Ref.

148

Qty

1

Availability

Part #

681299C1

Description

RETAINER; BAIL - hand primer


Alts

Select

Ref.

148A

Qty

1

Availability

Part #

1802434C1

Description

CYLINDER; BARREL - hand primer, not illustrated


Alts

Select

Ref.

148B

Qty

1

Availability

Part #

1802465C1

Description

GASKET; - plunger square ring, not illustrated


Alts

Select

Ref.

148C

Qty

1

Availability

Part #

1802435C1

Description

KNOB; - hand primer, not illustrated


Alts

Select

Ref.

148D

Qty

1

Availability

Part #

238-5113

Description

O-RING 0.103'' Thk x 0.549'' ID, -113, Cl 5, 75 Duro; (Replaces seal 352221R1), Not illustrated -113, 70 Duro, .549'' ID x .103'' Thk


Alts

Select

Ref.

148E

Qty

1

Availability

Part #

1802436C1

Description

PLUNGER; - hand primer, not illustrated


Alts

Select

Ref.

149

Qty

3

Availability

Part #

492-11025

Description

LOCK WASHER 1/4''; WASHER, LOCK, , Pump mounting screw (Replaces washer 131200) 1/4''


Alts

Select

Ref.

149

Qty

1

Availability

Part #

579788

Description

SHIELD; - supply pump mounting long, no longer used


Alts

Select

Ref.

150

Qty

2

Availability

Part #

62204D

Description

BOLT Eye, M12 x 125mm; SCREW - pump mounting, drilled head


Alts

Select

Ref.

158

Qty

1

Availability

Part #

681291C93

Description

SCREW; - low idle


Alts

Select

Ref.

Qty

1

Availability

Part #

100-3321

Description

SNAP RING #X21, .185'' Dia, E-Type; Ring, Retaining, , Low idle screw #X21, .185'' Dia, E-Type


Alts

Select

Ref.

159

Qty

1

Availability

Part #

238-5011

Description

O-RING 0.07'' Thk x 0.301'' ID, -11, Cl 5, 75 Duro; -011, 70 Duro, .301'' ID x .070'' Thk


Alts

Select

Ref.

160

Qty

1

Availability

Part #

674878C1

Description

NUT; - low idle screw


Alts

Select

Ref.

161

Qty

4

Availability

Part #

684307C1

Description

WASHER; - retaining, upper hydraulic head


Alts

Select

Ref.

162

Qty

4

Availability

Part #

684308C1

Description

WASHER; - retaining, lower hydraulic head


Alts

Select

Ref.

163

Qty

1

Availability

Part #

678026C1

Description

ELECTRICAL WIRE; WIRE - seal, not illustrated


Alts

Select

Ref.

164

Qty

1

Availability

Part #

687459C1

Description

ELECTRICAL WIRE; SEAL - lock wire, not illustrated


Alts

Select

Ref.

Qty

1

Availability

Part #

684079C92

Description

GASKET; KIT - injection pump gasket


Alts
