74.110.02[01] - GRAIN PAN, SUPPORTS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    84462460
    SEALING STRIP; CR9070 Only
  • 1
    1
    87323002
    SEAL; CR9040 & CR9060 Only
  • 2
    1
    84462472
    SUPPORT; CR9070 Only
  • 2
    1
    87323004
    SUPPORT; CR9040 & CR9060 Only
  • 3
    2
    43140
    BOLT Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd;
  • 4
    2

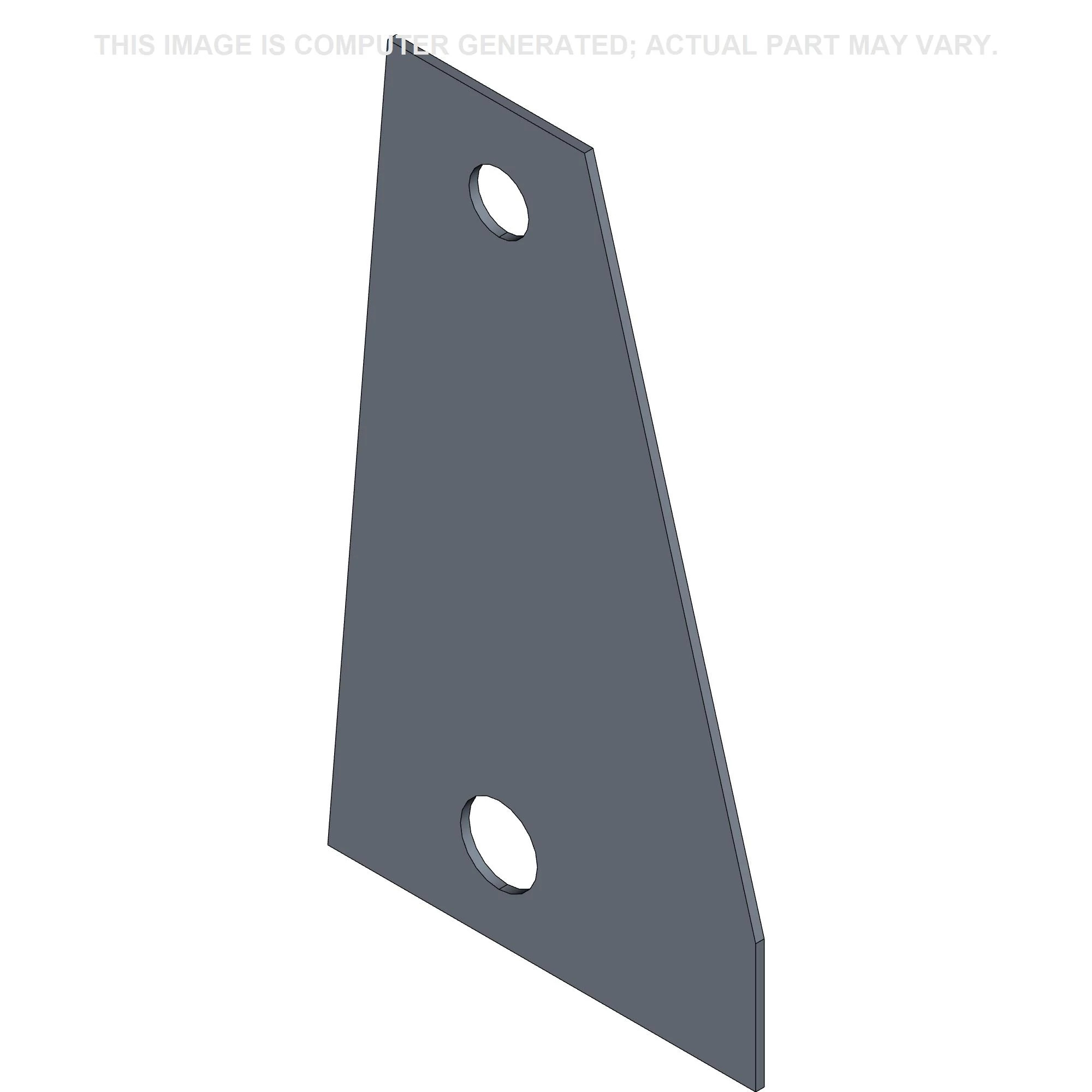

    84989409
    PLATE;
  • 5
    2
    445394
    RIVET Pop, 3/16'' x 1/2'' OAL;
  • 6
    AR
    86977786
    BOLT Hex, M6 x 1 x 25mm, Cl 8.8;
  • 7
    AR
    322357
    BELLEVILLE WASHER M6 Bolt Size x 14mm OD x 1.3mm Thk;
  • 8
    4
    140040
    WASHER 6.6mm ID x 22mm OD x 2mm Thk, CST, ZND;
  • 9
    AR
    353308
    NUT Hex, M6 x 1, Cl 8, ZND;
  • 10
    2
    84000704
    STRIP; CR9070 Only
  • 10
    2
    84320380
    STRIP; CR9040 & CR9060 Only
  • 11
    4
    140045
    BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk;
  • 12
    2
    100016
    NUT Hex, M10 x 1.5, Cl 8, ZND;
  • 13
    2
    87318664
    SUPPORT;
  • 14
    8
    43127
    BOLT Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd;
  • 15
    8
    140041
    WASHER M8 x 28mm OD x 3mm Thk;
  • 16
    16
    412650
    BELLEVILLE WASHER M8 Bolt Size x 22mm OD x 1.4mm Thk;
  • 17
    8
    89706690
    NUT M8 x 1.25, Cl 8;
  • 18
    2
    87323001
    CANVAS;
  • 19
    1
    84005167
    RUBBER SEAL 70mm W x 1677mm OAL; CR9070 Only
  • 19
    1
    84005865
    RUBBER SEAL 3mm Thk; CR9040 & CR9060 Only
  • 20
    2
    84007182
    BRACKET;
  • 21
    1
    87333212
    RUBBER SEAL 70mm W x 1816mm OAL; CR9070 Only
  • 21
    1
    87333181
    RUBBER SEAL 70mm W x 1556mm L; CR9040 & CR9060 Only
