G-27 - CARBURETOR
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    405873R93
    CARBURETOR; ASSY, Marvel Schebler, 574, 2500A, 2500B, 2505B, 2510B, 2514B and 3500A tractors with synchromesh transmission
  • 1
    398069R92
    CARBURETOR; ASSY, Marvel Schebler, optional w/405030R91, 544, 2544 tractors and 8000 fork lifts with synchromesh transmission
  • 1
    1
    530681R1
    GASKET; carburetor;Not part of carburetor assembly.
  • 2
    4
    B51702
    VIS #6 - 32 x 1/4''; choke and throttle plate
  • 3
    1
    381948R1
    SOUPAPE; PLATE, throttle
  • 5
    1
    NS
    NON FOURNI; BODY ASSY, throttle, not serviced
  • 7
    1
    405920R1
    BOUCHON; CUP, throttle shaft
  • 8
    1
    400423R1
    COUDE; STRAINER ASSY, gasoline

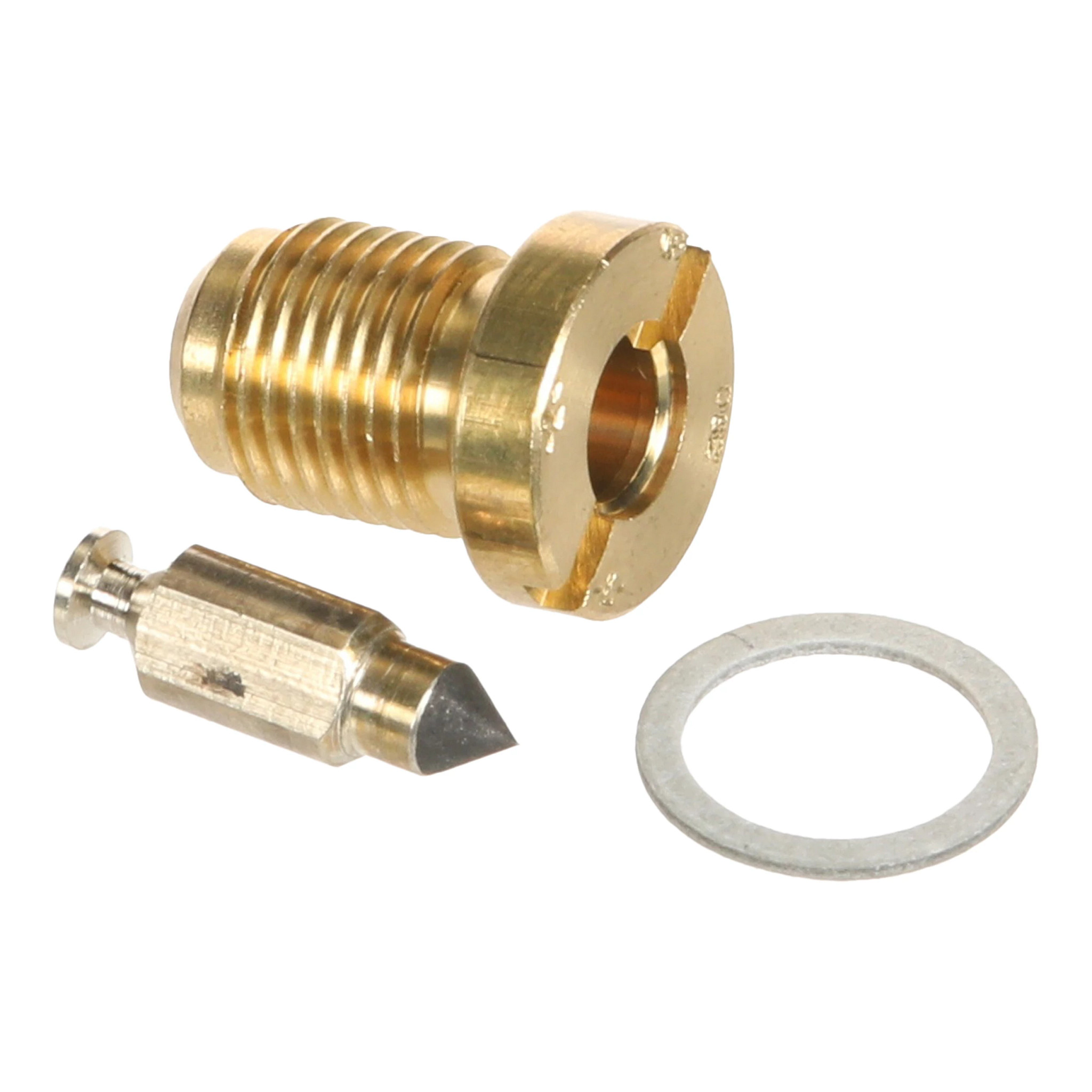

  • 11
    1
    392096R91
    SOUPAPE; ASSY, float
  • 13
    1
    381962R1
    FLOAT; ASSY
  • 14
    1
    405922R1
    VENTURI; 13/16 in., used w/carburetor 398069R92

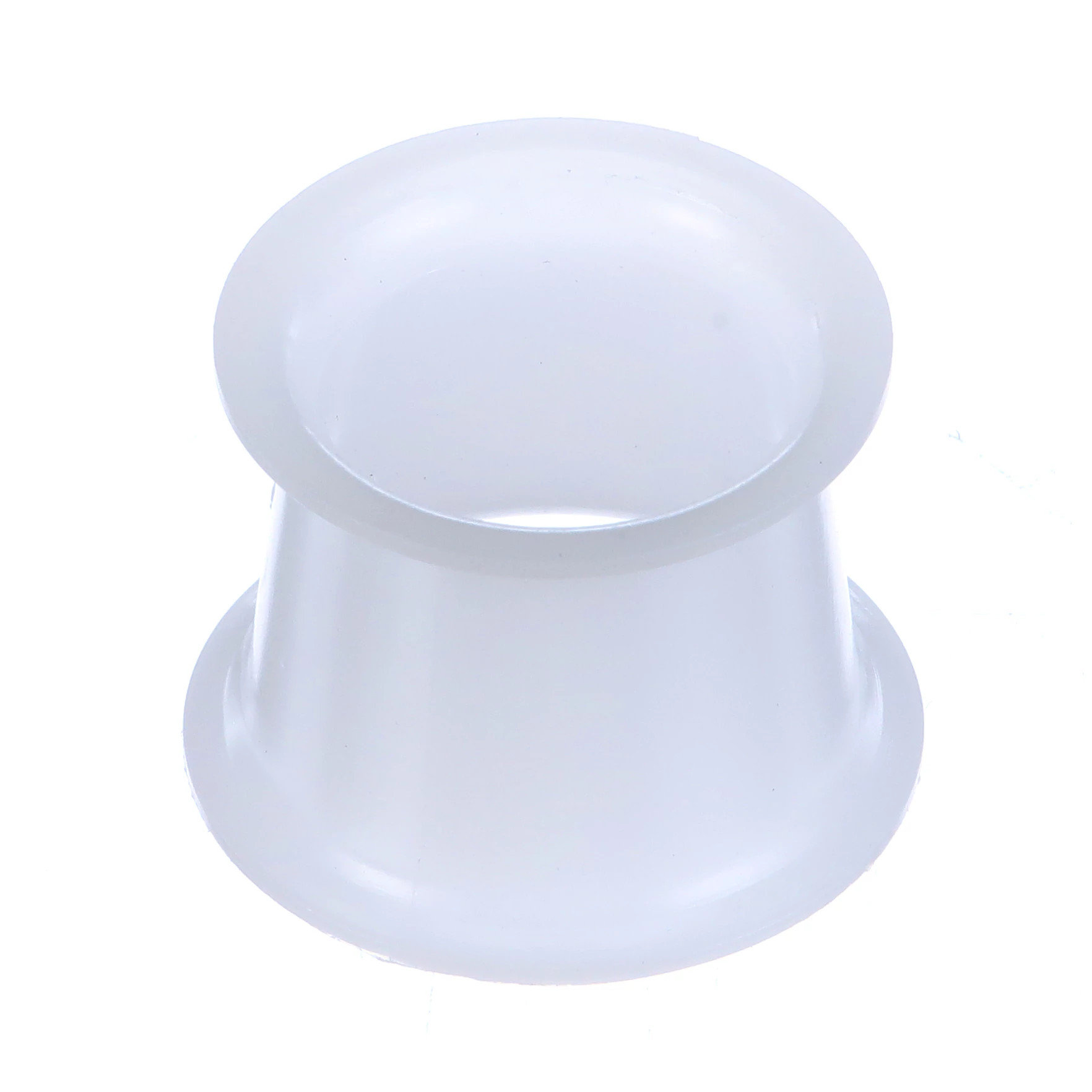

  • 14
    1
    405925R1
    VENTURI; 7/8 in., used w/carburetor 405873R93
  • 15
    1
    381960R91
    VALVE; PLATE W/SCREWS AND SPRING, choke, used w/carburetor 398069R92
  • 15
    1
    68101C91
    VALVE; W/SCREWS AND SPRING, choke, used w/carburetor 405873R93
  • 16
    1
    381961R1
    SPRING; choke plate
  • 17
    1
    NS
    NOT SERVICED; BOWL ASSY, fuel, not serviced
  • 18
    1
    373373R1
    CLIP; choke valve bracket
  • 20
    1
    373372R91
    BRACKET; ASSY, choke valve
  • 21
    1
    131979
    SCREW Sl Fil Hd, #8 - 32 x 3/4''; throttle stop
  • 23
    1
    373369R1
    SPRING; air shutter return, used w/carburetor 398069R92
  • 24
    1
    373405R1
    PIVOT; SWIVEL, choke shaft
  • 25
    1
    403355R91
    LEVER; SHAFT ASSY, choke
  • 26
    1
    373406R1
    PIN; SPRING, swivel retainer
  • 27
    1
    373387R1
    FILTRE; STRAINER, bowl
  • 28
    1
    444613
    CARTER DE ROULEMENT; drain, 1 used for drain plug, 2 used for fuel inlet
  • 29
    1
    71358C91
    KIT; VALVE, solenoid fuel shut-off;Not part of carburetor assembly.
  • 1
    107609C1
    RONDELLE; GASKET, fuel shut-off, will work for 527842R1
  • 30
    1
    400422R1
    RETENEUR; venturi
  • 31
    1
    69953D
    RESSORT; throttle stop screw
  • 32
    1
    404152R1
    GICLEUR; main, orange, used w/carburetor 398069R92;Not part of carburetor assembly.

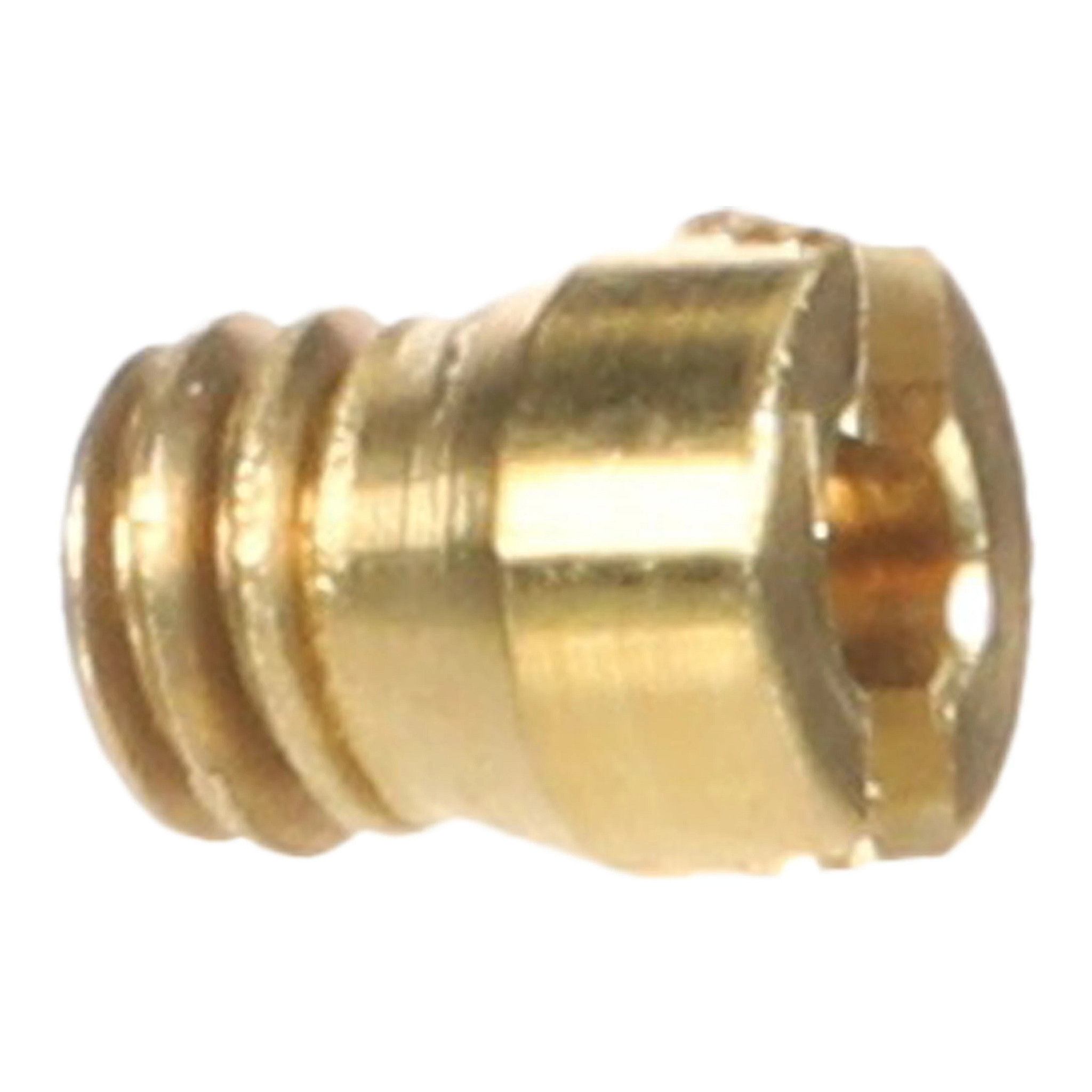

  • 32
    1
    404156R1
    GICLEUR; main, black, used w/carburetor 405873R93;Not part of carburetor assembly.
  • 33
    1
    405923R1
    NOZZLE INJECTION; NOZZLE
  • 35
    1
    373383R1
    BUSHING; VENT, well
  • 36
    1
    373403R1
    PLUG; CUP, choke shaft
  • 39
    1
    381963R1
    AXLE; float
  • 40
    1
    69954D
    SPRING; idle adjusting screw
  • 41
    1
    69923D
    SCREW; idle adjusting
  • 45
    1
    400418R91
    SHAFT; ASSY, throttle
  • 1
    370535R1
    CLIP; carburetor solenoid wire
  • 1
    405924R91
    KIT; PACKAGE, carburetor overhaul
  • 1
    400429R93
    KIT; carburetor gasket
