06B01 - CRANKCASE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    2856768
    CYLINDER BLOCK 4 Cylinders; 5610S, 6610S, 7610S.
  • 2
    1
    4895623
    HEX SOCKET PLUG M16 x 1.5; - Assy
  • 2A
    1
    4895605
    HEX SOCKET PLUG M14 x 1.5; (WITH 2830737 ONLY)
  • 3
    1
    NSS
    NOT SOLD SEPARAT; SEAL- O-RING 13.3 1D x 2.2
  • 4
    2
    4899009
    HEX SOCKET PLUG M10 x1; Assy
  • 5
    1
    4899072
    O-RING 1.6mm Thk x 8.1mm ID;
  • 6
    2
    4895392
    HEX SOCKET PLUG M18 x 1.5; - Assy, Threaded
  • 7
    2
    4895393
    O-RING 2.2mm Thk x 15.3mm ID; (Seal) 15.3x2.2/11.3IDx2.2
  • 8
    2
    4895049
    DOWEL M16.05 x 10; Ring
  • 9
    1
    4894218
    SCREW Special, M8 x 20;
  • 10
    10
    4899026
    DOWEL M18 x 10; -Ring
  • 11
    1
    4895039
    EXPANSION PLUG M17.73; 5610S
  • 11
    2
    4895039
    EXPANSION PLUG M17.73; 6610S, 7610S
  • 12
    4
    4895038
    EXPANSION PLUG M58.06;
  • 13
    2
    4895228
    EXPANSION PLUG 35.23mm x 7.94mm;
  • 14
    10
    4891353
    FLANGE BOLT Flg Hd, M12 x 1.5 x 120;
  • 15
    1
    4895040
    BUSHING 54.39mm ID x 59.39mm OD x 25.4mm L; CYLINDER BLOCK
  • 16
    8
    J931623

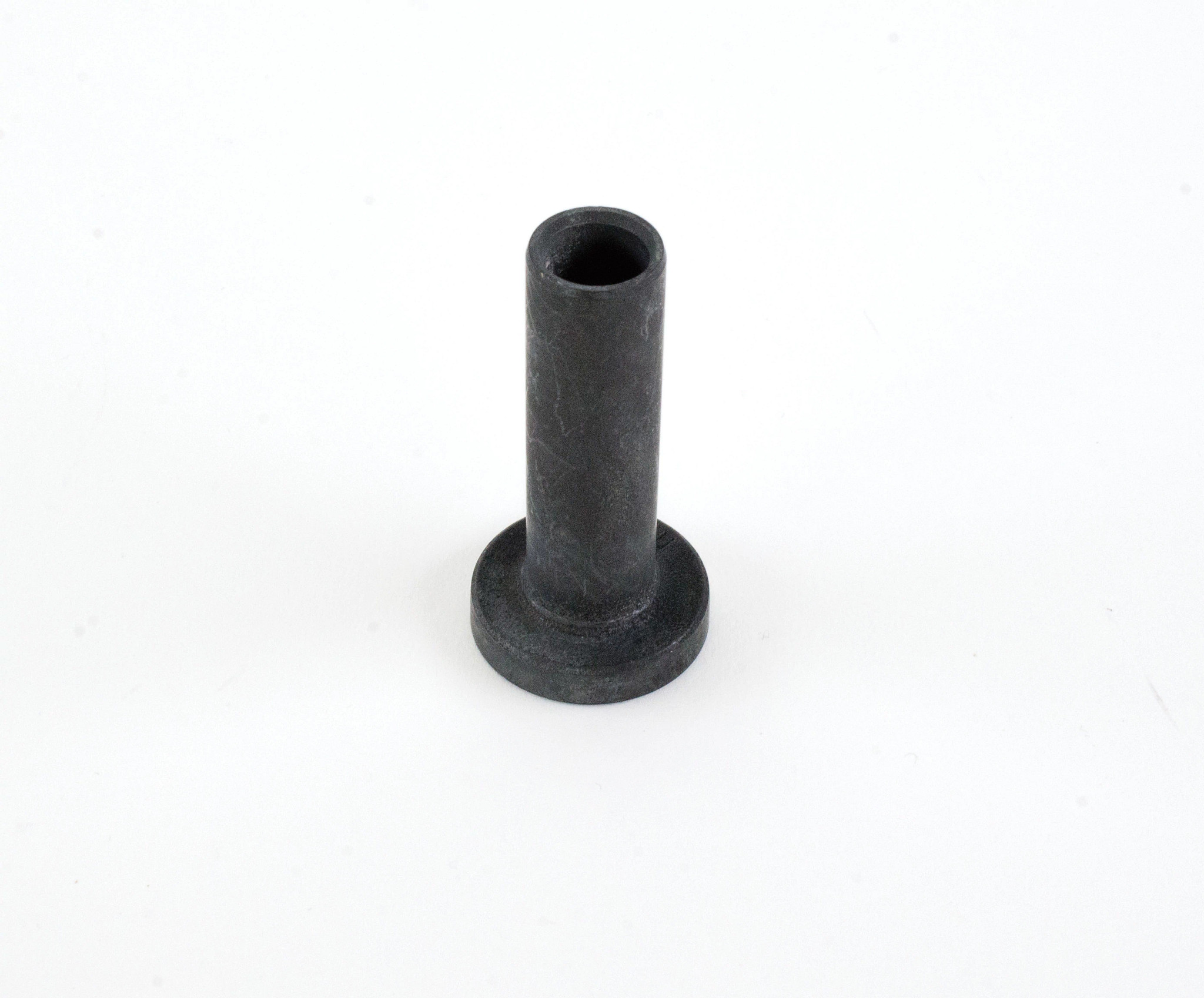

    TAPPET 16mm OD x 60mm H; VALVE
  • 17
    1
    85700737
    CLAMP 6.86mm ID, 14.99mm Bolt Hole, J Type;
  • 18
    1
    81825893
    WASHER 1/2'' ID x 1.062'' OD x 0.095'' Thk; (13 x 27 x 2.5 mm)
  • 19
    1
    83955887
    BOLT Hex, M12 x 1.75 x 25mm, Gr 8.8;
  • 20
    4
    4896865
    LUBE OIL NOZZLE 30mm L; LUBE OIL JET NOZZLE (TS6020-NAR)
  • 21
    4
    2852202
    NOZZLE, PISTON COOLI; ASSY, Includes Ref. 22 & 23
  • 22
    1
    2852203
    NOZZLE, PISTON COOLI;
  • 23
    1
    4894218
    SCREW Special, M8 x 20;
