117 - WISCONSIN VG4D ENGINE, FLYWHEEL ALTERNATOR
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    NS
    NOT SERVICED; Stator, Wisconsin YB-76;Not Serviced
  • 2
    4
    PL
    PROCURE LOCALLY; Screw, Wisconsin XB-106;Procure Locally
  • 3
    4
    PL
    PROCURE LOCALLY; Lockwasher #10, Wisconsin PE-14;Procure Locally
  • 4
    2
    PL
    PROCURE LOCALLY; Pin, Roll, Wisconsin PA-340;Procure Locally
  • 5
    1
    PL
    PROCURE LOCALLY; Insulator, Wisconsin YD-350;Procure Locally
  • 6
    1
    75766
    WIRE HARNESS; Harness, Wire, Wisconsin YL-386
  • 7
    1
    PL
    PROCURE LOCALLY; Clip, Wisconsin PG-430;Procure Locally
  • 8
    1
    NS
    NOT SERVICED; Module, Rectifier, Wisconsin YJ-58
  • 2
    PL
    PROCURE LOCALLY; Screw #10, Wisconsin XA-8;Procure Locally
  • 2
    9672521

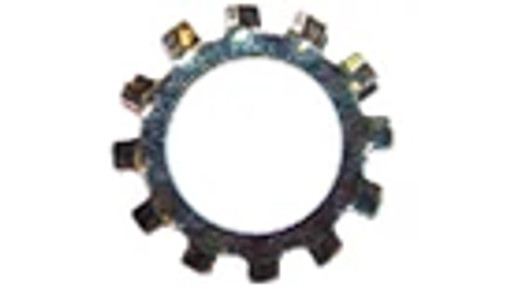

    LOCK WASHER Ext Tooth, #10; Washer, Lock, Ext Tooth, #10
  • 2
    87825

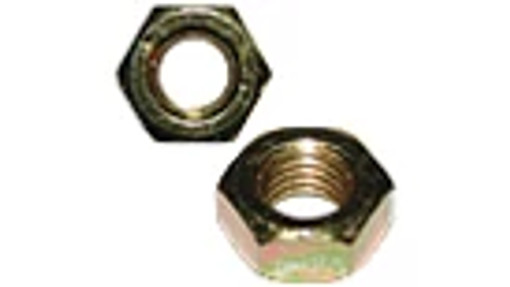

    NUT #10-32; G2, , Wisconsin PD-115 #10-32
  • 9
    1
    75765
    REGULATOR; Module, Regulator, Wisconsin YJ-60
  • 2
    PL
    PROCURE LOCALLY; Screw #10, Wisconsin XA-8;Procure Locally
  • 2
    9672521
    LOCK WASHER Ext Tooth, #10; Washer, Lock, Ext Tooth, #10
  • 2
    87825
    NUT #10-32; G2, , Wisconsin PD-115 #10-32
  • 10
    1
    NS
    NOT SERVICED; Decal, Instruction, Wisconsin SD-293;Not Serviced
  • 11
    1
    NS
    NOT SERVICED; Diode, Isolation, Wisconsin SK-1556 or YJ-67;Not Serviced
