TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11BAR PLATE; A:15MM - Accessory; (SN Break) Up to 113
-
11BAR PLATE; (SN Break) Up to 127
-
11BAR PLATE; A:81MM - Accessory; (SN Break) Up to 113
-
11BAR PLATE; (SN Break) Up to 127
-
11BAR PLATE; A:106.5MM - Accessory; (SN Break) Up to 113
-
11BAR PLATE; (SN Break) Up to 127
-
11BAR PLATE; A:132MM - Accessory; (SN Break) Up to 113
-
11BAR PLATE; (SN Break) Up to 127
-
11BAR PLATE; A:157MM - Accessory; (SN Break) Up to 113
-
11BAR PLATE; (SN Break) Up to 127
-
25PLATE;
-
35BAR PLATE; (SN Break) Up to 127
-
35MOUNTING PLATE; (SN Break) Up to 144
-
35SUPPORT; (SN Break) From 137
-
425BOLT Hex, M8 x 1.25 x 20mm, Full Thd, Cl 8.8, ZND;
-
525WASHER 8.4mm ID x 21mm OD x 1.6mm Thk;
-
625BELLEVILLE WASHER M8 Bolt Size x 18mm OD x 1.4mm Thk;
-

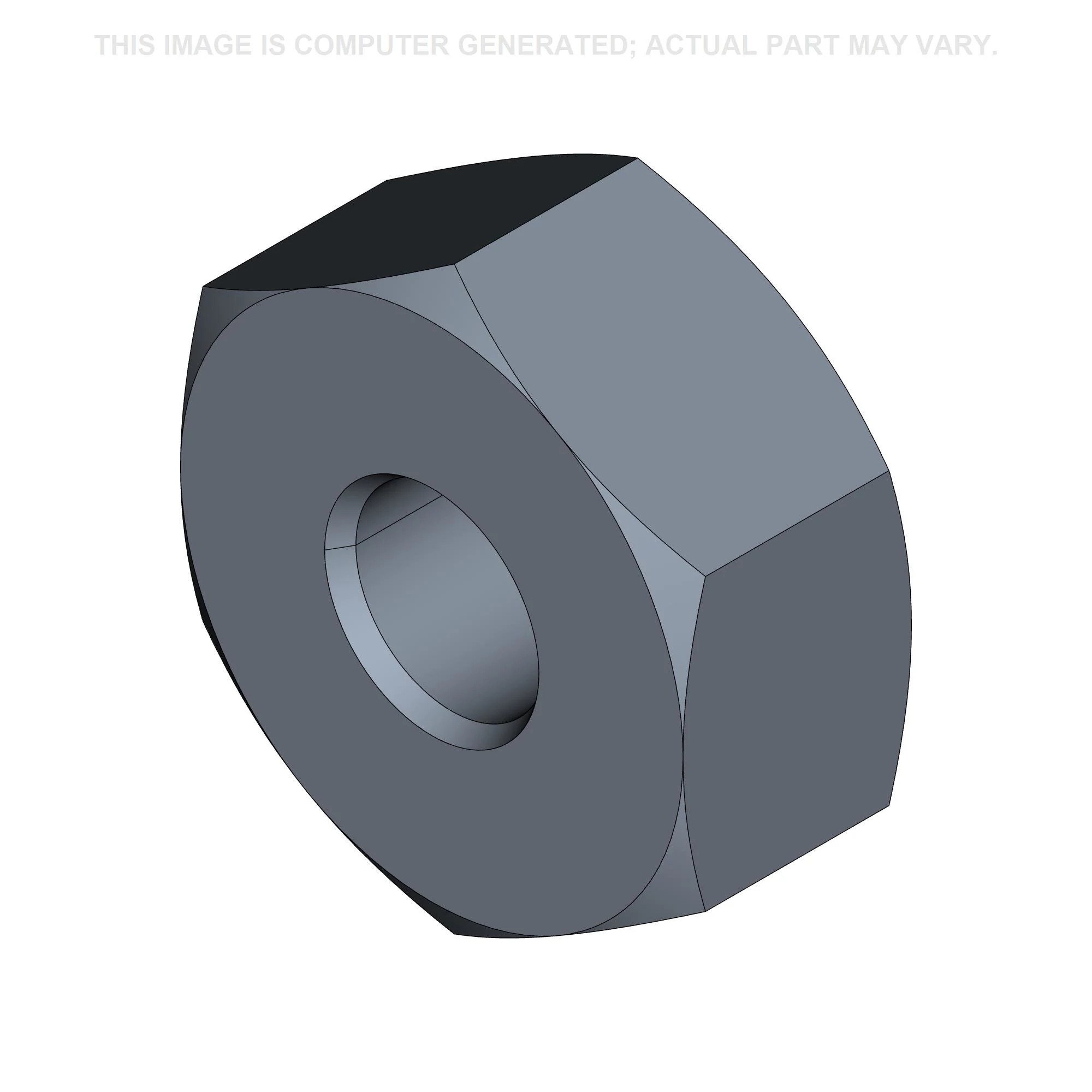

725NUT Hex, M8 x 1.25, Cl 8, ZND;
-
81NUT M30 x 1.5, Cl 8;
-
91WASHER; (SN Break) Up to 122
-
91WASHER 30.5mm ID x 60mm OD x 8mm Thk; (SN Break) From 123
-
101SHAFT; (SN Break) Up to 113
-
101SHAFT; (SN Break) Up to 122
-
101SHAFT; (SN Break) From 123
-
111PULLEY; (SN Break) Up to 154
-
111PULLEY; (SN Break) From 155
-
121KEY 14mm W x 50mm OAL x 9mm Thk, Round Edge;
-

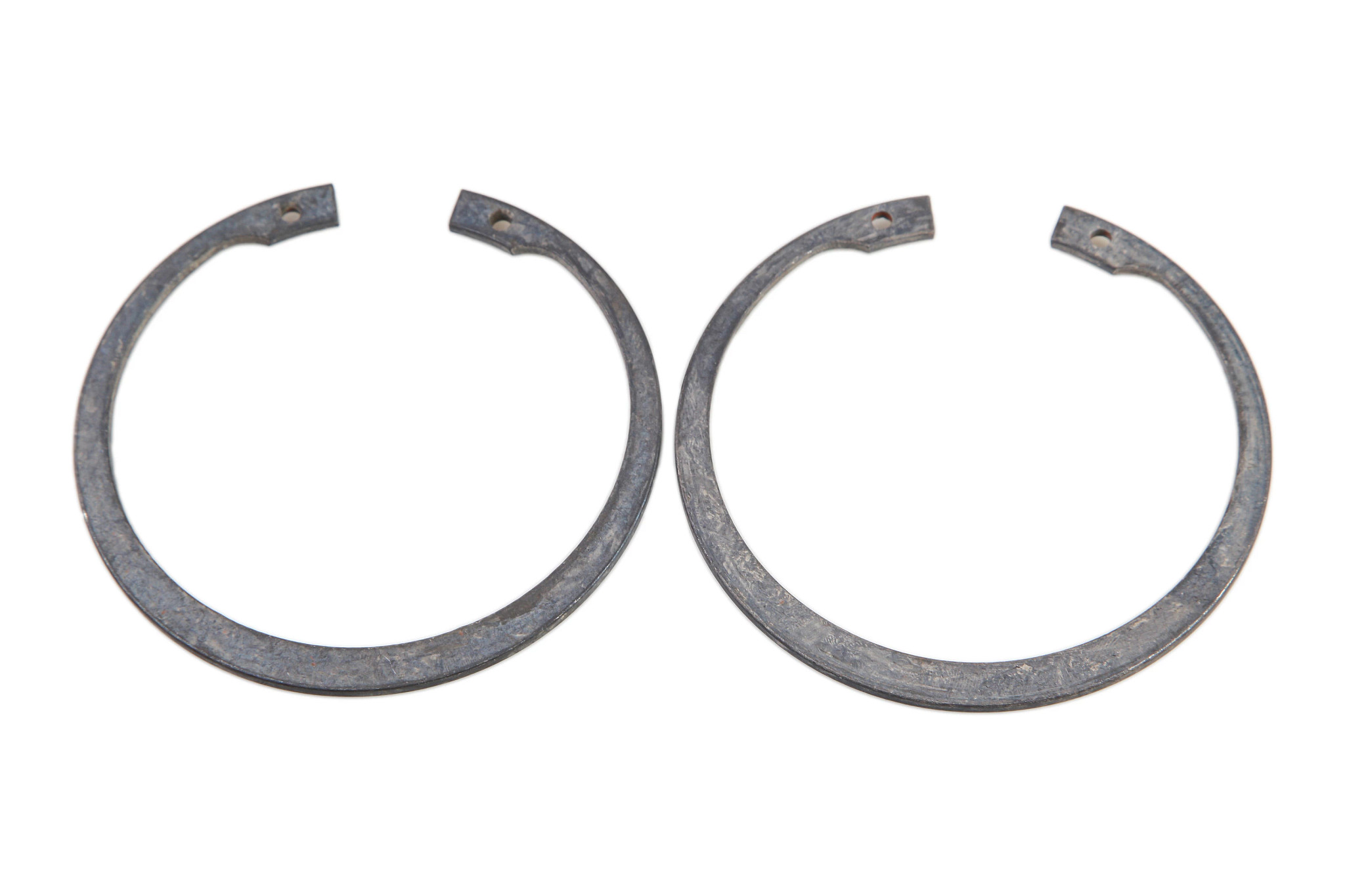

131SNAP RING M100, Int, PHC;
-
141BALL BEARING 45mm ID x 100mm OD x 25mm W;
-

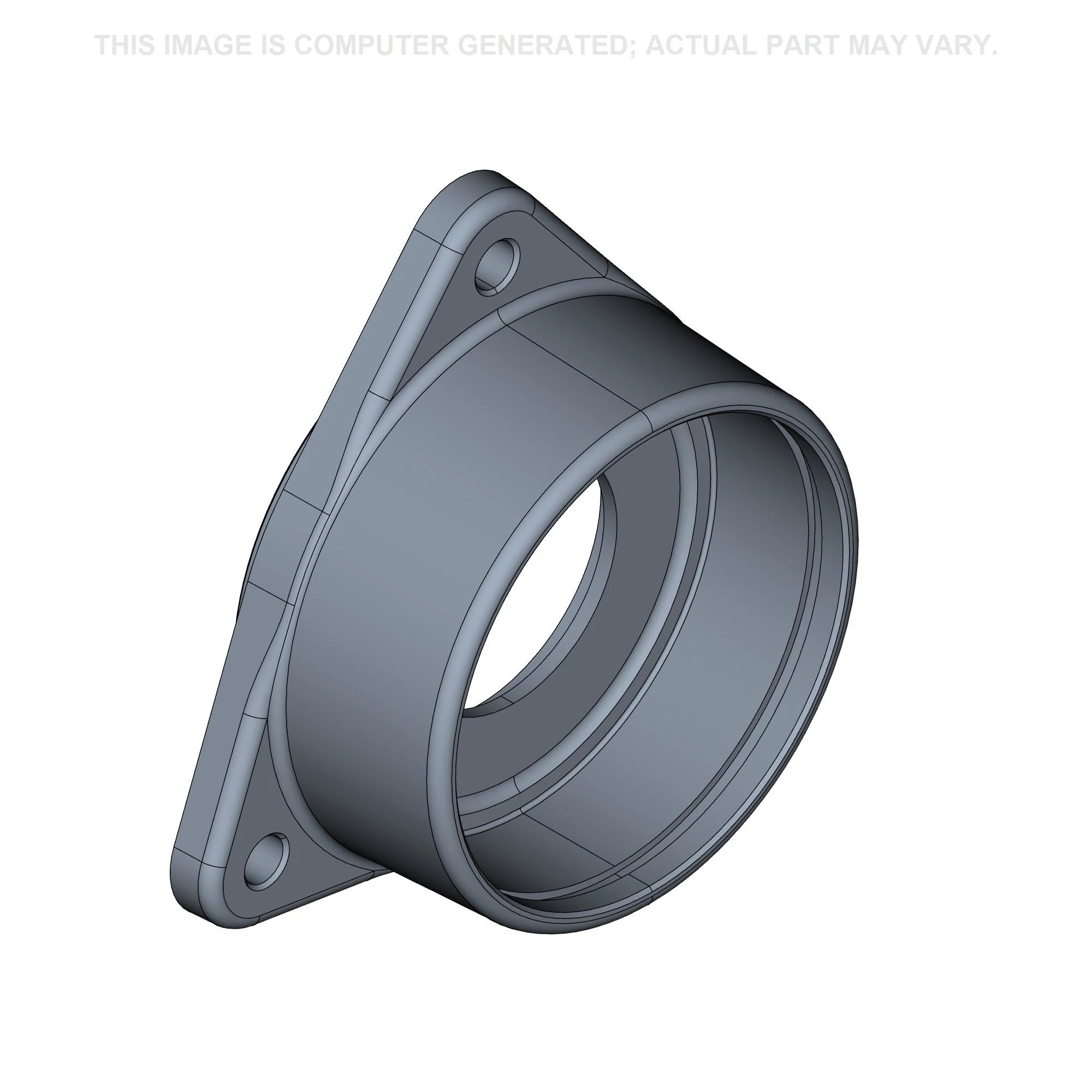

151BEARING HOUSING;
-
161RING;
-
171DISC; For TF42 models only. RH; (SN Break) Up to 113
-
171DISC; RH; (SN Break) Up to 129
-
172DISC; RH & Middle; (SN Break) Up to 134
-
172DISC; RH & Middle; (SN Break) Up to 147
-
172DISC; RH & Middle; (SN Break) From 148
-
181DISC; Middle; (SN Break) Up to 122
-
191DISC; LH; (SN Break) Up to 113
-
191DISC; LH; (SN Break) Up to 129
-
191DISC; LH; (SN Break) Up to 134
-
191DISC; LH; (SN Break) Up to 147
-
191DISC; LH; (SN Break) From 148
-
202KEY;
-
211BUSHING;
-
221BEARING HOUSING;
-
231BALL BEARING 55mm ID x 120mm OD x 29mm W;
-
241SNAP RING M120, Int, PHC;
-
256BOLT Hex, M10 x 1.5 x 30mm, Full Thd, Cl 8.8, ZND;
-
266BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk;
-
278WASHER 10.5mm ID x 24mm OD x 2mm Thk;
-
281PLATE; Half; (SN Break) Up to 122
-
281COVER; Half; (SN Break) Up to 127
-
281COVER; Half; (SN Break) Up to 147
-
281PLATE; Half; (SN Break) From 148
-
291COVER; Half; (SN Break) Up to 127
-
291COVER; Half; (SN Break) Up to 147
-
291PLATE; Half; (SN Break) From 148
-
3014BOLT Hex, M6 x 16, 8.8;
-
318WASHER 6.4mm ID x 14mm OD x 1.6mm Thk;
-
328BELLEVILLE WASHER M6 Bolt Size x 14mm OD x 1.3mm Thk;
-
334COVER; (SN Break) Up to 154
-
335COVER; (SN Break) From 155
-
3442BOLT Hex, M10 x 30mm, Cl 8.8; (SN Break) Up to 127
-
3442BOLT Hex, M12 x 1.75 x 30mm, Full Thd, Cl 8.8, ZND; (SN Break) From 128
-
3542WASHER 11mm ID x 34mm OD x 3mm Thk, CST, ZND; (SN Break) Up to 127
-
3542WASHER 13mm ID x 35mm OD x 2.5mm Thk; (SN Break) From 128
-
36ARWASHER 11mm ID x 40mm OD x 6mm Thk;
-
36ARWASHER; (SN Break) Up to 127
-
366WASHER 10.5mm ID x 24mm OD x 2mm Thk;
-
36ARWASHER 13mm ID x 38mm OD x 6.35mm Thk; (SN Break) From 128
-
371CONCAVE; Incl. figs. 38 and 39; (SN Break) Up to 113
-
371CONCAVE; Incl. figs. 38 and 39; (SN Break) Up to 129
-
371CONCAVE; Incl. figs. 38 and 39; (SN Break) From 123
-
3830RETAINING WIRE; DIA.:4MM
-
399RETAINING WIRE; DIA.:10MM
-
402ANGLE;
-

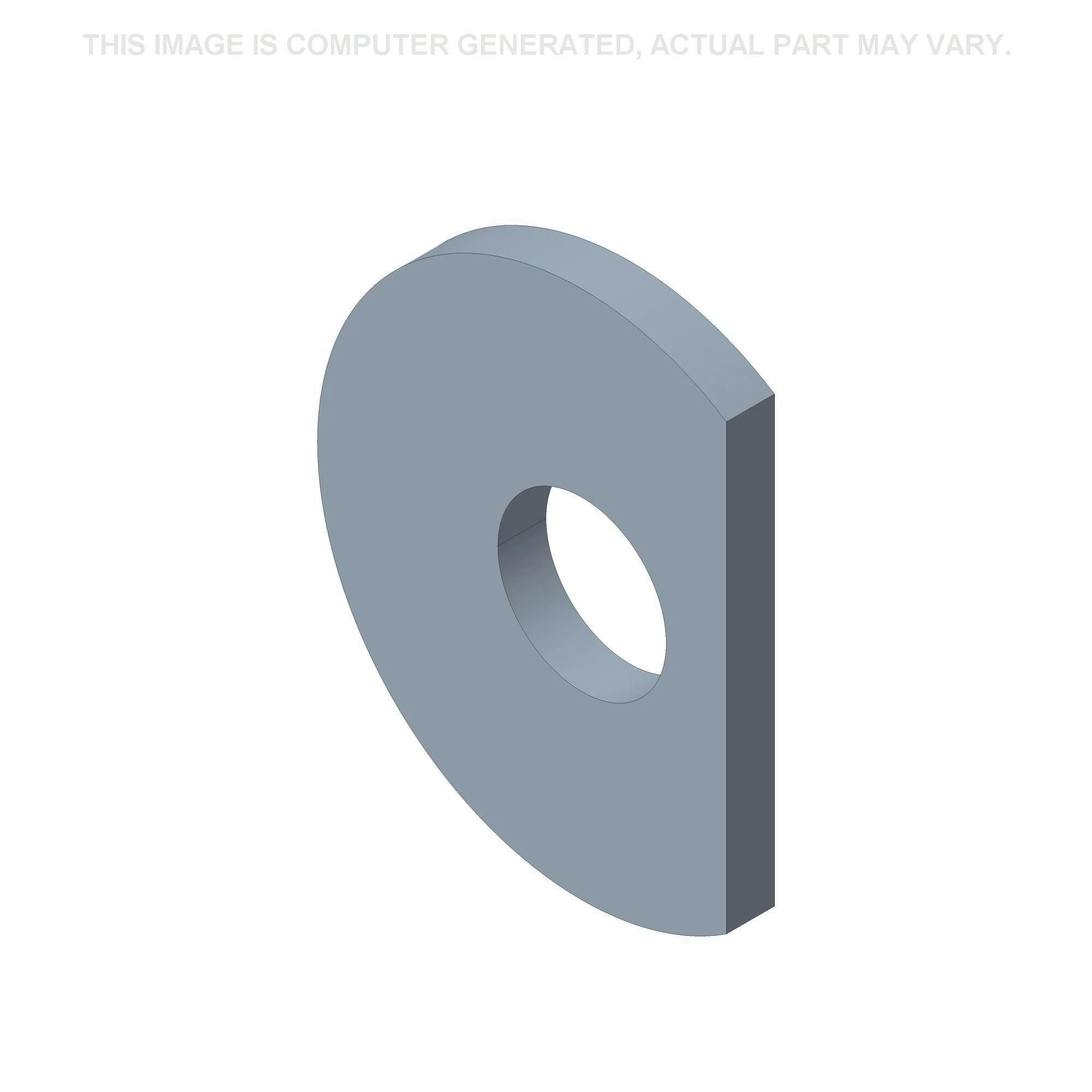

416WASHER;
-
426NUT Hex, M6 x 1, Cl 8, ZND;
-
432BOLT Hex, M10 x 35mm, Cl 8.8, Full Thd;
-
442NUT M10, Cl 8;
-
45ARBELLEVILLE WASHER M12 Bolt Size x 27mm OD x 1.8mm Thk;
-
464BOLT Hex, M12 x 1.75 x 25mm, Full Thd, Cl 8.8, ZND;
-
47ARWASHER 13mm ID x 28.5mm OD x 2.7mm Thk;
-
481CANVAS; (SN Break) From 103
-
491PLATE; (SN Break) From 103
-
501BOLT Hex, M12 x 1.75 x 50mm, 30mm Thread L, Cl 8.8, ZND; (SN Break) From 123
-
511RACK; A:341.5MM; (SN Break) From 128
-
511SLAT; A:157.5MM; (SN Break) From 128
-
511RACK; A:290.5MM; (SN Break) From 128
-
511RACK; A:265MM; (SN Break) From 128
-
511SLAT; A:208.5MM - Rice & Corn; (SN Break) From 128
-
521FLANGE; (SN Break) From 155
-
533BOLT Hex, M12 x 1.75 x 50mm, Cl 8.8, Full Thd, ZND; (SN Break) From 155
Select All
Ref.
1Qty
1Availability
Part #
80747334Description
BAR PLATE; A:15MM - Accessory; (SN Break) Up to 113Img
Alts
Ref.
1Qty
1Availability
Part #
80747338Description
BAR PLATE; A:81MM - Accessory; (SN Break) Up to 113Img
Alts
Ref.
1Qty
1Availability
Part #
80747337Description
BAR PLATE; A:106.5MM - Accessory; (SN Break) Up to 113Img
Alts
Ref.
1Qty
1Availability
Part #
80747336Description
BAR PLATE; A:132MM - Accessory; (SN Break) Up to 113Img
Alts
Ref.
1Qty
1Availability
Part #
80747335Description
BAR PLATE; A:157MM - Accessory; (SN Break) Up to 113Img
Alts
Ref.
4Qty
25Availability
Part #
120104Description
BOLT Hex, M8 x 1.25 x 20mm, Full Thd, Cl 8.8, ZND;Img
Alts
Ref.
5Qty
25Availability
Part #
378243Description
WASHER 8.4mm ID x 21mm OD x 1.6mm Thk;Img
Alts
Ref.
6Qty
25Availability
Part #
322358Description
BELLEVILLE WASHER M8 Bolt Size x 18mm OD x 1.4mm Thk;Img
Alts
Ref.
9Qty
1Availability
Part #
411961Description
WASHER 30.5mm ID x 60mm OD x 8mm Thk; (SN Break) From 123Img
Alts
Ref.
12Qty
1Availability
Part #
170066Description
KEY 14mm W x 50mm OAL x 9mm Thk, Round Edge;Img
Alts
Ref.
14Qty
1Availability
Part #
210086Description
BALL BEARING 45mm ID x 100mm OD x 25mm W;Img
Alts
Ref.
17Qty
1Availability
Part #
80434823Description
DISC; For TF42 models only. RH; (SN Break) Up to 113Img
Alts
Ref.
17Qty
2Availability
Part #
750196Description
DISC; RH & Middle; (SN Break) Up to 134Img
Alts
Ref.
17Qty
2Availability
Part #
89508447Description
DISC; RH & Middle; (SN Break) Up to 147Img
Alts
Ref.
17Qty
2Availability
Part #
9811477Description
DISC; RH & Middle; (SN Break) From 148Img
Alts
Ref.
23Qty
1Availability
Part #
412274Description
BALL BEARING 55mm ID x 120mm OD x 29mm W;Img
Alts
Ref.
25Qty
6Availability
Part #
43140Description
BOLT Hex, M10 x 1.5 x 30mm, Full Thd, Cl 8.8, ZND;Img
Alts
Ref.
26Qty
6Availability
Part #
140045Description
BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk;Img
Alts
Ref.
31Qty
8Availability
Part #
140015Description
WASHER 6.4mm ID x 14mm OD x 1.6mm Thk;Img
Alts
Ref.
32Qty
8Availability
Part #
322357Description
BELLEVILLE WASHER M6 Bolt Size x 14mm OD x 1.3mm Thk;Img
Alts
Ref.
34Qty
42Availability
Part #
412433Description
BOLT Hex, M10 x 30mm, Cl 8.8; (SN Break) Up to 127Img
Alts
Ref.
34Qty
42Availability
Part #
9706687Description
BOLT Hex, M12 x 1.75 x 30mm, Full Thd, Cl 8.8, ZND; (SN Break) From 128Img
Alts
Ref.
35Qty
42Availability
Part #
140042Description
WASHER 11mm ID x 34mm OD x 3mm Thk, CST, ZND; (SN Break) Up to 127Img
Alts
Ref.
35Qty
42Availability
Part #
543043Description
WASHER 13mm ID x 35mm OD x 2.5mm Thk; (SN Break) From 128Img
Alts
Ref.
36Qty
ARAvailability
Part #
140085Description
WASHER 13mm ID x 38mm OD x 6.35mm Thk; (SN Break) From 128Img
Alts
Ref.
37Qty
1Availability
Part #
80428964Description
CONCAVE; Incl. figs. 38 and 39; (SN Break) Up to 113Img
Alts
Ref.
37Qty
1Availability
Part #
80754919Description
CONCAVE; Incl. figs. 38 and 39; (SN Break) Up to 129Img
Alts
Ref.
37Qty
1Availability
Part #
9502074Description
CONCAVE; Incl. figs. 38 and 39; (SN Break) From 123Img
Alts
Ref.
43Qty
2Availability
Part #
120201Description
BOLT Hex, M10 x 35mm, Cl 8.8, Full Thd;Img
Alts
Ref.
45Qty
ARAvailability
Part #
140046Description
BELLEVILLE WASHER M12 Bolt Size x 27mm OD x 1.8mm Thk;Img
Alts
Ref.
46Qty
4Availability
Part #
300388Description
BOLT Hex, M12 x 1.75 x 25mm, Full Thd, Cl 8.8, ZND;Img
Alts
Ref.
47Qty
ARAvailability
Part #
378245Description
WASHER 13mm ID x 28.5mm OD x 2.7mm Thk;Img
Alts
Ref.
50Qty
1Availability
Part #
9706702Description
BOLT Hex, M12 x 1.75 x 50mm, 30mm Thread L, Cl 8.8, ZND; (SN Break) From 123Img
Alts
Ref.
51Qty
1Availability
Part #
89508387Description
RACK; A:341.5MM; (SN Break) From 128Img
Alts
Ref.
51Qty
1Availability
Part #
89508389Description
RACK; A:290.5MM; (SN Break) From 128Img
Alts
Ref.
51Qty
1Availability
Part #
9508391Description
SLAT; A:208.5MM - Rice & Corn; (SN Break) From 128Img
Alts
Ref.
53Qty
3Availability
Part #
120122Description

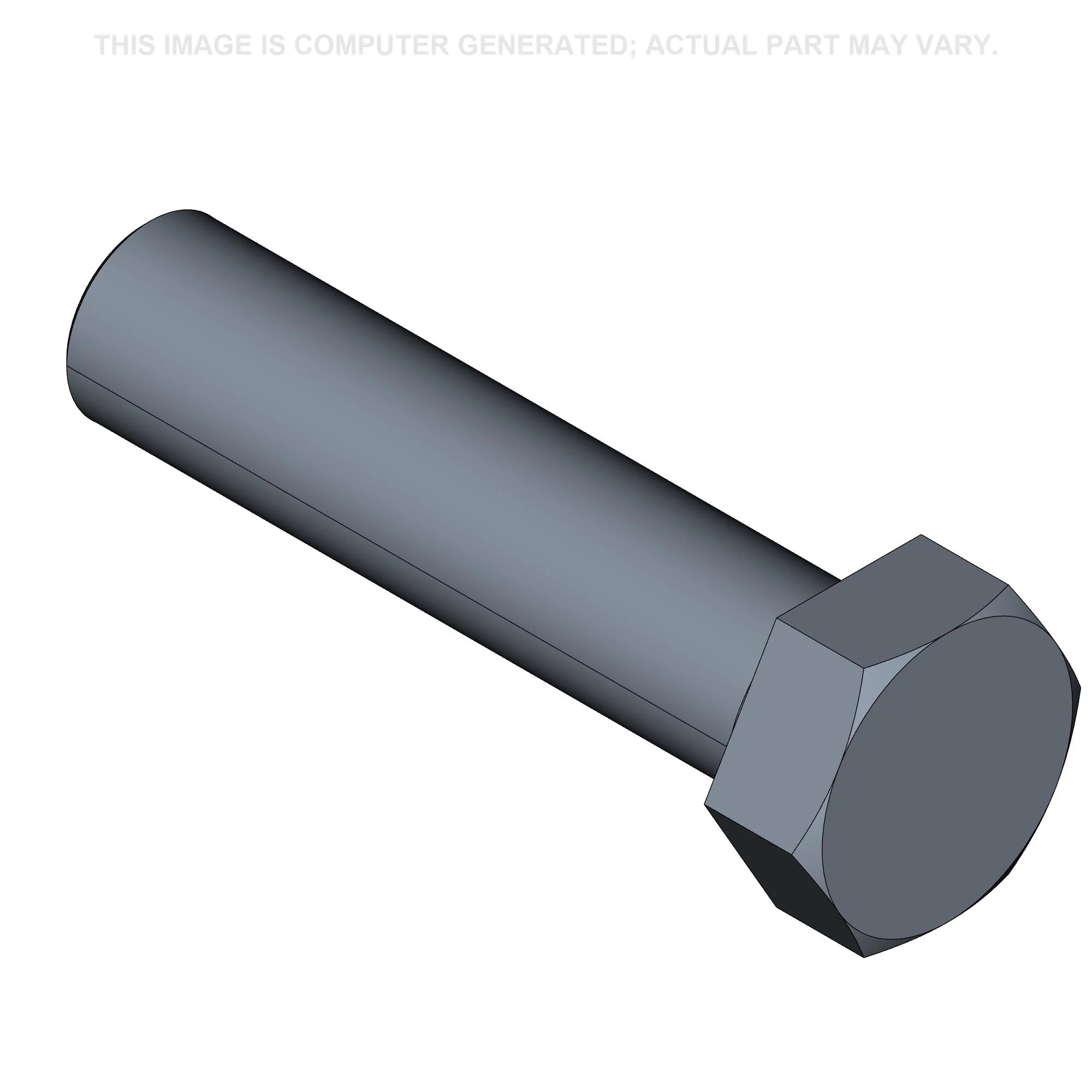

BOLT Hex, M12 x 1.75 x 50mm, Cl 8.8, Full Thd, ZND; (SN Break) From 155Img
Alts
