00.00FR210[01] - MAINTENANCE PARTS, CUTTERHEAD - UPPER WEAR PLATE, SCRAPER & SHEAR BAR
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1

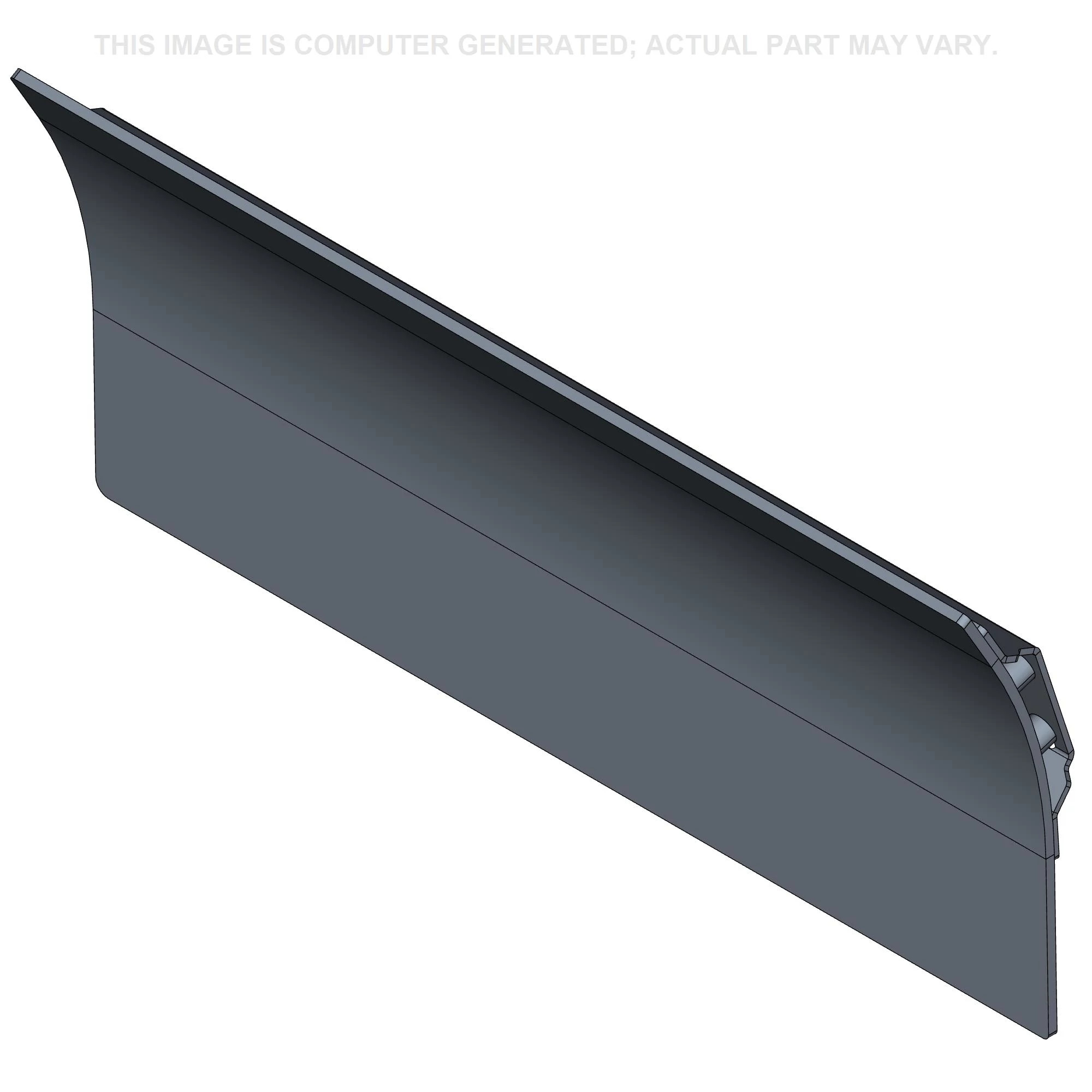

    87563223
    WEAR PLATE; FOR STANDARD ONLY; (SN Break) Up to C719
  • 1
    1
    84232753
    WEAR PLATE; FOR STANDARD ONLY; (SN Break) Up to F720817
  • 1
    1
    84547800
    PLATE; FOR STANDARD ONLY; (SN Break) From D818
  • 1
    1
    87602870
    WEAR PLATE; WITH KNIVES; (SN Break) Up to C719
  • 1
    1
    84237350
    WEAR PLATE; WITH KNIVES; (SN Break) Up to F720827
  • 1
    1
    84569965

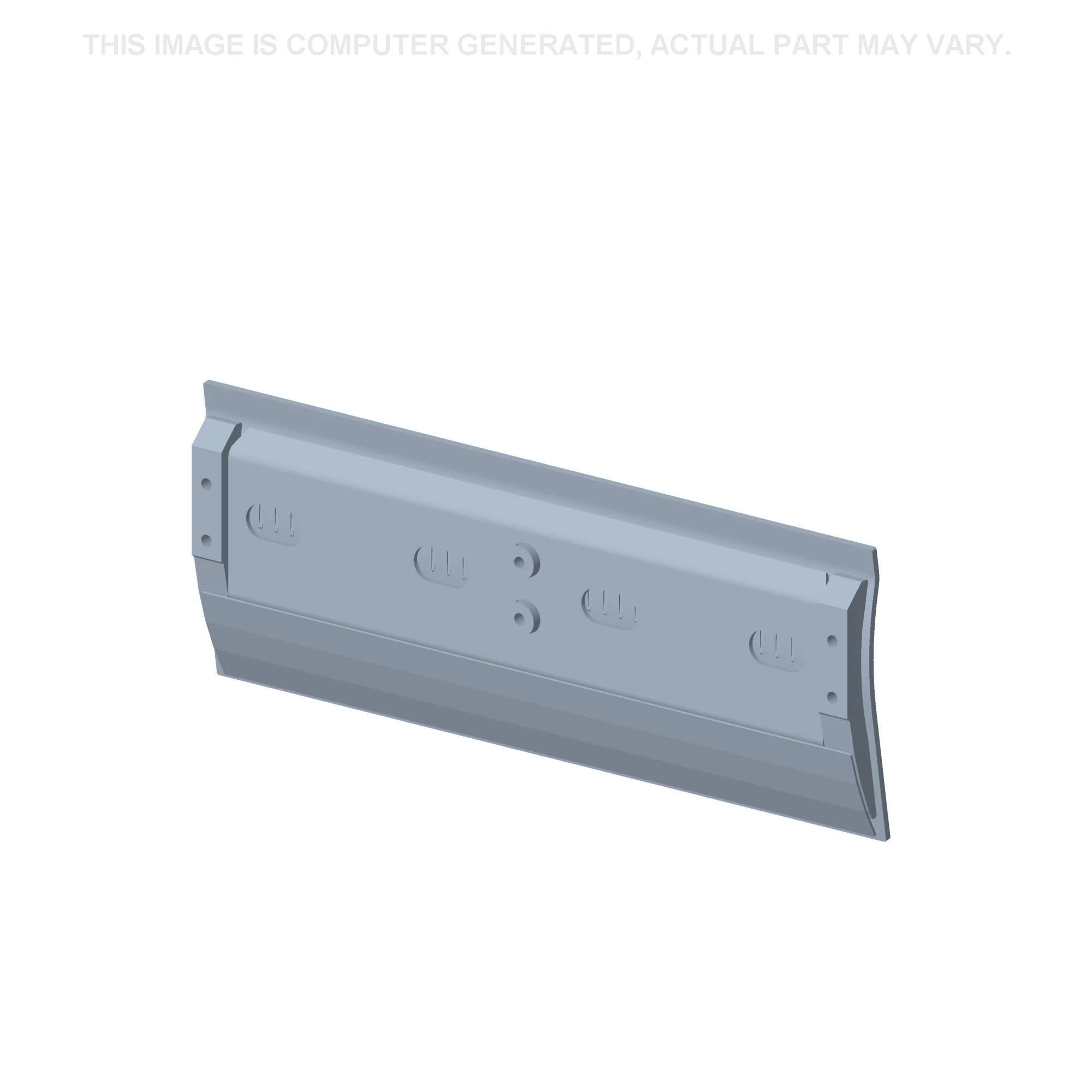

    PLATE; WITH KNIVES; (SN Break) From D828
  • 1
    1
    87605118
    KNIFE PLATE; WITH SHRED; (SN Break) Up to C719
  • 1
    1
    84237346

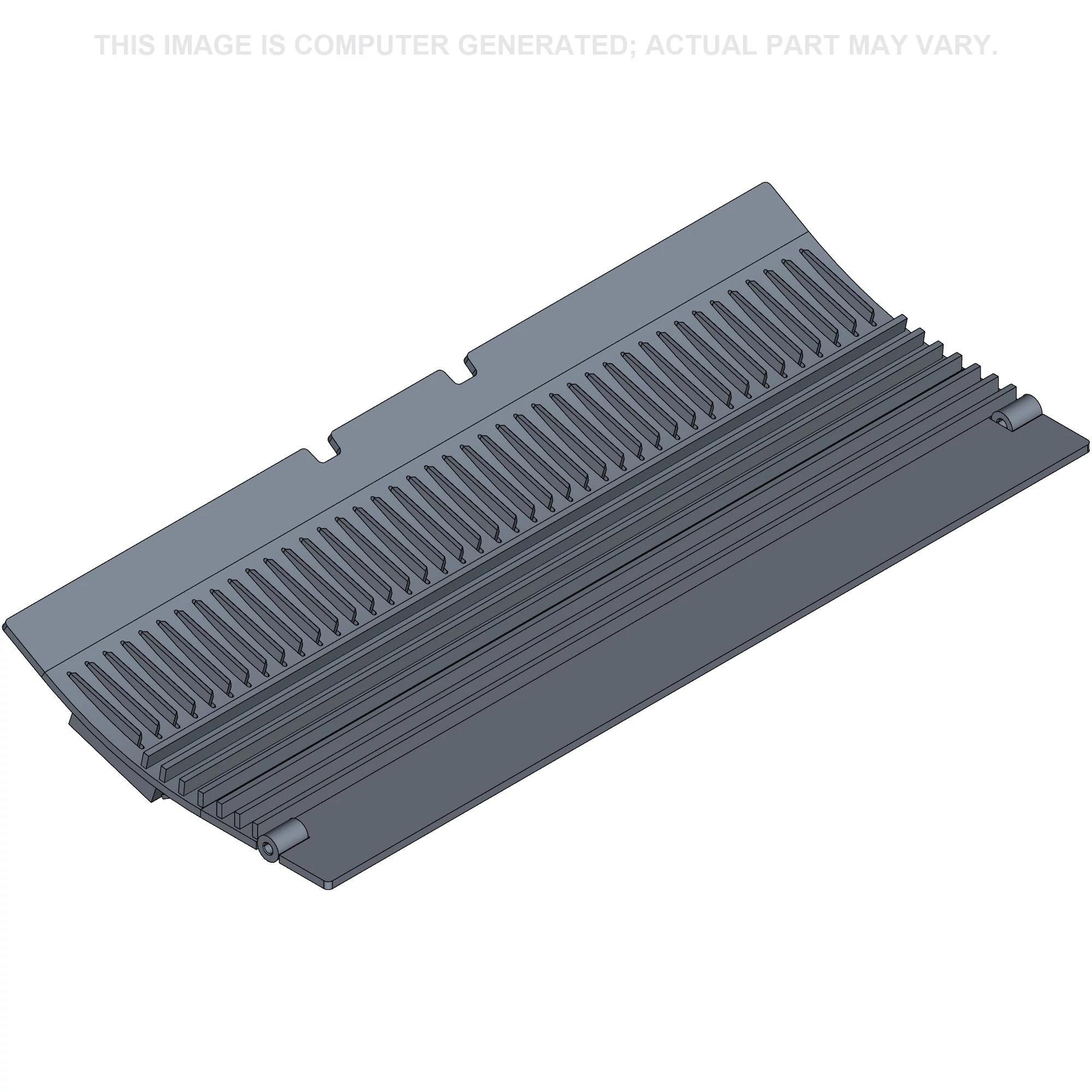

    WEAR PLATE; WITH SHRED; (SN Break) Up to F720827
  • 1
    1

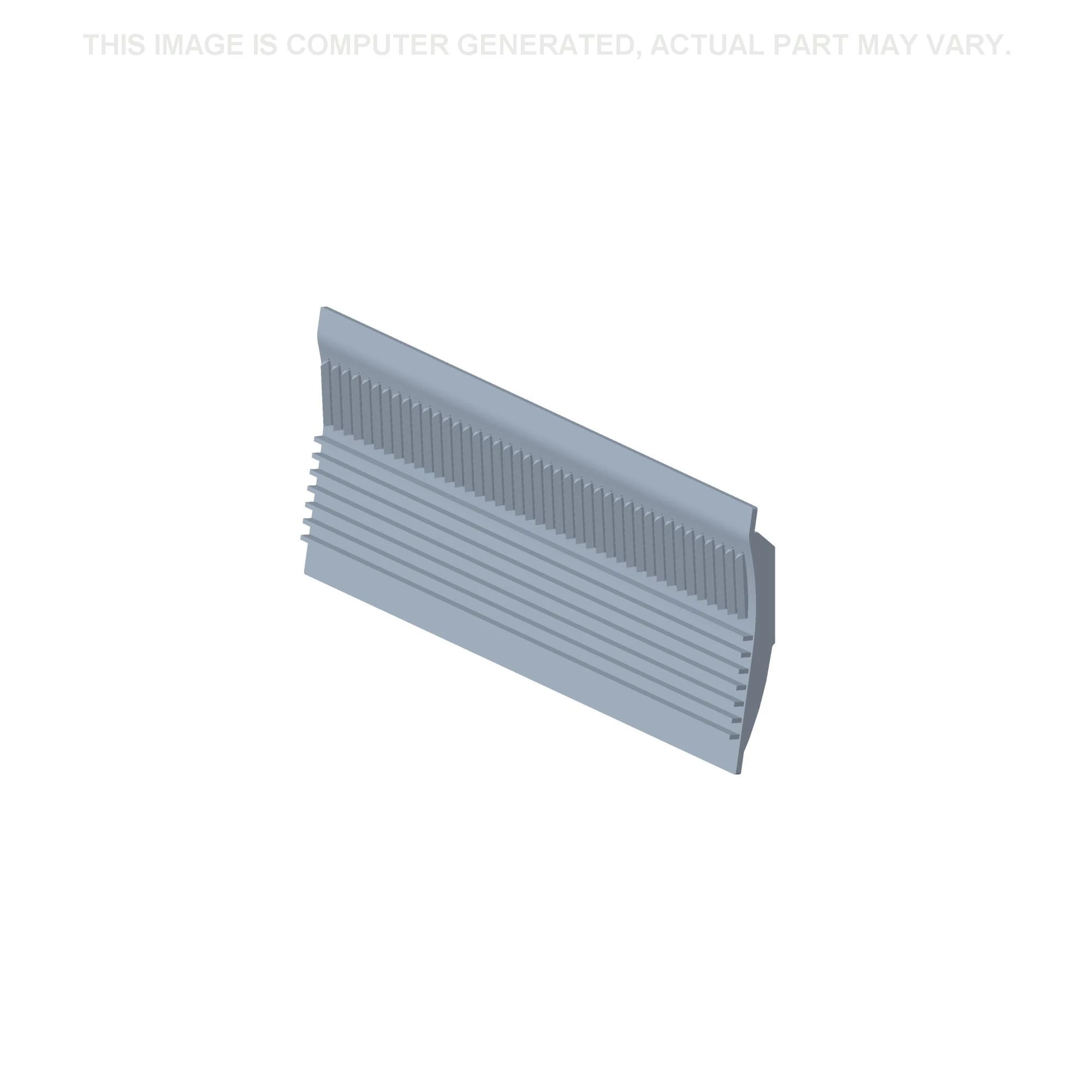

    84569968
    PLATE; WITH SHRED; (SN Break) From D828
  • 1
    1
    87563225
    WEAR PLATE; FOR HARDFACE ONLY; (SN Break) Up to C549
  • 1
    1
    84228873
    WEAR PLATE; FOR HEAVY DUTY ONLY;PART OF DIA; (SN Break) Up to F724817
  • 1
    1
    84550786
    PLATE; FOR HEAVY DUTY ONLY;PART OF DIA; (SN Break) From D818
  • 1
    1
    84232753
    WEAR PLATE; FOR HEAVY WET CROP ONLY
  • 2
    AR
    87335294

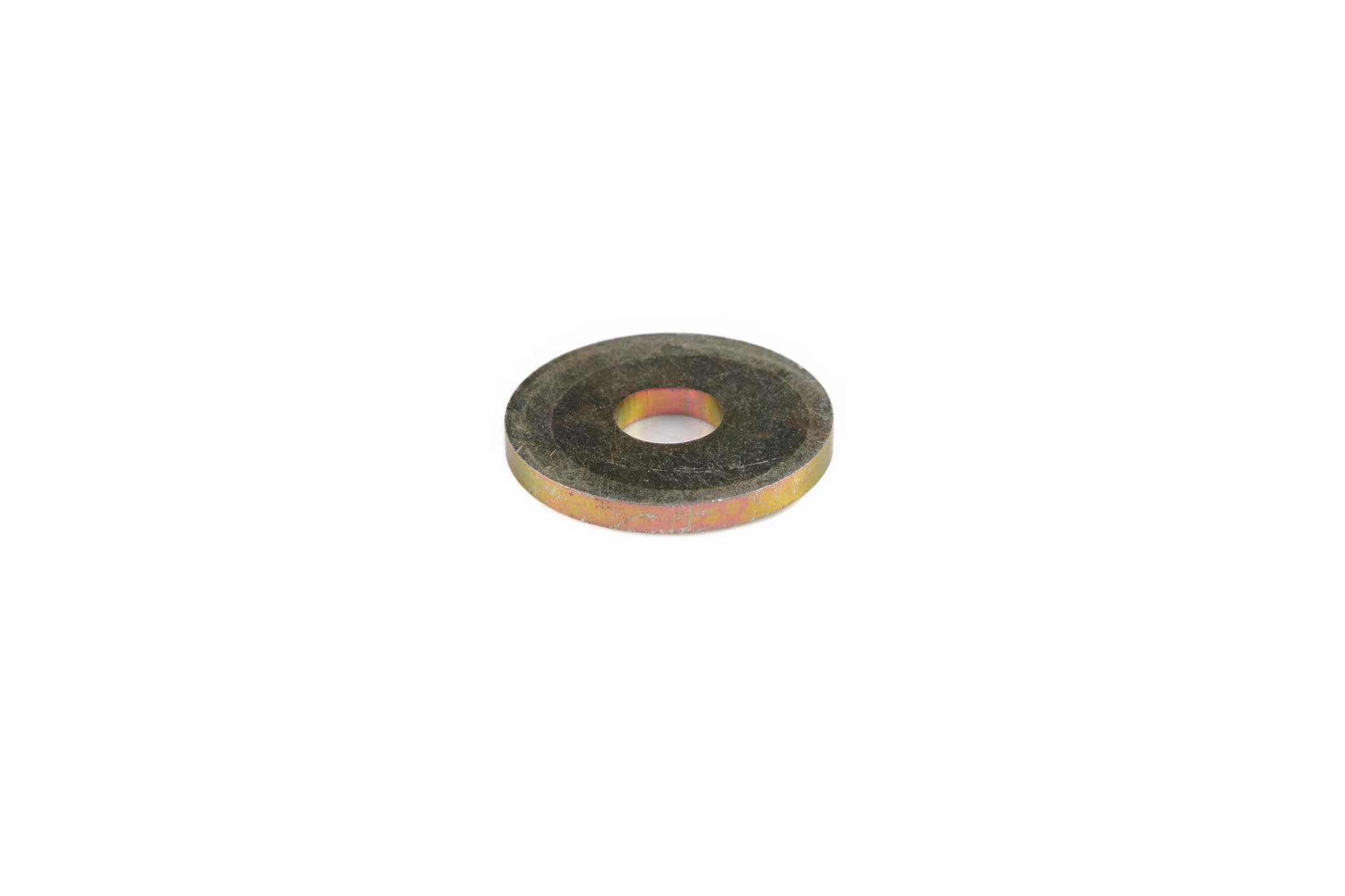

    SPACER 13mm ID x 40mm OD x 4mm L; (SN Break) Up to C719
  • 2
    AR
    86592702
    WASHER 17mm ID x 45mm OD x 6mm Thk, HTS, ZND; (SN Break) From D720
  • 3
    4
    140046
    BELLEVILLE WASHER M12 Bolt Size x 27mm OD x 1.8mm Thk; (SN Break) Up to C719
  • 4
    4
    86629541
    BOLT Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd; (SN Break) Up to C597
  • 4
    4
    337563
    BOLT Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd; (SN Break) Up to F598719
  • 4
    6
    350616
    BOLT Hex, M16 x 2 x 90mm, Cl 8.8; (SN Break) From D720
  • 5
    1
    87552412
    WEAR PLATE; (SN Break) Up to C639
  • 5
    1
    87736807

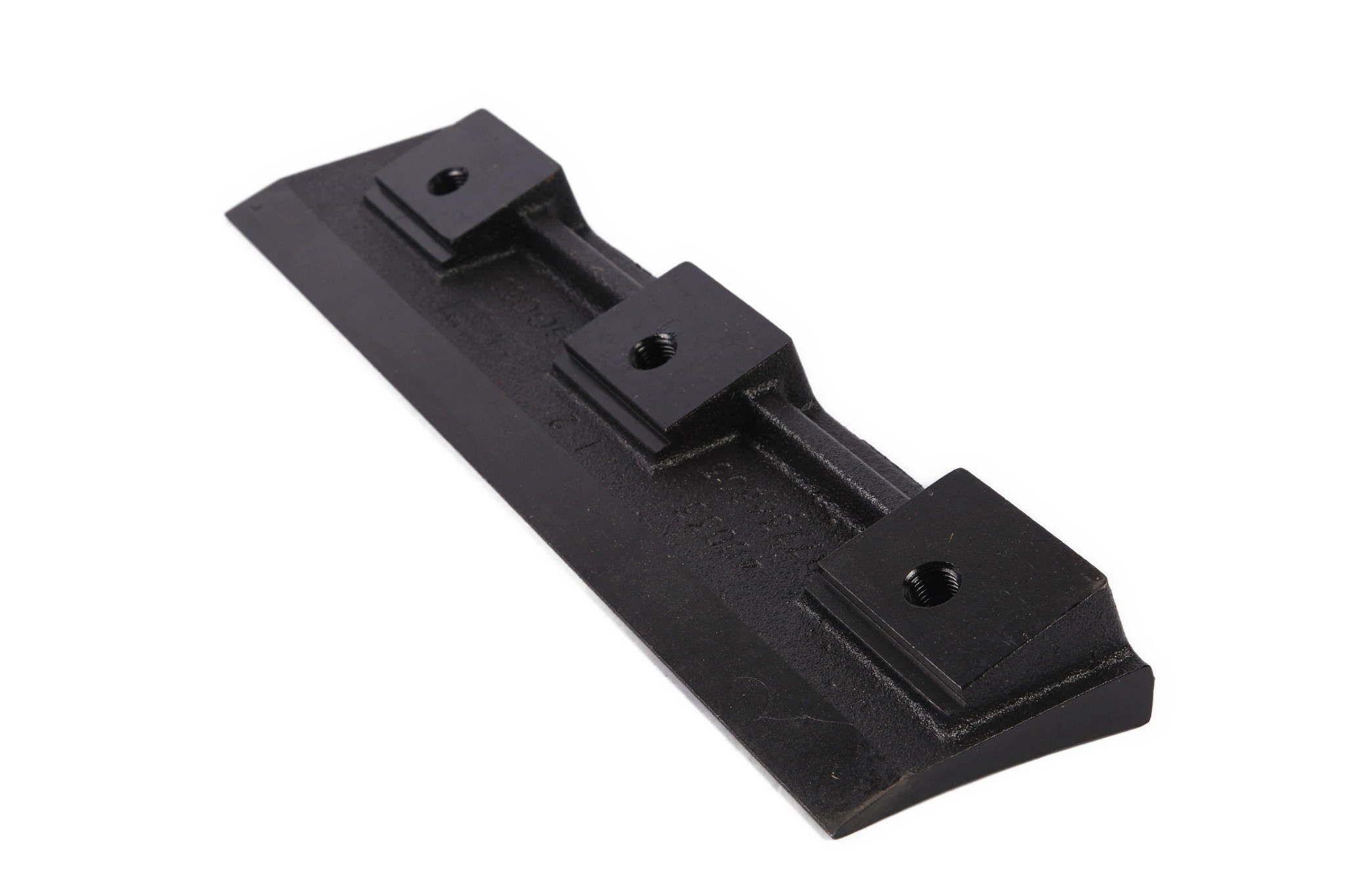

    WEAR PLATE; (SN Break) From D640
  • 6
    1
    87555454
    WEAR PLATE; (SN Break) Up to C639
  • 6
    1

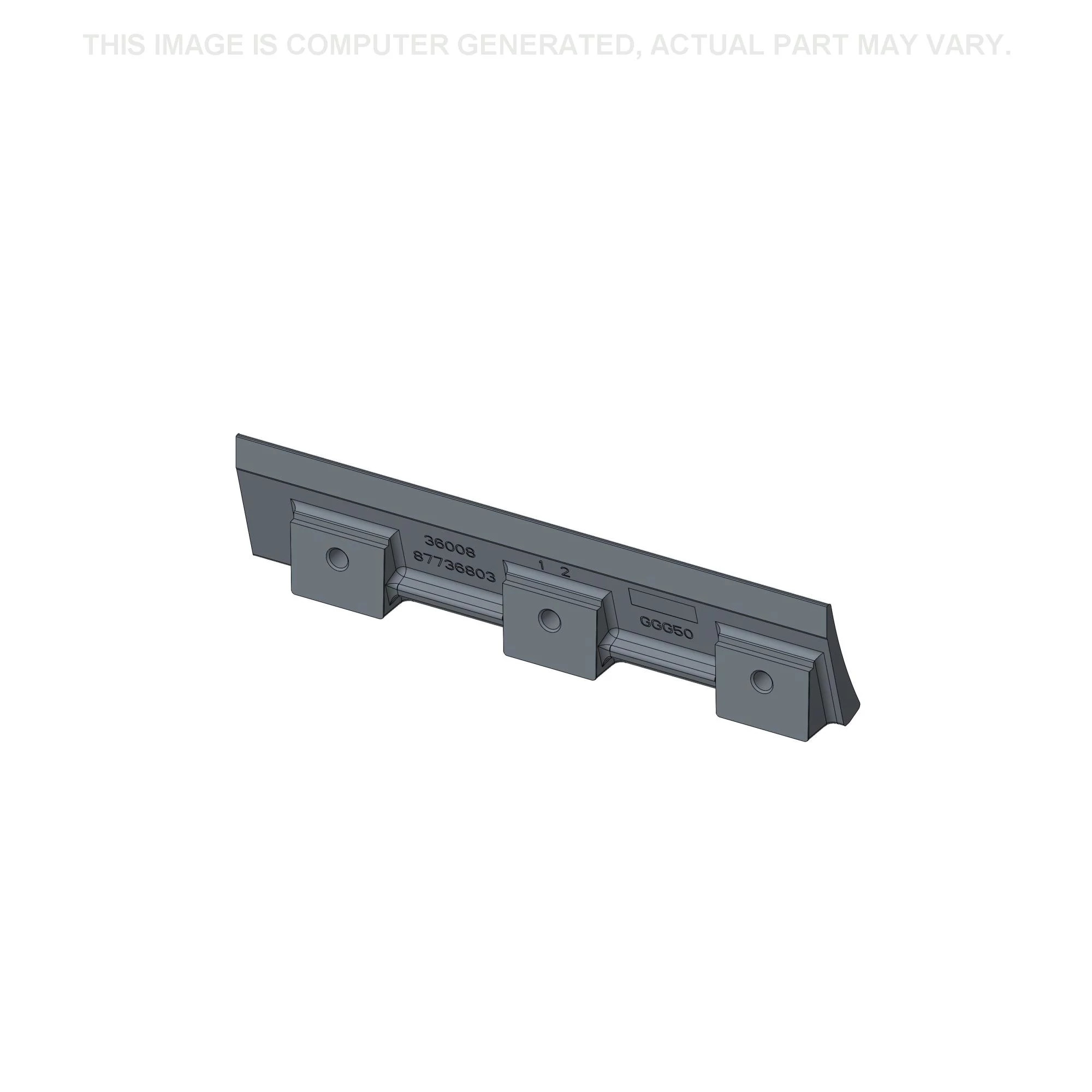

    87736805
    WEAR PLATE; (SN Break) From D640
  • 7
    1
    87585006
    SHEAR BAR; BUSATIS;FOR GRASS ONLY
  • 7
    1
    87325326

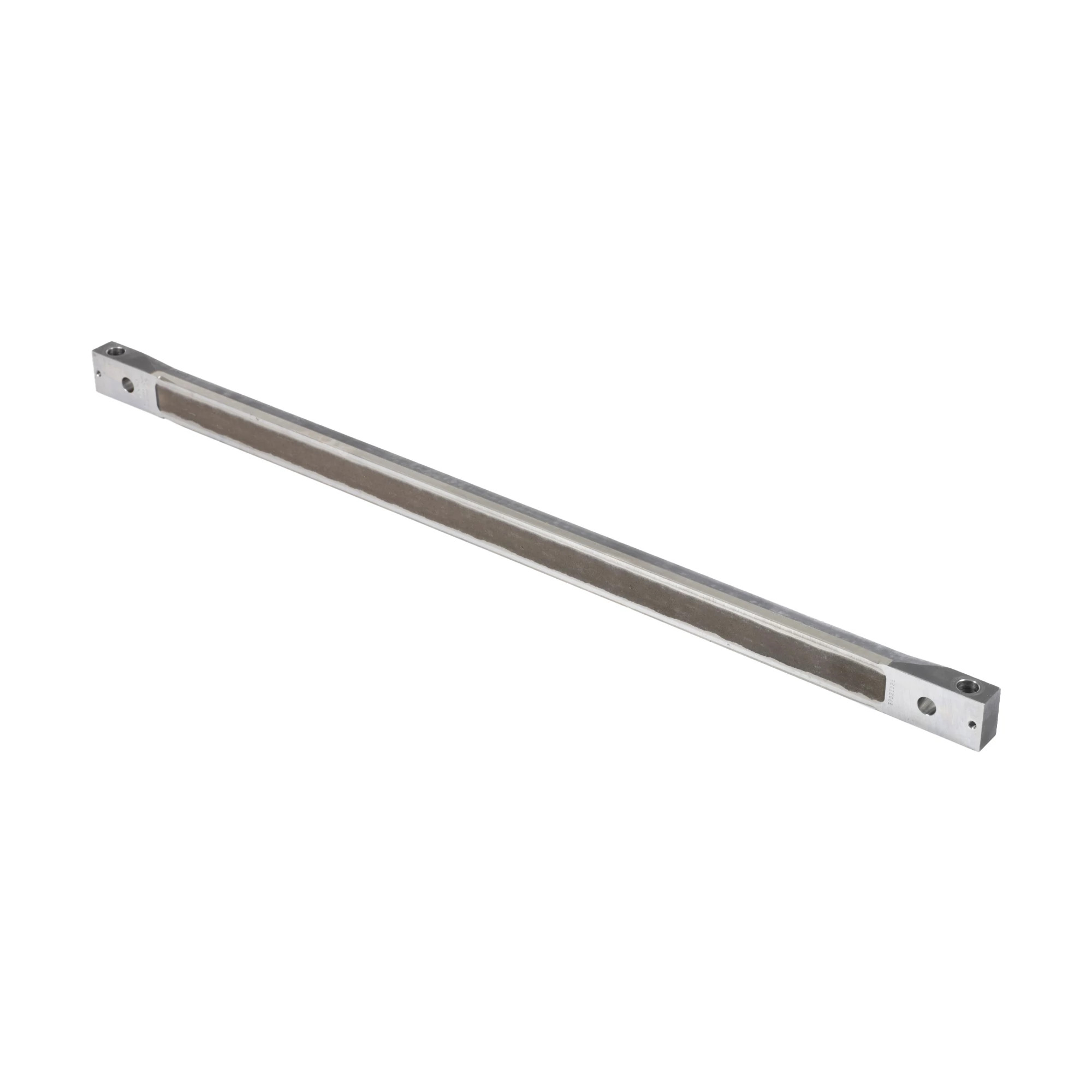

    SHEAR BAR; BUSATIS;FOR CORN ONLY
  • 7
    1
    87585008
    SHEAR BAR; LUND
  • 7
    1
    84289617
    DIA KIT, HARVESTER; BUSATIS;FOR HEAVY DUTY ONLY; (SN Break) From D806
  • 8
    AR
    394631
    WASHER 17mm ID x 34mm OD x 4mm Thk;
  • 9
    2
    84025473
    BOLT Hex, M16 x 80mm, Cl 12.9;
  • 10
    1
    334967
    BOLT Hex, M16 x 2 x 140mm, Cl 8.8;
  • 11
    1
    87529527
    SCRAPER TOOL; (SN Break) Up to C577
  • 11
    1
    87532939
    SCRAPER TOOL; (SN Break) Up to F578817
  • 11
    1
    84526146
    SCRAPER; (SN Break) From D818
  • 11
    1
    87532939
    SCRAPER TOOL; HARD-FACED SCRAPER ONLY
  • 12
    1
    84058692
    SENSOR; B42 KNOCK SENSOR - RH
  • 12
    1
    84058692
    SENSOR; B41 KNOCK SENSOR - LH
  • 15
    1
    84285959
    SPOUT EXTENTION KIT; WEAR PLATES;FOR HEAVY DUTY ONLY;STANDARD SPOUT
  • 15
    1
    84285960
    SPOUT EXTENTION KIT; WEAR PLATES;FOR HEAVY DUTY ONLY;SHORT SPOUT
