09-25 - REEL DRIVE COMPONENTS, 2 ARM, 2152, 2162
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 2
    1
    87560891
    COVER; Cam Bearing Access
  • 3
    1
    87561181
    HYDRAULIC MOTOR; Reel Drive, Inc. M
  • 1
    87407673
    SEAL KIT; Kit, Reel Drive Motor 48054456
  • 1
    48081321
    KIT; Seal, Applies To Motor
  • 4
    1
    87561233
    SUPPORT; Reel Drive Back Plate

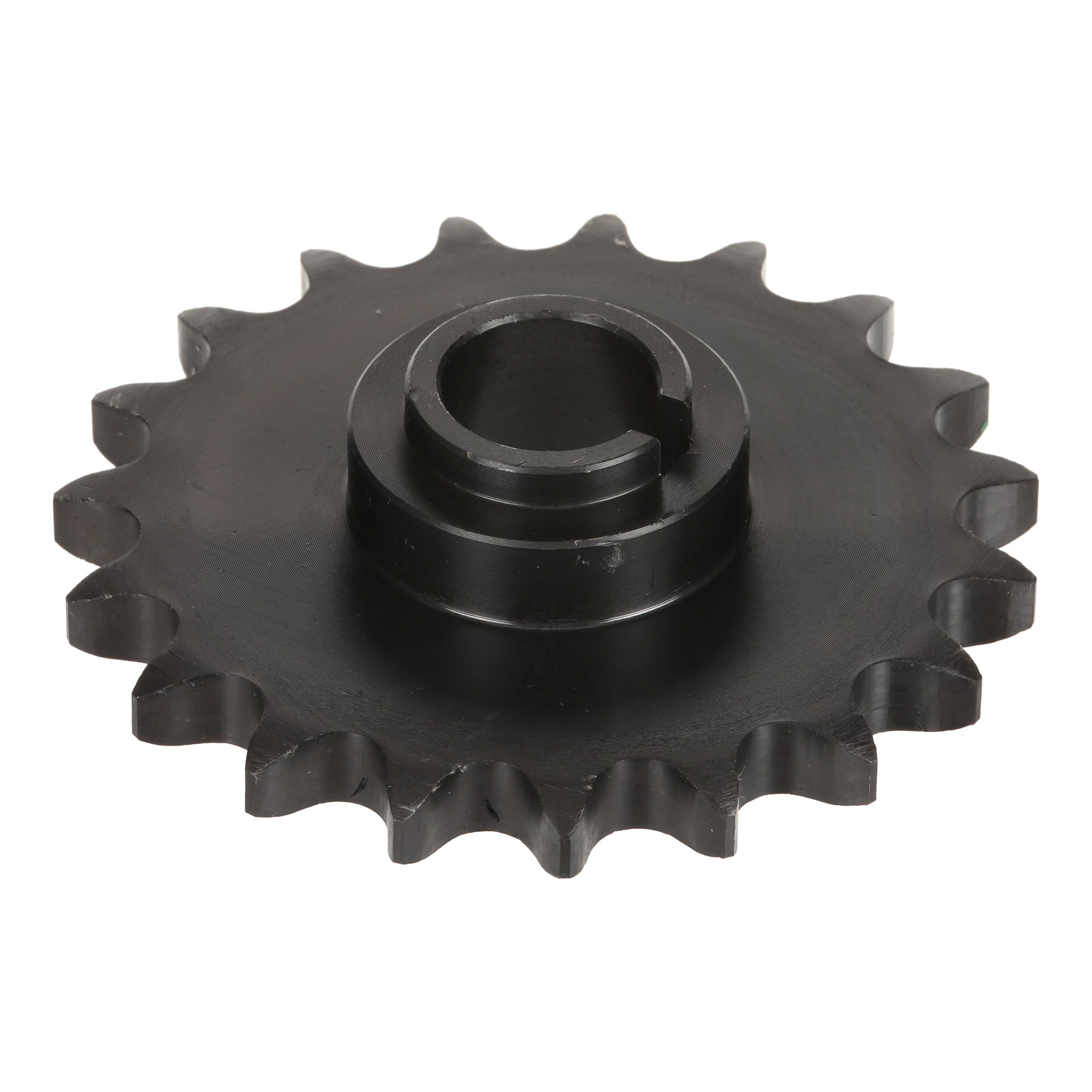

  • 5
    1
    87566794
    GEAR; 19 Tooth
  • 5
    OPT
    87585446
    SPROCKET; 10 Tooth, 2000 - 2100 psi, Down Rice Applications
  • 5
    OPT
    87585448
    SPROCKET; 14 Tooth, 3000 psi, Down Rice Applications
  • 5
    OPT
    87585447
    SPROCKET; 21 Tooth, Reel Drive Flow too Low For Reel Speeds
  • 5
    OPT
    87585449
    SPROCKET; 12 Tooth
  • 6
    2
    87561155
    KEY; Reel Drive Shaft
  • 7
    2
    88350
    COTTER PIN 5/32'' x 1-1/2'';

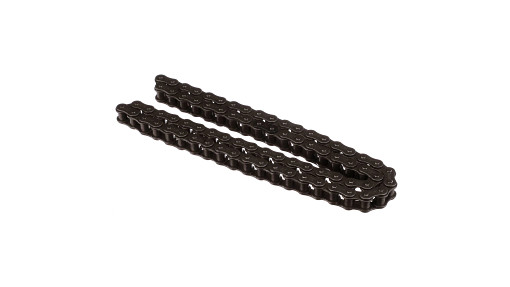

  • 8
    1
    87566336
    CHAIN; Drive, 76 Pitch, See Ref 36, 56T Sprocket
  • 8
    1
    87627746
    CHAIN; Drive, 70 Pitch, Half Speed Drive, See Ref 36, 48T Sprocket
  • 10
    1
    87560894
    COVER; Reel Drive
  • 13
    1
    NS
    NOT SERVICED; Reel Speed, Windrower Use Only
  • 14
    1
    NS
    NOT SERVICED; Reel Speed, Windrower Use Only
  • 15
    1
    87561237
    SHAFT; Reel

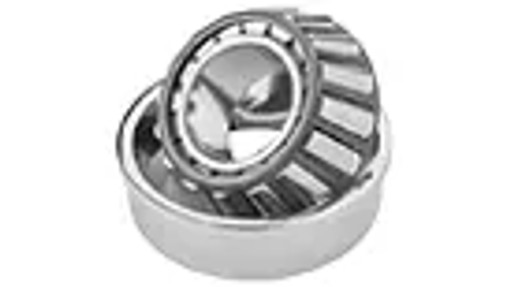

  • 17
    2
    96173C1
    BEARING ASSY Tapered Roller, 38.1mm ID x 25.4mm W;
  • 18
    1
    87560881
    CLAMP; Top Reel Drive Support
  • 19
    2
    87561202
    PAD; Reel Drive
  • 20
    1
    87561547
    SLEEVE; Cam Hub
  • 21
    1
    87566800
    WASHER 31mm ID x 39mm OD x 4.8mm Thk; Cam Latch
  • 22
    1
    87566765
    PIN; Cam Latch

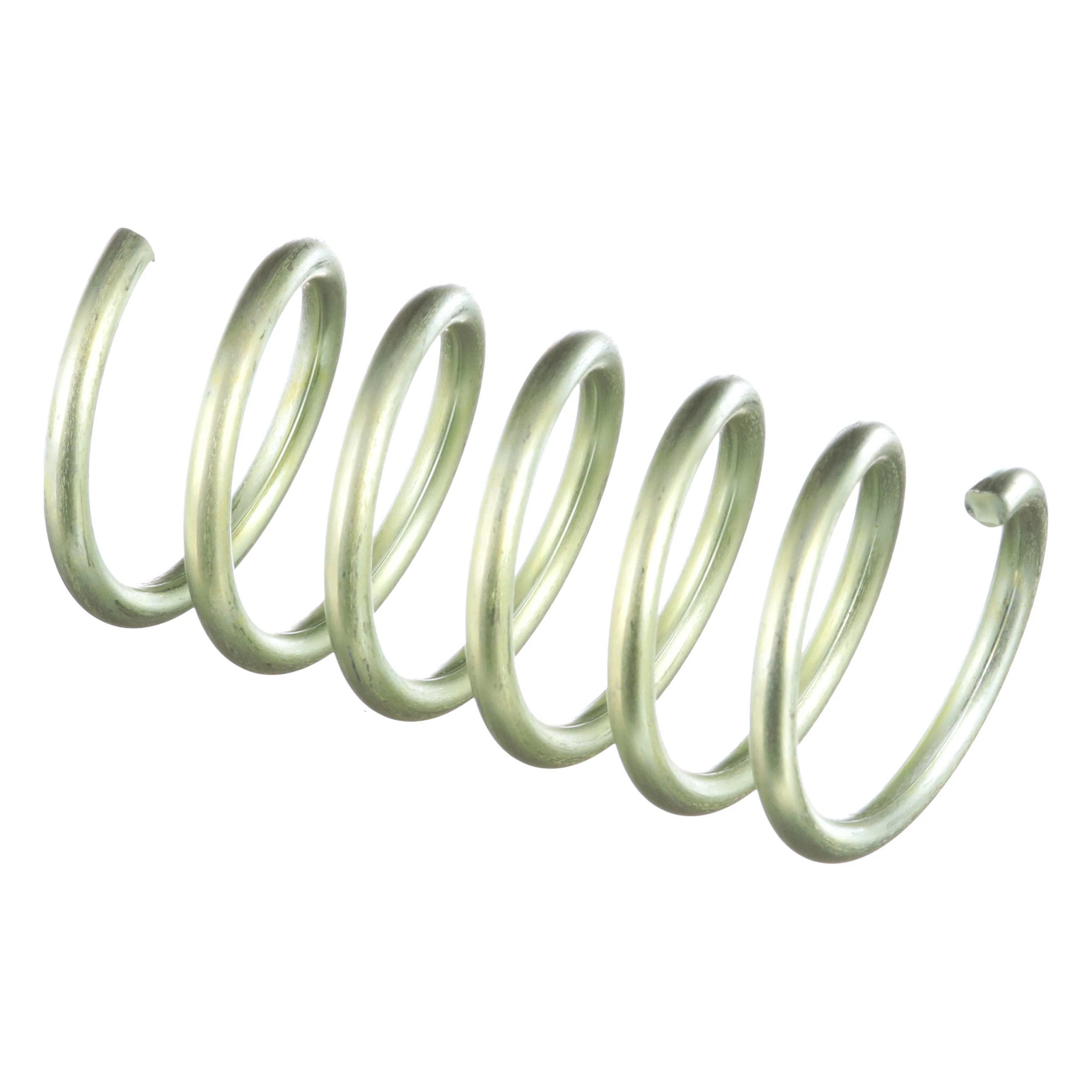

  • 24
    1
    87566787
    SPRING;
  • 25
    1
    87681
    LOCK PIN 7.94mm OD x 44.45mm L;
  • 29
    2
    87414
    LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP;
  • 30
    1
    87561606
    SUPPORT; Reel Drive
  • 31
    1
    87561234
    SUPPORT; Reel Drive, Inc. 29, 32
  • 32
    1
    NSS
    NOT SOLD SEPARAT; BEARING CUP
  • 33
    2
    478793R1
    BEARING CUP;
  • 34
    1
    87560847
    CAM; Reel
  • 35
    1
    87561183
    ENGINE MOUNT; Motor
  • 36
    1

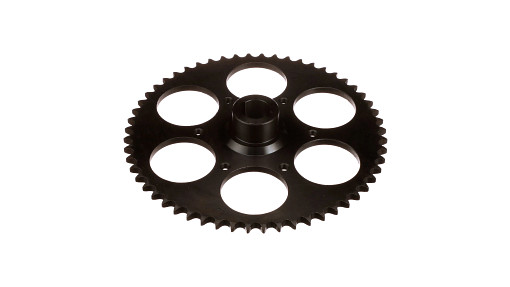

    87566791
    GEAR; 56 Tooth, See Ref 8, 76P Chain
  • 36
    1
    87627747
    SPROCKET; 48 Tooth, High Speed Drive,See Ref 8, 70P Chain
  • 37
    1
    87561619
    SUPPORT; Tail End, Inc. 38, 39;20.0, 25.0, 30.0, And 40.0 Foot Headers
  • 37
    1
    414-1016
    BOLT Hex, 5/8'' - 18 x 1'', Gr 5; Tail End, Inc. 38, 39;35.0 Foot Single Knife Header
  • 38
    1
    NSS
    NOT SOLD SEPARAT; SUPPORT
  • 39
    2
    651817R1
    BEARING CUP;
  • 40
    1
    87561507
    SHAFT; Tail End
  • 41
    2
    602958R91
    BEARING ASSY 31.75 mm ID x 25.4 mm;
  • 42
    1
    820166C1
    CAP; Dust
  • 46
    AR
    87589359
    SHIM; (SN Break) Between Hub and Cam
  • 47
    AR
    87589354
    RING; For Bolt Flange
  • 48
    1
    87589355
    SUPPORT ASSY.; Tail End Support; (SN Break) From Y7ZN05301

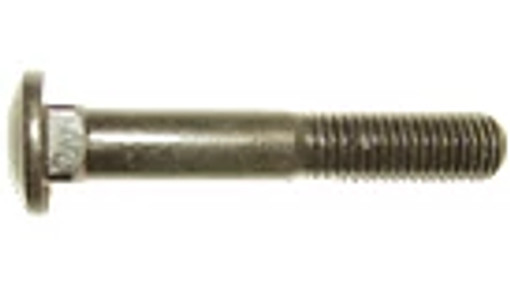

  • A
    -
    433-836
    CARRIAGE BOLT Sq Nk, 1/2'' - 13 x 2 1/4'', Gr 5;
  • B
    -
    231-4148
    NUT 1/2''-13, GB;
  • C
    -
    281-54910
    SELF-TAP SCREW Hex Wash Hd, 3/8''-16 x 5/8'';
  • D
    -
    87566358
    BOLT FLAT, 1/2'' - 13 x 1-3/4'', Gr 5;

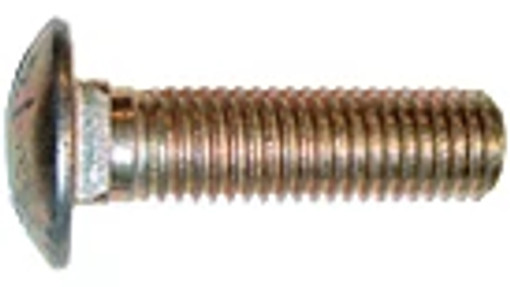

  • F
    -
    434-820
    CARRIAGE BOLT Sht Sq Nk, 1/2'' - 13 x 1 1/4'', Gr 5;
  • G
    -
    87323841
    FLANGE NUT;
  • K
    -
    131-646
    SPRING NUT Tinn, U, 1/4''-20;
  • L
    -
    1276478C1
    WASHER;
  • M
    -
    49027
    SLOTTED NUT;
  • N
    -
    492-11050
    LOCK WASHER 1/2'';
  • Q
    -
    87670
    BOLT 1/2'' - 13 x 1-1/4'', Full Thd, Gr 5;
  • R
    -
    523291
    SERRATED BOLT Hex Serr Flg, 1/4'' - 20 x 1/2'';
  • W
    -
    434-816
    CARRIAGE BOLT Sht Sq Nk, 1/2'' - 13 x 1'', Gr 5;
  • X
    -
    1336594C1
    WASHER;
  • Y
    -
    86632554
    SLOTTED NUT 3/4''-16, G5;
