09-23 - PICK UP REEL - SINGLE REEL HEADERS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    5
    87561622
    REEL TINE; Finger, Narrow Stagger;9 Bat Reel,20.0 Foot Header
  • 1
    3
    87561622
    REEL TINE; Finger, Narrow Stagger;5 And 6 Bat Reel,20.0 Foot Header
  • 1
    3
    87561624
    REEL TINE; Finger, Narrow Stagger;5 And 6 Bat Reel,25.0 Foot Header
  • 1
    5
    87561624
    REEL TINE; Finger, Narrow Stagger;9 Bat Reel,25.0 Foot Header
  • 1
    3
    87561626
    REEL TINE; Finger, Narrow Stagger;5 And 6 Bat Reel,30.0 Foot Header
  • 1
    3
    87561630
    REEL TINE; Finger, Narrow Stagger;5 And 6 Bat Reel,35.0 Foot Header
  • 2
    174
    87560996

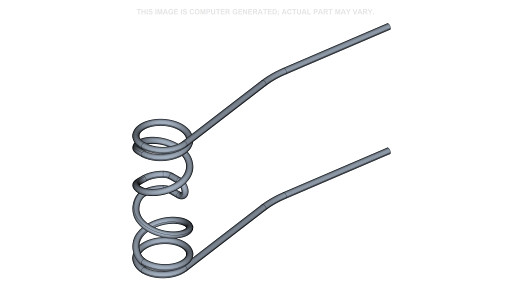

    FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels;6 Bat Reel,30.0 Foot Header
  • 2
    120
    87560996
    FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels;5 Bat Reel,25.0 Foot Header
  • 2
    111
    87560996
    FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels;6 Bat Reel,20.0 Foot Header
  • 2
    170
    87560996
    FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels;35.0 Foot Header,5 Bat Reel
  • 2
    144
    87560996
    FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels;6 Bat Reel,25.0 Foot Header
  • 2
    167
    87560996
    FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels;9 Bat Reel,20.0 Foot Header
  • 2
    204
    87560996
    FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels;6 Bat Reel,35.0 Foot Header
  • 2
    216
    87560996
    FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels;9 Bat Reel,25.0 Foot Header
  • 2
    145
    87560996
    FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels;5 Bat Reel,30.0 Foot Header
  • 2
    93
    87560996
    FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels;5 Bat Reel,20.0 Foot Header

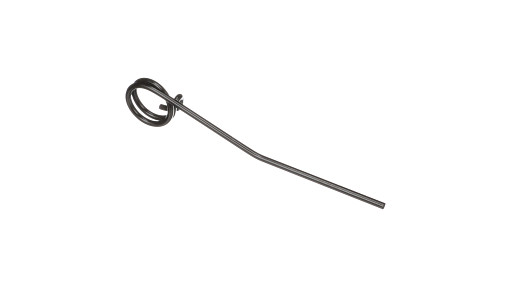

  • 3
    6
    87561018
    FINGER Coiled, 1 Prong, 321mm L; Single, Right Hand, Steel Fingered Reels;6 Bat Reel,20.0 Foot Header
  • 3
    9
    87561018
    FINGER Coiled, 1 Prong, 321mm L; Single, Right Hand, Steel Fingered Reels;9 Bat Reel,20.0 Foot Header
  • 3
    5
    87561018
    FINGER Coiled, 1 Prong, 321mm L; Single, Right Hand, Steel Fingered Reels;5 Bat Reel,20.0 Foot Header
  • 3
    3
    87561018
    FINGER Coiled, 1 Prong, 321mm L; Single, Right Hand, Steel Fingered Reels;5 And 6 Bat Reel,35.0 Foot Header

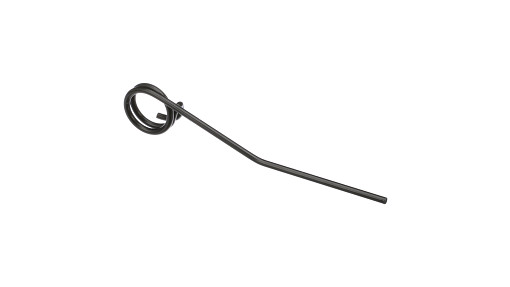

  • 4
    AR
    84328701
    FINGER Coiled, 1 Prong, 313mm L; Single, Tail End, Left Hand;2142 - ASN YBZN01301,2152 - ASN YBZN07601,2162 - ASN YBZN14201

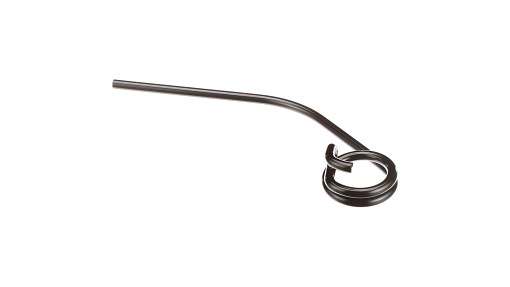

  • 4
    9
    87561022
    FINGER Coiled, 1 Prong, 282mm L; Single, Tail End, Left Hand;9 Bat Reel,20.0 And 25.0 Foot Header
  • 4
    5
    87561022
    FINGER Coiled, 1 Prong, 282mm L; Single, Tail End, Left Hand;5 Bat Reel,20.0, 25.0, 30.0, And 35.0 Foot Headers
  • 4
    6
    87561022
    FINGER Coiled, 1 Prong, 282mm L; Single, Tail End, Left Hand;20.0, 25.0, 30.0, And 35.0 Foot Headers,6 Bat Reel
  • 5
    1
    84331097
    KIT; Plastic, Heavy Duty (Includes 100 of 87561020)
  • 5
    1
    84331098

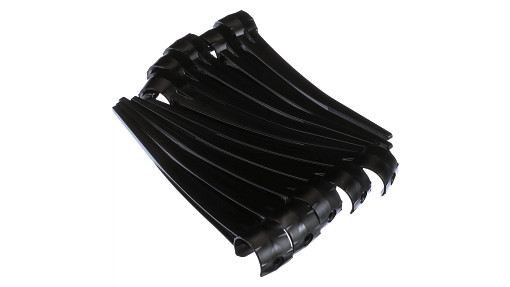

    SET OF PARTS; Finger,Plastic, Heavy Duty (Includes 10 of 87561020)
  • 5
    296
    87561020
    FINGER; Plastic;5 Bat Reel,30.0 Foot Header
  • 5
    249
    87561020
    FINGER; Plastic;5 Bat Reel,25.0 Foot Header
  • 5
    402
    87561020
    FINGER; Plastic;6 Bat Reel,35.0 Foot Header
  • 5
    447
    87561020
    FINGER; Plastic;9 Bat Reel,25.0 Foot Header
  • 5
    219
    87561020
    FINGER; Plastic;6 Bat Reel,20.0 Foot Header
  • 5
    333
    87561020
    FINGER; Plastic;5 Bat Reel,35.0 Foot Header
  • 5
    329
    87561020
    FINGER; Plastic;9 Bat Reel,20.0 Foot Header
  • 5
    183
    87561020
    FINGER; Plastic;5 Bat Reel,20.0 Foot Header
  • 5
    297
    87561020
    FINGER; Plastic;25.0 Foot Header,6 Bat Reel
  • 5
    354
    87561020
    FINGER; Plastic;6 Bat Reel,30.0 Foot Header
  • 6
    3
    87561623
    TINE BAR; Finger, Wide Stagger;6 Bat Reel,20.0 Foot Header
  • 6
    4
    87561623
    TINE BAR; Finger, Wide Stagger;9 Bat Reel,20.0 Foot Header
  • 6
    2
    87561625
    REEL TINE; Finger, Wide Stagger;5 Bat Reel,25.0 Foot Header
  • 6
    2
    87561623
    TINE BAR; Finger, Wide Stagger;5 Bat Reel,20.0 Foot Header
  • 6
    3
    87561625
    REEL TINE; Finger, Wide Stagger;6 Bat Reel,25.0 Foot Header
  • 6
    4
    87561625
    REEL TINE; Finger, Wide Stagger;9 Bat Reel,25.0 Foot Header
  • 6
    3
    87561627
    REEL TINE; Finger, Wide Stagger;6 Bat Reel,30.0 Foot Header
  • 6
    3
    87561631
    REEL TINE; Finger, Wide Stagger;6 Bat Reel,35.0 Foot Header
  • 6
    2
    87561627
    REEL TINE; Finger, Wide Stagger;5 Bat Reel,30.0 Foot Header
  • 6
    2
    87561631
    REEL TINE; Finger, Wide Stagger;5 Bat Reel,35.0 Foot Header
  • 7
    6
    87560462
    ARM; Cam End;6 Bat Reel
  • 7
    5
    87560462
    ARM; Cam End;5 Bat Reel
  • 7
    9
    87560462
    ARM; Cam End;9 Bat Reel
  • 8
    90
    47548631

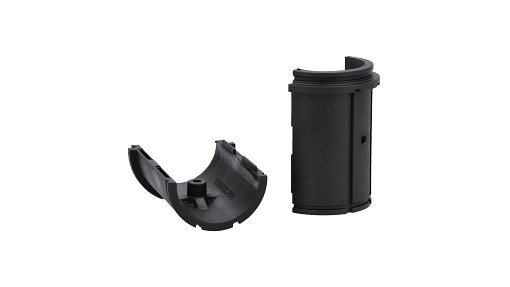

    BUSHING; Finger Tube;9 Bat Reel
  • 8
    50
    47548631
    BUSHING; Finger Tube;5 Bat Reel, Sub To Part Is Box Of 25
  • 8
    60
    47548631
    BUSHING; Finger Tube;6 Bat Reel
  • 9
    12
    87561021

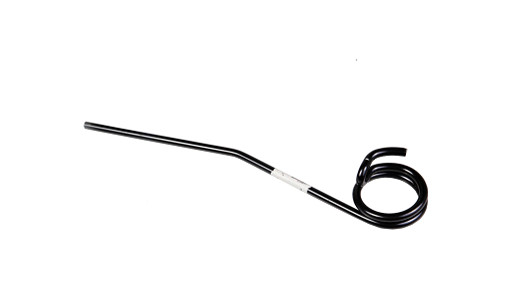

    FINGER Coiled, 1 Prong, 321mm L; Single, Steel Fingered Reels;9 Bat Reel,25.0 Foot Header
  • 9
    9
    87561021
    FINGER Coiled, 1 Prong, 321mm L; Single, Steel Fingered Reels;6 Bat Reel,25.0, 30.0, And 35.0 Foot Header
  • 9
    3
    87561021
    FINGER Coiled, 1 Prong, 321mm L; Single, Steel Fingered Reels;5 And 6 Bat Reel,20.0 Foot Header
  • 9
    6
    87561021
    FINGER Coiled, 1 Prong, 321mm L; Single, Steel Fingered Reels;5 Bat Reel,25.0, 30.0, And 35.0 Foot Header
  • 9
    5
    87561021
    FINGER Coiled, 1 Prong, 321mm L; Single, Steel Fingered Reels;9 Bat Reel,20.0 Foot Header

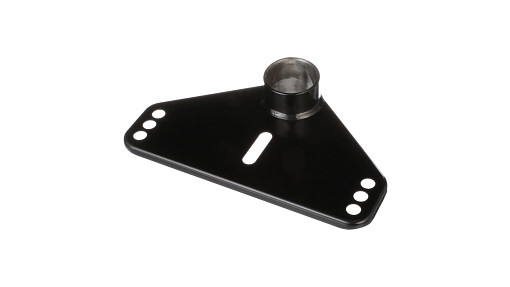

  • 10
    18
    87560460
    ARM; 9 Bat Reel,20.0 Foot Header
  • 10
    18
    87560460
    ARM; 25.0 And 30.0 Foot Header,6 Bat Reel
  • 10
    15
    87560460
    ARM; 5 Bat Reel,25.0 And 30.0 Foot Header
  • 10
    27
    87560460
    ARM; 9 Bat Reel,25.0 Foot Header
  • 10
    24
    87560460
    ARM; 6 Bat Reel,35.0 Foot Header
  • 10
    20
    87560460
    ARM; 5 Bat Reel,35.0 Foot Header
  • 10
    12
    87560460
    ARM; 6 Bat Reel,20.0 Foot Header
  • 10
    10
    87560460
    ARM; 5 Bat Reel,20.0 Foot Header
  • 11
    6
    87560464
    ARM; Tail End;6 Bat Reel
  • 11
    5
    87560464
    ARM; Tail End;5 Bat Reel
  • 11
    9
    87560464
    ARM; Tail End;9 Bat Reel
  • 12
    AR
    84328697

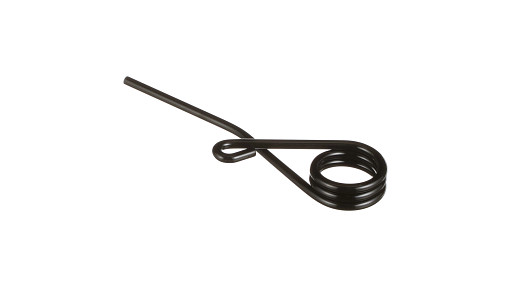

    FINGER Coiled, 1 Prong, 309mm L; Cam End, Right Hand End;2142 - ASN YBZN01301,2152 - ASN YBZN07601,2162 - ASN YBZN14201
  • 12
    5
    87561025

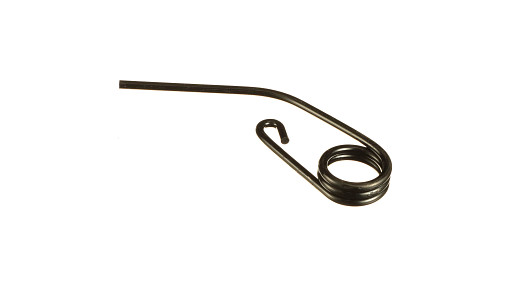

    FINGER Coiled, 1 Prong, 284mm L; Cam End, Right Hand End;5 Bat Reel
  • 12
    6
    87561025
    FINGER Coiled, 1 Prong, 284mm L; Cam End, Right Hand End;6 Bat Reel
  • 12
    9
    87561025
    FINGER Coiled, 1 Prong, 284mm L; Cam End, Right Hand End;9 Bat Reel
  • 13
    9
    87561024
    FINGER; Cam End, Left Hand End;9 Bat Reel
  • 13
    5
    87561024
    FINGER; Cam End, Left Hand End;5 Bat Reel
  • 13
    6
    87561024
    FINGER; Cam End, Left Hand End;6 Bat Reel
  • 14
    6
    87560452
    ARM; Crank;6 Bat Reel
  • 14
    9
    87560452
    ARM; Crank;9 Bat Reel
  • 14
    5
    87560452
    ARM; Crank;5 Bat Reel
  • 15
    6
    87561493

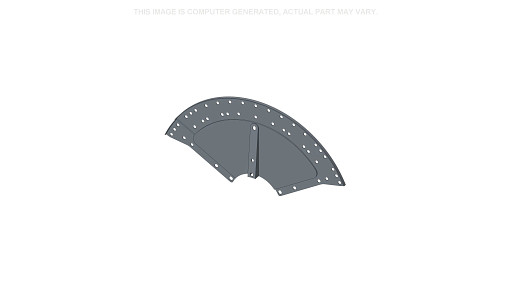

    SECTOR; Cam End;20.0, 25.0 And 30.0 Foot Header
  • 15
    6
    87589356
    CAM; 35.0 Foot Header
  • 16
    6
    87560866
    CHANNEL; Cam Disc
  • 17
    5
    87561586
    STUD; Link;5 Bat Reel
  • 17
    9
    87561586
    STUD; Link;9 Bat Reel
  • 17
    6
    87561586
    STUD; Link;6 Bat Reel

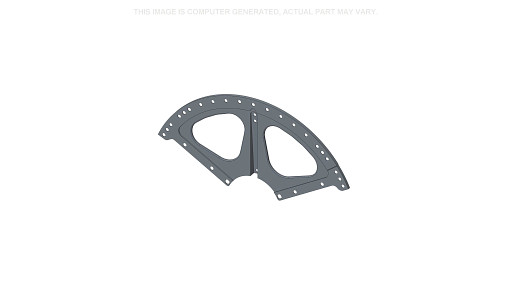

  • 18
    6
    87407586
    SHIELD; Reel Tube Support;20.0, 25.0 And 30.0 Foot Header
  • 18
    6
    87589358
    SECTOR; Reel Tube Support;35.0 Foot Header

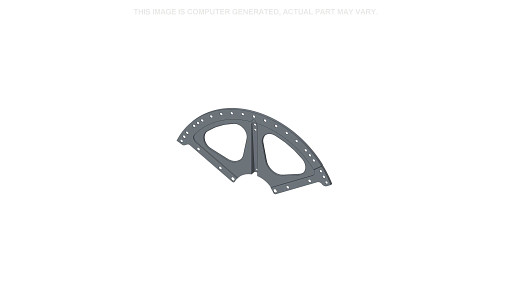

  • 19
    6
    87561502
    SECTOR; Reel Tube Support;20.0, 25.0 And 30.0 Foot Header
  • 19
    6
    87589357

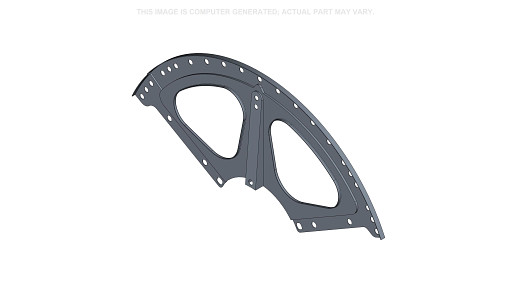

    SECTOR; Reel Tube Support;35.0 Foot Header
  • 20
    9
    87560473
    ARM; Tine Control Assembly, Inc. 21 - 24;9 Bat Reel
  • 20
    5
    87560473
    ARM; Tine Control Assembly, Inc. 21 - 24;5 Bat Reel
  • 20
    6
    87560473
    ARM; Tine Control Assembly, Inc. 21 - 24;6 Bat Reel
  • 21
    9
    87560455
    ARM; Tine Control;9 Bat Reel
  • 21
    6
    87560455
    ARM; Tine Control;6 Bat Reel
  • 21
    5
    87560455
    ARM; Tine Control;5 Bat Reel
  • 22
    27
    87566354
    BALL BEARING 17 mm ID x 40 mm OD x 17.5 mm; 9 Bat Reel
  • 22
    15
    87566354
    BALL BEARING 17 mm ID x 40 mm OD x 17.5 mm; 5 Bat Reel
  • 22
    18
    87566354
    BALL BEARING 17 mm ID x 40 mm OD x 17.5 mm; 6 Bat Reel
  • 23
    5
    344805A1
    BALL BEARING 15.9 mm ID x 50.81 mm OD x 15 mm; Cam Follower;5 Bat Reel
  • 23
    6
    344805A1
    BALL BEARING 15.9 mm ID x 50.81 mm OD x 15 mm; Cam Follower;6 Bat Reel
  • 23
    9
    344805A1
    BALL BEARING 15.9 mm ID x 50.81 mm OD x 15 mm; Cam Follower;9 Bat Reel
  • 24
    6
    300625
    SNAP RING M16, Ext; 6 Bat Reel
  • 24
    5
    300625
    SNAP RING M16, Ext; 5 Bat Reel
  • 24
    9
    300625
    SNAP RING M16, Ext; 9 Bat Reel
  • 25
    9
    87560450
    ARM; Inc. 22 and 26;9 Bat Reel
  • 25
    6
    87560450
    ARM; Inc. 22 and 26;6 Bat Reel
  • 25
    5
    87560450
    ARM; Inc. 22 and 26;5 Bat Reel
  • 26
    5
    87560882
    CLAMP; Arm packed 5 per package;5 Bat Reel
  • 26
    6
    87560882
    CLAMP; Arm packed 5 per package;6 Bat Reel
  • 26
    9
    87560882
    CLAMP; Arm packed 5 per package;9 Bat Reel
  • 27
    5
    370016
    SNAP RING M17, Ext; 5 Bat Reel
  • 27
    6
    370016
    SNAP RING M17, Ext; 6 Bat Reel
  • 27
    9
    370016
    SNAP RING M17, Ext; 9 Bat Reel

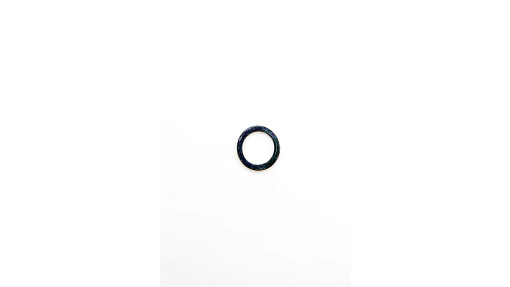

  • 28
    6
    87561535
    SHIM 18mm ID x 25mm OD x 0.91mm Thk; Crank Bearing;6 Bat Reel
  • 28
    9
    87561535
    SHIM 18mm ID x 25mm OD x 0.91mm Thk; Crank Bearing;9 Bat Reel
  • 28
    5
    87561535
    SHIM 18mm ID x 25mm OD x 0.91mm Thk; Crank Bearing;5 Bat Reel
  • 29
    1
    87560479
    REEL TINE; Center, Inc. Decals;20.0 Foot Header
  • 29
    1
    87560485
    REEL TINE; Center, Inc. Decals;35.0 Foot Header
  • 29
    1
    87560482
    REEL TINE; Center, Inc. Decals;30.0 Foot Header
  • 29
    1
    87560480
    REEL TINE; Center, Inc. Decals;25.0 Foot Header
  • 30
    18
    87561229
    PLUG; Tine Tube;9 Bat Reel
  • 30
    12
    87561229
    PLUG; Tine Tube;6 Bat Reel
  • 30
    10
    87561229
    PLUG; Tine Tube;5 Bat Reel
  • 31
    1
    NSS
    NOT SOLD SEPARAT; KIT Endshield;5 Bat Reel,Available Through Whole Goods Only, Order B4816
  • 31
    1
    NSS
    NOT SOLD SEPARAT; KIT Endshield;6 Bat Reel,Available Through Whole Goods Only, Order B4817
  • 31
    1
    NSS
    NOT SOLD SEPARAT; KIT Endshield;9 Bat Reel,Available Through Whole Goods Only, Order B4818
  • 32
    6
    87560984
    SHIELD; Cam End;6 Bat Reel
  • 32
    9
    87560985
    SHIELD; Cam End;9 Bat Reel
  • 32
    5
    87585295
    SHIELD; Cam End;5 Bat Reel
  • 32
    1
    87585295C
    SHIELD SHIELD, END CAM ENDS 5 BAT SEG; Core Return

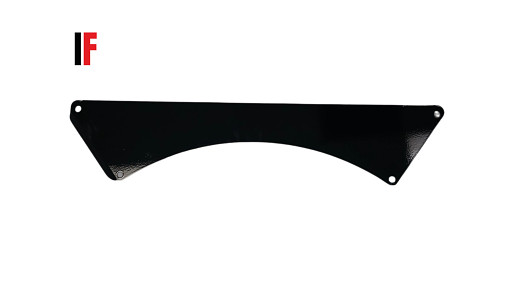

  • 32
    5
    87585295R
    SHIELD SHIELD, END CAM ENDS 5 BAT SEG; Reman Cam End for 87585295
  • 33
    5
    87561597

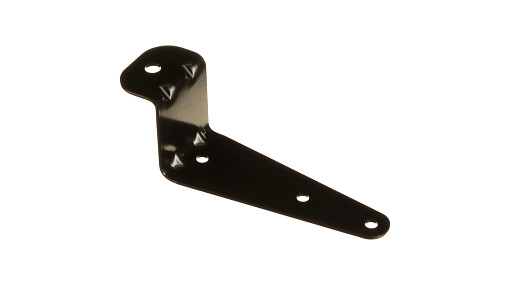

    SUPPORT; Endshield, Cam End;5 Bat Reel
  • 33
    6
    87561597
    SUPPORT; Endshield, Cam End;6 Bat Reel
  • 33
    9
    87561597
    SUPPORT; Endshield, Cam End;9 Bat Reel
  • 34
    6
    87560992
    SHIELD; Tail End;6 Bat Reel
  • 34
    9
    87560993
    SHIELD; Tail End;9 Bat Reel
  • 34
    5
    87585306
    SHIELD; Tail End;5 Bat Reel
  • 34
    5
    87585306R
    SHIELD END, SHIELD TAIL END 5 BAT SEG; Reman Tail End for 87585306
  • 34
    1
    87585306C
    SHIELD END, SHIELD TAIL END 5 BAT SEG; Core Return
  • 35
    5
    87561598
    SUPPORT; Tail End;5 Bat Reel
  • 35
    6
    87561598
    SUPPORT; Tail End;6 Bat Reel
  • 35
    9
    87561598
    SUPPORT; Tail End;9 Bat Reel
  • 36
    1
    84234361
    KIT; Conversion, 6 Bat To 9 Bat, 2152 25 Ft Header
  • -
    87566781
    SOCKET;
  • A
    -

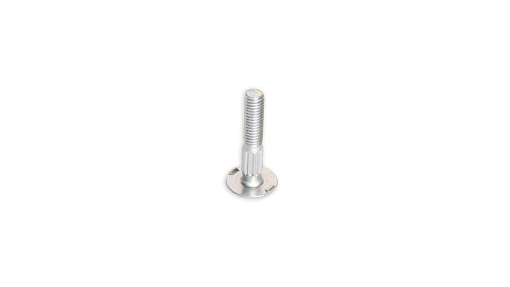

    87566368
    BOLT Wheel, 3/8 - 16 x 2.2244, CST;
  • B
    -
    86521609
    FLANGE NUT Flg, 3/8'' - 16;
  • C
    -
    87566777
    SCREW Torx, 1/4'' - 10 x 2-1/4'';
  • D
    -

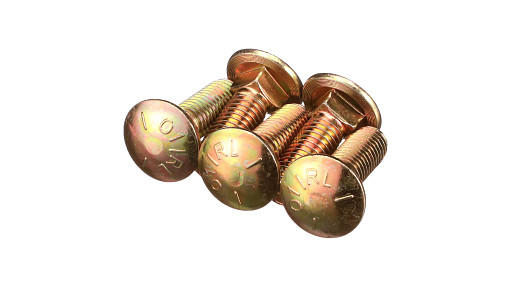

    280420
    CARRIAGE BOLT Sq Nk, 1/2'' - 13 x 1-1/2'', Gr 5, Full Thd;
  • E
    -
    86512178
    SERRATED BOLT Hex Flg, 1/2'' - 13 x 3/4'', Gr 5;
  • F
    -
    86512371
    SERRATED NUT Flg, USR, 1/2''-13;
  • G
    -
    358045A1
    SCREW Torx, Truss HD, 1/2'' - 13 x 3/4'', Gr 5;
  • H
    -
    358046A1

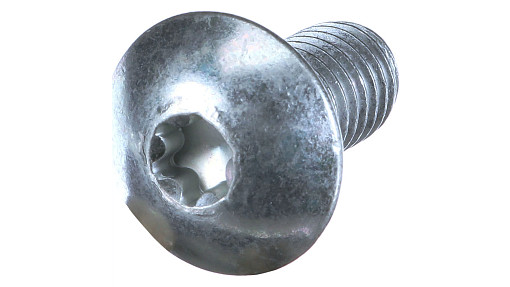

    SCREW Torx, Truss HD, 1/2'' - 13 x 1'', Gr 5;
  • J
    -
    87323841
    FLANGE NUT;
  • K
    -
    496-41053
    WASHER 13.49mm ID x 31.75mm OD x 5.05mm Thk; 5 Bat Reel
  • L
    -
    358048A1
    LOCK BOLT;
  • N
    -
    347305A1
    LOCK BOLT;
  • P
    -
    231-4146
    NUT 3/8''-16, GB;
  • R
    -
    358047A1
    SCREW Torx, Truss HD, 3/8'' - 16 x 1/2'', Gr 5;
  • S
    -
    87016560
    JAM NUT Jam, 3/8''-16, G5;
Select All

Select

Ref.

1

Qty

5

Availability

Part #

87561622

Description

REEL TINE; Finger, Narrow Stagger;9 Bat Reel,20.0 Foot Header


Alts

Select

Ref.

1

Qty

3

Availability

Part #

87561622

Description

REEL TINE; Finger, Narrow Stagger;5 And 6 Bat Reel,20.0 Foot Header


Alts

Select

Ref.

1

Qty

3

Availability

Part #

87561624

Description

REEL TINE; Finger, Narrow Stagger;5 And 6 Bat Reel,25.0 Foot Header


Alts

Select

Ref.

1

Qty

5

Availability

Part #

87561624

Description

REEL TINE; Finger, Narrow Stagger;9 Bat Reel,25.0 Foot Header


Alts

Select

Ref.

1

Qty

3

Availability

Part #

87561626

Description

REEL TINE; Finger, Narrow Stagger;5 And 6 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

1

Qty

3

Availability

Part #

87561630

Description

REEL TINE; Finger, Narrow Stagger;5 And 6 Bat Reel,35.0 Foot Header


Alts

Select

Ref.

2

Qty

174

Availability

Part #

87560996

Description

FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels;6 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

2

Qty

120

Availability

Part #

87560996

Description

FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels;5 Bat Reel,25.0 Foot Header


Alts

Select

Ref.

2

Qty

111

Availability

Part #

87560996

Description

FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels;6 Bat Reel,20.0 Foot Header


Alts

Select

Ref.

2

Qty

170

Availability

Part #

87560996

Description

FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels;35.0 Foot Header,5 Bat Reel


Alts

Select

Ref.

2

Qty

144

Availability

Part #

87560996

Description

FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels;6 Bat Reel,25.0 Foot Header


Alts

Select

Ref.

2

Qty

167

Availability

Part #

87560996

Description

FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels;9 Bat Reel,20.0 Foot Header


Alts

Select

Ref.

2

Qty

204

Availability

Part #

87560996

Description

FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels;6 Bat Reel,35.0 Foot Header


Alts

Select

Ref.

2

Qty

216

Availability

Part #

87560996

Description

FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels;9 Bat Reel,25.0 Foot Header


Alts

Select

Ref.

2

Qty

145

Availability

Part #

87560996

Description

FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels;5 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

2

Qty

93

Availability

Part #

87560996

Description

FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels;5 Bat Reel,20.0 Foot Header


Alts

Select

Ref.

3

Qty

6

Availability

Part #

87561018

Description

FINGER Coiled, 1 Prong, 321mm L; Single, Right Hand, Steel Fingered Reels;6 Bat Reel,20.0 Foot Header


Alts

Select

Ref.

3

Qty

9

Availability

Part #

87561018

Description

FINGER Coiled, 1 Prong, 321mm L; Single, Right Hand, Steel Fingered Reels;9 Bat Reel,20.0 Foot Header


Alts

Select

Ref.

3

Qty

5

Availability

Part #

87561018

Description

FINGER Coiled, 1 Prong, 321mm L; Single, Right Hand, Steel Fingered Reels;5 Bat Reel,20.0 Foot Header


Alts

Select

Ref.

3

Qty

3

Availability

Part #

87561018

Description

FINGER Coiled, 1 Prong, 321mm L; Single, Right Hand, Steel Fingered Reels;5 And 6 Bat Reel,35.0 Foot Header


Alts

Select

Ref.

4

Qty

AR

Availability

Part #

84328701

Description

FINGER Coiled, 1 Prong, 313mm L; Single, Tail End, Left Hand;2142 - ASN YBZN01301,2152 - ASN YBZN07601,2162 - ASN YBZN14201


Alts

Select

Ref.

4

Qty

9

Availability

Part #

87561022

Description

FINGER Coiled, 1 Prong, 282mm L; Single, Tail End, Left Hand;9 Bat Reel,20.0 And 25.0 Foot Header


Alts

Select

Ref.

4

Qty

5

Availability

Part #

87561022

Description

FINGER Coiled, 1 Prong, 282mm L; Single, Tail End, Left Hand;5 Bat Reel,20.0, 25.0, 30.0, And 35.0 Foot Headers


Alts

Select

Ref.

4

Qty

6

Availability

Part #

87561022

Description

FINGER Coiled, 1 Prong, 282mm L; Single, Tail End, Left Hand;20.0, 25.0, 30.0, And 35.0 Foot Headers,6 Bat Reel


Alts

Select

Ref.

5

Qty

1

Availability

Part #

84331097

Description

KIT; Plastic, Heavy Duty (Includes 100 of 87561020)


Alts

Select

Ref.

5

Qty

1

Availability

Part #

84331098

Description

SET OF PARTS; Finger,Plastic, Heavy Duty (Includes 10 of 87561020)


Alts

Select

Ref.

5

Qty

296

Availability

Part #

87561020

Description

FINGER; Plastic;5 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

5

Qty

249

Availability

Part #

87561020

Description

FINGER; Plastic;5 Bat Reel,25.0 Foot Header


Alts

Select

Ref.

5

Qty

402

Availability

Part #

87561020

Description

FINGER; Plastic;6 Bat Reel,35.0 Foot Header


Alts

Select

Ref.

5

Qty

447

Availability

Part #

87561020

Description

FINGER; Plastic;9 Bat Reel,25.0 Foot Header


Alts

Select

Ref.

5

Qty

219

Availability

Part #

87561020

Description

FINGER; Plastic;6 Bat Reel,20.0 Foot Header


Alts

Select

Ref.

5

Qty

333

Availability

Part #

87561020

Description

FINGER; Plastic;5 Bat Reel,35.0 Foot Header


Alts

Select

Ref.

5

Qty

329

Availability

Part #

87561020

Description

FINGER; Plastic;9 Bat Reel,20.0 Foot Header


Alts

Select

Ref.

5

Qty

183

Availability

Part #

87561020

Description

FINGER; Plastic;5 Bat Reel,20.0 Foot Header


Alts

Select

Ref.

5

Qty

297

Availability

Part #

87561020

Description

FINGER; Plastic;25.0 Foot Header,6 Bat Reel


Alts

Select

Ref.

5

Qty

354

Availability

Part #

87561020

Description

FINGER; Plastic;6 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

6

Qty

3

Availability

Part #

87561623

Description

TINE BAR; Finger, Wide Stagger;6 Bat Reel,20.0 Foot Header


Alts

Select

Ref.

6

Qty

4

Availability

Part #

87561623

Description

TINE BAR; Finger, Wide Stagger;9 Bat Reel,20.0 Foot Header


Alts

Select

Ref.

6

Qty

2

Availability

Part #

87561625

Description

REEL TINE; Finger, Wide Stagger;5 Bat Reel,25.0 Foot Header


Alts

Select

Ref.

6

Qty

2

Availability

Part #

87561623

Description

TINE BAR; Finger, Wide Stagger;5 Bat Reel,20.0 Foot Header


Alts

Select

Ref.

6

Qty

3

Availability

Part #

87561625

Description

REEL TINE; Finger, Wide Stagger;6 Bat Reel,25.0 Foot Header


Alts

Select

Ref.

6

Qty

4

Availability

Part #

87561625

Description

REEL TINE; Finger, Wide Stagger;9 Bat Reel,25.0 Foot Header


Alts

Select

Ref.

6

Qty

3

Availability

Part #

87561627

Description

REEL TINE; Finger, Wide Stagger;6 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

6

Qty

3

Availability

Part #

87561631

Description

REEL TINE; Finger, Wide Stagger;6 Bat Reel,35.0 Foot Header


Alts

Select

Ref.

6

Qty

2

Availability

Part #

87561627

Description

REEL TINE; Finger, Wide Stagger;5 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

6

Qty

2

Availability

Part #

87561631

Description

REEL TINE; Finger, Wide Stagger;5 Bat Reel,35.0 Foot Header


Alts

Select

Ref.

7

Qty

6

Availability

Part #

87560462

Description

ARM; Cam End;6 Bat Reel


Alts

Select

Ref.

7

Qty

5

Availability

Part #

87560462

Description

ARM; Cam End;5 Bat Reel


Alts

Select

Ref.

7

Qty

9

Availability

Part #

87560462

Description

ARM; Cam End;9 Bat Reel


Alts

Select

Ref.

8

Qty

90

Availability

Part #

47548631

Description

BUSHING; Finger Tube;9 Bat Reel


Alts

Select

Ref.

8

Qty

50

Availability

Part #

47548631

Description

BUSHING; Finger Tube;5 Bat Reel, Sub To Part Is Box Of 25


Alts

Select

Ref.

8

Qty

60

Availability

Part #

47548631

Description

BUSHING; Finger Tube;6 Bat Reel


Alts

Select

Ref.

9

Qty

12

Availability

Part #

87561021

Description

FINGER Coiled, 1 Prong, 321mm L; Single, Steel Fingered Reels;9 Bat Reel,25.0 Foot Header


Alts

Select

Ref.

9

Qty

9

Availability

Part #

87561021

Description

FINGER Coiled, 1 Prong, 321mm L; Single, Steel Fingered Reels;6 Bat Reel,25.0, 30.0, And 35.0 Foot Header


Alts

Select

Ref.

9

Qty

3

Availability

Part #

87561021

Description

FINGER Coiled, 1 Prong, 321mm L; Single, Steel Fingered Reels;5 And 6 Bat Reel,20.0 Foot Header


Alts

Select

Ref.

9

Qty

6

Availability

Part #

87561021

Description

FINGER Coiled, 1 Prong, 321mm L; Single, Steel Fingered Reels;5 Bat Reel,25.0, 30.0, And 35.0 Foot Header


Alts

Select

Ref.

9

Qty

5

Availability

Part #

87561021

Description

FINGER Coiled, 1 Prong, 321mm L; Single, Steel Fingered Reels;9 Bat Reel,20.0 Foot Header


Alts

Select

Ref.

10

Qty

18

Availability

Part #

87560460

Description

ARM; 9 Bat Reel,20.0 Foot Header


Alts

Select

Ref.

10

Qty

18

Availability

Part #

87560460

Description

ARM; 25.0 And 30.0 Foot Header,6 Bat Reel


Alts

Select

Ref.

10

Qty

15

Availability

Part #

87560460

Description

ARM; 5 Bat Reel,25.0 And 30.0 Foot Header


Alts

Select

Ref.

10

Qty

27

Availability

Part #

87560460

Description

ARM; 9 Bat Reel,25.0 Foot Header


Alts

Select

Ref.

10

Qty

24

Availability

Part #

87560460

Description

ARM; 6 Bat Reel,35.0 Foot Header


Alts

Select

Ref.

10

Qty

20

Availability

Part #

87560460

Description

ARM; 5 Bat Reel,35.0 Foot Header


Alts

Select

Ref.

10

Qty

12

Availability

Part #

87560460

Description

ARM; 6 Bat Reel,20.0 Foot Header


Alts

Select

Ref.

10

Qty

10

Availability

Part #

87560460

Description

ARM; 5 Bat Reel,20.0 Foot Header


Alts

Select

Ref.

11

Qty

6

Availability

Part #

87560464

Description

ARM; Tail End;6 Bat Reel


Alts

Select

Ref.

11

Qty

5

Availability

Part #

87560464

Description

ARM; Tail End;5 Bat Reel


Alts

Select

Ref.

11

Qty

9

Availability

Part #

87560464

Description

ARM; Tail End;9 Bat Reel


Alts

Select

Ref.

12

Qty

AR

Availability

Part #

84328697

Description

FINGER Coiled, 1 Prong, 309mm L; Cam End, Right Hand End;2142 - ASN YBZN01301,2152 - ASN YBZN07601,2162 - ASN YBZN14201


Alts

Select

Ref.

12

Qty

5

Availability

Part #

87561025

Description

FINGER Coiled, 1 Prong, 284mm L; Cam End, Right Hand End;5 Bat Reel


Alts

Select

Ref.

12

Qty

6

Availability

Part #

87561025

Description

FINGER Coiled, 1 Prong, 284mm L; Cam End, Right Hand End;6 Bat Reel


Alts

Select

Ref.

12

Qty

9

Availability

Part #

87561025

Description

FINGER Coiled, 1 Prong, 284mm L; Cam End, Right Hand End;9 Bat Reel


Alts

Select

Ref.

13

Qty

9

Availability

Part #

87561024

Description

FINGER; Cam End, Left Hand End;9 Bat Reel


Alts

Select

Ref.

13

Qty

5

Availability

Part #

87561024

Description

FINGER; Cam End, Left Hand End;5 Bat Reel


Alts

Select

Ref.

13

Qty

6

Availability

Part #

87561024

Description

FINGER; Cam End, Left Hand End;6 Bat Reel


Alts

Select

Ref.

14

Qty

6

Availability

Part #

87560452

Description

ARM; Crank;6 Bat Reel


Alts

Select

Ref.

14

Qty

9

Availability

Part #

87560452

Description

ARM; Crank;9 Bat Reel


Alts

Select

Ref.

14

Qty

5

Availability

Part #

87560452

Description

ARM; Crank;5 Bat Reel


Alts

Select

Ref.

15

Qty

6

Availability

Part #

87561493

Description

SECTOR; Cam End;20.0, 25.0 And 30.0 Foot Header


Alts

Select

Ref.

15

Qty

6

Availability

Part #

87589356

Description

CAM; 35.0 Foot Header


Alts

Select

Ref.

16

Qty

6

Availability

Part #

87560866

Description

CHANNEL; Cam Disc


Alts

Select

Ref.

17

Qty

5

Availability

Part #

87561586

Description

STUD; Link;5 Bat Reel


Alts

Select

Ref.

17

Qty

9

Availability

Part #

87561586

Description

STUD; Link;9 Bat Reel


Alts

Select

Ref.

17

Qty

6

Availability

Part #

87561586

Description

STUD; Link;6 Bat Reel


Alts

Select

Ref.

18

Qty

6

Availability

Part #

87407586

Description

SHIELD; Reel Tube Support;20.0, 25.0 And 30.0 Foot Header


Alts

Select

Ref.

18

Qty

6

Availability

Part #

87589358

Description

SECTOR; Reel Tube Support;35.0 Foot Header


Alts

Select

Ref.

19

Qty

6

Availability

Part #

87561502

Description

SECTOR; Reel Tube Support;20.0, 25.0 And 30.0 Foot Header


Alts

Select

Ref.

19

Qty

6

Availability

Part #

87589357

Description

SECTOR; Reel Tube Support;35.0 Foot Header


Alts

Select

Ref.

20

Qty

9

Availability

Part #

87560473

Description

ARM; Tine Control Assembly, Inc. 21 - 24;9 Bat Reel


Alts

Select

Ref.

20

Qty

5

Availability

Part #

87560473

Description

ARM; Tine Control Assembly, Inc. 21 - 24;5 Bat Reel


Alts

Select

Ref.

20

Qty

6

Availability

Part #

87560473

Description

ARM; Tine Control Assembly, Inc. 21 - 24;6 Bat Reel


Alts

Select

Ref.

21

Qty

9

Availability

Part #

87560455

Description

ARM; Tine Control;9 Bat Reel


Alts

Select

Ref.

21

Qty

6

Availability

Part #

87560455

Description

ARM; Tine Control;6 Bat Reel


Alts

Select

Ref.

21

Qty

5

Availability

Part #

87560455

Description

ARM; Tine Control;5 Bat Reel


Alts

Select

Ref.

22

Qty

27

Availability

Part #

87566354

Description

BALL BEARING 17 mm ID x 40 mm OD x 17.5 mm; 9 Bat Reel


Alts

Select

Ref.

22

Qty

15

Availability

Part #

87566354

Description

BALL BEARING 17 mm ID x 40 mm OD x 17.5 mm; 5 Bat Reel


Alts

Select

Ref.

22

Qty

18

Availability

Part #

87566354

Description

BALL BEARING 17 mm ID x 40 mm OD x 17.5 mm; 6 Bat Reel


Alts

Select

Ref.

23

Qty

5

Availability

Part #

344805A1

Description

BALL BEARING 15.9 mm ID x 50.81 mm OD x 15 mm; Cam Follower;5 Bat Reel


Alts

Select

Ref.

23

Qty

6

Availability

Part #

344805A1

Description

BALL BEARING 15.9 mm ID x 50.81 mm OD x 15 mm; Cam Follower;6 Bat Reel


Alts

Select

Ref.

23

Qty

9

Availability

Part #

344805A1

Description

BALL BEARING 15.9 mm ID x 50.81 mm OD x 15 mm; Cam Follower;9 Bat Reel


Alts

Select

Ref.

24

Qty

6

Availability

Part #

300625

Description

SNAP RING M16, Ext; 6 Bat Reel


Alts

Select

Ref.

24

Qty

5

Availability

Part #

300625

Description

SNAP RING M16, Ext; 5 Bat Reel


Alts

Select

Ref.

24

Qty

9

Availability

Part #

300625

Description

SNAP RING M16, Ext; 9 Bat Reel


Alts

Select

Ref.

25

Qty

9

Availability

Part #

87560450

Description

ARM; Inc. 22 and 26;9 Bat Reel


Alts

Select

Ref.

25

Qty

6

Availability

Part #

87560450

Description

ARM; Inc. 22 and 26;6 Bat Reel


Alts

Select

Ref.

25

Qty

5

Availability

Part #

87560450

Description

ARM; Inc. 22 and 26;5 Bat Reel


Alts

Select

Ref.

26

Qty

5

Availability

Part #

87560882

Description

CLAMP; Arm packed 5 per package;5 Bat Reel


Alts

Select

Ref.

26

Qty

6

Availability

Part #

87560882

Description

CLAMP; Arm packed 5 per package;6 Bat Reel


Alts

Select

Ref.

26

Qty

9

Availability

Part #

87560882

Description

CLAMP; Arm packed 5 per package;9 Bat Reel


Alts

Select

Ref.

27

Qty

5

Availability

Part #

370016

Description

SNAP RING M17, Ext; 5 Bat Reel


Alts

Select

Ref.

27

Qty

6

Availability

Part #

370016

Description

SNAP RING M17, Ext; 6 Bat Reel


Alts

Select

Ref.

27

Qty

9

Availability

Part #

370016

Description

SNAP RING M17, Ext; 9 Bat Reel


Alts

Select

Ref.

28

Qty

6

Availability

Part #

87561535

Description

SHIM 18mm ID x 25mm OD x 0.91mm Thk; Crank Bearing;6 Bat Reel


Alts

Select

Ref.

28

Qty

9

Availability

Part #

87561535

Description

SHIM 18mm ID x 25mm OD x 0.91mm Thk; Crank Bearing;9 Bat Reel


Alts

Select

Ref.

28

Qty

5

Availability

Part #

87561535

Description

SHIM 18mm ID x 25mm OD x 0.91mm Thk; Crank Bearing;5 Bat Reel


Alts

Select

Ref.

29

Qty

1

Availability

Part #

87560479

Description

REEL TINE; Center, Inc. Decals;20.0 Foot Header


Alts

Select

Ref.

29

Qty

1

Availability

Part #

87560485

Description

REEL TINE; Center, Inc. Decals;35.0 Foot Header


Alts

Select

Ref.

29

Qty

1

Availability

Part #

87560482

Description

REEL TINE; Center, Inc. Decals;30.0 Foot Header


Alts

Select

Ref.

29

Qty

1

Availability

Part #

87560480

Description

REEL TINE; Center, Inc. Decals;25.0 Foot Header


Alts

Select

Ref.

30

Qty

18

Availability

Part #

87561229

Description

PLUG; Tine Tube;9 Bat Reel


Alts

Select

Ref.

30

Qty

12

Availability

Part #

87561229

Description

PLUG; Tine Tube;6 Bat Reel


Alts

Select

Ref.

30

Qty

10

Availability

Part #

87561229

Description

PLUG; Tine Tube;5 Bat Reel


Alts

Select

Ref.

31

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; KIT Endshield;5 Bat Reel,Available Through Whole Goods Only, Order B4816


Alts

Select

Ref.

31

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; KIT Endshield;6 Bat Reel,Available Through Whole Goods Only, Order B4817


Alts

Select

Ref.

31

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; KIT Endshield;9 Bat Reel,Available Through Whole Goods Only, Order B4818


Alts

Select

Ref.

32

Qty

6

Availability

Part #

87560984

Description

SHIELD; Cam End;6 Bat Reel


Alts

Select

Ref.

32

Qty

9

Availability

Part #

87560985

Description

SHIELD; Cam End;9 Bat Reel


Alts

Select

Ref.

32

Qty

5

Availability

Part #

87585295

Description

SHIELD; Cam End;5 Bat Reel


Alts

Select

Ref.

32

Qty

1

Availability

Part #

87585295C

Description

SHIELD SHIELD, END CAM ENDS 5 BAT SEG; Core Return


Alts

Select

Ref.

32

Qty

5

Availability

Part #

87585295R

Description

SHIELD SHIELD, END CAM ENDS 5 BAT SEG; Reman Cam End for 87585295


Alts

Select

Ref.

33

Qty

5

Availability

Part #

87561597

Description

SUPPORT; Endshield, Cam End;5 Bat Reel


Alts

Select

Ref.

33

Qty

6

Availability

Part #

87561597

Description

SUPPORT; Endshield, Cam End;6 Bat Reel


Alts

Select

Ref.

33

Qty

9

Availability

Part #

87561597

Description

SUPPORT; Endshield, Cam End;9 Bat Reel


Alts

Select

Ref.

34

Qty

6

Availability

Part #

87560992

Description

SHIELD; Tail End;6 Bat Reel


Alts

Select

Ref.

34

Qty

9

Availability

Part #

87560993

Description

SHIELD; Tail End;9 Bat Reel


Alts

Select

Ref.

34

Qty

5

Availability

Part #

87585306

Description

SHIELD; Tail End;5 Bat Reel


Alts

Select

Ref.

34

Qty

5

Availability

Part #

87585306R

Description

SHIELD END, SHIELD TAIL END 5 BAT SEG; Reman Tail End for 87585306


Alts

Select

Ref.

34

Qty

1

Availability

Part #

87585306C

Description

SHIELD END, SHIELD TAIL END 5 BAT SEG; Core Return


Alts

Select

Ref.

35

Qty

5

Availability

Part #

87561598

Description

SUPPORT; Tail End;5 Bat Reel


Alts

Select

Ref.

35

Qty

6

Availability

Part #

87561598

Description

SUPPORT; Tail End;6 Bat Reel


Alts

Select

Ref.

35

Qty

9

Availability

Part #

87561598

Description

SUPPORT; Tail End;9 Bat Reel


Alts

Select

Ref.

36

Qty

1

Availability

Part #

84234361

Description

KIT; Conversion, 6 Bat To 9 Bat, 2152 25 Ft Header


Alts

Select

Ref.

Qty

-

Availability

Part #

87566781

Description

SOCKET;


Alts

Select

Ref.

A

Qty

-

Availability

Part #

87566368

Description

BOLT Wheel, 3/8 - 16 x 2.2244, CST;


Alts

Select

Ref.

B

Qty

-

Availability

Part #

86521609

Description

FLANGE NUT Flg, 3/8'' - 16;


Alts

Select

Ref.

C

Qty

-

Availability

Part #

87566777

Description

SCREW Torx, 1/4'' - 10 x 2-1/4'';


Alts

Select

Ref.

D

Qty

-

Availability

Part #

280420

Description

CARRIAGE BOLT Sq Nk, 1/2'' - 13 x 1-1/2'', Gr 5, Full Thd;


Alts

Select

Ref.

E

Qty

-

Availability

Part #

86512178

Description

SERRATED BOLT Hex Flg, 1/2'' - 13 x 3/4'', Gr 5;


Alts

Select

Ref.

F

Qty

-

Availability

Part #

86512371

Description

SERRATED NUT Flg, USR, 1/2''-13;


Alts

Select

Ref.

G

Qty

-

Availability

Part #

358045A1

Description

SCREW Torx, Truss HD, 1/2'' - 13 x 3/4'', Gr 5;


Alts

Select

Ref.

H

Qty

-

Availability

Part #

358046A1

Description

SCREW Torx, Truss HD, 1/2'' - 13 x 1'', Gr 5;


Alts

Select

Ref.

J

Qty

-

Availability

Part #

87323841

Description

FLANGE NUT;


Alts

Select

Ref.

K

Qty

-

Availability

Part #

496-41053

Description

WASHER 13.49mm ID x 31.75mm OD x 5.05mm Thk; 5 Bat Reel


Alts

Select

Ref.

L

Qty

-

Availability

Part #

358048A1

Description

LOCK BOLT;


Alts

Select

Ref.

N

Qty

-

Availability

Part #

347305A1

Description

LOCK BOLT;


Alts

Select

Ref.

P

Qty

-

Availability

Part #

231-4146

Description

NUT 3/8''-16, GB;


Alts

Select

Ref.

R

Qty

-

Availability

Part #

358047A1

Description

SCREW Torx, Truss HD, 3/8'' - 16 x 1/2'', Gr 5;


Alts

Select

Ref.

S

Qty

-

Availability

Part #

87016560

Description

JAM NUT Jam, 3/8''-16, G5;


Alts
