Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11MOTOR, HYDRAULIC; Inc. 126-124
-
1WOODRUFF KEY #15, 1/4'' x 1'', HT;
-
XSEAL KIT; Hydraulic Motor, Replaces 338359A1
-
22HYD CONNECTOR 7/8''-14, 37 Degree x 7/8''-14, O-Ring;
-
2O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro;
-
33CLAMP; Hose
-
42HOSE; Reel Drive, To Motor, 2900 mm (114-3/16 in)
-
52HOSE; Reel Drive, To Left Side Of Opening, 4450 mm (175-3/16 in)
-
121LIFT CYLINDER Double Acting, 28.56mm Rod, 254mm Stroke; For Units BSN CCC0014710 Also Order 87458799
-

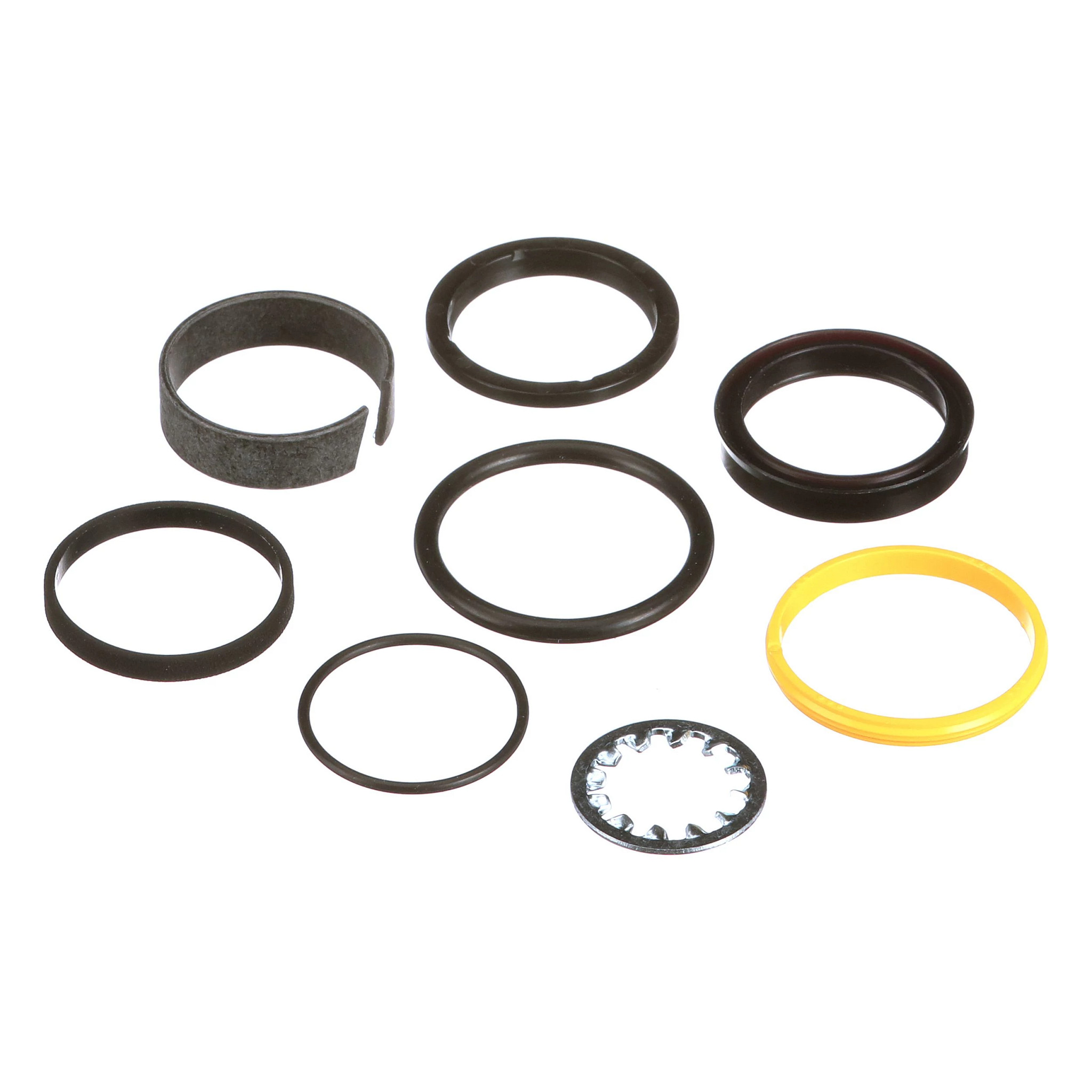

1SEAL KIT; Cylinder
-
131HYDRAULIC CYLINDER 25.4mm Rod, 250mm Stroke; Reel Lift
-
1SEAL KIT; Seal
-
151HOSE; Reel Lift, Pressure To Left Cylinder 3820 mm (150-3/8 in)
-

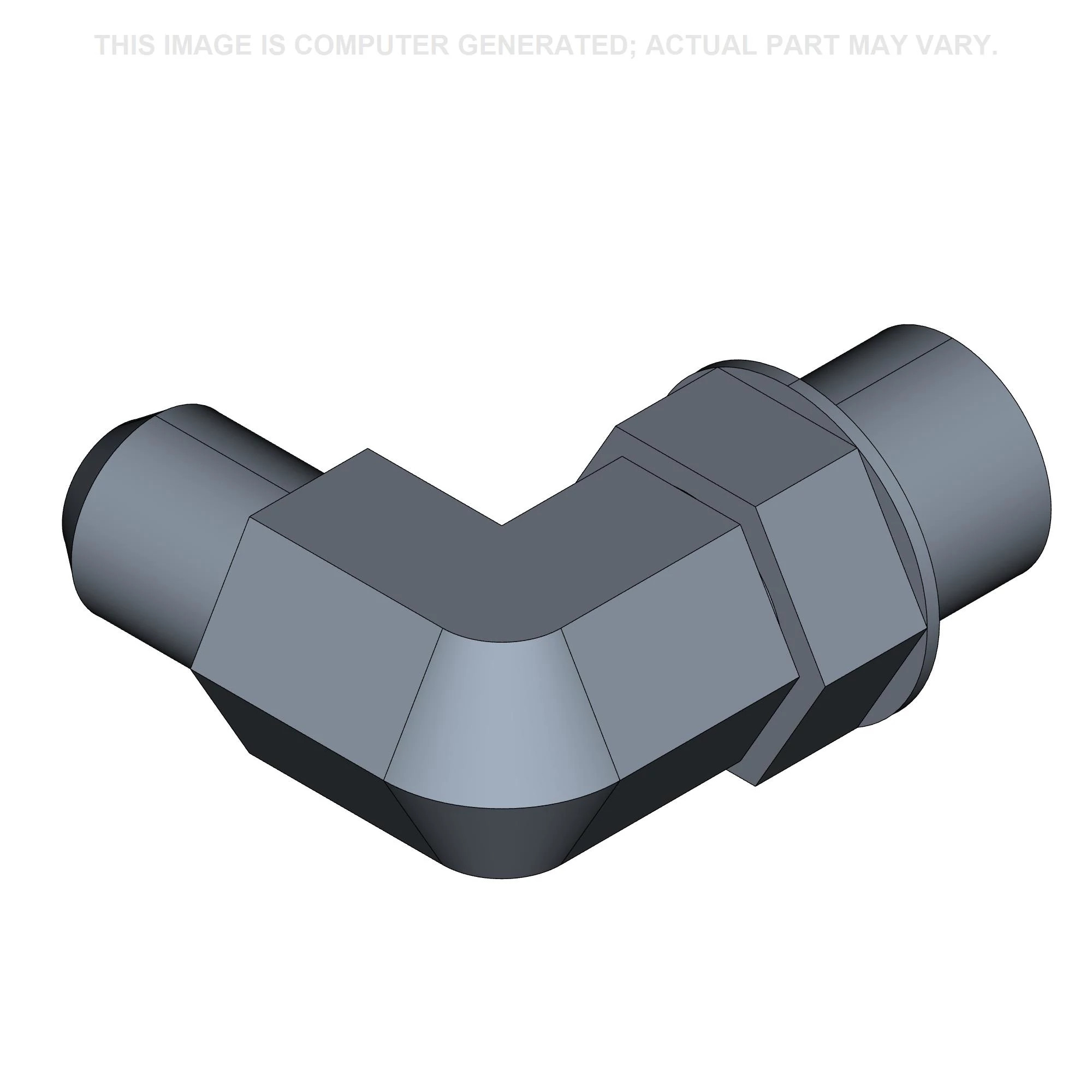

173ELBOW 90 Degree Elbow, 9/16'' - 18 Male JIC x 9/16'' - 18 Male ORB; (SN Break) Up to CCC0014710
-
3O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro;
-
171ELBOW 90 Degree Elbow, 9/16'' - 18 Male JIC x 9/16'' - 18 Male ORB; (SN Break) From CCC0014710
-
1O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro;
-
182LOOM;
-
222HOSE; From Double Acting and To Single Acting,1600 mm (63 in)
-
231HYD TUBE 9.52 mm OD; Hydraulic, Reel Lift
-
261RESTRICTOR; Flow;Install In Top Port Of Ref 12 To Slow Reel Lift And Drop Rate
-
271BAR; Support
-
282SUPPORT; Hose
-
291HOSE CLAMP 1'', Insul, 3/8'' Bolt; Insulated
-
302ELBOW; (SN Break) From CCC0014710
-
-O-RING 0.087'' Thk x 0.644'' ID, -908, Cl 6, 90 Duro;
-
B-FLANGE NUT Flg, 3/8''-16;
-
C-CARRIAGE BOLT Sht Sq Nk, 3/8'' - 16 x 1'', Gr 5, Full Thd;
-
D-SELF-TAP SCREW Hex Wash Hd, 3/8''-16 x 5/8'';
-
E-CARRIAGE BOLT Sq Nk, 3/8'' - 16 x 1 1/2'', Gr 5;
Select All
Ref.
Qty
XAvailability
Part #
429255A1Description
SEAL KIT; Hydraulic Motor, Replaces 338359A1Img
Alts
Ref.
2Qty
2Availability
Part #
218-5062Description
HYD CONNECTOR 7/8''-14, 37 Degree x 7/8''-14, O-Ring;Img
Alts
Ref.
Qty
2Availability
Part #
237-6010Description
O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro;Img
Alts
Ref.
4Qty
2Availability
Part #
345964A1Description
HOSE; Reel Drive, To Motor, 2900 mm (114-3/16 in)Img
Alts
Ref.
5Qty
2Availability
Part #
87458789Description
HOSE; Reel Drive, To Left Side Of Opening, 4450 mm (175-3/16 in)Img
Alts
Ref.
12Qty
1Availability
Part #
87458795Description
LIFT CYLINDER Double Acting, 28.56mm Rod, 254mm Stroke; For Units BSN CCC0014710 Also Order 87458799Img
Alts
Ref.
13Qty
1Availability
Part #
1337004C1Description
HYDRAULIC CYLINDER 25.4mm Rod, 250mm Stroke; Reel LiftImg
Alts
Ref.
15Qty
1Availability
Part #
87408945Description
HOSE; Reel Lift, Pressure To Left Cylinder 3820 mm (150-3/8 in)Img
Alts
Ref.
17Qty
3Availability
Part #
218-5105Description
ELBOW 90 Degree Elbow, 9/16'' - 18 Male JIC x 9/16'' - 18 Male ORB; (SN Break) Up to CCC0014710Img
Alts
Ref.
Qty
3Availability
Part #
237-6006Description
O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro;Img
Alts
Ref.
17Qty
1Availability
Part #
218-5105Description
ELBOW 90 Degree Elbow, 9/16'' - 18 Male JIC x 9/16'' - 18 Male ORB; (SN Break) From CCC0014710Img
Alts
Ref.
Qty
1Availability
Part #
237-6006Description
O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro;Img
Alts
Ref.
22Qty
2Availability
Part #
345993A1Description
HOSE; From Double Acting and To Single Acting,1600 mm (63 in)Img
Alts
Ref.
23Qty
1Availability
Part #
345997A1Description
HYD TUBE 9.52 mm OD; Hydraulic, Reel LiftImg
Alts
Ref.
26Qty
1Availability
Part #
826031C1Description
RESTRICTOR; Flow;Install In Top Port Of Ref 12 To Slow Reel Lift And Drop RateImg
Alts
Ref.
29Qty
1Availability
Part #
470375C1Description
HOSE CLAMP 1'', Insul, 3/8'' Bolt; InsulatedImg
Alts
Ref.
Qty
-Availability
Part #
237-6008Description
O-RING 0.087'' Thk x 0.644'' ID, -908, Cl 6, 90 Duro;Img
Alts
Ref.
CQty
-Availability
Part #
80280503Description
CARRIAGE BOLT Sht Sq Nk, 3/8'' - 16 x 1'', Gr 5, Full Thd;Img
Alts
Ref.
DQty
-Availability
Part #
281-54910Description
SELF-TAP SCREW Hex Wash Hd, 3/8''-16 x 5/8'';Img
Alts
Ref.
EQty
-Availability
Part #
433-624Description
CARRIAGE BOLT Sq Nk, 3/8'' - 16 x 1 1/2'', Gr 5;Img
Alts
