TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11BUSHING; PTO FLYWHEEL
-
21REMAN-CLUTCH DISC; PTO DRIVE, INCLUDES BOLTS
-
21CORE-CLUTCH PLATE; PTO DRIVE, INCLUDES BOLTS
-
21PLATE 354.33mm OD; PTO DRIVE, INCLUDES BOLTS
-
6BOLT Hex, 1/2'' - 13 x 1'', Gr 8; BOLT, 1/2 X 1 PHC P/T TYPE 8
-
36WASHER; PTO DRIVE PLATE
-
41SEAL; PTO DRIVE SHAFT
-
5-HOUSING; ENGINE PTO, WITH 6, INCLUDES NUTS, WASHERS AND BOLTS
-
4NUT M16, Cl 8; M16, Cl 8
-
2WASHER; .531 X 1.062 X .134 HDN
-
4WASHER; .656 X 2.000 X .164
-
2BOLT Hex, 1/2'' - 13 x 1 3/4'', Gr 5; 1/2 X 1-3/4 TYPE 5
-
4BOLT Hex, M16 x 2 x 130mm, Cl 8.8; M16 X 130 CLASS 8.8
-
61TUBE 25.4 mm OD, 127 mm Length; ENGINE PTO HOUSING OIL CAGE
-
71DIPSTICK; GAGE ASSY, ENGINE PTO HOUSING OIL, WITH 8
-
82O-RING 0.139'' Thk x 0.734'' ID, -210, Cl 5, 75 Duro; .734 X 1.012 X .139
-
91COVER; BAR, PTO HOUSING, INCLUDES BOLTS AND WASHERS
-
4BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5, Full Thd;
-
4LOCK WASHER Helical Spring, 3/8'';
-
101GASKET; PTO HOUSING COVER
-
111SNAP RING #200, Ext; PTO drive shaft
-
121GEAR-SET; SEPARATOR DRIVE 44T, 27T MATCHED SET
-
131SNAP RING 4.78'', Int, #475; PTO drive shaft brg hub 4.78'', Int, #475
-
141BEARING, BALL; PTO SHAFT HUB
-
151O-RING 0.139'' Thk x 6.48'' ID, -260, Cl 8, 90 Duro; 6-1/2 X 6-3/4 X 1/8 CLASS 8
-
161OIL SEAL 64.26mm ID x 92.15mm OD x 11mm Thk; PTO SHAFT HOUSING
-
171SHIM KIT; SHIM, PTO DRIVE SHAFT HOUSING
-
181FLANGE 92.02 mm ID x 241.249 mm OD x 54.61 mm; PTO DRIVE SHAFT BEARING, INCLUDES BOLTS
-
4BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 8; 3/8 X 1-1/4 TYPE 8
-
191SHAFT; PTO DRIVE
-
201WOODRUFF KEY #128, 5/16'' x 2 1/8'', HT; 5/16 X 2-1/8 WOODRUFF
-
221COVER; HYDROSTATIC PUMP, INCLUDES BOLTS
-
3BOLT Hex, 1/2'' - 13 x 1 1/4'', Gr 5; 1/2 X 1-1/4 TYPE 5
-
2BOLT Hex, 1/2'' - 13 x 1 3/4'', Gr 5; 1/2 X 1-3/4 TYPE 5
-
231SENSOR; CONVERTER, RELUCTANCE PICKUP, INCLUDES NUT
-
1NUT Stamped, 3/4''-16; 3/14 ZN STAMPED
-
241SHIM KIT; SHIM, SEPARATOR DRIVE HOUSING
-
251HOUSING; ASSY, SEPARATOR DRIVE, WITH 26, INCLUDES BOLTS
-
ARBOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 8; 3/8 X 1-1/4 TYPE 8
-
261PIN 25.29mm OD x 101.6mm L; SEPARATOR DRIVE HOUSING, INCLUDES PIN AND WASHERS
-
4WASHER; 26 X 44 X 1.5 MM
-
272PLUG; SEPARATOR DRIVE AND ENGINE PTO MAGNETIC HOUSING
-
281O-RING 0.139'' Thk x 7.984'' ID, -266, Cl 6, 90 Duro; 8 X 8-1/4 X 1/8 CLASS 7
-
291BEARING CUP; BEARING, SEPARATOR DRIVE HOUSING REAR CUP
-
301ROLLER BEARING; SEPARATOR DRIVE HOUSING REAR CONE
-
311BEARING CUP; SEPARATOR DRIVE HOUSING FRONT CUP
-
321BEARING, ROLLER, CYL 1.968'' ID x 3.2283'' OD x 0.8465''; SEPARATOR DRIVE HOUSING FRONT CONE
-
331SEAL 63.42mm ID x 82.8mm OD x 11mm Thk; SEPARATOR DRIVE HOUSING
-
341SHAFT; SEPARATOR DRIVE, INCLUDES NUTS AND WASHERS
-
1LOCK NUT 1''-14, GC; 1 NF P/T LOCK TYPE 5
-
2WASHER 1 1/16'' x 2'' x .219'', HDN; 1.062 X 2.000 X .219 PHC HDN
-
352LOCK NUT; 1-14 ZND SECURITY LOCK
-
371ROD; SEPARATOR DRIVE ENGINE, INCLUDES NUTS, BOLT AND WASHER
-
1LOCK WASHER M12; NUT, ZND CLASS 8.8 M12
-
2JAM NUT Hex, 5/8'' - 18, Gr 5;
-
1LOCK NUT 5/8''-11, GB; 5/8 CAD PREVAILING TORQUE HEX
-
1BOLT Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd; BOLT, M12 X 40 CLASS 8.8
-
1WASHER 1/2'';
-
382WASHER; SEPARATOR DRIVE ENGINE SNUBBER
-
391INSULATOR; SEPARATOR DRIVE SNUBBER PIPE
-
401GASKET; BOLT HOLE BAR
-
411COVER; BOLT HOLE, INCLUDES BOLTS AND WASHERS
-
2BOLT Hex, 3/8'' - 16 x 5/8'', Gr 5; BOLT, 3/8 X 5/8 TYPE 5
-
2LOCK WASHER Helical Spring, 3/8'';
-
422PIN 12.69mm OD x 34.8mm L; DOWEL, 1/2 x 1-3/8
Select All
Ref.
2Qty
1Availability
Part #
188013C91RDescription
REMAN-CLUTCH DISC; PTO DRIVE, INCLUDES BOLTSImg
Alts
Ref.
2Qty
1Availability
Part #
188013C91CDescription
CORE-CLUTCH PLATE; PTO DRIVE, INCLUDES BOLTSImg
Alts
Ref.
2Qty
1Availability
Part #
188013C91Description
PLATE 354.33mm OD; PTO DRIVE, INCLUDES BOLTSImg
Alts
Ref.
Qty
6Availability
Part #
26316R1Description
BOLT Hex, 1/2'' - 13 x 1'', Gr 8; BOLT, 1/2 X 1 PHC P/T TYPE 8Img
Alts
Ref.
5Qty
-Availability
Part #
188075C92Description
HOUSING; ENGINE PTO, WITH 6, INCLUDES NUTS, WASHERS AND BOLTSImg
Alts
Ref.
Qty
2Availability
Part #
180179Description
BOLT Hex, 1/2'' - 13 x 1 3/4'', Gr 5; 1/2 X 1-3/4 TYPE 5Img
Alts
Ref.
Qty
4Availability
Part #
30544R1Description
BOLT Hex, M16 x 2 x 130mm, Cl 8.8; M16 X 130 CLASS 8.8Img
Alts
Ref.
6Qty
1Availability
Part #
188072C1Description
TUBE 25.4 mm OD, 127 mm Length; ENGINE PTO HOUSING OIL CAGEImg
Alts
Ref.
7Qty
1Availability
Part #
188073C91Description
DIPSTICK; GAGE ASSY, ENGINE PTO HOUSING OIL, WITH 8Img
Alts
Ref.
8Qty
2Availability
Part #
350684R1Description
O-RING 0.139'' Thk x 0.734'' ID, -210, Cl 5, 75 Duro; .734 X 1.012 X .139Img
Alts
Ref.
9Qty
1Availability
Part #
192275C1Description

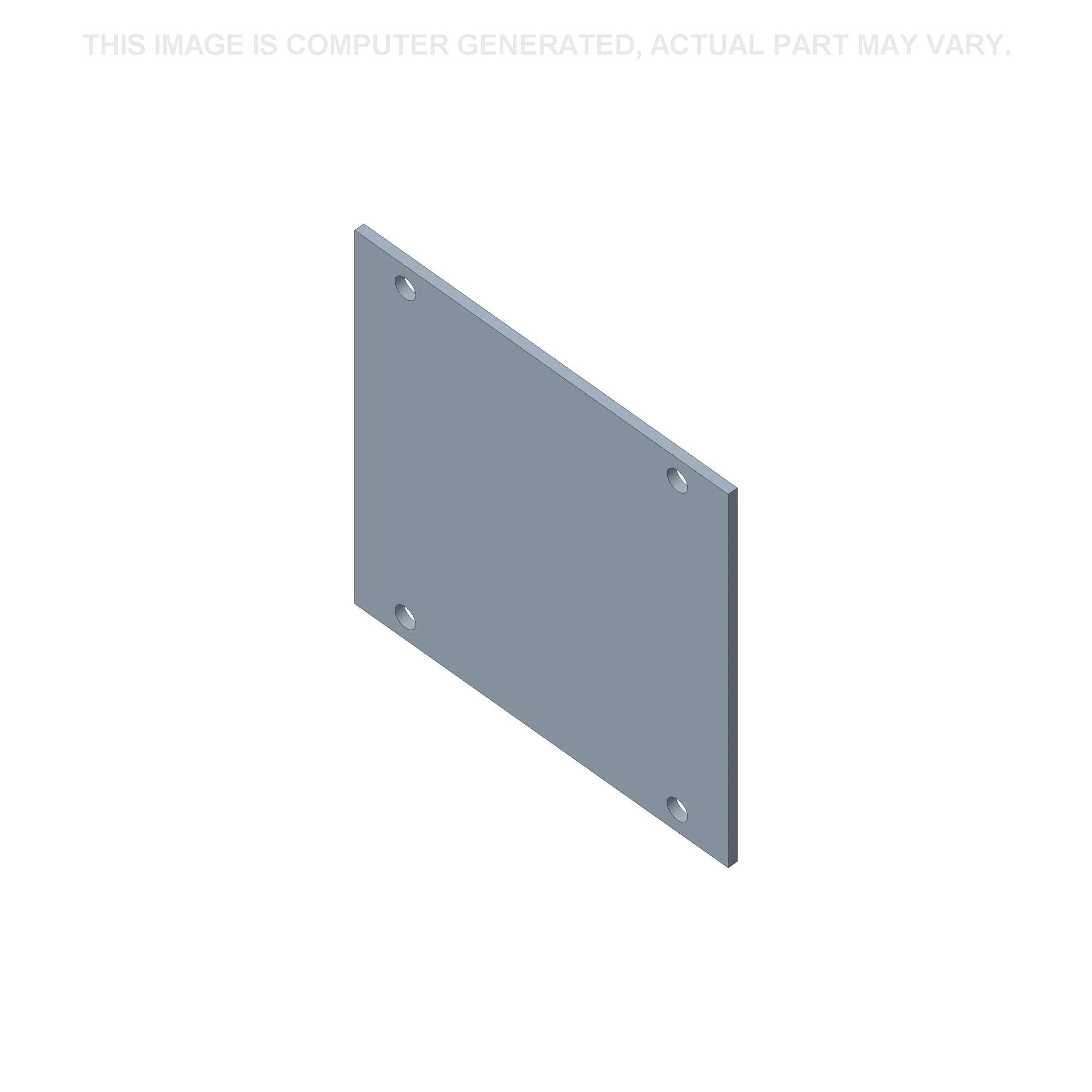

COVER; BAR, PTO HOUSING, INCLUDES BOLTS AND WASHERSImg
Alts
Ref.
Qty
4Availability
Part #
113-206Description
BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5, Full Thd;Img
Alts
Ref.
12Qty
1Availability
Part #
1302924C1Description
GEAR-SET; SEPARATOR DRIVE 44T, 27T MATCHED SETImg
Alts
Ref.
13Qty
1Availability
Part #
27822R1Description
SNAP RING 4.78'', Int, #475; PTO drive shaft brg hub 4.78'', Int, #475Img
Alts
Ref.
15Qty
1Availability
Part #
876086C1Description
O-RING 0.139'' Thk x 6.48'' ID, -260, Cl 8, 90 Duro; 6-1/2 X 6-3/4 X 1/8 CLASS 8Img
Alts
Ref.
16Qty
1Availability
Part #
173133C91Description
OIL SEAL 64.26mm ID x 92.15mm OD x 11mm Thk; PTO SHAFT HOUSINGImg
Alts
Ref.
17Qty
1Availability
Part #
188196C1Description
SHIM KIT; SHIM, PTO DRIVE SHAFT HOUSINGImg
Alts
Ref.
18Qty
1Availability
Part #
192817C2Description
FLANGE 92.02 mm ID x 241.249 mm OD x 54.61 mm; PTO DRIVE SHAFT BEARING, INCLUDES BOLTSImg
Alts
Ref.
Qty
4Availability
Part #
20537R1Description
BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 8; 3/8 X 1-1/4 TYPE 8Img
Alts
Ref.
20Qty
1Availability
Part #
57388DDescription
WOODRUFF KEY #128, 5/16'' x 2 1/8'', HT; 5/16 X 2-1/8 WOODRUFFImg
Alts
Ref.
22Qty
1Availability
Part #
1303141C1Description
COVER; HYDROSTATIC PUMP, INCLUDES BOLTSImg
Alts
Ref.
Qty
3Availability
Part #
180175Description
BOLT Hex, 1/2'' - 13 x 1 1/4'', Gr 5; 1/2 X 1-1/4 TYPE 5Img
Alts
Ref.
Qty
2Availability
Part #
180179Description
BOLT Hex, 1/2'' - 13 x 1 3/4'', Gr 5; 1/2 X 1-3/4 TYPE 5Img
Alts
Ref.
23Qty
1Availability
Part #
1301241C1Description
SENSOR; CONVERTER, RELUCTANCE PICKUP, INCLUDES NUTImg
Alts
Ref.
24Qty
1Availability
Part #
188195C1Description
SHIM KIT; SHIM, SEPARATOR DRIVE HOUSINGImg
Alts
Ref.
25Qty
1Availability
Part #
195461C93Description
HOUSING; ASSY, SEPARATOR DRIVE, WITH 26, INCLUDES BOLTSImg
Alts
Ref.
Qty
ARAvailability
Part #
20537R1Description
BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 8; 3/8 X 1-1/4 TYPE 8Img
Alts
Ref.
26Qty
1Availability
Part #
195439C2Description
PIN 25.29mm OD x 101.6mm L; SEPARATOR DRIVE HOUSING, INCLUDES PIN AND WASHERSImg
Alts
Ref.
27Qty
2Availability
Part #
50057KDescription

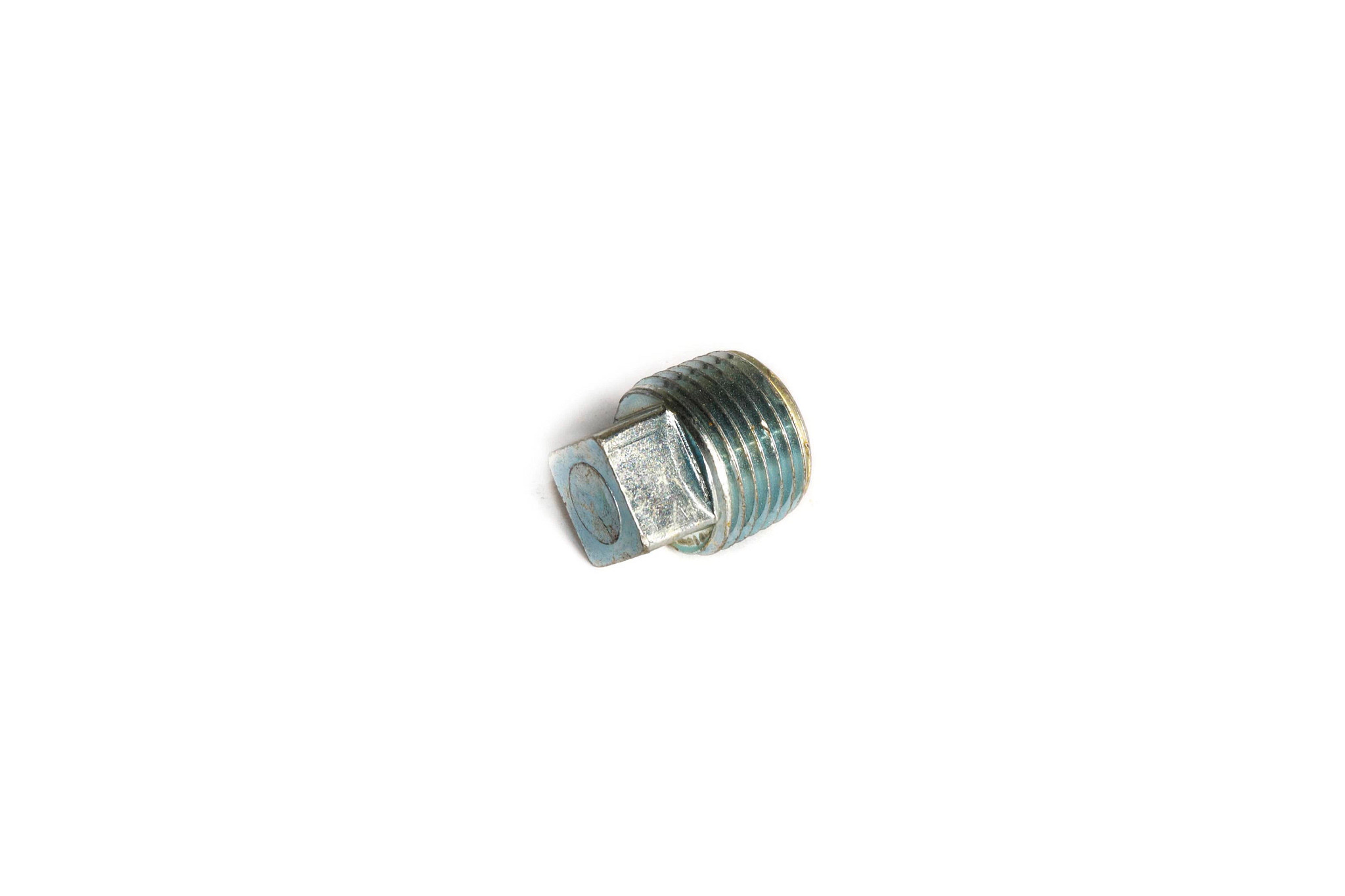

PLUG; SEPARATOR DRIVE AND ENGINE PTO MAGNETIC HOUSINGImg
Alts
Ref.
28Qty
1Availability
Part #
188279C1Description
O-RING 0.139'' Thk x 7.984'' ID, -266, Cl 6, 90 Duro; 8 X 8-1/4 X 1/8 CLASS 7Img
Alts
Ref.
29Qty
1Availability
Part #
ST987Description
BEARING CUP; BEARING, SEPARATOR DRIVE HOUSING REAR CUPImg
Alts
Ref.
30Qty
1Availability
Part #
86577051Description
ROLLER BEARING; SEPARATOR DRIVE HOUSING REAR CONEImg
Alts
Ref.
31Qty
1Availability
Part #
376463C1Description

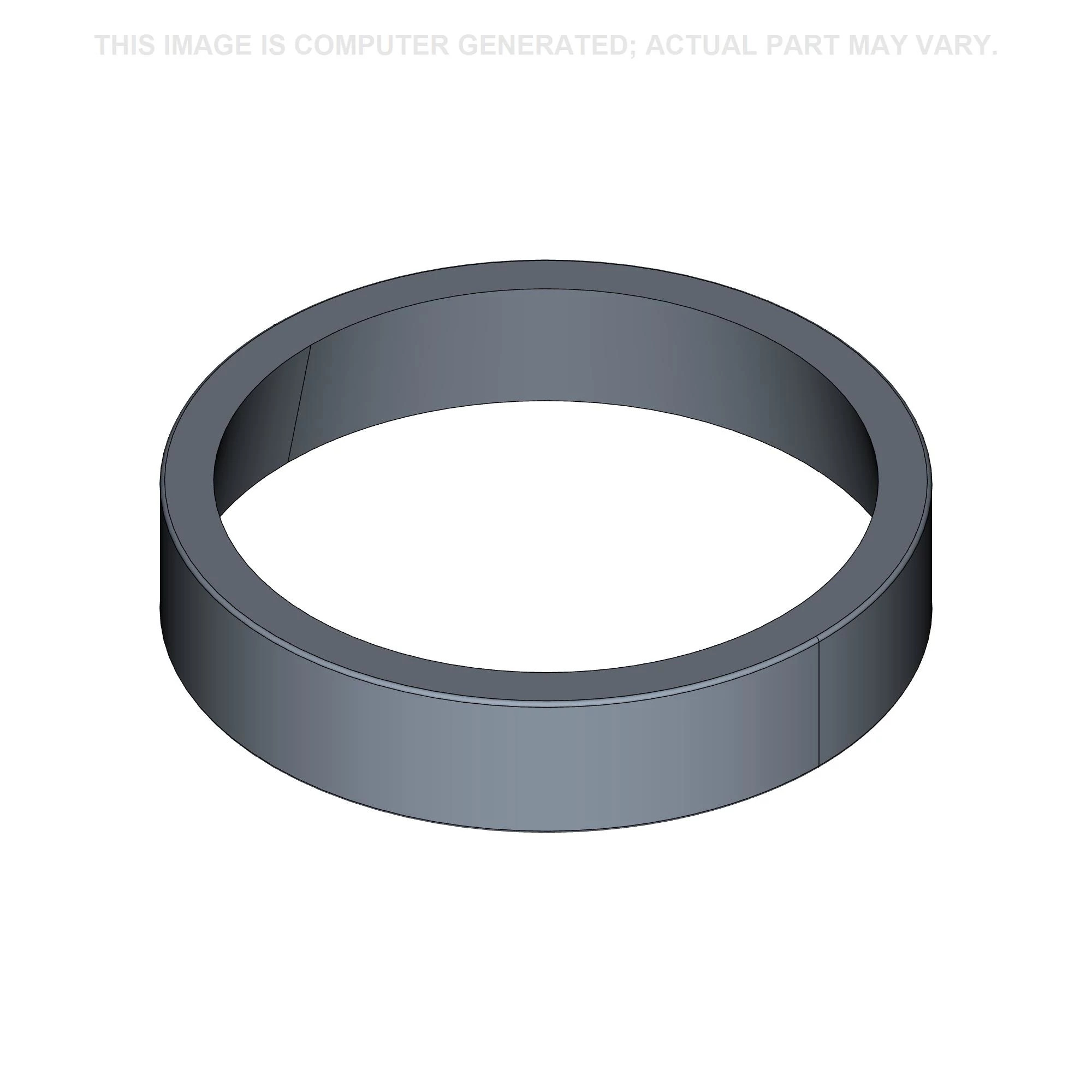

BEARING CUP; SEPARATOR DRIVE HOUSING FRONT CUPImg
Alts
Ref.
32Qty
1Availability
Part #
533729R91Description
BEARING, ROLLER, CYL 1.968'' ID x 3.2283'' OD x 0.8465''; SEPARATOR DRIVE HOUSING FRONT CONEImg
Alts
Ref.
33Qty
1Availability
Part #
194051C1Description
SEAL 63.42mm ID x 82.8mm OD x 11mm Thk; SEPARATOR DRIVE HOUSINGImg
Alts
Ref.
34Qty
1Availability
Part #
191459C1Description
SHAFT; SEPARATOR DRIVE, INCLUDES NUTS AND WASHERSImg
Alts
Ref.
Qty
1Availability
Part #
23261R1Description
LOCK NUT 1''-14, GC; 1 NF P/T LOCK TYPE 5Img
Alts
Ref.
Qty
2Availability
Part #
25550R1Description
WASHER 1 1/16'' x 2'' x .219'', HDN; 1.062 X 2.000 X .219 PHC HDNImg
Alts
Ref.
37Qty
1Availability
Part #
194086C1Description
ROD; SEPARATOR DRIVE ENGINE, INCLUDES NUTS, BOLT AND WASHERImg
Alts
Ref.
Qty
1Availability
Part #
933966R1Description
LOCK WASHER M12; NUT, ZND CLASS 8.8 M12Img
Alts
Ref.
Qty
1Availability
Part #
9413970Description
LOCK NUT 5/8''-11, GB; 5/8 CAD PREVAILING TORQUE HEXImg
Alts
Ref.
Qty
1Availability
Part #
86629541Description
BOLT Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd; BOLT, M12 X 40 CLASS 8.8Img
Alts
Ref.
38Qty
2Availability
Part #
107813R1Description

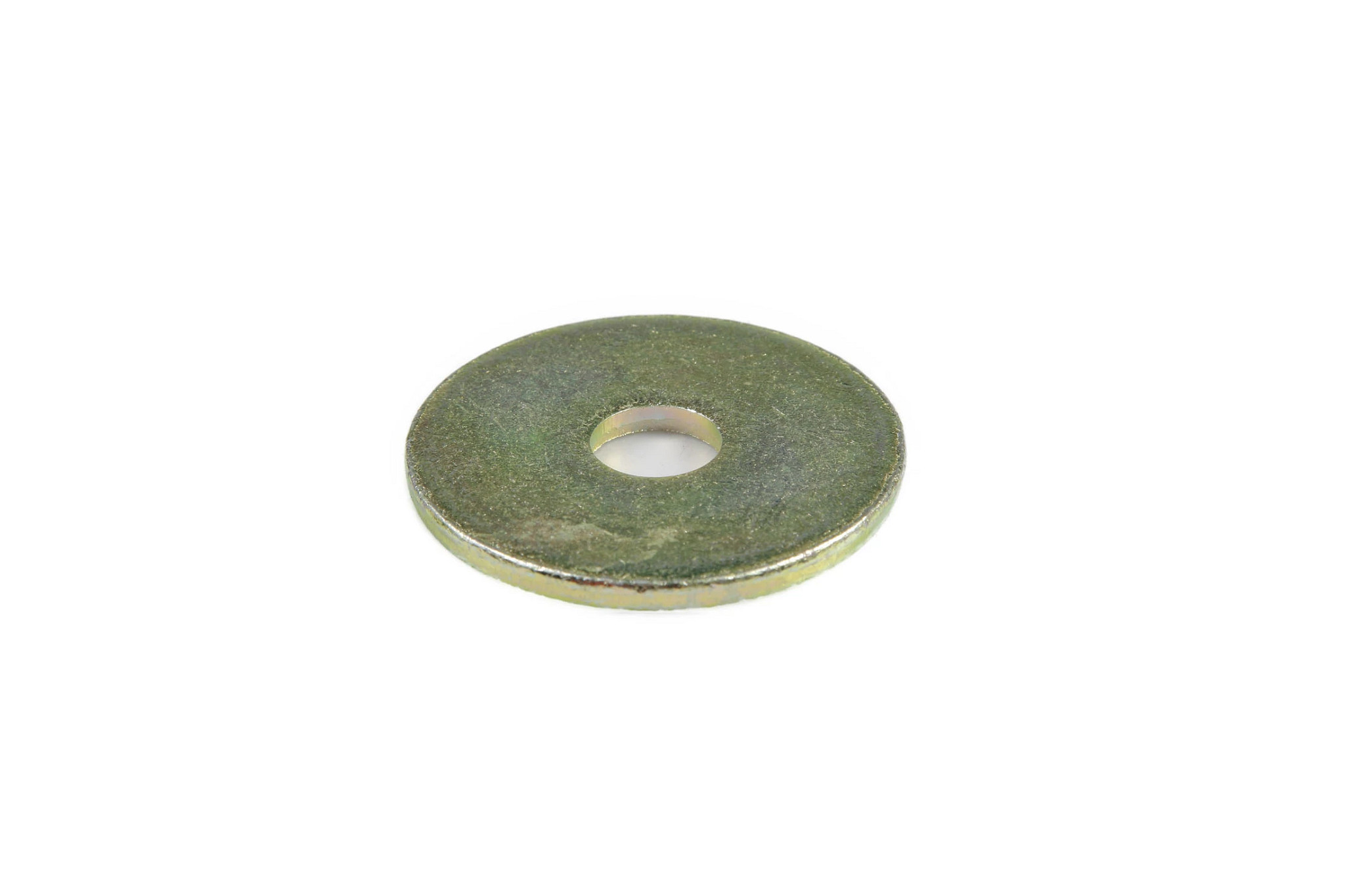

WASHER; SEPARATOR DRIVE ENGINE SNUBBERImg
Alts
Ref.
39Qty
1Availability
Part #
194915C1Description
INSULATOR; SEPARATOR DRIVE SNUBBER PIPEImg
Alts
Ref.
41Qty
1Availability
Part #
185056C1Description
COVER; BOLT HOLE, INCLUDES BOLTS AND WASHERSImg
Alts
Ref.
Qty
2Availability
Part #
180118Description
BOLT Hex, 3/8'' - 16 x 5/8'', Gr 5; BOLT, 3/8 X 5/8 TYPE 5Img
Alts
Ref.
42Qty
2Availability
Part #
375362R1Description
PIN 12.69mm OD x 34.8mm L; DOWEL, 1/2 x 1-3/8Img
Alts
