10.102.010 - ENGINE, OIL PAN
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

129100-01730

Description

SPACER; Oil Pan


Alts

Select

Ref.

2

Qty

1

Availability

Part #

129245-01780

Description

SUMP; Oil, ASSY, Incl 3, 4


Alts

Select

Ref.

3

Qty

1

Availability

Part #

129906-01640

Description

VALVE; includes washer


Alts

Select

Ref.

4

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Oil Pan, Incl in 2


Alts

Select

Ref.

5

Qty

4

Availability

Part #

26106-080162

Description

BOLT;


Alts

Select

Ref.

6

Qty

2

Availability

Part #

26106-080252

Description

BOLT;


Alts

Select

Ref.

7

Qty

16

Availability

Part #

26106-080452

Description

BOLT;


Alts

Select

Ref.

8

Qty

4

Availability

Part #

26106-080502

Description

BOLT;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

51477132

Description

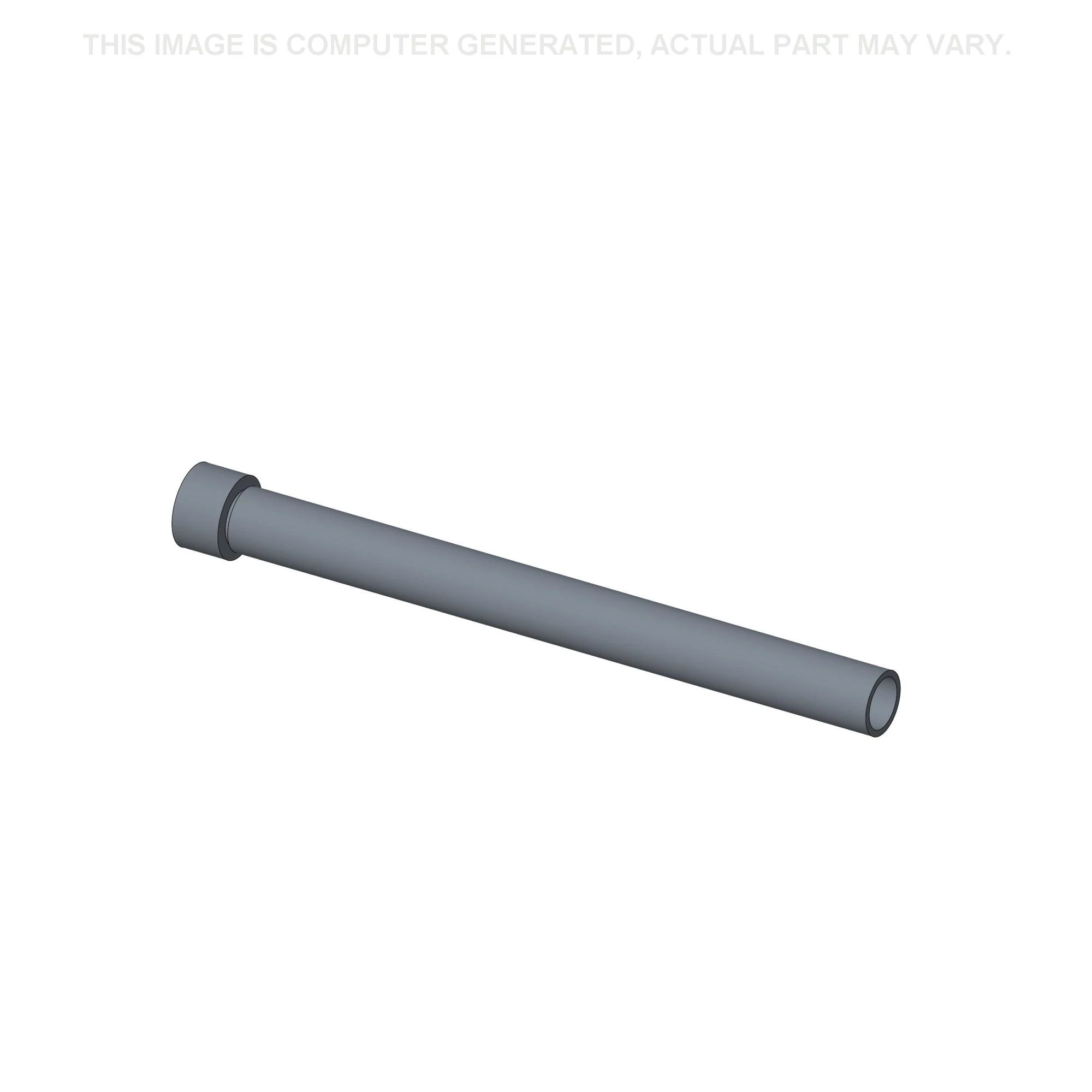

HOSE; Engine Oil Drain M26 x 1.5mm With Hose 250mm


Alts
