41.101.020 - TILT-TELE STEERING COLUMN ASSY, STEERING WHEEL
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

47637732

Description

BRACKET; Front Console


Alts

Select

Ref.

2

Qty

1

Availability

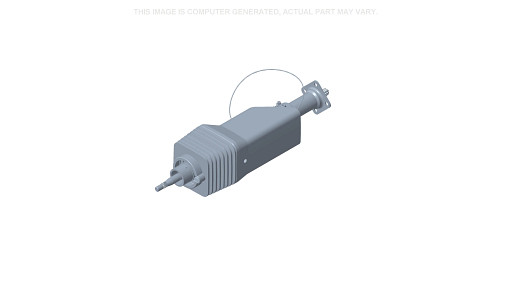

Part #

48176068

Description

STEERING COLUMN; Incl. 25 - 30


Alts

Select

Ref.

3

Qty

1

Availability

Part #

1977448C2

Description

WASHER; Support, Boot


Alts

Select

Ref.

4

Qty

1

Availability

Part #

895-11014

Description

WASHER M14 x 28 x 2.5;


Alts

Select

Ref.

5

Qty

1

Availability

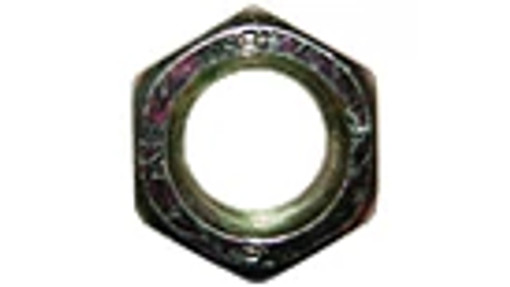

Part #

86639148

Description

NUT Hex, M14 x 1.5, Cl 8, ZND;


Alts

Select

Ref.

6

Qty

1

Availability

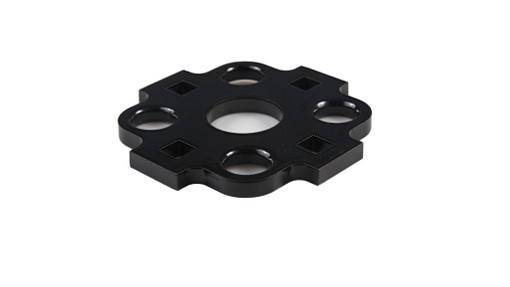

Part #

366073A1

Description

PLATE; Steering Hand Pump Mounting


Alts

Select

Ref.

7

Qty

4

Availability

Part #

295478A1

Description

SPACER; Steering Hand Pump


Alts

Select

Ref.

8

Qty

4

Availability

Part #

370105A2

Description

BOLT Regular Sq Nk, 60mm; Low Profile, M10x60


Alts

Select

Ref.

9

Qty

8

Availability

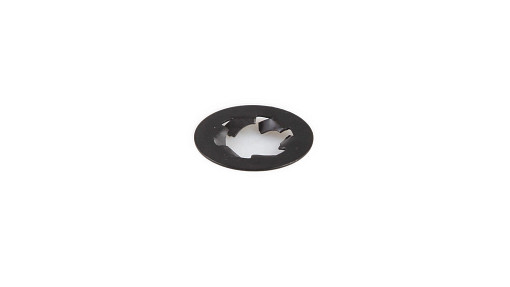

Part #

329677A1

Description

RETAINER 9.09mm ID x 19.87mm OD x 0.38mm Thk; Bolt


Alts

Select

Ref.

10

Qty

1

Availability

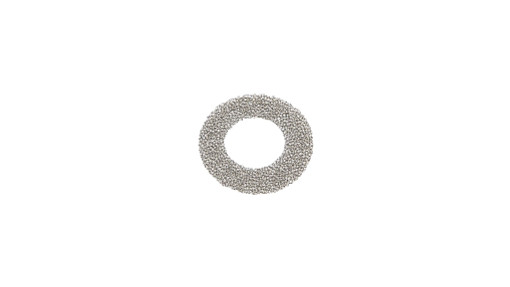

Part #

307559A1

Description

SEAL 25mm ID x 48mm OD x 2mm Thk; Steering Shaft Noise


Alts

Select

Ref.

11

Qty

1

Availability

Part #

296775A2

Description

SEAL; Steering Shaft Noise


Alts

Select

Ref.

12

Qty

4

Availability

Part #

895-11010

Description

WASHER 11mm ID x 20mm OD x 2mm Thk;


Alts

Select

Ref.

13

Qty

4

Availability

Part #

412141

Description

LOCK NUT M10 x 1.5, Cl 8;


Alts

Select

Ref.

14

Qty

1

Availability

Part #

295191A3

Description

PEDAL; Foot Release


Alts

Select

Ref.

15

Qty

1

Availability

Part #

323657A1

Description

PAD; Foot Release Pedal


Alts

Select

Ref.

16

Qty

2

Availability

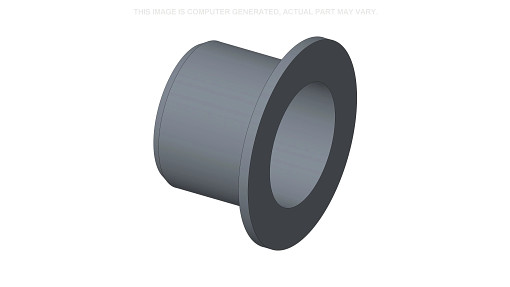

Part #

1533540C1

Description

BUSHING 12mm ID x 14mm OD x 12mm L; Plastic


Alts

Select

Ref.

17

Qty

1

Availability

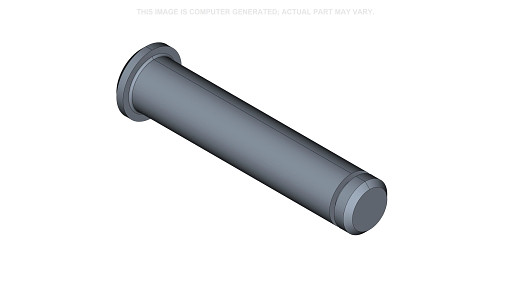

Part #

295192A1

Description

PIN 12mm OD x 62.5mm L; Foot Release Pedal


Alts

Select

Ref.

18

Qty

1

Availability

Part #

277059A1

Description

CLIP; 12MM Retainer


Alts

Select

Ref.

19

Qty

4

Availability

Part #

895-25008

Description

WASHER 9mm ID x 24mm OD x 2mm Thk;


Alts

Select

Ref.

20

Qty

4

Availability

Part #

825-2408

Description

FLANGE NUT M8 x 1.25, Flg, Cl 8;


Alts

Select

Ref.

21

Qty

4

Availability

Part #

434177A1

Description

ISOLATOR; Center Bonded


Alts

Select

Ref.

22

Qty

8

Availability

Part #

86636827

Description

WASHER 0.41'' ID x 1.25'' OD x 0.13'' Thk;


Alts

Select

Ref.

23

Qty

4

Availability

Part #

9706704

Description

BOLT Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd;


Alts

Select

Ref.

24

Qty

4

Availability

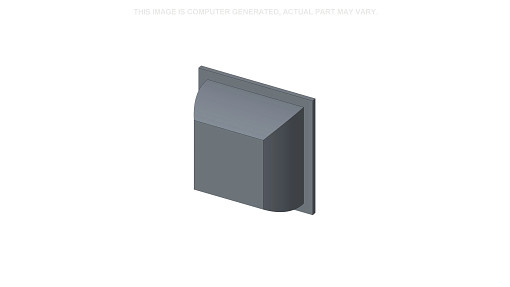

Part #

84216688

Description

RUBBER BUTTON; Button, Rubber, Square


Alts

Select

Ref.

25

Qty

1

Availability

Part #

359033A1

Description

STEERING WHEEL; Premium


Alts

Select

Ref.

26

Qty

1

Availability

Part #

87741918

Description

CAP; Cap With Insert


Alts

Select

Ref.

27

Qty

1

Availability

Part #

378914A1

Description

CAP; Cap Without Insert


Alts

Select

Ref.

28

Qty

1

Availability

Part #

87666943

Description

EMBLEM; NH


Alts
