B-13 - POWER TRAIN, TRANSMISSION AND POWER TAKE OFF DRIVE, GEAR DRIVE TRACTORS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    358878R1

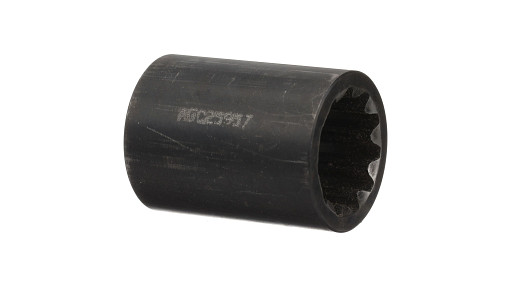

    SLEEVE; COUPLING, transmission drive shaft;Not used on tractors with torque amplifier.;Not used on tractors with forward and reverse drive.
  • 2
    1
    360491R5
    SHAFT; clutch;Not used on tractors with torque amplifier.;Not used on tractors with forward and reverse drive.
  • 3
    2
    363514R93
    OIL SEAL; power take off drive gear oil;Not used on tractors with forward and reverse drive.
  • 4
    1
    374167R1

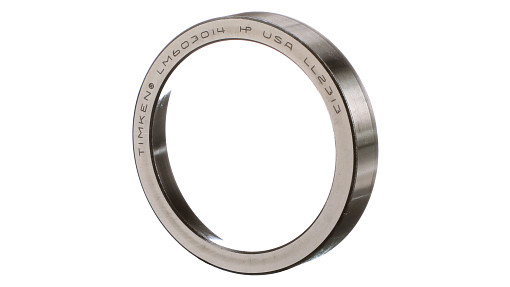

    CUP ASSY.; BEARING, PTO drive shaft rear cup;Not used on tractors with forward and reverse drive.
  • 5
    1
    G15215
    ROLLER BEARING; BEARING ASSY, PTO drive shaft rear cone;Not used on tractors with forward and reverse drive.
  • 6
    1
    388627R1
    EIXO; power take-off drive, 24 teeth;Not used on tractors with forward and reverse drive.
  • 6
    1
    389146R1
    EIXO; independent PTO drive, 29 teeth, tractors w/1000 RPM PTO
  • 7
    1
    ST2118
    ROLAMENTO ROLETE CÔNICO 1.75'' ID x 3.27'' OD x 0.9375''; BEARING ASSY, PTO drive shaft front cone;Not used on tractors with forward and reverse drive.
  • 8
    1
    ST987
    CAPA DE ROLAMENTO; BEARING, PTO drive shaft front cup;Not used on tractors with forward and reverse drive.
  • 9
    1
    252556R1
    O-RING 0.139'' Thk x 5.234'' ID, -252, Cl 5, 75 Duro; SEAL, PTO drive shaft bearing cage;Not used on tractors with forward and reverse drive.
  • 10
    1
    388674R1
    CAGE; power take-off drive shaft bearing;Not used on tractors with forward and reverse drive.
  • 4
    179840
    BOLT Hex, 3/8'' - 16 x 1 1/8'', Gr 5; SCREW, 3/8-16 x 1-1/8 hex-hd cap
  • 11
    1
    524598R91
    BALL BEARING 20mm ID x 52mm OD x 15mm W; clutch pilot ball
  • 12
    1
    388676R1
    SHIM; PTO drive shaft brg, .007;Not used on tractors with forward and reverse drive.
  • 13
    1
    358876R1
    CONTRA PORCA; drive shaft lock;Not used on tractors with torque amplifier.;Not used on tractors with forward and reverse drive.
  • 14
    1
    358875R1
    ARRUELA PLANA; drive shaft nut;Not used on tractors with torque amplifier.;Not used on tractors with forward and reverse drive.
  • 15
    1
    361248R92
    VEDANTE DE ÓLEO; transmission drive shaft front bearing retainer oil;Not used on tractors with forward and reverse drive.
  • 16
    1
    360739R1
    HUB; RETAINER ASSEMBLY, transmission driving shaft front bearing;Not used on tractors with torque amplifier.;Not used on tractors with forward and reverse drive.
  • 3
    179845
    BOLT Hex, 3/8'' - 16 x 1 3/4'', Gr 5; SCREW, 3/8-16 x 1-3/4 hex-hd cap
  • 17
    1
    400842R91
    OIL SEAL; transmission driving shaft oil;Not used on tractors with torque amplifier.;Not used on tractors with forward and reverse drive.
  • 18
    1
    360741R1
    WASHER; SPACER, transmission driving shaft bearing retainer;Not used on tractors with torque amplifier.;Not used on tractors with forward and reverse drive.
  • 19
    1
    360498R1
    GASKET; transmission drive shaft front bearing retainer;Not used on tractors with torque amplifier.;Not used on tractors with forward and reverse drive.
  • 20
    1
    360740R1
    BUSHING; SPACER, transmission drive shaft;Not used on tractors with torque amplifier.;Not used on tractors with forward and reverse drive.
  • 21
    1
    164513R1
    O-RING; 1-3/8 x 1-5/8 x 1/8, transmission drive shaft spacer;Not used on tractors with torque amplifier.;Not used on tractors with forward and reverse drive.
  • 22
    1
    379440R91
    NO LONGER SERVICED; BEARING, transmission drive shaft front roller;Not used on tractors with torque amplifier.;Not used on tractors with forward and reverse drive.
  • 23
    1
    360496R1
    CAGE; transmission drive shaft bearing;Not used on tractors with torque amplifier.;Not used on tractors with forward and reverse drive.
  • 4
    NLS
    NO LONGER SERVICED;
  • 24
    1
    360493R1
    BUSHING; SPACER, drive shaft brg, roller;Not used on tractors with torque amplifier.;Not used on tractors with forward and reverse drive.
  • 25
    1
    401961R91
    BEARING; transmission drive shaft rear;Not used on tractors with forward and reverse drive.
  • 26
    1
    388626R1
    SHAFT; transmission drive, 22 teeth;Not used on tractors with torque amplifier.;Not used on tractors with forward and reverse drive.
  • 27
    1
    370504R1

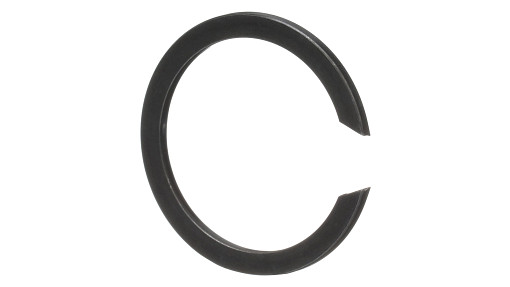

    RING; transmission main shaft pilot bearing snap
  • 28
    1
    388168R91

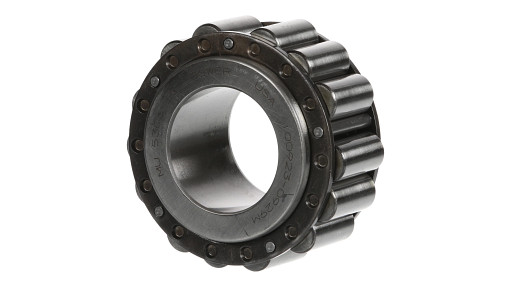

    BEARING, ROLLER, CYL 30mm ID x 60.38mm OD x 30.16mm W; transmission main shaft pilot roller
  • 29
    1
    388167R1
    GEAR; fourth and fifth speed sliding, 37 teeth
  • 30
    1
    388166R1
    GEAR; second and third speed sliding, 48 and 44 teeth
  • 31
    1
    388165R1
    GEAR; first and reverse speed sliding, 57 teeth, standard tractors
  • 31
    1
    397002R1
    GEAR; first & reverse speed sliding, 52 T, tractors w/hi-speed first & reverse attachment
  • 32
    1
    388164R1
    RETAINER; transmission main shaft rear bearing
  • 3
    413-716

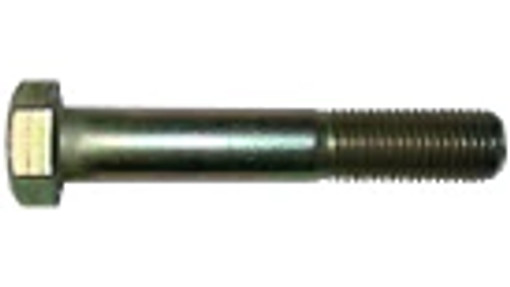

    PARAFUSO Hex, 7/16'' - 14 x 1'', Gr 5; SCREW, 7/16-14 x 1 hex-hd cap
  • 33
    1
    397908R91
    SHIM; PACKAGE, mainshaft rear bearing shim
  • 34
    1
    357035R1
    RING; transmission main shaft rear bearing snap
  • 35
    1
    529427R91

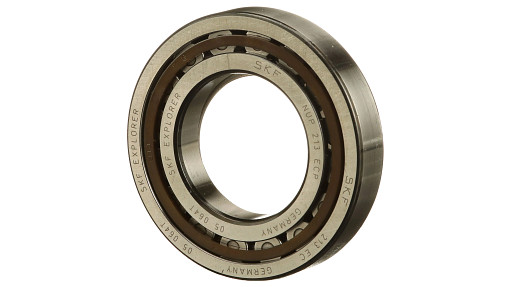

    BEARING, ROLLER, CYL 64.99mm ID x 120mm OD x 23mm W; transmission main shaft rear roller, replaces 388159R91
  • 36
    AR
    360571R1
    CALÇO DE AFINAÇÃO; main shaft rear brg retainer, .030
  • 37
    1
    388158R1
    ENGRENAGEM; SHAFT, transmission main, 14 teeth, Farmall tractors, International row crop tractors, western special tractors and International tractors w/18.4-30 rear tires
  • 38
    1
    388170R11
    GEAR WHEEL; GEAR ASSEMBLY, reverse idler, 19 and 23 teeth, standard tractors;Not used on tractors with forward and reverse drive.
  • 39
    2
    43312DA
    BUCHA 28.39mm ID x 31.69mm OD x 31.75mm L; reverse idler gear;Not used on tractors with forward and reverse drive.
  • 40
    1
    388169R1
    EIXO; reverse idler;Not used on tractors with forward and reverse drive.
  • 1
    577247R1
    PINO DE FIXAÇÃO 3/8'' x 2'', Slotted; Pin, 3/8'' x 2'', Slotted
  • 1
    181354
    BOLT; SCREW, 3/8-24 x 1/2 hex-hd cap
  • 1
    Q1597
    WASHER 13/32'' x 3/4'' x 16 ga; 13/32 x 3/4 x .065
  • 41
    1
    359912R2
    COUPLING; power take-off driven shaft front
  • 1
    553050R1
    LOCK PIN 1/4'' x 1 3/4'', Slotted; Pin, 1/4'' x 1 3/4'', Slotted
  • 42
    1
    393148R1
    RING; power take-off driven shaft rear bearing snap
  • 43
    1
    ST215
    BALL BEARING 40 mm ID x 80 mm OD x 18 mm; BEARING, power take-off driven shaft rear ball
  • 44
    1
    389535R11
    SHAFT; ASSY, independent PTO driven front
  • 45
    1
    360664R1
    RACE; power take-off driven shaft front inner needle bearing
  • 46
    1
    360665R91
    NEEDLE BEARING Needle, 44.44mm ID x 53.99mm OD x 25.4mm W; power take-off driven shaft front inner needle
  • 47
    1
    389536R1
    GEAR; independent PTO driven, 79 teeth
  • 48
    1
    354617R1
    WASHER; independent PTO driven gear retainer
  • 1
    389259R1
    BOLT Hex, 1/2'' - 20 x 1.84'', Gr 4; retaining washer
  • 4
    179838
    BOLT Hex, 3/8'' - 16 x 7/8'', Gr 5, Full Thd; 3/8-16 x 7/8 hex-hd cap
  • 50
    AR
    388154R1
    SHIM; countershaft front brg, .030
  • 50
    AR
    388155R1
    SUPLEMENTO; countershaft front brg, .012
  • 50
    AR
    388156R1
    SUPLEMENTO; countershaft front brg, .007
  • 50
    AR
    388157R1
    SHIM; countershaft front brg, .005
  • 51
    2
    374167R1
    CUP ASSY.; BEARING, countershaft cup
  • 52
    2
    G15215
    ROLLER BEARING; BEARING ASSY, countershaft cone
  • 53
    1
    388152R1
    GEAR; constant mesh, 59 teeth
  • 54
    1
    388151R1
    GEAR; fourth speed driving, 44 teeth
  • 55
    1
    388150R1
    GEAR; third speed driving, 37 teeth
  • 56
    1
    388149R1
    GEAR WHEEL; GEAR, second speed driving, 33 teeth
  • 57
    1
    388148R1
    GEAR; first speed driving, 24 teeth, standard tractor
  • 58
    1
    375374R1
    RING; countershaft snap
  • 59
    1
    400673R1
    SHAFT; COUNTERSHAFT, transmission, Farmall tractors w/serial no. 28886 and above, International tractors w/serial no. 8938 and above
  • 60
    1
    659676R1
    SNAP RING 3.156'', Int, #315; Ring, Snap, , countershaft rear brg, optional with 406754R1 3.156'', Int, #315
  • 60
    1
    406754R1
    RING; countershaft rear bearing snap, optional w/659676R1
  • 61
    1
    389141R11
    SHAFT; independent PTO extension
  • 62
    1
    360168R1
    COUPLING 12T; independent PTO extension shaft
  • 63
    1
    395082R1
    RING; independent PTO driven gear wedge
  • 64
    1
    377952R1
    O-RING 0.103'' Thk x 0.549'' ID, -113, Cl 6, 90 Duro; 9/16 x 3/4 x 3/32, clutch shaft;Not used on tractors with forward and reverse drive.
  • AR
    372704R5
    FLUID; hy-tran, gallon can
  • AR
    372705R5
    FLUID; hy-tran, five gallon can
