10.09 - DELUXE NON/SWIVEL SEATS & ARM REST KIT - 718852026
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

87388680

Description

DRIVER SEAT;


Alts

Select

Ref.

2

Qty

1

Availability

Part #

87385525

Description

PLATE;


Alts

Select

Ref.

3

Qty

2

Availability

Part #

276467

Description

BUMPER; W/Clip


Alts

Select

Ref.

4

Qty

1

Availability

Part #

87594362

Description

SUSPENSION;


Alts

Select

Ref.

5

Qty

1

Availability

Part #

86403923

Description

SAFETY BELT 48.00 mm W;


Alts

Select

Ref.

5A

Qty

4

Availability

Part #

PL

Description

PROCURE LOCALLY; Washer, Flat


Alts

Select

Ref.

5B

Qty

2

Availability

Part #

PL

Description

PROCURE LOCALLY; Bolt, Hex HD 7/16-20


Alts

Select

Ref.

5C

Qty

2

Availability

Part #

PL

Description

PROCURE LOCALLY; Nut, Centerlock 7/16-20


Alts

Select

Ref.

6

Qty

1

Availability

Part #

87525344

Description

SLIDE; Kit


Alts

Select

Ref.

7

Qty

1

Availability

Part #

87385234

Description

SWITCH; Operator's Presence


Alts

Select

Ref.

8

Qty

2

Availability

Part #

87363666

Description

SPACER; Black Polyethylene Plastic, 1.57mm Thick Pivot Bushing


Alts

Select

Ref.

9

Qty

2

Availability

Part #

87385284

Description

BOLT Hex, 3/8 - 16 x 22.5, CST; 3/8


Alts

Select

Ref.

10

Qty

2

Availability

Part #

PL

Description

PROCURE LOCALLY; Nut, CenterLock 3/8-16


Alts

Select

Ref.

11

Qty

1

Availability

Part #

87395391

Description

PLATE; Non Swivel Assembly


Alts

Select

Ref.

12

Qty

1

Availability

Part #

87385286

Description

KNOB;


Alts

Select

Ref.

13

Qty

1

Availability

Part #

87576439

Description

KIT; Seat Tilt Spacer


Alts

Select

Ref.

14

Qty

4

Availability

Part #

83990583

Description

LOCK WASHER 8.2mm ID x 14.8mm OD x 2.1mm Thk;


Alts

Select

Ref.

15

Qty

4

Availability

Part #

86625221

Description

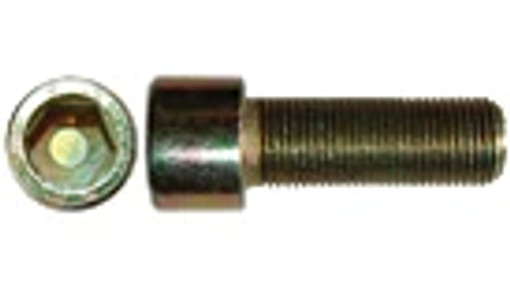

HEX SOC SCREW M8 x 30mm, Cl 8.8;


Alts

Select

Ref.

16

Qty

2

Availability

Part #

PL

Description

PROCURE LOCALLY; Bolt, Hex Hd, 5/16-18x.75


Alts

Select

Ref.

17

Qty

1

Availability

Part #

718852026

Description

ARMREST; KIT, Includes:


Alts
