2-12 - ROLLER DRIVE ASSEMBLY, PICKUP AND LOWER
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    57596
    BELT; V-BELT
  • 2
    2
    861088
    BUCKET TOOTH KEY; 1/2 X 2 KEY - gib
  • 3
    1
    700116042
    SHEAVE; WA

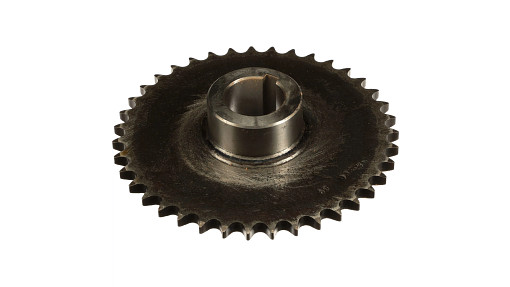

  • 4
    1
    700126376
    SPROCKET; SPROCKET WA - 60B39 tooth
  • 5
    1
    611362R91
    CHAIN (AG); CHAIN - roller, #60 (10 Foot bulk)
  • 6
    1
    241-1316
    LINK 19.05mm Pitch; LINK - connector, #60 (W/spring clip)
  • 7
    1
    249-1
    KEY; 1/4 X 1-3/4 KEY - gib
  • 8
    1
    85951
    SPROCKET ASSY.; SPROCKET - 60B20 tooth
  • 9
    1
    541857R92
    SPROCKET 15T; - idler, 15 tooth
  • 10
    1
    6229256
    SPACER;
  • 11
    1
    51200285
    SCREW; DRAWBOLT
  • 12
    1
    858167
    SPRING; - extension
  • 13
    1
    662958R91
    PULLEY; IDLER - flat
  • 14
    1
    254409
    SPACER;

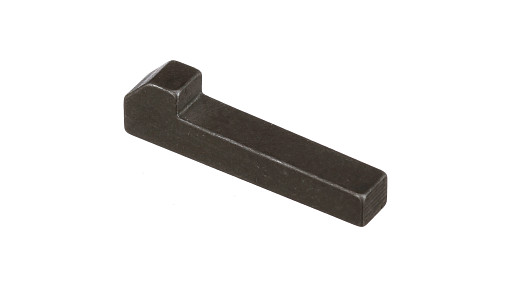

  • 15
    2
    Q81
    KEY Gib, 3/8'' Sq x 1 3/4''; 3/8 X 1-3/4 KEY - gib
  • 16
    2
    7850720
    PINION; SPROCKET - 60B14 tooth
  • 17
    1
    413-1044
    BOLT Hex, 5/8'' - 11 x 2-3/4'', Gr 5; 5/8-11 X 2-3/4 C
  • 18
    2
    396-21066
    WASHER 16.66mm ID x 33.33mm OD x 4.27mm Thk; - 5/8'' bolt size 21/32'' x 1 5/16'' x .150'', HDN

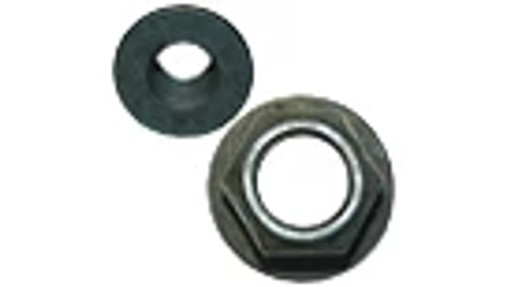

  • 19
    1
    232-53110
    FLANGE NUT Flg, 5/8''-11; 5/8-11 HFTLN GR/G
  • 20
    1
    700116045
    LEVER; WA - idler
  • 21
    1
    86636814
    LUBE NIPPLE 1/4''-28 x .52'' lg; NIPPLE, LUBE, 1/4''-28 x .52'' lg
  • 22
    1
    14145H
    CLEVIS PIN 1/2'' x 2.094''; 1/2 X 1-3/4 CLEVIS PIN
  • 23
    2
    51200163
    CLEVIS;
  • 24
    1
    700116050
    PIVOT ASSY. 25.4 mm OD, 204 mm Length; TUBE - pivot
  • 25
    1
    432-1024
    COTTER PIN 5/32'' x 1 1/2''; 5/32'' x 1 1/2''
  • 26
    1
    413-10152
    BOLT Hex, 5/8'' - 11 x 9-1/2'', Gr 5; 5/8-11 X 9-1/2 B
  • 27
    2
    492-11062
    LOCK WASHER 5/8''; WASHER, LOCK, 5/8''
  • 28
    2
    425-1010
    NUT 5/8''-11, G5;
  • 29
    1
    111-622
    CARRIAGE BOLT Short NK 5/8'' -11 x 2 1/4'', G5; 5/8-11 X 2-1/4 RHSNB
  • 30
    1
    413-840
    BOLT Hex, 1/2'' - 13 x 2-1/2'', Gr 5; .5 X 2.5 UNC GR5 YZD
  • 31
    2
    80679
    LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''

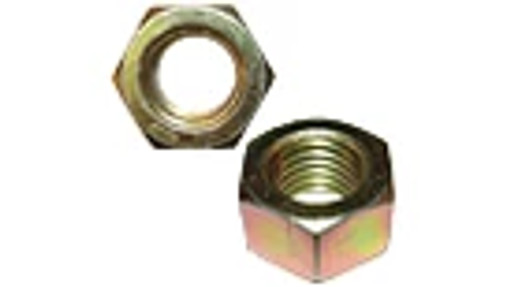

  • 32
    2
    425-108
    NUT 1/2'' - 13, Gr 5; NUT, 1/2''-13, G5
  • 33
    1
    6234710
    SPACER;
  • 34
    1
    413-820
    BOLT Hex, 1/2'' - 13 x 1-1/4'', Gr 5;

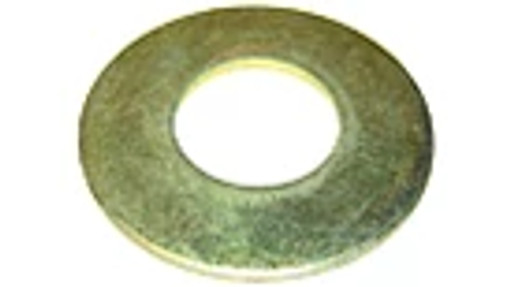

  • 35
    1
    495-21056
    WASHER 1/2''; 1/2 WIDE PLAIN WASHER
  • 36
    1
    432-1016
    COTTER PIN 5/32'' x 1''; 5/32'' x 1''
  • 37
    1
    700116051
    PLATE;
  • 38
    1
    427-8150
    CLEVIS PIN 1/2'' x 1 1/2''; 1/2X1.500 1.281 HD/HOLE CLEVIS ZND
  • 39
    1
    425-116
    NUT 3/8'' - 24, Gr 5; Hex 3/8''-24, G5
  • 40
    1
    700116052
    ROD,THREADED; ROD
  • 41
    1
    6582696
    SPACER; BUSHING
  • 42
    2
    425-106
    NUT 3/8''-16, Cl 5;
