02-14 - AIR CONDITIONER, COMPRESSOR AND CONDENSER
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

1999755C2

Description

AIR COMPRESSOR; See Page(s) 2-33


Alts

Select

Ref.

2

Qty

1

Availability

Part #

238215A3

Description

BELT 12.70mm W x 1406.00mm L;


Alts

Select

Ref.

3

Qty

1

Availability

Part #

291892A1

Description

PLATE; PLATE, LARGE


Alts

Select

Ref.

4

Qty

1

Availability

Part #

291893A1

Description

SUPPORT;


Alts

Select

Ref.

5

Qty

1

Availability

Part #

291328A1

Description

PULLEY; Includes 25


Alts

Select

Ref.

6

Qty

1

Availability

Part #

814-10040

Description

BOUT Hex, M10 x 1.5 x 40mm, Cl 8.8;


Alts

Select

Ref.

7

Qty

2

Availability

Part #

896-15010

Description

RONDELLA 11mm ID x 24mm OD x 3mm Thk; 11 x 24 x 3 mm


Alts

Select

Ref.

8

Qty

1

Availability

Part #

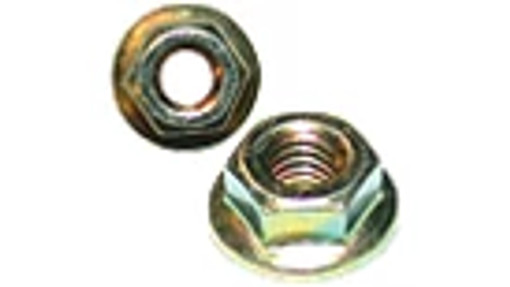

825-2410

Description

TUERCA DE BRIDA M10 x 1.5, Flg, Cl 8;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

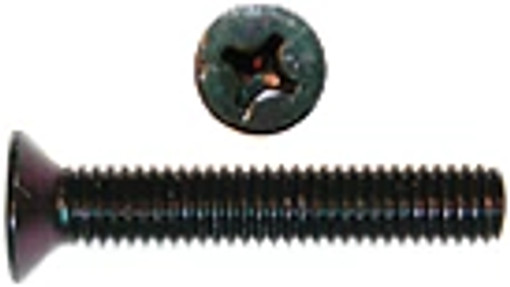

843-2625

Description

TORNILLO Phillips Drive, Flat HD, M6 x 25mm, Cl 4.8; M6 x 25


Alts

Select

Ref.

10

Qty

1

Availability

Part #

233829A4

Description

SUPPORT;


Alts

Select

Ref.

11

Qty

3

Availability

Part #

844-10025

Description

FLANGE BOLT Hex, M10 x 25mm, Cl 8.8;


Alts

Select

Ref.

12

Qty

1

Availability

Part #

814-10130

Description

BOLT Hex, M10 x 1.5 x 130mm, Cl 8.8;


Alts

Select

Ref.

13

Qty

1

Availability

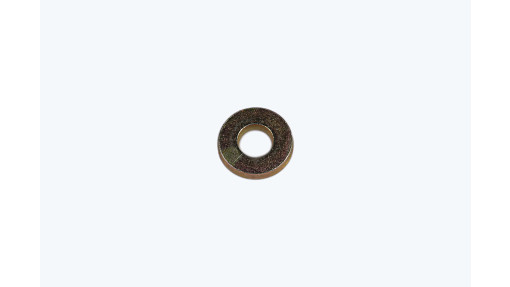

Part #

3120737R1

Description

WASHER 10.8mm ID x 25mm OD x 5mm Thk;


Alts

Select

Ref.

14

Qty

1

Availability

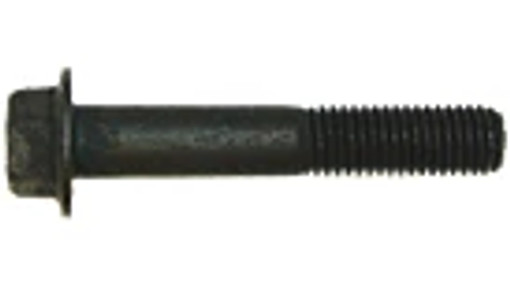

Part #

844-10035

Description

FLANGE BOLT Hex, M10 x 35mm, Cl 8.8;


Alts

Select

Ref.

15

Qty

1

Availability

Part #

222893A5

Description

CONDENSER;


Alts

Select

Ref.

17

Qty

2

Availability

Part #

906044R1

Description

THUMB SCREW M8 x 16mm;


Alts

Select

Ref.

18

Qty

X

Availability

Part #

844-8012

Description

BOLT M8 x 1.25 x 20.1mm, Cl 8.8;


Alts

Select

Ref.

19

Qty

1

Availability

Part #

844-8065

Description

PERNO Hvy Hex, M8 x 65mm, Cl 8.8; M8 x 65,8,8


Alts

Select

Ref.

20

Qty

X

Availability

Part #

282164A1

Description

NUT;


Alts

Select

Ref.

21

Qty

1

Availability

Part #

300396A1

Description

SPACER;


Alts

Select

Ref.

22

Qty

1

Availability

Part #

300460A1

Description

SUPPORT; Upper


Alts

Select

Ref.

23

Qty

1

Availability

Part #

300461A1

Description

SUPPORT; Lower


Alts

Select

Ref.

24

Qty

2

Availability

Part #

300395A1

Description

BUSHING;


Alts

Select

Ref.

25

Qty

1

Availability

Part #

292079A1

Description

ROULEMENT A BILLES Ball, 20mm ID x 47mm OD x 14mm W;


Alts

Select

Ref.

16

Qty

2

Availability

Part #

895-15008

Description

RONDELLE 9mm ID x 20mm OD x 1.6mm Thk;


Alts
